Daikin TYPE4 Checker User manual

TYPE4 Checker
Instruction Manual
Global Service Department
June, 2019
AS0112-P-DENV
0
https://daikin-p.ru

Table of contents
Introduction 2
Chapter 1 Overview and preparation 3
1-1 What’s the service checker? 3
1-2 Preparation 5
1-2-1 Essential materials 5
1-2-2 Other materials to prepare 6
1-2-3 Required to do before recording 7
Chapter 2 Installing the checker software 9
2-1 Obtainment of software (new/update) 9
2-2 Installation procedure 9
2-3 Removal of software 13
2-3-1 From Windows control panel 13
Chapter 3 Connecting to the unit 15
3-1 D3-NET (F1,F2) connection 15
3-2 Connecting power supply 16
Chapter 4 Overview of the checker software 17
4-1 Start up the checker software 17
4-2 Quit the checker software 17
4-3 Overview of the checker software function 18
Chapter 5 Recording operation data 19
5-1 Viewing operation data 19
5-1-1 Customer info selection 19
5-1-2 Network map display 22
5-1-3 Switching modes 24
5-1-4 Detailed info input 26
5-1-5 Operation data display 28
5-2 Recording setup 32
5-2-1 Setup recording 32
5-3 Centralized operation 34
Chapter 6 Playback of recorded operation data 36
6-1 Playing operation data 36
6-2 Viewing customer/network map information 39
6-3 CSV output (export function) 41
Chapter 7 Other functions 43
7-1 Data transfer 43
7-2 Customer information 45
7-3 Option setting 46
7-3-1 Setup COM port 46
7-3-2 Prohibit/permit centralized control 47
7-3-3 Change display language 48
7-3-4 Change display unit of measure 48
7-4 Help function 49
Frequently asked questions 51
Specification 55
AS0112-P-DENV
1
https://daikin-p.ru

Thank you for purchasing TYPE4 Checker.
This document instructs how to use TYPE4 Checker and Windows PC software for TYPE4 Checker (TYPE4
software). Please read carefully this document before using and use for correct use.
There could be a risk of unexpected accidents unless respecting cautions in this document.
Introduction
[Instructions for your safety]
In this document;
items which could result fatal damage unless respecting are marked as [WARNING],
items which could result serious damage to equipment are marked as [CAUTION].
The contents of this document could be updated without precautions.
The contents of this document is not allowed to reprint without permissions.
Functions, ways to use this software, and supported VRV models by this software are different based on
software version. In this document, instructions are targeted at V1.2.1.1 or later version.
PC software for TYPE3 Checker does not work with TYPE4 Checker. If you have not installed TYPE4 software
to your PC, please obtain it before using.
To obtain the latest information (manual, software), please check on Daikin Europe Business Portal:
https://my.daikin.eu
AS0112-P-DENV
2
https://daikin-p.ru

Chapter 1: Overview and preparation
1) Overview
Service checker is the tool which visualizes operation data (sensor readings, actuator status, operation mode,
etc.) of VRV air conditioning units.
2) Composition
Service checker consists of two main components (TYPE4 checker box, TYPE4 checker software). It works with
Windows PC which is connected to TYPE4 checker box by USB cable. It is necessary to install TYPE4 checker
software to your Windows PC before using.
•TYPE4 checker components (see 1-2-1 Essential materials)
•Windows PC (see 1-2-2 Other materials to prepare)
1-1 What’s the service checker?
[Software update]
Supporting new VRV models is realized by PC software, so it is necessary to update TYPE4 checker software
for supporting newly introduced products.
3) Purpose
•Troubleshooting, diagnosis of VRV systems (supporting diagnosis by visualized operation data)
•Commissioning of VRV systems (checking number of connected indoor units, operation condition check)
4) How to obtain TYPE4 checker box
This tool is distributed as service part from local affiliate/distributor of Daikin. Please contact your local Daikin
affiliate/distributor for purchasing TYPE4 checker box as the other spare parts.
(Note) This tool is not designed for permanent installation such as continuous monitoring or long term data
logging and such ways of using are not guaranteed. If a permanent monitoring is necessary, please consider
using remote monitoring service.
D3-NET connection wire
(field procurement)
TYPE4
checker box
VRV
Windows PC
TYPE4 software
(download)
USB cable (included)
AS0112-P-DENV
3
https://daikin-p.ru

Main switch Red colored LED will lit if you toggle this switch.
USB 2.0 port
(Type-B)
Connecting to Windows PC by USB cable. This port is for power supply (5VDC)
from PC USB port and communication with PC.
* Please use the USB cable which is included in the TYPE4 package.
D3-NET connection
port
Connection port for D3-NET communication cable.
(This is not for power supply terminal, please do not apply power line. If you
connect power supply to this port, TYPE4 Checker box will be broken and
burnt.)
5) TYPE4 checker details
Main switch
D3-NET connection
port
USB2.0 port (Type-B)
For communication with Windows PC or power
supply by PC USB port or AC adapter (5V)
AS0112-P-DENV
4
https://daikin-p.ru

Standard components which are required for VRV operation data recording are below.
1. TYPE4 Checker box (Part number: 999176T)
(1) TYPE4 Checker box
(2) USB cable
Connection cable for connecting Checker and PC
(USB Type B - USB Type A)
: standard USB cable
1-2 Preparation
1-2-1 Essential materials
Preparations for materials to be necessary for VRV operation data recording will be explained in this section.
1-2-1: Essential materials (TYPE4 checker)
1-2-2: D3-NET cable
AS0112-P-DENV
5
https://daikin-p.ru

1) Required PC specification
•PC type
•Windows PC
•CPU 1GHz+, Memory 2GB+, HDD 20GB+
•Windows7 SP1 or later, Windows 8.0 /8.1 /10
•USB port
1-2-2 Other materials to prepare
2) D3-NET connection cable
D3-NET connection cable does not come with TYPE4 Checker package. Please prepare below cable to connect
TYPE4 Checker and VRV D3-NET port.
(1) Prepare the following signal wires. (Refer to the below notes.)
When connecting to an outdoor unit, it is appropriate for the signal wires to have 2 m in length. When
connecting to an indoor unit or wiring indoor from the outdoor unit, it is possible to lengthen the signal wires
within the limits of the D3-NET length.
(2) D3-NET connection terminal specification of TYPE4 Checker
For D3-NET communication wire connection, wire terminal listed
below are recommended (M3 type screw is used for terminal)
•R1.25-3 (JIS)
•R1.25-3.5 (JIS)
•R2-3.5 (JIS)
In case of use circular shaped wire terminal, please select wire
terminal which fits this terminal block.
For control signal wiring, use vinyl cords or cables with two-core and sheathed as follow.
•Vinyl cabtyre cylindrical cord VCTF JISC3306
•Vinyl-insulated vinyl sheathed cable for control CVV JISC3401
•Vinyl-insulated vinyl sheathed, cylindrical cable for control CVS JISC3401
•Vinyl-insulated vinyl sheathed, cylindrical cable VVR JISC3342
•600V vinyl cabtyre cable VCT JISC3312
Cautions:
1. Do not use multiple-cored wires with 3 cores or more.
2. Use wires with a cross section of 0.75mm2 -1.25mm2.
3. Do not make wires bound in control- signal wiring. Do not make long-distance wiring by having signal wires
bound packed with tapes, tie-laps and the like.
4. Wire the signal wires away from power lines to prevent the effects of electric noise. Since Daikin’s air
conditioners and related products will generate much lower electric noises, it allows to have a distance of
minimum 50mm between the power lines and the control signal wires.
AS0112-P-DENV
6
https://daikin-p.ru

1-2-3 Required to do before recording
After finishing preparation of materials, further preparation is needed for executed as the listed procedure.
1) TYPE4 software installation (setup)
2) Connecting PC and Checker
3) Confirmation of connection
4) Check of supported models
1) TYPE4 software installation (setup)
2) Connecting PC and Checker
Following the instruction of Chapter 2 (Installing the checker software), install checker software.
(Back: USB 2.0 terminal (Type-B))
PC Checker box
Connect PC and Checker by the USB cable included in the Checker package.
B connector
A connector
USB cable
(included)
3) Confirmation of connection
To avoid troubles such as PC and Checker connection, please check connection between PC and Checker as
instructions listed below.
[How to confirm]
Connection check can be done without connecting checker and VRV.
[Confirmation procedure]
•Connect PC and Checker, turn on Checker
•Start Checker software
•Select correct COM port which is connected to Checker (default selection is COM1)
(1) Click Setting(S) > Port(P)
AS0112-P-DENV
7
https://daikin-p.ru

4) Check of supported models
• Press “Record” in main menu
• Click “Record only” in Customer Selection window
•Enter any names in network map name box and press OK button to proceed.
•Please below check in network map window.
[OK case]
Wait for about 10sec, if there will be no [Not OK case] messages shown, connection is OK.
[Not OK case]
Wait for about 10sec, if there will be messages like “Port could not be opened”, “It could not be started, please
check connection” are shown, communication was not executed correctly. Please go back (exit) once and
check COM port setting in option menu. Then please check again.
[Supported model list]
•In HELP menu of Checker software
(2) Select COM port to be used in Select Port window
(3) Click OK button to proceed.
Click top box and select COM port number to use.
Please select COM port number which shows “Silicon Labs
CP210x USB to UART Bridge” in the 2nd box.
COM port number is different from PC.
(Note) In case of no COM port with “Silicon Labs CP210x USB to UART Bridge”
It is necessary to install USB port device driver.
Please obtain correct device driver from vendor website.
https://www.silabs.com/products/development-tools/software/usb-to-
uart-bridge-vcp-drivers
AS0112-P-DENV
8
https://daikin-p.ru

Chapter 2: Installing the checker software
2-1 Obtainment of software (new/update)
Please obtain checker software from your Local Daikin Affiliate Business Portal webpage or ask your local Daikin
affiliate/ distributor.
(Reference) Daikin Europe Business Portal:
https://my.daikin.eu
•Software update
When new VRV models introduced, it could be necessary to update checker software to check operation data of
new model.
AS0112-P-DENV
9
2-2 Installation procedure
1) Please download from Daikin Business Portal and execute installation file on your PC folder.
2) Installer program will start.
If .NET Framework 4.6.2 or higher is not installed in your PC,
installation of .NET Framework 4.6.2 will start.
If it is already installed, move to (4).
Please click Accept button to proceed.
If above message will be shown, press OK button to proceed.
3) Installation will start, please wait for completion.
Move to (4) after installation completed.
https://daikin-p.ru

4) Installation of checker software starts.
Please click [Next] button.
•If the old version software is installed it will be overwritten by
newer version.
•If the same version is installed, move to (10).
5) Select destination folder to install
If you do not change, software will be installed to the below
folder.
•32bit OS:C:\Program Files\Daikin\Checker4\
•64bit OS:C:\Program Files(x86)\Daikin\Checker4\
To change installation folder, please install after change the
system setting.
* If you do not have the administrator rights, installation might
not be executed. Please consult with your PC administrator such
as IT department for further support.
6) Click [Next] button to proceed
If above screen will be shown, please press Yes to proceed.
AS0112-P-DENV
10
https://daikin-p.ru

9) In start menu, “Daikin Service Checker TYPE4” will be added
under “Daikin” folder and desktop.
* Left picture is a sample of Windows7 PC
* Looks of start menu display could differ from Windows version
and PC situation.
7) When installation started, wait for the completion.
8) Installation completed
AS0112-P-DENV
11
https://daikin-p.ru

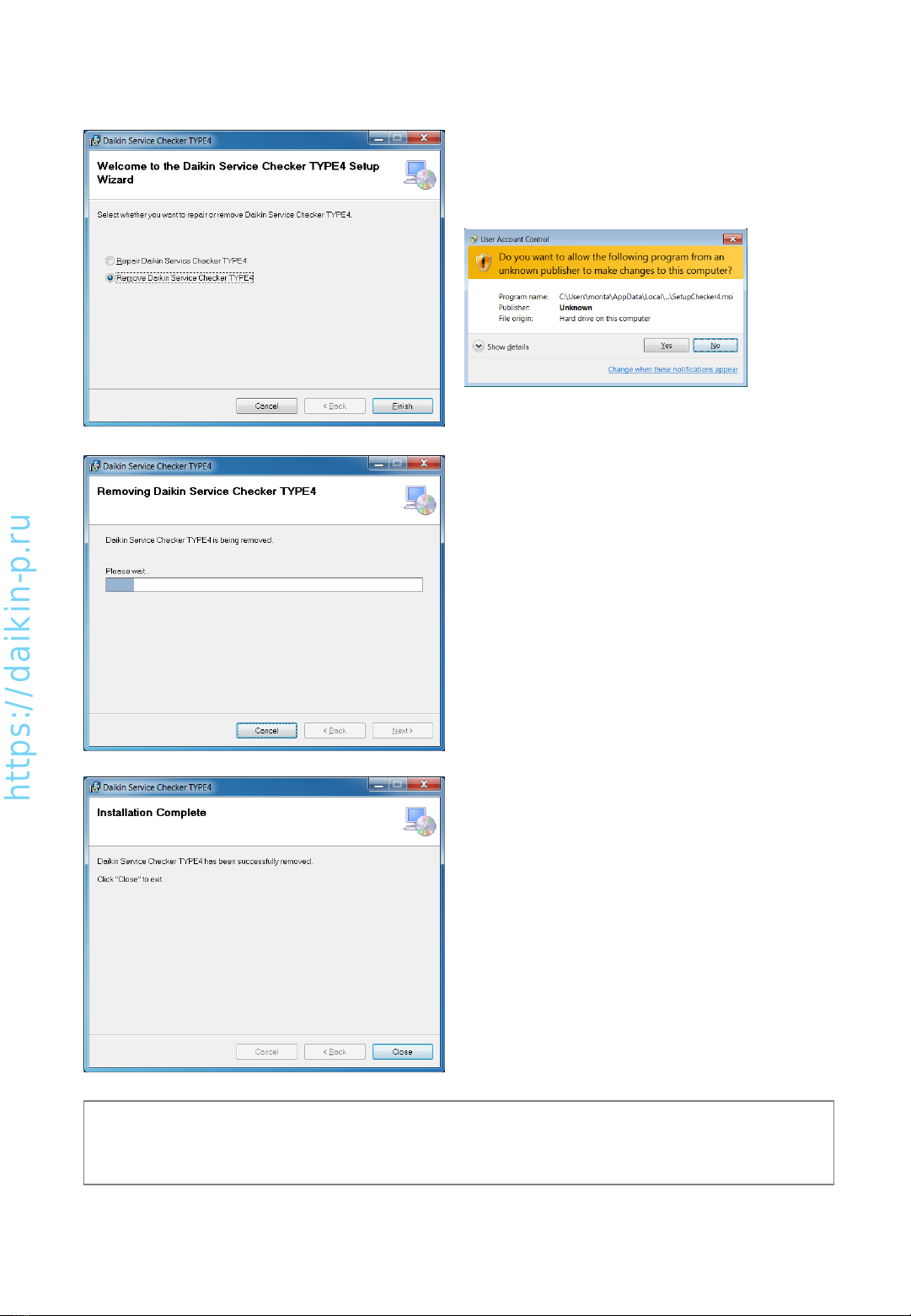

[Removal of software (uninstallation)]
10) If the same version software is installed, left window
will be shown.
Select Remove and press “Finish”
If above screen will be shown, press Yes to proceed.
11) Software will be removed.
12) Software has been removed.
(Note)
* Even if the software will be removed, recorded data will remain. You can utilize them once you’ll install
the software.
AS0112-P-DENV
12
https://daikin-p.ru

2-3 Removal of software
[Overview]
There are two options for software removal.
1) From Windows control panel
2) By checker installation file
(instructed by step (10) of 2-2 Installation procedure)
2-3-1 From Windows control panel
Use this option if there is not installation file in your PC.
(It is easier to uninstall from installer file for update)
Procedure will be explained in below procedure with Windows7 and Windows10 sample.
[Procedure]
1) Select Control panel of Windows
[Windows7] [Windows10]
2. Select Control panel under Windows System
1. Click Start button
2) Double click Program
Double click Program
1. Click Start button
2. Select Control panel
Double click Program
AS0112-P-DENV
13
https://daikin-p.ru

3) Select Daikin Service Checker TYPE4 and click Uninstall
After this point, uninstall process will start. This process is same for Windows7 and 10.
Please carry out uninstallation process by following instruction.
(Please follow instructions for the OS other than Winsows7 and 10)
1. Select Daikin Service Checker TYPE4
2. Click Uninstall
2. Click Uninstall
1. Select Daikin Service Checker TYPE4
(Note)
* Even if the software will be removed, recorded data will remain. You can utilize them once you’ll install the
software.
AS0112-P-DENV
14
https://daikin-p.ru

Chapter 3: Connecting to the unit
[Warning]
In case of long term logging or using in the outdoor under rainy weather, please take appropriate
countermeasure for protection from rainwater to avoid electric shock or fire.
D3-NET connection wire
TYPE4
checker box
VRV
PC
USB cable (included)
[Connection procedure]
(1) Connect with D3-NET connection wire prepared in 1-2 Preparation part in this manual.
Please connect wire to D3-NET terminal of checker first. (If connect to D3-NET terminal of VRV and F1-F2
will be short-circuited, unit could be damaged)
(2) Connect another end of D3-NET connection wire to communication terminal (F1-F2) of VRV unit.
[Warning]
Please connect to communication terminal of VRV (outdoor unit or indoor unit) or centralized
controller. If it would be connected to power terminal, there is a possibility of fatal accident by
electric shock or damage of the unit.
[Caution]
1. It’s not necessary to correspond F1-F2 of the transmission terminal of VRV to F1-F2 of the
checker like F1-F1 or F2-F2 respectively (no polarity).
2. Recommended connection point of VRV unit is F1-F2 terminal of OUT-OUT connection of outdoor
unit, but it can be connected to indoor unit or centralized controller.
3. In case of connecting to indoor unit, please connect to the last indoor unit of the line to avoid
sub-branching.
4. To extend wiring length (up to hundreds of meters), it could cause affection to the unit’s
operation. Please be aware of electric interference such as taking enough distance from power line.
AS0112-P-DENV
15
3-1 D3-NET (F1,F2) connection
https://daikin-p.ru

[Caution before using]
•When connecting to the VRV unit for the first time, the unit will change to stand-by mode for several minutes to
scan all the connected indoor and outdoor units. The system will automatically resume after finishing auto-
scanning (for 2nd time and onwards, system would not enter stand-by status by choosing saved network map).
•Data refresh interval depends on the refresh interval of connected VRV model (normally between 1 min to 5
min) regardless of data saving interval setting of checker software.
•In case of DTA109 adapter (D3-NET expander) is installed, Checker cannot collect operation data beyond the
point of DTA109 (for example, if you connect Checker in main bus, operation data of VRV systems in branch bus
cannot be monitored).
•If Wiring Adaptor for Electrical Appendices (1) or (2) (KRP2A or KRP4A) are installed to the same D3-NET line, an
error will be displayed to BMS or other centralized control system. To avoid this error, it is necessary to prohibit
centralized control function of checker software (see 7-3-2 Prohibit/permit centralized control).
AS0112-P-DENV
16
3-2 Connection power supply
[Procedure]
(2) Please switch the Checker on. Red LED will be lit on power switch.
[Caution]
Power is supplied from USB terminal. Do not connect AC power to D3-NET (F1,F2) terminal.
(If AC power is connected to the D3-NET port, checker will be burned and broken.)
Please connect your PC to Checker USB port (Type-B) by the USB cable which came with Checker package.
(1)
https://daikin-p.ru

Chapter 4: Overview of the checker software function
4-1 Start up the checker software
After installation of checker software, icon will be added to the Windows start menu.
[Procedure]
1) From (Start[ button, select [Program] and select checker software.
[ Windows 7 ] [ Windows 10 ]
2.Select “Daikin Service Checker TYPE4” under Daikin folder
2. Select “Daikin Service Checker TYPE4”
1. Click Start button
1. Click Start button
2) Checker software starts up and shows the main
menu shown left.
(It looks same for both Windows7 and 10)
4-2 Quit the checker software
There are two ways to quit checker software.
1) Click “X” button on the top right corner.
AS0112-P-DENV
17
https://daikin-p.ru

2) By selecting “Setting”>”Exit”, checker software can be quit.
[Record] Use for monitoring/recording VRV operation data
(Refer to Chapter 5)
[Play] Use for checking/exporting recorded data
(Refer to Chapter 6)
[Data Transfer]
Use for exporting/importing recorded data or customer information
to/from other users or PC.
(Refer to Chapter 7-1)
[Customer data]
Use for enter/edit customer information (please enter customer info for all
the time). Saved network map information can be checked here.
(Refer to Chapter 7-2 and 6-2)
4-3 Overview of the checker software function
There are buttons listed below are in the checker software main menu.
AS0112-P-DENV
18
https://daikin-p.ru

Chapter 5: Recording operation data
5-1 Viewing operation data
Customer Network map Operation data
Customer
A
Building E 1st floor
System1: Mar.23
System2: Mar.23
:
Building E 2nd floor System1: Apr.2
:
::
Customer
B::
: : :
5-1-1 Customer info selection
[Procedure]
(1) In main menu, click [Record] button. Proceeding to [Customer selection]
(2) Customer selection screen
Please enter customer information. Data recording can be executed without entry of customer information
(Record only)
Click [Record] button
By [Record] menu, VRV operation data monitoring and recording (collecting data) can be executed. It is
necessary to use this menu if case of only monitoring operation data without recording.
As shown in the right chart, data is managed as
tree structure. From the top, data is
categorized as “customer”, “network map
(system)”, and “Operation data”.
(Note) “Record only” without data management can be selected, it is recommended to use customer
information for better management of each data.
AS0112-P-DENV
19
https://daikin-p.ru
