Daikin VRV FXDQ-PDVE Dimension Guide
FXDQ-PDVE(T)
FXDQ-NDVE(T)
EDFMT391749
201710
Engineering Data
50 / 60 Hz
FXDQ-PDVE(T) / FXDQ-NDVE(T) EDFMT391749
1
FXDQ-PDVE(T) / FXDQ-NDVE(T)
Slim Ceiling Mounted Duct Type
(Standard Series)
50 / 60 Hz
1. Lineup.........................................................................................................2
2. Specications .............................................................................................3
2.1 FXDQ-PDVE(T) ................................................................................3
2.2 FXDQ-NDVE(T) ................................................................................7

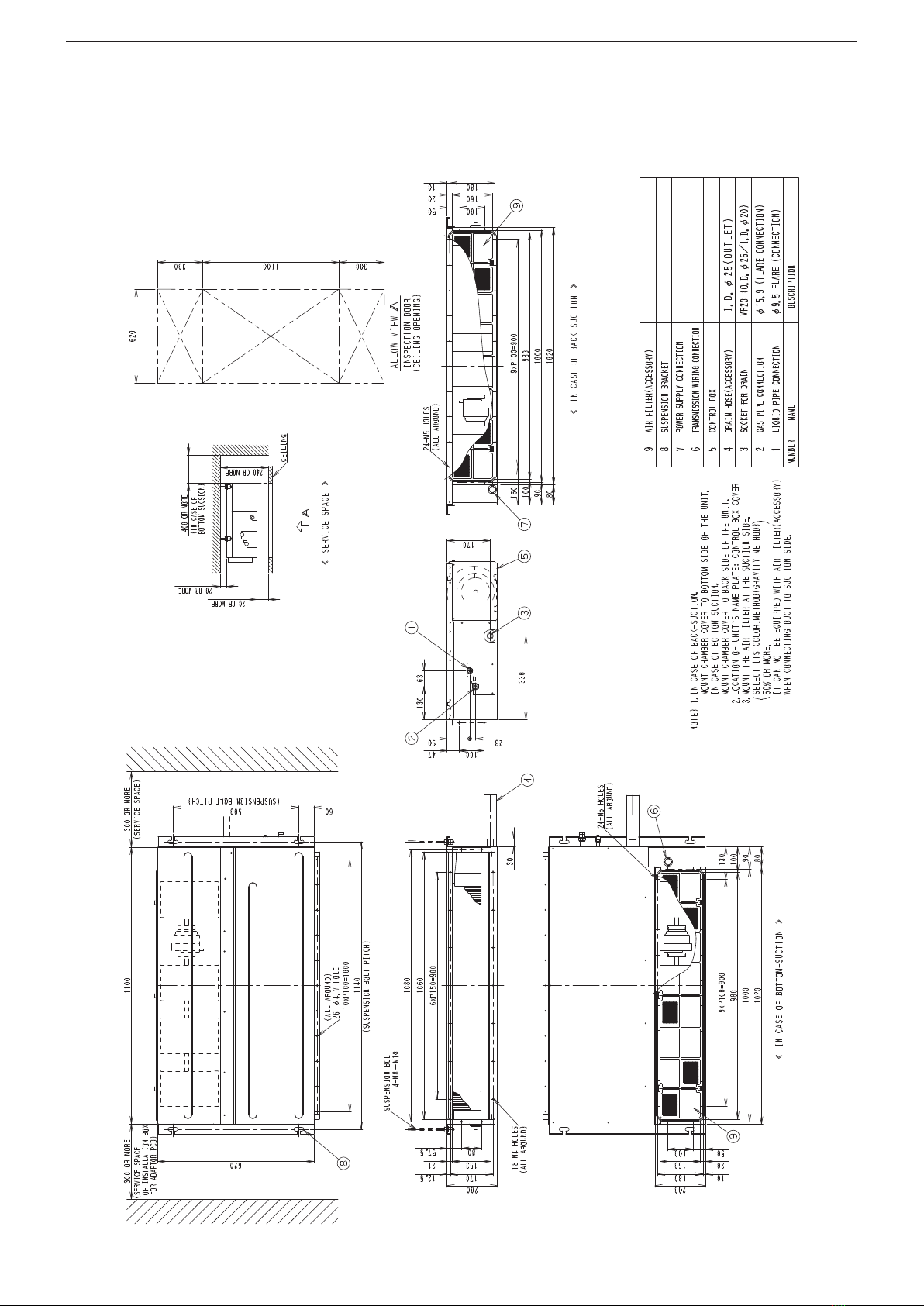

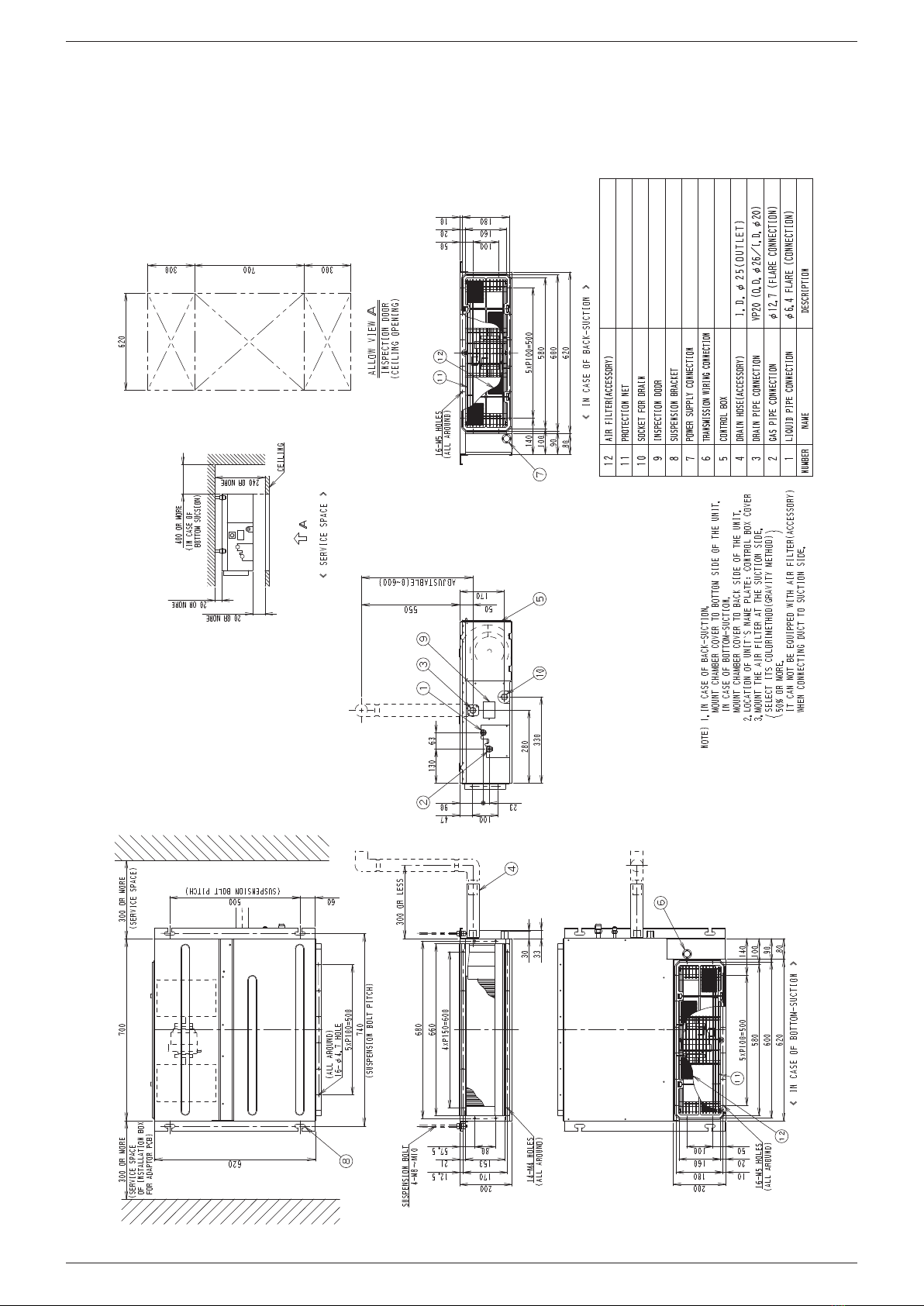

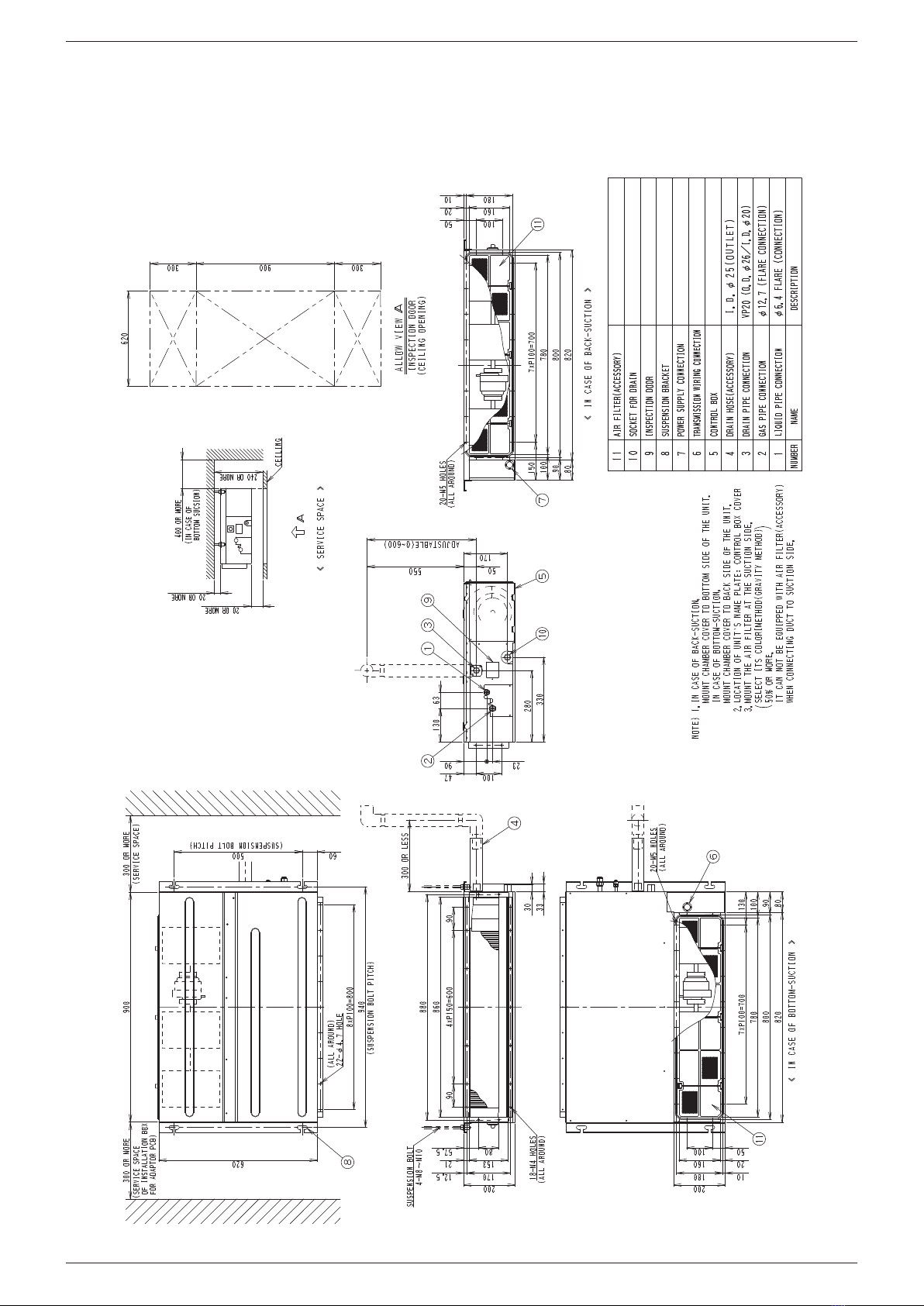

3. Dimensions...............................................................................................11
3.1 FXDQ-PDVE(T) ..............................................................................11
3.2 FXDQ-NDVE(T) ..............................................................................13

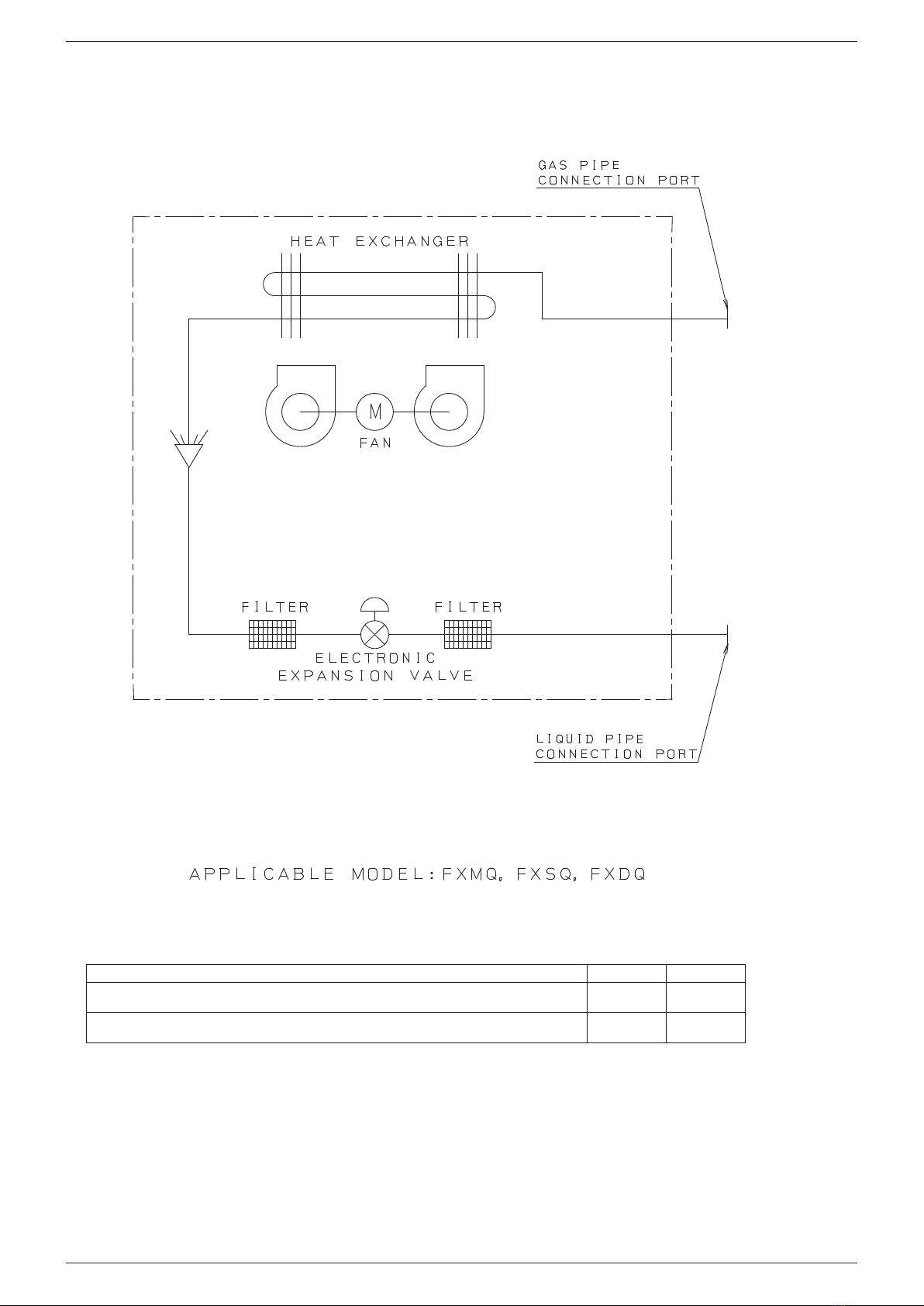

4. PipingDiagrams .......................................................................................17

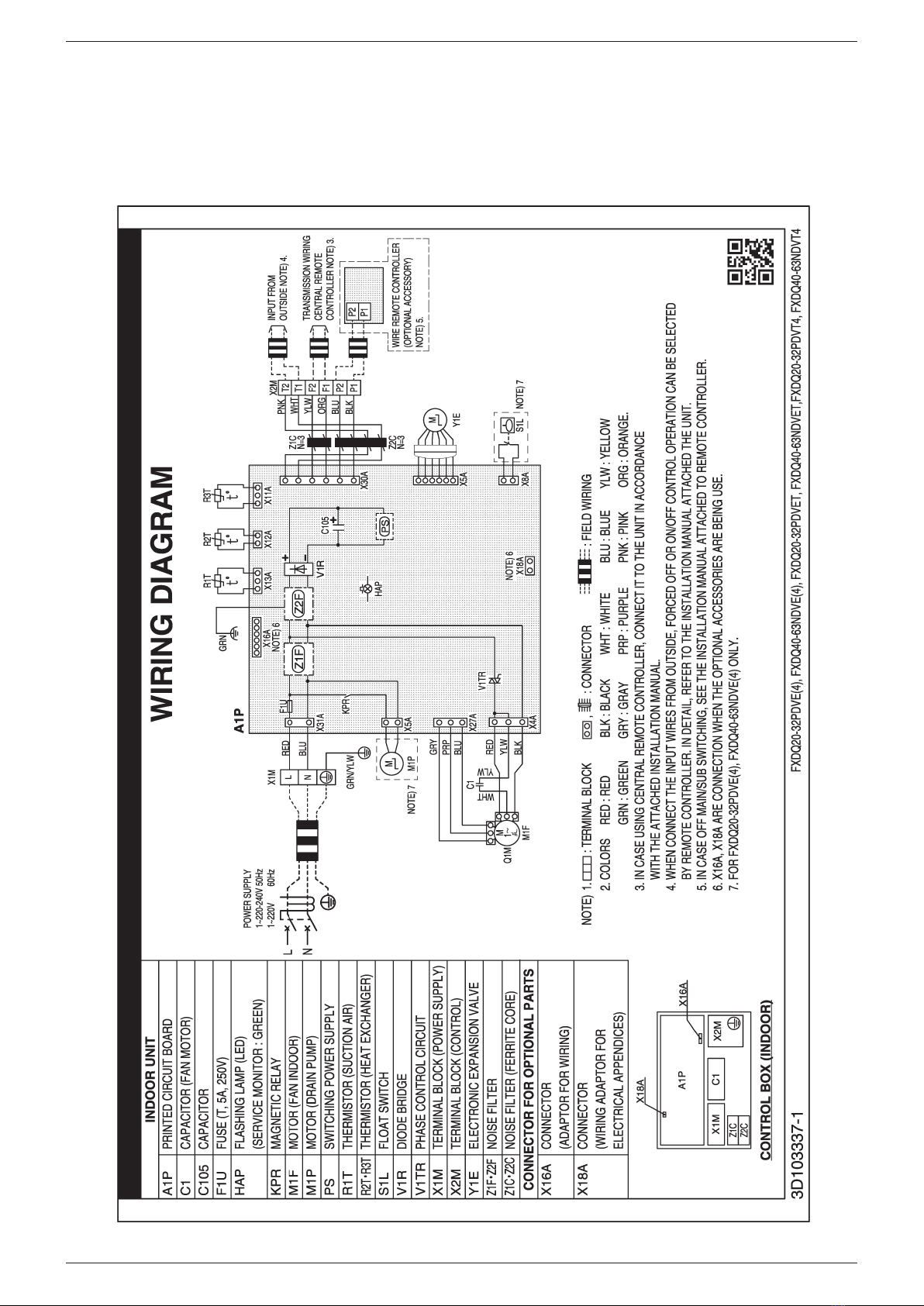

5. WiringDiagrams.......................................................................................18
6. ElectricCharacteristics.............................................................................19
7. SafetyDevicesSetting .............................................................................20
8. CapacityTables........................................................................................21
8.1 CoolingCapacityforTe:Auto .........................................................21
8.2 CoolingCapacityforTe:6°C ..........................................................21
8.3 CoolingCapacityforTe:9°C ..........................................................22
8.4 HeatingCapacity.............................................................................22
9. FanPerformances....................................................................................23
9.1 FXDQ-PDVE(T) ..............................................................................23
9.2 FXDQ-NDVE(T) ..............................................................................25
10.SoundLevels............................................................................................28
10.1 FXDQ-PDVE(T) ..............................................................................28
10.2 FXDQ-NDVE(T) ..............................................................................30
11.CentreofGravity ......................................................................................32
11.1 FXDQ-PDVE(T) ..............................................................................32
11.2 FXDQ-NDVE(T) ..............................................................................33
12.Accessories ..............................................................................................35
12.1 OptionalAccessories(forUnit) .......................................................35
12.2 OptionalAccessories(forControls) ................................................35
13.InstallationManual ...................................................................................36
FXDQ-PDVE(T) / FXDQ-NDVE(T) EDFMT391749
2
1. Lineup
Capacityrange 2.2 kW 2.8 kW 3.6 kW 4.5 kW 5.6 kW 7.1 kW
0.8 HP 1 HP 1.25 HP 1.6 HP 2 HP 2.5 HP
Capacityindex 20 25 31.25 40 50 62.5
FXDQ
20PDVE 25PDVE 32PDVE — — —
20PDVET 25PDVET 32PDVET — — —
— — — 40NDVE 50NDVE 63NDVE
— — — 40NDVET 50NDVET 63NDVET
FXDQ
(forThailand)
20PDV2S 25PDV2S 32PDV2S — — —
20PDVTS 25PDVTS 32PDVTS — — —
— — — 40NDV2S 50NDV2S 63NDV2S
— — — 40NDVTS 50NDVTS 63NDVTS
FXDQ
(forIndonesia)
20PDVE4 25PDVE4 32PDVE4 — — —
20PDVT4 25PDVT4 32PDVT4 — — —
— — — 40NDVE4 50NDVE4 63NDVE4
— — — 40NDVT4 50NDVT4 63NDVT4
Note:
FXDQhasfollowing2series,asshownbelow.
FXDQ-PDVE,NDVE,PDV2S,NDV2S,PDVE4,NDVE4:withaDrainPump
FXDQ-PDVET,NDVET,PDVTS,NDVTS,PDVT4,NDVT4:withoutaDrainPump
VE :1phase,220-240/220V,50/60Hz
VET:1phase,220-240/220V,50/60Hz
V2S:1phase,220V,50Hz(forThailand)
VTS:1phase,220V,50Hz(forThailand)
VE4:1phase,220-240/220V,50/60Hz(forIndonesia)
VT4 :1phase,220-240/220V,50/60Hz(forIndonesia)
FXDQ-PDVE(T) / FXDQ-NDVE(T) EDFMT391749
3
2. Specications
2.1 FXDQ-PDVE(T)
With a drain pump
Model FXDQ20PDVE FXDQ25PDVE
Powersupply 1phase,220-240/220V,50/60Hz 1phase,220-240/220V,50/60Hz
1 3Coolingcapacity
kcal/h 1,900 2,400
Btu/h 7,500 9,600
kW 2.2 2.8
2 3Heatingcapacity
kcal/h 2,200 2,800
Btu/h 8,500 10,900
kW 2.5 3.2
Powerinput
Cooling 50Hz kW 0.086 0.086
60Hz kW 0.092 0.092
Heating 50Hz kW 0.067 0.067
60Hz kW 0.073 0.073
Casing/Colour Galvanizedsteelplate Galvanizedsteelplate
Dimensions:(H×W×D) mm 200×700×620 200×700×620
Fan
Model — —
Type Siroccofan Siroccofan
Motoroutput×
Numberofunits W62×1 62×1
Airowrate
(HH/H/L)
m³/min 8.0/7.2/6.4 8.0/7.2/6.4
l/s 133/120/106 133/120/106
cfm 282/254/226 282/254/226
4Externalstaticpressure
Pa 30-10 30-10
Drive Directdrive Directdrive
Temperaturecontrol Microprocessorthermostatforcoolingand
heating
Microprocessorthermostatforcoolingand
heating
Soundabsorbingthermalinsulationmaterial Foamedpolyethylene Foamedpolyethylene
Airlter Removal/Washable/Mildewproof Removal/Washable/Mildewproof
Piping
connections
Liquidpipes mm φ6.4(Flareconnection) φ6.4(Flareconnection)
Gaspipes mm φ12.7(Flareconnection) φ12.7(Flareconnection)
Drainpipe mm VP20(Externaldia.26,Internaldia.20) VP20(Externaldia.26,Internaldia.20)
Mass kg 23 23
5Soundpressurelevel(HH/H/L) dB(A) 28/26/23 28/26/23
Soundpowerlevel(HH/H/L) dB(A) 56/54/51 56/54/51
Safetydevices Fuse,Thermalprotectorforfanmotor Fuse,Thermalprotectorforfanmotor
Refrigerantcontrol Electronicexpansionvalve Electronicexpansionvalve
Standardaccessories
Operationmanual,Installationmanual,Drain
hose,Sealingpads,Clamps,Washers,
Insulationfortting,Clampmetal,Washer
xingplate,Screwsforductanges,Airlter
Operationmanual,Installationmanual,Drain
hose,Sealingpads,Clamps,Washers,
Insulationfortting,Clampmetal,Washer
xingplate,Screwsforductanges,Airlter
DrawingNo. Specications C:3D109082B C:3D109082B
Soundlevel C:4D112287 C:4D112290
Notes:
1. Indoortemp.:27°CDB,19°CWB/outdoortemp.:35°CDB/Equivalentpipinglength:7.5m,leveldierence:0m.
2. Indoortemp.:20°CDB/outdoortemp.:7°CDB,6°CWB/Equivalentpipinglength:7.5m,leveldierence:0m.
3. Capacitiesarenet,includingadeductionforcooling(anadditionforheating)forindoorfanmotorheat.
4. Externalstaticpressureischangeabletosetbytheremotecontroller.Thispressuremeans“Highstatic
pressure-Standardstaticpressure”.(Factorysettingis10PaforFXDQ-PDmodelsand15PaforFXDQ-ND
models.)
5. Theoperationsoundlevelsaretheconversionvaluesinanechoicchamber.
Inpractice,thesoundtendtobelargerthanthespeciedvaluesduetoambientnoiseorreections.
Whentheplaceofsuctionischangedtothebottomsuction,thesoundlevelwillincreasebyapprox,5dBA.
Conversionformulae
kcal/h=kW×860
Btu/h=kW×3412
cfm=m³/min×35.3
l/s=m³/min×1000/60
FXDQ-PDVE(T) / FXDQ-NDVE(T) EDFMT391749
4
With a drain pump
Model FXDQ32PDVE
Powersupply 1phase,220-240/220V,50/60Hz
1 3Coolingcapacity
kcal/h 3,100
Btu/h 12,300
kW 3.6
2 3Heatingcapacity
kcal/h 3,400
Btu/h 13,600
kW 4.0
Powerinput
Cooling 50Hz kW 0.089
60Hz kW 0.095
Heating 50Hz kW 0.070
60Hz kW 0.076
Casing/Colour Galvanizedsteelplate
Dimensions:(H×W×D) mm 200×700×620
Fan
Model —
Type Siroccofan
Motoroutput×
Numberofunits W62×1
Airowrate
(HH/H/L)
m³/min 8.0/7.2/6.4
l/s 133/120/106
cfm 282/254/226
4Externalstaticpressure
Pa 30-10
Drive Directdrive
Temperaturecontrol Microprocessorthermostatforcoolingandheating
Soundabsorbingthermalinsulationmaterial Foamedpolyethylene
Airlter Removal/Washable/Mildewproof
Piping
connections
Liquidpipes mm φ6.4(Flareconnection)
Gaspipes mm φ12.7(Flareconnection)
Drainpipe mm VP20(Externaldia.26,Internaldia.20)
Mass kg 23
5Soundpressurelevel(HH/H/L) dB(A) 28/26/24
Soundpowerlevel(HH/H/L) dB(A) 56/54/52
Safetydevices Fuse,Thermalprotectorforfanmotor
Refrigerantcontrol Electronicexpansionvalve
Standardaccessories Operationmanual,Installationmanual,Drainhose,Sealingpads,Clamps,Washers,Insulation
fortting,Clampmetal,Washerxingplate,Screwsforductanges,Airlter
DrawingNo. Specications C:3D109082B
Soundlevel C:4D112291
Notes:
1. Indoortemp.:27°CDB,19°CWB/outdoortemp.:35°CDB/Equivalentpipinglength:7.5m,leveldierence:0m.
2. Indoortemp.:20°CDB/outdoortemp.:7°CDB,6°CWB/Equivalentpipinglength:7.5m,leveldierence:0m.
3. Capacitiesarenet,includingadeductionforcooling(anadditionforheating)forindoorfanmotorheat.
4. Externalstaticpressureischangeabletosetbytheremotecontroller.Thispressuremeans“Highstatic
pressure-Standardstaticpressure”.(Factorysettingis10PaforFXDQ-PDmodelsand15PaforFXDQ-ND
models.)
5. Theoperationsoundlevelsaretheconversionvaluesinanechoicchamber.
Inpractice,thesoundtendtobelargerthanthespeciedvaluesduetoambientnoiseorreections.
Whentheplaceofsuctionischangedtothebottomsuction,thesoundlevelwillincreasebyapprox,5dBA.
Conversionformulae
kcal/h=kW×860
Btu/h=kW×3412
cfm=m³/min×35.3
l/s=m³/min×1000/60
FXDQ-PDVE(T) / FXDQ-NDVE(T) EDFMT391749
5
Without a drain pump
Model FXDQ20PDVET FXDQ25PDVET
Powersupply 1phase,220-240/220V,50/60Hz 1phase,220-240/220V,50/60Hz
1 3Coolingcapacity
kcal/h 1,900 2,400
Btu/h 7,500 9,600
kW 2.2 2.8
2 3Heatingcapacity
kcal/h 2,200 2,800
Btu/h 8,500 10,900
kW 2.5 3.2
Powerinput
Cooling 50Hz kW 0.067 0.067
60Hz kW 0.073 0.073
Heating 50Hz kW 0.067 0.067
60Hz kW 0.073 0.073
Casing/Colour Galvanizedsteelplate Galvanizedsteelplate
Dimensions:(H×W×D) mm 200×700×620 200×700×620
Fan
Model — —
Type Siroccofan Siroccofan
Motoroutput×
Numberofunits W62×1 62×1
Airowrate
(HH/H/L)
m³/min 8.0/7.2/6.4 8.0/7.2/6.4
l/s 133/120/106 133/120/106
cfm 282/254/226 282/254/226
4Externalstaticpressure
Pa 30-10 30-10
Drive Directdrive Directdrive
Temperaturecontrol Microprocessorthermostatforcoolingand
heating
Microprocessorthermostatforcoolingand
heating
Soundabsorbingthermalinsulationmaterial Foamedpolyethylene Foamedpolyethylene
Airlter Removal/Washable/Mildewproof Removal/Washable/Mildewproof
Piping
connections
Liquidpipes mm φ6.4(Flareconnection) φ6.4(Flareconnection)
Gaspipes mm φ12.7(Flareconnection) φ12.7(Flareconnection)
Drainpipe mm VP20(Externaldia.26,Internaldia.20) VP20(Externaldia.26,Internaldia.20)
Mass kg 23 23
5Soundpressurelevel(HH/H/L) dB(A) 28/26/23 28/26/23
Soundpowerlevel(HH/H/L) dB(A) 56/54/51 56/54/51
Safetydevices Fuse,Thermalprotectorforfanmotor Fuse,Thermalprotectorforfanmotor
Refrigerantcontrol Electronicexpansionvalve Electronicexpansionvalve
Standardaccessories
Operationmanual,Installationmanual,Drain
hose,Sealingpads,Clamps,Washers,
Insulationfortting,Clampmetal,Washer
xingplate,Screwsforductanges,Airlter
Operationmanual,Installationmanual,Drain
hose,Sealingpads,Clamps,Washers,
Insulationfortting,Clampmetal,Washer
xingplate,Screwsforductanges,Airlter
DrawingNo. Specications C:3D109082B C:3D109082B
Soundlevel C:4D112287 C:4D112290
Notes:
1. Indoortemp.:27°CDB,19°CWB/outdoortemp.:35°CDB/Equivalentpipinglength:7.5m,leveldierence:0m.
2. Indoortemp.:20°CDB/outdoortemp.:7°CDB,6°CWB/Equivalentpipinglength:7.5m,leveldierence:0m.
3. Capacitiesarenet,includingadeductionforcooling(anadditionforheating)forindoorfanmotorheat.
4. Externalstaticpressureischangeabletosetbytheremotecontroller.Thispressuremeans“Highstatic
pressure-Standardstaticpressure”.(Factorysettingis10PaforFXDQ-PDmodelsand15PaforFXDQ-ND
models.)
5. Theoperationsoundlevelsaretheconversionvaluesinanechoicchamber.
Inpractice,thesoundtendtobelargerthanthespeciedvaluesduetoambientnoiseorreections.
Whentheplaceofsuctionischangedtothebottomsuction,thesoundlevelwillincreasebyapprox,5dBA.
Conversionformulae
kcal/h=kW×860
Btu/h=kW×3412
cfm=m³/min×35.3
l/s=m³/min×1000/60
FXDQ-PDVE(T) / FXDQ-NDVE(T) EDFMT391749
6
Without a drain pump
Model FXDQ32PDVET
Powersupply 1phase,220-240/220V,50/60Hz
1 3Coolingcapacity
kcal/h 3,100
Btu/h 12,300
kW 3.6
2 3Heatingcapacity
kcal/h 3,400
Btu/h 13,600
kW 4.0
Powerinput
Cooling 50Hz kW 0.070
60Hz kW 0.076
Heating 50Hz kW 0.070
60Hz kW 0.076
Casing/Colour Galvanizedsteelplate
Dimensions:(H×W×D) mm 200×700×620
Fan
Model —
Type Siroccofan
Motoroutput×
Numberofunits W62×1
Airowrate
(HH/H/L)
m³/min 8.0/7.2/6.4
l/s 133/120/106
cfm 282/254/226
4Externalstaticpressure
Pa 30-10
Drive Directdrive
Temperaturecontrol Microprocessorthermostatforcoolingandheating
Soundabsorbingthermalinsulationmaterial Foamedpolyethylene
Airlter Removal/Washable/Mildewproof
Piping
connections
Liquidpipes mm φ6.4(Flareconnection)
Gaspipes mm φ12.7(Flareconnection)
Drainpipe mm VP20(Externaldia.26,Internaldia.20)
Mass kg 23
5Soundpressurelevel(HH/H/L) dB(A) 28/26/24
Soundpowerlevel(HH/H/L) dB(A) 56/54/52
Safetydevices Fuse,Thermalprotectorforfanmotor
Refrigerantcontrol Electronicexpansionvalve
Standardaccessories Operationmanual,Installationmanual,Drainhose,Sealingpads,Clamps,Washers,Insulation
fortting,Clampmetal,Washerxingplate,Screwsforductanges,Airlter
DrawingNo. Specications C:3D109082B
Soundlevel C:4D112291
Notes:
1. Indoortemp.:27°CDB,19°CWB/outdoortemp.:35°CDB/Equivalentpipinglength:7.5m,leveldierence:0m.
2. Indoortemp.:20°CDB/outdoortemp.:7°CDB,6°CWB/Equivalentpipinglength:7.5m,leveldierence:0m.
3. Capacitiesarenet,includingadeductionforcooling(anadditionforheating)forindoorfanmotorheat.
4. Externalstaticpressureischangeabletosetbytheremotecontroller.Thispressuremeans“Highstatic
pressure-Standardstaticpressure”.(Factorysettingis10PaforFXDQ-PDmodelsand15PaforFXDQ-ND
models.)
5. Theoperationsoundlevelsaretheconversionvaluesinanechoicchamber.
Inpractice,thesoundtendtobelargerthanthespeciedvaluesduetoambientnoiseorreections.
Whentheplaceofsuctionischangedtothebottomsuction,thesoundlevelwillincreasebyapprox,5dBA.
Conversionformulae
kcal/h=kW×860
Btu/h=kW×3412
cfm=m³/min×35.3
l/s=m³/min×1000/60
FXDQ-PDVE(T) / FXDQ-NDVE(T) EDFMT391749
7
2.2 FXDQ-NDVE(T)
With a drain pump
Model FXDQ40NDVE FXDQ50NDVE
Powersupply 1phase,220-240/220V,50/60Hz 1phase,220-240/220V,50/60Hz
1 3Coolingcapacity
kcal/h 3,900 4,800
Btu/h 15,400 19,100
kW 4.5 5.6
2 3Heatingcapacity
kcal/h 4,300 5,400
Btu/h 17,100 21,500
kW 5.0 6.3
Powerinput
Cooling 50Hz kW 0.160 0.165
60Hz kW 0.182 0.185
Heating 50Hz kW 0.147 0.152
60Hz kW 0.168 0.170
Casing/Colour Galvanizedsteelplate Galvanizedsteelplate
Dimensions:(H×W×D) mm 200×900×620 200×900×620
Fan
Model — —
Type Siroccofan Siroccofan
Motoroutput×
Numberofunits W62×1 130×1
Airowrate
(HH/H/L)
m³/min 10.5/9.5/8.5 12.5/11.0/10.0
l/s 175/158/141 208/183/166
cfm 371/335/300 441/388/353
4Externalstaticpressure
Pa 44-15 44-15
Drive Directdrive Directdrive
Temperaturecontrol Microprocessorthermostatforcoolingand
heating
Microprocessorthermostatforcoolingand
heating
Soundabsorbingthermalinsulationmaterial Foamedpolyethylene Foamedpolyethylene
Airlter Removal/Washable/Mildewproof Removal/Washable/Mildewproof
Piping
connections
Liquidpipes mm φ6.4(Flareconnection) φ6.4(Flareconnection)
Gaspipes mm φ12.7(Flareconnection) φ12.7(Flareconnection)
Drainpipe mm VP20(Externaldia.26,Internaldia.20) VP20(Externaldia.26,Internaldia.20)
Mass kg 27 28
5Soundpressurelevel(HH/H/L) dB(A) 30/28/26 33/30/27
Soundpowerlevel(HH/H/L) dB(A) 58/56/54 61/58/55
Safetydevices Fuse,Thermalprotectorforfanmotor Fuse,Thermalprotectorforfanmotor
Refrigerantcontrol Electronicexpansionvalve Electronicexpansionvalve
Standardaccessories
Operationmanual,Installationmanual,Drain
hose,Sealingpads,Clamps,Washers,
Insulationfortting,Clampmetal,Washer
xingplate,Screwsforductanges,Airlter
Operationmanual,Installationmanual,Drain
hose,Sealingpads,Clamps,Washers,
Insulationfortting,Clampmetal,Washer
xingplate,Screwsforductanges,Airlter
DrawingNo. Specications C:3D109082B C:3D109082B
Soundlevel C:4D112292 C:4D112294
Notes:
1. Indoortemp.:27°CDB,19°CWB/outdoortemp.:35°CDB/Equivalentpipinglength:7.5m,leveldierence:0m.
2. Indoortemp.:20°CDB/outdoortemp.:7°CDB,6°CWB/Equivalentpipinglength:7.5m,leveldierence:0m.
3. Capacitiesarenet,includingadeductionforcooling(anadditionforheating)forindoorfanmotorheat.
4. Externalstaticpressureischangeabletosetbytheremotecontroller.Thispressuremeans“Highstatic
pressure-Standardstaticpressure”.(Factorysettingis10PaforFXDQ-PDmodelsand15PaforFXDQ-ND
models.)
5. Theoperationsoundlevelsaretheconversionvaluesinanechoicchamber.
Inpractice,thesoundtendtobelargerthanthespeciedvaluesduetoambientnoiseorreections.
Whentheplaceofsuctionischangedtothebottomsuction,thesoundlevelwillincreasebyapprox,5dBA.
Conversionformulae
kcal/h=kW×860
Btu/h=kW×3412
cfm=m³/min×35.3
l/s=m³/min×1000/60
FXDQ-PDVE(T) / FXDQ-NDVE(T) EDFMT391749
8
With a drain pump
Model FXDQ63NDVE
Powersupply 1phase,220-240/220V,50/60Hz
1 3Coolingcapacity
kcal/h 6,100
Btu/h 24,200
kW 7.1
2 3Heatingcapacity
kcal/h 6,900
Btu/h 27,300
kW 8.0
Powerinput
Cooling 50Hz kW 0.181
60Hz kW 0.192
Heating 50Hz kW 0.168
60Hz kW 0.179
Casing/Colour Galvanizedsteelplate
Dimensions:(H×W×D) mm 200×1,100×620
Fan
Model —
Type Siroccofan
Motoroutput×
Numberofunits W130×1
Airowrate
(HH/H/L)
m³/min 16.5/14.5/13.0
l/s 275/241/216
cfm 583/512/459
4Externalstaticpressure
Pa 44-15
Drive Directdrive
Temperaturecontrol Microprocessorthermostatforcoolingandheating
Soundabsorbingthermalinsulationmaterial Foamedpolyethylene
Airlter Removal/Washable/Mildewproof
Piping
connections
Liquidpipes mm φ9.5(Flareconnection)
Gaspipes mm φ15.9(Flareconnection)
Drainpipe mm VP20(Externaldia.26,Internaldia.20)
Mass kg 31
5Soundpressurelevel(HH/H/L) dB(A) 33/31/29
Soundpowerlevel(HH/H/L) dB(A) 61/59/57
Safetydevices Fuse,Thermalprotectorforfanmotor
Refrigerantcontrol Electronicexpansionvalve
Standardaccessories Operationmanual,Installationmanual,Drainhose,Sealingpads,Clamps,Washers,Insulation
fortting,Clampmetal,Washerxingplate,Screwsforductanges,Airlter
DrawingNo. Specications C:3D109082B
Soundlevel C:4D112295
Notes:
1. Indoortemp.:27°CDB,19°CWB/outdoortemp.:35°CDB/Equivalentpipinglength:7.5m,leveldierence:0m.
2. Indoortemp.:20°CDB/outdoortemp.:7°CDB,6°CWB/Equivalentpipinglength:7.5m,leveldierence:0m.
3. Capacitiesarenet,includingadeductionforcooling(anadditionforheating)forindoorfanmotorheat.
4. Externalstaticpressureischangeabletosetbytheremotecontroller.Thispressuremeans“Highstatic
pressure-Standardstaticpressure”.(Factorysettingis10PaforFXDQ-PDmodelsand15PaforFXDQ-ND
models.)
5. Theoperationsoundlevelsaretheconversionvaluesinanechoicchamber.
Inpractice,thesoundtendtobelargerthanthespeciedvaluesduetoambientnoiseorreections.
Whentheplaceofsuctionischangedtothebottomsuction,thesoundlevelwillincreasebyapprox,5dBA.
Conversionformulae
kcal/h=kW×860
Btu/h=kW×3412
cfm=m³/min×35.3
l/s=m³/min×1000/60
FXDQ-PDVE(T) / FXDQ-NDVE(T) EDFMT391749
9
Without a drain pump
Model FXDQ40NDVET FXDQ50NDVET
Powersupply 1phase,220-240/220V,50/60Hz 1phase,220-240/220V,50/60Hz
1 3Coolingcapacity
kcal/h 3,900 4,800
Btu/h 15,400 19,100
kW 4.5 5.6
2 3Heatingcapacity
kcal/h 4,300 5,400
Btu/h 17,100 21,500
kW 5.0 6.3
Powerinput
Cooling 50Hz kW 0.147 0.152
60Hz kW 0.168 0.170
Heating 50Hz kW 0.147 0.152
60Hz kW 0.168 0.170
Casing/Colour Galvanizedsteelplate Galvanizedsteelplate
Dimensions:(H×W×D) mm 200×900×620 200×900×620
Fan
Model — —
Type Siroccofan Siroccofan
Motoroutput×
Numberofunits W62×1 130×1
Airowrate
(HH/H/L)
m³/min 10.5/9.5/8.5 12.5/11.0/10.0
l/s 175/158/141 208/183/166
cfm 371/335/300 441/388/353
4Externalstaticpressure
Pa 44-15 44-15
Drive Directdrive Directdrive
Temperaturecontrol Microprocessorthermostatforcoolingand
heating
Microprocessorthermostatforcoolingand
heating
Soundabsorbingthermalinsulationmaterial Foamedpolyethylene Foamedpolyethylene
Airlter Removal/Washable/Mildewproof Removal/Washable/Mildewproof
Piping
connections
Liquidpipes mm φ6.4(Flareconnection) φ6.4(Flareconnection)
Gaspipes mm φ12.7(Flareconnection) φ12.7(Flareconnection)
Drainpipe mm VP20(Externaldia.26,Internaldia.20) VP20(Externaldia.26,Internaldia.20)
Mass kg 27 28
5Soundpressurelevel(HH/H/L) dB(A) 30/28/26 33/30/27
Soundpowerlevel(HH/H/L) dB(A) 58/56/54 61/58/55
Safetydevices Fuse,Thermalprotectorforfanmotor Fuse,Thermalprotectorforfanmotor
Refrigerantcontrol Electronicexpansionvalve Electronicexpansionvalve
Standardaccessories
Operationmanual,Installationmanual,Drain
hose,Sealingpads,Clamps,Washers,
Insulationfortting,Clampmetal,Washer
xingplate,Screwsforductanges,Airlter
Operationmanual,Installationmanual,Drain
hose,Sealingpads,Clamps,Washers,
Insulationfortting,Clampmetal,Washer
xingplate,Screwsforductanges,Airlter
DrawingNo. Specications C:3D109082B C:3D109082B
Soundlevel C:4D112292 C:4D112294
Notes:
1. Indoortemp.:27°CDB,19°CWB/outdoortemp.:35°CDB/Equivalentpipinglength:7.5m,leveldierence:0m.
2. Indoortemp.:20°CDB/outdoortemp.:7°CDB,6°CWB/Equivalentpipinglength:7.5m,leveldierence:0m.
3. Capacitiesarenet,includingadeductionforcooling(anadditionforheating)forindoorfanmotorheat.
4. Externalstaticpressureischangeabletosetbytheremotecontroller.Thispressuremeans“Highstatic
pressure-Standardstaticpressure”.(Factorysettingis10PaforFXDQ-PDmodelsand15PaforFXDQ-ND
models.)
5. Theoperationsoundlevelsaretheconversionvaluesinanechoicchamber.
Inpractice,thesoundtendtobelargerthanthespeciedvaluesduetoambientnoiseorreections.
Whentheplaceofsuctionischangedtothebottomsuction,thesoundlevelwillincreasebyapprox,5dBA.
Conversionformulae
kcal/h=kW×860
Btu/h=kW×3412
cfm=m³/min×35.3
l/s=m³/min×1000/60
FXDQ-PDVE(T) / FXDQ-NDVE(T) EDFMT391749
10
Without a drain pump
Model FXDQ63NDVET
Powersupply 1phase,220-240/220V,50/60Hz
1 3Coolingcapacity
kcal/h 6,100
Btu/h 24,200
kW 7.1
2 3Heatingcapacity
kcal/h 6,900
Btu/h 27,300
kW 8.0
Powerinput
Cooling 50Hz kW 0.168
60Hz kW 0.179
Heating 50Hz kW 0.168
60Hz kW 0.179
Casing/Colour Galvanizedsteelplate
Dimensions:(H×W×D) mm 200×1,100×620
Fan
Model —
Type Siroccofan
Motoroutput×
Numberofunits W130×1
Airowrate
(HH/H/L)
m³/min 16.5/14.5/13.0
l/s 275/241/216
cfm 583/512/459
4Externalstaticpressure
Pa 44-15
Drive Directdrive
Temperaturecontrol Microprocessorthermostatforcoolingandheating
Soundabsorbingthermalinsulationmaterial Foamedpolyethylene
Airlter Removal/Washable/Mildewproof
Piping
connections
Liquidpipes mm φ9.5(Flareconnection)
Gaspipes mm φ15.9(Flareconnection)
Drainpipe mm VP20(Externaldia.26,Internaldia.20)
Mass kg 31
5Soundpressurelevel(HH/H/L) dB(A) 33/31/29
Soundpowerlevel(HH/H/L) dB(A) 61/59/57
Safetydevices Fuse,Thermalprotectorforfanmotor
Refrigerantcontrol Electronicexpansionvalve
Standardaccessories Operationmanual,Installationmanual,Drainhose,Sealingpads,Clamps,Washers,Insulation
fortting,Clampmetal,Washerxingplate,Screwsforductanges,Airlter
DrawingNo. Specications C:3D109082B
Soundlevel C:4D112295
Notes:
1. Indoortemp.:27°CDB,19°CWB/outdoortemp.:35°CDB/Equivalentpipinglength:7.5m,leveldierence:0m.
2. Indoortemp.:20°CDB/outdoortemp.:7°CDB,6°CWB/Equivalentpipinglength:7.5m,leveldierence:0m.
3. Capacitiesarenet,includingadeductionforcooling(anadditionforheating)forindoorfanmotorheat.
4. Externalstaticpressureischangeabletosetbytheremotecontroller.Thispressuremeans“Highstatic
pressure-Standardstaticpressure”.(Factorysettingis10PaforFXDQ-PDmodelsand15PaforFXDQ-ND
models.)
5. Theoperationsoundlevelsaretheconversionvaluesinanechoicchamber.
Inpractice,thesoundtendtobelargerthanthespeciedvaluesduetoambientnoiseorreections.
Whentheplaceofsuctionischangedtothebottomsuction,thesoundlevelwillincreasebyapprox,5dBA.
Conversionformulae
kcal/h=kW×860
Btu/h=kW×3412
cfm=m³/min×35.3
l/s=m³/min×1000/60
FXDQ-PDVE(T) / FXDQ-NDVE(T) EDFMT391749
11
3. Dimensions
3.1 FXDQ-PDVE(T)
FXDQ20PDVE / FXDQ25PDVE / FXDQ32PDVE (with a drain pump)
3D049799D
Unit: mm
FXDQ-PDVE(T) / FXDQ-NDVE(T) EDFMT391749
12
FXDQ20PDVET / FXDQ25PDVET / FXDQ32PDVET (without a drain pump)
3D050732C
Unit: mm
FXDQ-PDVE(T) / FXDQ-NDVE(T) EDFMT391749
13
3.2 FXDQ-NDVE(T)
FXDQ40NDVE / FXDQ50NDVE (with a drain pump)
3D045494E
Unit: mm
FXDQ-PDVE(T) / FXDQ-NDVE(T) EDFMT391749
14
FXDQ63NDVE (with a drain pump)
3D045496F
Unit: mm
FXDQ-PDVE(T) / FXDQ-NDVE(T) EDFMT391749
15
FXDQ40NDVET / FXDQ50NDVET (without a drain pump)
3D049701D
Unit: mm
FXDQ-PDVE(T) / FXDQ-NDVE(T) EDFMT391749
16
FXDQ63NDVET (without a drain pump)
3D049702D
Unit: mm
FXDQ-PDVE(T) / FXDQ-NDVE(T) EDFMT391749
17
4. Piping Diagrams
FXDQ20PDVE / FXDQ25PDVE / FXDQ32PDVE / FXDQ40NDVE / FXDQ50NDVE / FXDQ63NDVE
FXDQ20PDVET / FXDQ25PDVET / FXDQ32PDVET / FXDQ40NDVET / FXDQ50NDVET /
FXDQ63NDVET
Refrigerant pipe connection port diameters
Unit:mm
Model Gas Liquid
FXDQ20PDVE/FXDQ25PDVE/FXDQ32PDVE/FXDQ40NDVE/FXDQ50NDVE
FXDQ20PDVET/FXDQ25PDVET/FXDQ32PDVET/FXDQ40NDVET/FXDQ50NDVET φ12.7 φ6.4
FXDQ63NDVE
FXDQ63NDVET φ15.9 φ9.5
4D104913
FXDQ-PDVE(T) / FXDQ-NDVE(T) EDFMT391749
18
5. Wiring Diagrams
FXDQ20PDVE / FXDQ25PDVE / FXDQ32PDVE / FXDQ40NDVE / FXDQ50NDVE / FXDQ63NDVE
FXDQ20PDVET / FXDQ25PDVET / FXDQ32PDVET / FXDQ40NDVET / FXDQ50NDVET /
FXDQ63NDVET
3D103337
This manual suits for next models
15
Table of contents
