Damson Audio S-Cube User manual

USER GUIDE
S-SERIES
damsonglobal.com

The system will now power up and configure
itself. The Subwoofer logo will turn red, the
Soundbar logo will light up red and the
S-Cubes logo will display light blue.
9
Connect the power supply to
the sub-woofer (2000mAh).
The Logo will turn red on the
subwoofer.
PLEASE NOTE: On initial set up it is
recommended to connect the power supply of the
subwoofer last as this provides auto-power upon
initial setup. If the subwoofer is powered up before
the other speakers are connected you will need to
power off the subwoofer either by removing the
power cable or pressing the power button on the
remote control until the LED turns off, then power
on again by remote control.
User Guide for S-Series Home Cinema
Insert batteries
into Remote Control.
Unpack all contents
including power supplies.
1
Position the Soundbar
in front of the display
(TV/Projector), connect
power cable (3000mAh).
Insert the HDMI source
into the Subwoofer e.g.
Set top Box, Cable, Xbox,
FireTV, Blu-Ray etc
67
2
AAA
AAA
Select a location for the Second S-Cube surround speaker,
connect power cable (1500mAh) and position the switch to
the appropriate icon for left or right surround.
4
DC
10
5HDMI
INPUT 1
Insert the
HDMI output that will
connect to the display.
8HDMI
OUTPUT
Couple the Dolby Atmos
speaker onto the soundbar,
it will snap into place.
PLEASE NOTE: The S-Cubes are set up
to power on automatically to the
surround sound system only when
connected to a power supply.
PLEASE NOTE: To connect the S-Bar to
your device via Bluetooth, change the S-Bar
to Bluetooth by pressing the BT button on the
remote control or toggling through the M
button on the S-Bar, then press and hold the
M button on the S-Bar until three ascending
beeps are heard which announces the S-Bar
is ready to pair or connect.
Dolby, Dolby Atmos, Dolby Audio, Pro Logic,
and the double-D symbol are trademarks of
Dolby Laboratories
3
Select a location for the first S-Cube surround speaker,
connect power cable (1500mAh). For left surround
move switch on S-Cube to Triangle . For right
surround select square .
DC

Dolby®Atmos Wireless Home Cinema System

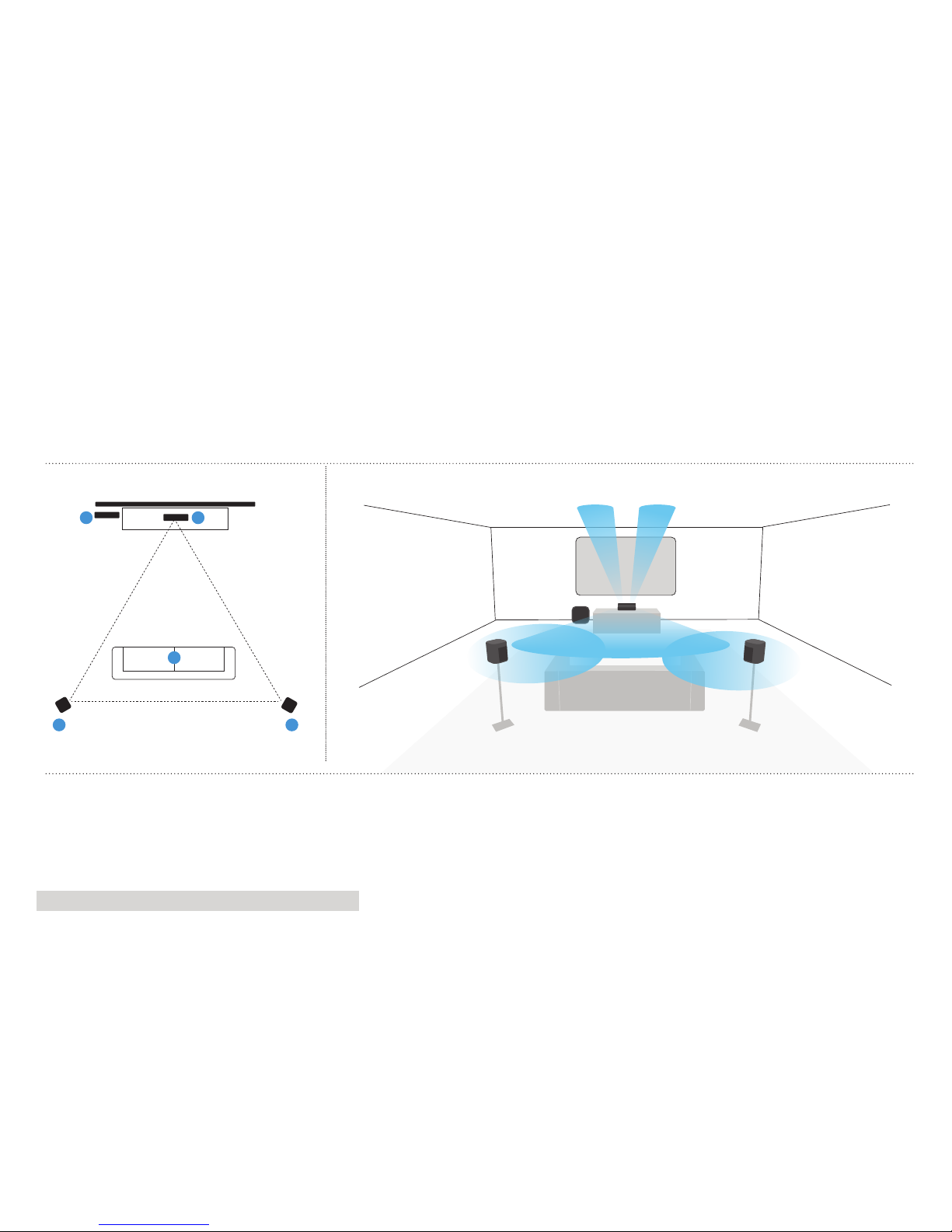

SPEAKER GUIDE
Perspective viewSpeaker placement
1
1. Seating position
2. S-cube left speaker
3. S-cube right speaker
4. S-Bar with Dolby Atmos extension
5. S-Woofer*
*S-Woofer LED will flash when it is receiving Dolby Atmos Content
2
45
3

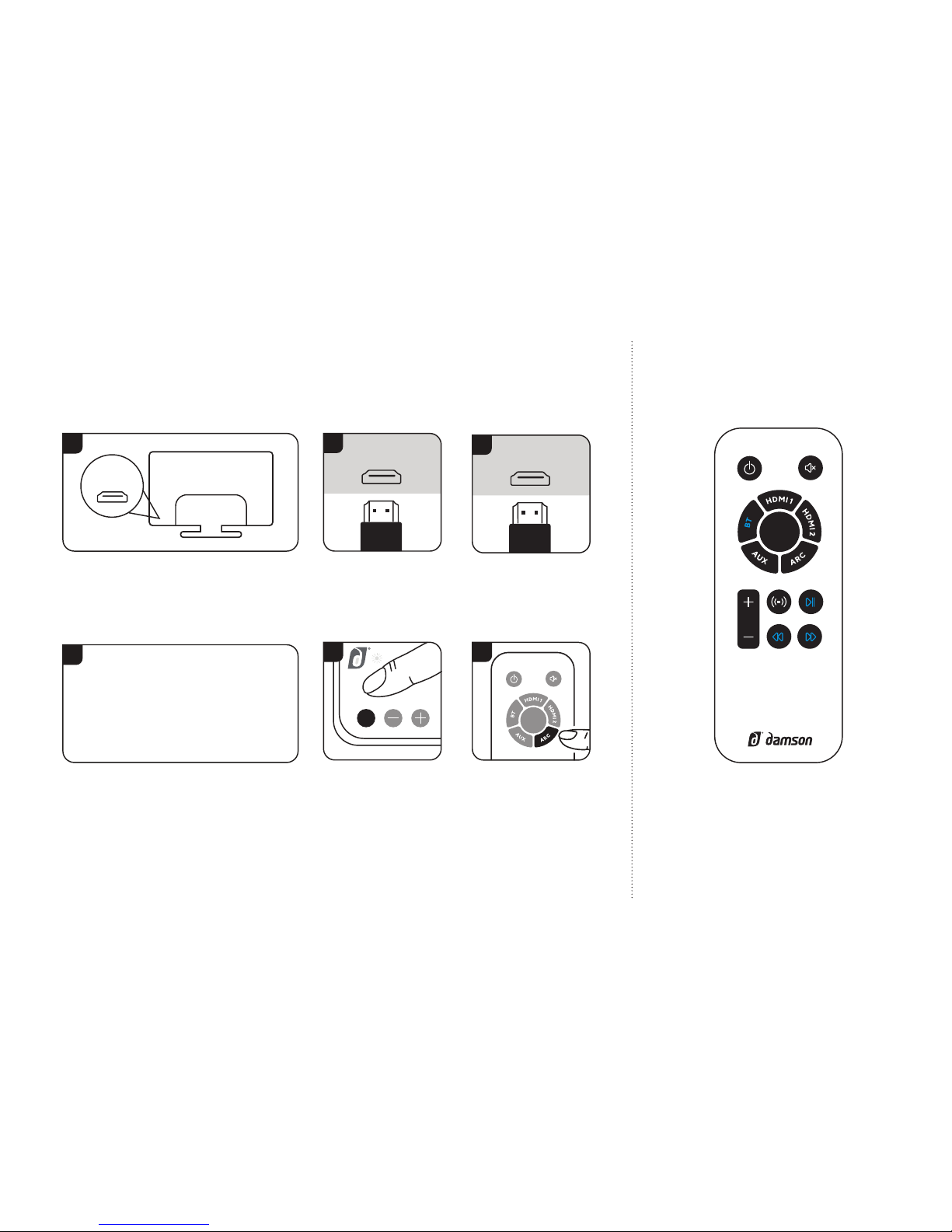

Using your TV's ARC Function Remote control
1
4
b. Press the “ARC”
button in the
Remote Controller
a. Press the “Mode”
button “M” in the
S-Bar quickly
Plug the HDMI
cable into the port
HDMI(ARC) on TV
Ensure the TV has the ARC port.
Ensure your TV audio mode is set to
output audio through ARC.
HDMI
(ARC)
2HDMI
(ARC)
3HDMI
OUTPUT
Insert the other end of the
HDMI cable into S-Woofer
HDMI Out port
Change the S-Series to the “ARC”
mode (the LED light will be “white”
color in the S-Bar):
There are 2 ways to change to the
“ARC ” mode:
4a.
XBASS
Power Mute
4b.
Blue Buttons only work when in Bluetooth mode.
Pressing the X-Bass button will optimise the sound
for music or tv viewing. When the Logo is Blue it is
set for music. when it is red it is set for TV audio.
XBASS
Volume
Power Mute
Pair Play/Pause
Previous Next
M

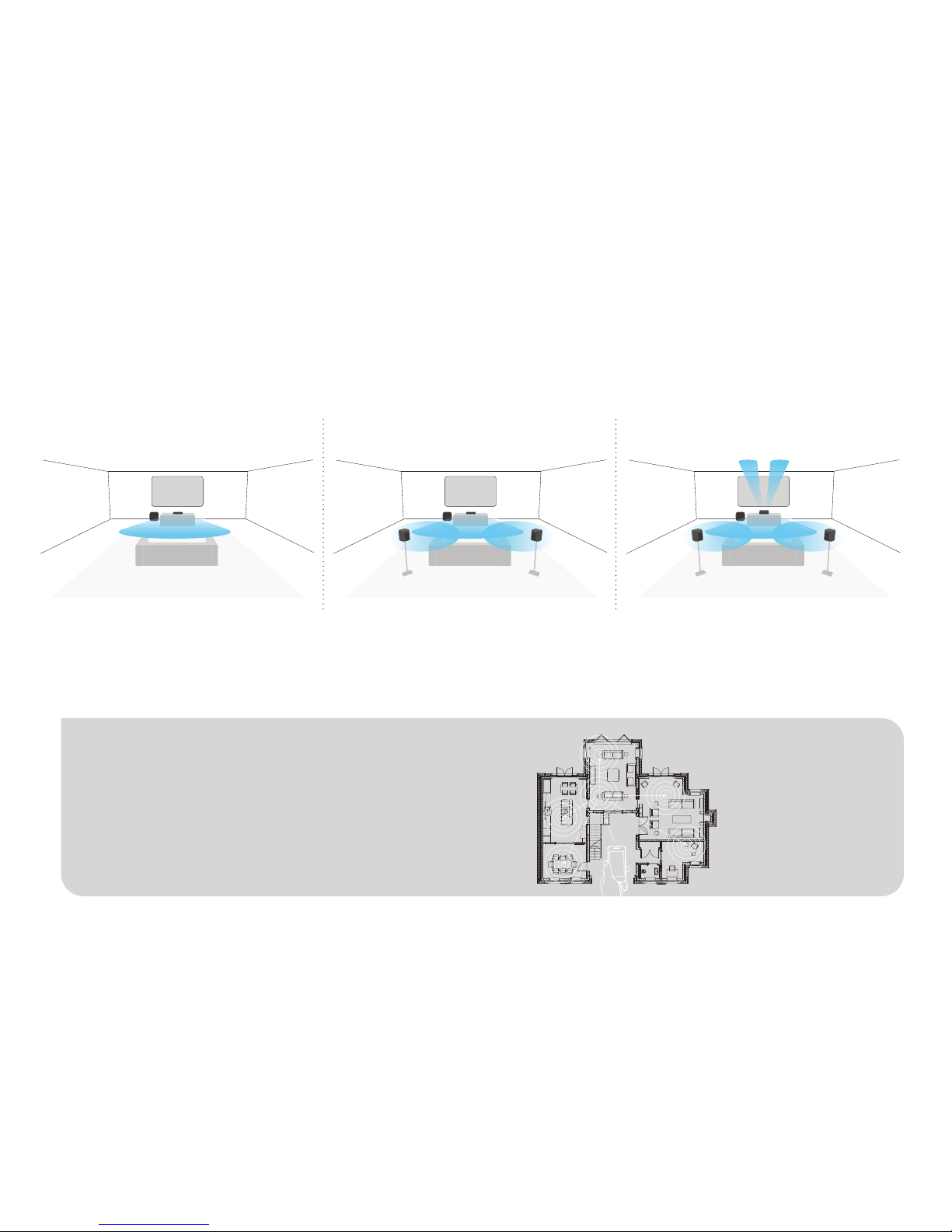

Using S-Series for Home Cinema
With the Atmos module added experience Full 3D
surround sound through Dolby Atmos
Soundbar and Subwoofer will deliver
Dolby Virtual Surround sound
Multi-Room Audio
The S-Cubes speakers can also be used as either
standalone speakers or multi-room speakers using
Damson JetStreamNet.
Soundbar and Subwoofer with 2 S-Cubes
work as Dolby 5.1 surround supporting
Dolby Digital+ and Dolby TrueHD

User Guide for S-Cube
(M) Power/Mode (BT/Aux/JSN),
Vol –, Vol +, Play/Pause.
1. JetStreamNet Pairing,
2. Trangle, 3. Circle, 4. Square
5. Reset, 6. AUX In, 7. AC/DC Input
1.
2.
5.
6. 7.
3. 4.

1. Individual
Stereo Speaker
DC
AUX
Insert a cable into the AUX
port for wired connectoin.
The LED will light up yellow.
If selecting BT pair your
device to Damson
S-Cube. Function mode
should be set to Circle
2. Multi Speaker
1
DC
3
3
Select a primary speaker to
connect to your device to
S-Cube. Power on additional
speakers and change
function to JetStreamNet
mode (light blue LED).
Bring the additional speakers close to the primary speaker
and short press and hold the JSN Pairing button on
both speakers at the same time. Speakers are now
connected. Repeat for up to 16 speakers.
Change the output of each speaker. Select Triangle for
Stereo left channel and Square for Stereo Right channel,
or circle on each device if you wish to play stereo on each
speaker.
3. S-Series Surround - Establishing a
connection and reconnecting
Power On the
S-Woofer with remote
control.
Change the mode
on the S-Cubes to
JetStreamNet (light blue).
Short press the Pairing button on the S-Cube and
the JSN button on the remote control at the same
time, pressing for less than 3 seconds.
XBASS
Power Mute
1
1
2
3
On the left surround
speaker change the output
switch to triangle.
4
On the right surround
speaker change the output
switch to square.
5
DC
S-Cube has three primary functions:
2
DC
Speaker 1 Speaker 2
short press short press
DC
Power on and change mode
to either BT (Blue LED) or
2
Volume Pair
Previous Next
short press

Representation of LED lights
HDMI 1
Red
HDMI 2
Indigo
ARC
White
AUX
Green
BT
Blue
The Cube LED S-BAR LED
Red Flashing
when the cube is powered on and charging
Solid Red
when the cube is charging but powered off.
Solid Indiego
when the cube is connected to the JetStreamNet
Solid dark blue
when connected in Bluetooth mode (this is the master cube only)
Blink red and colour of mode the system is in
when the cube is powered on and until fully charged.
When receiving Dolby Atmos audio the Subwoofer LED will flash, for all other content the LED remains constant.
