Navigate through the control computer’s menu by:
To increase or reduce the set values use:
To adjust the room temperature: starting by pressing
The degree information that now appears in the display is the
last desired room temperature.
To increase the temperature: press
To lower the temperature: press
The temperature you now require is registered immediately.
(After approximately ten seconds the desired room tempera-
ture appears in the display again, together with other infor-
mation.) The heat pump now starts to work to reach the new
temperature.
Want to know more? Read this User’s Manual!
VUBMF102

Danfoss – 3
VUBMF102
Table of contents
1 Important information........................................................4
1.1 Safety precautions .......................................................................4
1.2 Protection ...............................................................................4
2 About your heat pump........................................................5
2.1 Principles of function ....................................................................5
2.2 Components.............................................................................6
2.3 Auxiliary heat ............................................................................7
2.4 Water heater.............................................................................8
2.5 Regulation information ..................................................................9
2.6 Installation principle ....................................................................14
3 Control computer ...........................................................15
3.1 Display .................................................................................16
3.2 Menus..................................................................................18
4 Trimming the heating system ................................................24
5 Instructions ................................................................25
5.1 Setting operating mode.................................................................25
5.2 Setting ROOM values ...................................................................25
5.3 Adjusting CURVE values.................................................................25
5.4 Adjusting a specific part of the heat curve ...............................................26
5.5 Setting MAX and MIN values ............................................................26
5.6 Setting HEATSTOP ......................................................................26
5.7 Reading off temperatures ...............................................................27
5.8 Calculating energy consumption ........................................................27
5.9 Manual defrost .........................................................................28
6 Regular checks ..............................................................29
6.1 Checking operation .....................................................................29
6.2 Checking the brine level ................................................................29
6.3 Checking the water level in the heating system..........................................30
6.4 Checking the safety valve ...............................................................30
6.5 In the event of leakage..................................................................31
6.6 Cleaning the strainer for the heating system.............................................31
6.7 Cleaning the strainer for the brine circuit ................................................32
7 Accessories .................................................................33
7.1 Room temperature sensor...............................................................33
8 Troubleshooting ............................................................34
8.1 Alarm...................................................................................34
9 Terms and abbreviations.....................................................35
10 Default settings in the control computer ......................................37
11 References ..................................................................38
11.1 Installation performed by: ..............................................................39

Danfoss – 4 VUBMF102
1 Important information
• If the installation is not used during the winter, the heating system must be drained of
water, otherwise there is a risk of frost damage to the installation. (Contact an authorized
installer, see the “References” section)
• The installation can be considered maintenance free but certain checks are necessary (see
“Regular checks”).
• Before changing the control computer’s settings, first find out what these changes mean.
• Contact your installer for any service work.
1.1 Safety precautions
Installation and maintenance
• Only authorized installers may install, operate and carry out maintenance and repair work
on the heat pump. (See the“References” section)
• Only authorized electricians may modify the electrical installation. (See the “References”
section)
󰥎 DANGER TO LIFE! Only authorized refrigeration technicians may work on the refriger-
ant circuit. (See the “References” section).
System modifications
Only authorized installers may carry out modifications on the following components:
• The heat pump unit
• The pipes for the refrigerant, brine, water and power
• The safety valve
You must not carry out construction installations that may affect the operational safety of the
heat pump.
Safety valve
The following safety precautions apply to the hot water circuit’s safety valve with correspond-
ing overflow pipe:
• Never block the connection to the safety valve’s overflow pipe.
• Water expands when it is heated, this means that a small amount of water is released
from the system via the overflow pipe. The water that exits the overflow pipe can be hot!
Therefore, allow it to flow to a floor drain where there is no risk of burning yourself.
1.2 Protection
Corrosion Protection
Due to the risk of corrosion, avoid using different types of sprays in the vicinity of the heat
pump. This particularly applies to:
• Solvents
• Chlorinated cleaning agents
• Paints
• Adhesives

Danfoss – 5
VUBMF102
2 About your heat pump
2.1 Principles of function
A heat pump utilises the free energy found in a natural heat source, such as rock, ground,
or air. The heat pump can be compared to a reversed refrigerator. In a refrigerator, heat is
transferred from the inside of the refrigerator to the outside. In a heat pump the heat that
is stored in a heat source is transferred to the inside of the house. The heat pump uses the
energy in the heat source and gives back two to three times more heat energy than what it
uses in electrical energy. The heat pump is, therefore, a very environmentally friendly and
economical way of heating a house.
In order for the heat pump to be able to retrieve heating energy from the heat source and
transfer it to the heating system of the house, three separate fluid circuits are required.
The circuit that retrieves the heating energy from the heat source is called the brine circuit
and it maintains a low outgoing temperature to be heated by the heat source.
The next circuit is called the refrigerant circuit and is a closed circuit which takes the retrieves
heating energy and transfers it to the last circuit, the heat transfer fluid circuit.
The heat transfer fluid circuit holds the fluid that circulates in the heating system of the
house and in the heat pump’s water heater.
The figure below shows how the different circuits work together in the transfer of heating energy.
Figure 1: Function principles of a heat pump.
1 A fluid (brine) filled hose is lowered into a lake, buried in the ground or lowered into bed-
rock. The brine obtains energy from the heat source by the fluid temperature in the hose
being heated a few degrees by the surrounding heat source. The fluid filled hose is also
known as a collector.
Expansion valve/
pressure drop
Enclosed
refrigerant
Compressor/
pressure increasing
Brine
Condenser
Evaporator
Heat transfer fluid circuit – is the circuit that contains the water that
transports the heat/energy to the heating system and the water heater.
Refrigerant circuit – is the circuit that contains a chlorine and freon free
refrigerant which, inside the heat pump, transfers the energy retrieved
from the brine circuit through evaporation, compression and condensa-
tion, and supplies it to the heat transfer fluid circuit.
Brine circuit – is the circuit that contains an antifreeze water based mix
that obtains and transports energy from the heat source to the heat pump.
This circuit is also known as the collector.
Heat source
Heating system and
water heater

Danfoss – 6 VUBMF102
2 The brine is guided into the heat pump’s evaporator. The enclosed refrigerant in the
refrigerant circuit is forced to boil as the pressure in the expansion valve drops and
later evaporates to a gas in the evaporator. The energy produced during this process is
released by the heated brine.
3 The refrigerant that now contains a large quantity of energy in the form of heat is trans-
ferred to the compressor, which both increases its temperature and pressure.
4 The refrigerant then continues to the condenser. When condensing, the refrigerant
supplies its heat energy to the heat transfer fluid circuit. The refrigerant’s temperature
decreases and returns to a liquid state.
5 The heat transfer fluid circuit transports the heat energy out to the water heater, radiator
or the under floor heating system, which heat up.
6 The refrigerant is then transported through the expansion valve where the pressure
drops and the refrigerant starts to boil and then the process starts again.
2.2 Components
DHP-AL is a heat pump installation for both heating and producing domestic hot water for
the home. The heat pump uses outdoor air as a heat source and retrieves energy from the air
using an air heat exchanger in a separate outdoor unit.
The compressor in the heat pump is first compressor on the market that is specially devel-
oped for heat pumps. It also has an integrated electrical heating element which provides
auxiliary heat that can be used when the heating requirement exceeds the capacity of the
heat pump. The heat pump supplies as much of the heat demand as possible before auxiliary
heating is engaged and assists.
The heat pump is equipped with control equipment, which is controlled via a control panel.
The control equipment controls the heat pump unit’s included components (compressor,
circulation pumps, auxiliary heater and outdoor unit) and determines when to start and stop
the pump as well as producing heat and cooling for the house.
Heat enters the house via a water borne heating system, a low temperature system. One is
used to cool the house. The heat pump’s function for cooling connects automatically when
the outdoor temperature exceeds the set parameter.
The heat pump unit consists of five basic units:
1 Heat pump unit
• Scroll compressor
• Stainless steel heat exchanger (evaporator and condenser)
• Circulation pumps for brine and heating systems
• Valves and safety equipment and corresponding electrical components.
2 Auxiliary heat
• 15 kW electric heating element (4.5 kW at 230 V heat pump installation)
• Electric heating element control in a maximum of five steps (three steps for 230 V heat
pump installation)
• Installed on the heating system’s supply pipe
• Covers the demand of extra energy if the heat pump’s capacity is exceeded
• Automatically connected in the heat pump unit if operating mode AUTO is selected.
3 Control equipment (not shown in the figure)
• Control computer with graphic display
• Temperature sensors (outdoor, supply pipe, return pipe, brine and hot water)
• Room sensor (option)

Danfoss – 7
VUBMF102
4 Water heater
• Water heater with defrosting tank
5 Outdoor unit
• Air heat exchanger
• Fan

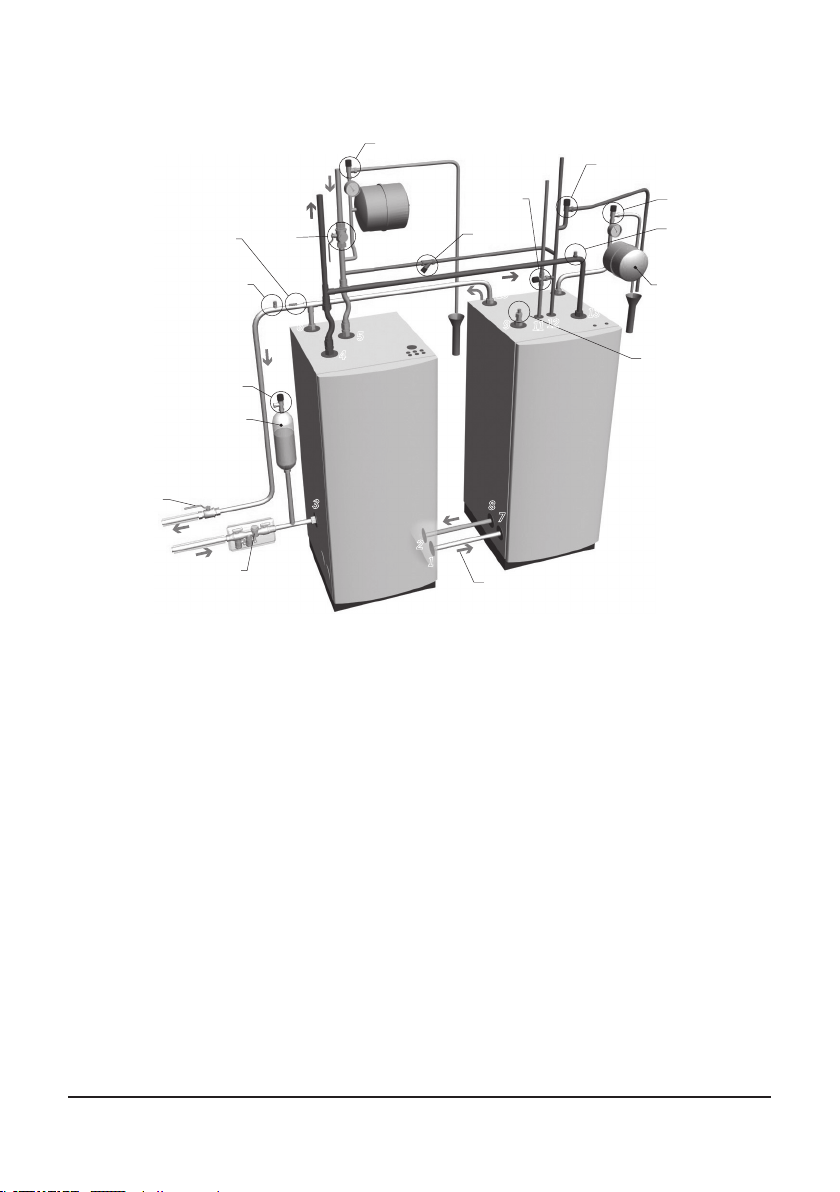

Figure 2: Complete DHP-AL heat pump installation.
2.3 Auxiliary heat
The auxiliary heater is made up of an electric heating element on the supply pipe that has
three outputs, ADD.HEAT 1, ADD.HEAT 2 and ADD.HEAT 3, and can be controlled in five steps:
• Step 1 = ADD.HEAT 1 = 3 kW
• Step 2 = ADD.HEAT 2 = 6 kW
• Step 3 = ADD.HEAT 1 + ADD.HEAT 2 = 9 kW
• Step 4 = ADD.HEAT 2 + ADD.HEAT 3 = 12 kW
• Step 5 = ADD.HEAT 1 + ADD.HEAT 2 + ADD.HEAT 3 = 15 kW
To calculate the total energy consumption, see the “Settings- Calculating energy consump-
tion” section.
In the event of an alarm, the auxiliary heater engages automatically.
1
5
2
4
3

Danfoss – 8 VUBMF102
2.4 Water heater
Danfoss DHP-AL is supplied with an integrated 180 litre water heater with a tank outside the
water heater that contains the anti-freeze.
Figure 3: Water heater in DHP-AL.
Using a regular time interval, the water in the water heater is heated to 60°C to prevent the
build up of bacteria (legionella function). The factory set time interval is seven days.
Hot water production is prioritised ahead of heat production, i.e. no heat is produced if there
is a hot water demand at the same time.
The temperature of the hot water cannot be adjusted. Hot water production does not cease
at a determined temperature but when the compressor’s operating pressure switch reaches
its maximum operating pressure, which corresponds to a hot water temperature of approxi-
mately 50-55°C.
In the control computer’s TEMPERATURE menu, a number of measured and calculated tem-
peratures for the hot water and supply are displayed. There you can see the current hot water
temperature and the temperature of the supply pipe during heating and hot water produc-
tion. The temperature of the supply pipe often exceeds the maximum permitted hot water
temperature, but usually during hot water production.
Position Name
1 Hot water line
2 Cold water
3 Defrosting tank
4 Water heater
5 TWS coil
1 2
3
4
5

Danfoss – 9
VUBMF102
2.5 Regulation information
Heat production - calculating
The indoor temperature is adjusted by changing the heat pump’s heat curve, which is the
control computer’s tool for calculating what the supply temperature should be for water that
is sent out in the heating system. The supply temperature is calculated from the outdoor tem-
perature and two adjustable values: CURVE and ROOM. The lower the outdoor temperature,
the higher the supply temperature. In other words, the supply temperature of the water fed
to the heating system will increase exponentially as the outside air temperature falls.
The heat curve will be adjusted in connection with installation. It must be adapted later on,
however, to obtain a pleasant indoor temperature in any weather conditions. A correctly set
heat curve reduces maintenance and saves energy.
CURVE
The control computer shows the value for CURVE by means of a graph in the display. You can
set the heat curve by adjusting the CURVE value. The CURVE value indicated which supply
temperature the heating system is to have at an outdoor temperature of 0°C.
Figure 4: Graph showing the set value 40 for CURVE.
At outdoor temperatures colder than 0°C, supply water hotter than 40°C is sent out to the
heating system and at outdoor temperatures greater than 0°C, supply water cooler than 40°C
is sent out.
Value for CURVE is 40...
Outdoor temperature
Supply temperature
...at zero degrees
Maximum supply
temperature

Danfoss – 10 VUBMF102

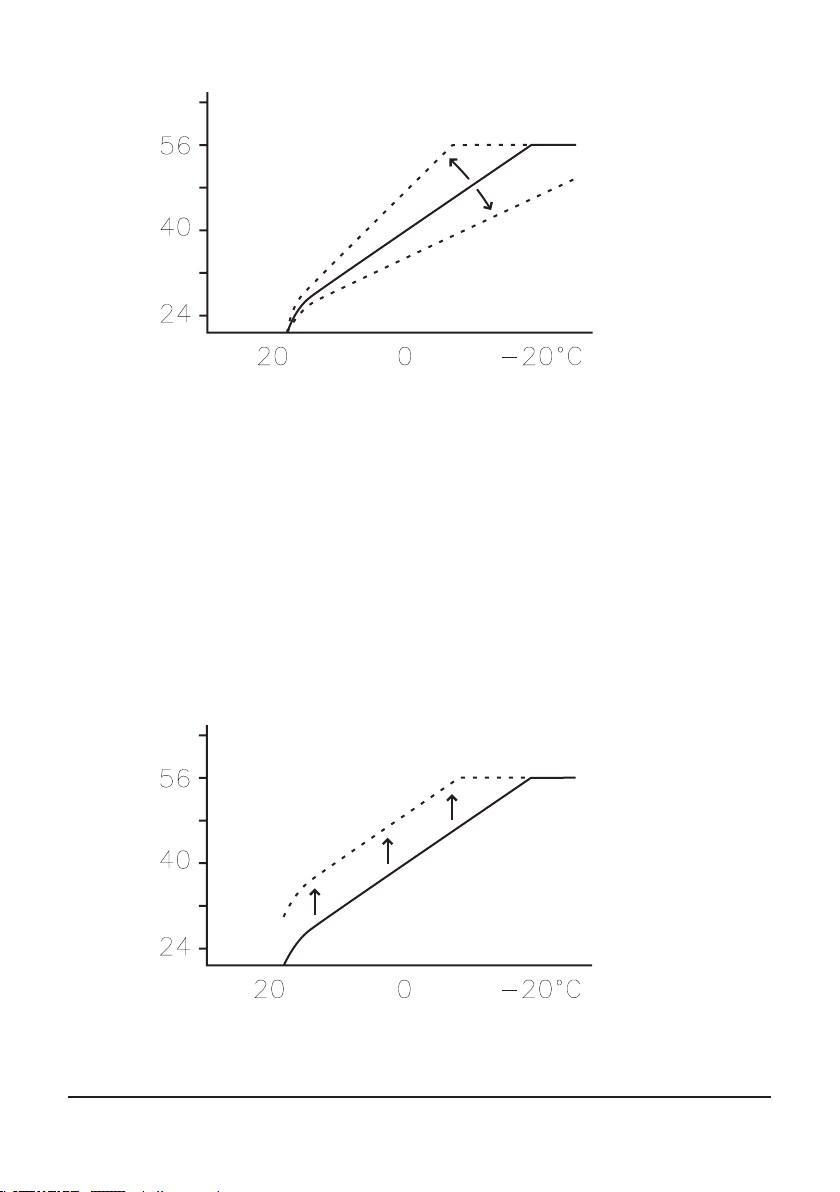

Figure 5: Increasing or reducing the CURVE changes the slope of the curve
If you increase the CURVE value, the heat curve will become steeper and when you reduce it,
it will become flatter.
The most energy efficient and cost effective setting is achieved by changing the CURVE value
to adjust the temperature in the house to an even and constant temperature. For a tempo-
rary increase or reduction, adjust the ROOM value instead.
ROOM
If you wish to increase or reduce the indoor temperature, change the ROOM value. The differ-
ence between changing the ROOM value and the CURVE value is that the system’s heat curve
does not become steeper or flatter if the ROOM value is changed, which the curve becomes
if the CURVE value changes, instead the entire heat curve is moved by 3°C for every degree
change of the ROOM value. The reason that the curve is adjusted 3° is that an approximate 3°
increase in supply temperature is needed to increase the indoor temperature 1°.
Figure 6: Changing the ROOM value changes the heat curve upwards or downwards.
Supply temperature
Outdoor temperature
Maximum supply tem-
perature
Supply temperature
Outdoor temperature
Maximum supply
temperature

Danfoss – 11
VUBMF102
The relationship of the supply temperature to outdoor temperature will not be affected. The
supply temperature will be increased or reduced by the same number of degrees all along
the heat curve. I.E. the entire heat curve rises or drops instead of the curve gradient changing.
This method of adjusting the indoor temperatures can only be for a rise or fall.
Sometimes, at outdoor temperatures between -5°C and +5°C, part of the heat curve may
need adjusting if the indoor temperature is not constant. For this reason, the control system
includes a function adjusting the curve at three outdoor temperatures: -5°C, 0°C and +5°C. If,
for example, the outdoor temperature is -5°C, the supply temperature will change gradually
between 0°C and -10°C, maximum adjustment being reached at -5°C. The figure below shows
the adjusted CURVE -5. The adjustment can be seen in the graph in the form of a bump.
Figure 7: The adjusted curve at -5°C
You can choose to adjust the heat curve individually at three specified outdoor temperatures:
-5°C, 0°C and +5°C. The supply temperature can be changed by plus/minus 5 degrees.
HEATSTOP
The HEATSTOP function automatically stops all production of heat when the outdoor tem-
perature is equal to, or higher than, the value entered for heat stop.
When the heat stop function is activated, the circulation pump will be turned off - except
when hot water is being produced. The circulation pump will be "exercised" for 1 minute per
day. The factory set value for activating heat stop is an outdoor temperature of 17°C. If the
heat stop function is active, the outdoor temperature must drop 3°C when setting, before the
heat stop stops.
MIN and MAX
The MIN and MAX values are the lowest, respectively highest set point values that are allowed
for the supply temperature.
Adjusting the minimum and maximum supply temperatures is particularly important if your
home has under floor heating.
If your house has under floor heating and parquet floors, the supply temperature must not
exceed the recommendations of the floor manufacturer. Otherwise there is a risk that the
parquet floors might be damaged If you have under floor heating and stone tiles, the MIN
Supply temperature
Outdoor temperature
Local higher supply
temperature at -5°

Danfoss – 12 VUBMF102
value should be 22-25°C, even in summer when no heating is required. Also remember that
the value for HEATSTOP needs adjusting upwards for summer heating. This is to achieve a
comfortable floor temperature.
If your house has a basement, the MIN value should be adjusted to a suitable temperature
for the basement in summer. A condition for maintaining the heat in the basement in the
summer is that all radiators have thermostat valves that switch off the heat in the rest of the
house. It is extremely important that the heating system in the house is trimmed correctly,
see the “Trimming the heating system” section for further information. Also remember that
the value for HEATSTOP needs adjusting upwards for summer heating.
TEMPERATURES
The heat pump can display a graph showing the history of the various sensors’ temperatures
and you can see how they have changed over 100 measurement points in time. The time
interval between the measurement points can be adjusted between one minute and one
hour, factory setting is one minute.
History is available for all sensors, but only the set value is shown in the display for the room
sensor. The integral value that may appear is the heating system’s energy balance.
INTEGRAL
The information below tells you how your heat pump works, there are no values that you as a
customer have to set.
The heat demand in the house depends on the season and weather conditions and is not
constant. The heat demand can be expressed as temperature difference over time and can be
calculated giving an integral value as a result (heat demand). To calculate the integral value,
the control computer uses several parameters.
A heat deficit is needed to start the heat pump, and there are two integral values, A1 and A2,
which start the compressor and auxiliary heater. During heat production, the deficit reduces
and when the heat pump stops, the inertia in the system causes a surplus of heat.
The integral value is a measurement of the surface under the time axle and is expressed
in degree minutes. The figure below shows the factory settings for the integral values that
the heat pump has. When the integral value has reached the set value for INTEGRAL A1, the
compressor starts and if the integral value does not drop but continues to rise, the auxiliary
heater starts when the integral value has reached the set value for INTEGRAL A2.

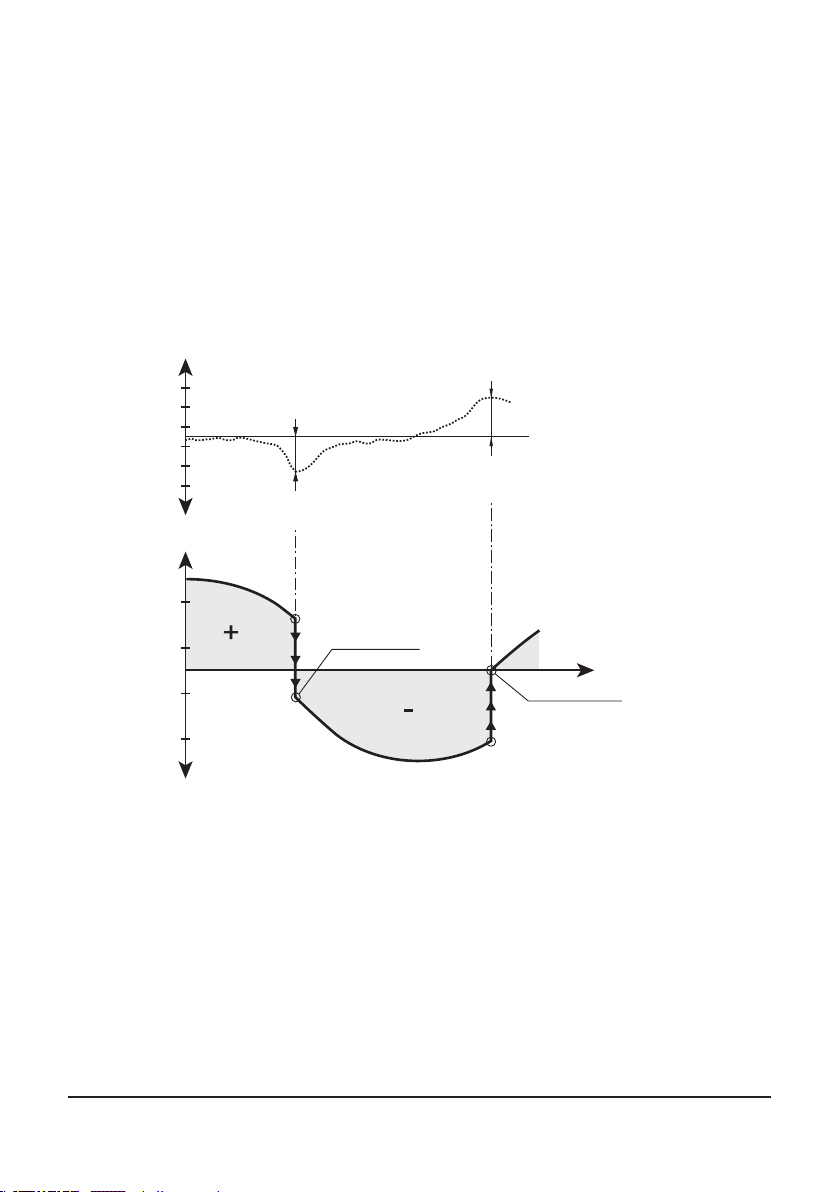

Figure 8: Starting and stopping heat pump operation based on integral values.
Heat surplus
Integral
INTEGRAL A1
Heat surplus
Heating deficit
Compressor
start (-60)
INTEGRAL A2
INTEGRAL A1
INTEGRAL A2
Auxiliary heater
start (-660)
Compressor
stop (≥0)
Auxiliary heater stop
(latest at -60)
Auxiliary
heater
Compressor
No operation No operation
Compressor
start (-60)
Auxiliary heater
start (-660)
Auxiliary
heater
Compressor
Time
Heat pump operation
(Heat demand)

Danfoss – 13
VUBMF102
The integral value calculation stops during hot water production and during heat stop.
Integral value calculation resumes two minutes after completed hot water production to give
the heating system time to stabilise the temperature.
HYSTERESIS
The information below tells you how your heat pump works, there are no values that you as a
customer have to set.
In order to start the heat pump in advance during sudden changes of the heat demand, there
is a value, HYSTERESIS, which controls the difference between the actual supply temperature,
t1and the calculated supply temperature, t2. If the difference is the same or greater than
the set HYSTERESIS value (x), i.e. there is a heat demand, or the heat demand disappears,
quicker than the usual integral calculation, the integral value is forced to either the start value
INTEGRAL A1 or to the stop value 0°min.
Figure 9: Conditions for HYSTERESIS to force the integral value to change.
HYSTERESIS
(∆t) ≥ x
Compressor start
(-60)
Compressor stop
(0)
t1
t2
HYSTERESIS
(∆t) ≥ x
TIME
INTEGRAL
SUPPLY TEMP.

Danfoss – 14 VUBMF102
2.6 Installation principle
The image shows the principles of a piping installation with all components.
Figure 10: Principle solution for an installation.
1
2
3
4
5
6
7
8
9
1 0
1 1 1 2
1 3
1 4
Supply sensor, brine
Bleed valve
Bleed valve
Bleed valve at stainless steel
water heater
Brine flow during
defrosting
Mixer valve
Shut-off valve
Filler cock
Safety valve, 1.5 bar
Safety valve
Safety valve, 9 bar
Safety valve, 1.5 bar
Filler cock
Location of the
expansion tank when
the outdoor unit is level
with the heat pump.
Location of the
expansion tank when
the outdoor unit is
higher than the heat
pump.

Danfoss – 15
VUBMF102
3 Control computer
A control computer is used to automatically calculate the heat demand in the house where
the heat pump is installed and to ensure that the correct amount of heat is produced and
emitted where necessary. There are many different values (parameters) that must be referred
to during the calculation of the heat demand. Use the control computer to set and change
certain values that have to be adapted according to the house demand.
The display window, keypad and an indicator are on the front of the control computer. It
consists of a simple menu system that is used to navigate the desired settings and values.

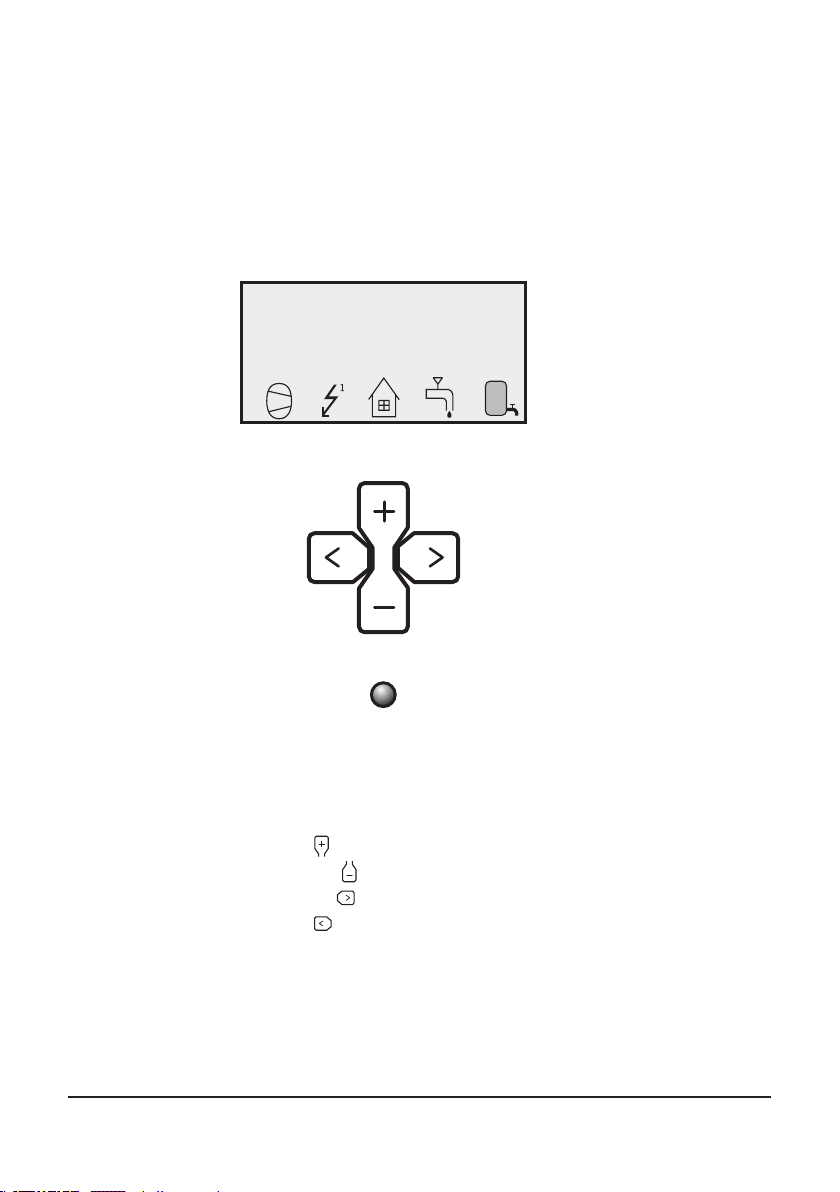

Figure 11: Display, control buttons and indicator for the heat pump.
Use the four control buttons on the keypad to navigate the menus and increase or reduce
the set values:
• An up button with a plus sign
• A down button with a minus sign
• A right button with a right arrow
• A left button with a left arrow
The display always shows the set ROOM value and the status of the heat pump.
The main menu INFORMATION with its sub-menus. The main menu, INFORMATION, is
opened by pressing the left or right buttons. From INFORMATION one of the four sub-menus
can be opened: OPERAT.; HEATCURVE; TEMPERATURE and OPERAT. TIME.
ROOM 20°C
(20°C)
NO DEMAND HEAT
OPERAT. AUTO
The symbols in the display are
only examples. Certain sym-
bols cannot be displayed at
the same time.

Danfoss – 16 VUBMF102
3.1 Display
The display of the control computer shows information about the heat pump’s operation,
status and any alarms, in text form. The status, indicated by symbols, is also shown in the
lower section which shows the heat pump’s active process.
Operating mode
Appears with applicable heat pump operating status text.
Operating mode Meaning
(OFF) The installation is fully switched off.
󰥎 Remember that if the operating mode OFF is to be used for
long periods during the winter, the water in the heating sys-
tem in the installation must be drained, otherwise there is a
risk of frost damage.
AUTO The heat pump and the auxiliary heater are automatically controlled
by the control computer.
HEATPUMP The control computer is controlled so that only the heat pump unit
(compressor) is allowed to operate.
ADD. HEAT The control computer only permits the auxiliary heater to be in
operation. This operating mode can be used when a new installation
is being used, when the brine system is not ready for operation.
HOT WATER In this mode the heat pump only produces hot water, no heat goes to
the heating system.
Symbols
Displays the operating status of the heat pump using symbols.
Symbol Meaning
HP Indicates that the compressor is in operation. An “F” next to the
symbol indicates that a flow switch is installed.
LIGHTNING Indicates that the auxiliary heater is in operation. Number of auxiliary
power stages indicated by digit.
HOUSE Indicates that the 3-way valve position is for heat production for the
house.
TAP Indicates that the 3-way valve’s position is for hot water production.
VL SYSTEM Indicates the set system VL / D / VL+F / D+F (+F indicates that a flow
switch is installed)
CLOCK Indicates that tariff control is active.

Danfoss – 17
VUBMF102
Symbol Meaning
TANK Indicates the temperature level in the water heater. During charg-
ing, the tank is filled and filling starts at the set start temperature.
A lightning symbol by the symbol indicates peak heating charging
(legionella function).
󰐢
SQUARE Either indicates that the operating pressure switch has deployed, or
that the hot gas temperature has reached its maximum temperature.
Symbols specific to DHP-AL
Displays the operating status of the heat pump using symbols.
Symbol Meaning
DEFROST Displayed if defrosting is active.
FAN Displayed if the fan is active L=Low speed and H= High speed.
Text
Appears with applicable heat pump operating status text.
Message Meaning
ROOM --°C Shows the set ROOM value. Factory setting: 20°C.
If the room sensor accessory is installed, the actual temperature is first
displayed and then the desired indoor temperature within brackets.
ERR PHASE
SEQ.
Alarm that indicates that there is an incorrect phase sequence to the
compressor. Only display and only the first 10 minutes.
HIGH RETURN Indicates that the high return temperature prevents the compressor’s
operation.
START Indicates that there is a demand for heating production and that no start
delay is active.
EVU STOP Indicates that the additional function EVU is active. This means that the
heat pump compressor and addition are off as long as EVU is active.
NO DEMAND
HEAT
Indicates that there is no heating production demand.
HIGHPRESS
ERROR
Alarm that indicates that the high pressure switch has deployed.
LOWPRESS
ERROR
Alarm that indicates that the low pressure switch has deployed.
MOTOR P
ERROR
Alarm that indicates that the motor protection has deployed.
BRINEFLOW
LOW
Appears if the accessory flow switch is installed. Indicates that the flow in
the brine system is low.

Danfoss – 18 VUBMF102
Message Meaning
SENSOR Alarm that indicates a faulty sensor.
HEATPUMP
START
Indicates that the compressor will start within 30 seconds. The brine
pump has started.
HEATPUMP+
ADD.HEAT
Indicates that heat production is active with both compressor and
auxiliary heater.
START --MIN Indicates that there is a heating production demand and will start in the
specified number of minutes.
ADD. HEAT Indicates that there is an auxiliary heater demand.
DEFROST Indicates the temperature for defrost.
3.2 Menus
3.2.1 Main menu INFORMATION
The control computer’s main menu, INFORMATION, is opened by pressing the right or left
button once.
Figure 12: The main menu INFORMATION for DHP-AL with sub menus.
Use the up and down buttons to select the desired sub-menu and open the menu by
pressing the right button once. To go back to the display’s starting point, press the left
button once.
Return
Cursor
OPERATION ---
HEATCURVE
TEMPERATURE
OPERAT.TIME
DEFROST
INFORMATION
Sub-menus

Danfoss – 19
VUBMF102
3.2.2 Sub-menu OPERATION
In the OPERATION menu you can set the operating
mode of the heat pump.
When changing operating mode, confirm your
choice by pressing the right button once. The aster-
isk moves to the selected operating mode.
For further information, see the “Setting operating
mode” section.
Menu text Description Adjusted by:
(OFF) The installation is fully switched off.
󰥎 Remember that if the operating
mode OFF is to be used for long
periods during the winter, the
water in the heating system in
the installation must be drained,
otherwise there is a risk of frost
damage.
By the customer, if
necessary.
AUTO The heat pump and the auxiliary heater
are automatically controlled by the
control computer.
By the customer, if
necessary.
HEATPUMP The control computer is controlled so
that only the heat pump unit (compres-
sor) is allowed to operate.
By the customer, if
necessary.
ADD. HEAT The control computer only permits the
auxiliary heater to be in operation. This
operating mode can be used when a new
installation is being used, when the brine
system is not ready for operation.
By the customer, if
necessary.
HOT WATER In this mode the heat pump only
produces hot water, no heat goes to the
heating system.
By the customer, if
necessary.
AUTO *
HEATPUMP
ADD. HEAT
HOT WATER
OPERATION

Danfoss – 20 VUBMF102
3.2.3 Sub-menu HEATCURVE
In the HEATCURVE menu the settings that affect the
indoor temperature are made. For further information,
see the “About your heat pump” section.
Menu text Description Adjusted by:
CURVE The set value indicates the supply line
temperature of the water that is trans-
ported to the heating system at an out-
door temperature of 0°C.
By the customer, if
necessary.
MIN Sets the lowest permitted supply
temperature.
By the customer, if
necessary.
MAX Sets the highest permitted supply
temperature.
By the customer, if
necessary.
CURVE 5 Used to adjust the heat curve at an
outdoor temperature of +5°C.
By the customer, if
necessary.
CURVE 0 Used to adjust the heat curve at an
outdoor temperature of 0°C.
By the customer, if
necessary.
CURVE - 5 Used to adjust the heat curve at an
outdoor temperature of -5°C.
By the customer, if
necessary.
HEATSTOP This function stops all production of
heat when the outdoor temperature is
equal to, or higher than, the set heat stop
value.
By the customer, if
necessary.
REDUCTION The temperature can be lowered using
an outside timer. The control computer
determines the drop.
By the customer, if
necessary.
ROOM FACTOR
(Only displayed if
a Room sensor is
installed.)
Determines how large an impact the
room temperature is to have when calcu-
lating the supply temperature.
Factory setting: 2
(interval: 1 - 5)
(1 = small, 5 = large)
CURVE
MIN
MAX
CURVE 5
CURVE 0
CURVE -5
HEATSTOP
HEATCURVE
40°c
22°c
70°c
0°c
0°c
0°c
17°c
