Danisense DS Series User manual

PRODUCT MANUAL
ULTRA-STABLE HIGH PRECISION CURRENT TRANSDUCERS
■INTEGRATED BODY: DS, DQ, DL SERIES
■SEPARATE HEAD TRANSDUCER SYSTEMS: DR SERIES
Precision - Innovation

2
TABLE OF CONTENTS
1. NOTICE…………………………………………………………………………. 3
1.1 Safety informations…………………………………………………………… 3
1.2 Certifications…………………………………………………………………… 3
2. INTEGRATED BODY TRANSDUCERS (DS, DQ, DL series)……………. 4
2.1 Introduction & overview……………………………………………………….. 4
2.2 Description……………………………………………………………………... 4
2.3 Installation & Operation………..……………………………………………... 5
2.3.1 Mounting instructions…………………………………………………. 5
2.3.1.1 Positive current flow…………………………………… 5
2.3.1.2 Fastening torques……………………………………… 5
2.3.2 Electrical connection instructions……………………………………. 6
2.3.2.1 Current output………………………………………………... 6
2.3.2.1.1 Standard version……………………………………. 6
2.3.2.1.2 Calibration winding version………………………... 7
2.3.2.2 Voltage output………………………………………………... 7
2.3.3 Power supplies interface units………………………………………. 8
2.3.3.1 Main features…………………………………………………. 8
2.3.3.2 Multi-channels power supplies interface DSSIU series…. 8
2.3.3.3 Connection of calibration winding with DSSIU-6-1U (-V).. 9
2.3.3.4 Voltage output modules (VOM)……………………………. 10
2.3.3.5 DSSIU-6-1U-V current / voltage output cables………………….. 10
2.3.3.6 Noises immunity of voltage output versions……………… 11
3. SEPARATE HEAD TRANSDUCER SYSTEMS (DR series)……..……….. 12
3.1 Introduction & overview……………………………………………………….. 12
3.2 Description……………………………………………………………………... 12
3.3 Installation & Operation………..……………………………………………... 13
3.3.1 Mounting instructions…………………………………………………. 13
3.3.1.1 Positive current flow…………………………………… 13
3.3.1.2 Mechanical fixations…………………………………… 13
3.3.2 Electrical connection instructions……………………………………. 14
3.3.2.1 Current output………………………………………………… 14
3.3.2.2 Voltage output………………………………………………... 15
3.3.2.3 Connection transducer head to control unit……………….. 15
4. ELECTRICAL CONSIDERATION……………………………………………. 16
4.1 Common mode noises………………………………………………………... 16
4.2 Saturation behavior……………………………………………………………. 17
4.3 Influence of the return conductor…………………………………………….. 18
4.4 Derating of external measuring resistor RM…………………………………. 19
4.5 Frequency derating……………………………………………………………. 19
4.6 Measuring large current with two transducers……...………………………. 20
4.7 Measuring small currents with multiple primary turns……………………... 20
4.8 Advanced Sensor Protection Circuit (ASPC)……………………………….. 21
5. DEFINITION OF PARAMETERS…………………………………………….. 22
6. PRODUCT NAMING RULES…………………………………………………. 23

3
1. NOTICE
1.1 Safety information
The user must have read and understood this chapter before undertaking any action with the
measuring device. For all information considered inadequate, please contact the manufacturer or your lo-
cal representative.
WARNING  Do not use the device in any manner not specified by the manufacturer.
 Do not use the device if it is damaged. Please perform a prior visual ins-
pection to detect possible breaks or damages.
 Turn OFF all power sources before connecting - disconnecting the device.
 Always use the device with the cables provided or in option.
 Respect the pin assignmment of the connector.
 Respect INSULATION class of the device.
 Ensure that the device’s output is NOT open.
 Device must be powered and ready (green LED lit) before turning ON the
primary circuit. And in case of separate head transducer system, please:
 Ensure that the sensing head is connected to the control rack
 Ensure that there is NO current in the primary before turning on the device
CAUTION  This device is designed for indoor applications and the user must refer to
the datasheet for the operating conditions.
1.2 Certification
The present products are designed in compliance with the CE and RoHs directives.
This device should not be placed in the general waste. It can be recycled.

4
2. INTEGRATED BODY TRANSDUCERS (DS, DL & DQ series)
2.1 Introduction and overview
The DS, DL & DQ series, ultra-stable and high precision current transducers are based on closed
loop flux gate principle allowing to achieve ppm level accuracy, excellent linearity and stability versus time.
The integration of the sensing head and the control electronics in a single housing allows a compact de-
sign. The following table shows the rated current range overview and model names.
2.2 Description
Family
Name
Output
type Options
Rated rimary current Arms
50A 200 300-400A 500-1000A 2000A
DS Series
Current
Standard DS50ID DS200ID DS300ID
DS400ID DS600ID
Calibration
Winding DS200ID-CD100
DS200ID-CD1000 DS600ID-CD100
Voltage Standard DS50UB-1V
DS50UB-10V
DS200UB-1V
DS200UB-10V
DS300UB-1V
DS300UB-10V
DS400UB-1V
DS400UB-10V
DS600UB-1V
DS600UB-10V
DS1000UB-10V
DL Series
Current
Standard DL2000ID
Calibration
Winding DL2000ID-CD100
DL2000ID-CB100
Voltage Standard DL2000UB-1V
DL2000UB-10V
DQ Series
Standard DQ200-ID DQ500ID
DQ600ID
Current Progra-
mable DQ640ID-B
DQ Series DS & DL Series

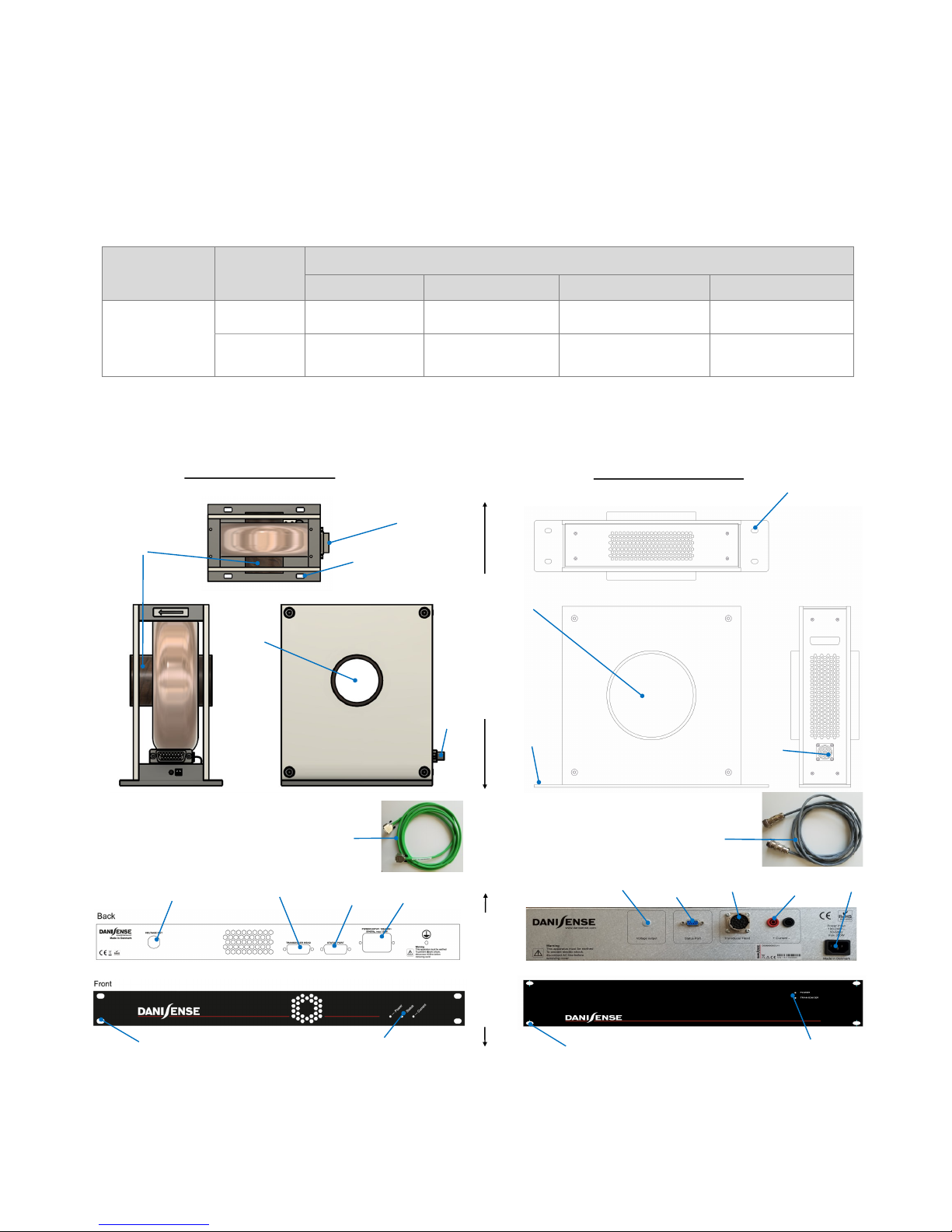

1. Main connector (power supplies, output signal, status etc.)
2. Voltage output or calibration winding terminals
3. Primary conductor feed-through hole
4. Insulating conductor guide
5. Complete metal housing
6. Fixation plate
7. Ratio programation connector (for DQ640ID-B model)
8. Green LED status indicator (lit in normal operation)
5
2
1
1
3
3
5
4
4
6
6
7
8 8

5
DQ SeriesDL Series
Base plate mounting
3
3
3. 4 holes Φ 5.5 x 11 mm for
4 x M5 steel screws / 6N.m
2.3.2 Electrical connection instructions
This chapter describes the electrical connection of the transducer according to their types of output
(current or voltage).
2.3.2.1 Current output
Current output models are identified by the letter I in their model names (e.g. DS200ID).
2.3.2.1.1 Standard version
Electrical connection is ensured by a standard 9-pin DSUB connector (DSUB9). Jackscrew socket
tapped hole UNC 4-40 inches (“D-SUB JACKSKT-SCREW, UNC 4-40, UNC 4-40” inches ).
The pin assignement is shown below.
* open collector for status signal: when the transducer is operating in normal condition, status pins are shorted. Sta-
tus pins are open in case the « zero flux » state is not maintained (transducer is saturated or faulty).
Status pin properties:
- Forward direction pin 8 to pin 3
- Maximum forward current 10mA
- Maximum forward voltage 630V
- Maximum reverse voltage 5V
*
It’s necessary to connect the output pins to an External Measurement Resistor to enable the current
feedback loop (zero flux) for a correct operation of the device. Please refer to chapter 4.4 on External
Measurement Resistor for more details.
Pin 8
Pin 3
4
4
4. 2 holes Φ 5.5mm for
2 x M5 steel screws / 4.4N.m

6
2.3 Installation & Operation
2.3.1 Mounting instructions

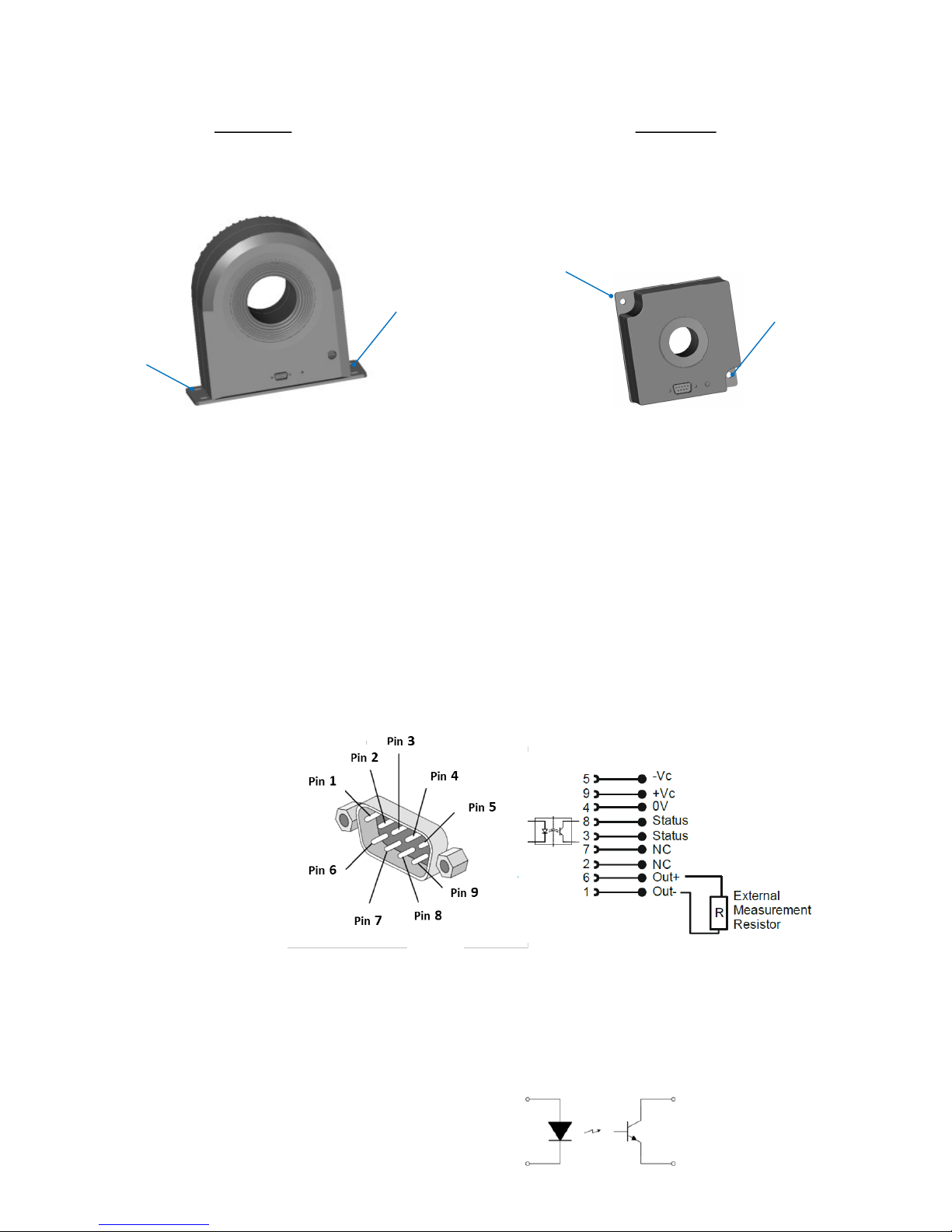

2.3.1.1 Positive current flow: Each transducer is marked with an embossed arrow at the
back of the housing for the positive current direction, as shown below. Please respect the current flow indi-
cation to ensure that the output signal is in phase with the input signal.
2.3.1.2 Fastening torques: The devices is suitable for different fixation configurations,
using the mounting plates designed for that purpose.
Please respect the fastening torques indicated below to avoid damaging the device.
DQ Series DS & DL Series
DS Series
1
1. Arrow symbol
2. Positive current
2
Base plate mounting
1
1
1. 2 holes Φ 6.5mm for
2 x M5 steel screws / 6N.m
2
2
Backside panel mounting
2. 3 tapped holes Φ 4.0 x 6H for
3 x M4 steel screws / 4N.m
1
2

7
DSUB9
2.3.2.1.2 Version with calibration winding
For some applications, it’s preferable to perform a prior functional / accuracy check of the device at
full scale or a fraction of full scale before apllying the power. For that purpose, a primary winding, most
commonly of 100 turns or 1000 turns is added. The terminals of this winding are available at pin 2 and 7 of
the DSUB9 connector (e.g. DS200ID-CD1000) as shown below
*
*
2.3.2.2 Voltage output
Voltage output models (10V or 1V at rated current) are identified by the letter U in their model
names (e.g. DS200UB-10V). The transducer’s output signal is accessible via the BNC connector to en-
hance immunity to induced noises as shown below .
It’s also possible to have the terminal of the calibration winding on a separate BNC connector (e.g.
DS200ID-CB1000). For this version, the electrical connection is similar to the volage output model in the
following section.
Thin wire are used for the test winding due to space restriction. Please observe the current limit for
the test winding, specified in the relevant datasheet to avoid damage to the wire.
see previous page
see previous page
BNC
voltage output
BNC
calibration winding
or Impedance matching resistor
50Ω

8
2.3.3 Power supplies interface units
2.3.3.1 Main features
The current transducers are designed for operation with a ± 15V DC power supplies with the follo-
wing requirements:
• Tolerance max: ±15VDC ±5%
• Max. ripples: 15 mVrms
• Mini. Current requirement *: I consumption (Ips or Ins) + secondary current Is @
max. primary current (see below example)
* e.g. DS600ID measuring up to ± 900A.
- I consumption (see datasheet) Positive current consumption Ips: 104mA
Negative current consumption Ins: 96mA
- Secondary current Is (ratio: 1:1500) Is = ± 900A x (1:500) = ± 600mA
The minimum current that the power supply needs to provide is:
For +15VDC, I output = Ips + Is = 104 + 600 = 704mA
For –15VDC, I output = Ins + Is = 96 + 600 = 696mA
2.3.3.2 Multi-channels power supplies interface DSSIU series
Danisense recommends the 1U rack-mount multi-channels power supplies interface DSSIU series
for best performances, many useful features and options. The following table shows the different options:
Features DSSIU-4, DSSIU-6
- Output voltage: ± 15V ± 5% (per channel)
- Input voltage: AC 100V to 240V, 47Hz to 63Hz
- Dimensions: 19" rack, 1U in height
Model DSSIU-4-1U DSSIU-6-1U DSSIU-1U-V
Number of channels 466
Standard current output 4mm Banana jacks
(red/black)
4mm Banana jacks
(red/black) Mini XLR connector
Voltage output modules none none Mini XLR connector
Terminals for calibration
winding none 4mm Banana jacks (yellow)
4mm Banana jacks
(yellow)
Max. capacity Up to 4 DL2000 /3000A
at the same time
Up to 4 DL2000 /3000A
at the same time
Up to 4 DL2000 /3000A
at the same time

9
1
2 3 4 5
2 1

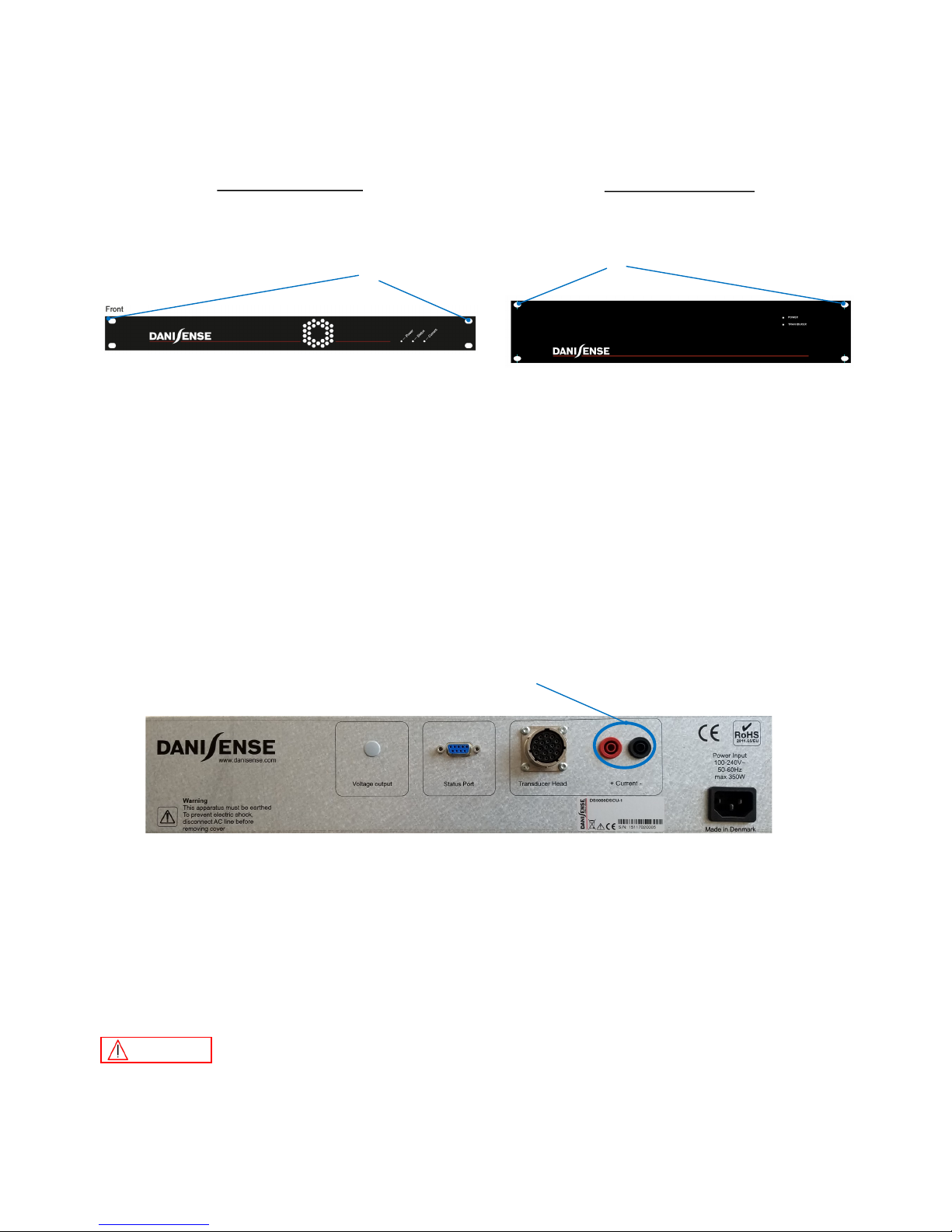

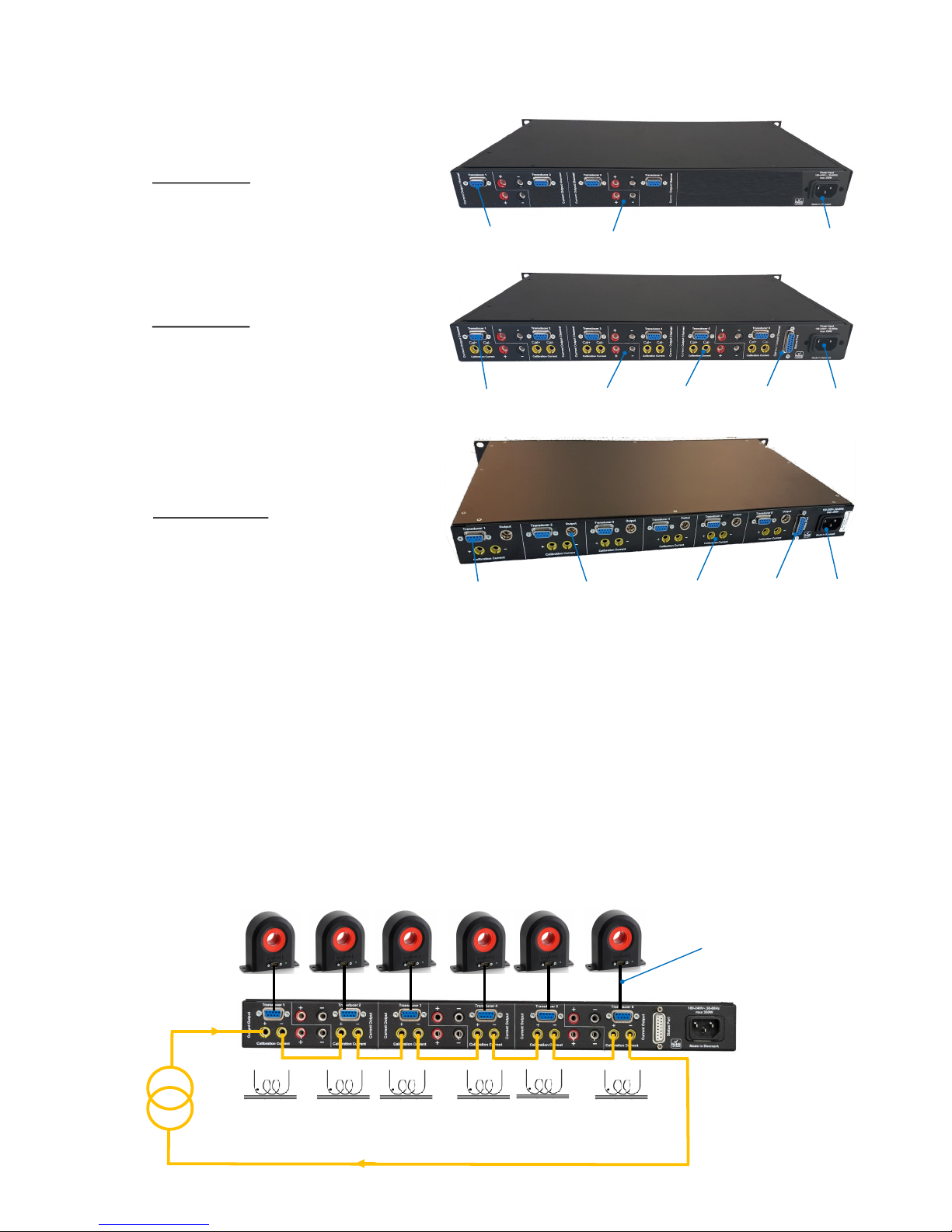

1. Mains voltage
2. DSUB9 connector for transducer connection
3. Banana jacks for transducer’s current output
4. Banana jacks for calibration winding terminals
5. Status connector
6. Mini XLR socket for transducer’s voltage or current outputs
3
DSSIU-4-1U
DSSIU-6-1U
DSSIU-6-1U-V
1
2 6 4 5
2.3.3.3 Connection of calibration winding with DSSIU-6-1U (or DSSIU-6-1U-V)
When a device with calibration winding type - CD[n turns] is connected to the DSSIU-6-1U using the
optional DSUB cable, the terminals of the calibration winding are accessible via the yellow banana sockets
at the back panel of the DSSIU-6-1U (or DSSIU-6-1U-V). It’s very convenient to carry out a simultaneous
calibration of 6 devices connected in serial (illustration below).
+
- I calibraon
DSUB cable
Calibration windings

10
2.3.3.4 Voltage Output Modules (VOM)
A voltage output module (VOM) is a PCBA containing a low drift, precision measurement resistor
(RM) and a signal conditioning circuit which allow conversion of the device’s rated nominal current output
to a 1V or 10V voltage signal. Up to 6 VOMs can be factory mounted into the 6-channel power supplies
interface unit (DSSIU-6-1U-V).
XLRm /Banana
Voltage Cable (2m) with shielding for better immunity
XLRm / Banana
Current Cable (2m)
Reference VOM0400-1VOM0400-10 VOM1333-1VOM1333-10
Conversion ratio 1V@400mA 10V@400mA [email protected] [email protected]
2.3.3.5 DSSIU-6-1U-V current / voltage output cables
These cables are availabe as optional accessories.
2
1
1. measurement resistor RM
2. conditioning circuits
The voltage output signal is accessible at the back panel of the DSSIU-6-1U-V, via a 3-pin Amp-
henol mini XLR connector, (refer to figures page 9).
Please specify the required VOM reference, the channel number when making your purchase
(e.g. CH1: VOM0400-10, CH3: VOM0400-10, CH5: VOM1333-10 as shown belowin the picture below)
Reference
XLRm / Banana current cable (2m) This cable is equipped with a min XLR connector at one end
and 2 banana jacks at the other end (Iout+/Iout-)
XLRm / Banana voltage cable (2m) This cable is equipped with a min XLR connector at one end
and 3 banana jacks at the other end (Vout/OV/shield)
Each voltage output chanel is
identified by an individual label
