Dantel 46090 User manual

CAUTION
•Install or remove modules from the shelf only when the power is off.
If you install a module in the shelf with the power on, the internal
circuitry may suffer damage and the product warranty will be void.
•Remove and install circuit boards only in a static-safe environment
(use antistatic wrist straps, smocks, footwear, etc.).
•Keep circuit boards in their antistatic bags when they are not in use.
•Do not ship or store circuit boards near strong electrostatic, electromag-
netic, magnetic, or radioactive fields.
•For more complete information on electrostatic discharge safety
precautions, refer to BellcoreTM Technical Reference # TR-NWT-000870.
Copyright 1998 by Dantel, Inc. • Dantel is a registered trademark of Dantel, Inc. • ISO 9001 Registered
Printed in the U.S.A.
INSTALLATION & OPERATION MANUAL
46090-1098 <90-00076>

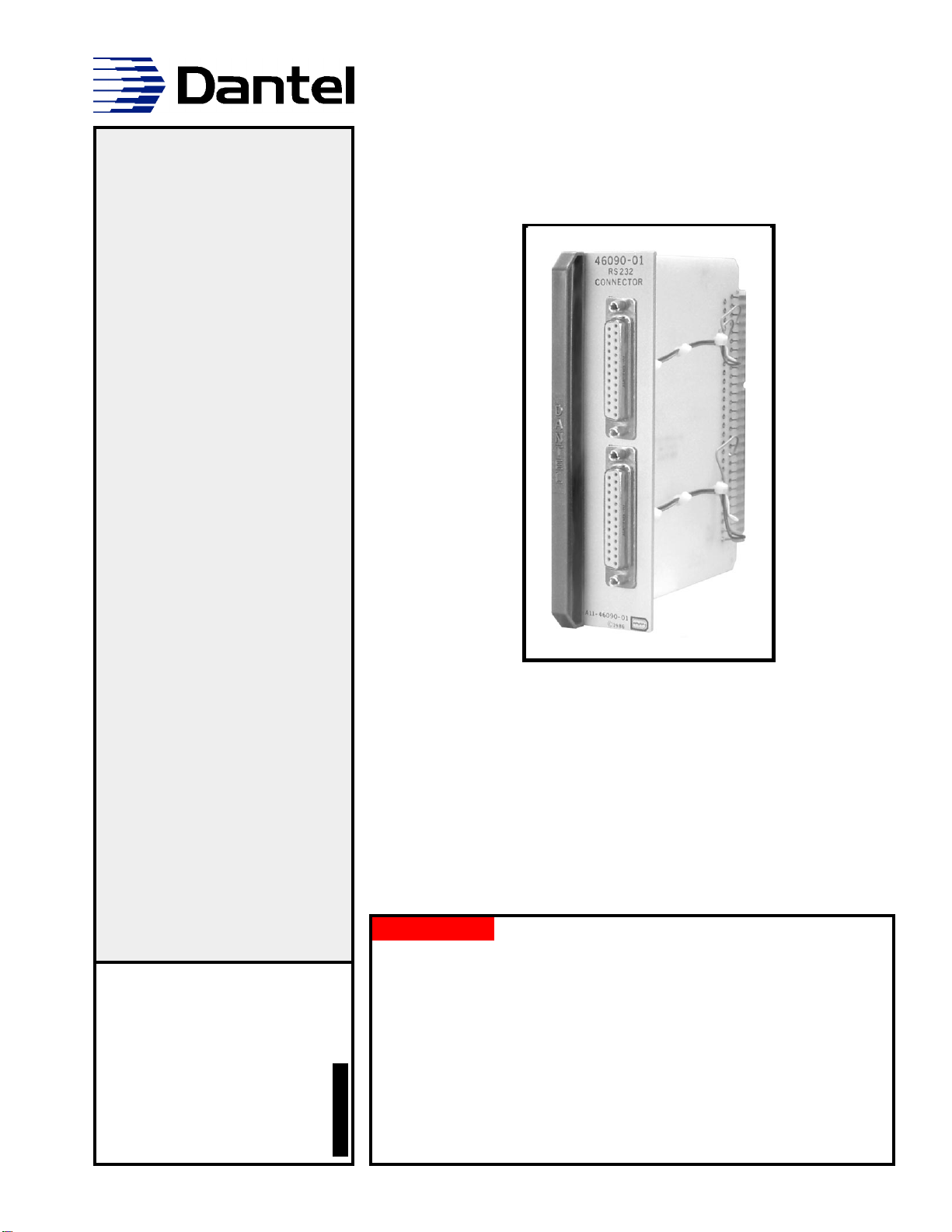

46090
RS-232 CONNECTOR MODULE
About this Practice:
This practice has been reissued to:
• Update style and assign document
control number.
Issue date: October 1998
Reissued Practices: Updated and
new content can be identified by a
banner in the right margin.
UPDATED
Table of Contents
Ordering Information ........................................................................... 2
General Description.............................................................................. 2
Installation............................................................................................ 3
Technical Specifications ....................................................................... 5
Warranty ............................................................................................... 6

PAGE 2 46090-1098 <90-00076>
ORDERING INFORMATION
NOTE: This section lists the different options available for this product. To order any of the avail-
able options, contact Dantel Inside Sales through our toll-free number, 1-800-432-6835.
OPTION NUMBER FEATURES
B11-46090-01 RS-232 Connector Module
The 46090 RS-232 Connector Module interfaces two RS-232
connectors to a 56-pin edge card connector to provide RS-232
connections to other equipment.
It is used in Dantel’s 460 Alarm and Control System (ACS) to
provide access points for connecting a terminal or printer to the
system.
This allows either a terminal or printer to serve as a diagnostic
tool to visually check the system’s operation. With a terminal, it
is also possible to input information and change the system’s
operation.
The 46090 is a plug-in module that fits into any Dantel 400-type
or similar equipment housing. The front panel has two female
RS-232 connectors, complete with jack screw sockets.
Figs. 1 and 2 show the front and side views of the 46090.
GENERAL DESCRIPTION
FIG. 1 - 46090 FRONT PANEL
46090-01
RS-232
CONNECTOR
B11-46090-01 REV__
C2
C1
FIG. 2 - 46090 SIDE VIEW
RS-232
CONNECTOR,
25 PIN SOCKET
JACK
SOCKET
-01 OPTION

46090-1098 <90-00076> PAGE 3
INSTALLATION
Installation consists of installing the module in the equipment
shelf and connecting your equipment to the RS-232
connector(s).
1. Install the module in the equipment shelf.
2. Connect your equipment to the RS-232 connector(s).
Table A and Fig. 3 show the wiring of the RS-232 connectors to
the 56-pin card edge connector.
NOTE: The 46090 front panel, the RS-232 jack sockets, and the
connector housings are neither connected to ground nor
isolated from ground. Do not use the front panel or any
component on the front panel for a test lead or equipment
ground. This produces intermittent or unpredictable results.
TABLE A - CONNECTOR WIRING
NIP232-SR NIPROTCENNOCEGDEOTDERIW
-1C-ROTCENNOCMOTTOB
)dnuorGevitcetorP(AA,1
)ataDdettimsnarT(AB,2
)ataDdevieceR(BB,3
)dneSottseuqeR(AC,4
)dneSotraelC(BC,5
)ydaeRteSataD(CC,6
)dnuorGlangiS(BA,7
)tceteDreirraC(FC,8
)ydaeRlanimreTataD(DC,02
1
2
3
4
5
6
7
8
02
-2C-ROTCENNOCPOT
)dnuorGevitcetorP(AA,1
)ataDdettimsnarT(AB,2
)ataDdevieceR(BB,3
)dneSottseuqeR(AC,4
)dneSotraelC(BC,5
)ydaeRteSataD(CC,6
)dnuorGlangiS(BA,7
)tceteDreirraC(FC,8
)ydaeRlanimreTataD(DC,02
14
24
34
44
54
64
74
84
05
ETON ehtrodnuorgotsnoitcennoconhtiw,deriwnuerasrotcennoc232-SRehtnosniprehtollA:
.rotcennocegdedrac

PAGE 4 46090-1098 <90-00076>

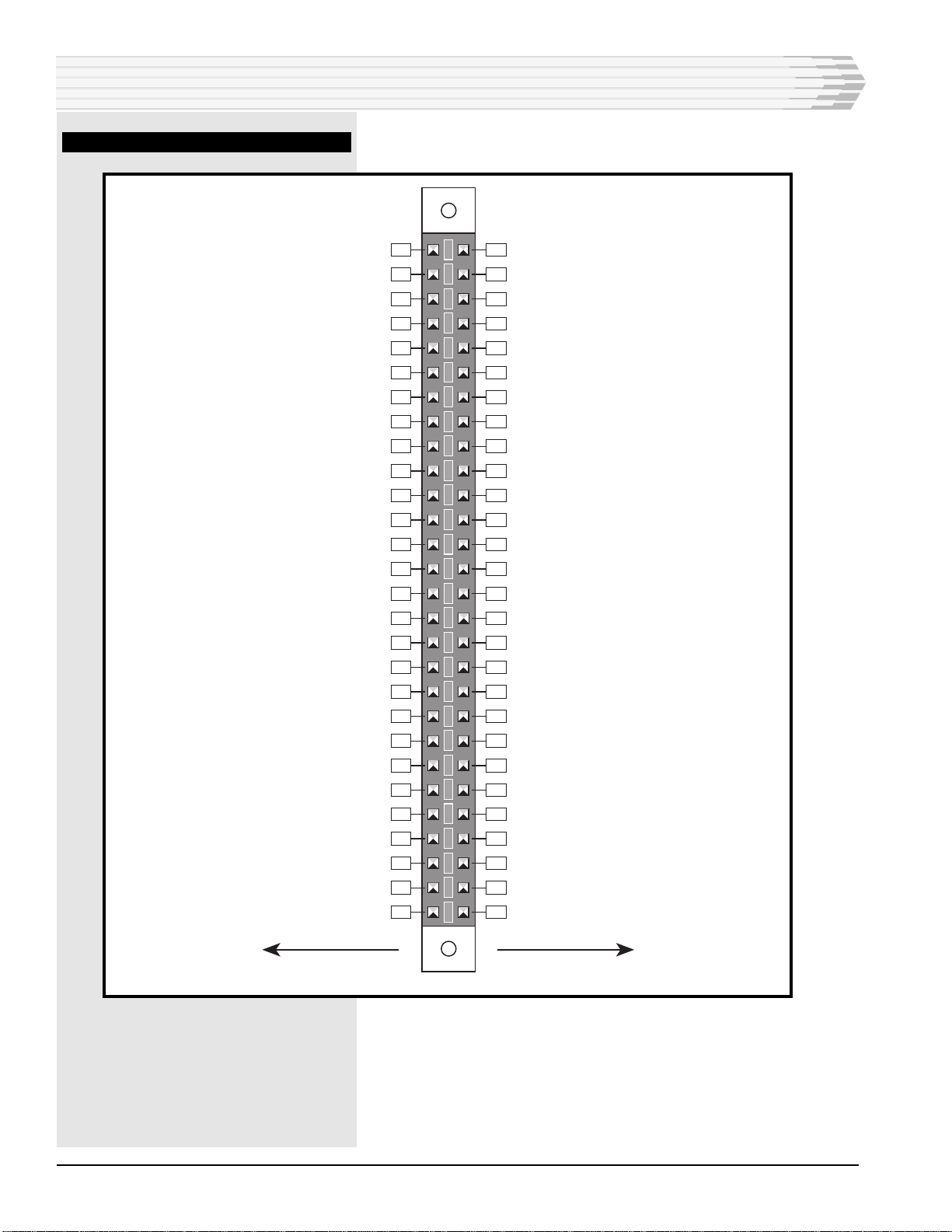

FIG. 3 - PIN DESIGNATIONS; 49090-01
56 55
54 53
52 51
50 49
48 47
46 45
44 43
42 41
40 39
38 37
36 35
34 33
32 31
30 29
28 27
26 25
24 23
22 21
20 19
18 17
16 15
14 13
12 11
10 9
87
65
43
21
CIRCUIT SIDE
OF PC BOARD
COMPONENT SIDE
OF PC BOARD
CD, Data Terminal Ready
AB, Signal GroundCF, Carrier Detect
CB, Clear To SendCC, Data Set Ready
BB, Received DataCA, Request To Send
AA, Protective GroundBA, Transmitted Data
AB, Signal GroundCF, Carrier Detect
CB, Clear To SendCC, Data Set Ready
BB, Received DataCA, Request To Send
AA, Protective GroundBA, Transmitted Data
INSTALLATION
CD, Data Terminal Ready

46090-1098 <90-00076> PAGE 5
TECHNICAL SPECIFICATIONS
NOITPIRCSED EULAV
epyTrotcennoC egdedracnip-65aotnip-52,elameF,232-SR
rotcennoc
eziSeriW dilosGWA42
snoisnemiDlacisyhP H"6.5xD"0.6xW"4.1
thgieW secnuo0.6
egnaRerutarepmeTgnitarepO Cseerged55ot0

PAGE 6
6 PAGES 46090-1098 <90-00076>
LIMITED WARRANTY
The Seller warrants that the standard hardware products sold will be free from defects in material and work-
manship and perform to the Seller’s applicable published specifications for a period of 18 months for hardware,
and 3 months for software, from the date of the original invoice. The liability of the Seller hereunder shall be
limited to replacing or repairing, at its option, any defective products which are returned F.O.B. to the Seller’s
plant, (or, at the Seller’s option, refunding the purchase price of such products). In no case are products to be
returned without first obtaining permission and a customer return authorization number from the Seller. In
no event shall the Seller be liable for any consequential or incidental damages.
Equipment or parts which have been subject to abuse, misuse, accident, alteration, neglect, unauthorized
repair or installation are not covered by warranty. The Seller shall make the final determination as to the
existence and cause of any alleged defect. No warranty is made with respect to custom equipment or products
produced to the Buyer’s specifications except as specifically stated in writing by the Seller in the contract for
such custom equipment.
This warranty is the only warranty made by the Seller with respect to the goods delivered hereunder, and may
be modified or amended only by a written instrument signed by a duly authorized officer of the Seller and
accepted by the Buyer.
Warranty and remedies on products not manufactured by the Seller are in accordance with warranty of the
respective manufacturer. THE SELLER MAKES NO OTHER WARRANTY OF ANY KIND WHATSOEVER,
EXPRESSED OR IMPLIED; AND ALL IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PUR-
POSE WHICH EXCEEDS THE AFORESAID OBLIGATIONS IS HEREBY DISCLAIMED BY THE SELLER.
INCASE OF DIFFICULTY
If you experience difficulty with this equipment, check the following, as appropriate:
1. Switch settings
2. Signal levels
3. Software configuration
4. Connections between Dantel’s equipment and your equipment.
If there is still a problem, substitute equipment that is known to be good. For additional assistance, call
Dantel’s Technical Field Service Department weekdays, 6 A.M. to 5 P.M. pacific time:
1-800-4DANTEL(1-800-432-6835).
If a thorough checkout shows a piece of equipment has malfunctioned, you may return it to the factory. For
repairs and emergency replacements, obtain a Return Material Authorization (RMA) number from the Cus-
tomer Service Representative at 1-800-4DANTEL (1-800-432-6835).
To ensure expedient processing of your order, provide a purchase order number and shipping and billing
information when requesting an RMA number. Also, when the units are returned to Dantel, include a descrip-
tion of the failure symptoms for each unit returned. Send defective equipment to:
Dantel, Inc. • 2991 North Argyle Avenue • Fresno, California 93727-1388
P.O. Box 55013 • Fresno, CA 93747-5013 Phone (209) 292-1111 Fax (209) 292-9355 http://www.dantel.com
