DarwinFitness EVO40 User manual

TF-
DFSC40.01.03
max. 135 kg
L 141 | B 52 | H 133
~ 60 Min.
CM
51 kg
D
A
R
W
I
N
F
I
T
N
E
S
S
G
E
R
M
A
N
Y
DF-HT30
TF
TF
DARWIN EVO40
Assembly and
Operating Instructions
Art. No. DF-SC40

EVO40
2

EVO40
3
Content
1 GENERAL INFORMATION 7
1.1 Technical Data 7
1.2 Personal Safety 8
1.3 Set-Up Place 9
2 ASSEMBLY 10
2.1 General Instructions 10
2.2 Scope of Delivery 11
2.3 Assembly 12
2.4 Adjustments 16
2.4.1 Adjusting the Tension 16
2.4.2 Using the Emergency Brake Function 16
2.4.3 Adjusting the Handlebar 17
2.4.4 Adjusting the Seat 17
3 OPERATING INSTRUCTIONS 18
3.1 Console Display 18
3.2 Turn On and Turn O the Device 20
3.3 Training Settings 20
3.4 Recovery 20
3.5 Troubleshooting 20
4 STORAGE AND TRANSPORT 21
4.1 General Instructions 21
5 TROUBLESHOOTING, CARE AND MAINTENANCE 22
5.1 General Instructions 22
5.2 Faults and Fault Diagnosis 22
5.3 Maintenance and Inspection Calendar 23
6 DISPOSAL 23
7 RECOMMENDED ACCESSORIES 24
8 ORDERING SPARE PARTS 25
8.1 Serial Number and Model Name 25
8.2 Parts List 26

EVO40
4
8.3 Exploded Drawing 28
9 WARRANTY 29
10 CONTACT 31

EVO40
5
Dear customer,
Thank you for choosing a high-quality equipment of the brand Darwin®. Darwin® oers sports
and tness equipment for the sophisticated home sport and the equipment of tness studios
and business customers. With Darwin® tness equipment, the focus is on what sport is all about:
maximum performance! Therefore, the equipment is developed in close consultation with athletes
and sports scientists. Because athletes know best what makes perfect tness equipment.
Further information can be found at www.sport-tiedje.com.
Legal Notice
Sport-Tiedje GmbH
Europe’s No. 1 for home tness
International Headquarters
Flensburger Straße 55
24837 Schleswig
Germany
Management:
Christian Grau
Sebastian Campmann
Dr. Bernhard Schenkel
No. HRB 1000 SL
Local Court Flensburg
European VAT Number: DE813211547
Disclaimer
©2015 Darwin® is a registered brand of the company SportTiedje GmbH. All rights
reserved. Any use of this trademark without the explicit written permission of Sport-
Tiedje is prohibited.
Product and manual are subject to change. Technical data can be changed without
advance notice.
Intended Use
The equipment may only be used for its intended purpose.
The equipment is only suitable for home use. The equipment is not suitable for semi-professional
(e.g. hospitals, associations, hotels, schools, etc.) and commercial or professional use (e.g. tness
studios).

EVO40
6
ABOUT THIS MANUAL
Please carefully read the entire manual before installation and rst use. The manual will help you to
quickly set up the system and explains how to safely use it. Make sure that all persons exercising with
the equipment (especially children and persons with physical, sensory, mental or motor disabilities)
are informed about this manual and its contents in advance. In case of doubt, responsible persons
must supervise the use of the equipment.
This equipment has been manufactured according to the latest safety knowledge. As far as possible,
potential safety hazards which could cause injury have been eliminated. Make sure
to carefully follow the instructions and that all parts are securely in place. If required,
read through the instructions again to correct any mistakes.
Please pay close attention to the safety and maintenance instructions given here.
The contract partner cannot be held liable for damage to health, accidents or
damage to the equipment when it is not used in accordance with these instructions.
The following safety instructions may appear in this manual:
࣑ATTENTION
This notice indicates potentially hazardous situations which, if not avoided, may result in
property damage.
⚠CAUTION
This notice indicates potentially hazardous situations which, if not avoided, may result in slight
or minor injuries!
⚠WARNING
This notice indicates potentially hazardous situations which, if not avoided, may result in death
or serious injuries!
⚠DANGER
This notice indicates potentially hazardous situations which, if not avoided, will result in death
or serious injuries!
LNOTICE
This notice indicates further useful information.
Retain these instructions in a safe place for future reference, maintenance or when ordering
replacement parts.

EVO40
7
1 GENERAL INFORMATION
1.1 Technical Data
Weight and dimensions:
Product weight (gross, incl. packaging): 55 kg
Product weight (net, without packaging): 50.5 kg
Packaging dimensions (L x W x H): 116 cm x 24 cm x 97 cm
Set-up dimensions (L x W x H): 141 cm x 51.5 cm x 133 cm
Maximum user weight: 135 kg

EVO40
8
1.2 Personal Safety
⚠DANGER
+ Before you start using the equipment, you should consult your physician that this type of
exercise is suitable for you from a health perspective. Particularly aected are persons who:
have a hereditary disposition to high blood pressure or heart disease, are over the age of 45,
smoke, have high cholesterol values, are overweight and/or have not exercised regularly in
the past year. If you are under medical treatment that aects your heart rate, medical advice
is absolutely essential.
+ Note that excessive training can seriously endanger your health. Please also note that heart
rate monitoring systems can be inaccurate. If you notice any signs of weakness, nausea,
dizziness, pain, shortness of breath, or other abnormal symptoms, stop exercising immediately
and seek advice from your doctor if necessary.
⚠WARNING
+ This equipment may not be used by children under the age of 14.
+ Children should not be allowed unsupervised access to the equipment.
+ Persons with disabilities must have a medical license and must be under strict observation
when using the equipment.
+ The equipment is strictly for use by one person at a time.
+ If your equipment provides a safety key, the clip of the safety key must be attached to your
clothing before starting your training. In the event of a fall, the EMERGENCY STOP of the
equipment can be initiated.
+ Keep your hands, feet and other body parts, hair, clothing, jewellery and other objects well
clear of moving parts.
+ During use, wear suitable sports clothing rather than loose or baggy clothing. When wearing
sports shoes, make sure they have suitable soles, preferably made of rubber or other non-
slip materials. Shoes with heels, leather soles, studs or spikes are unsuitable. Never exercise
barefoot.
⚠CAUTION
+ If your equipment needs to be connected to the power supply with a mains cable, make sure
that the cable is not a potential tripping hazard.
+ Make sure that nobody is within the range of motion of the equipment during training so as
not to endanger you or other persons.
࣑ATTENTION
+ Do not insert any objects of any kind into the openings of the device.

EVO40
9
1.3 Set-Up Place
⚠WARNING
+ Do not place the equipment in main corridors or escape routes.
⚠CAUTION
+ The training room should be well ventilated during training and not be exposed to any
draughts.
+ Choose the place in which to set up the equipment such that there is enough free space/
clearance to the front, the rear and to the sides of the equipment.
+ The set-up and mounting surface of the equipment should be at, loadable and solid.
࣑ATTENTION
+ The device may only be used in one building, in suciently tempered and dry rooms (ambient
temperatures between 10°C and 35°C). The equipment should not be used outdoors or in
rooms with high humidity (over 70%) like swimming pools.
+ A oor protective mat/equipment underlay can help to protect high-quality oor coverings
(parquet, laminate, cork, carpets) from dents and sweat and can help to level out slight
unevenness.

EVO40
10
2 ASSEMBLY
2.1 General Instructions
⚠DANGER
+ Do not leave any tools, packaging materials such as foils or small parts lying around, as
otherwise there is a danger of suocation for children. Keep children away from the equipment
during assembly.
⚠WARNING
+ Pay attention to the instructions attached to the equipment in order to reduce the risk of
injuries.
⚠CAUTION
+ Do not open the packaging when it is lying on its side.
+ Ensure to have sucient room for movement in each direction during assembly.
+ The assembly of the equipment must be carried out by at least two adults. If in doubt, seek the
help of another technically skilled person.
࣑ATTENTION
+ To prevent damage to the equipment and the oor, assemble the equipment on a mat or
packaging board.
LNOTICE
+ In order to make the assembly as simple as possible, some screws and nuts to be used can
already be pre-assembled.
+ Ideally, assemble the equipment at its later set-up place.

EVO40
11
2.2 Scope of Delivery
The scope of delivery consist of the following parts. At the beginning, check whether all parts and
tools belonging to the device are included in the scope of delivery and whether damage has occurred.
In the event of complaints, the contractual partner must be contacted directly.
⚠CAUTION
If parts of the scope of delivery are missing or damaged, the assembly must not be carried out.

EVO40
12
2.3 Assembly
Before assembly, take a close look at the individual assembly steps shown and carry out the assembly
in the order given.
LNOTICE
First loosely screw all parts together and check that they t properly. Then tighten the screws
using the tool only when you are instructed to do so.
Step 1: Assembly of Stabilizers

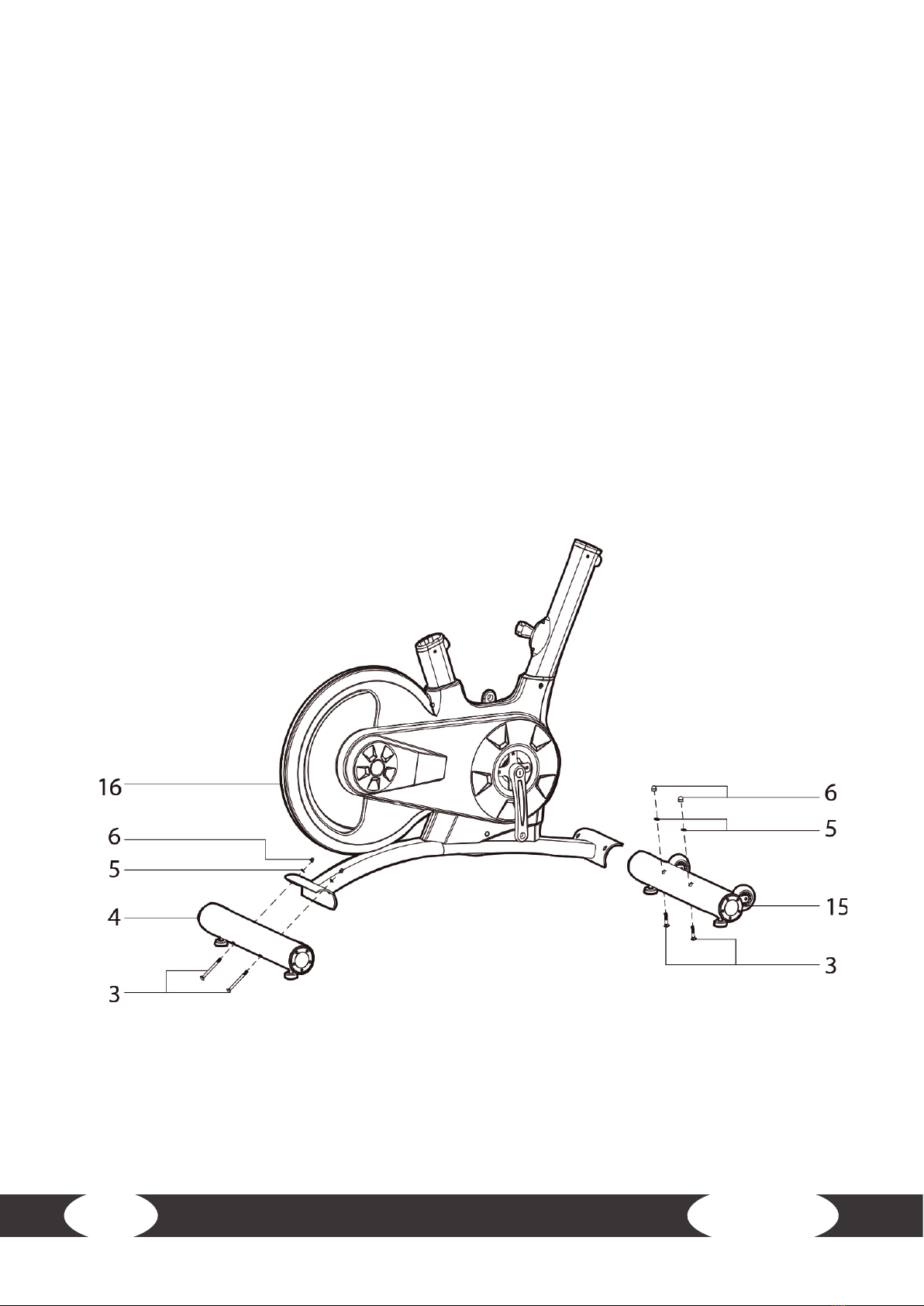

1. Assemble the front stabilizer (15) to the main frame (16) using mit two at washers (5), two
domed nuts (6) and two carriage bolts (3).
2. Assemble the rear stabilizer (4) to the main frame (16) using two at washers (5), two domed
nuts (6) and two carriage bolts (3).

EVO40
13
Step 2: Assembly of the Seat

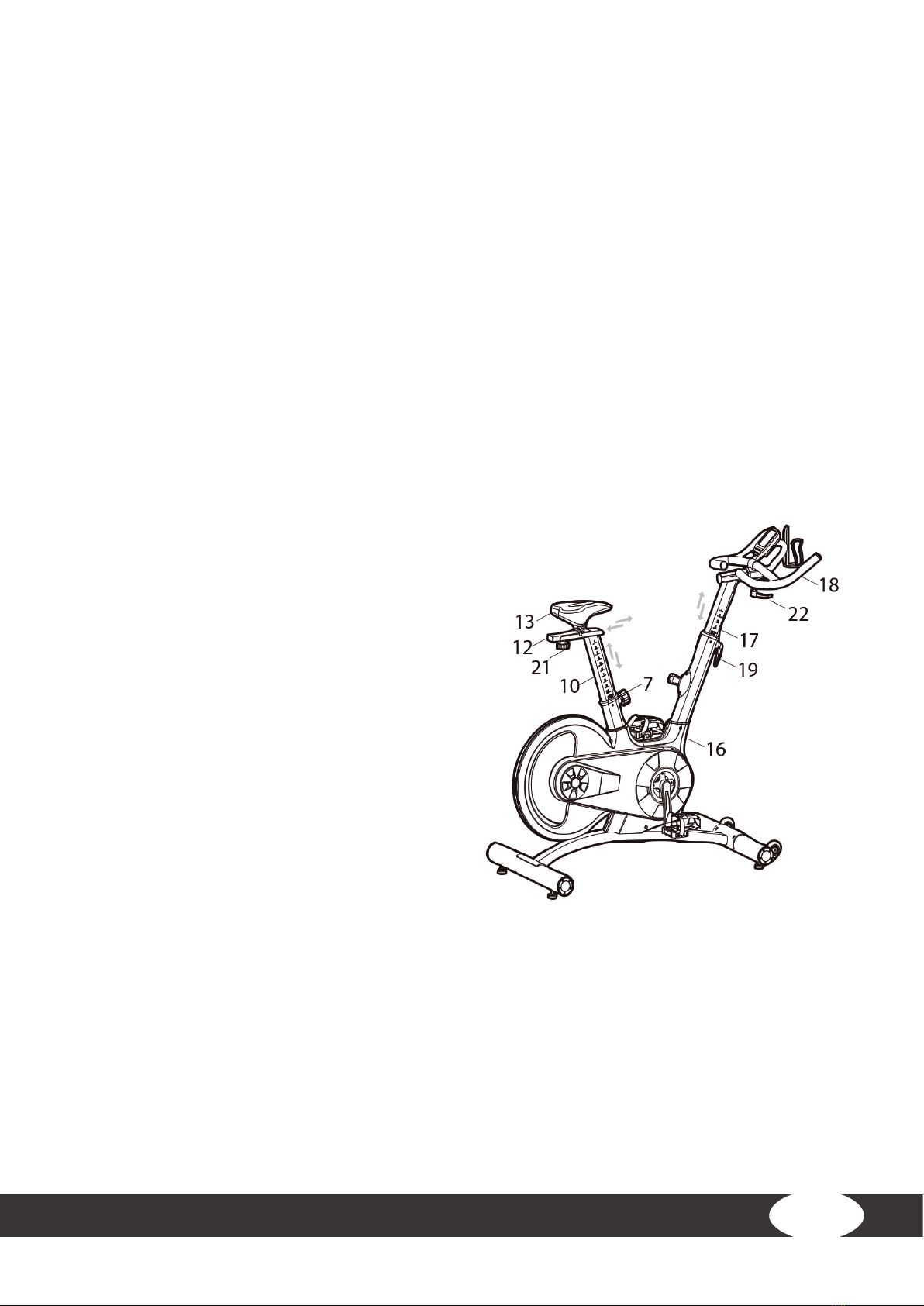

1. Put the vertical seat post (10) into the oval tube of the main frame (16).
2. Fix the vertical seat post (10) with the spring adjustment knob (7). Now put the seat post (12) on
the vertical seat post (10) and x it with the at washer (22) and the L shape knob (23).
3. You can adjust the seat height after you are done with the assembly.
4. Now assemble the seat (13) to the seat post (12) like shown in the gure below. Tighten the
screws underneath the seat.

EVO40
14

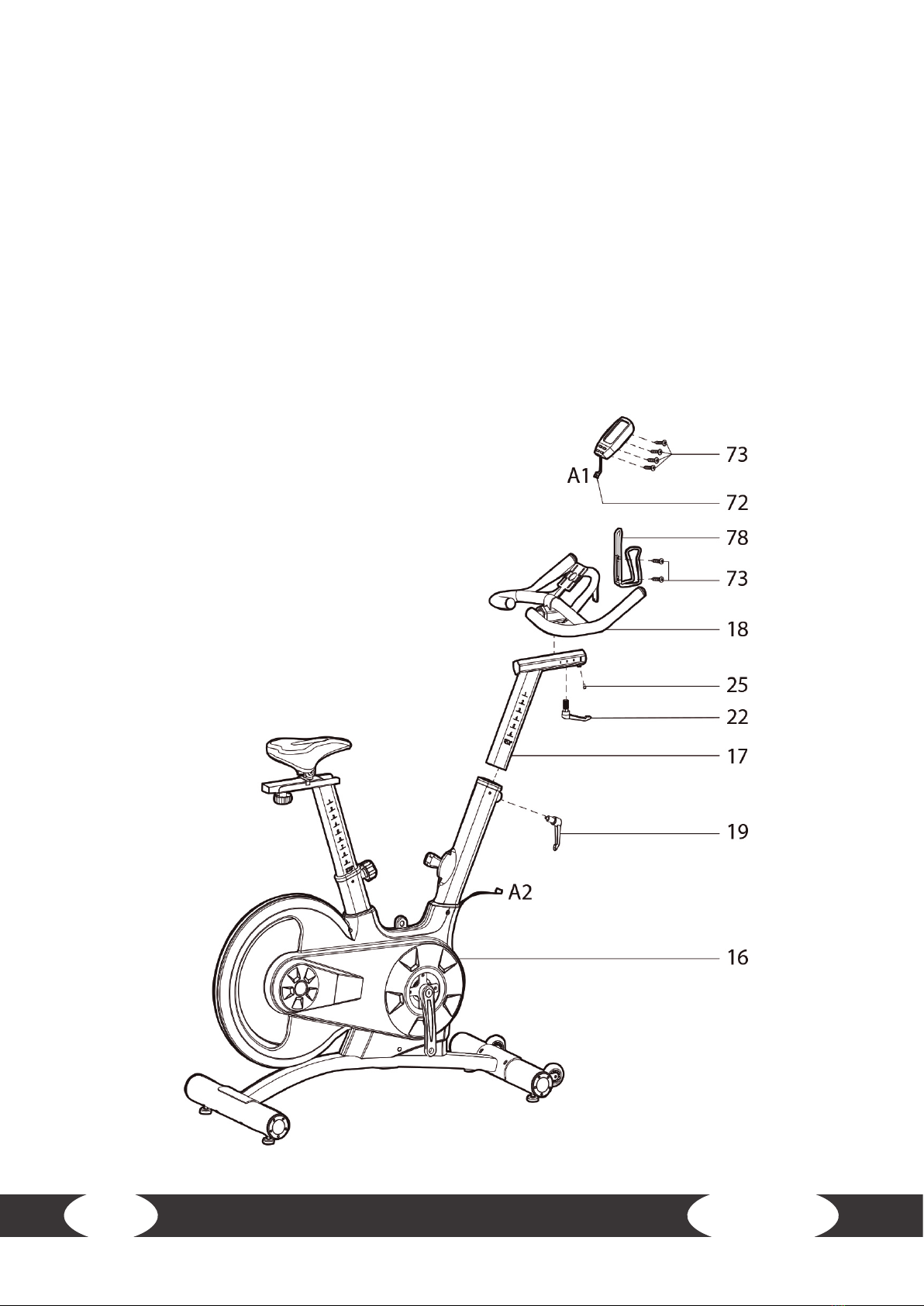

Step 3: Assembly of Handlebar Post, Handlebar and Console
1. Put the handlebar post (17) into the square tube of the main frame (16).
2. Loosen the L shape knob (19) and pull it backwards. Now bring the handlebar post (17) to the
desired height. Let go of the L shape knob (19) again and make sure that it is engaged in one of
the pre-drilled holes of the handlebar post (17). Now tighten the L shape knob (19) again.
3. Assemble the handlebar (18) to the handlebar post using the L shape knob (22). Now reassemble
the bolt (25) you have removed earlier.
4. Attach the bottle holder (78) to the handle bar (18) with two bolts (73).
⚠CAUTION
Make sure that the handlebar is xed tightly to the handlebar post.
5. Attach the console (72) to the handlebar (18) with four bolts (73) and connect the connectors A1
and A2 with one another.

EVO40
15
Step 4: Assembly of Pedals
1. The pedals (1 L and 1 R) are marked with „L“ (left) and „R“ (right). Assemble the pedals to their
respective crank arms (see gure).
2. Please note that the right pedal needs to be attached in by turning it clockwise and the left
pedal counterclockwise.

EVO40
16
2.4 Adjustments
2.4.1 Adjusting the Tension
The brake resistance can be adjusted with the knob (30).
1. To increase the brake resistance turn the knob (30) clockwise.
2. To decrease the brake resistance turn the knob (30) counterclockwise.
2.4.2 Using the Emergency Brake Function
⚠WARNING
Use this safety feature in any emergency situation where you need to get o the indoor cycle or
bring the ywheel to a standstill.

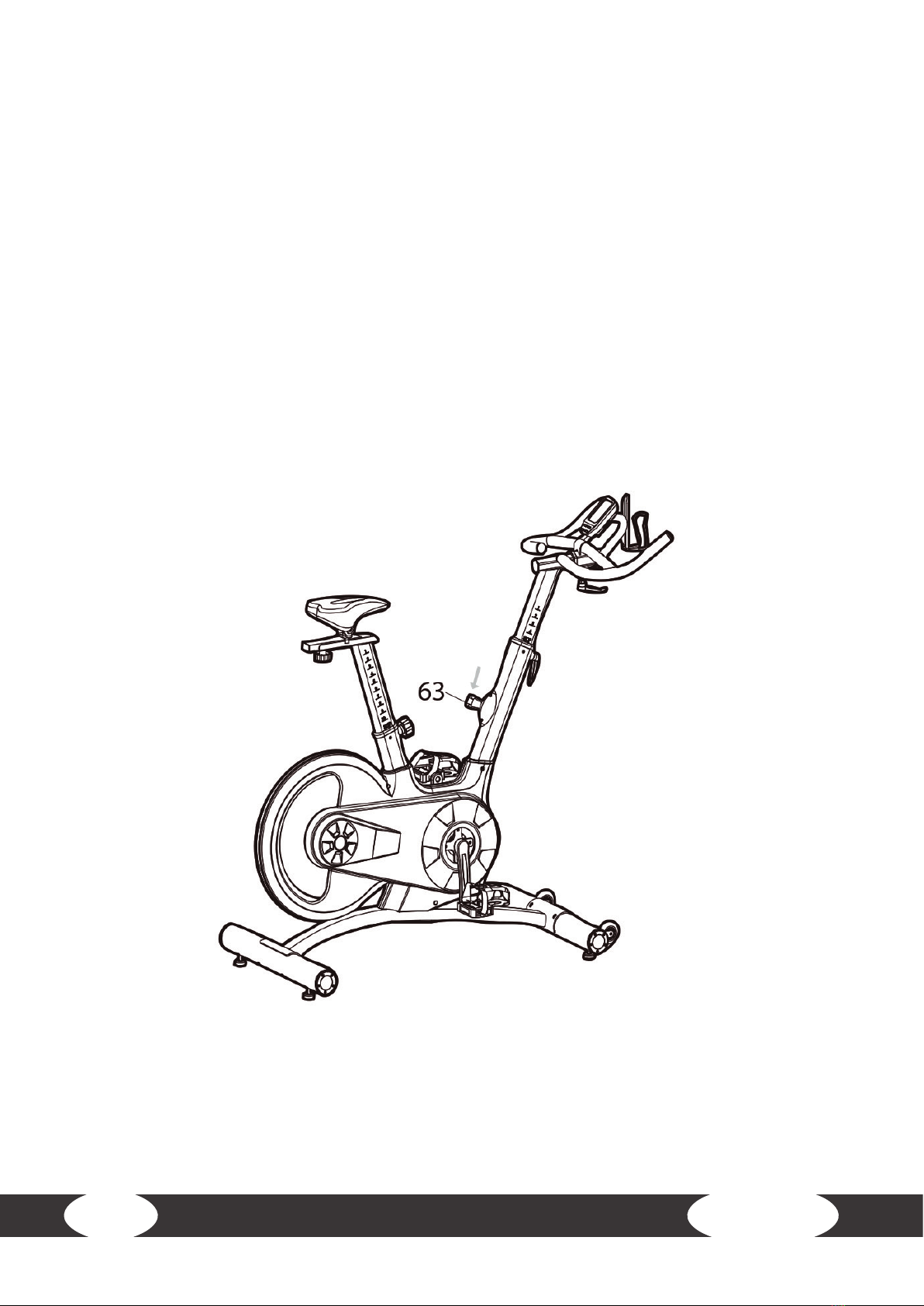

The lever for adjusting the resistance level (63) is also the emergency brake. If you want to stop the
device quickly, press the lever all the way down.

EVO40
17
2.4.3 Adjusting the Handlebar
The handlebar can be adjusted horizontally and vertically.
1. To adjust the handlebar in the vertical position, loosen the L shape knob (19) and pull it
backwards.
⚠CAUTION
Make sure that the L shape knob audibly engages in one of the adjustment holes.
2. Let go of the L shape knob (19) again and make sure that it is engaged in one of the pre-drilled
holes of the handlebar post (17).
3. Now tighten the L shape knob (19) again.
4. To adjust the handlebar in the horizontal position, loosen the L shape knob (22) and pull it
downwards.
5. Now bring the handlebar (18) to the desired position.
⚠CAUTION
Make sure that the L shape knob audibly engages in one of the adjustment holes.
6. Let go of the L shape knob (22) again and make sure that it is engaged in one of the pre-drilled
holes of the handlebar post (17).
7. Now tighten the L shape knob (22) again.
2.4.4 Adjusting the Seat
The seat can be adjusted horizontally and vertically.
1. To adjust the vertical position of the seat, loosen
the knob (7) on the seat tube of the main frame
(16) and pull it out slightly.
2. Now bring the vertical seat post (10) to the
desired height.
⚠CAUTION
Make sure that the knob audibly engages in one
of the adjustment holes.
3. Let go of the knob (7) and make sure that it is
engaged in one of the pre-drilled holes of the
vertical seat post (10).
4. Now tighten the knob (7) again.
5. To adjust the horizontal position of the seat, loosen the knob (21) and pull it down slightly.
6. Now bring the seat post (12) and the seat (13) to the desired position.
⚠CAUTION
Make sure that the knob audibly engages in one of the adjustment holes.
7. Let go of the knob (21) and be sure it is engaged in one of the pre-drilled holes of the seat post (12).
8. Now tighten the knob (21) again.

EVO40
18
3 OPERATING INSTRUCTIONS
LNOTICE
Familiarise yourself with all the functions and setting options of the device before starting
training. Have the proper use of this product explained to you by a specialist.
3.1 Console Display
SCAN
• To choose a function, press MODE/ENTER
• The Modus will be scanned every 6
seconds.
• The display shows the modes in the follo-
wing order: TIME -> DIST -> CAL -> PULSE
-> RPM/SPEED
SPEED
• Range: 0.0 - 99.9
• If no signal is transmitted to the console
for 4 seconds, it shows SPEED„0“.
RPM
• Range: 0 - 999
• If no signal is transmitted to the console
for 4 seconds, it shows RPM„0“.
TIME
• Range: 0:00 - 99:59
• Without setting a target the time will be
counted up.
• If a target is set, the time will be counted
backwards. If 0 is reached, a signal sounds.
• If no signal is transmitted to the console
for 4 seconds, the time will be stopped.
DISTANCE
• Range: 0.00 . 99.99
• Without setting a target, the distance will
be counted up.
• If a target is set, the distance will be coun-
ted backwards. If 0 is reached, a signal
sounds.

EVO40
19
CALORIES
• Range: 0 - 9999
• Without setting a target, the calories will
be counted up.
• If a target is set, the calories will be coun-
ted backwards. If 0 is reached, a signal
sounds.
PULSE
• Range: 0 - 30 to 230 BPM (beats per
minute)
• The current pulse, will be shown after
6 seconds if it can be registered by the
console.
• If no pulse signal is registered for 6 se-
conds, it shows„P“.
• If the current pulse is above the target
pulse, a puls signal sounds.
3.1 Button Functions
SET • To increase the value, press SET. To increase the value faster, hold
down SET.
• TIME Range: 00:00 - 99:00 (1:00 steps)
• CAL Range: 0 - 999 (steps in 10th)
• DIST Range: 0.00 - 99.50 (steps in 0.5)
• PULSE Range: 0 - 30 to 230 (steps in 1)
MODE/ENTER • Choose functions with MODE/ENTER.
• To reset the current function data, press MODE/ENTER for 2 se-
conds (same function as the RESET button)
RESET • To reset the current function data, press RESET in the enter mode.
• To reset all function data, hold RESET for 2 seconds.
RECOVERY • As soon as a pulse signal is received, press the RECOVERY button,
to get into the recovery mode. The capacity for the heart rate
regeneration will be shown there.

EVO40
20

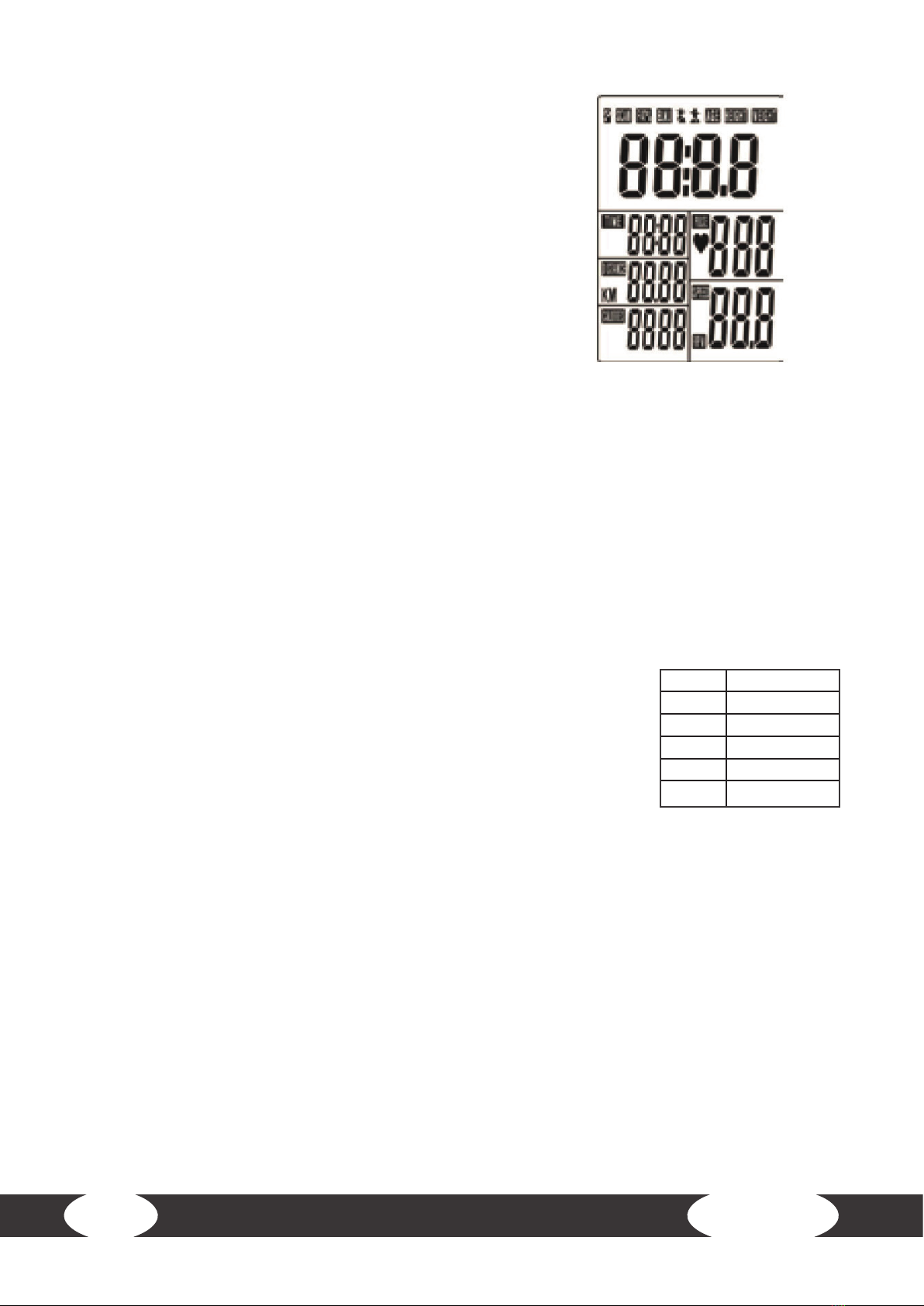

3.2 Turn On and Turn O the Device
1. Turn on POWER
LCD shows all segments. (see g.)
2. Turn O POWER
If no signal is transmitted to the console for 4 minutes, the
console is going into sleep mode.
3.3 Training Settings
1. To choose the function TIME, DISTANCE, CALORIES and
PULSE, press MODE/ENTER.
2. Make adjustments with the button SET and apply the
settings with the button MODE/ENTER.
Example:
Setting the time - If the time value blinks, you can adjust the number with the SET button. After
applying the settings with MODE/ENTER you get to the next setting. The setting for DISTANCE,
CALORIES and PULSE takes place identical.
As soon as the training starts and the console is receiving training signals, the values for
SPEED/RPM, TIME, DST and CAL will be counted up on the display.
3.4 Recovery
The RECOVERY button works only, if a pulse signal is received.
TIME shows 0:60 (seconds) and counts backward to 0:00. After the countdown
the console shows F1 to F6, to check the heart rate status.
For classication see the table.
1. To get back to the start, press RECOVERY again.
3.5 Troubleshooting
If the display of the LCD is milky, the batteries should be changed.
If no signal occurs when you press the pedals, check the wiring of the cable.
LNOTICE
+ If you interrupt your training for 4 minutes, the main display turns o.
+ If the console display is abnormal, reinsert the batteries and try again.
F1 Very good
F2 Good
F3 Average
F4 Adequate
F5 Below Average
F6 Inadequate
