Safety instructions
1All safety instructions, warnings and operating instructions must be read first.
2All warnings on the equipment must be heeded.
3The operating instructions must be followed.
4Keep the operating instructions for future reference.
5The equipment may never be used in the immediate vicinity of water; make sure that water
and damp cannot get into the equipment.
6The equipment may only be installed or fitted in accordance with the manufacturer's
recommendations.
7The equipment must be installed or fitted such that good ventilation is not obstructed in any
way.
8The equipment may never be installed in the immediate vicinity of sources of heat, such as
parts of heating units, boilers, and other equipment which generates heat (including
amplifiers).
9Connect the equipment to a power supply of the correct voltage, using only the cables
recommended by the manufacturer, as specified in the operating instructions and/or shown
on the connection side of the equipment.
10 The equipment may only be connected to a legally approved earthed mains power supply.
11 The power cable or power cord must be positioned such that it cannot be walked on in normal
use, and objects which might damage the cable or cord cannot be placed on it or against it.
Special attention must be paid to the point at which the cable is attached to the equipment
and where the cable is connected to the power supply.
12 Ensure that foreign objects and liquids cannot get into the equipment.
13 The equipment must be cleaned using the method recommended by the manufacturer.
14 If the equipment is not being used for a prolonged period, the power cable or power cord
should be disconnected from the power supply.
15 In all cases where there is a risk, following an incident, that the equipment could be unsafe,
such as:
· if the power cable or power cord has been damaged
· if foreign objects or liquids (including water) have entered the equipment
· if the equipment has suffered a fall or the casing has been damaged
· if a change in the performance of the equipment is noticed
it must be checked by appropriately qualified technical staff.
16 The user may not carry out any work on the equipment other than that specified in the
operating instructions.

EN Dateq ManualTRI-O Introduction 3
Dateq TRI-O

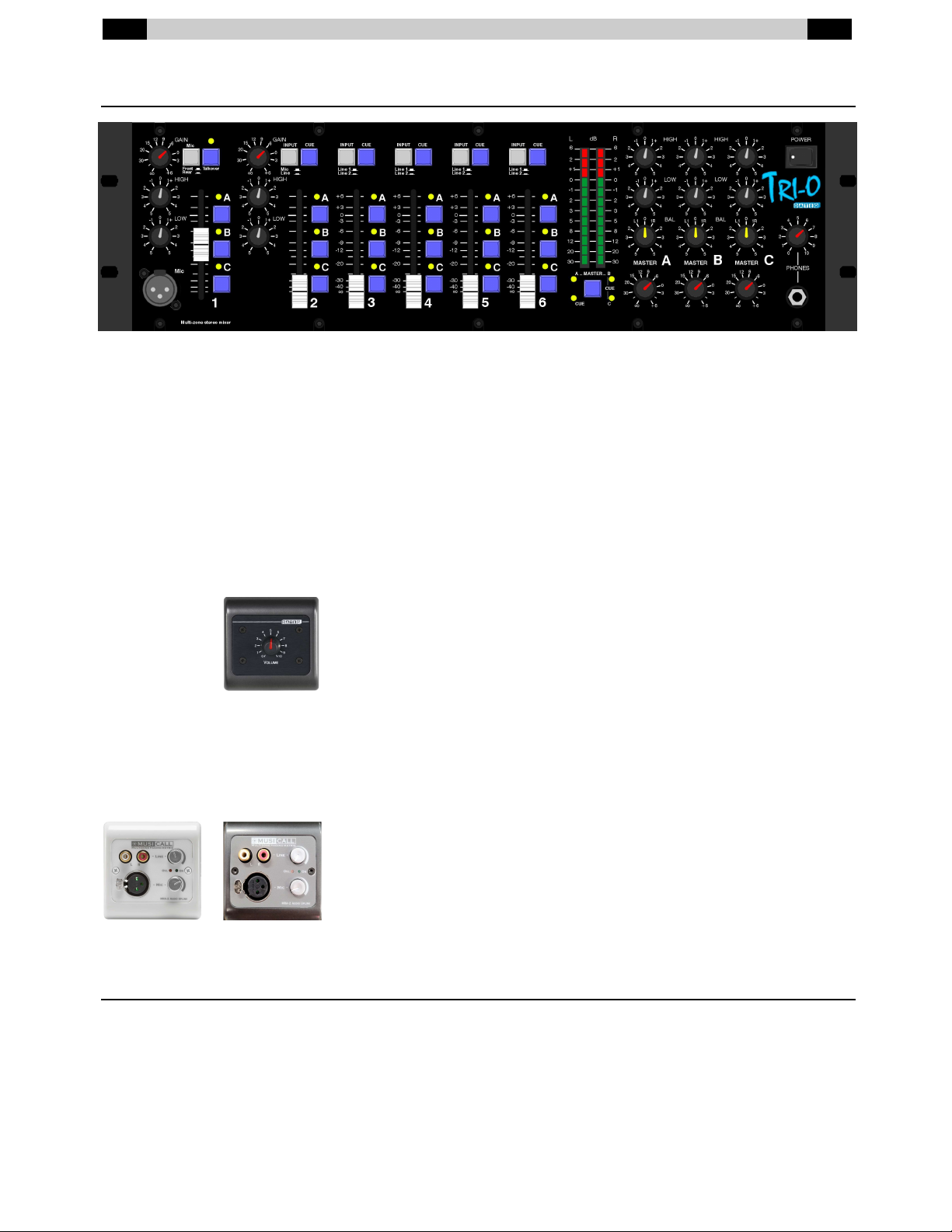

The DATEQ is a s channel 19-inch mixer. It is highly suitable for use in pubs, dancing-TRI-O ix 3-zone
schools, conference centres etc. The is equipped with three microphone inputs andTRI-O 8
stereo-line inputs. The inputs can be routed to the 3 master outputs.
Channel 1 has a talk-over circuit to improve the speech intelligibility. This circuit, which is triggered
by the microphone signal from channel 1 (i.e. it is voice-activated), ensures that this signal
overrides all others. The talk-over function can be disabled with the TalkOver switch on the front.
By default output zones are available (master A and ). These zones have a dualthree , B C
equaliser, balance and gain-control. In addition a maximum of four output modules (output zones)
may be added. The volume of these additional zones is externally adjustable with a potentiometer
CREWXOUT-W / CREWXOUT-B (not included) or an external regulation voltage.
The master s areoutput electronically balanced on XLR and unbalanced on cinch connectors. The
balanced output makes it possible to use long signal-cables so that the amplifiers can be placed
near to the speakers. he optional output zones are equipped with unbalanced cinchT conne tors.c
Product support
For questions about the , accessories and other products, please contact:TRI-O
Dateq International BV
De Paal 37 Phone: [phone]
1351 JG Almere
The Netherlands
E-mail: [e-mail]
Internet: www.dateq.nl
MiMi
FronFron
2
3
ee
Channel 2 has a connection for a Musicall local line input, MRA-2WW or MRA-2GG. (not
included)

4Dateq ManualTRI-O Installation EN
Installing the TRI-O

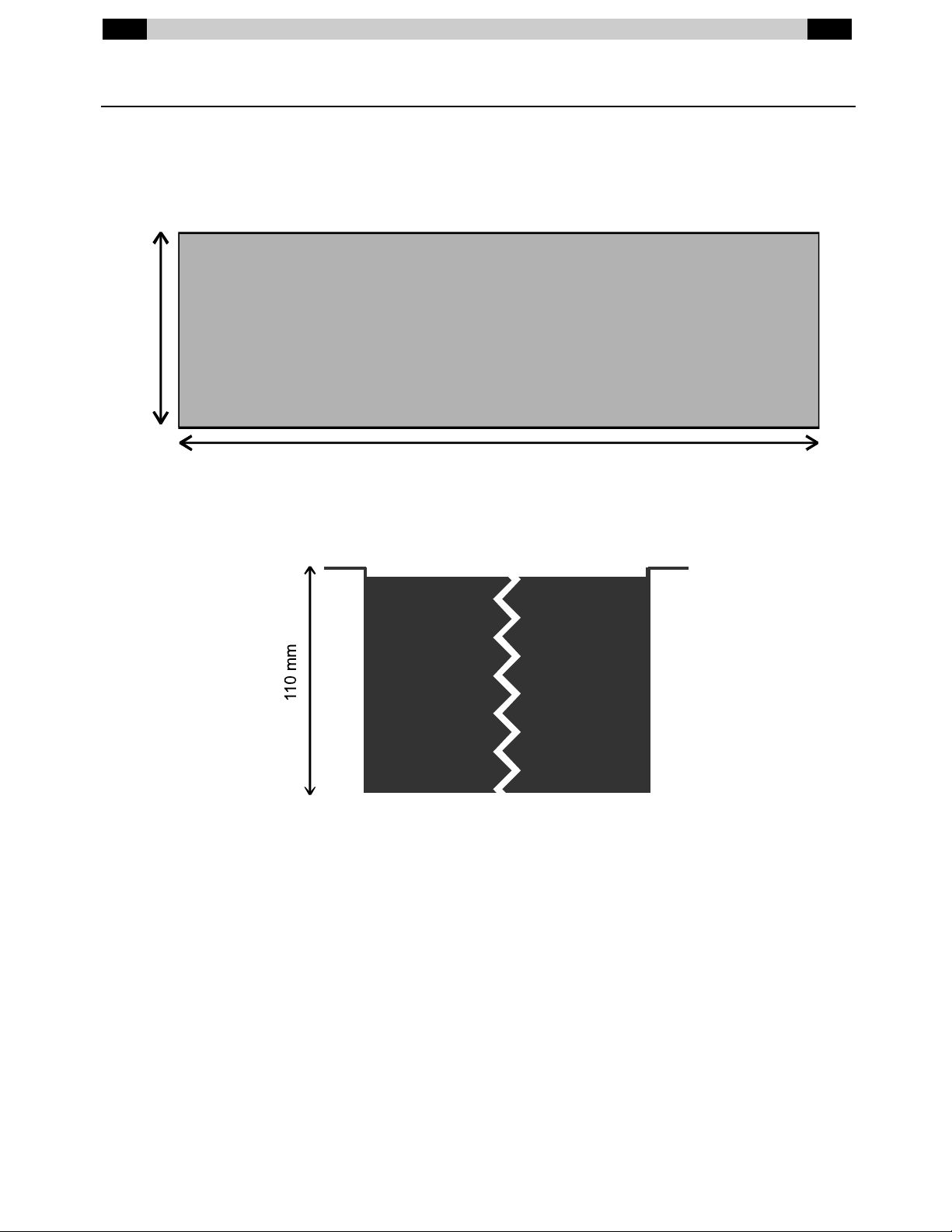

The is designed to be mounted in a 19-inch rack and is three units high. The cabinet fits into TRI-O
an opening of 445 x 132 x 110 mm (W x H x D). See also the dimensioned drawings below.
The 19-inch mounting bracket is 2mm thick. When installing the mixer, remember to allow sufficient
room for the connectors and plugs on the Crew’s rear!
CUT
OUT
445 mm
132 mm

EN Dateq ManualTRI-O Connections 5
TRI-O Connectorboard
At the rear all the audio in and outputs can be found, just as the euro-mains connector (with built in
mains-fuse) and the optional zone outputs with the volume control inputs.
Master stereo outputs (Cinch female)
Pin Function Type
Tip Audio + Out
Shield Ground A-GND
L/ R balanced Master Outputs (XLR 3-pins male)
Pin Function Type
1 Ground A-GND
2 Audio + Out
3 Audio - Out
Tape stereo output (Cinch female)
Pin Function Type
Tip Audio + Out
Shield Ground A-GND
Zone volume input (Cinch female)
Pin Function Type
Tip Volume control (See page 7) In
Shield Ground A-GND
Line/ Line 1/ Line 2 Stereo inputs (Cinch female)
Pin Function Type
Tip Audio + In
Shield Ground A-GND

6Dateq ManualTRI-O Connections En
Mic/ Mic Front/ Mic Rear balanced inputs (XLR 3-pins female)
Pin Function Type
1 Ground A-GND
2 Audio + In
3 Audio - In
Phones output (TRS Jack 3p, front)
Pin Function Type
Tip Left Out
Ring Right Out
Sleeve Ground A-GND
Connections
BALANCED
MASTER L/ R
Electronically balanced master outputs on XLR connectors for the left and
right channels of master A. This type of output guarantees perfect signal
transmission even if long audio cables are being used. These outputs are
equipped with relays to prevent connected equipment from ‘plopping’ when
the unit is being switched on and off.
MASTER
Unbalanced outputs on cinch connectors. These can be used to connect
the Crew to an amplifier or recorder. These outputs are equipped with relays
to prevent connected equipment from ‘plopping’ when the unit is being
switched on and off.
ZONE 1...4 Audio out With these outputs additional zones with separate external volume control
can be created. These outputs can be used to connect external amplifiers.
ZONE 1...4 Volume This input controls the volume of the additional zone. Between the tip and
the shield a potentiometer or an external control voltage can be supplied.
See page 7 for a more detailed explanation.
CHANNEL 7...3 Cinch connectors for the stereo line inputs. Each channel has two identical
inputs (line 1 and line 2) for CD-players, keyboards, MD-players etc. With
the input-selector on the front on of the two inputs can be activated. Each
input has it’s own gain-trimmer at the rear.
CHANNEL 2 Combined mono mic/ stereo line channel with a balanced (or local input)
microphone input on a XLR-connector and a stereo line input on a cinch
connector. When using an unbalanced microphone pin 1 and pin 3 must be
connected to the shielding of the cable. To use a local zone input connect
CHANNEL 1 This channel has two electronically balanced microphone inputs on XLR-
connectors (Mic Front and Mic Rear). When using an unbalanced
microphone pin 1 and pin 3 must be connected to the shielding of the cable.
MAINS/ FUSE Euro mains-input. The operates at 230V/ 50Hz. Fuse: 5x20mmTRI-O
(small), 315mA slow.
For all audio cinch connectors:
White = Left, Red = Right
UNBALANCED
a Musicall MRA-2 to the 3 pin Phoenix connector using balanced microphone
cable with a maximum lenght of 200m.

EN Dateq ManualTRI-O Connections 7
Zone volume control
By means of this input the volume of an external zone can be adjusted. The volume control can be
connected in two different ways:
Supplying an external voltage
When a voltage is supplied between the tip and the shielding of one of the cinch-connectors the
volume will be attenuated (for both the left and the right channel). When a negative voltage is
supplied the signal will be amplified. The amplification ranges from +14...-80dB. The graph below

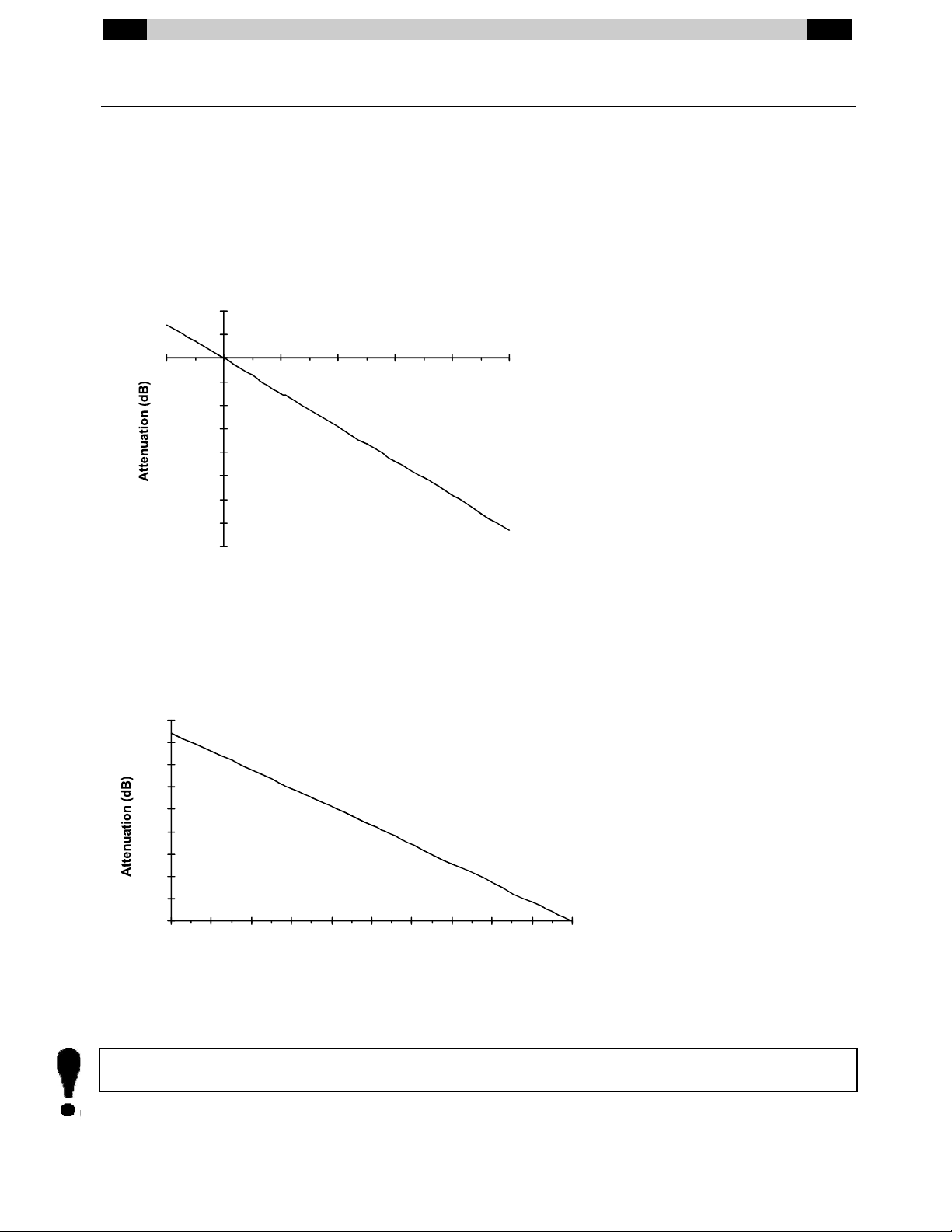

shows the amplification as function of the applied voltage:
Connecting a potentiometer
It is also possible to connect a potentiometer between the tip and the shielding to one of the cinch
connectors. The attenuation ranges from 0...-80dB. A 10kOhm logarithmically potentiometer gives
the best results. The next graph shows the attenuation as function of the angle of rotation:
As a maximum four
additional output zones can be connected.
When an adjustable attenuation is not necessary a cinch connector with a short-circuit between the
tip and shield must be connected. When the input is left open the volume will be fully attenuated.
-80
-70
-60
-50
-40
-30
-20
-10
0
10
20
-2 0 2 4 6 8 10
Voltage at 'volume control' (V)
0
10
20
30
40
50
60
70
80
90
0 10 20 30 40 50 60 70 80 90 100
Rotation angle potentiometer (%)

8Dateq ManualTRI-O Operation EN

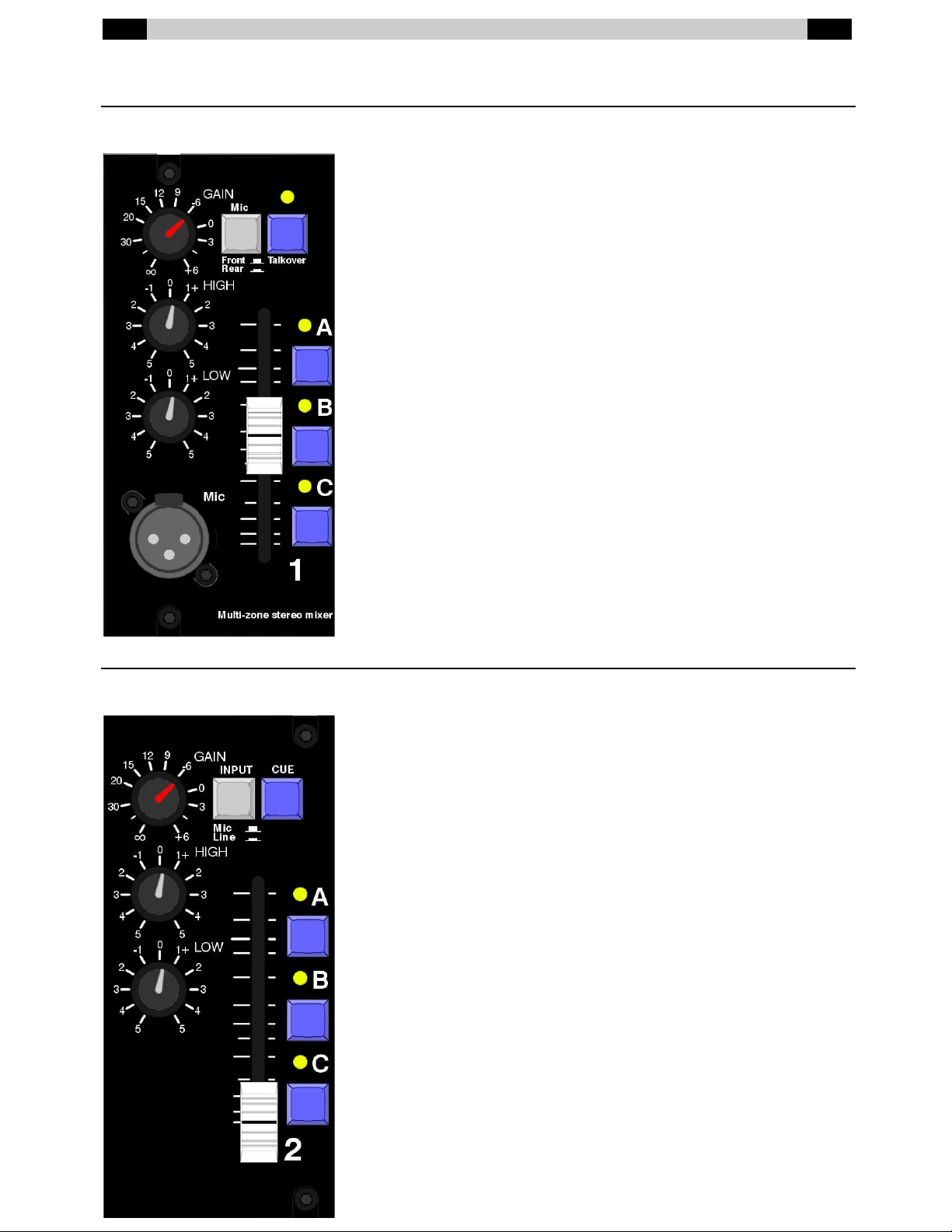

Microphone with TalkOver (1)
A microphone can be connected to this channel (at the front, or at the rear). The channel has a
gaincontrol, a dual equaliser and an input-selector.
GAIN
A, B, C
A, B, C
Volume preset for both the Mic Front and the Mic
Rear input.
HIGH High tone control.
LOW Low tone control.
Mic Front/Rear Input selector.
TALKOVER Enables or disables the TalkOver circuit. When
the button is pressed the LED lights up green
and the TalkOver function is enabled. When you
speak in the microphone all the other channels
will be attenuated and the LED will light up red to
indicate voice-over activity.
Fader 60mm fader which can be used to control the
volume of this channel.
Combined microphone/ line channel (2)
This channel can be used to connect a microphone or a stereo line-signal. The channel has a gain-
control, inputselector and pre-fader listening (CUE).
GAIN Volume preset for both the microphone and the
stereo-line input.
HIGH High tone control.
LOW Low tone control.
Mic/ Line Input selector.
CUE Enables/ disabled pre-fader listening. When the
button is pressed the signal on this channel can
be heard on the headphones and is showed on
the VU-meters. The master CUE LEDs will turn
off.
Fader 60mm fader which can be used to control the
volume of this channel.
2
Line 1
Line 2
Select the outputs where you want to use this
channel.
Select the outputs where you want to use this
channel.

EN Dateq ManualTRI-O Operation 9
Stereo line input (3 ... )6
Two stereo line inputs can be connected to this channel. Each channel has an input-selector, pre-
fader listening and a gain-trimmer on the connectorboard.
Line 1/ Line 2 Input selector.
CUE Enables/ disabled pre-fader listening. When the button
is pressed the signal on this channel can be heard on
the headphones and is showed on the VU-meters. The
master CUE LEDs will turn off.
Fader 60mm fader which can be used to control the volume
of this channel.
Mastersecti (A B )on , and C
The has identical TRI-O 3 mastersections (A B ). Each section has a dual equaliser, balance, and C
and gain control and an after-fader-listen function.
HIGH High tone control.
LOW Low tone control.
BAL Determines the balance between the left and the right
channel. When in mid-position, the left and right channel
can be heard evenly loud.
MASTER Gaincontrol for the unbalanced stereo outputs (master
A and Master B) and the balanced stereo output
(master A only)
MASTER Switches the headphone source between master A
CUE and master B. The LED indicates the source (master A
or master B). When the CUE function of an input-
channel is activated both master-CUE LEDs will be
switched off, and the input-channel will be selected as
headphone source.

10 Dateq ManualTRI-O Operation EN

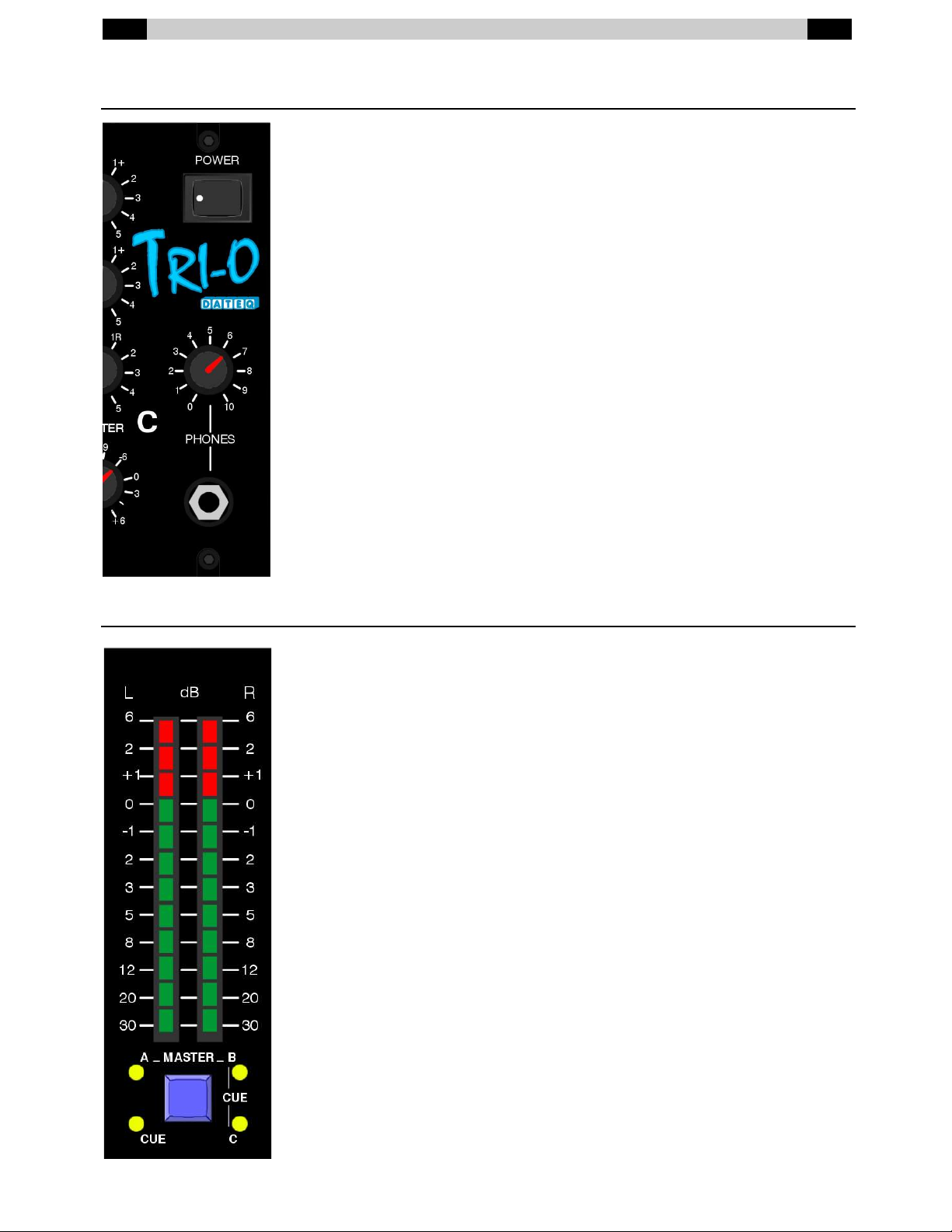

Various
POWER Mains switch.
PHONES Headphones volume control with a stereo
headphones connector. The selected CUE-
signal can be heard with the headphones
(master A, master B or the inputs with the CUE
function enabled).
Meters
This is an easy-to-read 2- x 12-segment LED display. The signal
on the VU-meters is the signal on the headphones output (master
A, master B or the CUE signal)., master C
An operating level of approximately 0dB is nominal.
MASTER

EN Dateq ManualTRI-O Technical Specifications 11
Technical Specifications
MONO INPUT
MIC (channel 1 and 2).......................................XLR-3 female, electronically balanced
Signal level...............................................-50 dB @ 600 Ohm variable
Impedance ...............................................3 kOhm nominal
Input noise................................................< -100 dB (IHF-A)
Headroom................................................22 dB
STEREO INPUTS
LINE (channel 2)................................................ Cinch
Signal level...............................................0 dB @ 600 Ohm variable
Input impedance ...................................... 12 kOhm nominal
Input noise................................................< -70 dB (IHF-A)
Channel separation..................................> 65 dB @ 1 kHz
LINE 1/ 2 (channel 3.. )6 ..................................... Cinch
Signal level...............................................0 dB @ 600 Ohm variable
Input impedance ...................................... 7 kOhm nominal
Input noise................................................< -74 dB (IHF-A)
Channel separation..................................> 65 dB @ 1 kHz
TONE CONTROL
EQUALISER CHANNEL 1 AND CHANNEL 2
High.......................................................... 10 kHz ±12 dB, Shelving
Low.......................................................... 30 Hz ±18 dB, Shelving
EQUALISER MASTER
High.......................................................... 12 kHz ±12 dB, Shelving
Low.......................................................... 30 Hz ±18 dB, Shelving
OUTPUTS
BALANCED MASTER (XLR).............................+6 dB balanced/ 600 Ohm/ variable
UNBALANCED MASTER OUT (Cinch).............................. 0 dB unbalanced/ 600 Ohm/ variable
ZONE1...4..........................................................0 dB unbalanced/ 600 Ohm/ variable
PHONES (6,3 mm TRS Jack)..........................0,3 W @ 4 Ohm/ Impedance 4..32 Ohm
FREQUENCY RESPONSE
MIC TO MASTER.............................................. 15 Hz...25 kHz -1 dB
ALL OTHER INPUTS TO MASTER..................10 Hz...30 kHz -1 dB
THD + N ............................................................ 0,01 % nominal
GENERAL
BUILT-IN POWER SUPPLY
Mains voltage...........................................90 5...2 0 VAC / 50 Hz
Power consumption.................................10 VA
SIZE AND WEIGHT
Front......................................................... 483 x 132 mm (W x H) = 19”, 3HE
Cutout ......................................................445 x 132 mm (W x H)
Cabinet depth...........................................110 mm without connectors
Weight......................................................3.5 kg Net.
Dateq International BV reserves the right to amend specifications without notice
