Vantage Pro2 Console Manual
Document Part Number: 07395.234 Rev. J, 2/14/11
For Vantage Pro2 Consoles # 6312 & 6312C
And Vantage Pro2 Weather Stations # 6152, 6152C, 6153, 6162, 6162C, 6163
Vantage Pro®and Vantage Pro2™are trademarks of Davis Instruments Corp., Hayward, CA.
Windows® is a trademark of Microsoft Corporation in the US and other countries. Macintosh® is a
trademark of Apple, Inc. in the US and other countries.
© Davis Instruments Corp. 2011. All rights reserved.
Information in this document subject to change without notice.
Davis Instruments Quality Management System is ISO 9001 certified.
FCC Part 15 Class B Registration Warning
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment on
and off, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modification not expressly approved in writing by Davis Instruments may void the warranty and void
the user's authority to operate this equipment.
FCC ID: IR2DWW6312
IC: 378810-6312
EC EMC Compliance
This product complies with the essential protection requirements of the EC EMC Directive 2004/108/EC; Low Volt-
age Directive 2006/95/EC; and Eco-Design Directive 2005/32EC > .05 watt no-load adaptor.
Vantage Pro2 Console Display Features
Display Features

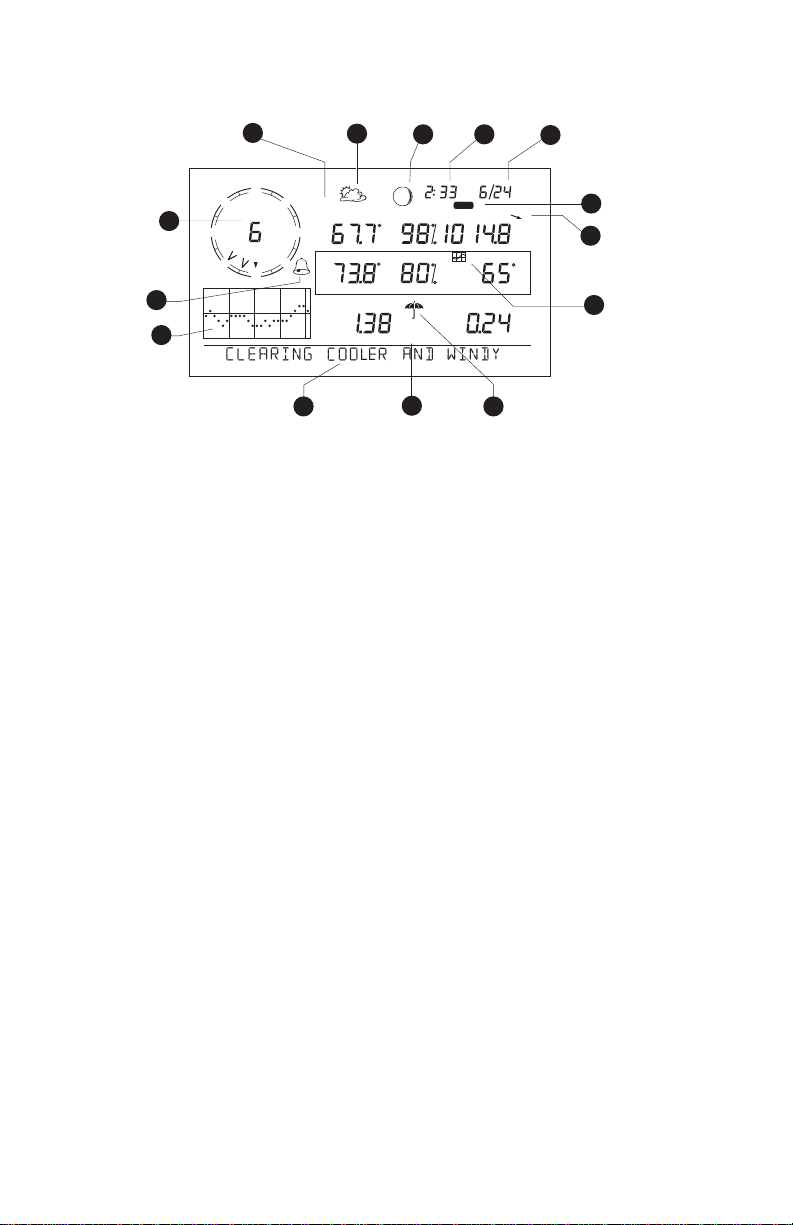

1. Compass Rose
2. Graph & Hi/Low Mode Settings
3. Forecast Icons
4. Moon Phase Indicator
5. Time/Sunrise Time
6. Date/Sunset Date
7. 2ND Button Indicator
8. Barometric Trend Arrow
9. Graph Icon
10. Current Rain Icon
11. Station Number Indicator
12. Weather Ticker
13. Graph Field
14. Alarm Icon
N
S
WE
NE
SE
NW
SW
GRAPH 2nd
Vertical Scale: X10
WIND
RAINRATE
in/hr
DAILY
in
STATION NO.1
pm
Last 24 hrs hr Every 1
MPH
CHILL
TEMP OUT
HUM IN
HUMOUT
TEMP IN
hPa
BAROMETER
F
F
F
13
12 11 10
1
14 9
8
7
6
5
4
32

i
Table of Contents
Welcome to Vantage Pro2TM ...........................................................................................1
Console Features ....................................................................................................... 1
Vantage Pro2 Options ...............................................................................................2
Installing the Console ......................................................................................................4
Powering the Console ...............................................................................................4
Installing the AC Power Adapter .............................................................................. 4
Installing Batteries ....................................................................................................5
Connecting Cabled Stations ...................................................................................... 5
Console Location ......................................................................................................6
Using Your Weather Station ............................................................................................9
Setup Mode ...............................................................................................................9
Current Weather Mode ...........................................................................................18
Selecting Units of Measure ..................................................................................... 18
Displaying the Forecast .......................................................................................... 24
Displaying Time & Date or Sunrise & Sunset .......................................................24
Calibrating, Setting, and Clearing Variables .......................................................... 25
Highs and Lows Mode ............................................................................................27
Alarm Mode ............................................................................................................28
Graph Mode ............................................................................................................31
Troubleshooting and Maintenance .................................................................................34
Vantage Pro2 Troubleshooting Guide ....................................................................34
Console Diagnostic Mode ......................................................................................36
Console Maintenance .............................................................................................40
One Year Limited Warranty ................................................................................... 40
Appendix A Weather Data .............................................................................................41
Appendix B Specifications .............................................................................................47
Console Specifications ...........................................................................................47
Wireless Communication Specifications ................................................................47
Console Data Display Specifications .....................................................................48
Weather Data Specifications ..................................................................................49
Appendix C Wireless Repeater Configuration ...............................................................51
Vantage Pro2 Console Icons ..........................................................................................53

1
Chapter 1
Welcome to Vantage Pro2TM
Welcome to your Vantage Pro2 Weather Station console. The console displays and
records your station’s weather data, provides graph and alarm functions, and interfaces
to a computer using our optional WeatherLink®software.
Vantage Pro2 stations are available in two basic versions: cabled and wireless. A
cabled Vantage Pro2 station transmits outside sensor data from the Integrated Sensor
Suite (ISS) to the console using a straight-through four-conductor cable. A wireless
Vantage Pro2 station transmits outside sensor data from the ISS to the console via a
low-power radio.
Note: Wireless consoles can also collect data from optional Vantage Pro2 sensors or a
Davis Vantage Vue ISS, and can also retransmit data to other Vantage Pro2 or Van-
tage Vue consoles or a Davis Weather Envoy. You can have an unlimited number of
consoles - one in each room!
The Vantage Pro2 Quick Reference Guide included with your station provides an easy
to use reference for most console functions.
Console Features
Keyboard & Display
The keyboard lets you view current and historical data, set and clear alarms, change
station models, enter calibration numbers, set up and view graphs, select sensors, and
read the forecast. The keyboard consists of 12 command keys located next to the screen
display and four navigation keys located below the command keys.
A weather variable or console command is printed on each command key.
Just press a key to select the variable or function printed on that key.
Each command key also has a secondary function which is printed above
the key on the console case. To select the secondary function, press and
release 2ND (on the front of the console, upper right corner) and then
immediately press the key for that function.
After pressing 2ND, the 2ND icon displays above the barometer reading on the screen
for three seconds. All secondary key functions are enabled during this time. Keys
resume normal operation after the icon disappears.
The+ and - navigation keys, along with < and > navigation keys are used
to select command options, adjust values, and to provide additional func-
tions when used in combination with a command key.
WIND
CHILL
2
ND
+
-
<>

Vantage Pro2 Options
2
Console Modes
The console operates in five basic modes: Setup, Current Weather, Highs and
Lows, Alarm, and Graph. Each mode lets you access a different set of console
functions or display a different aspect of your weather data.
Vantage Pro2 Options
Optional Sensors & Transmitting Stations
Vantage Pro2 stations are extremely flexible. Use the following optional sensors
and wireless stations to enhance the weather monitoring capabilities of your Van-
tage Pro2. See our web site for complete details:
www.davisnet.com.
Note: Optional wireless stations can only be used with Wireless Vantage Pro2 Stations.
Optional WeatherLink®Software
The WeatherLink software and data logger connect your Vantage Pro2 station
directly to a computer, providing enhanced weather monitoring capabilities, a con-
tinuous preserved data record, and powerful Internet features. The WeatherLink
data logger fits neatly on the console and stores weather data even when the com-
puter is turned off.
Optional Sensor and Stations Description
Anemometer/Sensor Transmitter
Kit (#6332)
Providesmoreflexibleanemometerplacementforwireless
stations. With Envoy8X, allows additional solar radiation,
UV, temperature, rain or 3rd party (reporting 0-3 volt)
sensors.
Vantage Connect (#6620) Transmits data from remote ISS to WeatherLink.com via
cellular connection.
Wireless Leaf & Soil Moisture/
Temperature Station (#6345) Measures and transmits leaf wetness, soil moisture and temperature data. Also for use with GLOBE.
Wireless Temperature Station
(#6372) Measures and transmits temperature data.
Wireless Temperature/Humidity
Station (#6382) Measures and transmits air temperature and humidity data.
Solar Radiation Sensor (#6450) Measures solar radiation. Required for calculating evapotranspiration (ET). Available for cabled and wireless
stations. Requires Sensor Mounting Shelf (#6673).
Ultraviolet (UV) Radiation Sensor
(#6490) Measures UV radiation. Required for calculating the UV
dose.Availablefor Cabled and Wirelessstations.Requires
Sensor Mounting Shelf (#6673).
WeatherLink Option Description
WeatherLink for Windows, USB
connection (#6510USB) IncludesWeatherLinksoftwareandUSBdata logger. Allowsyou to save and view your weather data on your PC.
WeatherLinkforWindows,serial
connection (#6510SER) Includes WeatherLink software and serial data logger. Allows you to save and view your weather data on your PC.
WeatherLink for Macintosh OS
X, USB connection (#6520) IncludesWeatherLinksoftware and USBdatalogger.Allowsyou to save and view your weather data on your Mac.
WeatherLinkIP for Windows XP/
Vista/7 (#6555)
Requiresabroadband router withavailableEthernetport.Allows
you to post your weather data directly to the Internet without a
PC. Among other features, allows you to receive e-mail alerts of
current weather conditions or simple alarm conditions.

Vantage Pro2 Options
3
Optional Accessories
Accessories are available from your dealer or may be ordered directly from Davis
Instruments.
Envoys: Wireless Weather Envoy (#6316,) Envoy8X (#6318)
Performs many of the same functions as a Vantage Pro2 console, but without a display.
Use an Envoy to interface your wireless station to a computer, freeing the display for
use elsewhere. Weather Envoy can receive the same number and combinations of sta-
tions as a Vantage Pro2 console; Envoy8X can receive up to 8 stations in any combina-
tion and create a large database.
Sensor Mounting Shelf (#6673)
Required for mounting the optional Solar Radiation and/or UV sensors. The mounting
shelf attaches to the base of the rain collector on the ISS.
Additional Vantage Pro2 (#6312) or Vantage Vue Console (#6351)
Enjoy weather information in several rooms.
USB-to-Serial (DB-9) Cable (#8434)
Allows the Serial version of WeatherLink (#6510SER, 6540, 6550, 6560) to connect to
a USB port on your computer.
Telephone Modem Adapter (#6533)
Required when connecting station to an external phone modem.
Extension Cables (#7876)
Allows you to place the Cabled Vantage Pro2 ISS further away from the console using
the extension cable provided by Davis Instruments. Maximum cable length is 1000’
feet (300 m).
• #7876-040 Cable, 40’ (12 m)
• #7876-100 Cable, 100’ (30 m)
• #7876-200 Cable, 200’ (61 m)
WeatherLink for APRS,
Windows version, with
streaming data logger, serial
connection (#6540)
IncludesWeatherLink softwareandstreamingserial datalogger.
Allows real-time display of current weather conditions for use
with APRS (Automatic Position Reporting System), for HAM
radio users.
WeatherLink for Alarm Output,
for Windows, with streaming
data logger, serial connection
(#6544)
IncludesWeatherLink softwareandstreamingserial datalogger.
Givesyouthe ability tocontrolexternaldevicesbasedon various
combinations of weather trends and events.
WeatherLink for Emergency
Response teams, Windows
version, with streaming data
logger, serial connection
(#6550)
IncludesWeatherLink softwareandstreamingserial datalogger.
Allows real-time display of current weather conditions for use by
emergency response teams.
WeatherLink for Irrigation
Control, Windows version, with
streaming data logger, serial
connection
(#6560)
IncludesWeatherLink softwareandstreamingserial datalogger.
Allows intelligent and efficient control of popular automated
irrigation systems using weather data.
WeatherLink Option Description

4
Chapter 2
Installing the Console
The Vantage Pro2 console is designed to give extremely accurate readings. As with any
precision instrument, use care in its assembly and handling. Although installing the
console is relatively simple, following the steps outlined in this chapter and assembling
the Vantage Pro2 correctly from the start will help ensure that you enjoy all of its fea-
tures with a minimum of time and effort.
Powering the Console
Cabled Vantage Pro2 Stations
Cabled Vantage Pro2 consoles supply power to the Integrated Sensor Suite (ISS)
through the console cable. Because of the added power consumption of the ISS, the
cabled console requires an AC power adapter used as the main power supply. The con-
sole batteries provide backup power for up to four to six weeks.
Wireless Vantage Pro2 Stations
Wireless Vantage Pro2 consoles do not require the use of an AC adapter. You may use
the included adapter if you wish, but the three C-cell batteries should power a wireless
console for up to nine months.
Note: When using an AC Power adapter, be sure to use the power adapter supplied with
your Vantage Pro2 Console. Your console may be damaged by connecting the
wrong power adapter. The console does not recharge the batteries. Because of this,
and because NiCad batteries do not power the console as long as alkaline batteries,
use alkaline batteries in the console.

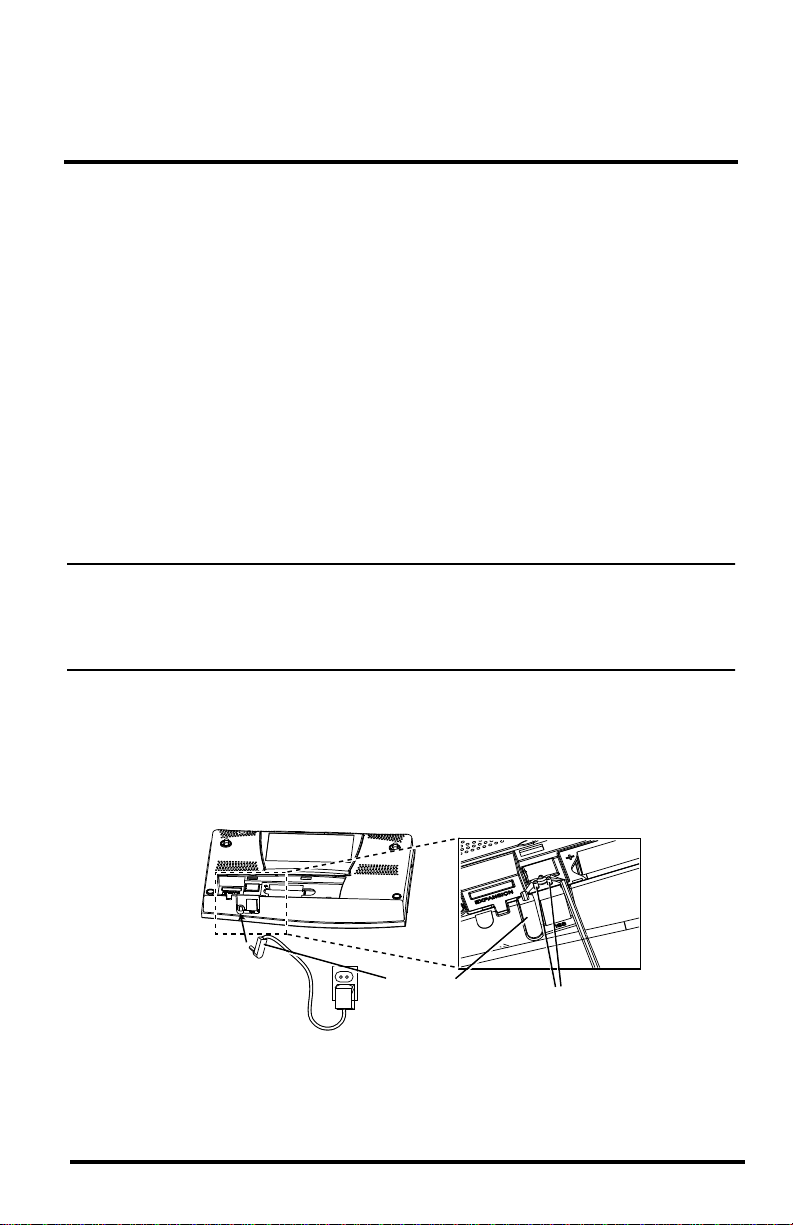

Installing the AC Power Adapter
1. Remove the battery cover located on the back of the console by pressing down on
the two latches at the top of the cover.
2. Find the power jack located on the bottom of the console case.
3. Insert the power adapter plug into the console power jack, then plug the other end of
the adapter into an appropriate power outlet.
Power Plug Wrap Cord Around Pins

Installing Batteries
5
4. Check to make sure the console runs through a brief self-test procedure successfully.
On power up, the console displays all the LCD segments and beeps twice. A mes-
sage displays in the ticker banner at the bottom of the console, followed by the first
screen that displays during Setup Mode. Press and hold DONE to skip the message
and enter into Setup Mode.
Setup Mode guides you through steps required to configure the station. See “Setup
Mode” on page 9 for more information.
Installing Batteries
1. Remove the battery cover located on the back of the console by pressing down on
the two latches at the top of the cover.
2. Insert three C batteries into the battery channel, negative (or flat) terminal first.
3. Replace the battery cover.
Connecting Cabled Stations
Cabled Vantage Pro2 stations come with 100 feet (30m) of cable. This cable is used for
connecting the console to the ISS. Maximum cable length from ISS to the console
using Davis Instruments cables is 1000 feet. To connect the console to the ISS:
1. Firmly insert the console end of the straight-through four-conductor wire into the
console receptacle marked “ISS” until it clicks into place. Do not force the
connector into the receptacle.
Battery
Battery
Battery
To ISS

Console Location
6
2. Ensure that the ISS cable is not twisted through the access port.
Note: The ISS must be assembled and connected to the console so that it is receiving
power before the console connection can be tested.
Once the console and ISS are both powered up, cable connection should be tested and
established.
Once the console is powered, it automatically enters Setup Mode. You can step through
the Setup Mode options, or exit the Setup Mode to test the connection and sensor read-
ings in Current Weather Mode. See “Setup Mode” on page 9 for Setup Mode options.
See “Current Weather Mode” on page 18 for viewing and verifying current weather
data coming from the cabled console.
To verify that the console is receiving data from the ISS through the console connec-
tion, see “Cabled ISS Assembly” in the Integrated Sensor Suite Installation Manual.
Console Location
Place the console in a location where the keyboard is easily accessible and the display
is easy to read. For more accurate readings:
• Avoid placing the console in direct sunlight. This may cause erroneous inside tem-
perature and humidity readings and may damage the unit.
• Avoid placing the console near radiators or heating/air conditioning ducts.
• If you are mounting the console on a wall, choose an interior wall. Avoid exterior
walls that tend to heat up or cool down depending on the weather.
• If you have a wireless console, be aware of possible interference from cordless
phones or other devices. To prevent interference, maintain a distance of 10 feet
between the Vantage Pro2 console and a cordless phone (handset and base).
• Avoid positioning a wireless console near large metallic appliances such as refrig-
erators, televisions, heaters, or air conditioners.
• The console antenna does not rotate in a complete circle. Avoid forcing the console
antenna when rotating it.
Table & Shelf Placement
The console kickstand can be set to three different angles allowing five different dis-
play angles.
1. Install the two round rubber feet on the bottom of the console. The rubber feet help
prevent damage to furniture and surfaces.

Console Location
7
2. Lean the kickstand out by pulling on its top
edge.
You’ll see the indentation for your finger at the
top edge of the console.
3. Slide the catch to rest the kickstand in the appro-
priate angle.
Choose low angles for display on a coffee table
or other low area. Choose higher angles for dis-
play on a desk or shelf.
4. Install the two rubber channel feet on the kick-
stand.
If necessary, pull up on the stand to close it. It will be a little tight, so it’s okay to push
hard enough to get it to slide.
