PROTEC AC-400 USER MANUAL V2.20
AC-400
A/C SERVICE STATION
1/24

PROTEC AC-400 USER MANUAL V2.20
INDEX
SPECIFICATIONS----------------------------------------------------------------------------------------------------------------2
FUNCTION TABLE--------------------------------------------------------------------------------------------------------------3
PART DESCRIPTION------------------------------------------------------------------------------------------------------------4
FIRST OPERATION--------------------------------------------------------------------------------------------------------------5
EQUIPMENT CONNECTION (For recovery/vacuum/oil injection/charge/Auto mode)-------------------------------7
RECOVERY------------------------------------------------------------------------------------------------------------------------8
VACUUM---------------------------------------------------------------------------------------------------------------------------9
OIL INJECTION-----------------------------------------------------------------------------------------------------------------10
CHARGE--------------------------------------------------------------------------------------------------------------------------11
AUTO. MODE--------------------------------------------------------------------------------------------------------------------12
HP LEAK TEST------------------------------------------------------------------------------------------------------------------14
SYSTEM SETTING-------------------------------------------------------------------------------------------------------------16
UPDATE---------------------------------------------------------------------------------------------------------------------------20
MAINTENANCE REMINDING----------------------------------------------------------------------------------------------21
MAIN TROUBLESHOOTING------------------------------------------------------------------------------------------------22
1/24

PROTEC AC-400 USER MANUAL V2.20
Specifications:
Dimension：Package 700*630*1230mm; Unpacked machine 635*585*1075mm

Input power：AC220V±10％~50/60Hz，or AC110V±10％~60Hz

Compressor power：3/8HP

Average gas state refrigerant recovery speed (through charge/suction port)：0.25Kg/min.

Hand valves free.

Recovery rate: 99%, recovery to -0.5BAR.

Pressurization to speed up old oil discharge.

Vacuum pump capacity：60L/min.

TEKTINO individualized drier-filter capacity: 600ml

Accuracy of gas cylinder load cell：±10g

Accuracy of oil bottle load cell：±5g

Gas cylinder capacity：10KG Max.

New/old oil bottle capacity：330ml

System Max. Pressure：20bar

Charge speed：2Kg/Min(max.)

LCD display：105.5*67.2mm, 480RGB x 272 Dots ,TFT full color

High pressure gauge range：-1bar~3.5MPa

Low pressure gauge range：-1bar~3.5MPa

A/C database included, update through USB port.

Automatic service reminding. The equipment provides 1200 operations totally (each recovery or
vacuum counts for one operation) between regular maintenances. When 1200 operations have been
made the machine automatically reminds to call distributor for service.

Thermal printer

Optional: Refrigerant adding port for external gas cylinder. The recovery speed of liquid state refrigerant
through this port: 0.35KG/min.

Optional: Condenser and cooling fan.

Optional: Vacuum leak test.

Optional: Heater band

Optional: Large capacity vacuum pump 120L/mn.

Optional: HP leak test at 2.0MPa.
2/24

PROTEC
AC-400 USER MANUAL V2.20
Function Table
Recovery
Recovers and purifies refrigerant from automotive A/C
to equipment tank.
Vacuum
Evacuates air and moisture from the A/C system.
Automatic vacuum leak test (optional).
Oil injection
Inject refrigeration oil to automotive A/C system.
Can inject oil by setting volume manually, or
Main function
automatically.
Charge
Charge refrigerant from equipment gas cylinder to
automotive A/C system
Auto. mode
Performs the selected functions in a fully automatic
sequence. The machine will stop automatically once all
the selected functions have been completed
HP leak test
Inject high pressure compressed N2 to auto A/C
system, to detect leak location in auto A/C system.
Language
Select operation language
Calibration
Calibration refrigerant gas cylinder load cell and/or oil
bottle load cell.
Air purge
Purge non-condensable in equipment gas cylinder.
Database
Enter automotive A/C database
Sys. setting
Printer
Test printer
Unit set
Select metric or imperial units
Empty container weight set
Set empty refrigerant gas cylinder or refrigeration oil
containers weight.
Component test
Test work status of solenoids, vacuum pump and
compressor.
3/24

PROTEC
AC-400 USER MANUAL V2.20
Part description
19
1
21
20
18
2
17
3
4
5
16
6
15
14
13
7
12
10 11
9
8
1）Refrigerant gas cylinder
2）Gas cylinder support plate
3) Gas cylinder load cell
4）Oil bottle load cell
5）Oil bottle support
6）Oil bottles
7）Assembly of solenoid valve and
8）Manifold assembly 1
9）front cover (plastic)
check valve
10) Front wheel
11）Compressor
12）Vacuum pump
13）Condenser and cooling fan
14）Rear wheel
15）Side cover
(optional)
16）Accessory holder
17）Back cover
18）Upper cover
19）Pressure gauges
20）Manifold 2
21) Drier-filter
4/24

PROTEC AC-400 USER MANUAL V2.20
FIRST OPERATION

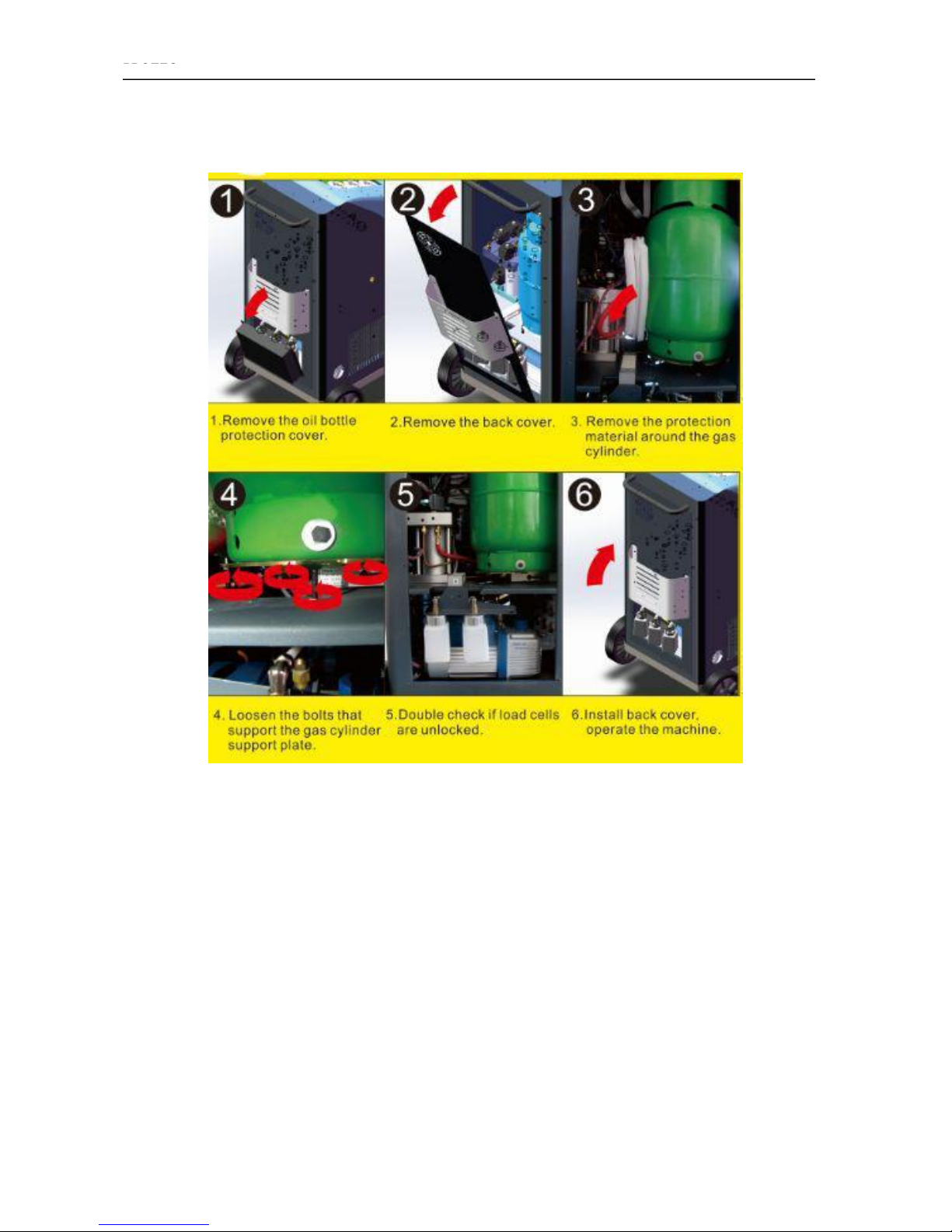

Unlock load cells (Remove the protection materials for transportation, in equipment side
you can find same sticker).
Fill equipment with refrigerant (New equipment is empty, you need to fill the equipment
with refrigerant and refrigeration oil)
5/24

PROTEC AC-400 USER MANUAL V2.20
2. Open external tank valve. Run recovery.
1.Connect equipment either CHARGE or
SUCTION port to an external tank with
refrigerant, block other port of the equipment.
You can also put the external upside down.
3. When total refrigerant in equipment reaches
2-9KG, close the external tank valve, wait for the
equipment to stop recovering automatically.
6/24

PROTEC AC-400 USER MANUAL V2.20
Equipment Connection (For recovery/vacuum/oil injection/charge/Auto. Mode)
Warning: Except the situations clearly stated in the manual, during all equipment operations, please maintain
the vehicle engine and A/Cswithed off, otherwise unexpected damages may be caused.
Remarks: HP leak test equipment connection is different, please refer to “HP leak test” chapter in this manual.
7/24

PROTEC AC-400 USER MANUAL V2.20

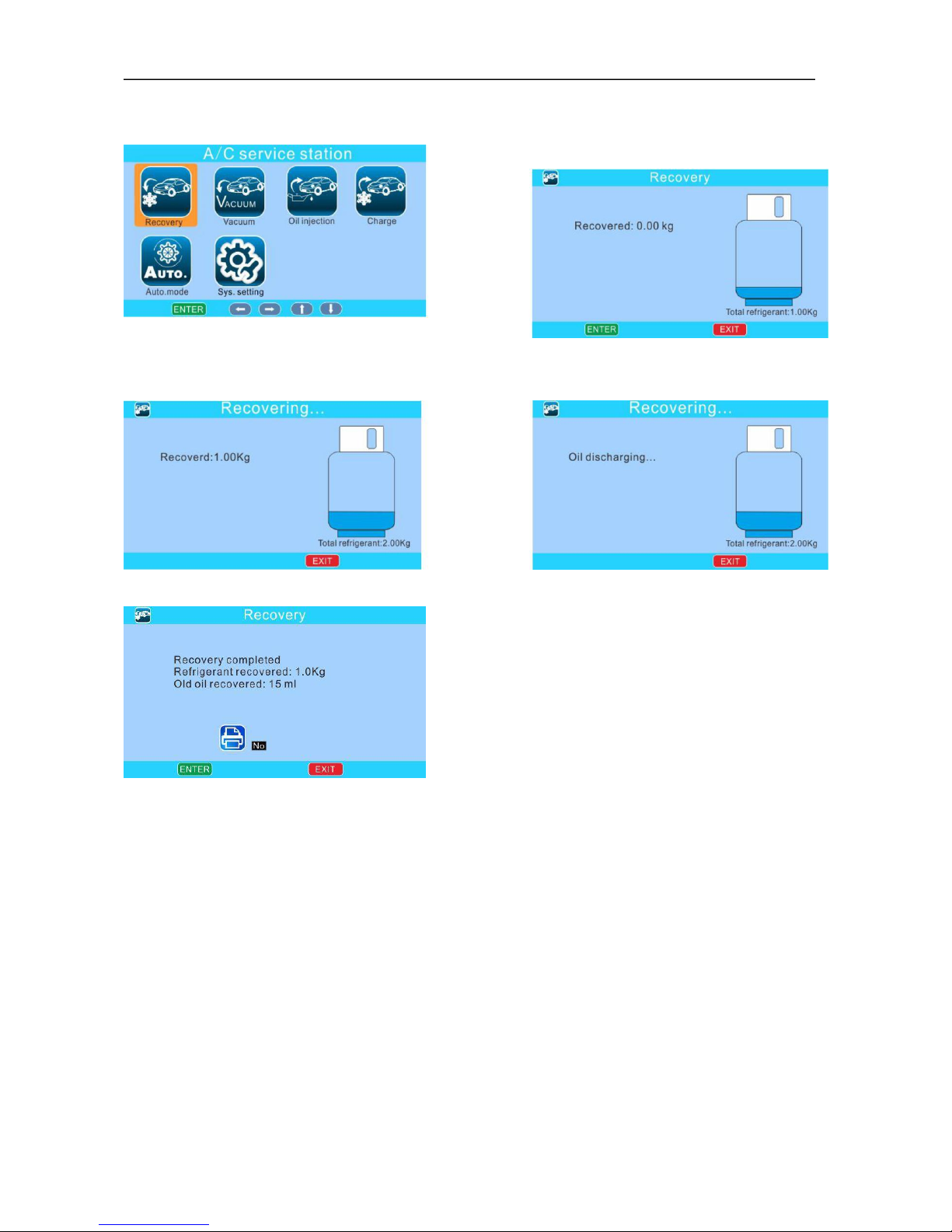

Recovery
Remarks: With HP leak test function, this interface is different.
Please refer to HP leak test function in this manual
8/24

PROTEC AC-400 USER MANUAL V2.20
Vacuum
Remarks: With HP leak test function, this interface is different.
Please refer to HP leak test function in this manual.
Remarks: Vacuum leak test is optional function.
9/24

PROTEC AC-400 USER MANUAL V2.20
Oil injection
Remarks: With HP leak test function, this interface is different.
Please refer to HP leak test function in this manual.
10/24

PROTEC AC-400 USER MANUAL V2.20
Charge
Remarks: With HP leak test function, this interface is different.
Please refer to HP leak test function in this manual.
OR
Remarks: “Hose purge” function can charge the refrigerant
remained in the hoses to auto A/C system
11/24

PROTEC AC-400 USER MANUAL V2.20
Remarks:
After charge, can turn off the machine, with machine still connected to vehicle A/C, turn on the vehicle
engine and A/C to watch the HP and LP gauges of the machine, to make sure that the high pressure and
low pressure displayed in HP/LP gauges are in normal range of the vehicle.
12/24

PROTEC AC-400 USER MANUAL V2.20

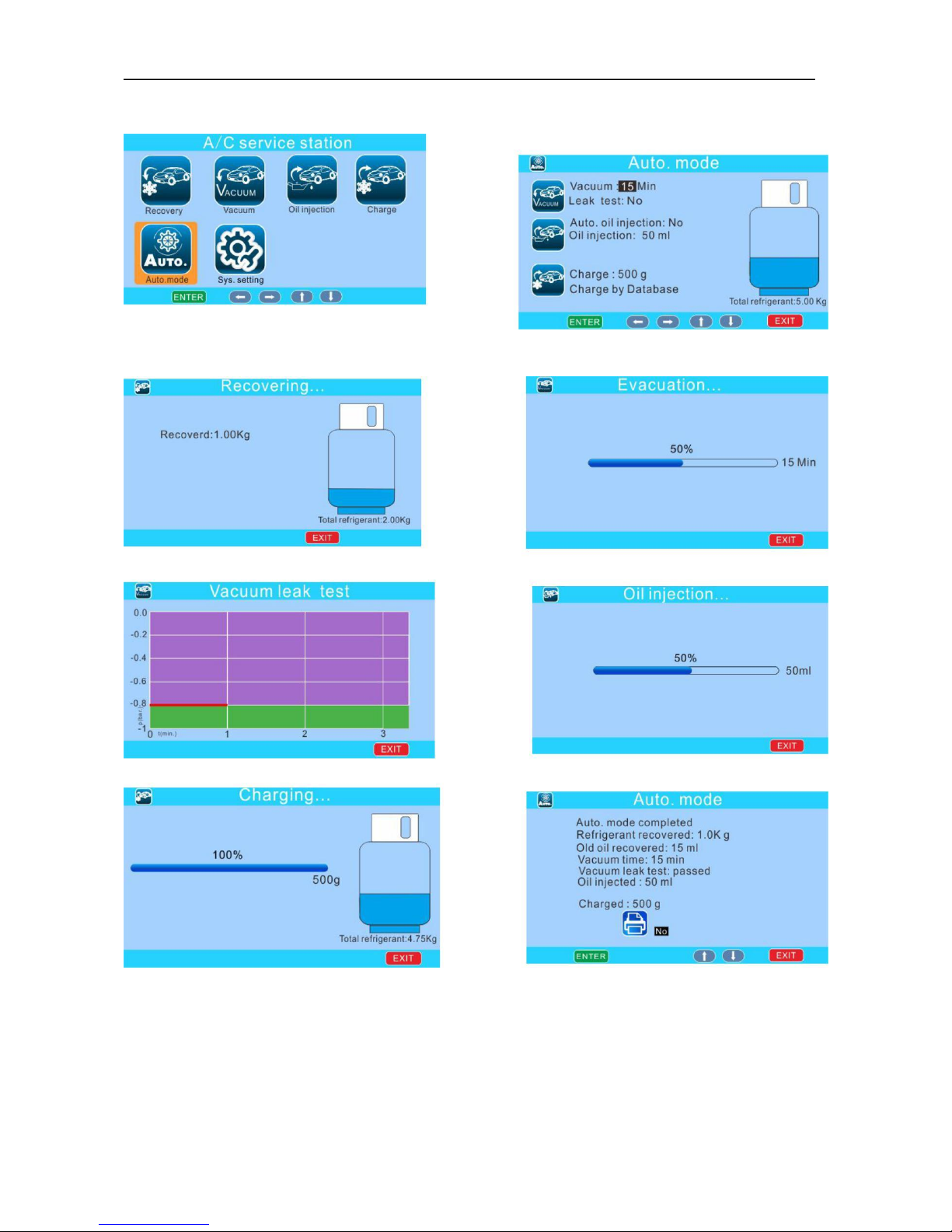

Auto. mode
Remarks: With HP leak test function, this interface is different.
Please refer to HP leak test function in this manual.
Remarks:
Vacuum leak test is optional.

Can also select “Hose purge” function, to charge the refrigerant remained in the hoses to the auto
A/C system.
13/24

PROTEC AC-400 USER MANUAL V2.20
HP leak test
Equipment connection for HP leak test
14/24

PROTEC AC-400 USER MANUAL V2.20
By observing the HP and LP gauges in equipment,
to determine if the AUTO A/C system has leakage.
Can also use soapy water to detect the exact leak
location in A/C system.
15/24

PROTEC AC-400 USER MANUAL V2.20

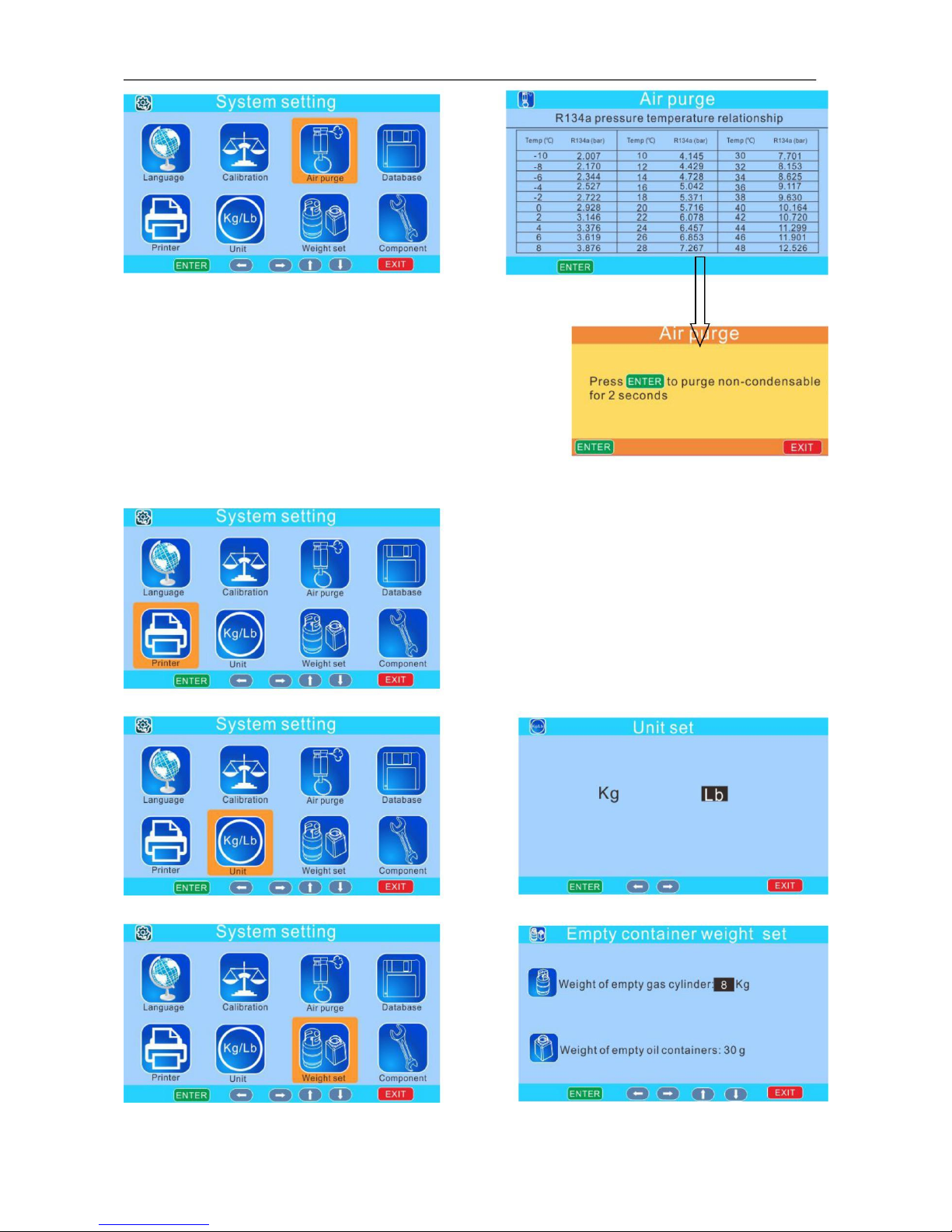

System setting
P.W.: 111111
Calibration 1: Gas cylinder load cell Calibration
The equipment indicates to put an
The equipment indicates to
object of 5-10kg on the plate, and
remove the gas cylinder
change the weight in the screen,
Remove the back cover.
Remove the gas cylinder and
according the object weight.
keep the plate empty
16/24

PROTEC AC-400 USER MANUAL V2.20
Calibration 1: Gas cylinder load cell Calibration
Calibration passed.
The equipment
indicates to
put an object of 11-15kg on
the plate, and change the
weight
in
the
screen,
(Calibration failed, contact distr
Put object on the plate
Put object on the plate
according the object weight.
ibutor).
Calibration2: Oil bottle load cell calibration
Put an object of 1-2KG on
The equipment indicates to the oil bottle suport, and
remove all oil bottles. change value in the screen,
Remove the oil bottles Put object on the support
according to the object w
eight.
Calibration2: Oil bottle load cell calibration
Calibration passed
Put object of 3-4kg on the oil
bottle support,
and
change
the value in the screen
according to
the
object Put object on the support
weight.
Calibration failed (Contact
distributor)
17/24

PROTEC AC-400 USER MANUAL V2.20
18/24

PROTEC AC-400 USER MANUAL V2.20

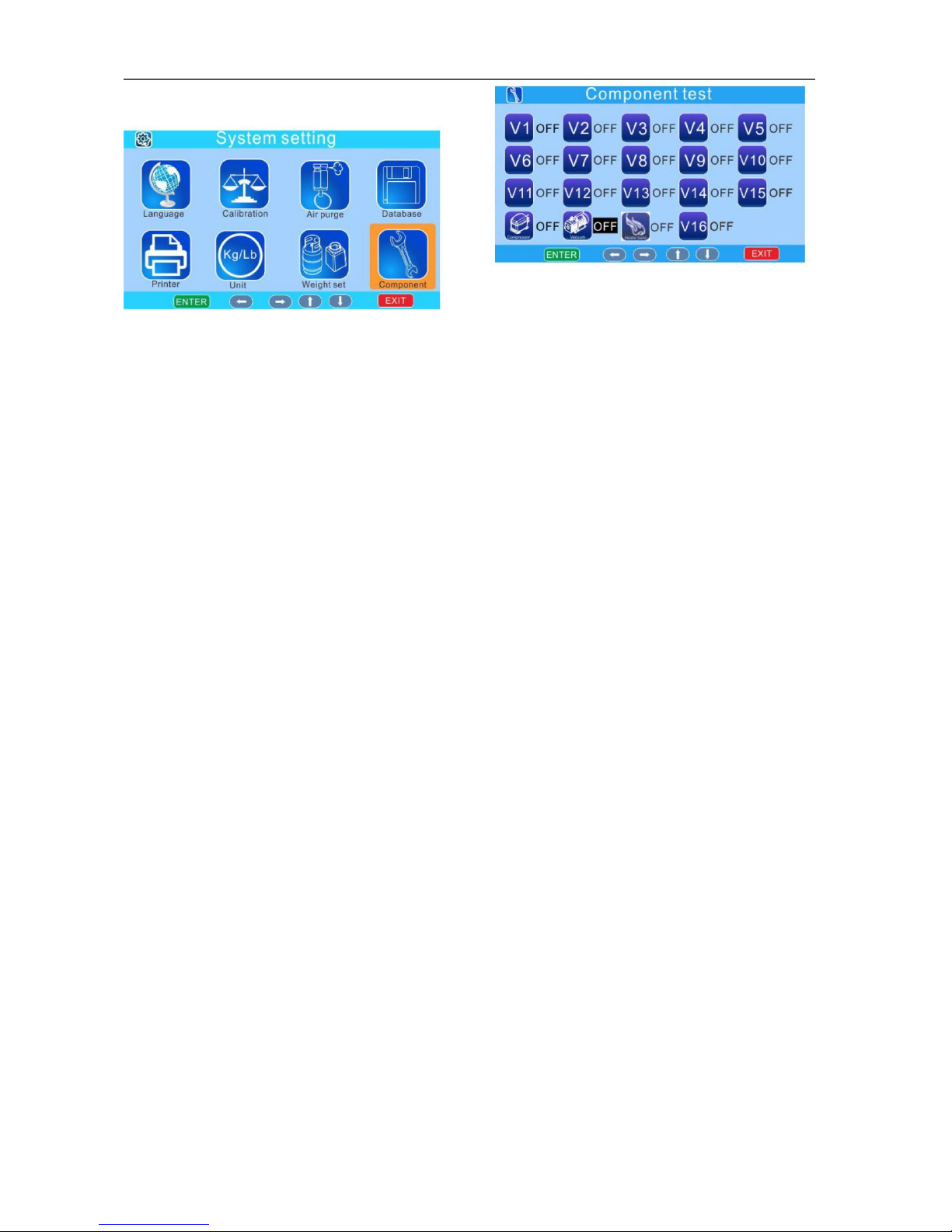

Remarks:
1. V11 to V15 are reserved for future development
2. V16 is available if the equipment has HP leak test
function
