DCbright DARK LICHT Series User manual

OPERATING INSTRUCTION
for
DARK LICHT SERIES

Attention: To check the authenticity of testing/inspection report & certicate, please contact us at telephone: [phone], or email: [email protected] ©DCbright
dcbright.com
[email protected]
Operating Instruction
no. : Dark Licht Operating Instruction
date: 06/12/23
page: 2/19
Attention
Please read the following instructions carefully to ensure that the installation work is carried out correctly. Keep these instructions safe for
future reference.
Safety instructions
1. The safety of the xture is only guaranteed if it is properly installed and maintained. Also, the product must be used for its intended pur-
pose. If the xture is modied or used unintentionally, there is a risk of danger to life or re due to electric shock or short circuit.
2. Before each use, check the lamp or power supply for possible damage. Never use the lamp or power supply if you nd any damage any-
where. In case of damage, contact an electrician or the manufacturer’s customer service department. If not, there is possible danger to life
from electric shock!
3. Do not use the lamp in explosive environments and where ammable liquids, gases or dust are present. Danger to life!
4. Keep the lamp out of the reach of children. Children cannot assess the danger of electric current.
5. Use only the supplied driver and cable to operate the device.
6. Do not look directly into the light source from a short distance.
7. If the light source needs to be replaced, the complete xture must be replaced by the manufacturer or your supplier.
8. Keep the xture away from strong electromagnetic radiation sources and provide adequate protection against lightning strikes.
9. The tensile strength of the luminaire xture must be guaranteed. According to the EN 60598-1 standard, the luminaire must be tested at
each suspension point with four times its mass, plus its own weight.
10. Adjustment of the parameters or modication must be carried out only in a voltage-free condition.

Attention: To check the authenticity of testing/inspection report & certicate, please contact us at telephone: [phone], or email: [email protected] ©DCbright
dcbright.com
[email protected]
Operating Instruction
no. : Dark Licht Operating Instruction
date: 06/12/23
page: 3/19
Technical data (Dark Licht ONE)
Brand DCbright
Product
DL1-AC-320W-51
DL1-AC-400W-64
DL1-AC-600W-96
Light source 3-step MacAdam Ellipse LED’s
Expected life span
320W:
400W:
600W:
L80 B10 - 106 564 hrs
L80 B10 - 196 013 hrs
L80 B10 - 196 030 hrs
Light cut-o angle
S1:
S2:
S3:
S4:
S5:
75°
72°
69°
66°
63°
CRI Standard:
Optional:
>70
>80, >90
Operation temp range -40ºC ~ +50ºC
Impact rating IK07
Waterproof rating IP65, IP67
LED driver CE, ENEC, UL, CB, FCC
LED driver safety class Class I
Voltage range
320W:
400W:
600W:
90-305Vac / 127-420Vdc
90-305Vac / 127-420Vdc
220-480V ~ 50/60Hz
Lamp weight
320W
400W
600W
14.9 kg (internal driver)
15.0 kg (internal driver)
13.9 kg (external driver)
Driver weight Box 600W
Tray 600W
9.1 kg
5.1 kg
160
365
550
365
550
100 100
16.20
12.20
25.60
30°
80

Attention: To check the authenticity of testing/inspection report & certicate, please contact us at telephone: [phone], or email: [email protected] ©DCbright
dcbright.com
[email protected]
Operating Instruction
no. : Dark Licht Operating Instruction
date: 06/12/23
page: 4/19

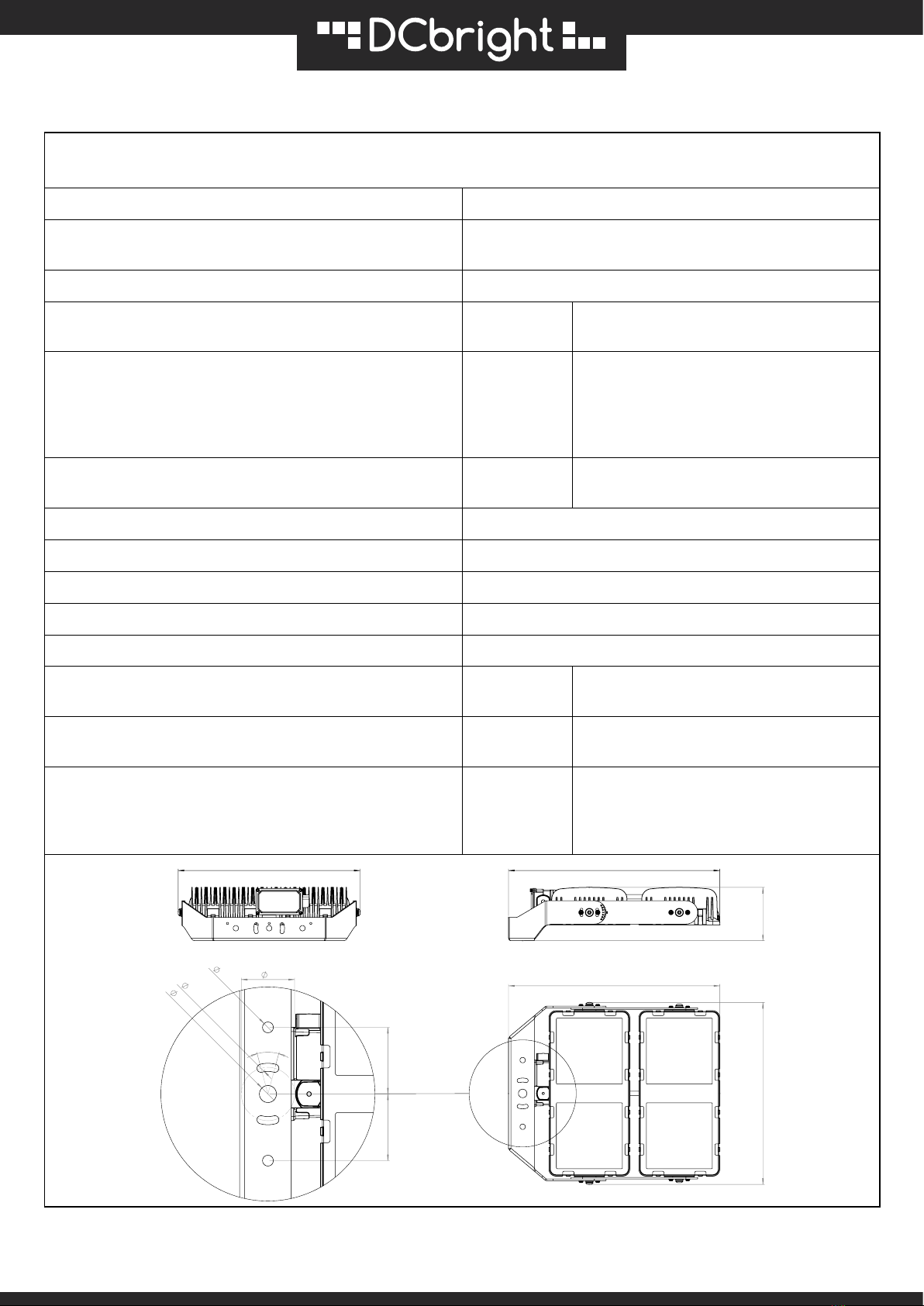

Technical data (Dark Licht TWO)
Brand DCbright
Product DL2-AC-800W-128
DL2-AC-1200W-192
Light source 3-step MacAdam Ellipse LED’s
Expected life span 800W:
1200W:
L80 B10 - 196 013 hrs
L80 B10 - 196 030 hrs
Light cut-o angle
S1:
S2:
S3:
S4:
S5:
75°
72°
69°
66°
63°
CRI Standard:
Optional:
>70
>80, >90
Operation temp range -40ºC ~ +50ºC
Impact rating IK07
Waterproof rating IP65, IP67
LED driver CE, ENEC, UL, CB, FCC
LED driver safety class Class I
Voltage range 800W:
1200W:
220-480V ~ 50/60Hz
220-480V ~ 50/60Hz
Lamp weight 800W
1200W
24.5 kg (external driver)
25.4 kg (external driver)
Driver weight
Box 800W
Tray 800W
Box 1200W
Tray 1200W
9.1 kg
5.4 kg
11.3 kg
7.8 kg
160
635
550
635
550
100 100
16.20
12.20
25.60
30°
80

Attention: To check the authenticity of testing/inspection report & certicate, please contact us at telephone: [phone], or email: [email protected] ©DCbright
dcbright.com
[email protected]
Operating Instruction
no. : Dark Licht Operating Instruction
date: 06/12/23
page: 5/19
Technical data (Dark Licht THREE)
Brand DCbright
Product DL3-AC-1800W-288
Light source 3-step MacAdam Ellipse LED’s
Expected life span 1800W: L80 B10 - 196 030 hrs
Light cut-o angle
S1:
S2:
S3:
S4:
S5:
75°
72°
69°
66°
63°
CRI Standard:
Optional:
>70
>80, >90
Operation temp range -40ºC ~ +50ºC
Impact rating IK07
Waterproof rating IP65, IP67
LED driver CE, ENEC, UL, CB, FCC
LED driver safety class Class I
Voltage range 1800W: 220-480Vac ~ 50/60Hz
Lamp weight 1800W 33.5 kg (external driver)
Driver weight Box 1800W
Tray 1800W
13.8 kg
10.4 kg
160
905
550
905
550
100 100
16.20
12.20
25.60
30°
80

Attention: To check the authenticity of testing/inspection report & certicate, please contact us at telephone: [phone], or email: [email protected] ©DCbright
dcbright.com
[email protected]
Operating Instruction
no. : Dark Licht Operating Instruction
date: 06/12/23
page: 6/19
Technical data (product code)
Model encoding system for Dark Licht product series
1. Product 2. Bracket 3. Light temp 4. CRI 5. Driver 6. Light setting
DL1-AC-320W-51 1In (industrial) 22 (2200k) 70 (>70) I (internal driver) 1S1 (setting 1)
DL1-AC-400W-64 1Ar (Architectural) 27 (2700k) 80 (>80) B (driver on back)2 S2 (setting 2)
DL1-AC-600W-96 240 (4000k) 90 (>90) R (remote driver) 2S3 (setting 3)
DL2-AC-800W-128 250 (5000k) P (internal pole driver) 2S4 (setting 4)
DL2-AC-1200W-192 2S5 (setting 5)
DL3-AC-1800W-288 2
Product code is created by using categories in the following order: 1 | 2-3-4-5 | 6
For example: DL1-AC-600W-96 | In-50-70-R | S2
1 Standard equipped with Driver option: “I (internal driver)”. Driver options: B, R and P are available on request.
2 Can only be equipped with “B (driver on Back)”, “R (remote driver) and (P (internal pole driver).

Attention: To check the authenticity of testing/inspection report & certicate, please contact us at telephone: [phone], or email: [email protected] ©DCbright
dcbright.com
[email protected]
Operating Instruction
no. : Dark Licht Operating Instruction
date: 06/12/23
page: 7/19
Technical data (industrial series)
Dark Licht ONE (DL1-AC-320-51 & DL1-AC-400-64)
Luminaire with 6 reectors
Version with internal driver
Titanium gray housing
Dark Licht ONE (DL1-AC-600-96)
Luminaire with 8 reectors
Version with external driver box/tray
Titanium gray housing
Luminaire with 8 reectors
Version with bracket mounted driver box
Titanium gray housing
Dark Licht TWO (DL2-AC-800-128)
Luminaire with 12 reectors
Version with external driver box/tray
Titanium gray housing
Luminaire with 12 reectors
Version with bracket mounted driver box
Titanium gray housing
Dark Licht TWO (DL2-AC-1200-192)
Luminaire with 16 reectors
Version with external driver box/tray
Titanium gray housing
Luminaire with 16 reectors
Version with bracket mounted driver box
Titanium gray housing
Dark Licht THREE (DL3-AC-1800-288)
Luminaire with 24 reectors
Version with bracket mounted driver box
Titanium gray housing
Luminaire with 24 reectors
Version with bracket mounted driver box
Titanium gray housing

Attention: To check the authenticity of testing/inspection report & certicate, please contact us at telephone: [phone], or email: [email protected] ©DCbright
dcbright.com
[email protected]
Operating Instruction
no. : Dark Licht Operating Instruction
date: 06/12/23
page: 8/19
Technical data (architectural series)
Dark Licht ONE (DL1-AC-320-51 & DL1-AC-400-64)
Luminaire with 6 reectors
Version with internal driver
Titanium gray housing
Dark Licht ONE (DL1-AC-600-96)
Luminaire with 8 reectors
Version with external driver box/tray
Titanium gray housing
Luminaire with 8 reectors
Version with bracket mounted driver box
Titanium gray housing
Dark Licht TWO (DL2-AC-800-128)
Luminaire with 12 reectors
Version with external driver box/tray
Titanium gray housing
Luminaire with 12 reectors
Version with bracket mounted driver box
Titanium gray housing
Dark Licht TWO (DL2-AC-1200-192)
Luminaire with 16 reectors
Version with external driver box/tray
Titanium gray housing
Luminaire with 16 reectors
Version with bracket mounted driver box
Titanium gray housing
Dark Licht THREE (DL3-AC-1800-288)
Luminaire with 24 reectors
Version with bracket mounted driver box
Titanium gray housing
Luminaire with 24 reectors
Version with bracket mounted driver box
Titanium gray housing

Attention: To check the authenticity of testing/inspection report & certicate, please contact us at telephone: [phone], or email: [email protected] ©DCbright
dcbright.com
[email protected]
Operating Instruction
no. : Dark Licht Operating Instruction
date: 06/12/23
page: 9/19
Technical data (product details)
Electrical junction box of Darklicht xture with cable gland and push-
in terminals for electrical connection to driver box, driver tray or in
the case of internal driver box to 3 core power cable.
Adjusting bolts to adjust the tilt angle of the Darklight xture.
Driver types per luminaire
Dark Licht driver box Dark Licht driver tray

Attention: To check the authenticity of testing/inspection report & certicate, please contact us at telephone: [phone], or email: [email protected] ©DCbright
dcbright.com
[email protected]
Operating Instruction
no. : Dark Licht Operating Instruction
date: 06/12/23
page: 10/19
Installation - scope of supply
Check whether the contents of the package are complete.
Contents:
1x Dark Licht xture as specied
1x Instruction manual
1x Cable entry open-end wrench
1x Stainless steel (304) exible tube
Shrinking tube
Vulcanizing tape (3M J20)
Installation - general notes
1. Assembly, installation, and maintenance may only be performed by qualied persons.
2. Before installing or replacing the xture, ensure that the power supply is turned o to prevent accidents.
3. Prior and during installation, closely follow the instructions provided in this manual.
4. Before installing a luminaire, the load-bearing capacity of the lamppost or other installation location and the xing elements must be
ensured. If these values are unknown, have this calculated and/or checked by a certied company.
5. Electrical connection must be carried out in accordance with all applicable standards and directives.
6. The xture can only be used within the specied voltage range.
7. Recommended cable: Supply cord: EPDM H07RN-F 3G1.5mm2 - Dim cord: Dcbright H07BQ-F 4G0.5mm2
8. Make sure that the corresponding IP class is met when connecting the luminaire. For the Dark Licht xture this is IP67
9. Disassembly, assembly and adjustment of the luminaire should only be carried out with the power switched o.
10. Ensure proper sealing by adding shrink tubing and vulcanizing tape around the cable glands, providing a secure and watertight connection.
11. Position the luminaire in such a way that it prevents prolonged staring from a distance less than 11.688m into the luminaire.
12. The luminaire is designed to be suitable for both indoor and outdoor use.
13. The distance between the luminaire and a radio should be at least one meter to avoid possible interference with the radio reception.
14. Fixtures that are attached to a moving object must be secured with a safety cord or chain.
15. Make sure the xture is not exposed to heat sources beyond the specied operating temperature and vibration and avoid contact with
corrosive chemicals
16. The luminaire must not be covered or wrapped with insulating material. Because the maximum operating temperature around the luminaire
can lead to temperatures of 70°C, a minimum distance of 75mm must be maintained between the luminaire and thermal insulation materi-
als and components. Direct ceiling mounting is therefore excluded.
17. Never remove the glass plate or other parts of the xture yourself.
18. The xture must not be used if the housing is damaged or broken. Parts that have broken must be replaced immediately. Do not switch on
power as long as the xture is damaged or broken. If damage has occurred to the luminaire, please contact your supplier immediately
19. Commissioning and storage must be within the rated temperature range
20. In order to prevent light nuisance and to guarantee proper functioning of the full-cut-o reectors, the luminaire must always be installed
21. in accordance with the pre-made lighting plan; For this reason, it is not recommended to tilt the xture more than 15 degrees in a perma-
nent installation
22. Never attempt to repair the xture yourself; repairs must be conducted by the manufacturer or a designated company.
23. Maximum mounting height: 50 meter - Maximum elevation height: none

Attention: To check the authenticity of testing/inspection report & certicate, please contact us at telephone: [phone], or email: [email protected] ©DCbright
dcbright.com
[email protected]
Operating Instruction
no. : Dark Licht Operating Instruction
date: 06/12/23
page: 11/19

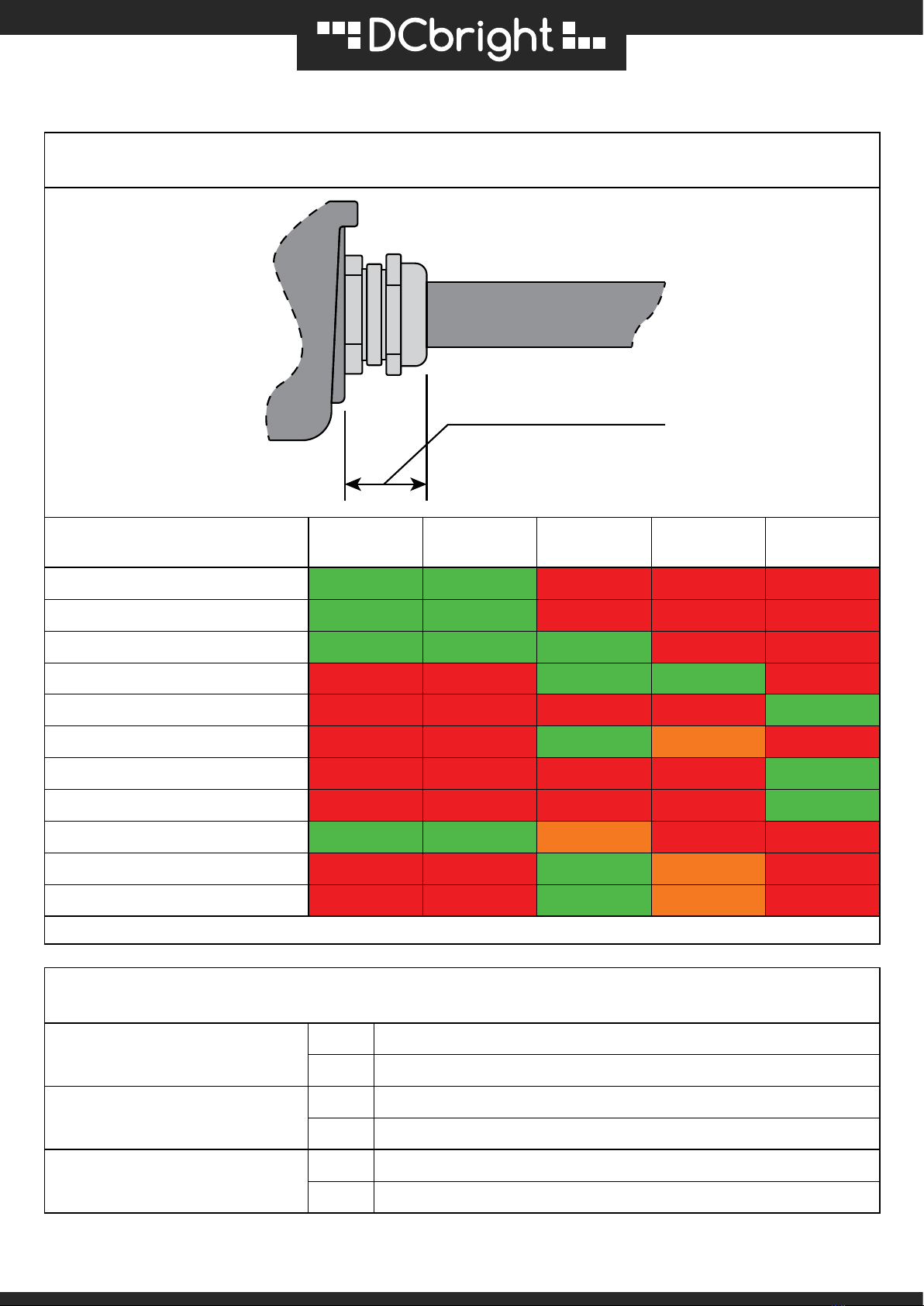

Eective Projected Area (EPA) - Wind Rating Specications (per product)
Tilt Angle 0° 5° 10° 15° 20°
DL3
Front Surface 75400mm² 104000mm² 130000mm² 158600mm² 182000mm²
Cd 1.22 Side Surface 94875mm² 94875mm² 94875mm² 94875mm² 94875mm²
DL2
Front Surface 75400mm² 91000mm² 106600mm² 122200mm² 135200mm²
Cd 1.22 Side Surface 63825mm² 63825mm² 63825mm² 63825mm² 63825mm²
DL1
Front Surface 75400mm² 78000mm² 83200mm² 85800mm² 88400mm²
Cd 1.22 Side Surface 32775mm² 32775mm² 32775mm² 32775mm² 32775mm²
DL2 + Driver
Front Surface 75400mm² 91000mm² 106600mm² 122200mm² 135200mm²
Cd 1.23 Side Surface 104325mm² 104325mm² 104325mm² 104325mm² 104325mm²
DL1 + Driver
Front Surface 75400mm² 78000mm² 83200mm² 85800mm² 88400mm²
Cd 1.23 Side Surface 73275mm² 73275mm² 73275mm² 73275mm² 73275mm²

Attention: To check the authenticity of testing/inspection report & certicate, please contact us at telephone: [phone], or email: [email protected] ©DCbright
dcbright.com
[email protected]
Operating Instruction
no. : Dark Licht Operating Instruction
date: 06/12/23
page: 12/19
Installation - installation instructions
WARNING - DANGER
Make sure that the power supply is switched o before connecting the LED xture.
WARNING - DANGER
Installation of the LED xtures may only be carried out by authorized persons with sucient knowledge.
WARNING - DANGER
Do not stare at the operating light source.
1. To determine the correct angle of adjustment of the luminaire, follow the instructions of the lighting plan and/or the supplier. Before
installation, always check that the installation site is completely level.
2. Only install the xtures at mounting locations that have been pre-approved or inspected by a certied company.
3. It is recommended to start installation as close to the power point as possible.
4. The weight of the connecting cable must not load the luminaire.
5. To protect the light module and to avoid the risk of injury, gloves should be worn during assembly and installation.
6. The drivers, driver box or driver tray and other components must be properly grounded. For example by means of an earth claw or a pre-installed earth cable.
7. Check that the degree angle is set correctly before tightening the bolts
8. Check that all bolts and cable glands are properly tightened. see tables: “Cable gland - Advised tightening inmm” and “Bolt - tightening information” below
9. After installation, the point furthest from the grounding installation should be professionally checked in accordance with local law.

Attention: To check the authenticity of testing/inspection report & certicate, please contact us at telephone: [phone], or email: [email protected] ©DCbright
dcbright.com
[email protected]
Operating Instruction
no. : Dark Licht Operating Instruction
date: 06/12/23
page: 13/19
Cable gland - Advised tightening inmm
Advised tightening in mm
Cable
Luminaire / Driver box
see table for dimension
Cable gland type : M12*1.5-D-SI
4-8mm
M20*1.5-2H
4-8mm
M20*1.5-H
5-10mm
M20*1.5
6-12mm
M20*1.5-D
8-14mm
Dcbright H07BQ-F 4G0.5mm2 (Ø6.7mm) +/-17.7mm +/-19.8mm x x x
Dcbright H07BQ-F 2G2mm2 (Ø7.3mm) +/-18.4mm +/-19.9mm x x x
Dcbright H07BQ-F 2G1.5 + 2G0.5mm2 (Ø8mm) +/-18.9mm +/-20mm +/-20.4mm x x
Dcbright H07BQ-F 4G1.5 + 2G0.5mm2 (Ø10.4mm) x x +/-21.3mm +/-22.2mm x
Dcbright H07BQ-F 6G1.5 + 2G0.5mm2 (Ø13.6mm) x x x x +/-20.8mm
Dcbright H07BQ-F 2G2.5 + 2G0.5mm2 (Ø9.5mm) x x +/-21.1mm x x
Dcbright H07BQ-F 4G2.5 + 2G0.5mm2 (Ø12.3mm) x x x x +/-21mm
Dcbright H07BQ-F 6G2.5 + 2G0.5mm2 (Ø13.8mm) x x x x +/-21.1mm
Dcbright SiHF-08 2x1mm2 (Ø7.9mm) +/-18.9mm +/-20mm x x x
Dcbright SiHF-08 2x2.5mm2+2x0.5mm2 (Ø10.7mm) x x +/-21.3mm x x
EPDM H07RN-F 3G1.5mm2 (Ø10mm) x x +/-21.3mm x x
GREEN = allowed | ORANGE = not recommended but possible | RED = not allowed
Bolt - tightening information
Bolts on luminaire M8 20N
M16 175N
Bolts on bracket (8.8 rated) M20 341N
M24 590N
Bolts on bracket (12.9 rated) M20 576N
M24 995N

Attention: To check the authenticity of testing/inspection report & certicate, please contact us at telephone: [phone], or email: [email protected] ©DCbright
dcbright.com
[email protected]
Operating Instruction
no. : Dark Licht Operating Instruction
date: 06/12/23
page: 14/19
Installation - installation instructions
Cable connection labeling
Input Voltage
220 - 480 Vac
Connection - DR1-AC-600-1200-1800
Connection - DR3-AC-1800+DIM
Connection - DR3-AC-1800
Connection - DR2-AC-1200+DIM
Connection - DR2-AC-1200
Connection - DR1-AC-600+DIM
Connection - DR1-AC-600
Connection - DR1-AC-400
Connection - DR1-AC-320

Attention: To check the authenticity of testing/inspection report & certicate, please contact us at telephone: [phone], or email: [email protected] ©DCbright
dcbright.com
[email protected]
Operating Instruction
no. : Dark Licht Operating Instruction
date: 06/12/23
page: 15/19

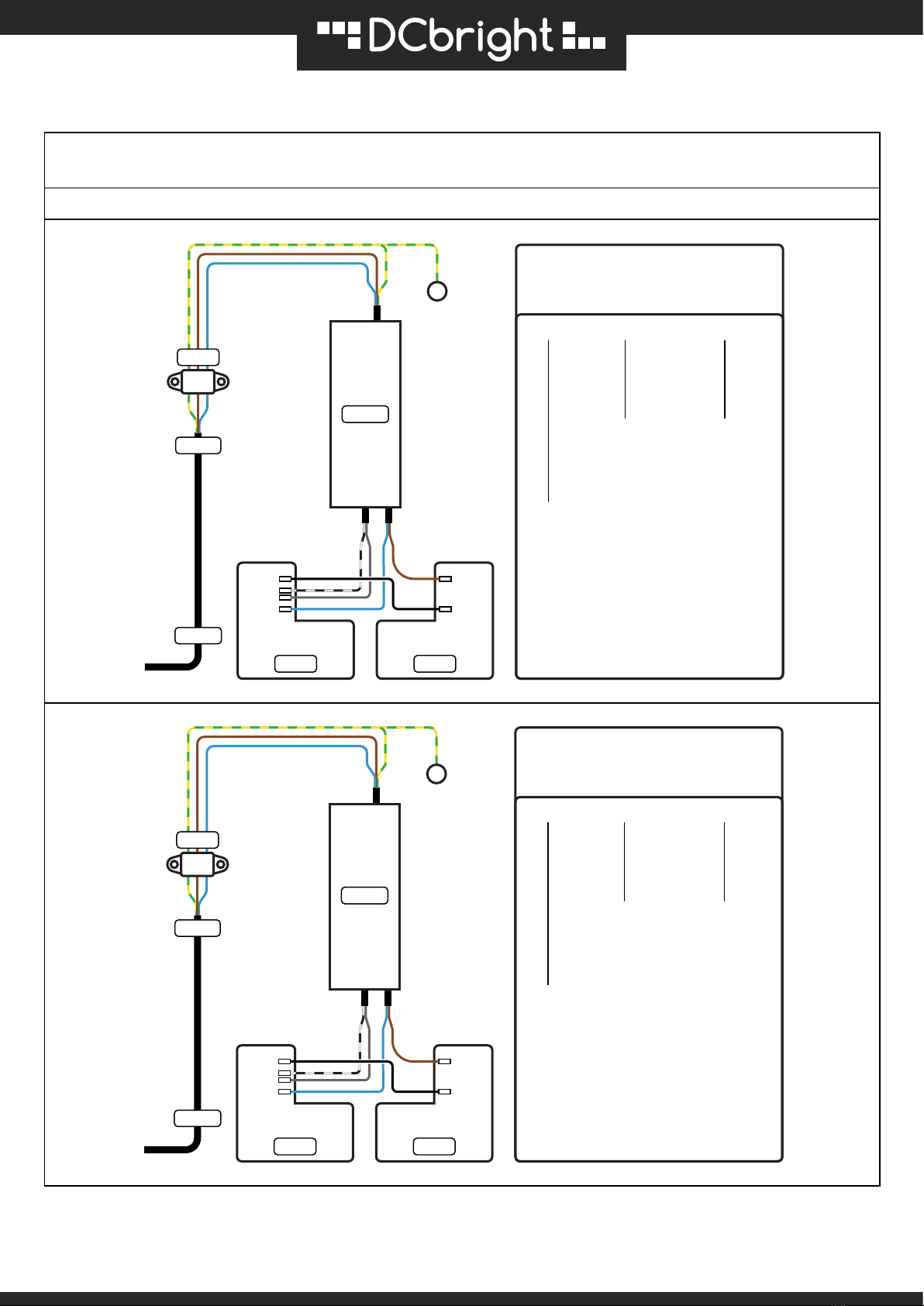

Installation - electrical schematic
Dark Licht ONE

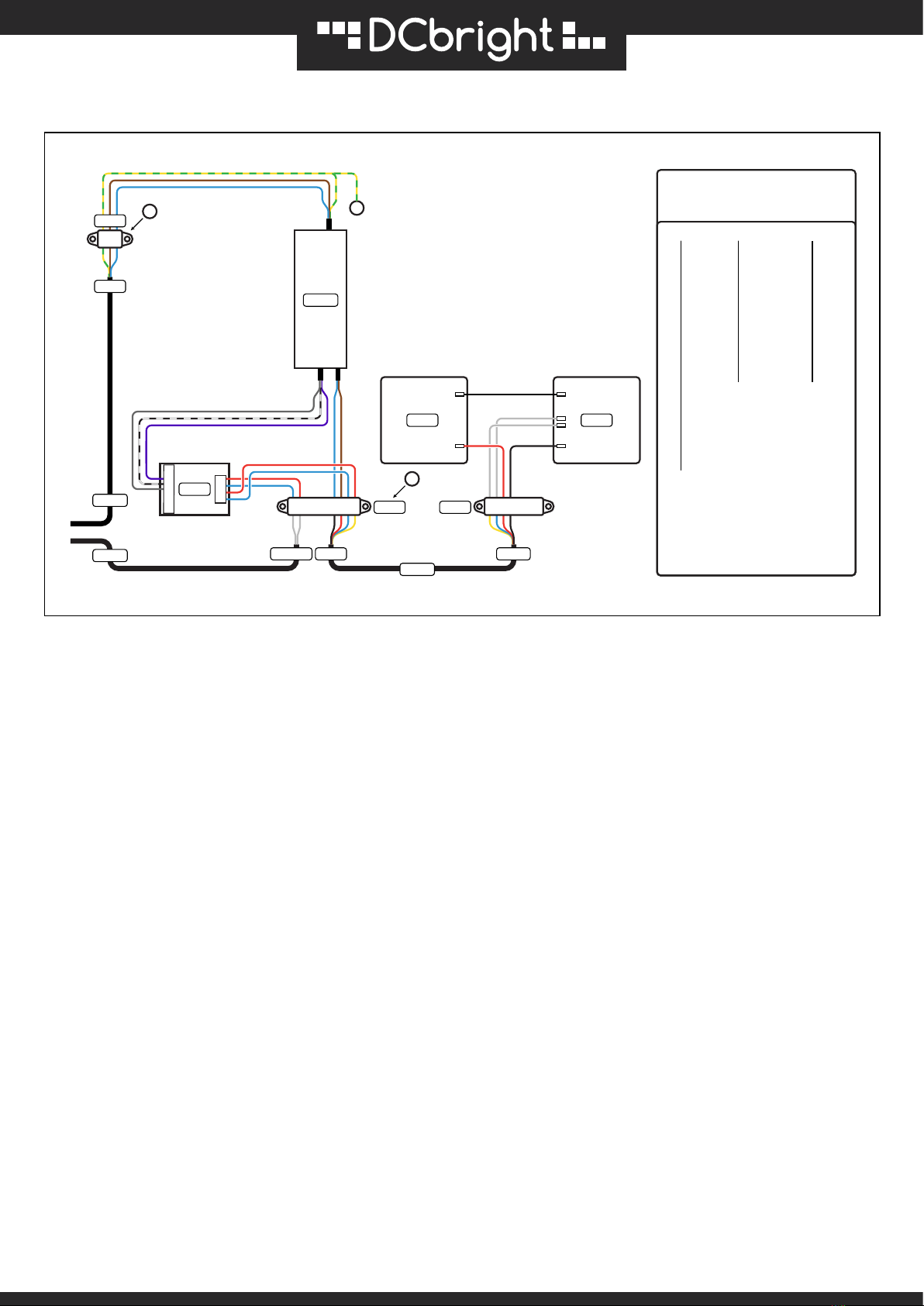

1
2
3
4
5
6
7
8
9
10
11
A
CABLE 1
DRIVER 1
PCB 1
PCB 2
CON 1
GREEN | YELLOW
BROWN
BLUE
GREEN | YELLOW
BROWN
BLUE
BROWN
BLUE
BLACK | WHITE
GREY
BLACK
CONNECT CON 1 (INCOMING EARTH CABLE) TO LUMINAIRE HOUSING
INCOMING CABLE TO CON 1
320W DRIVER IN LUMINAIRE 1
IN LUMINAIRE 1
IN LUMINAIRE 1
INSIDE LUMINAIRE 1
INCOMING CABLE TO CON 1
INCOMING CABLE TO CON 1
INCOMING CABLETO CON 1
CON 1 TO DRIVER 1 AND 2
CON 1 TO DRIVER 1 AND 2
CON 1 TO DRIVER 1 AND 2
DRIVER 1 TO PCB 1
DRIVER 1 TO PCB 2
DRIVER 1 TO PCB 1
DRIVER 1 TO PCB 1
CONNECT PCB 1 TO PCB 2
EARTH
PHASE
PHASE | NEUTRAL
EARTH
PHASE
PHASE | NEUTRAL
DRI OUT +
DRI OUT -
TEMP +
TEMP -
BRIDGE CABLE
ADL1-AC-320W-51
123
654
8
7
11
10
9
11
CABLE 1
CON 1
DRIVER 1
PCB 1 PCB 2
IN LAMP
1
2
3
4
5
6
7
8
9
10
11
A
CABLE 1
DRIVER 1
PCB 1
PCB 2
CON 1
GREEN | YELLOW
BROWN
BLUE
GREEN | YELLOW
BROWN
BLUE
BROWN
BLUE
BLACK | WHITE
GREY
BLACK
CONNECT CON 1 (INCOMING EARTH CABLE) TO LUMINAIRE HOUSING
INCOMING CABLE TO CON 1
400W DRIVER IN LUMINAIRE 1
IN LUMINAIRE 1
IN LUMINAIRE 1
INSIDE LUMINAIRE 1
INCOMING CABLE TO CON 1
INCOMING CABLE TO CON 1
INCOMING CABLETO CON 1
CON 1 TO DRIVER 1 AND 2
CON 1 TO DRIVER 1 AND 2
CON 1 TO DRIVER 1 AND 2
DRIVER 1 TO PCB 1
DRIVER 1 TO PCB 2
DRIVER 1 TO PCB 1
DRIVER 1 TO PCB 1
CONNECT PCB 1 TO PCB 2
EARTH
PHASE
PHASE | NEUTRAL
EARTH
PHASE
PHASE | NEUTRAL
DRI OUT +
DRI OUT -
TEMP +
TEMP -
BRIDGE CABLE
ADL1-AC-400W-64
123
654
8
7
11
10
9
11
CABLE 1
CON 1
PCB 1 PCB 2
IN LAMP
DRIVER 1

Attention: To check the authenticity of testing/inspection report & certicate, please contact us at telephone: [phone], or email: [email protected] ©DCbright
dcbright.com
[email protected]
Operating Instruction
no. : Dark Licht Operating Instruction
date: 06/12/23
page: 16/19
1
2
3
4
5
6
7
8
9
10
11
12
13
14
17
20
21
22
23
24
27
30
31
32
35
38
41
A
B
C
CABLE 1
CABLE 2
CABLE 3
DRIVER 1
PCB 1
PCB 2
CON 1
CON 2
CON 3
GREEN | YELLOW
BROWN
BLUE
GREEN | YELLOW
BROWN
BLUE
PURPLE
BLACK | WHITE
GREY
RED
BLUE
RED
BLUE
BROWN
BLUE
YELLOW
BLUE
X (OPTIONAL)
X (OPTIONAL)
RED
BLACK
GREY
GREY
RED
BLACK
BLACK
GREEN | YELLOW
CONNECT CON 1 (INCOMING EARTH CABLE) TO LUMINAIRE HOUSING
OPTIONAL CIRCUIT BREAKER INSTEAD OF CON 1
OPTIONAL DALI
INCOMING CABLE TO CON 1
INCOMING CABLE TO CON 2 | OPTIONAL CABLE FOR DIMMING
CONNECT CON 2 (IN POWERSUPPLIER) TO CON 3 (IN LUMINAIRE)
600W DRIVER FOR LUMINAIRE 1
LUMINAIRE 1
LUMINAIRE 1
INSIDE PS_BOX
INSIDE PS_BOX
INSIDE LUMINAIRE
INCOMING CABLE TO CON 1
INCOMING CABLE TO CON 1
INCOMING CABLETO CON 1
CON 1 TO DRIVER 1
CON 1 TO DRIVER 1
CON 1 TO DRIVER 1
DRIVER 1 TO PCB
DRIVER 1 TO PCB
DRIVER 1 TO PCB
PCB TO CON 2
PCB TO CON 2
PCB TO CON 2
PCB TO CON 2
DRIVER 1 TO CON 2
DRIVER 1 TO CON 2
CON 1 TO CON 2
CON 1 TO CON 2
INCOMING CABLE TO CON 2
INCOMING CABLE TO CON 2
CON 1 TO CON 2
CON 1 TO CON 2
CON 2 TO PCB 2
CON 2 TO PCB 2
CON 2 TO PCB 1
CON2 TO PCB 2
CONNECT PCB 1 WITH PCB 2
CON 1 TO DRIVER BOX
EARTH
PHASE
PHASE | NEUTRAL
EARTH
PHASE
PHASE | NEUTRAL
DIM +
TEMP +
TEMP - | DIM -
DIM +
DIM -
TEMP +
TEMP -
DRI OUT +
DRI OUT -
TEMP +
TEMP -
DIM SIGNAL +
DIM SIGNAL -
DRI OUT +
DRI OUT -
DIM SIGNAL +
DIM SIGNAL -
DRI OUT +
DRI OUT -
BRIDGE CABLE
EARTH
ADL1-AC-600W-96
B
123
654
7
8
9
10
10
11
11
12
12
13 13 1417
20212223 2427 27242120
3838
35323130
OUT PS
IN PS
CABLE 1
CABLE 3
CABLE 2
CON 1
CON 2 CON 3
DRIVER 1
PCB 1
PS PCB
PCB 2
DIM IN PS IN LAMP
C

Attention: To check the authenticity of testing/inspection report & certicate, please contact us at telephone: [phone], or email: [email protected] ©DCbright
dcbright.com
[email protected]
Operating Instruction
no. : Dark Licht Operating Instruction
date: 06/12/23
page: 17/19

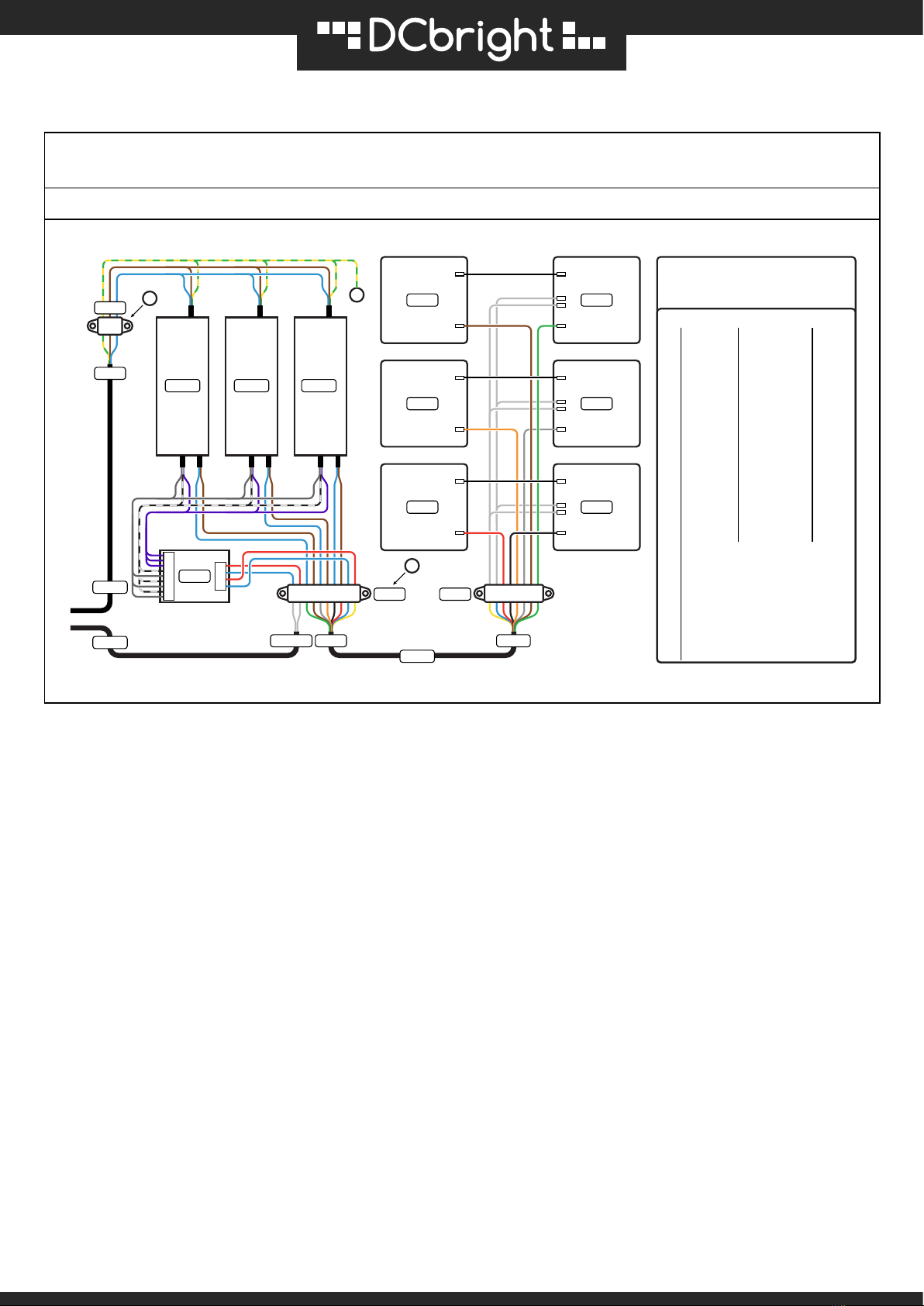

Installation - electrical schematic
Dark Licht TWO
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
A
CABLE 1
DRIVER 1
DRIVER 2
PCB 1
PCB 2
PCB 3
PCB 4
CON 1
GREEN | YELLOW
BROWN
BLUE
GREEN | YELLOW
BROWN
BLUE
BROWN
BLUE
BLACK | WHITE
GREY
BLACK
BROWN
BLUE
BLACK | WHITE
GREY
BLACK
CONNECT CON 1 (INCOMING EARTH CABLE) TO LUMINAIRE HOUSING
INCOMING CABLE TO CON 1
400W DRIVER IN LUMINAIRE 1
400W DRIVER IN LUMINAIRE 2
IN LUMINAIRE 1
IN LUMINAIRE 1
IN LUMINAIRE 2
IN LUMINAIRE 2
INSIDE LUMINAIRE 1
INCOMING CABLE TO CON 1
INCOMING CABLE TO CON 1
INCOMING CABLETO CON 1
CON 1 TO DRIVER 1 AND 2
CON 1 TO DRIVER 1 AND 2
CON 1 TO DRIVER 1 AND 2
DRIVER 1 TO PCB 1
DRIVER 1 TO PCB 2
DRIVER 1 TO PCB 1
DRIVER 1 TO PCB 1
CONNECT PCB 1 TO PCB 2
DRIVER 2 TO PCB 3
DRIVER 2 TO PCB 4
DRIVER 2 TO PCB 3
DRIVER 2 TO PCB 3
CONNECT PCB 3 TO PCB 4
EARTH
PHASE
PHASE | NEUTRAL
EARTH
PHASE
PHASE | NEUTRAL
DRI OUT +
DRI OUT -
TEMP +
TEMP -
BRIDGE CABLE
DRI OUT +
DRI OUT -
TEMP +
TEMP -
BRIDGE CABLE
ADL2-AC-800W-128
123
654
8
7
11
10
9
11
13
12
16
15
14
16
CABLE 1
CON 1
PCB 1 PCB 2 PCB 3 PCB 4
IN LAMP
DRIVER 2DRIVER 1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
17
18
20
21
22
23
24
25
27
28
30
31
32
33
35
36
38
39
41
A
B
C
CABLE 1
CABLE 2
CABLE 3
DRIVER 1
DRIVER 2
PCB 1
PCB 2
PCB 3
PCB 4
CON 1
CON 2
CON 3
GREEN | YELLOW
BROWN
BLUE
GREEN | YELLOW
BROWN
BLUE
PURPLE
BLACK | WHITE
GREY
RED
BLUE
RED
BLUE
BROWN
BROWN
BLUE
BLUE
YELLOW
BLUE
X (OPTIONAL)
X (OPTIONAL)
RED
BROWN
BLACK
GREEN
GREY
GREY
RED
BROWN
BLACK
GREEN
BLACK
BLACK
GREEN | YELLOW
CONNECT CON 1 (INCOMING EARTH CABLE) TO LUMINAIRE HOUSING
OPTIONAL CIRCUIT BREAKER INSTEAD OF CON 1
OPTIONAL DALI
INCOMING CABLE TO CON 1
INCOMING CABLE TO CON 2 | OPTIONAL CABLE FOR DIMMING
CONNECT CON 2 (IN POWERSUPPLIER) TO CON 3 (IN LUMINAIRE)
600W DRIVER FOR LUMINAIRE 1
600W DRIVER FOR LUMINAIRE 2
LUMINAIRE 1
LUMINAIRE 1
LUMINAIRE 2
LUMINAIRE 2
INSIDE PS_BOX
INSIDE PS_BOX
INSIDE LUMINAIRE
INCOMING CABLE TO CON 1
INCOMING CABLE TO CON 1
INCOMING CABLETO CON 1
CON 1 TO DRIVER 1 AND 2
CON 1 TO DRIVER 1 AND 2
CON 1 TO DRIVER 1 AND 2
DRIVER 1 AND 2 TO PCB
DRIVER 1 AND 2 TO PCB
DRIVER 1 AND 2 TO PCB
PCB TO CON 2
PCB TO CON 2
PCB TO CON 2
PCB TO CON 2
DRIVER 1 TO CON 2
DRIVER 2 TO CON 2
DRIVER 1 TO CON 2
DRIVER 2 TO CON 2
CON 1 TO CON 2
CON 1 TO CON 2
INCOMING CABLE TO CON 2
INCOMING CABLE TO CON 2
CON 1 TO CON 2
CON 1 TO CON 2
CON 1 TO CON 2
CON 1 TO CON 2
CON 2 TO PCB 2 AND 4
CON 2 TO PCB 2 AND 4
CON 2 TO PCB 1
CON 2 TO PCB 3
CON2 TO PCB 2
CON 2 TO PCB 4
CONNECT PCB 1 WITH PCB 2
CONNECT PCB 3 WITH PCB 4
CON 1 TO DRIVER BOX
EARTH
PHASE
PHASE | NEUTRAL
EARTH
PHASE
PHASE | NEUTRAL
DIM +
TEMP +
TEMP - | DIM -
DIM +
DIM -
TEMP +
TEMP -
DRI OUT +
DRI OUT +
DRI OUT -
DRI OUT -
TEMP +
TEMP -
DIM SIGNAL +
DIM SIGNAL -
DRI OUT +
DRI OUT +
DRI OUT -
DRI OUT -
DIM SIGNAL +
DIM SIGNAL -
DRI OUT +
DRI OUT +
DRI OUT -
DRI OUT -
BRIDGE CABLE
BRIDGE CABLE
EARTH
ADL2-AC-1200W-192
B
123
654
7
7
8
9
8
9
10
10
11
11
12
12
13 13 14171518
20212223 24272528 282527242120
3838
3939
363335323130
OUT PS
IN PS
CABLE 1
CABLE 3
CABLE 2
CON 1
CON 2 CON 3
PCB 3 PCB 4
PCB 1
PS PCB
PCB 2
TEMP IN PS IN LAMP
DRIVER 1DRIVER 2
C

Attention: To check the authenticity of testing/inspection report & certicate, please contact us at telephone: [phone], or email: [email protected] ©DCbright
dcbright.com
[email protected]
Operating Instruction
no. : Dark Licht Operating Instruction
date: 06/12/23
page: 18/19
Installation - electrical schematic
Dark Licht THREE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
A
B
C
CABLE 1
CABLE 2
CABLE 3
DRIVER 1
DRIVER 2
DRIVER 3
PCB 1
PCB 2
PCB 3
PCB 4
PCB 5
PCB 6
CON 1
CON 2
CON 3
GREEN | YELLOW
BROWN
BLUE
GREEN | YELLOW
BROWN
BLUE
PURPLE
BLACK | WHITE
GREY
RED
BLUE
RED
BLUE
BROWN
BROWN
BROWN
BLUE
BLUE
BLUE
YELLOW
BLUE
X (OPTIONAL)
X (OPTIONAL)
RED
ORANGE
BROWN
BLACK
GREY
GREEN
GREY
GREY
RED
ORANGE
BROWN
BLACK
GREY
GREEN
BLACK
BLACK
BLACK
GREEN | YELLOW
CONNECT CON 1 (INCOMING EARTH CABLE) TO LUMINAIRE HOUSING
OPTIONAL CIRCUIT BREAKER INSTEAD OF CON 1
OPTIONAL DALI
INCOMING CABLE TO CON 1
INCOMING CABLE TO CON 2 | OPTIONAL CABLE FOR DIMMING
CONNECT CON 2 (IN POWERSUPPLIER) TO CON 3 (IN LUMINAIRE)
600W DRIVER FOR LUMINAIRE 1
600W DRIVER FOR LUMINAIRE 2
600W DRIVER FOR LUMINAIRE 3
LUMINAIRE 1
LUMINAIRE 1
LUMINAIRE 2
LUMINAIRE 2
LUMINAIRE 3
LUMINAIRE 3
INSIDE PS_BOX
INSIDE PS_BOX
INSIDE LUMINAIRE
INCOMING CABLE TO CON 1
INCOMING CABLE TO CON 1
INCOMING CABLETO CON 1
CON 1 TO DRIVER 1, 2 AND 3
CON 1 TO DRIVER 1, 2 AND 3
CON 1 TO DRIVER 1, 2 AND 3
DRIVER 1, 2 AND 3 TO PCB
DRIVER 1, 2 AND 3 TO PCB
DRIVER 1, 2 AND 3 TO PCB
PCB TO CON 2
PCB TO CON 2
PCB TO CON 2
PCB TO CON 2
DRIVER 1 TO CON 2
DRIVER 2 TO CON 2
DRIVER 3 TO CON 2
DRIVER 1 TO CON 2
DRIVER 2 TO CON 2
DRIVER 3 TO CON 2
CON 1 TO CON 2
CON 1 TO CON 2
INCOMING CABLE TO CON 2
INCOMING CABLE TO CON 2
CON 1 TO CON 2
CON 1 TO CON 2
CON 1 TO CON 2
CON 1 TO CON 2
CON 1 TO CON 2
CON 1 TO CON 2
CON 2 TO PCB 2, 4 AND 6
CON 2 TO PCB 2, 4 AND 6
CON 2 TO PCB 1
CON 2 TO PCB 3
CON 2 TO PCB 5
CON2 TO PCB 2
CON 2 TO PCB 4
CON 2 TO PCB 6
CONNECT PCB 1 WITH PCB 2
CONNECT PCB 3 WITH PCB 4
CONNECT PCB 5 WITH PCB 6
CON 1 TO DRIVER BOX
EARTH
PHASE
PHASE | NEUTRAL
EARTH
PHASE
PHASE | NEUTRAL
DIM +
TEMP +
TEMP - | DIM -
DIM +
DIM -
TEMP +
TEMP -
DRI OUT +
DRI OUT +
DRI OUT +
DRI OUT -
DRI OUT -
DRI OUT -
TEMP +
TEMP -
DIM SIGNAL +
DIM SIGNAL -
DRI OUT +
DRI OUT +
DRI OUT +
DRI OUT -
DRI OUT -
DRI OUT -
DIM SIGNAL +
DIM SIGNAL -
DRI OUT +
DRI OUT +
DRI OUT +
DRI OUT -
DRI OUT -
DRI OUT -
BRIDGE CABLE
BRIDGE CABLE
BRIDGE CABLE
EARTH
ADL3-AC-1800W-288
B
C
123
654
7
7
7
8
9
8
9
8
9
10
10
11
11
12
12
13 13 141715181619
20212223 242725282629 2926282527242120
37
3838
3939
4040
34363335323130
OUT PS
IN PS
CABLE 1
CABLE 3
CABLE 2
CON 1
CON 2 CON 3
PCB 5 PCB 6
PCB 3 PCB 4
PCB 1
PS PCB
PCB 2
DIM IN PS IN LAMP
DRIVER 2 DRIVER 1DRIVER 3

Attention: To check the authenticity of testing/inspection report & certicate, please contact us at telephone: [phone], or email: [email protected] ©DCbright
dcbright.com
[email protected]
Operating Instruction
no. : Dark Licht Operating Instruction
date: 06/12/23
page: 19/19
Maintenance
WARNING - DANGER
When performing maintenance work, disconnect the voltage from the LED xture before starting the
work.
General warning
WARNING - DANGER
Do not stare at the operating light source.
Cleaning
Do not use solvents, caustic cleaners or similar agents. Use only a dry or slightly damp cloth to clean the lamp. Clean the glass plate, bolts and
housing. Always keep the space between the cooling ns on the back of the xture free, if dirt accumulates between these cooling ns it should
be cleaned as soon as possible. With intensive use and for proper maintenance of the product, this cleaning should take place once a year.
Waste disposal
Dispose of electrical appliances in an environmentally friendly way! Electrical devices do not belong
in household waste! According to European Directive 2012/19/EU on waste electrical and electronic
equipment, electrical equipment must be collected separately and disposed of in an environmentally
friendly recycling facility. You can obtain information about the disposal of waste equipment from your
municipality or city administration.
