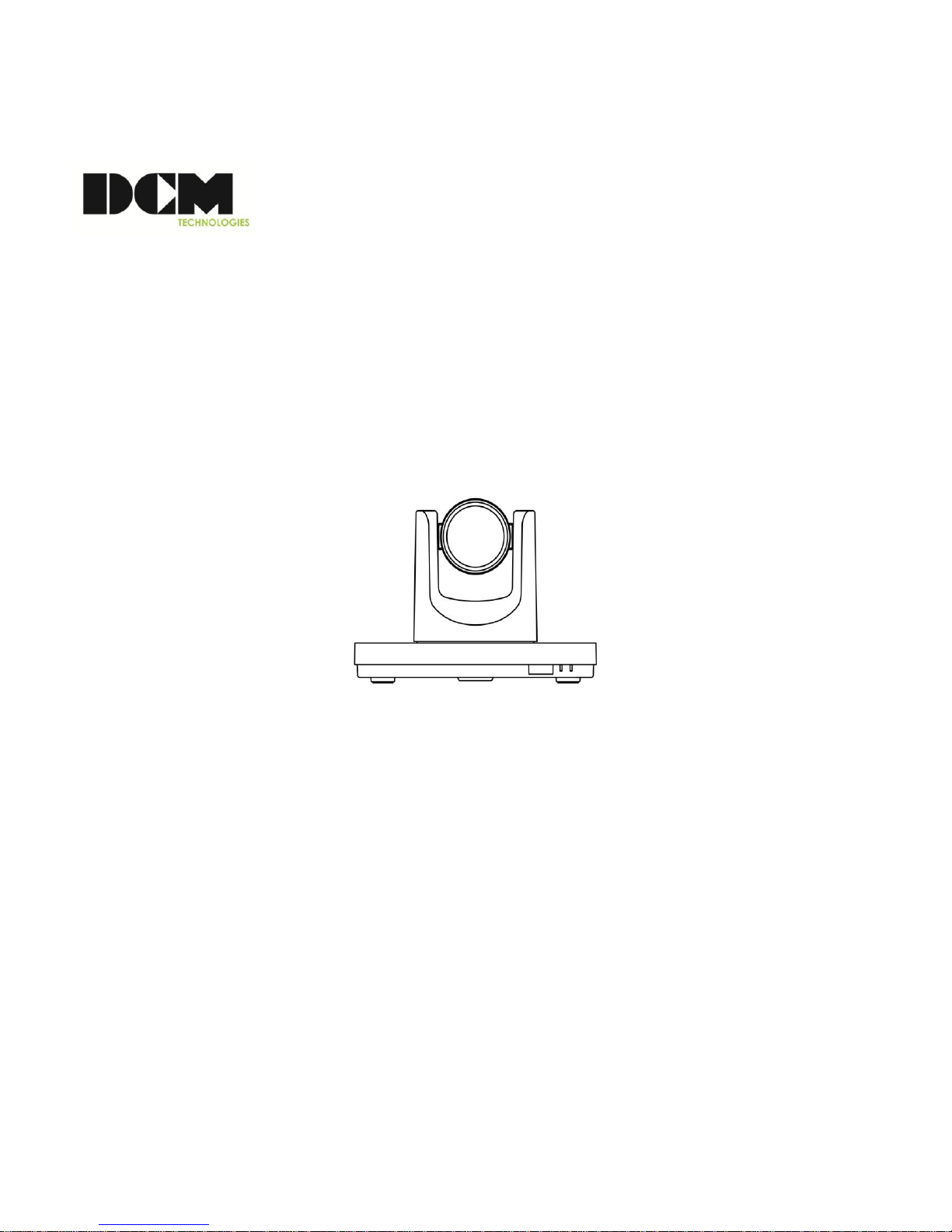

Dcm MC-HD200 User manual

HD Video Conferencing Camera
MC-HD200
User Manual
V1.8
(English)
DCM Technologies Co., Ltd.

1
Preface
Thanks for using this HD Video Conferencing Camera.
This manual introduces the function, installation and operation of the HD camera. Prior to installation and
usage, please read the manual thoroughly.
Precautions
This product can only be used in the specified conditions in order to avoid any damage to the camera:
Don’t subject the camera to rain or moisture.
Don’t remove the cover. Otherwise, you may get an electric shock. In case of abnormal operation,
contact the authorized engineer.
Never operating under unspecified temperature , humidity and power supply;
Please use the soft dry cloth to clean the camera. If the camera is very dirty, clean it with diluted neuter
detergent; do not use any type of solvents, which may damages the surface.
Note
This is class A production. Electromagnetic radiation at the specific frequency may affect the image quality
of TV in home environment.

2
Contents
1, Note··································································································3
2, Supplied Accessories··············································································4
3, Quick Start··························································································5
4, Features ·····························································································8
5, Product Specification ·············································································9
6, Main Unit ·························································································10
7, IR Remote Controller Explanation···························································· 11
8, Use IR Remote Controller······································································13
9, RS-232C Interface··············································································· 16
10, Serial Communication Control ································································18
11, Menu Setting ·····················································································31
12, Maintains and Trouble Shooting ······························································37

3
Note
Electric Safety
Installation and operation must accord with electric safety standard.
Caution to transport
Avoid stress, vibration and soakage in transport, storage and installation.
Polarity of power supply
The power supply of the product is +12V, the max electrical current is 2A .Polarity of the power supply plug
drawing as follows.
Careful of installation
Do not grasp the camera head when carrying the camera. Don’t turn camera head by hand. Doing so may
result in mechanical damage.
Don’t apply in corrosive liquid, gas or solid environment to avoid damaging the cover which is made up of
plastic material.
To make sure no obstacle in rotation range.
Never power on before installation is not completed.
Don’t dismantle the camera
We are not responsible for any unauthorized modification or dismantling.
CAUTION!
The specific frequency of electromagnetic field may affect the image of the camera!

4
Supplied Accessories
When you unpack, check that all the supplied accessories are included:
Camera ...................................... 1PC
AC power adaptor....................... 1PC
Power cord.................................. 1PC
VISCA cable ............................... 1PC
Remote controller........................ 1PC
User manual .............................. 1PC

5
Quick Start

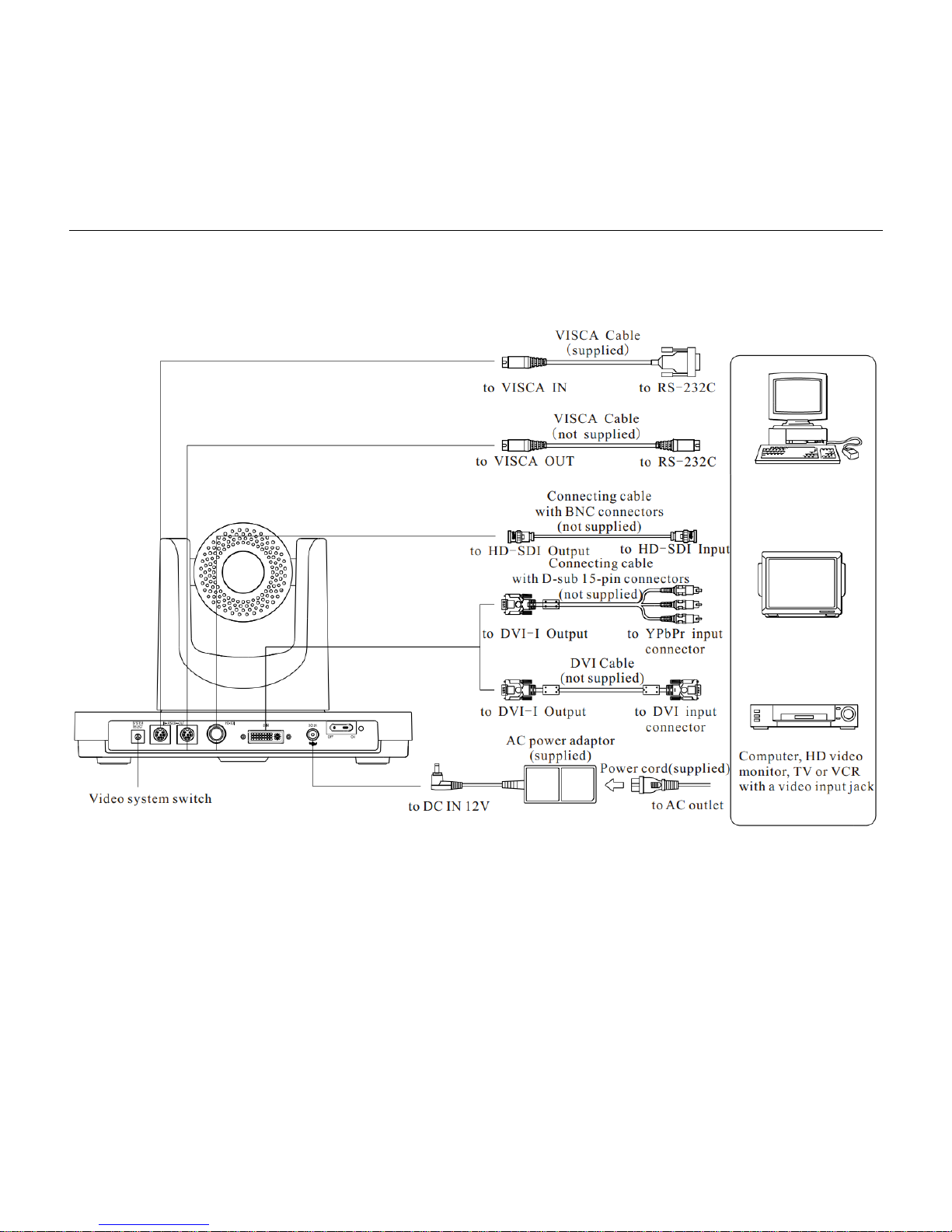

Step1. Please check connections are correct before starting

6
Step2. Setting of the bottomswitches
Set both of the switch1 and switch2 to ‘OFF’. That is ‘Normal
Working Mode’.
Step3. Setting of the system select switch
The option of video format:
VIDEO SYSTEM
0
1080p60
8
720p30
1
1080p50
9
720p25
2
1080i60
A
1080p59.94
3
1080i50
B
1080i59.94
4
720p60
C
720p59.94
5
720p50
D
1080p29.97
6
1080p30
E
720p29.97
7
1080p25
F
-
CAUTION:
a. After changing the switch,you need to restart the camera to take effect.
b.Please selecting the correct video format which the camera can support. If the camera so not support the
video format you choose, the camera will choose default output video format.
SW-1
SW-2
Modes
1
OFF
OFF
Normal Working Mode
2
ON
OFF
Software Update Mode
3
OFF
ON
Factory Debug Mode
4
ON
ON
None

7
Step4. Press the Switch ON/OFF button on the rear of the camera, the power lamp light.
Step5. Pan-Tilt will rotate to the maximum position of top right after the camera started, then it return to the center,
the process of initialization is finished. (Note: If the position preset 0 has been stored, the position preset 0 will be
called up after initialization)
Step6. (Optional)If you want to restore the factory default settings, Press [MENU] button to display the OSD
menu.Select the item [MENU] ->[RESTORE DEFAULT] ->[Restore].Set the value[Yes], press [HOME] button to
restore the factory default settings.
RESTORE DEFAULT
Restore Yes
Change Value
[Home] OK
[Menu] Back

8
Features
1. Integrated 72.5 degree wide-angle lens for the first time, Optical 12x.
2. Camera provides a high performance in low illumination situations, particularly suitable for which room's
lighting is not very well.
3. With maximum resolution of 1920 x 1080 and output frame rate up to 60 or 50 frames / sec, this camera
provides high-definition as well as fluent video.
4. The camera video signal to noise ratio directly affects the image compression coding efficiency for
high-definition video conference terminals. With new low-noise CMOS sensor, camera applies 2D and 3D noise
reduction at the same time based on motion estimation algorithm, and effectively reduces the noise.
5. Camera applies a unique Iridix dynamic exposure control algorithm, which is based on retina model. Good
exposure makes the picture nature and creates a strong sense of space. The CMOS sensor also support WDR
(Wide Dynamic Range) mode. With Iridix treatment, camera 's WDR is capable of capture all features of images
when there is a strong contrast between subject and background (such as backlight conditions).
6. Camera provide DVI-I interface(YPbPr: analog component video, DVI(HDMI): uncompressed digital
video), HD-SDI Interface (Optional).
7. Infrared remote control signals pass through function. Camera is capable of receiving signal from the
infrared remote controller, and pass through to the video conferencing terminal via VISCA IN connector.

9
Product Specification
Model
H
M
L
Video Format
1080p/60, 1080p/59.94,1080p/50,
1080p/30, 1080p/29.97,1080p/25,
1080i/60, 1080i/59.94,1080i/50,
720p/60, 720p/59.94,720p/50,
720p/30, 720p/29.97,720p/25
1080p/30, 1080p/29.97,1080p/25,
1080i/60, 1080i/59.94,1080i/50,
720p/60, 720p/59.94,720p/50,
720p/30, 720p/29.97,720p/25
720p/60, 720p/59.94,720p/50,
720p/30, 720p/29.97,720p/25
Video Output Interface
DVI (HDMI, YPbPr), HD-SDI
(Optional)
Tilt Speed Range
1.7°~ 69.9°/s
Sensor Type
CMOS, 1/3 inch
Flick Mount
Supportable
Sensor Pixel
Effective Pixel: 2.07 million; Total
Pixel: 2.74 million
Number of preset
128
Lens
12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8
Preset Accuracy
≤0.2°
Focus Mode
Auto, Manual
Control Signal Interface
8 Pin Mini DIN
Electronic shutter
1/25s ~ 1/10000s
Support Protocol Type
VISCA, Pelco-D, Pelco-P
White Balance
Auto, Indoor, Outdoor, One
Push,Manual
WDR Dynamic Range
≥100dB
Backlight Compensation
Supportable
Power Adapter
DC12V/2.0A
SNR
≥55dB
Power Consumption
12W
Horizontal Angle of View
72.5°~ 6.9°
Size
240mm x 144mm x 160mm
Vertical Angle of View
44.8°~ 3.9°
Color
Silver & Black
Horizontal Rotation Range
±170°
Weight
2.5Kg
Vertical rotation range
-30°~ +90°
Operating Temperature
-5 ~ 50℃
Pan Speed Range
1.7°~ 100°/s
Storage Temperature
-20 ~ 60℃
