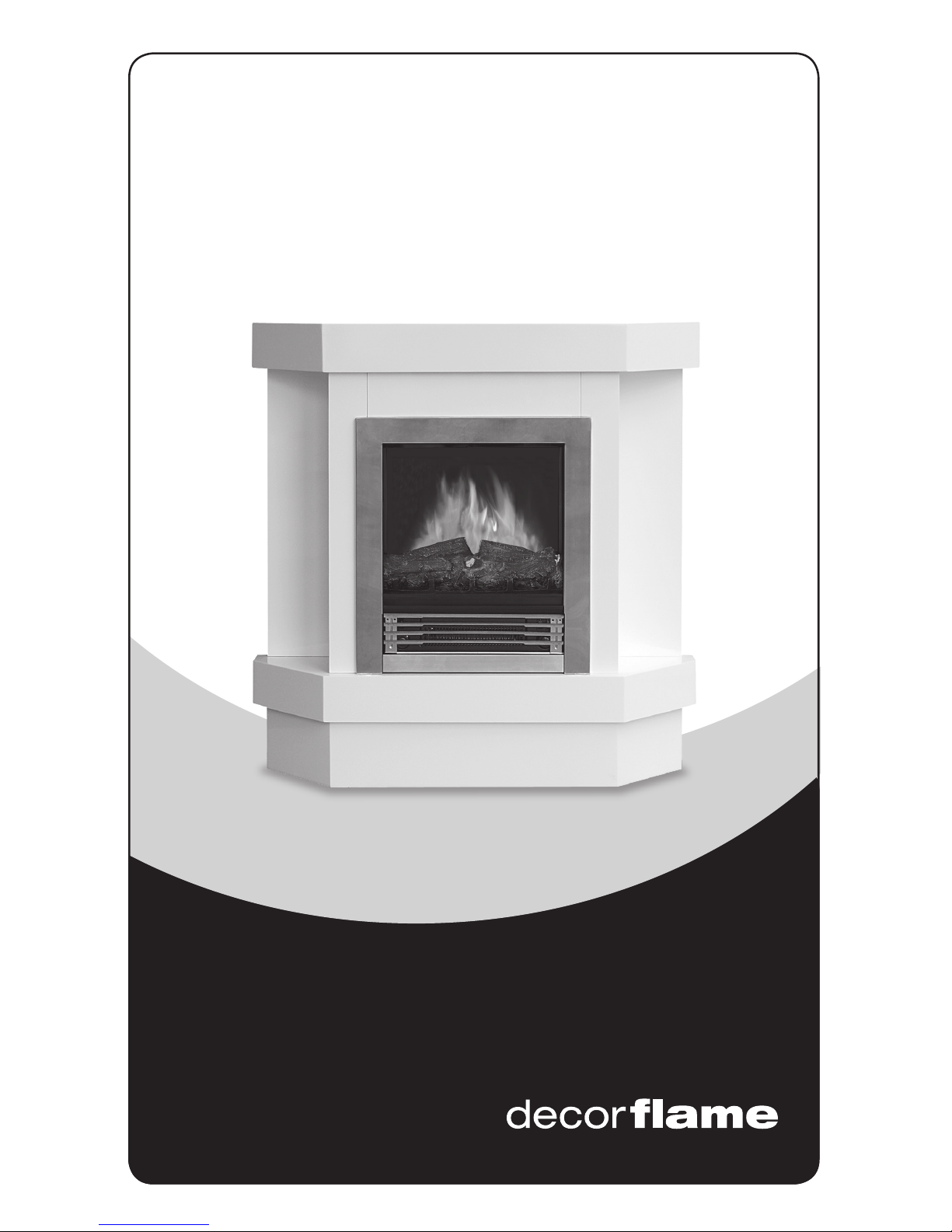

decorflame QCM375ST-38B User manual

ATTENTION:
1. Find a location for the fireplace heater that is
protected from direct sunlight.
2. Do not plug the unit into the power outlet
before you read all instructions.
ELECTRIC FIREPLACE HEATER
INSTRUCTION MANUAL
QCM375ST-38B

2
WHEN USING ELECTRICAL APPLIANCES, BASIC
PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE
THE RISK OF FIRE, ELECTRIC SHOCK, AND INJURY TO
PERSONS, INCLUDI NG THE FOLLOWING:
IMPORTANT SAFETY INSTRUCTIONS
SAFETY INSTRUCTIONS
1) Read all instructions before using this
electric fireplace heater.
2) This electric fireplace heater is hot when
in use. To avoid burns, do not let bare skin
touch hot surfaces. The grill directly in front of
the heater outlet becomes hot during heater
operation. Keep combustible materials, such
as furniture, pillows, bedding, papers, clothes,
and curtains at least 3 feet (0.9 m) away from
the front of the unit and keep them away from
the sides and rear.
3) Extreme caution is necessary when any
heater is used by or near children or invalids
and whenever the fireplace is left operating
and unattended.
4) Always unplug fireplace when not in use.
5) Do not operate any electric fireplace with
a damaged cord or plug or after the heater
malfunctions, has been dropped or dam-
aged in any manner. Return fireplace heater
to authorized service facility for examination,
electrical or mechanical adjustment, or repair.
6) Do not use outdoors.
7) This electric fireplace heater is not intended
for use in bathrooms, laundry areas and
similar indoor locations. Never locate heater
where it may fall into a bathtub or other water
container.
8) Do not run cord under carpeting. Do not
cover cord with throw rugs, runners, or similar
coverings. Arrange cord away from traffic area
and where it will not be tripped over.
9) To disconnect fireplace, turn controls to off,
then remove plug from outlet.
10) Connect to properly grounded outlets only.
11) Do not insert or allow foreign objects to
enter any ventilation or exhaust opening as
this may cause an electric shock or fire, or
damage the heater.
12) To prevent a possible fire, do not block air
intakes or exhaust in any manner. Do not use
on soft surfaces, like a bed, where openings
may become blocked.
13) A heater has hot and arcing or sparking
parts inside. Do not use it in areas where
gasoline, paint, or flammable liquids are used
or stored.
14) Use this fireplace heater only as described
in this manual. Any other use not recom-
mended by the manufacturer may cause fire,
electric shock, or injury to persons.
15) Avoid the use of an extension cord because
the extension cord may overheat and cause
a risk of fire. However, if you have to use an
extension cord, the cord shall be No.16AWG

3
minimum size and rated not less than 1875
watts.
16) Do not plug this product into a receptacle
controlled by a wall switch or dimmer.
17) When storing or transporting the unit and
cord, keep in a dry place, free from excessive
vibration and store so as to
avoid damage.
CAUTION
If you use this heater in conjunction with a
thermal control, a program controller, a timer
or any other device that switches the heater on
automatically, remember to observe all safety
warnings at all times. The fireplace heater has
safety overheat protection. If the overheat pro-
tection trips, switch off all switch buttons and
wait approximately 5 -10 minutes. It should
reset automatically once the unit cools down.
CAUTION: IMPORTANT
SAFETY INSTRUCTION
(FOR LAMP)
This luminaire has a polarized plug (one blade
is wider than the other) as a feature to reduce
the risk of electric shock. This plug will fit in a
polarized outlet only one way. If the plug does
not fit fully in the outlet, reverse the plug. If it
still does not fit, contact a qualified electrician.
Never use with an extension cord unless plug
can be fully inserted. Do not alter the plug.
SAFETY INSTRUCTIONS
INSTRUCTIONS PERTAINING
TO A RISK OF FIRE, ELEC-
TRIC SHOCK, EXPOSURE TO
EXCESSIVE UV RADIATION
OR INJURY TO PERSONS.
LIGHTED LAMP IS HOT!
1. Turn off and unplug the power cord before
attempting any maintenance or cleaning.
Allow at least 10 minutes to cool before
replacing bulbs.
2. Bulb(s) get HOT quickly! Contact only switch/
plug when turning on.
3. Do not touch HOT lens, guard or enclosure.
4. Do not remain in light if skin feels warm.
5. Do not look directly at the lighted bulb(s).
6. Keep lamp away from material that
may burn.
7. Use only JC type Max 10W watt 12V
halogen bulb(s).
8. Do not touch the bulb(s) at any time. Use
a soft cloth. Oil from skin may damage the
bulb(s).
9. Do not operate the lamp with a missing or
damaged lens, lens acts as guard/shield and
UV light filter.
10. This lamp is intended for surface mounted
only and to be used as an under cabinet light.

4
SAFETY INSTRUCTIONS
11. Use only insulated staples or plastic ties to
secure cords.
12. Route and secure cords so that they will
not be pinched or damaged when the cabinet
is pushed to the walL.
13. Position the portable cabinet light with
respect to the cabinet so the lamp replace-
ments markings are able to be read during
relamping.
14. Not intended for recessed installation in
ceilings or soffits.
15. Not intended for surface installation inside
built-in furnishings such as kitchen cabinets,
china cabinets, or trophy cases;
16. The national Electrical Code (NEC) does not
permit cords to be concealed where damage
to insulation may go unnoticed. To prevent fire
danger, do not run cord behind walls, ceilings,
soffits, or cabinets where it may be inacces-
sible for examination. Cords should be visu-
ally examined periodically and immediately
replaced when any damage is noted.
SAVE THESE INSTRUCTIONS
FOR FUTURE USE.
WARNING
Procedures and techniques if not care-
fully followed - will result in damage to the
equipment. - will expose the user to the risk
of serious injury, illness or death.
This electric fireplace heater is for use on
120 volts. The cord has a plug as shown at
A in illustration below. An adapter as shown
at C is available for connecting three-blade
grounding-type plugs to two-slot recep-
tacles. The green grounding plug extending
from the adapter must be connected to
a permanent ground such as a properly
grounded outlet box. The adapter should not
be used if a three-slot grounded receptacle
is available.
A 15 AMP circuit is required to operate this
heater. If the breaker trips when the heater
is used then you may need to move the
heater to another location or unplug other
appliances that are on the same circuit. If
you require an extension cord use one that
is rated at 1875 watts.

5
IMPORTANT
Please note when you open the carton care-
fully check the unit and make sure there are
no damages. If you have any problems with
the unit, with how the various functions work
or with hidden damages or missing parts
please call 1-800-459-4409 (EST) immedi-
ately for service. NOTE: DO NOT RETURN
UNIT TO THE STORE BEFORE CALLING THE
TOLL FREE NUMBER. Do not dispose of your
cartons until you are completely satisfied
with your new fireplace heater. Read all in-
structions thoroughly before operating your
new Electric Fireplace.
NOTE: Light bulbs may become loose during
shipping. If the flame effect is dim or does
not work, please check that light bulb or
bulbs are finger tight in socket. See instruc-
tions for replacing bulb or bulbs. Please do
not return the sample to the store before
checking light bulbs.
NOTE: The electric fireplace heater may emit
a slight harmless odor when first turned
on. This is caused by activating the internal
heater components for the first time and
should not occur again.
SAFETY INSTRUCTIONS

6
ASSEMBLY INSTRUCTIONS
PARTS LIST:
Fireplace insert 1
A) Top 1
B) Base 1
C) Upper front 1
D) Back panels 2
E) Left front 1
F) Right front 1
G) Left side 1
H) Right side 1
I) Connector 2
J) L shape bracket 3
K) Short KD screws 3
L) Medium bracket 4
M) Medium KD screws 75
N) Plastic connector 21
O) Mounting screws 4
Y) SELF REPAIR SET
Touch-up repair paint (bottle)
Small L bracket 8
Screws for small L bracket 32
Plastic connector 1
KD screws 3
KD nuts 3
P) WALL ANCHOR SAFETY CABLE
Wall anchor 1
Screw for wall anchor 1
Screw for mantle 1
Safety cable 1
Q) Lamp cover 2
R) Lamp 2
S) Barrier 2
T) Power supply and cord 1
U) Locking screws (for lamp cover) 2
V) Mounting screws (for lamp) 4
W) Mounting screws (for mounting clip) 15
X) Mounting clip (for power cord) 15
1) Switch
2) Connector - lamp
3) Connector - power
4) Polarized plug
INSTALLATION of
HALOGEN LIGHTS:
Step 1: Attach all MOUNTING CLIPS [X]
on the TOP PANEL [A] with MOUNTING
SCREWS [W]. See Fig. 1a and Fig. 1b.
Fig. 1a
Fig. 1b
Step 2: Install the BARRIER (S) and LAMP
(R) on the TOP PANEL (A) with MOUNT-
ING SCREWS (V) as shown in fig. 2 Secure
the LAMP COVER (Q) to the LAMP (R) with
LOCKING SCREWS (U).
Tools required: Philllps Head Screwdriver,
Electric Drill, Drill Bits 5/16 inches (8mm), Hammer

7
ASSEMBLY INSTRUCTIONS
Step 3: Attach the POWER SUPPLY on the
TOP PANEL [A] and secure the cord in place
with MOUNTING CLIPS [X]. Connect he CON-
NECTORS of lamps [# 2] to the power cord [#
3]. See Fig. 3a and Fig. 3b
Fig. 3a
Fig. 3b
MANTLE ASSEMBLY:
CAUTION: Place a piece of cardboard or
protective sheet on the floor in order to avoid
scratching the decorative surface of your
mantle during assembly.
Please DO NOT fully tighten the KD screws
until all panels are assembled.
Step 1: Attach the CONNECTORS [I] to the
UPPER FRONT [C] with 4 Medium KD SCREWS
[M] as shown in Fig. 4
Fig. 4
Step 2: Attach all PLASTIC CONNECTORS [N]
to the parts [C, D, G and H] as shown in Fig.
5 (2 screws for each PLASTIC CONNECTOR)
Fig. 5
NOTE: If the KD SCREWS do not fit during
assembly, loosen the 2 screws to adjust the
PLASTIC CONNECTOR until the parts/KD
SCREWS can be installed.
Step 3: Attach the BACK PANELS [D] to LEFT
SIDE [G] and RIGHT SIDE [H] with 6 MEDIUM
KD SCREWS [M] as shown in Fig. 6
Fig. 2

8
Fig. 6
Step 4: Attach the LEFT SIDE [D and G] and
RIGHT SIDE [D and H] to the BASE [B] using
4 MEDIUM KD SCREWS [M]. See Fig. 7
Fig. 7
Step 5: Attach the LEFT FRONT [E] to LEFT
SIDE [G] with 3 MEDIUM KD SCREWS [M].
Attach the RIGHT FRONT [F] to LEFT SIDE
[H] with 3 MEDIUM KD SCREWS [M].
See Fig. 8
Fig. 8
Step 6: Mount the UPPER FRONT [C] be-
tween the top of LEFT and RIGHT FRONT [E
and F] with 4 MEDIUM KD SCREWS [M] as
shown in Fig. 9
Fig. 9
Step 7: Install the TOP [A] to the unit with 5
MEDIUM KD SCREWS [M] as shown in
Fig. 10a.
Fig. 10a
ASSEMBLY INSTRUCTIONS

9
WARNING: Beware of the power cords of
lighting set, make sure it will not be pinched
or damaged during assembly. Fig. 10b
Fig. 10b
Step 8: Tighten all screws.
FIREPLACE INSERT
INSTALLATION:
The fireplace insert can be installed after
the mantel has been fully assembled.
WARNING: Make sure the fireplace insert
controls are in the OFF position and the unit
is NOT plugged in.
Step 1: Place the INSERT in front of the
mantel on the floor. Carefully lift the INSERT
into the mantel until the top stopper is
against to MANTEL. See Fig. 11
Fig. 11
Step 2: Attach 2 L-BRACKETS [J] on the top
of insert and lock in place with 4 MOUNT-
ING SCREWS [O] but do not tighten the
screws. Adjust the L-BRACKETS [J] to
against the UPPER FRONT [C] and lock in
place with 2 SHORT KD SCREWS [K]. See
Fig. 12 See Fig. 12
Fig. 12
Step 3: Attach 4 MEDIUM BRACKETS [L]
to the bottom of insert with 4 MEDIUM KD
SCREWS [M] as shown in Fig. 13
Fig. 13
Step 4: Tighten all SCREWS.
Step 5: Place the Fireplace Mantel to
desired location.
ASSEMBLY INSTRUCTIONS

10
CAUTION: The Electric Fireplace Heater
should not be positioned in area exposed to
direct sunlight.
WALL ANCHOR
SAFETY CABLE
The use of WALL ANCHOR SAFETY CABLE
is highly recommended in order to reduce
the risk of the fireplace being tipped over
accidentally. WARNING: This CABLE may
reduce possible risk of injury if the fireplace
is improperly handled, but is not a substi-
tute for proper adult supervision. Children
should not be left unattended near
any heater.
1. Drill a 5/16” (8mm) hole in the wall. Insert
the PLASTIC WALL ANCHOR into the hole
and gently tap until the flange on the anchor
is against the wall surface.
2. Position the back edge of the mantle close
to the wall.
3. Attach the SAFETY CABLE to the mantle
using the SCREW FOR MANTLE. See
figure 14.
Fig. 14
4. Use the SCREW FOR WALL to attach the
other end of SAFETY CABLE to the wall.
5. Make sure all screws are tight.
After reading complete instructions, confirm
all controls on fireplace are in the OFF posi-
tion. Plug the fireplace into a 15AMP/120Volt
outlet. If the cord does not reach, you may
use an extension cord rated for a minimum
of 1875 WATTS. Once the fireplace insert
has been properly connected to a grounded
electrical outlet, it is ready to operate.
OPERATION for
HALOGEN LIGHTS
1. Plug lamp into power supply.
2. Turn switch to ON position.
BULB REPLACEMENT for
HALOGEN LIGHTS
WARNING: Switch off and unplug the unit
and allow it to cool before replacing bulb(s). 1.
Loosen the LOCKING SCREW [U] to remove
the LAMP COVER [Q].
2. Never touch the bulb with bare hand. Use
a soft cloth to change the bulb, JC type Max
10W watt 12V halogen bulb(s). Fig. 15
Fig. 15
OPERATION

11
3. Secure the LAMP COVER [Q] to the lamp
with LOCKING SCREWS [U]
OPERATION BY
THE CONTROL PANEL
The controls are located behind the grill
below the front glass and can be accessed
by pulling the grill from the top, forward
and down.
May not be as exactly as shown
ON/OFF: Press this button for main power
and flame effect. The indicator light will turn
on. See below for other control switches.
750W: For low heat function - Press this
switch while the ON/OFF switch is in the on
OPERATION / MAINTENANCE
position for low heat. The indicator light will
turn on.
1500W: For high heat function - Press this
switch while the ON/OFF switch and the
750W switch are in the on position for high
heat. The indicator light will turn on.
Temperature Control: To adjust the tem-
perature to your individual requirements,
turn the temperature control dial to the
right (clockwise) to increase the desired
temperature and to the left for lower
temperature. This temperature control dial
can only be used while the ON/OFF switch
and 750W & 1500W switches are in the
ON position. When the heater reaches to
the desired temperature, the heater and
750W/1500W indicator light will off but the
fan still keeps working with air flow. Adjust
this knob to restart the heater.
Dimmer Control Knob: Turn the dimmer
dial clockwise or counter clockwise to get
the desired flame intensity. The dimmer
switch can only be used when the ON/OFF
switch is in the on position.
Note: When the ON/OFF switch is turned
off, all other heater functions will stop even
though the switches may be in the
on position.
NOTE: In order to shut down the heater
safely, it is recommended to turn the Tem-
perature Control knob to lowest setting and
allow the heater to cool down before press
the ON/OFF switch to off position.

12
SELF REPAIR SET
Touch-up repair paint
1. Paint directly on the mantel unit if
necessary. Fig. A
Fig. A
If any problems are found with the original
parts during mantel assembly such as the
panels cannot be installed with the plastic
connector. Try to solve by one of the follow-
ing method.
Tools required: Electric drill, drill bits 3/4
inches (10 mm) or 1/16 inches (2 mm), Pen-
cil, Hammer, Philips Screwdrivers, Safety
Goggles and gloves (if necessary).
WARNING: Wear goggles when using power
tools.
Option 1: Use the spare KD NUTS, KD-
SCREWS and PLASTIC CONNECTOR
1. Place the PLASTIC CONNECTOR on the
MAINTENANCE WARNING:
Disconnect power and unplug the power
cord before attempting any maintenance or
cleaning to reduce the risk of fire, electric
shock or damage to persons. The bulbs in
your unit can become extremely hot. Allow
at least 10 minutes between turning off the
unit and removing the light bulbs to avoid
the accidental burning of the skin.
RISK OF FIRE:
Do not exceed the
recommended bulb
wattage.
REPLACING THE
LIGHT BULBS
Step 1: Remove 4 screws on the back
of fireplace and remove the rear
cover of the unit.
Step 2: You will find 1 X 60W Type B-10
bulb under log-set bed.
Step 3: Loosen and remove burnt out bulb
and replace with new bulb.
Step 4: Close the rear cover and secure
with the 4 screws.
Step 5: Plug in the unit.
MAINTENANCE

13
Fig. E
Option 2: Use the SMALL L-BRACKETS and
SCREWS
1. Place the SMALL L-BRACKET to the unit
as shown and mark the drill-holes on the
mantel as shown in Fig. F.
Fig. F
2. Drill the holes with diameter 1/16 inches
(2 mm) and depth 5/16 inches (8mm) on the
mantel. Each SMALL L-BRACKET needs 4
holes. See Fig. G.
Fig. G
mantel unit and mark the drill-holes as
shown in Fig. B.
Fig. B
2. Drill the holes with diameter 3/4 inches
(10 mm) and depth 3/4 inches (10mm) on
the mantel. Each Plastic Connector needs 3
holes. See Fig. C.
Fig. C
3. Gently install the KD NUTS into the
drilled-holes with hammer as shown in
Fig. D.
Fig. D
4. Attach the PLASTIC CONNECTOR and
lock in place with KD SCREWS as shown in
Fig. E.
CLEANING/WARRANTY

14
WARRANTY
3. Attach the SMALL L-BRACKET and lock in
place with SCREWS as shown in Fig. H
Fig. H
CLEANING
To clean unit first turn off controls on unit
and unplug the unit from power source. To
clean glass display panel; remove dust with
clean dry cloth or to remove finger prints
and other marks clean glass with clean
damp cloth. Do not use abrasive cleaners or
spray liquids on glass display panel surface.
Metal and metal painted parts should be
cleaned with damp cloth. Do not use
abrasive cleaners or spray liquids on
these surfaces.
WARRANTY
Every electric fireplace heater is tested
before it leaves the factory and it is guar-
anteed for one year. If the unit should fail
to operate correctly within one year from
the date of purchase, call customer service
at 1-800-459-4409 (EST). We will, at our
discretion either repair or replace the unit. It
will have to be returned to us freight prepaid
and we will return the repaired or replaced
unit to you freight prepaid. The company’s
sole obligation is to repair or replace the
unit. This warranty is void if in the opinion
of Quality Craft the unit has been tampered
with, altered, misused, damaged, abused
or used with the wrong power source. Light
bulbs are not covered by this warranty. The
warranty is for homeowner use only and
does not cover units used in commercial
situations.
Imported by
Quality Craft Ltd.
Laval, Quebec, Canada H7S 2G7
1-800-459-4409 (EST)
www.qualitycraft.com
Made in China

15

16

FOYER ÉLECTRIQUE
MANUEL D’INSTRUCTIONS
QCM375ST-38B
ATTENTION :
1. Choisissez pour votre poêle-foyer électrique un emplacement
protégé contre l’ensoleillement direct.
2. Ne branchez pas le poêle-foyer électrique dans la prise de
courant avant d’avoir lu toutes les instructions du manuel.

2
DIRECTIVES DE SÉCURITÉ IMPORTANTES
1) Lisez toutes les directives avant d’utiliser
le poêle-foyer électrique.
2) Le poêle-foyer électrique est chaud
lorsqu’il fonctionne. Pour éviter des
brûlures, la peau nue ne doit pas entrer
en contact avec les surfaces chaudes de
l’appareil. La grille, placée devant la sortie
du poêle devient chaude également durant
le fonctionnement de l’appareil. Gardez toutes
matières combustibles telles que meubles,
oreillers, literies, papiers, vêtements et
rideaux à une distance d’au moins 0,9 m (3 pi)
du devant de l’appareil, et gardez-les aussi
à distance des côtés et de l’arrière.
3) Faites preuve de la plus grande prudence
lorsqu’un poêle est utilisé à proximité
d’enfants ou de personnes invalides, ou par
ceux-ci, et chaque fois que l’appareil est
laissé en état de marche, sans surveillance.
4) Débranchez toujours le poêle-foyer
lorsqu’il ne sert pas.
5) N’utilisez pas un poêle-foyer électrique
dont la fiche ou le cordon d’alimentation
est endommagé, ou après l’apparition d’un
défaut de fonctionnement, ou après qu’il ait
été échappé au sol ou endommagé d’une
manière quelconque. Confiez votre poêle-
foyer électrique à un centre de service
après-vente autorisé pour toute inspection,
tout réglage des composants mécaniques
ou électriques, ou toute réparation.
6) N’utilisez pas cet appareil à l’extérieur.
7) Le poêle-foyer électrique n’est pas conçu
pour être utilisé dans une salle de bain, une
salle de lavage ou un autre emplacement
intérieur semblable. N’installez jamais le
poêle-foyer là où il risquerait de tomber
dans une baignoire ou un autre contenant
d’eau.
8) N’acheminez pas le cordon d’alimentation
de l’appareil sous des tapis ou moquettes.
Ne recouvrez pas le cordon d’une carpette,
d’un tapis d’escalier ni d’un autre revête-
ment de sol semblable. Disposez le cordon
à distance des aires de circulation et de tout
endroit où il risquerait de faire trébucher
quelqu’un.
9) Pour débrancher le poêle-foyer, mettez
d’abord les commandes en position hors
circuit (OFF), puis tirez sur la fiche du cor-
don pour l’extraire de la prise murale.
POUR UTILISER UN APPAREIL ÉLECTRIQUE, IL FAUT TOU-
JOURS OBSERVER DES PRÉCAUTIONS DE BASE, AFIN DE
RÉDUIRE LES RISQUES D’INCENDIE, DE DÉCHARGES ÉLEC-
TRIQUES ET DE BLESSURES CORPORELLES, DONT LES
SUIVANTES :
DIRECTIVES DE SÉCURITÉ

3
DIRECTIVES DE SÉCURITÉ
10) Branchez l’appareil uniquement à une
prise de courant mise à la terre de façon
appropriée.
11) N’insérez pas d’objets dans les
ouvertures d’aération ou d’évacuation de
l’appareil, ni ne laissez d‘objets y péné-
trer, ce qui risquerait de provoquer une
décharge électrique ou un incendie, ou
d’endommager l’appareil!
12) Pour éviter les risques d’incendie, ne
bloquez en aucune façon les prises d’air
de l’appareil ou ses sorties d’évacuation.
N’utilisez pas l’appareil sur une surface
souple, comme un lit, où ses ouvertures
risqueraient de devenir obstruées.
13) L’intérieur d’un poêle contient des pièces
chaudes ou qui peuvent produire des arcs
électriques ou des étincelles. N’utilisez pas
cet appareil en un endroit où l’on utilise ou
entrepose de la peinture, de l’essence ou
autres liquides inflammables.
14) Utilisez le poêle-foyer électrique confor-
mément aux instructions du manuel. Toute
autre utilisation qui n’est pas recommandée
par le fabricant est susceptible de causer un
incendie, une décharge électrique ou des
blessures corporelles.
15) Évitez d’utiliser un câble de rallonge : il
pourrait surchauffer et causer un incendie.
Toutefois, si vous devez utiliser un câble de
rallonge, il doit être d’un calibre minimal
AWG n˚ 16, et sa puissance nominale, d’au
moins 1875 W.
16) Ne pas brancher ce produit dans une
prise contrôlée pas un interrupteur murale
ou un gradateur murale.
17) Lorsque vous rangez ou transportez
l’appareil et son cordon d’alimentation,
gardez-les en un lieu sec, exempt de toute
vibration excessive, pour éviter de les
endommager.
MISE EN GARDE
Si vous utilisez ce foyer conjointement
avec une commande thermique, un
régulateur à programme, une minuterie
ou quelque autre dispositif qui met l’appareil
en circuit (ON) automatiquement, n’oubliez
pas de respecter tous les avertissements
relatifs à la sécurité, en tout temps.
Ce foyer comporte une protection incorporée
contre les surchauffes. Si la protection
contre la surchauffe se déclenche, éteignez
tous les interrupteurs et attendez environ 5
à 10 minutes. Elle devrait se réenclencher
automatiquement après le refroidissement
de l’unité.
MISE EN GARDE :
INSTRUCTIONS DE SÉCURITÉ
IMPORTANTES (POUR LA
LAMPE)
Ce luminaire est pourvu d’une fiche polarisée
(une lame est plus large que l’autre) en vue
de réduire le risque de choc électrique. Cette
fiche ne peut loger dans une prise polarisée
que d’une manière. Si la fiche ne s’enfonce pas

4
complètement dans la prise, inversez-la. Si
vous ne pouvez toujours pas l’enfoncer dans
la prise, communiquez avec un technicien
qualifié. N’utilisez jamais de cordon prolon-
gateur, à moins que la fiche puisse s’enfoncer
complètement. Ne modifiez pas la fiche.
INSTRUCTIONS RELATIVES
AUX RISQUES D’INCENDIE,
DE CHOC ÉLECTRIQUE,
D’EXPOSITION À UN RAY-
ONNEMENT ULTRAVIOLET
EXCESSIF OU DE BLESSURE.
LES LAMPES ALLUMÉES
SONT CHAUDES!
1. Éteignez la lampe et débranchez le
cordon d’alimentation avant tout entretien
ou nettoyage. Attendez au moins 10 minutes
avant de remplacer une ampoule pour lui
laisser le temps de refroidir.
2. Les ampoules deviennent CHAUDES
rapidement! N’utilisez que l’interrupteur ou
la fiche pour l’allumage.
3. Ne touchez pas à la lentille, à la protection
ou au boîtier lorsqu’ils sont CHAUDS.
4. Ne restez pas dans la lumière si votre
peau semble chaude.
5. Ne regardez pas directement une am-
poule allumée.
6. Gardez la lampe éloignée de tout maté-
riau pouvant s’enflammer.
7. N’utilisez que des ampoules halogène de
type JC de 10 W/12 V maximum.
8. Ne touchez jamais à l’ampoule. Utilisez
plutôt un chiffon doux. En effet, l’huile de la
peau peut endommager l’ampoule.
9. N’allumez jamais une lampe dont la
lentille est manquante ou endommagée,
puisque la lentille sert de bouclier ou
protection et de filtre contre les rayons
ultraviolets.
10. Cette lampe doit être montée sur une
surface et uniquement être utilisée sous
une armoire.
11. N’utilisez que des agrafes isolées ou des
attaches en plastique pour attacher les fils.
12. Placez et attachez les fils de façon à ce
qu’ils ne soient pas endommagés lorsque
vous poserez l’armoire contre le mur.
13. Placez la lampe portative pour armoire
de façon à ce que les marques de remplace-
ment soient visibles lorsque vous changerez
l’ampoule.
14. Ne convient pas pour l’installation encas-
trée dans des plafonds ou soffites..
15. Ne pas installer dans un aménagement
encastré tel qu’une armoire de cuisine, un
vaissellier ou une armoire à trophées.
16. Le Code national de l’électricité (CNE)
interdit de dissimuler des cordons là où
d’éventuels dommages à l’isolation pourraient
ne pas être remarqués. Pour éviter les risques
d’incendie, ne faites pas passer des cordons
derrière des murs, des soffites, des armoires
ou dans des plafonds où il ne serait pas acces-
sible pour examen. Les cordons devraient être
DIRECTIVES DE SÉCURITÉ
