DBO482E-DBO483E-DBO484E-
DBO485E-DBO487E
SLIMLINE OVEN
Cooking
Instruction manual
Part number: 073321

Page 2
Dear Customer,
Your new Defy oven was manufactured in a state of the art facility and has passed the
strictest quality control procedures.
Please read this manual carefully before using your oven for the first time and then store it
within easy reach for future reference.
This manual will provide you with information on how to operate and care for your oven to
gain the maximum benefit from it.
We trust you will enjoy years of trouble free use.
EXPLANATION OF SYMBOLS
Important information
Warning—Hazardous situations
Warning—Electric shock
Caution; Warning for fire hazard
Caution; Warning for hot surfaces
Contents
PLEASE REGISTER YOUR PRODUCT AT
www.defy.co.za
DEFY APPLIANCES (PTY) LTD
P.O.BOX 12004
JACOBS
DURBAN
4026
SOUTH AFRICA
1. Important Safety Instructions 3
General safety 3
Electrical safety 3
Intended use 5
Safety for children 5
2. General information 6
Overview 6
Parts 7
Accessories 7
Technical Specifications 8
3. Installation 9
Before installation 9

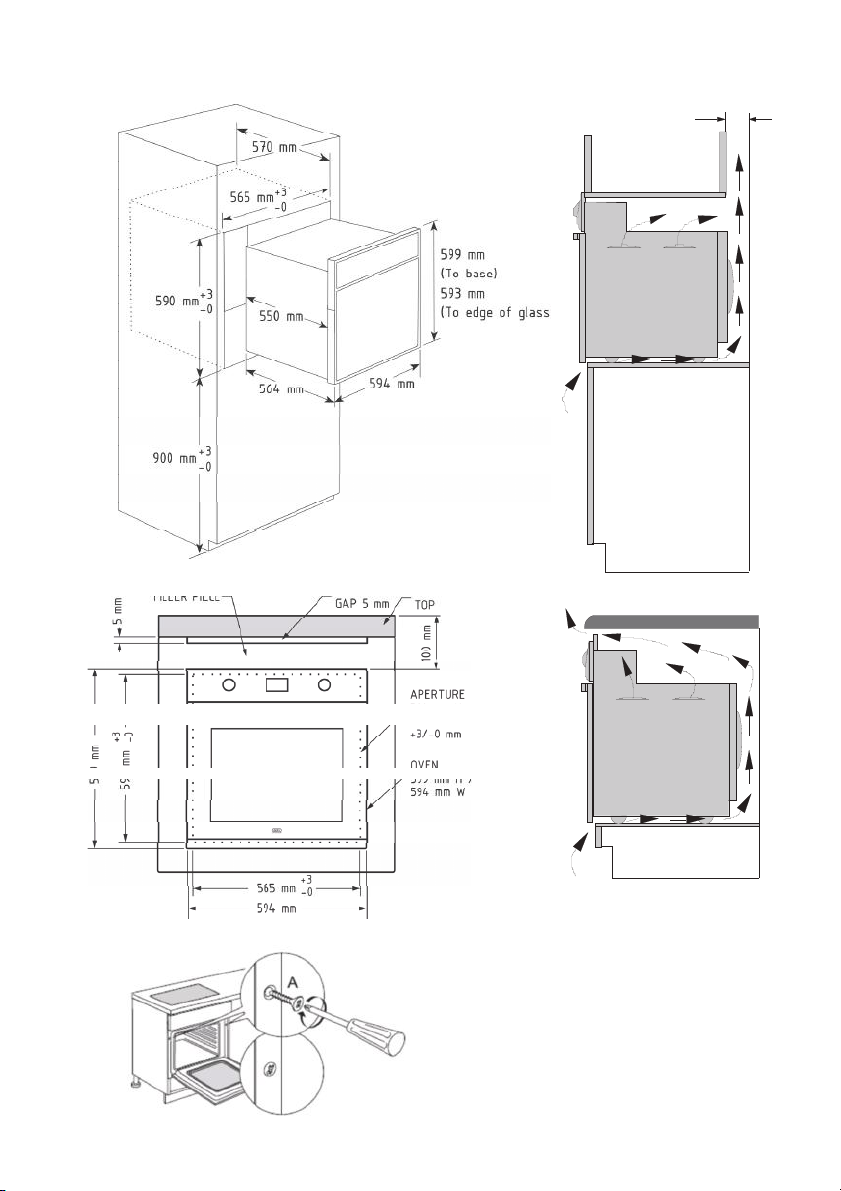

Built in oven cut outs 10
Installation and connection 11
First cleaning of the appliance 12
Initial heating 12
Tips for energy saving 12
Future transportation 12
4. How to use the oven 13
General information about baking, roasting
and grilling 13
How to operate the electric oven 13
Using the oven 13
Selector switch 14
How to operate the grill 15
Cooking times table 15
5. Maintenance and care 16
General information 16
Cleaning the oven 16
Steam assisted cleaning 16
Removing the oven door 17
Replacing the oven light 18
6. Trouble Shooting 18
7. Branches 19
8. Warranty 20

Page 3
This section contains safety
instructions that will help you
avoid risk of injury and damage.
All warranties will become void if
you do not follow these
instructions.
General safety
• This appliance is not intended
for use by persons (including
children) with reduced physical,
sensory or mental capabilities
or lack of experience and
knowledge, unless they have
been given supervision or
instruction concerning the use
of the appliance by a person
responsible for their safety.
• Children must be supervised to
prevent them from tampering
with the appliance.
• Installation and repair
procedures must always be
performed by authorized
service agents. The
manufacturer shall not be held
responsible for damages arising
from procedures carried out by
unauthorized persons which
may also void the warranty.
Before installation read the
instructions carefully.
• Do not operate the appliance if
it is defective or has any visible
damage.
• Make sure that the appliance
function controls are switched
off after every use.
1. Important safety instructions
Electrical safety
• If the appliance has a failure, it
should not be operated unless it
is repaired by an authorized
service agent. There is a risk of
an electric shock!
• Connect the appliance to an
earthed outlet/line protected by
a fuse of suitable capacity.
Have the earth installation
made by a qualified electrician.
• This appliance must be
earthed and the manufacturer
and the seller do not accept
responsibility for any damage
due to incorrect installation
or electrical connection.
• Never wash down the appliance
with water! There is the risk of
electric shock!
• The appliance must be
disconnected from the mains
during installation,
maintenance, cleaning and
repair procedures.
• If the supply cord is damaged, it
must be replaced by the
manufacturer, its service agent
or similarly qualified persons in
order to avoid a hazard.
• The appliance must be installed
so that it can be completely
disconnected from the network.
The separation must be
provided either by a mains plug,
or a switch built into the fixed
electrical installation according
to construction regulations.

Page 4
• The rear surface of the oven
gets hot when it is in use.
Ensure that the electrical
connection does not come into
contact with the rear surface so
as not to damage connections.
• Do not trap the mains cable
between the oven door and
frame, do not route it over hot
surfaces as the cable insulation
may melt and cause a fire as a
result of a short circuit.
• Any work on electrical
equipment must only be carried
out by authorized and qualified
persons.
• In case of any damage, switch
off the appliance and
disconnect it from the mains. To
do this, switch off the circuit
breaker at the wall.
• Ensure that the fuse rating is
compatible with the appliance.
Appliance safety
• The appliance and its
accessible parts become hot
during use. Care must be taken
to avoid touching heating
elements inside the oven.
Children must be kept away
unless continually supervised.
• Never use the appliance when
your judgment or coordination is
impaired by the use of alcohol
and/or drugs.
• Keep all ventilation slots clear
of obstructions.
• Use shelves as described on
page 7.
• Be careful when using alcoholic
drinks in dishes. Alcohol
evaporates at high
temperatures and may ignite
and cause fire when coming
into contact with hot surfaces.
• Do not place any flammable
materials close to the appliance
as the sides may become hot
during use.
• Do not heat closed tins and
glass jars in the oven. The
pressure build-up in the tin/jar
may cause the tin/jar to burst.
• Do not place baking trays,
dishes or aluminium foil directly
onto the bottom of the oven.
The heat accumulation may
damage the bottom of the oven.
• Do not use harsh abrasive
cleaners or sharp metal
scrapers to clean the oven door
glass as these may scratch the
glass surface.
• Do not use steam cleaners to
clean the appliance as this may
cause an electric shock.
• Do not use the appliance if the
front door glass has been
removed or is cracked.
• Always use heat resistant oven
gloves when putting in or
removing dishes into/from the
hot oven.
• Ensure the appliance is
switched off before replacing
the lamp to avoid the possibility
of an electric shock.
• Some models feature a
protective film over stainless
steel trim. This film must be
carefully removed before using
the appliance.

Page 5
• Do not carry out any repairs or
modifications on the appliance.
To prevent a fire hazard
• Ensure plug is well fitted into
socket so that it does not spark.
• Do not extend or cut the power
cable. Use only an original
power cable. Do not use a
damaged power cable.
• Ensure that there is no liquid or
moisture on the socket where
the appliance is plugged in.
Safety when working with
electricity
• Defective electric equipment is
one of the major causes of
house fires
• Any work on electrical
equipment and systems should
only be carried out by
authorized and qualified
persons. If the appliance is
damaged in any way, do not
use it. Report the damage to
your dealer, who will take the
necessary corrective action.
• Make sure that the fuse rating
is compatible with the
appliance.
Intended use
• The appliance must only be
used for domestic use and for
the purposes for which it was
designed. Commercial use will
void the guarantee. This
appliance is for cooking
purposes only. It must not be
used for other purposes, for
example room heating.
Safety for children
• Electrical appliances are
dangerous to children. Keep
children away from the
appliance when it is operating
and do not allow them to play
with the appliance.
• Accessible parts of the
appliance will become hot
whilst the appliance is in use.
keep children away until the
appliance has cooled down.
• Do not place any items above
the appliance that children may
reach for.
• Ensure that packaging material
is disposed of in a responsible
manner. Plastic bags must be
cut up to prevent children
playing with them and
accidentally suffocating.
• When the oven door is open
do not load any heavy objects
on it and do not allow children
to sit on it. The appliance may
overturn or the door hinges
may be damaged.
SAVE THESE INSTRUCTIONS
• Do not use the appliance for
warming plates under the grill,
drying towels, dish cloths or
similar textile products by
hanging them on the oven door
handle.
• The manufacturer shall not be
liable for any damage caused
by improper use or handling
errors.
• The oven can be used for
defrosting, baking, roasting and
grilling food.

Page 6
2. General Information
Overview

Page 7
Wire Shelf
Used for roasting and for placing food to be
baked, roasted or cooked in casserole
dishes on to the desired shelf runner.
Placing the wire shelf and tray onto the
shelf runners properly
It is important to place the wire shelf and/or
tray onto the runner properly. Slide the wire
shelf or tray between the runners and make
sure that it is properly fitted before placing
any food on it.
Accessories supplied may vary
depending on the model. Not all
accessories in the user manual
may be included with your
appliance. Accessories may be
purchased from Defy spares.
1. Control Panel
2. Top Heat Element
3. Oven floor with hidden Bake element
4. Steam Bath
5. Removable Top Décor
6. Oven Door
7. Installation Clips
1
2
3
6
7
4
5
Accessories
Parts
Oven tray
Suitable for large roasts, chicken portions
and roast potatoes.
Note:
Please ensure that the wire shelf profile is
placed in the correct orientation for correct
oven fitment.
Bake tray
Suitable for baking purposes.

Page 8
Technical Specifications
Voltage / frequency 220-240V~ 50 Hz
Amperage 11 A / 33 A
External dimensions (height / width / depth) 596 mm x 594 mm x 570 mm
Installation dimensions (height / width / depth) Refer to page 10**
Main oven Static oven
Energy efficiency class* A
Inner lamp 25 W
Total power consumption 2425 W / 7425 W
Total grill power consumption 1,2 kW
* Basics: Information on the energy label of electrical ovens is given in accordance with the
EN 50304 standard. Those values are determined under standard load with bottom-top
heater or fan assisted heating (if any) functions.
The energy efficiency class is determined according to function: Conventional bake mode.
** See Installation.
DANGER
Risk of scalding by hot steam!
Take care when opening the oven
door as steam may escape.
WARNING Hot surfaces may cause
burns! Do not touch the hot surfaces
of the appliance. Use oven gloves.
Keep children away from the
appliance.
DANGER Risk of fire by overheated
oil! When heating oil, do not leave it
unattended. Never try to extinguish a
fire with water! When oil has caught
fire, immediately cover the pot or pan
with a lid. Switch off the hob if safe to
do so and phone the fire service.
Figures in this manual are schematic and may not exactly match your appliance.
Values stated on the appliance labels or in the documentation accompanying it are
obtained in laboratory conditions in accordance with relevant standards. Depending
on operational and environmental conditions of the appliance, these values may vary.

Page 9
The appliance must be installed by a
qualified person in accordance with national
regulations. Installation is the buyer’s
responsibility. The manufacturer accepts no
liability for this service. Any action that the
manufacturer has to take as a result of an
erroneous installation will not be covered by
the warranty.
3. Installation
Preparation of location and
electrical installation for the
appliance is the customer’s
responsibility.
DANGER: The appliance must be
installed in accordance with all
local electrical regulations.
DANGER: Prior to installation,
visually check if the appliance has
any defects on it. If so, do not have
it installed. Damaged appliances
cause risks for your safety.
Before installation
The appliance is intended for installation in
household kitchen cabinets. A safety
distance must be left between the appliance
and the kitchen walls and furniture. See
figures on following page: “Built in oven cut
outs” (values in mm).
Cooking appliances generate considerable
heat. The layout and materials of the
mounting cabinet should take account of
these characteristics.
• Surfaces, surrounding edges, synthetic
laminates and adhesives immediately
adjacent to the appliance should be able
to withstand temperatures of up to 100°C
without delaminating or discoloring.
• Kitchen cabinets must be set level and
fixed.
• If there is a drawer beneath the oven, a
shelf must be installed between the oven
and drawer.
• Carry the appliance with at least two
persons.
Do not install the appliance next to
refrigerators or freezers. The heat
emitted by the appliance will lead to
an increased energy consumption
of cooling products.
The door and/or handle must not
be used for lifting or moving the
appliance.
Do not place any objects onto the
appliance and move it in upright
position.
Check the general appearance of
your appliance for any damages
that might have occurred during
transportation.
Under-counter oven installation
• Note: The oven cavity must vent
through the front only. Avoid gaps
between the cavity sides and the
underside of the worktop.
• Insert the oven into the cupboard.
• Open the door to expose the fixing holes
in the side trims.
• Secure the oven by 4 countersunk screws
(fasteners are not supplied).
• The hob should be installed in a ventilated
cupboard fitted with a sturdy worktop .
• Secure the hob using the fixing brackets
provided.
Note: Hob installation for under-counter
oven
• Hobs have their own dedicated owner’s
manual, detailing installation and operating
instructions.
• Do not discard the hob packaging before
first retrieving this manual.
• Defy Slimline under-counter ovens may be
installed at eye level if so desired.
• A wiring extension kit is available from the
nearest Defy Service Centre.
• If you have an older level hob you must
purchase a connector block adaptor kit
from your nearest Defy spares outlet.
Final check
1. Connect the oven and switch on the
power.
2. Check the functions.

Page 10
Built in oven cut outs
Eye-level oven installation
Typical section showing
ventilation requirements.
r
60 +
_3
0
e
Typical section showing
ventilation requirements.
• Insert the oven into the cupboard.
• Open the door to expose the fixing holes
in the side trims.
• Secure the oven by 4 countersunk screws
(fasteners not supplied).
• Ensure that the oven is fixed to the
cupboard as per diagram.
Under- counter oven installation
Securing the oven

Page 11
Installation and connection
The appliance must be installed in
accordance with all electrical regulations.
DANGER: Risk of electric
shock! Before starting any work on
the electrical installation, please
disconnect the appliance from the
mains supply.
DANGER: The appliance must
be connected to the mains supply
only by authorised and qualified
persons. The appliances warranty
period starts only after correct
installation. The manufacturer
shall not be held responsible for
damages arising from procedures
carried out by unauthorised
persons.
DANGER: Risk of electric
shock, short circuit or fire by
damage of the mains lead! The
mains lead must not be clamped,
bent or trapped or come into
contact with hot parts of the oven.
If the mains lead is damaged, it
must be replaced by a qualified
electrician.
Electrical installation
This appliance must be earthed and the
manufacturer and the seller do not accept
responsibility for any damage due to
incorrect installation or electrical connection.
This appliance should not be connected
through an earth leakage system.
Refer to S.A.N.S.10142
Support the oven in front of the aperture and
make the electrical connection before
installing. This will ensure enough cable
length for subsequent servicing.
Connection to the power supply
The connection must be carried out by a
licensed electrician, who will ensure that the
oven is correctly connected and safely
earthed. The rated current is printed on the
serial number label attached to the oven side
trim.
The appliance must be connected to the
mains through a double pole isolating switch
which has a minimum clearance between the
contacts of 3 mm. in both poles.
A means for disconnection must be provided
in the fixed wiring.
Connecting the sprague to the oven
WARNING! ELECTRICAL
CONNECTION MUST ONLY BE
DONE BY A QUALIFIED
ELECTRICIAN!
Purchase a standard plastic/metal saddle
type bracket, capable of going around the 20
mm diameter sprague and with a hole pitch
of 38 mm (Plastic) 45 mm (Metal), from your
local hardware and 2 off 4.2 mm x 12 mm
self tapping screws.
Feed the cables through the Sprague and
connect to the mains terminal block of the
appliance.
Place the plastic/metal saddle around the
sprague and fasten via the 2 self tapping screws
onto the factory pre punched holes adjacent to
the mains terminal block of the appliance.
1
2
3

Page 12
Tips for saving energy
The following information will help you to use
your appliance in an ecological way, and to
save energy:
• Use dark coloured or enamel coated
cookware in the oven since the heat
transmission will be better.
• While cooking your dishes, perform a
preheating operation if it is advised in the
user manual or cooking instructions.
• Do not open the door of the oven
frequently during cooking.
• Try to cook more than one dish in the oven
at the same time whenever possible. You
can cook by placing two cooking vessels
onto the wire shelf.
• Cook more than one dish one after
another. The oven will already be hot.
• You can save energy by switching off your
oven a few minutes before the end of the
cooking time. Do not open the oven door.
• Defrost frozen dishes before cooking
them.
Future Transportation
• Keep the appliances original carton and
transport the appliance in it. Follow the
instructions on the carton. If you do not
have the original carton, pack the
appliance in bubble wrap or thick
cardboard and tape it securely.
• To prevent the wire grill and tray inside the
oven from damaging the oven door, place
a strip of cardboard onto the inside of the
oven door that lines up with the position of
the trays. Tape the oven door to the side
walls.
• Do not use the door or handle to lift or
move the appliance.
First cleaning of the appliance
Surfaces might get damaged by
some detergents or cleaning
materials. Do not use
aggressive detergents, cleaning
powders/creams or any sharp
objects during cleaning. Do not
use harsh abrasive cleaners or
sharp metal scrapers to clean
the oven door glass since they
can scratch the surface, which
may result in the glass
shattering.
1. Remove all packaging materials.
2. Before using the appliance to prepare
food for the first time clean the cooking
compartment and accessories.
Initial heating
Heat up the appliance for about 30 minutes
and then switch it off. Thus, any production
residues or layers will be burnt off and
removed.
WARNING. Hot surfaces
cause burns! The appliance
may be hot when it is in use.
Never touch the inner sections
of the oven, heaters etc. Keep
children away. Always use heat
resistant oven gloves when
placing or removing dishes into/
from the hot oven.
Electric oven
1. Take all baking trays and the wire shelf
out of the oven.
2. Close the oven door.
3. Select Static position.
4. Select the highest bake power; (See
section on how to operate the electric
oven).
5. Operate the oven for about 30 minutes.
6. Turn off your oven.
Grill oven
1. Take all baking trays and the wire shelf
out of the oven.
2. The door must remain closed.
3. Select the highest grill power; (See
section on how to operate the grill).
4. Operate the grill for about 30 minutes.
5. Turn off your grill.
Smoke and smell may emit for
a couple of hours during the
initial operation. This is quite
normal. Ensure that the room is
well ventilated to remove the
smoke and smell. Avoid directly
inhaling the smoke and the
smell that emits.

Page 13
4. How to use the oven
Foods that are not suitable for
grilling create a fire risk. Only grill
food which is suitable for intensive
grilling heat. Do not place the food
too far in towards the back of the
grill. This is the hottest area and
fatty food may catch fire.
How to operate the electric oven
1. Set the Temperature knob to the desired
temperature.
2. Set the Function knob to the desired
operating mode.
» Oven heats up to the adjusted temperature
and maintains it. During heating,
temperature lamp stays on.
Switching off the electric oven
Turn the function knob and temperature
knob to the off position.
Using the oven
Baking
This product is supplied with a chromed
oven shelf and a roast pan. If required,
additional shelves, roast pans and broiler
may be purchased from Defy spares.
Set the selector knob to the desired baking
mode. See descriptions on page 14. Top
and Bottom elements or Bottom element
only. Set the oven thermostat to the required
temperature.
General information on baking, roasting
and grilling
DANGER:
Be careful when opening the oven
door as steam may escape.
Exiting steam can scald your
hands, face and/or eyes
Tips for baking
Use non-sticky coated appropriate metal
plates or aluminum vessels or heat-resistant
silicone moulds. Make best use of the
embossed shelf runners.
Place the baking mould in the middle of the
shelf.
Select the correct embossed shelf runner
position before turning the oven or grill on.
Do not change the shelf position when the
oven is hot. Keep the oven door closed.
Tips for roasting
Treating whole chicken, turkey and large
pieces of meat with dressings such as lemon
juice and black pepper before cooking will
increase the cooking performance.
It takes about 15 to 30 minutes longer to
roast meat with bones when compared to
roasting the same size of meat without
bones.
Each centimeter of meat thickness requires
approximately 4 to 5 minutes of cooking
time. Leave meat in the oven for about
10 minutes after the cooking time is over.
The juice is better distributed all over the
roast and does not run out when the meat is
cut.
Fish should be placed on the middle or lower
shelf in a heat-resistant plate.
Tips for grilling
When meat, fish and poultry are grilled, they
quickly brown, develop a crust and do not
dry out quickly. Flat pieces, meat skewers
and sausages are particularly suited for
grilling as are vegetables with high water
content such as tomatoes and onions.
Distribute the pieces to be grilled on the wire
shelf or in the baking tray on the wire shelf
so that the space covered does not exceed
the size of the grill element.
Slide the wire shelf or baking tray into the
desired level of the oven. If you are grilling
on the wire shelf, slide the baking tray to the
lower rack to collect any fats. Add some
water in the tray for easy cleaning.
The thermostat indicator light will glow and
remain on until the oven has reached the
selected temperature. The light will then
switch off.
Thereafter place the food in the oven.
During the baking cycle, the indicator light
will switch on and off as the thermostat
maintains the selected temperature.
After baking is completed, the thermostat
and the selector knob must be turned to the
"0"position in an anti clockwise direction.

Page 14
Tips for cooking vegetables
• If the vegetable dish runs out of juice and
gets too dry, cook it in a pan with a lid
instead of a tray. Closed vessels will
preserve the juice of the dish.
• If the vegetables in a vegetable dish do
not cook properly, boil the vegetables
beforehand or prepare them like canned
food and put in the oven.
Ringer timer
The ringer timer may be used for timing a
cooking period of up to 60 minutes.
First wind the timer by turning the knob fully
clockwise. Return the knob to the desired
time period. At the end of the this period the
bell will ring. Note: If the timer is not first fully
wound the bell may not ring.
Selector switch
Note:
The oven thermostat is marked to 70°C.
When set to this position, the oven may be
used as a warmer. All ovens extract
moisture from the food being cooked,
especially so during the winter months. This
is normal and not detrimental to the food or
the oven.
Baking Guide:
Where possible, bake on the middle shelf
position of the oven. The food must be
placed in the centre of the wire shelf towards
the oven door. Do not open the oven door
until at least two thirds of the baking time
has lapsed.
The roast pan must not be used for baking
purposes.
Grilling
Both the wire shelf and roast pan may be
used for grilling. The roast pan may also be
used as a drip tray under the wire shelf.
Position the shelf in the desired position
below the grill element.
Set the selector switch and oven thermostat
to their respective Grill positions.
The thermostat indicator light will glow.
Preheat the grill element for about 5
minutes. Partially withdraw the shelf and
place the food in the centre of the shelf.
Slide the shelf back into position.
Monitor the grilling to avoid burning the food.
After grilling is completed, the oven
thermostat and the selector switch must be
returned to the "0" position in an anti-
clockwise direction.
Direction of Ringer Timer
Function
The Ringer Timer Control Knob
must be operated in a Clockwise
Direction Only. Do NOT engage
Ringer Timer Control Knob in Anti-
Clockwise Direction.
0 Off Switches the Oven
off
Lamp Switches the Oven
lamp on
Conventional
Bake
Heat is evenly
distributed from
the top and
bottom element.
Baking is
recommended on
one level only.
This mode is
recommended for
cakes, pastries and
casseroles.
Static Bake
Heat is given off
from the bottom
element.
This mode is
recommended for
dishes that are
cooked and require
further cooking at
the center or the
base.
Grill
Heat is given off
from the top
element.
The thermostat
must be on the
maximum position.
The oven door
must be closed
Steam Assisted
Clean
Refer to
Maintenance &
Care section
For cooking that requires preheating,
preheat at the beginning of cooking process
until the thermostat lamp switches off.
Tips for baking cake
• If the cake is too dry, increase the
temperature by 10°C and decrease the
cooking time.
• If the cake is wet, use less liquid or lower
the temperature by 10°C.
• If the cake is too dark on top, place it on a
lower rack, lower the temperature and
increase the cooking time.
• If cooked well on the inside but sticky on
the outside use less liquid, lower the
temperature and increase cooking time.

Page 15
Tips for baking pastry
• If pastry is too dry, increase the
temperature by 10°C and decrease the
cooking time. Dampen the layers of dough
with a sauce composed of milk, oil, egg
and yoghurt.
• If pastry takes too long to bake, ensure
that the thickness of the pastry prepared
does not exceed the depth of the tray.
• If the upper side of the pastry gets
browned, but the lower part is not cooked,
make sure that the amount of sauce used
for the pastry is not too much at the
bottom of the pastry. Try to distribute the
sauce equally between dough layers and
top of the pastry for an even browning.
How to operate the grill
Switching on the grill
1. Turn the Function knob to the desired grill
symbol.
2. Select the desired grilling temperature.
3. If required, perform a preheating of about
5 minutes.
» Temperature light turns on.
Switching off the grill
1. Turn the Function knob to the Off position.
Cook pastry in accordance with
the mode and temperature
given in the cooking table. If the
bottom part is still not browned
enough, place it on one lower
rack the following time.
Foods that are not suitable for
grilling create a fire risk. Only
grill food which is suitable for
intensive grilling heat. Do not
place the food too far in the
back of the grill. This is the
hottest area and fatty food may
catch fire.
• Grill performance will decrease if the wire
grill rests against rear part of the oven.
Slide the wire shelf to the front section of
the rack and position it with the help of the
door in order to obtain the best grill
performance.
DANGER Risk of scalding by hot
steam! Take care when opening the
oven door as steam may escape.
IMPORTANT: Grilling must be done
with the oven door closed!
Cooking times table
Dish Accessories Shelf pos. Function Temp (°C) Cooking time
Sponge cake Cake tin 2 180 °C 20 Min
Roast chicken
(1.3 kg) Roast pan 1 180 °C 65 Min
Biscuits Bake tray 2 180 °C 22 Min
Pizza Wire shelf 3 180 °C 9-10 Min
Sausages Roast pan 4 Max 15 Min
Fish Bake tray 4 Max 15 Min
Chicken
breasts (150 g) Roast pan 4 Max 20 Min
• Note: First rack of the oven is at the
bottom of the oven.
* Timings in this table are meant as a guide. Timings may vary due to temperature.

Page 16
5. Maintenance and care
The surface may get damaged
by some detergents or cleaning
materials. Do not use aggressive
detergents, cleaning powder/
cream or any sharp objects. Do
not use any harsh abrasive
cleaners or sharp metal scrapers
to clean the oven door and glass
since they can scratch the
surface, destroy the glass and
could result in the glass
shattering.
General information
• Clean the appliance thoroughly after each
use, making it easier to remove cooking
residues and helps prevent these from
burning on the next use of the appliance.
• Wipe down the cabinet, door, control
panel, trims and handles with a damp, hot
soapy cloth.
• Use only liquid household cleaners and
avoid abrasive powders, scouring pads
and caustic cleaners.
• Rinse and wipe down with a clean cloth.
Cleaning the oven
• Open the oven door and allow the oven to
cool down.
• Clean the oven with a damp, hot soapy
cloth. Do not use a steam cleaner.
• It may be necessary to soak burnt soils
with a liquid cleaner to soften them before
scrubbing them with a nylon brush or
scouring sponge.
• Heavy soils on the bottom of the oven
may require overnight soaking under a
sponge liberally sprinkled with household
ammonia. Remove the soil the following
morning by washing normally.
• Always ensure that any excess liquid is
thoroughly wiped off after cleaning and
any spillage is immediately wiped dry.
• Do not use cleaning agents that contain
acid or chloride to clean the stainless or
inox surfaces and the handle. Use a soft
cloth with a liquid detergent (not abrasive)
to wipe these parts clean, paying attention
to sweep in one direction.
Steam assisted cleaning
Important!
Any food residue must be removed from the
bottom of the cavity before you start steam
assisted cleaning. Remove all oven
accessories.
1. Pour 100 ml of water into the emboss on
the oven floor.
2. Select the steam assisted cleaning
function.
3. Turn the oven on to Run this cycle for 5
minutes.
4. At the end of the cycle, wait 5 minutes
before opening the door.
5. Open the door and wipe the inner
surfaces of the oven with a damp sponge
or cloth.
6. Use warm water with washing liquid, a
soft cloth or sponge to clean persistent
dirt and wipe it with a dry cloth.
Important!
• Ensure that all water has been wiped
away after steam assisted cleaning as this
may damage your oven. Steam assisted
cleaning must be performed in a cold
oven.
• If you have grease or any other difficult to
remove substance you may need to
traditionally clean your oven (as per
instructions in general information) after
completing the steam assisted cleaning
cycle.
• Use the steam assisted cleaning feature
as soon as possible after spills occur. The
longer a spill sits and dries in the oven,
the more difficult it may be to remove.
Do not use steam cleaners for
cleaning, there is a risk of an
electric shock.
DANGER Hot surfaces may
cause burns! Allow appliance
to cool down before you clean it.
DANGER Risk of electric
shock! Switch off the
electricity before cleaning the
appliance to avoid an electric
shock.

Page 17
Removing the oven door
Steps carried out during the
removal process should be
carried out in reverse order to
install the door. Do not forget to
close the clips at the hinge
housing when reinstalling the
door.
Lift-off oven door
The oven door may be removed to improve
oven access during cleaning.
1. Open the front door (1).
2. Open the clips at the hinge housing (2) on
the right and left hand sides of the front
door by pressing them down as illustrated
in the figure.
1 Front door
2 Hinge
3 Oven
3. Move the front door to half way.
4. Remove the front door by pulling it
upwards to release it from the left and
right hinges.
Removing the Oven Door Glass
The inner glass can be removed for
cleaning.
A. Lift the top décor and remove from door.
B. Lift the glass to a 45 degree position and
pull towards yourself. Clean the glass as
per the instructions.
Cleaning the oven door
To clean the oven door, use warm water with
washing liquid, a soft cloth or sponge to
clean the product and then wipe it with a dry
cloth.
Do not use any harsh abrasive
cleaners or sharp metal scrapers
for cleaning the oven door. They
may scratch the surface and
destroy the glass.
The front door inner glass is
coated with an easy clean
material. Do not use any harsh
abrasive cleaners, hard metal
scrapers, scouring pads or
bleach to clean the front door
inner glass as they may scratch
the surface and destroy the
coating material.
Carrying
handles
For ease of
carrying there
is a handle for
holding the
oven on each
side panel.

Page 18
DANGER: Before replacing the
oven lamp, ensure that the
appliance is disconnected from
mains and cooled down to avoid
the risk of an electrical shock. Hot
surfaces may cause burns!
The oven lamp is a special
electric light bulb that can resist
up to 300°C. See Technical
specifications for details. Oven
lamps can be obtained from
Authorised Service Agents.
Position of lamp might vary from
the figure.
Replacing the oven light
To replace a faulty light bulb, proceed as
follows:
1. Disconnect the product from mains.
2. Turn the glass cover counter clockwise to
remove it.
3. Remove the oven lamp by turning it
counter clockwise and replace it with the
new one.
4. Install the glass cover.
Oven light
The oven light is switched on by the function
selector switch and switches off when the
knob is returned to 0.
Owner’s responsibility
Since the following are not factory faults,
they are the owner’s responsibility.
• Damage to exterior finish.
• Breakage of glass and other components.
• Replacement of the light bulb.
• Damage through improper use or
installation of the appliance.
• Damage caused by moving the appliance.
6. Troubleshooting
Oven emits steam when it is in use.
It is normal that
steam escapes
during operation
>>> This is not a
fault.
The appliance emits metal noises while
heating and cooling.
When the metal
parts are heated,
they may expand
and cause noise.
>>> This is not a
fault.
The appliance does not operate.
The mains fuse is
defective or has
tripped.
Check fuses in the
fuse box. If
necessary, replace or
reset them.
The appliance is not
plugged into the wall
socket.
>>> Check the plug
connection.
Oven light does not work.
Oven lamp is
defective.
>>> Replace oven
lamp.
Power is cut.
>>> Check if there is
power. Check the
fuses in the fuse box.
If necessary, replace
or reset the fuses.
Oven does not heat.
Function and/or
Temperature are not
set.
>>> Set the function
and the temperature
with the Function
and/or Temperature
knob/key.
If you have followed the
instructions and still have a
problem, contact the nearest Defy
Technical Support Centre. They
will be able to advise you on any
aspect of the product or send a
qualified technician to repair it.
Never attempt to repair a
defective appliance yourself.
Remember that you may be
charged for a service call even
during the warranty period if the
fault is due to or caused by any of
the above.

Page 19
Branches
If you have followed the instructions and still have a problem, contact the customer care line
on 086 100 3339. They will be able to advise you on any aspect of the appliance.
South African Branches:
BLOEMFONTEIN
Unit Number 5
Monument Business Park
50 Monument Road
Oranjesig
Bloemfontein
[email protected]
CAPE TOWN
5A Marconi Rd. Montague Gardens, 7441
[email protected]
DURBAN
135 Teakwood Road, Jacobs,
Durban, 4052
[email protected]
EAST LONDON
Robbie de Lange Road, Wilsonia,
East London, 5201
[email protected]
GAUTENG, MIDRAND
127 15th Road, Cnr Pharmaceutical &15th Rd,
Midrand, Gauteng
[email protected]
POLOKWANE
87 Nelson Mandela Drive, Superbia 0699
[email protected]
PORT ELIZABETH
112 Patterson Road, North End, Port Elizabeth
6001
[email protected]
Sub-Saharan Africa Branches:
ZAMBIA: SOUTHGATE INVESTMENTS LTD
Plot 1606, Sheki Sheki Road
P.O. Box 33681
Lusaka, 10101, Zambia
Tel: [phone]
Fax: [phone]
[email protected]
NAMIBIA: ATLANTIC DISTRIBUTORS (PTY)
LTD
10 Tienie Louw Street, Northern Industrial Area
P.O. Box 21158, Windhoek, Namibia
Tel: [phone]
Fax: [phone]
[email protected]
ZIMBABWE: TRADECOMAFRICA
Trade Com Africa, 183 Loreley Crescent
Msasa, Harare, Zimbabwe
Tel: [phone]
Cell: [phone]
Cell: [phone]
BOTSWANA: RAY MORGAN AGENCIES
RMA Service Centre, Plot 48, East Gate
Gaborone International Commerce Park
Kgale View, Gaborone
Botswana
Tel: [phone]
Fax: [phone]
Cell: [phone]
[email protected]; [email protected]
SWAZILAND: LYNDS DISTRIBUTORS
P.O Box 716, Mbabane, Swaziland, H100
Tel: [phone]
Fax: [phone]
MOZAMBIQUE: COOL WORLD. LDA
Rua da Resistencia No. 97B R/C
Cell: [phone]
[email protected]
Nosso Show Room
Av: da Industrias, Parcela No.735 * 735A
Machava, Maputo
7.

Page 20
8. Warranty
This certificate is issued by DEFY APPLIANCES (PTY) LTD manufacturers of Defy and Ocean
products, hereinafter the Company, to the original purchaser only, of the appliance described on the
certificate and shall constitute the only warranty given in respect of this appliance.
The Company warrants to the original purchaser that for a period of THREE YEARS from date of
purchase the appliance is free from defect under normal domestic use, both in workmanship and
material, subject to the following conditions.
1. Repair or replacement of any part of this appliance, found by the Company to be defective, shall
be at the election of the Company. The Company reserves the right to effect such service through
any of its Service Divisions or Authorised Service Dealers. The cost of such service shall be borne
by the Company in full, provided that the appliance is located no further than 50 km from a
Company Service Centre or an Authorised Service Dealer. Where the appliance is located beyond
the 50 km radius, the purchaser shall be liable for the standard travelling charges, as determined by
the Company.
CARRY IN SERVICE Microwave ovens, Compact cookers and small appliances are repaired in our
service centres and are not collected from the customers home. Faulty units must be delivered to
the purchasing dealer or to the nearest Company Service Centre for warranty repairs.
2. Rusted or corroded plates, vitreous enamelware, fuses and lamps are specifically excluded from
these warranties. It is an express condition of these warranties that the purchaser takes due care
and attention in the use and maintenance of the appliance. Abuse, misuse in conflict with operating
instructions, connection to incorrect voltages and subjection to commercial use shall release the
Company from its obligations.
3. This warranty shall become void and cease to operate if the appliance is dismantled by, or any
repairs to the appliance are effected by any persons not duly authorised by the Company, or if
substitute parts not approved by the Company are used in the appliance, or if the serial number of
the appliance is removed.
4. The Company shall not be responsible for damages resulting from fire, flood, civil disturbances or
any Act of God. The Company shall not, in terms of these warranties be responsible nor held liable
for any consequential loss or damage of any kind caused by or due to the failure or malfunction of
the appliance. The Company shall not be responsible for damages caused by insect and/or animal
infestation.
5. The Company shall not be responsible for transportation or other costs other than those incurred
within the provisions of Point 1 of this Certificate.
6. For warranties in the Republic of South Africa and Sub-Saharan Africa, please contact the
customer care line. Please refer to the previous page for respective South African branches
and Sub-Saharan Africa branches.
7. Where service is requested under warranty and no fault or defect can be found by the Company,
all costs incurred will be for the purchaser's account.
8. This Certificate as well as your invoice will serve as proof of purchase. For the purpose of
warranty, it will be essential to produce this Certificate and invoice. Failure to do so, will render the
purchaser liable for service costs.
KEEP THIS CERTIFICATE AND SALES INVOICE AS PROOF OF PURCHASE FOR
WARRANTY PURPOSES.
