DELAVIN C004W User manual

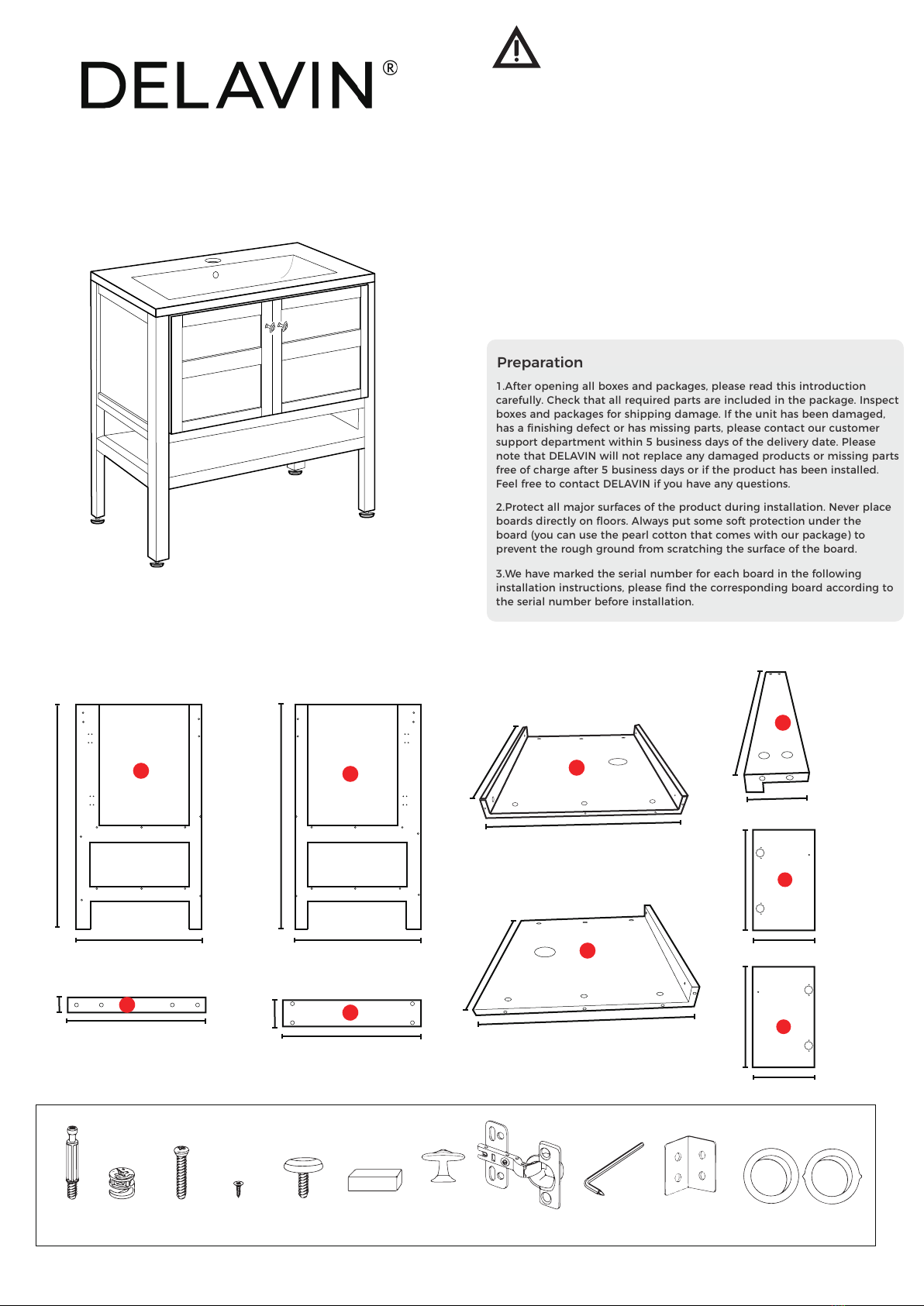

Preparation
1.After opening all boxes and packages, please read this introduction
carefully. Check that all required parts are included in the package. Inspect
boxes and packages for shipping damage. If the unit has been damaged,
has a finishing defect or has missing parts, please contact our customer
support department within 5 business days of the delivery date. Please
note that DELAVIN will not replace any damaged products or missing parts
free of charge after 5 business days or if the product has been installed.
Feel free to contact DELAVIN if you have any questions.
2.Protect all major surfaces of the product during installation. Never place
boards directly on floors. Always put some soft protection under the
board (you can use the pearl cotton that comes with our package) to
prevent the rough ground from scratching the surface of the board.
3.We have marked the serial number for each board in the following
installation instructions, please find the corresponding board according to
the serial number before installation.
First to ninth boards
parts
50.3cm
81cm
45.5cm45.5cm
81cm
44.8cm
50.3cm 50.3cm
44.8cm
6
5
123
4
8cm
50.3cm
6cm
50.3cm
10cm
7
24.8cm
40cm
8
24.8cm
40cm
9
2x
INSTALLATION INSTRUCTION
Used for: C004W, C004N, C004G, C004E
Note: Before installation, please spread a soft mat or the EPE foam inside the
package on the ground to prevent damage to the paint.
English
WARNING!
Serious or fatal crushing injuries can occur from furniture tip over. To
prevent tip over this furniture must be used with the wall attachment
device(s) provided.
Screw(s) and plug(s) for the wall are not included. Use screw(s) and plug(s)
suitable for your walls. If you are uncertain, seek professional advice. Read
and follow each step of the instruction carefully
Español
¡ADVERTENCIA!
Si un mueble vuelca, puede provocar daños de aplastamiento graves o
fatales. Para evitar que vuelque, este mueble se debe usar con el/los
dispositivos de fi jación a la pared que se incluyen.
No se incluyen los tornillos ni tacos de pared. Utiliza tornillos y tacos
adecuados para tus paredes. En caso de duda, busca asesoramiento
profesional. Lee y sigue cada paso de las instrucciones cuidadosamente.
2x32x 4x 6x30x 30x 2x
4x 1x 2x 2x

2x

2x

8x


4x
4x
Note: In order to prevent the
cabinet from tipping
over, you can fix the
cabinet to the wall.
30x

4x

1
2
3
5
4
4
6
7
4
5
3
2
1
6
7
4
25
3
7
3
1
6
24
5
3
1
6
7
4
2
3
1
8
9
8
9
28x



16x

6
7
2
4
8
1
9
3

6x
 
Note: Fix the ceramic basin and
the wall with sealant.
