Dell Dimension 8400 Series User manual

Dell™Dimension™8400ServiceManual
Before You Begin
Opening the Computer Cover
Technical Overview
Specifications
Advanced Troubleshooting
System Setup
Removing and Installing Parts
Closing the Computer Cover
Notes, Notices, and Cautions
Abbreviations and Acronyms
For a complete list of abbreviations and acronyms, see the Dell Dimension Owner's Manual.
IfyoupurchasedaDell™nSeriescomputer,anyreferencesinthisdocumenttoMicrosoft®Windows®operating systems are not applicable.



Information in this document is subject to change without notice.
©2004DellInc.Allrightsreserved.
Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell, the DELL logo, and Dimension are trademarks of Dell Inc.; Intel and Pentium are registered trademarks of Intel Corporation; Microsoft and
Windows are registered trademarks of Microsoft Corporation.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any
proprietary interest in trademarks and trade names other than its own.
Model DHM
November2004Rev.A00
NOTE: A NOTE indicates important information that helps you make better use of your computer.
NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.
NOTE: Some features or services may not be available for your computer or in certain countries.

Back to Contents Page
Advanced Troubleshooting
Dell™Dimension™8400ServiceManual
Power Lights
Diagnostic Lights
Beep Codes
System Messages
Power Lights

The power button light located on the front of the computer illuminates and blinks or remains solid to indicate different states:
lIf the power light is green and the computer is not responding, see "Diagnostic Lights."
lIf the power light is blinking green, the computer is in standby mode. Press a key on the keyboard, move the mouse, or press the power button to
resume normal operation.
lIf the power light is off, the computer is either turned off or is not receiving power.
¡Reseat the power cable into both the power connector on the back of the computer and the electrical outlet.
¡If the computer is plugged into a power strip, ensure that the power strip is plugged into an electrical outlet and that the power strip is turned
on. Also bypass power protection devices, power strips, and power extension cables to verify that the computer turns on properly.
¡Ensure that the electrical outlet is working by testing it with another device, such as a lamp.
¡Ensure that the main power cable and front panel cable are securely connected to the system board.
lIf the power light is blinking, the computer is receiving electrical power, but an internal power problem might exist.
¡Ensure that the voltage selection switch is set to match the AC power at your location (if applicable).
¡Ensure that the processor power cable is securely connected to the system board.
lIf the power light is steady amber, a device might be malfunctioning or incorrectly installed.
¡Remove and then reinstall the memory modules.
¡Remove and then reinstall any cards.
¡Remove and then reinstall the graphics card, if applicable.
lEliminate interference. Some possible causes of interference are:
¡Power, keyboard, and mouse extension cables
¡Too many devices on a power strip
¡Multiple power strips connected to the same electrical outlet
Diagnostic Lights

To help you troubleshoot a problem, your computer has four lights labeled "A," "B," "C," and "D" on the back panel. The lights can be yellow or green. When
the computer starts normally, the lights flash. After the computer starts, all four lights display solid green. If the computer malfunctions, the color and
sequence of the lights identify the problem.
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product Information Guide.
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions located in the Product Information Guide.

LightPattern

ProblemDescription

SuggestedResolution
The computer is in a normal off
condition or a possible pre-BIOS
failure has occurred.
Plug the computer into a working electrical outlet and press the power button.
A possible processor failure has
occurred.
Contact Dell.

Beep Codes
Your computer might emit a series of beeps during start-up if the monitor cannot display errors or problems. This series of beeps, called a beep code, identifies
a problem. One possible beep code (code 1-3-1) consists of one beep, a burst of three beeps, and then one beep. This beep code tells you that the computer
encountered a memory problem.
Reseating the memory modules may fix the beep code errors in the following table. If the problem persists, see "Contacting Dell" in your Owner's Manual for
instructions on obtaining technical assistance.
If you hear one of the following beep codes, see "Contacting Dell" in your Owner's Manual for instructions on obtaining technical assistance.
Memory modules are detected, but
a memory failure has occurred.
lIf you have two or more memory modules installed, remove the modules, reinstall one module,
and then restart the computer. If the computer starts normally, reinstall an additional module.
Continue until you have identified a faulty module or reinstalled all modules without error.
lIf available, install properly working memory of the same type into your computer.
lIf the problem persists, contact Dell.
A possible graphics card failure has
occurred.
lIf the computer has a graphics card, remove the card, reinstall it (see "PCI Express Cards"),
and then restart the computer.
lIf the problem still exists, install a graphics card that you know works and restart the
computer.
lIf the problem persists or the computer has integrated graphics, contact Dell.
A possible floppy or hard drive
failure has occurred.
Reseat all power and data cables and restart the computer.
A possible USB failure has
occurred.
Reinstall all USB devices, check cable connections, and then restart the computer.
No memory modules are detected.
lIf you have two or more memory modules installed, remove the modules, reinstall one module,
and then restart the computer. If the computer starts normally, reinstall an additional module.
Continue until you have identified a faulty module or reinstalled all modules without error.
lIf available, install properly working memory of the same type into your computer.
lIf the problem persists, contact Dell.
Memory modules are detected, but
a memory configuration or
compatibility error exists.
lEnsure that no special memory module/memory connector placement requirements exist (see
"Memory").
lVerify that the memory modules that you are installing are compatible with your computer (see
"Memory").
lIf the problem persists, contact Dell.
A possible expansion card failure
has occurred.
1. Determine if a conflict exists by removing a card (not a graphics card) (see "Cards") and
restarting the computer.
2. If the problem persists, reinstall the card that you removed, remove a different card, and then
restart the computer.
3. Repeat this process for each card. If the computer starts normally, troubleshoot the last card
removed from the computer for resource conflicts.
4. If the problem persists, contact Dell.
Another failure has occurred.
lEnsure that the cables are properly connected to the system board from the hard drive, CD
drive, and DVD drive.
lIf there is an error message on your screen identifying a problem with a device (such as the
floppy drive or hard drive), check the device to make sure it is functioning properly.
lThe operating system is attempting to boot from a device (such as the floppy drive or hard
drive); check system setup (see "Boot Sequence") to make sure the boot sequence is correct
for the devices installed on your computer.
lIf the problem persists, contact Dell.
The computer is in a normal
operating condition after POST.
None.


Code

Cause
1-3-1 through 2-4-4
Memory not being properly identified or used
4-3-1
Memory failure above address 0FFFFh

System Messages

Code

Cause
1-1-2
Microprocessor register failure
1-1-3
NVRAM
1-1-4
ROM BIOS checksum failure
1-2-1
Programmable interval timer
1-2-2
DMA initialization failure
1-2-3
DMA page register read/write failure
3-1-1
Slave DMA register failure
3-1-2
Master DMA register failure
3-1-3
Master interrupt mask register failure
3-1-4
Slave interrupt mask register failure
3-2-2
Interrupt vector loading failure
3-2-4
Keyboard Controller Test failure
3-3-1
NVRAM power loss
3-3-2
NVRAM configuration
3-3-4
Video Memory Test failure
3-4-1
Screen initialization failure
3-4-2
Screen retrace failure
3-4-3
Search for video ROM failure
4-2-1
No time tick
4-2-2
Shutdown failure
4-2-3
Gate A20 failure
4-2-4
Unexpected interrupt in protected mode
4-3-3
Timer-chip counter 2 failure
4-3-4
Time-of-day clock stopped
4-4-1
Serial or parallel port test failure
4-4-4
Cache test failure
NOTE: If the message you received is not listed in the table, see the documentation for either the operating system or the program that was running
when the message appeared.

Message

Possible Cause

Corrective Action
8042 Gate-A20
error
The keyboard controller failed
its test.
If you receive this message after you
make changes in the system setup
program, enter the system setup
program and restore the original value
(s).
Address Line
Short!
An error in the address
decoding circuitry in the
memory has occurred.
Reseat the memory modules.
C: Drive Error
C: Drive Failure
The hard drive is not working
or is not configured correctly.
Ensure that the drive is installed
correctly in the computer and defined
correctly in the system setup program.
Cache Memory
Bad, Do Not
Enable Cache
The cache memory is not
operating.
See "Contacting Dell" in your Owner's
Manual for instructions on obtaining
technical assistance.
CH-2 Timer Error
An error is occurring on the
timer on the system board.
See "Contacting Dell" in your Owner's
Manual for instructions on obtaining
technical assistance.
CMOS Battery
State Low
CMOS Checksum
Failure
CMOS System
Options Not Set
CMOS Display
Type Mismatch
CMOS Memory Size
Mismatch
The system configuration
information in the system
setup program is incorrect or
the battery charge may be
low.
Enter the system setup program, verify
the system configuration, and then
restart the computer.

Back to Contents Page

CMOS Time and
Date Not Set
Diskette Boot
Failure
Drive A or B is present but
has failed the BIOS POST.
Ensure that the drive is installed
correctly in the computer and defined
correctly in the system setup program.
Check the interface cable at both ends.
DMA Error
DMA 1 Error
DMA 2 Error
Error in the DMA controller on
the system board.
The keyboard or system board may need
to be replaced.
FDD Controller
Failure
HDD Controller
Failure
The BIOS cannot communicate
with the floppy drive or hard
drive controller.
Ensure that the floppy drive or the hard
drive is installed correctly in the
computer and defined correctly in the
system setup program. Check the
interface cable at both ends.
INTR1 Error
INTR2 Error
An interrupt channel on the
system board failed to POST.
The keyboard or system board may need
to be replaced.
Invalid Boot
Diskette
The operating system cannot
be located on drive A or drive
C.
Enter the system setup program and
confirm that drive A or drive C is properly
identified.
Keyboard Error
The BIOS has detected a
stuck key.
Ensure that nothing is resting on the
keyboard; if a key appears to be stuck,
carefully pry it up. If the problem
persists, you may need to replace the
keyboard.
KB/Interface
Error
An error occurred with the
keyboard connector.
Ensure that nothing is resting on the
keyboard; if a key appears to be stuck,
carefully pry it up. If the problem
persists, you may need to replace the
keyboard.
No ROM Basic
The operating system cannot
be located on drive A or drive
C.
Enter the system setup program and
confirm that drive A or drive C is properly
identified.

Back to Contents Page
Before You Begin
Dell™Dimension™8400ServiceManual
Getting Started
Recommended Tools
Turning Off Your Computer
Before Working Inside Your Computer
Getting Started
This section provides procedures for removing and installing the components in your computer. Unless otherwise noted, each procedure assumes that the
following conditions exist:
lYou have performed the steps in "Turning Off Your Computer" and "Before Working Inside Your Computer."
lYouhavereadthesafetyinformationinyourDell™Product Information Guide.
lA component can be replaced by performing the removal procedure in reverse order.
Recommended Tools
The procedures in this document may require the following tools:
lSmall flat-blade screwdriver
lPhillips screwdriver
lFlash BIOS update program floppy or CD
Turning Off Your Computer

1. Shut down the operating system:
a. Save and close any open files, exit any open programs, click the Start button, and then click Turn Off Computer.
b. In the Turn off computer window, click Turn off.
The computer turns off after the operating system shutdown process finishes.

2. Ensure that the computer and any attached devices are turned off. If your computer and attached devices did not automatically turn off when you shut
down your operating system, press and hold the power button for 4 seconds.
Before Working Inside Your Computer
Use the following safety guidelines to help protect your computer from potential damage and to help ensure your own personal safety.



1. Turn off your computer.
NOTICE: To avoid losing data, save and close any open files and exit any open programs before you turn off your computer.
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions located in the Product Information Guide.
CAUTION: Handle components and cards with care. Do not touch the components or contacts on a card. Hold a card by its edges or by its metal
mounting bracket. Hold a component such as a processor by its edges, not by its pins.
NOTICE: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell is not
covered by your warranty.
NOTICE: When you disconnect a cable, pull on its connector or on its strain-relief loop, not on the cable itself. Some cables have a connector with
locking tabs; if you are disconnecting this type of cable, press in on the locking tabs before you disconnect the cable. As you pull connectors apart, keep
them evenly aligned to avoid bending any connector pins. Also, before you connect a cable, ensure that both connectors are correctly oriented and
aligned.
NOTICE: To avoid damaging the computer, perform the following steps before you begin working inside the computer.


2. Disconnect any telephone or telecommunication lines from the computer.

3. Disconnect your computer and all attached devices from their electrical outlets, and then press the power button to ground the system board.


4. Open the computer cover.
Back to Contents Page

NOTICE: To disconnect a network cable, first unplug the cable from your computer and then unplug it from the network device.
CAUTION: To guard against electrical shock, always unplug your computer from the electrical outlet before opening the cover.
NOTICE: Before touching anything inside your computer, ground yourself by touching an unpainted metal surface, such as the metal at the back of the
computer. While you work, periodically touch an unpainted metal surface to dissipate any static electricity that could harm internal components.

Back to Contents Page

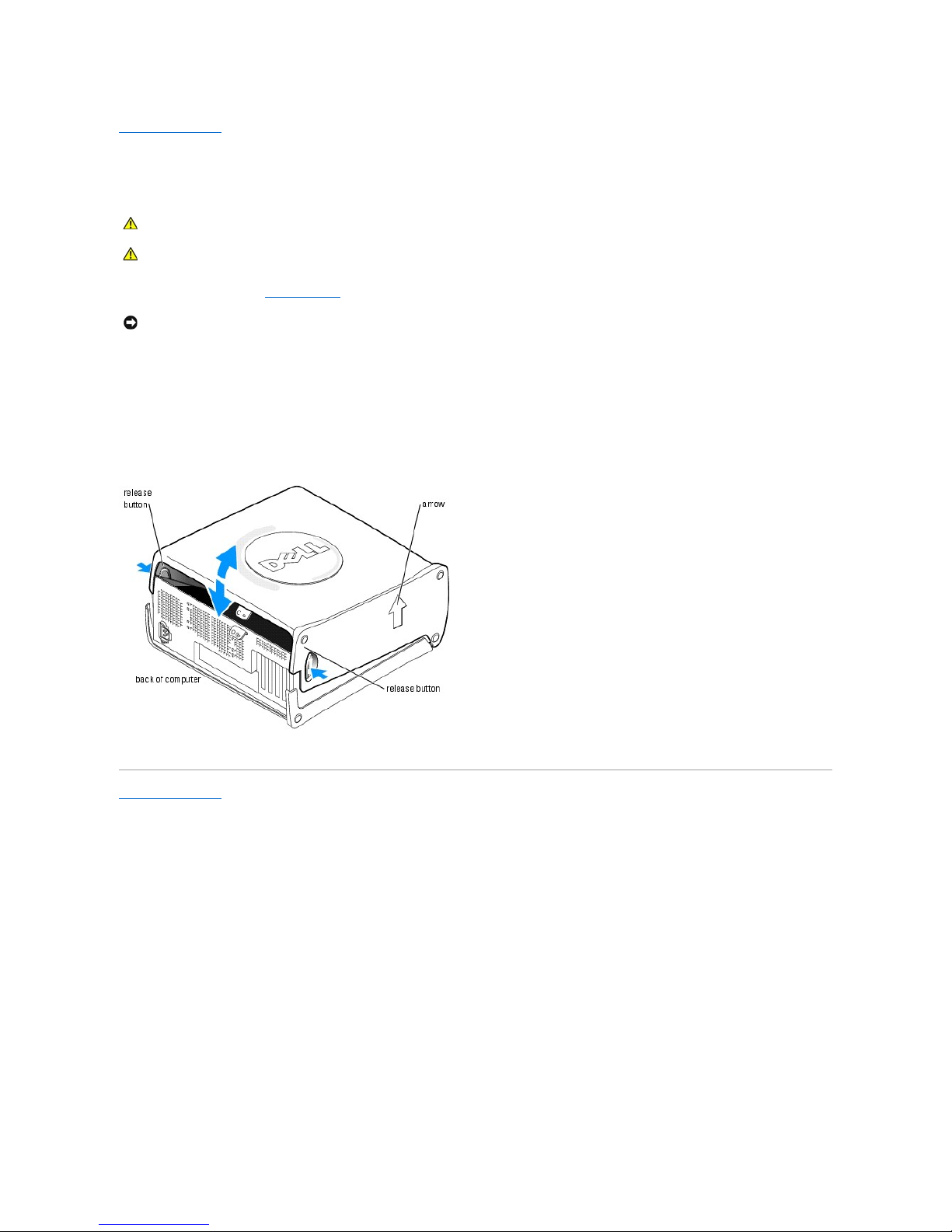

Opening the Computer Cover
Dell™Dimension™8400ServiceManual



1. Follow the procedures in "Before You Begin."

2. Lay the computer on its side so that the arrow on the bottom of the computer points up.

3. Open the cover:
a. Facing the back of the computer, press the release button on the right side of the computer with one hand while pulling up on the top of the
cover with the other hand.
b. Press the release button on the left side of the computer with one hand while pulling up on the top of the cover with the other hand.
c. Hold the bottom of the computer with one hand, and then pull open the cover with the other hand.
Back to Contents Page

CAUTION: Before you begin any of the procedures in this section, follow the safety instructions located in the Product Information Guide.
CAUTION: To guard against electrical shock, always unplug your computer from the electrical outlet before opening the cover.
NOTICE: Ensure that sufficient space exists to support the open cover—at least 30 cm (1 ft) of desk top space.

Back to Contents Page
Closing the Computer Cover
Dell™Dimension™8400ServiceManual


1. Ensure that all cables are connected, and fold cables out of the way.
Gently pull the power cables toward you so that they do not get caught underneath the drives.

2. Ensure that no tools or extra parts are left inside the computer.

3. Close the cover:
a. Pivot the cover down.
b. Press down on the right side of the cover until it closes.
c. Press down on the left side of the cover until it closes.
d. Ensure that both sides of the cover are locked. If not, repeat all of step3.

4. Connect your computer and devices to electrical outlets, and turn them on.
Back to Contents Page

CAUTION: Before you begin any of the procedures in this section, follow the safety instructions located in the Product Information Guide.
NOTICE: To connect a network cable, first plug the cable into the network device and then plug it into the computer.

Back to Contents Page
Removing and Installing Parts
Dell™Dimension™8400ServiceManual
Memory
Cards
Drives
Hard Drive
Front-Panel Inserts
Floppy Drive
CD/DVD Drive
Airflow Shroud
Processor
System Board
Power Supply
Battery
Memory
You can increase your computer memory by installing memory modules on the system board.
Your computer supports DDR2 memory. For additional information on the type of memory supported by your computer, see "Memory".

DDR2 Memory Overview
DDR2 memory modules should be installed in pairs of matched memory size, speed, and technology. If the DDR2 memory modules are not installed in matched
pairs, the computer will continue to operate, but with a slight reduction in performance. See the label on the upper-right corner of the module to determine the
module's capacity.
The recommended memory configurations are:
¡A pair of matched memory modules installed in DIMM connectors 1 and 2
or
¡A pair of matched memory modules installed in DIMM connectors 1 and 2 and another matched pair installed in DIMM connectors 3 and 4
lIf you install mixed pairs of DDR2 400-MHz (PC2-3200) and DDR2 533-MHz (PC2-4200) memory, the modules function at the slowest speed installed.
Similarly, if you install memory modules with mixed CAS Latency (CL) rates, the modules function at the speed and CAS latency capabilities of the
slowest DIMM.
lBe sure to install a single memory module in DIMM connector 1, the connector closest to the processor, before you install modules in the other
connectors.
NOTE: Always install DDR2 memory modules in the order indicated on the system board.
NOTICE: Do not install ECC memory modules.


Addressing Memory With 4-GB Configurations
Your computer supports a maximum of 4 GB of memory when you use four 1-GB DIMMs. Current operating systems, such as Microsoft®Windows®XP, can
only use a maximum of 4 GB of address space; however, the amount of memory available to the operating system is less than 4 GB. Certain components
within the computer require address space in the 4-GB range. Any address space reserved for these components cannot be used by computer memory.

Installing Memory


1. Follow the procedures in "Before You Begin."

2. Lay the computer on its side so that the system board is on the bottom of the inside of the computer.

3. Press out the securing clip at each end of the memory module connector.

4. Align the notch on the bottom of the module with the crossbar in the connector.
NOTE: Memory purchased from Dell is covered under your computer warranty.
NOTICE: If you remove your original memory modules from the computer during a memory upgrade, keep them separate from any new modules that
you may have, even if you purchased the new modules from Dell. If possible, do not pair an original memory module with a new memory module.
Otherwise, your computer may not start properly. You should install your original memory modules in pairs either in DIMM connectors 1 and 2 or DIMM
connectors 3 and 4.
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions located in the Product Information Guide.
NOTICE: To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of your
computer's electronic components. You can do so by touching an unpainted metal surface on the computer chassis.


5. Insert the module into the connector until the module snaps into position.
If you insert the module correctly, the securing clips snap into the cutouts at each end of the module.

6. Close the computer cover.

7. Connect your computer and devices to electrical outlets, and turn them on.

8. Right-click the My Computer icon and click Properties.

9. Click the General tab.

10. To verify that the memory is installed correctly, check the amount of memory (RAM) listed.

Removing Memory


1. Follow the procedures in "Before You Begin."

2. Press out the securing clip at each end of the memory module connector.

3. Grasp the module and pull up.
If the module is difficult to remove, gently ease the module back and forth to remove it from the connector.
Cards

YourDell™computerprovidesthefollowingslotsforPCIandPCIExpresscards:
lThree PCI card slots
lOne PCI Express x16 card slot
lOne PCI Express x1 card slot

PCI Cards
NOTICE: To avoid damage to the memory module, press the module straight down into the connector while you apply equal force to each end of the
module.
NOTICE: To connect a network cable, first plug the cable into the network device and then plug it into the computer.
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions located in the Product Information Guide.
NOTICE: To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of your
computer's electronic components. You can do so by touching an unpainted metal surface on the computer chassis.
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions located in the Product Information Guide.
NOTICE: To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of your
computer's electronic components. You can do so by touching an unpainted metal surface on the computer chassis.

If you are installing or replacing a card, follow the procedures in the next section. If you are removing but not replacing a PCI card, see "Removing a PCI Card."
If you are replacing a card, remove the current driver for the card from the operating system.
If you are installing or replacing a PCI Express card, see "Installing a PCI Express Card."


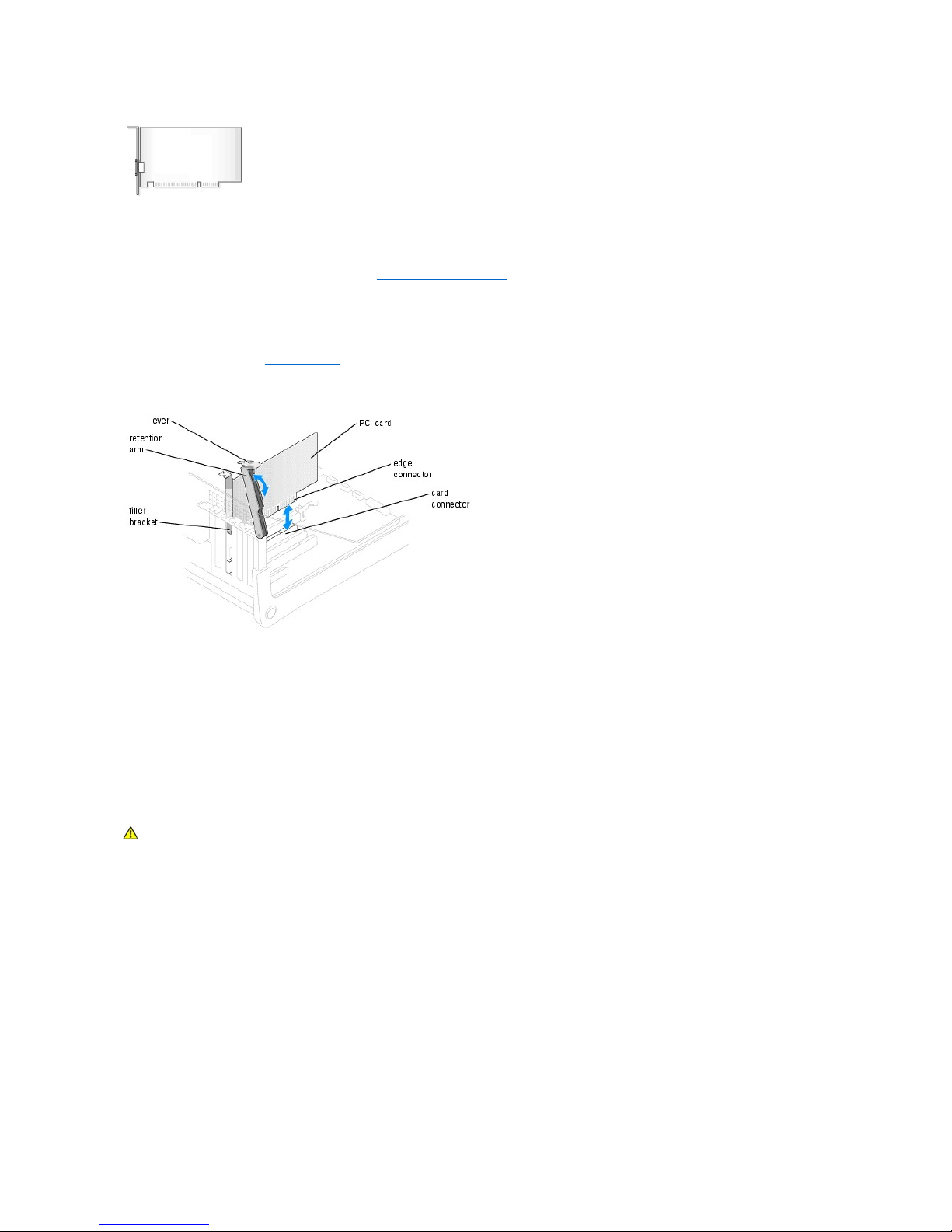

Installing a PCI Card

1. Follow the procedures in "Before You Begin."

2. Press the lever on the card retention arm and raise the retention arm.

3. If you are installing a new card, remove the filler bracket to create a card-slot opening. Then continue with step5.

4. If you are replacing a card that is already installed in the computer, remove the card.
If necessary, disconnect any cables connected to the card. Grasp the card by its top corners, and ease it out of its connector.

5. Prepare the card for installation.
See the documentation that came with the card for information on configuring the card, making internal connections, or otherwise customizing it for your
computer.


6. Place the card in the connector and press down firmly. Ensure that the card is fully seated in the slot.
CAUTION: Some network adapters automatically start the computer when they are connected to a network. To guard against electrical shock, be
sure to unplug your computer from its electrical outlet before installing any cards.



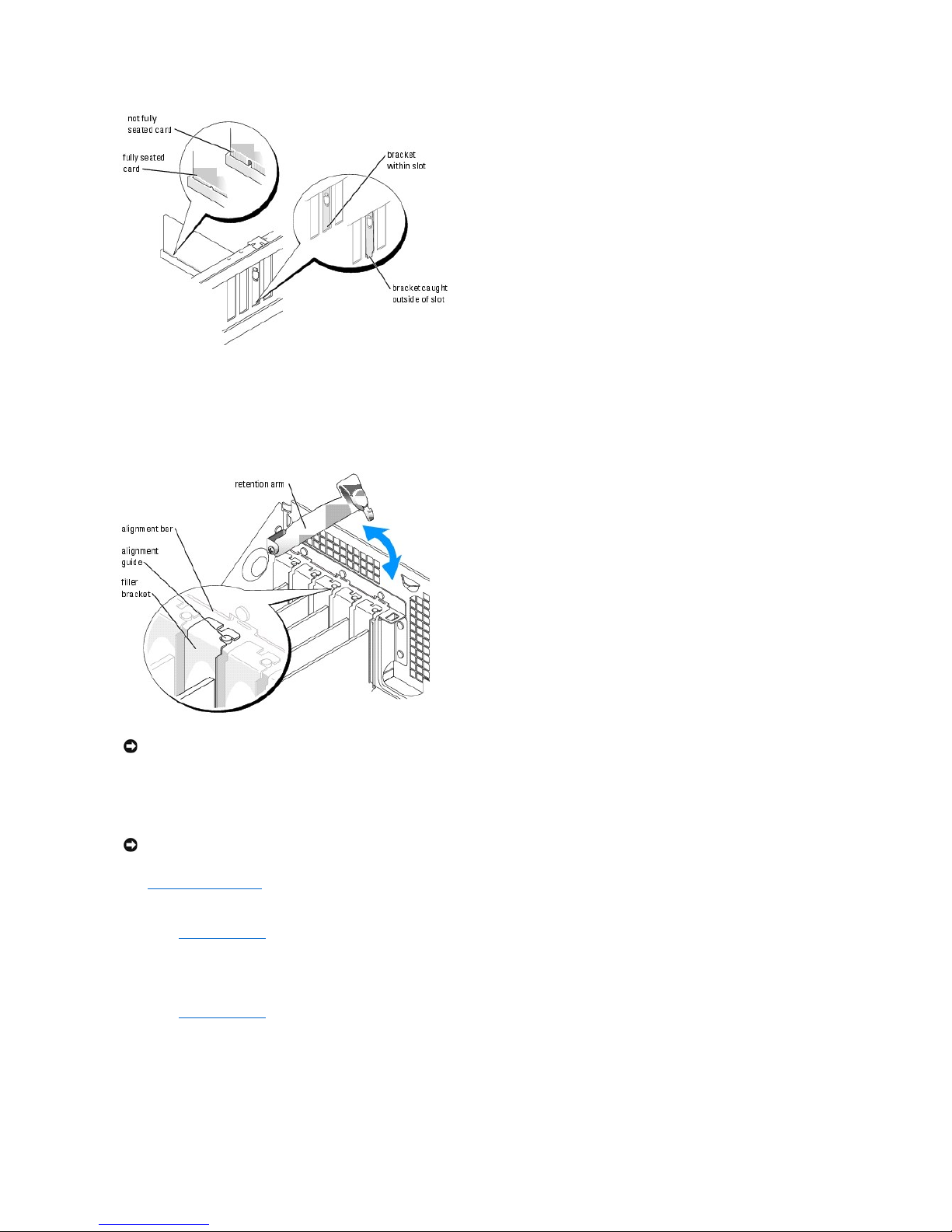

7. Before you lower the retention arm, ensure that:
lThe tops of all cards and filler brackets are flush with the alignment bar.
lThe notch in the top of the card or filler bracket fits around the alignment guide.

8. Press the retention arm into place, securing the card(s) in the computer.

9. Connect any cables that should be attached to the card.
See the documentation for the card for information about the card's cable connections.

10. Close the computer cover, reconnect the computer and devices to electrical outlets, and then turn them on.

11. If you installed a sound card:
a. Enter system setup, select Audio Controller, and then change the setting to Off.
b. Connect external audio devices to the sound card's connectors. Do not connect external audio devices to the microphone, speaker/headphone,
or line-in connectors on the back panel.

12. If you installed an add-in network adapter and want to disable the integrated network adapter:
a. Enter system setup, select Network Controller,and then change the setting to Off.
b. Connect the network cable to the add-in network adapter's connectors. Do not connect the network cable to the integrated connector on the
back panel.

13. Install any drivers required for the card as described in the card documentation.

NOTICE: Do not route card cables over or behind the cards. Cables routed over the cards can prevent the computer cover from closing properly or
cause damage to the equipment.
NOTICE: To connect a network cable, first plug the cable into the network device and then plug it into the computer.

Removing a PCI Card

1. Follow the procedures in "Before You Begin."

2. Press the lever on the card retention arm and raise the retention arm.

3. If necessary, disconnect any cables connected to the card.

4. Grasp the card by its top corners, and ease it out of its connector.

5. If you are removing the card permanently, install a filler bracket in the empty card-slot opening.
If you need a filler bracket, contact Dell.

6. Lower the retention arm and press it into place, securing the card(s) in the computer.

7. Close the computer cover, reconnect the computer and devices to electrical outlets, and then turn them on.

8. Remove the card's driver from the operating system.

9. If you removed a sound card:
a. Enter system setup, select Audio Controller, and then change the setting to On.
b. Connect external audio devices to the audio connectors on the back panel of the computer.

10. If you removed an add-in network connector:
a. Enter system setup, select Network Controller, and then change the setting to On.
b. Connect the network cable to the integrated connector on the back panel of the computer.

PCI Express Cards
Your computer supports one PCI Express x16 card and one PCI Express x1 card.
If a card fan is not present in your computer and you are installing a graphics card that runs at 75 W or higher, contact Dell to find out how to purchase a card
fan.
If you are installing or replacing a PCI Express card, follow the procedures in the next section. If you are removing but not replacing a card, see "Removing a
PCI Express Card."
If you are replacing a card, remove the current driver for the card from the operating system.
If you are installing or replacing a PCI card, see "Installing a PCI Card."

Installing a PCI Express Card

1. Follow the procedures in "Before You Begin."

NOTE: Installing filler brackets over empty card-slot openings is necessary to maintain FCC certification of the computer. The brackets also keep dust
and dirt out of your computer.
NOTICE: To connect a network cable, first plug the cable into the network device and then plug it into the computer.
NOTICE: PCI Express graphics cards that run higher than 75 W may require an additional cooling fan. Otherwise, your card could overheat and damage
your computer.

2. Press the lever on the card retention arm and raise the retention arm.

3. If you are installing a new card, remove the filler bracket to create a card-slot opening. Then continue with step5.

4. If you are replacing a card that is already installed in the computer, remove the card.
If necessary, disconnect any cables connected to the card. If your card includes a retention mechanism, remove the top of the retention mechanism by
pressing the tab and pulling up on the top. Gently pull the securing tab, grasp the card by its top corners, and then ease it out of its connector.

5. Prepare the card for installation.
See the documentation that came with the card for information on configuring the card, making internal connections, or otherwise customizing it for your
computer.


6. If you are installing the card into the x16 card connector, position the card so the securing slot is aligned with the securing tab, and gently pull the
securing tab.

7. Place the card in the connector and press down firmly. Ensure that the card is fully seated in the slot
CAUTION: Some network adapters automatically start the computer when they are connected to a network. To guard against electrical shock, be
sure to unplug your computer from its electrical outlet before installing any cards.


8. If you replaced a card that was already installed in the computer and you removed the top of the retention mechanism, you may reinstall the top.

9. Before you lower the retention arm, ensure that:
lThe tops of all cards and filler brackets are flush with the alignment bar.
lThe notch in the top of the card or filler bracket fits around the alignment guide.

10. Press the retention arm into place, securing the card(s) in the computer.
If a card fan is not present in your computer and you are installing a graphics card that runs higher than 75 W, contact Dell to find out how to purchase a card
fan.

11. If you installed a PCI Express graphics card that runs at 75 W or higher, install the card fan. Contact Dell to find out how to purchase a card fan.

12. Connect any cables that should be attached to the card.
See the documentation that came with the card for information about the card's cable connections.

13. Close the computer cover, reconnect the computer and devices to electrical outlets, and then turn them on.

14. If you installed a sound card:
a. Enter system setup, select Audio Controller, and then change the setting to Off.
b. Connect external audio devices to the sound card's connectors. Do not connect external audio devices to the microphone, speaker/headphone,
or line-in connectors on the back panel.

15. If you installed an add-in network adapter and want to disable the integrated network adapter:
a. Enter system setup, select Network Controller,and then change the setting to Off.
NOTICE: Do not route card cables over or behind the cards. Cables routed over the cards can prevent the computer cover from closing properly or
cause damage to the equipment.
NOTICE: To connect a network cable, first plug the cable into the network device and then plug it into the computer.

b. Connect the network cable to the add-in network adapter's connectors. Do not connect the network cable to the integrated connector on the
back panel.

16. Install any drivers required for the card as described in the card documentation.

Removing a PCI Express Card

1. Follow the procedures in "Before You Begin."

2. Press the lever on the card retention arm and raise the retention arm.

3. If necessary, disconnect any cables connected to the card.

4. If your card includes a retention mechanism, remove the top of the retention mechanism by pressing the tab and pulling up on the top.

5. Gently pull back the securing tab, grasp the card by its top corners, and then ease it out of its connector.

6. If you are removing the card permanently, install a filler bracket in the empty card-slot opening.
If you need a filler bracket, contact Dell.

7. Lower the retention arm and press it into place, securing the card(s) in the computer.

8. Close the computer cover, reconnect the computer and devices to electrical outlets, and then turn them on.

9. Remove the card's driver from the operating system.

10. If you removed a sound card:
a. Enter system setup, select Audio Controller, and then change the setting to On.
b. Connect external audio devices to the audio connectors on the back panel of the computer.

11. If you removed an add-in network connector:
a. Enter system setup, select Network Controller, and then change the setting to On.
b. Connect the network cable to the integrated connector on the back panel of the computer.

12. Install any drivers required for the card as described in the card documentation.
Drives
Your computer supports a combination of these devices:
lUp to two hard drives
lOne optional floppy drive
lUp to two CD or DVD drives

General Installation Guidelines
Connect serial ATA hard drives and serial CD/DVD drives to the system board connectors labeled SATA-0, SATA-1, SATA-2, or SATA-3. Connect IDE CD/DVD
drives to the connector labeled PRI IDE.
When you connect two IDE devices to a single IDE interface cable and configure them for the cable select setting, the device attached to the last connector on
the interface cable is the primary or the boot device (drive 0), and the device attached to the middle connector on the interface cable is the secondary device
(drive 1). See the drive documentation in your upgrade kit for information on configuring devices for the cable select setting.

Connecting Drive Cables
NOTE: Installing filler brackets over empty card-slot openings is necessary to maintain FCC certification of the computer. The brackets also keep dust
and dirt out of your computer.
NOTICE: To connect a network cable, first plug the cable into the network device and then plug it into the computer.

When you install a drive, you connect two cables—a DC power cable and a data cable—to the back of the drive and to the system board. Some drives may
also have an audio connector; one end of the audio cable attaches to the drive connector and the other end attaches to the system board.


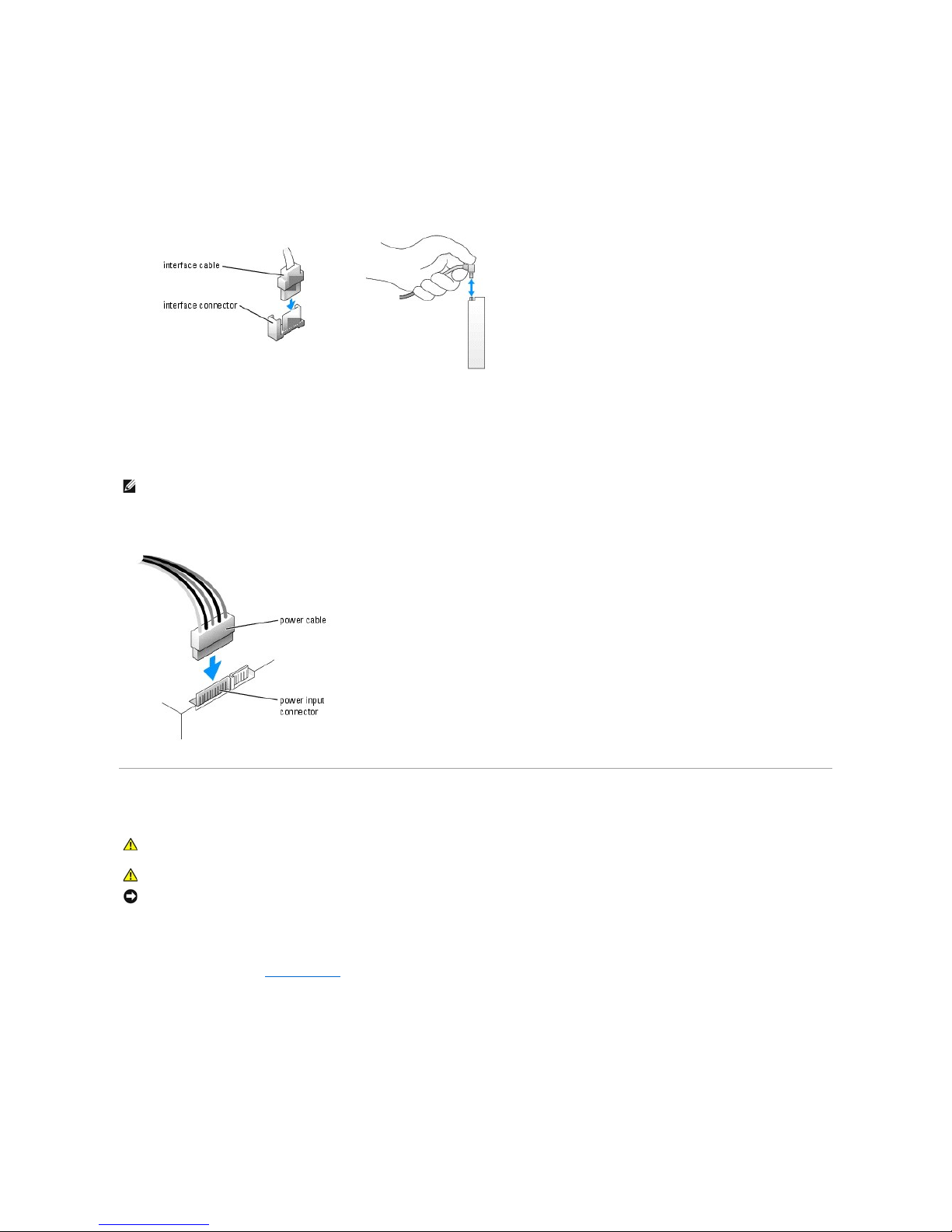

Drive Interface Connectors
Serial ATA Connector
Most interface connectors are keyed for correct insertion; that is, a notch or a missing pin on one connector matches a tab or a filled-in hole on the other
connector.
When you connect an IDE cable, ensure that you align the colored stripe with the pin 1 connector. When you disconnect an IDE cable, grasp the colored pull
tab and pull until the connector detaches.
When you connect and disconnect a serial ATA cable, hold the cable by the connector at each end.

Power Cable Connector

Hard Drive 


1. If you are replacing a hard drive that contains data you want to keep, back up your files before you begin to remove the hard drive.

2. Follow the procedures in "Before You Begin."

Removing a Hard Drive

1. Disconnect the power and data cable from the drive and from the system board.
NOTE: The system board serial ATA connector may have an attached cover or shroud.
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions located in the Product Information Guide.
CAUTION: To guard against electrical shock, always unplug your computer from the electrical outlet before opening the cover.
NOTICE: To avoid damage to the drive, do not set it on a hard surface. Instead, set the drive on a surface, such as a foam pad, that will sufficiently
cushion it.


2. Press in on the tabs on each side of the drive and slide the drive up and out.

Installing a Hard Drive

1. Unpack the replacement hard drive, and prepare it for installation.

2. Check the documentation for the drive to verify that it is configured for your computer.

3. If your replacement hard drive does not have the bracket rails attached, remove the rails from the old drive by removing the two screws that secure
each rail to the drive. Attach the bracket rails to the new drive by aligning the screw holes on the drive with the screw holes on the bracket rails and
then inserting and tightening all four screws (two screws on each rail).

4. Install the hard drive into the computer by gently sliding the drive into place until you hear it securely click.

5. Connect the power and data cable to the drive and to the system board.
