Dell™Inspiron™535/537/545/546ServiceManual
Models DCME and DCMF
Notes, Cautions, and Warnings
Information in this document is subject to change without notice.
©2009DellInc.Allrightsreserved.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell, the DELL logo, and Inspiron are trademarks of Dell Inc.; Microsoft and Windows are either trademarks or registered trademarks of Microsoft
Corporation in the United States and/or other countries.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any
proprietary interest in trademarks and trade names other than its own.
February2009Rev.A00
Technical Overview
Before You Begin
Computer Cover
Front Bezel
Memory
PCI and PCI Express Cards
Drives
Fans
Front I/O Panel
Processor
System Board
Power Supply
Battery
System Setup
NOTE: A NOTE indicates important information that helps you make better use of your computer.
CAUTION: A CAUTION indicates potential damage to hardware or loss of data if instructions are not followed.
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Back to Contents Page
Before You Begin
Dell™Inspiron™535/537/545/546ServiceManual
Technical Specifications
Recommended Tools
Turning Off Your Computer
Safety Instructions
This chapter provides procedures for removing and installing the components in your computer. Unless otherwise noted, each procedure assumes that the
following conditions exist:
lYou have performed the steps in Turning Off Your Computer and Safety Instructions.
lYou have read the safety information that ships with your computer.
lA component can be replaced or—if purchased separately—installed by performing the removal procedure in reverse order.
Technical Specifications
For information on technical specifications of your computer, see the Setup Guide that shipped with your computer or see the Dell Support website at
support.dell.com.
Recommended Tools
The procedures in this document may require the following tools:
lSmall Phillips screwdriver
lSmall flat-blade screwdriver
Turning Off Your Computer

1. Shut down the operating system.

2. Ensure that the computer and all attached devices are turned off. If your computer and attached devices did not automatically turn off when you shut
down your operating system, press and hold the power button for about 4 seconds to turn them off.
Safety Instructions
Use the following safety guidelines to help protect your computer from potential damage and to help to ensure your own personal safety.

1. Ensure that the work surface is flat and clean to prevent the computer cover from being scratched.

2. Turn off your computer (see Turning Off Your Computer).

3. Disconnect all telephone or network cables from the computer.

CAUTION: To avoid losing data, save and close all open files and exit all open programs before you turn off your computer.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell is
not covered by your warranty.
CAUTION: When you disconnect a cable, pull on its connector or on its pull-tab, not on the cable itself. Some cables have connectors with locking
tabs; if you are disconnecting this type of cable, press in on the locking tabs before you disconnect the cable. As you pull connectors apart, keep
them evenly aligned to avoid bending any connector pins. Also, before you connect a cable, ensure that both connectors are correctly oriented
and aligned.
CAUTION: To avoid damaging the computer, perform the following steps before you begin working inside the computer.
CAUTION: To disconnect a network cable, first unplug the cable from your computer and then unplug the cable from the network device.

4. Disconnect your computer and all attached devices from their electrical outlets.

5. Press and hold the power button while the system is unplugged to ground the system board.
Back to Contents Page

CAUTION: Before touching anything inside your computer, ground yourself by touching an unpainted metal surface, such as the metal at the back
of the computer. While you work, periodically touch an unpainted metal surface to dissipate static electricity, which could harm internal
components.

Back to Contents Page
Front Bezel
Dell™Inspiron™535/537/545/546ServiceManual
Removing the Front Bezel
Replacing the Front Bezel
Removing the Front Bezel

1. Follow the procedures in Before You Begin.

2. Remove the computer cover (see Removing the Computer Cover).

3. Grasp and lift the bezel grips one at a time to release it from the front panel.

4. Rotate and pull the bezel away from the front of the computer to release the bezel clamps from the bezel inserts.

5. Set aside the bezel in a secure location.
Replacing the Front Bezel

1. Align and insert the bezel clamps in the bezel inserts.

2. Rotate the bezel towards the computer until the bezel grips snap into place.

3. Replace the computer cover (see Replacing the Computer Cover).
Back to Contents Page

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
WARNING: To guard against electrical shock, always unplug your computer from the electrical outlet before removing the cover.
WARNING: Do not operate your equipment with any cover(s) (including computer covers, bezels, filler brackets, front-panel inserts, etc.)
removed.
1
bezel
2
bezel grips (3)
3
bezel clamps (3)
4
bezel inserts (3)

Back to Contents Page
PCI and PCI Express Cards
Dell™Inspiron™535/537/545/546ServiceManual
Removing the Card Retention Bracket
Replacing the Card Retention Bracket
Removing PCI and PCI Express Cards
Replacing PCI and PCI Express Cards
Configuring Your Computer After Removing or Installing a PCI/PCI Express Card
Removing the Card Retention Bracket

1. Follow the procedures in Before You Begin.

2. Remove the computer cover (see Removing the Computer Cover).

3. Remove the screw holding the card retention bracket.

4. Lift the card retention bracket and set it aside in a secure place.
Inspiron™535/537
Inspiron 545/546
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
WARNING: To guard against electrical shock, always unplug your computer from the electrical outlet before removing the cover.
WARNING: Do not operate your equipment with any cover(s) (including computer covers, bezels, filler brackets, front-panel inserts, etc.)
removed.
1
screw
2
card retention bracket

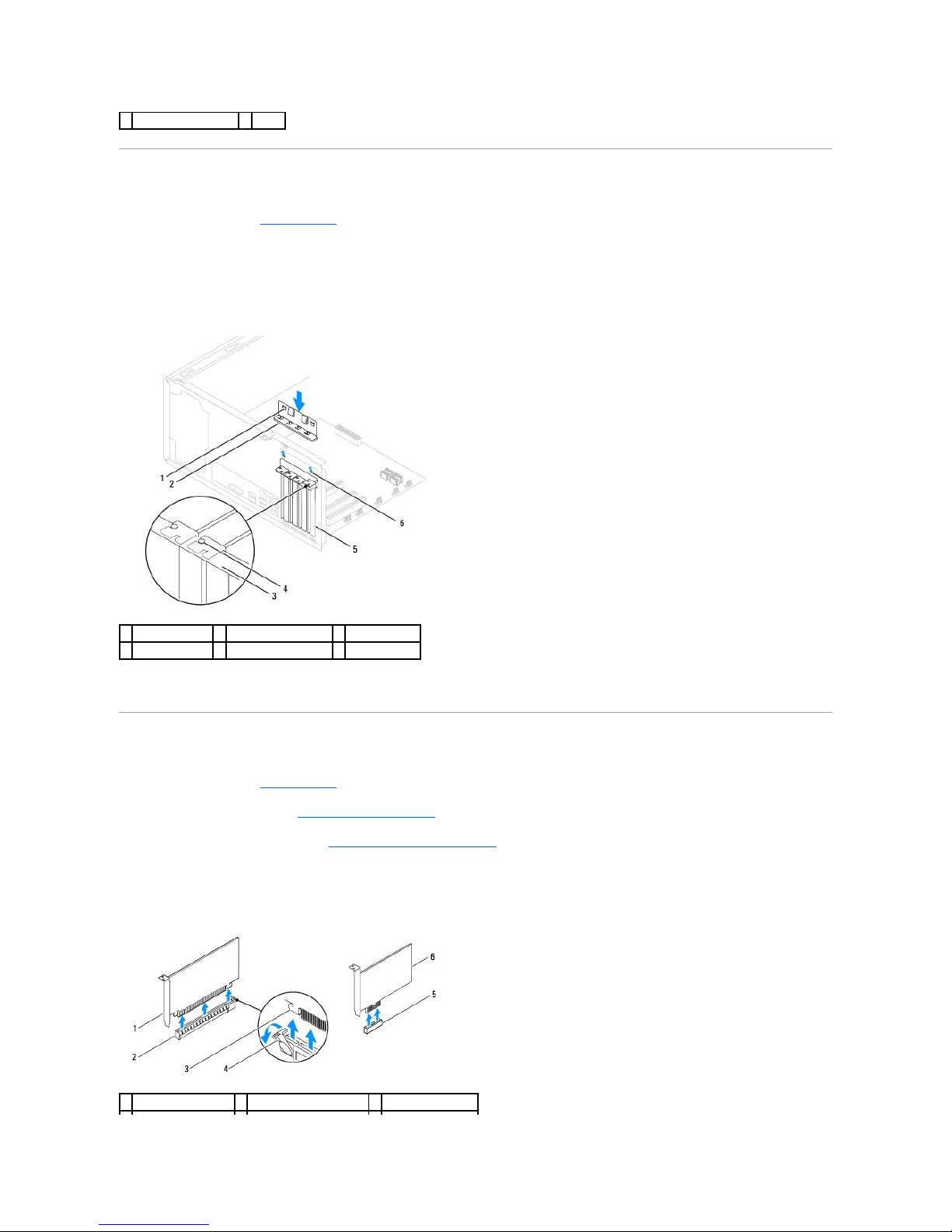

Replacing the Card Retention Bracket

1. Follow the procedures in Before You Begin.

2. Replace the card retention bracket, ensuring that:
lThe guide clamp is aligned with the guide notch.
lThe tops of all cards and filler brackets are flush with the alignment bar.
lThe notch in the top of the card or filler bracket fits around the alignment guide.

3. Fix the card retention bracket by replacing the screw.
Removing PCI and PCI Express Cards

1. Follow the procedures in Before You Begin.

2. Remove the computer cover (see Removing the Computer Cover).

3. Remove the card retention bracket (see Removing the Card Retention Bracket).

4. If necessary, disconnect any cables connected to the card.

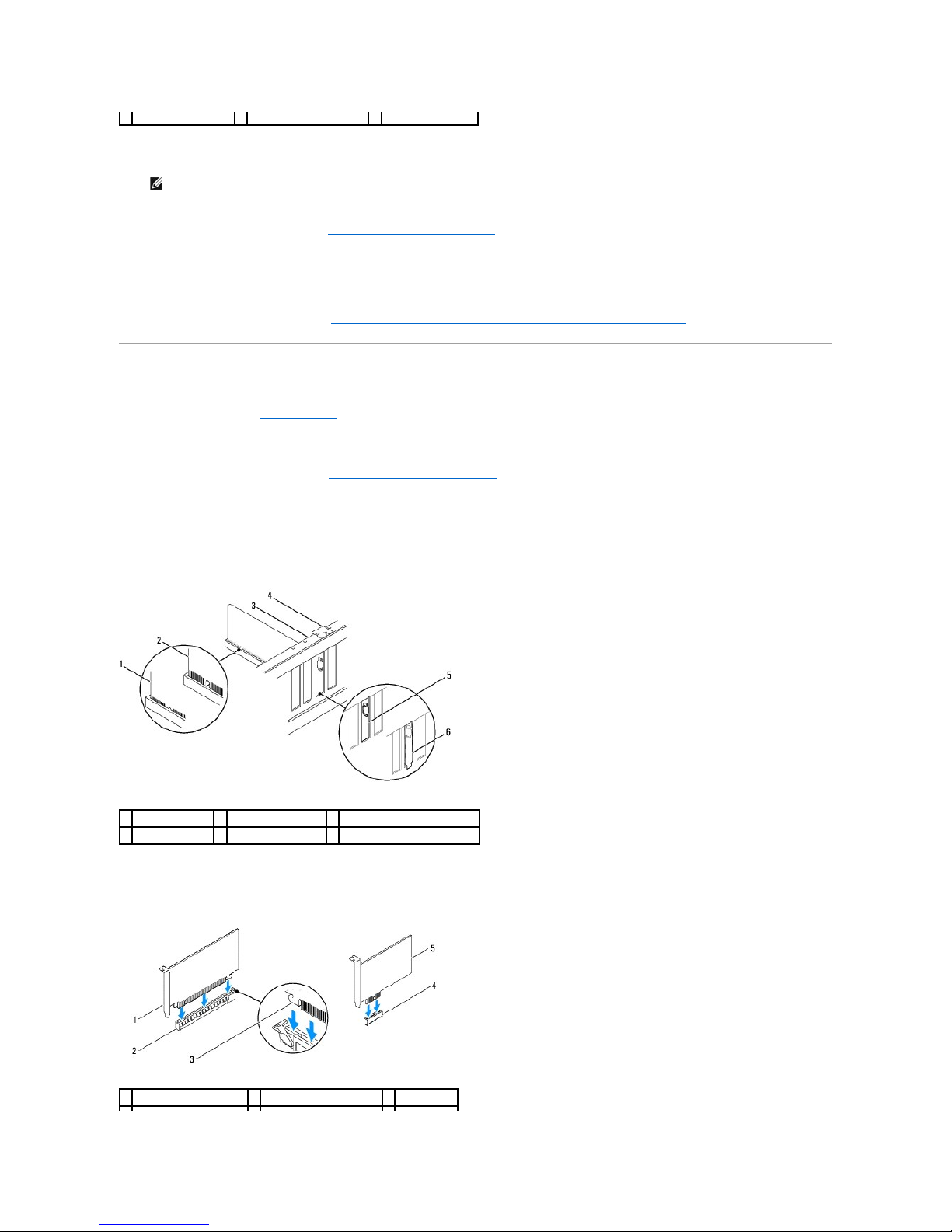

lFor a PCI or PCI Express x1 card, grasp the card by its top corners, and ease it out of its connector.
lFor a PCI Express x16 card, press down on the retention mechanism, grasp the card by its top corners, and then ease it out of its connector.
1
card retention bracket
2
screw
1
guide clamps (2)
2
card retention bracket
3
alignment bar
4
alignment guide
5
filler bracket
6
guide notch (2)
1
PCI Express x16 card
2
PCI Express x16 card slot
3
securing tab


5. If you are removing the card permanently, install a filler bracket in the empty card-slot opening.

6. Replace the card retention bracket (see Replacing the Card Retention Bracket).

7. Replace the computer cover, reconnect the computer and devices to electrical outlets, and then turn them on.

8. Remove the card's driver from the operating system.

9. To complete the removal procedure, see Configuring Your Computer After Removing or Installing a PCI/PCI Express Card.
Replacing PCI and PCI Express Cards

1. Follow the procedures in Before You Begin.

2. Remove the computer cover (see Removing the Computer Cover).

3. Remove the card retention bracket (see Removing the Card Retention Bracket).

4. Prepare the card for installation.
See the documentation that came with the card for information on configuring the card, making internal connections, or otherwise customizing it for your
computer.

5. Place the card in the connector and press down firmly. Ensure that the card is fully seated in the slot.

6. If you are installing the PCI Express card into the x16 card connector, position the card so the securing slot is aligned with the securing tab.

7. Place the card in the connector and press down firmly. Ensure that the card is fully seated in the slot.
4
retention mechanism
5
PCI Express x1 card slot
6
PCI Express x1 card
NOTE: Installing filler brackets over empty card-slot openings is necessary to maintain FCC certification of the computer. The brackets also keep
dust and dirt out of your computer.
1
fully-seated card
2
not fully-seated card
3
alignment bar
4
alignment guide
5
bracket within slot
6
bracket caught outside of slot
1
PCI Express x16 card
2
PCI Express x16 card slot
3
securing tab


8. Replace the card retention bracket (see Replacing the Card Retention Bracket).

9. Connect any cables that should be attached to the card.
See the documentation for the card for information about the card's cable connections.

10. Replace the computer cover, reconnect the computer and devices to electrical outlets, and then turn them on.

11. To complete the installation, see Configuring Your Computer After Removing or Installing a PCI/PCI Express Card.
Configuring Your Computer After Removing or Installing a PCI/PCI Express Card
Back to Contents Page

4
PCI Express x1 card slot
5
PCI Express x1 card


CAUTION: Do not route card cables over or behind the cards. Cables routed over the cards can prevent the computer cover from closing properly
or cause damage to the equipment.
NOTE: For information on location of external connectors, see the Setup Guide. For information on installing drivers and software for your card, see the
documentation that shipped with the card.

Installed
Removed
Sound
Card
1. Enter system setup (see
Entering System Setup)
2. Go to Onboard Audio
Controller and then
change the setting to
Disabled.
3. Connect the external
audio devices to the
sound card's connectors.
1. Enter system setup (see
Entering System Setup)
2. Go to Onboard Audio
Controller and then
change the setting to
Enabled.
3. Connect the external
audio devices to the
computer's back panel
connectors.
Network
Card
1. Enter system setup (see
Entering System Setup)
2. Go to Onboard LAN
Controller and then
change the setting to
Disabled.
3. Connect the network
cable to the network
card's connector.
1. Enter system setup (see
Entering System Setup)
2. Go to Onboard LAN
Controller and then
change the setting to
Enabled.
3. Connect the network
cable to the integrated
network connector.

Back to Contents Page

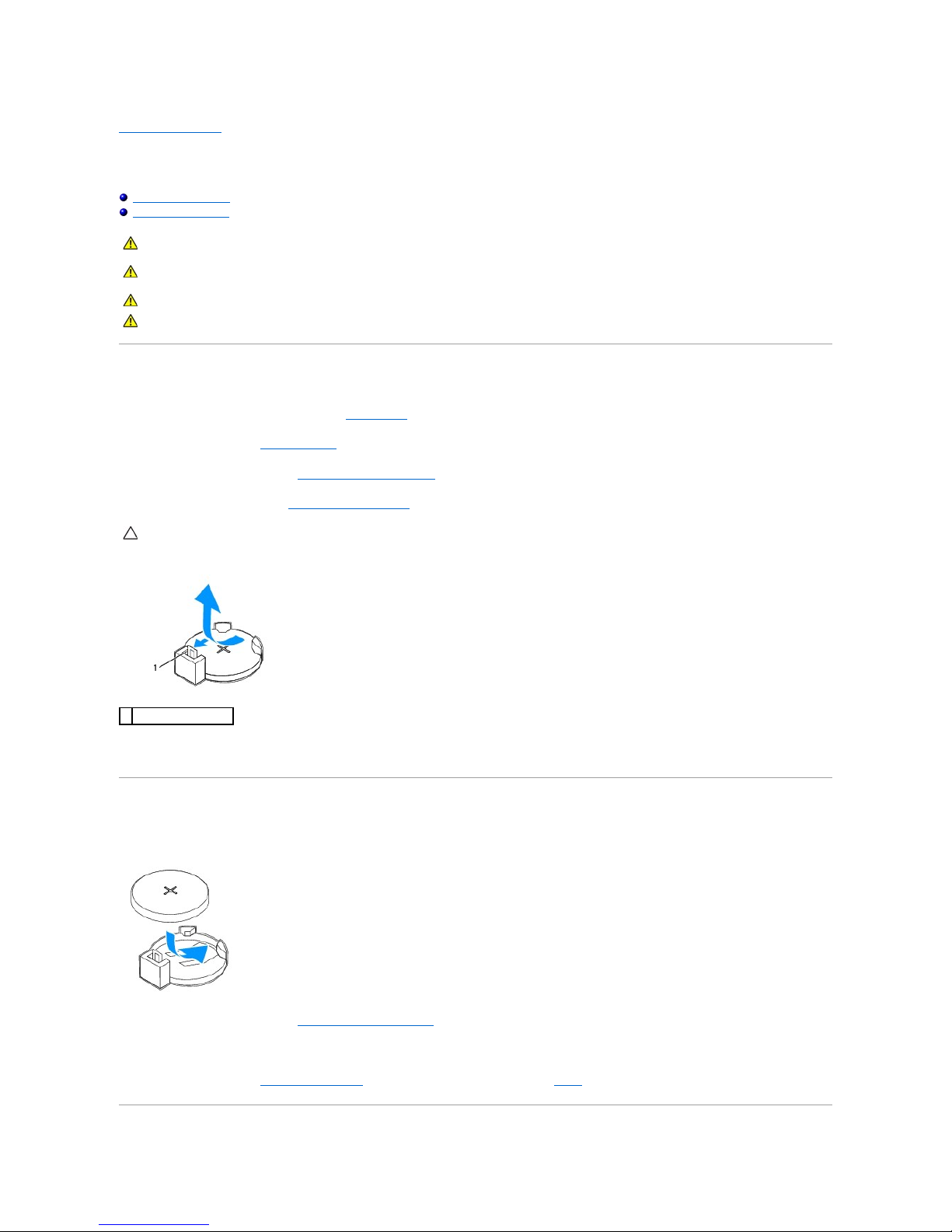

Battery
Dell™Inspiron™535/537/545/546ServiceManual
Removing the Battery
Replacing the Battery
Removing the Battery

1. Record all the screens in system setup (see System Setup) so that you can restore the correct settings after the new battery has been installed.

2. Follow the procedures in Before You Begin.

3. Remove the computer cover (see Removing the Computer Cover).

4. Locate the battery socket (see System Board Components).

5. Press the battery release lever to remove the battery.
Replacing the Battery

1. Insert the new battery (CR2032) into the socket with the side labeled "+" facing up, and press the battery into place.

2. Replace the computer cover (see Replacing the Computer Cover).

3. Connect your computer and devices to electrical outlets, and then turn them on.

4. Enter system setup (see Entering System Setup) and restore the settings you recorded in step 1.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
WARNING: A new battery can explode if it is incorrectly installed. Replace the battery only with the same or equivalent type recommended by the
manufacturer. Discard used batteries according to the manufacturer's instructions.
WARNING: To guard against electrical shock, always unplug your computer from the electrical outlet before removing the cover.
WARNING: Do not operate your equipment with any cover(s) (including computer covers, bezels, filler brackets, front-panel inserts, etc.)
removed.
CAUTION: If you pry the battery out of its socket with a blunt object, be careful not to touch the system board with the object. Ensure that the
object is inserted between the battery and the socket before you attempt to pry out the battery. Otherwise, you may damage the system board by
prying off the socket or by breaking circuit traces on the system board.
1
battery release lever

Back to Contents Page


Back to Contents Page
Computer Cover
Dell™Inspiron™535/537/545/546ServiceManual
Removing the Computer Cover
Replacing the Computer Cover

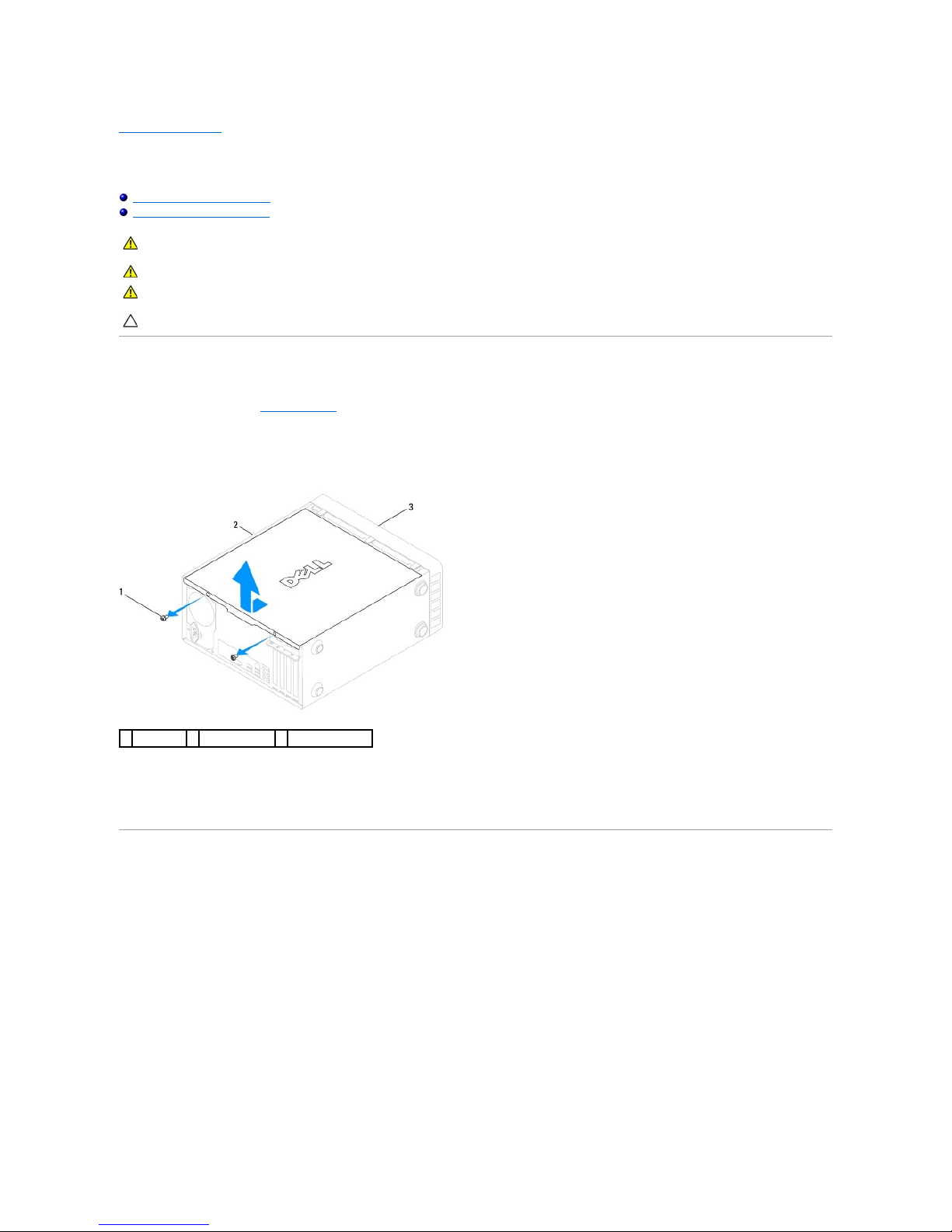

Removing the Computer Cover

1. Follow the procedures in Before You Begin.

2. Lay your computer on its side with the computer cover facing up.

3. Remove the two screws securing the cover, using a screwdriver.

4. Release the computer cover by pulling it away from the front of the computer and lifting it up.

5. Set the cover aside in a secure location.
Replacing the Computer Cover

1. Ensure that all cables are connected, and fold cables out of the way.

2. Ensure that no tools or extra parts are left inside the computer.

3. Align the tabs at the bottom of the computer cover with the slots located along the edge of the computer.

4. Press the computer cover down and slide it towards the front of the computer until you feel a click or feel the computer cover securely installed.

5. Ensure that the cover is seated correctly.

6. Replace the two screws that secure the computer cover, using a screwdriver.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
WARNING: To guard against electrical shock, always unplug your computer from the electrical outlet before removing the cover.
WARNING: Do not operate your equipment with any cover(s) (including computer covers, bezels, filler brackets, front-panel inserts, etc.)
removed.
CAUTION: Ensure that sufficient space exists to support the system with the cover removed—at least 30 cm (1 ft.) of desk top space.
1
screws (2)
2
computer cover
3
front of computer


7. Place the computer in an upright position.
Back to Contents Page

1
screws (2)
2
computer cover
3
front of the computer
4
slot
CAUTION: Ensure that none of the system air-vents are blocked. Blocking them would cause serious thermal problems.

Back to Contents Page
Processor
Dell™Inspiron™535/537/545/546ServiceManual

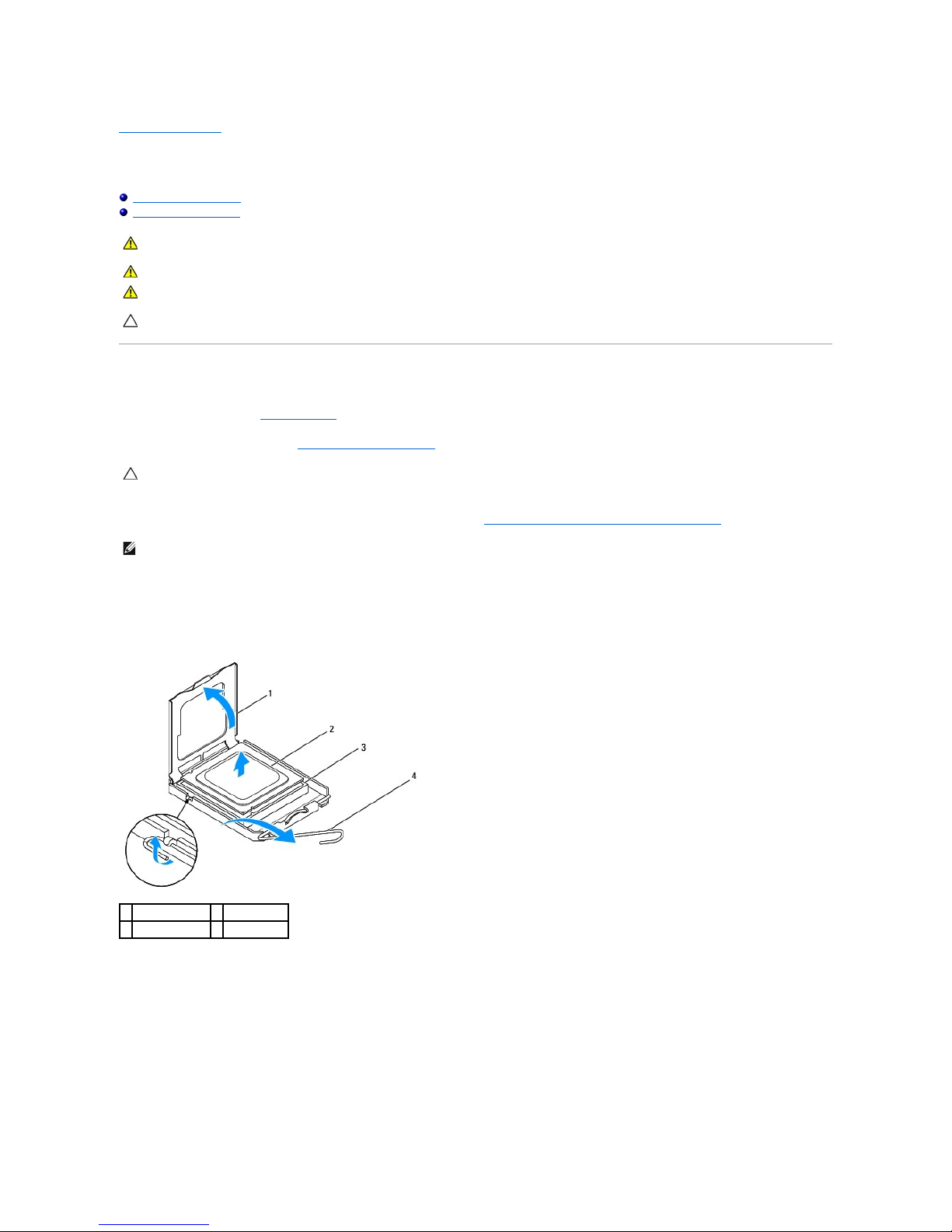

Removing the Processor
Replacing the Processor
Removing the Processor

1. Follow the procedures in Before You Begin.

2. Remove the computer cover (see Removing the Computer Cover).

3. Remove the processor fan and heat sink assembly from the computer (see Removing the Processor Fan and Heat Sink Assembly).

4. Press and push the release lever down and out to release it from the tab that secures it.

5. Open the processor cover, if applicable.
Inspiron™535/537/545
Inspiron 546
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
WARNING: To guard against electrical shock, always unplug your computer from the electrical outlet before removing the cover.
WARNING: Do not operate your equipment with any cover(s) (including computer covers, bezels, filler brackets, front-panel inserts, etc.)
removed.
CAUTION: Do not perform the following steps unless you are familiar with hardware removal and replacement. Performing these steps
incorrectly could damage your system board. For technical service, see the Setup Guide.
CAUTION: Despite having a plastic shield, the heat sink assembly may be very hot during normal operation. Be sure that it has had sufficient time
to cool before you touch it.
NOTE: Unless a new heat sink is required for the new processor, reuse the original heat sink assembly when you replace the processor.
1
processor cover
2
processor
3
socket
4
release lever


6. Gently lift the processor to remove it from the socket.
Leave the release lever extended in the release position so that the socket is ready for the new processor.
Replacing the Processor

1. Follow the procedures in Before You Begin.

2. Unpackthenewprocessor,beingcarefulnottotouchtheundersideoftheprocessor.

3. If the release lever on the socket is not fully extended, move it to that position.
Inspiron 535/537/545
1
processor
2
release lever
3
socket


CAUTION: When removing the processor, do not touch any of the pins inside the socket or allow any objects to fall on the pins in the socket.
CAUTION: Ground yourself by touching an unpainted metal surface on the back of the computer.
CAUTION: When replacing the processor, do not touch any of the pins inside the socket or allow any objects to fall on the pins in the socket.
CAUTION: You must position the processor correctly in the socket to avoid permanent damage to the processor and the computer when you turn
on the computer.
1
front alignment notch
2
processor pin-1 indicator
3
rear alignment notch

Inspiron 546

4. For Inspiron 535/537/545, orient the front and rear alignment-notches on the processor with the front and rear alignment-notches on the socket.

5. Align the pin-1 corners of the processor and socket.

6. Set the processor lightly in the socket and ensure that the processor is positioned correctly.

7. When the processor is fully seated in the socket, close the processor cover, if applicable.
Ensure that the tab on the processor cover is positioned underneath the center cover latch on the socket.

8. Pivot the socket release lever back toward the socket, and snap it into place to secure the processor.

9. Clean the thermal grease from the bottom of the heat sink.

10. Apply the new thermal grease to the top of the processor.

11. Replace the processor fan/heat sink assembly (see Replacing the Processor Fan and Heat Sink Assembly).

12. Replace the computer cover (see Replacing the Computer Cover).
Back to Contents Page

4
processor cover
5
center cover latch
6
processor
7
socket
8
tab
9
release lever
1
socket
2
processor pin-1 indicator
3
processor
4
release lever
CAUTION: To avoid damage, ensure that the processor aligns properly with the socket, and do not use excessive force when you install the
processor.
CAUTION: Ensure that you apply new thermal grease. New thermal grease is critical for ensuring adequate thermal bonding, which is a
requirement for optimal processor operation.
CAUTION: Ensure that the processor fan/heat sink assembly is correctly seated and secure.

Back to Contents Page
Drives
Dell™Inspiron™535/537/545/546ServiceManual
Removing a Hard Drive
Replacing a Hard Drive
Removing a Media Card Reader
Replacing a Media Card Reader
Removing an Optical Drive
Replacing an Optical Drive
Removing a Hard Drive

1. Follow the procedures in Before You Begin.

2. Remove the computer cover (see Removing the Computer Cover).

3. Disconnect the power cable and the data cable from the hard drive.

4. Remove the four screws securing the hard drive.

5. Slide the drive out towards the back of the computer.

6. If removing the hard drive changes the drive configuration, ensure that you reflect these changes in system setup (see System Setup).

7. Replace the computer cover (see Replacing the Computer Cover).

8. Connect the computer and other devices to an electrical outlet.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
WARNING: To guard against electrical shock, always unplug your computer from the electrical outlet before removing the cover.
WARNING: Do not operate your equipment with any cover(s) (including computer covers, bezels, filler brackets, front-panel inserts, etc.)
removed.
CAUTION: If you are replacing a hard drive that contains data that you want to keep, back up your files before you begin this procedure.
NOTE: If you are not replacing the hard drive at this time, disconnect the other end of the data cable from the system board and set it aside. You
can use the data cable to install a hard drive at a later time.
NOTE: The location and number of SATA connectors may vary based on your computer model. For more information, see System Board
Components.
1
screws (4)
2
power cable
3
data cable
4
SATA connector (on the system board)
CAUTION: Ensure that you do not scratch the screw holes with the screwdriver as the hard disk circuit board assembly is exposed here.

Replacing a Hard Drive

1. Follow the procedures in Before You Begin.

2. Remove the computer cover (see Removing the Computer Cover).

3. Check the documentation for the drive to verify that it is configured for your computer.

4. Slide the hard drive into the hard drive bay.

5. Align and replace the four screws that secure the hard drive to the hard drive bay.

6. Connect the power and data cables to the hard drive.

7. Connect the data cable to the system board connector.

8. Check all cables to be certain that they are properly connected and firmly seated.

9. Replace the computer cover (see Replacing the Computer Cover).

10. Connect your computer and devices to electrical outlets, and then turn them on.

11. See the documentation that came with the drive for instructions on installing any software required for drive operation.

12. Check the System Setup for drive configuration changes (see Entering System Setup).

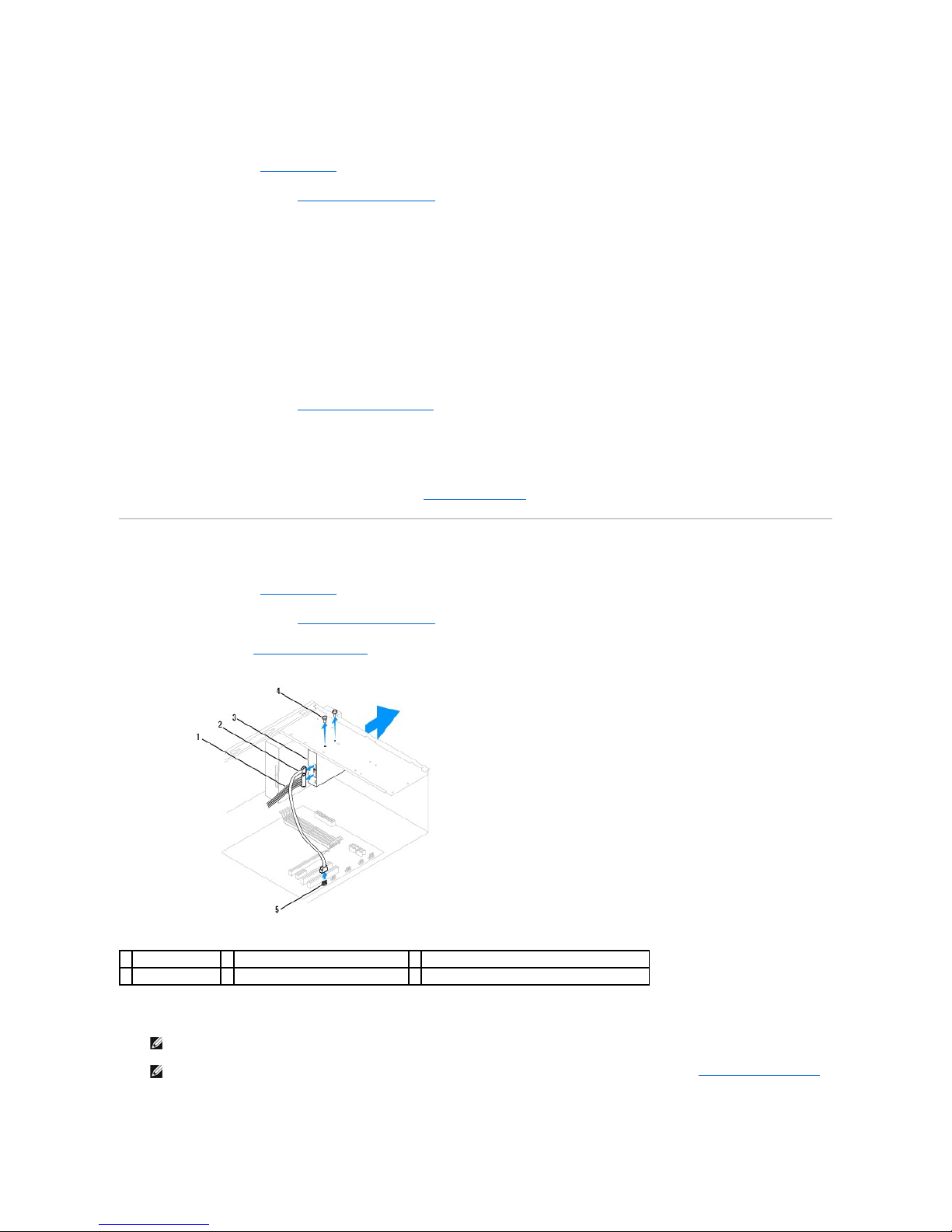

Removing a Media Card Reader

1. Follow the procedures in Before You Begin.

2. Remove the computer cover (see Removing the Computer Cover).

3. Remove the bezel (see Removing the Front Bezel).

4. Disconnect the FlexBay USB cable and the power cable from the back of the media card reader.

5. Remove the two screws securing the media card reader.
1
power cable
2
FlexBay USB cable
3
media card reader (not present on all computers)
4
custom screws (2)
5
USB connector (on the system board)


NOTE: If you are not replacing the media card reader at this time, disconnect the other end of the FlexBay USB cable from the system board and
set it aside. You can use the FlexBay USB cable to install a media card reader at a later time.
NOTE: The location of the internal USB connector may vary based on your computer model. For more information, see System Board Components.


6. Slide the media card reader out through the front of the computer.

7. Replace the bezel (see Replacing the Front Bezel).

8. Replace the computer cover (see Replacing the Computer Cover).

9. Connect your computer and devices to electrical outlets, and then turn them on.
Replacing a Media Card Reader

1. Follow the procedures in Before You Begin.

2. Remove the computer cover (see Removing the Computer Cover).

3. Remove the bezel (see Removing the Front Bezel).


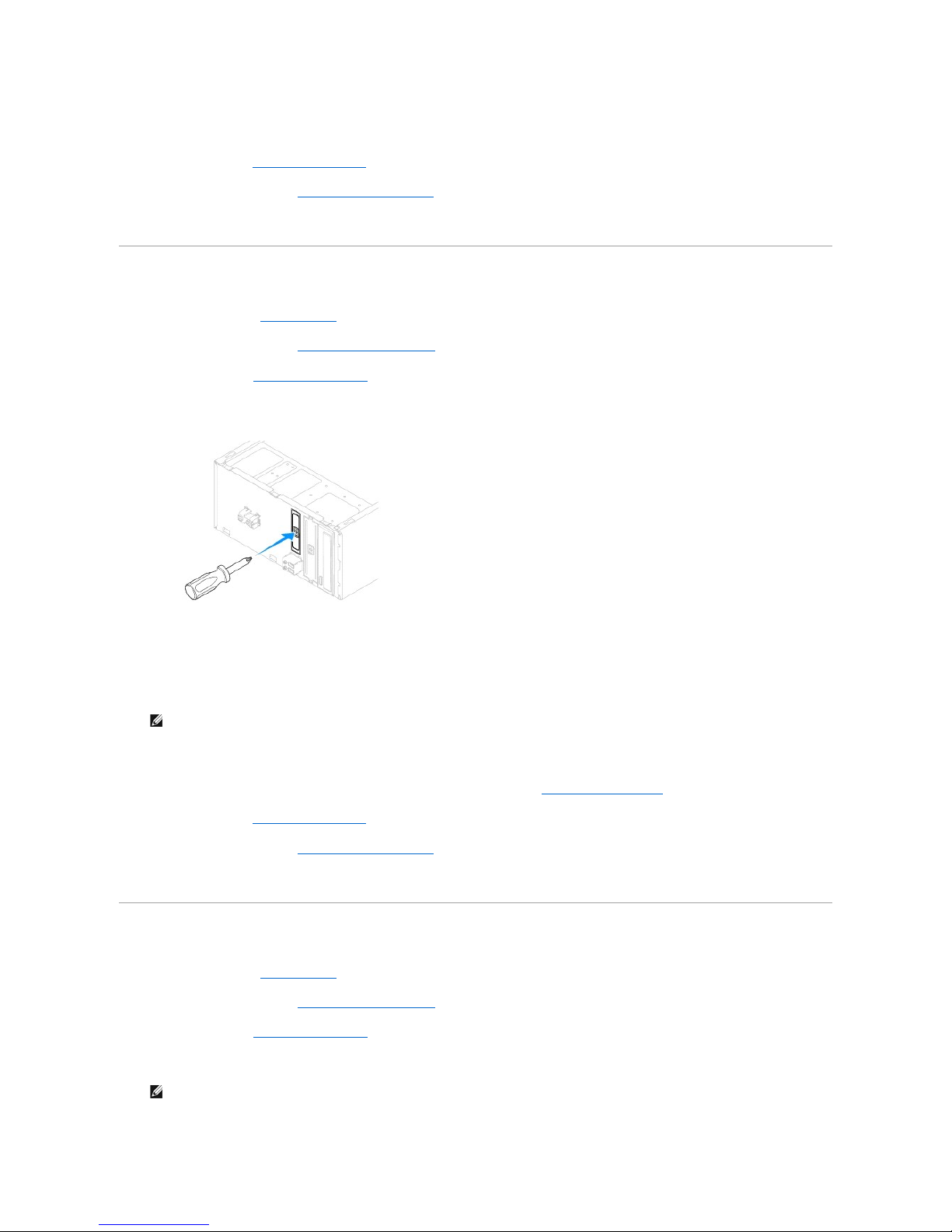

4. If this is a new media card reader installation, remove the break-away metal plate. Align the tip of a Phillips screwdriver with the slot on the break-away
metal plate and rotate the screwdriver outwards to break and remove the metal plate.

5. Gently slide the media card reader into place in the FlexBay slot.

6. Align the screw holes in the media card reader with the screw holes in the FlexBay slot.

7. Replace the two screws that secure the media card reader to the FlexBay slot.

8. Connect the FlexBay USB cable and power cable to the back of the media card reader.

9. Connect the FlexBay USB cable to the internal USB connector on the system board (see System Board Components).

10. Replace the bezel (see Replacing the Front Bezel).

11. Replace the computer cover (see Replacing the Computer Cover).

12. Connect your computer and devices to electrical outlets, and then turn them on.
Removing an Optical Drive

1. Follow the procedures in Before You Begin.

2. Remove the computer cover (see Removing the Computer Cover).

3. Remove the bezel (see Removing the Front Bezel).

4. Disconnect the power cable and the data cable from the back of the optical drive.
NOTE: Ensure that the media card reader is installed before the FlexBay USB cable is connected.
NOTE: If you are not replacing the optical drive at this time, disconnect the other end of the data cable from the system board and set it aside.
You can use the data cable to install an optical drive at a later time.


5. Remove the two screws securing the optical drive.

6. Slide the optical drive out through the front of the computer.

7. Replace the bezel (see Replacing the Front Bezel).

8. Replace the computer cover (see Replacing the Computer Cover).

9. Connect your computer and devices to electrical outlets, and then turn them on.

10. Configure the drives in system setup (see System Setup Options).
Replacing an Optical Drive

1. Follow the procedures in Before You Begin.

2. Remove the computer cover (see Removing the Computer Cover).

3. Remove the bezel (see Removing the Front Bezel).

4. Gently slide the optical drive into place.

5. Align the screw holes in the optical drive with the screw holes in the optical drive bay.

6. Replace the two screws that secure the optical drive to the optical drive bay.

7. Connect the power and data cables to the optical drive.

8. Replace the bezel (see Replacing the Front Bezel).

9. Replace the computer cover (see Replacing the Computer Cover).

10. Connect your computer and devices to their electrical outlets, and turn them on.
See the documentation that came with the drive for instructions on installing any software required for drive operation.

11. Check the System Setup for drive configuration changes (see Entering System Setup).
Back to Contents Page

NOTE: The location and number of SATA connectors may vary based on your computer model. For more information, see System Board
Components.
1
power cable
2
data cable
3
optical drive
4
custom screws (2)
5
SATA connector (on the system board)



Back to Contents Page
Fans
Dell™Inspiron™535/537/545/546ServiceManual
Removing the Processor Fan and Heat Sink Assembly
Replacing the Processor Fan and Heat Sink Assembly
Removing the Chassis Fan
Replacing the Chassis Fan
Removing the Processor Fan and Heat Sink Assembly

1. Follow the procedures in Before You Begin.

2. Remove the computer cover (see Removing the Computer Cover).

3. Disconnect the processor fan and heat sink assembly cable from the processor fan connector on the system board (see System Board Components).

4. Carefully move away any cables that are routed over the processor fan and heat sink assembly.

5. Remove the processor fan and heat sink assembly.
Inspiron™535/537/545
a. Loosen the four captive screws securing the processor fan and heat sink assembly and lift it straight up.
Inspiron 546
a. Rotate the clamp lever 180 degrees counter-clockwise to release the clamp grip from the bracket projection.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
WARNING: To guard against likelihood of electric shock, laceration by moving fan blades or other unexpected injuries, always unplug your
computer from the electrical outlet before removing the cover.
WARNING: Do not operate your equipment with any cover(s) (including computer covers, bezels, filler brackets, front-panel inserts, etc.)
removed.
CAUTION: The processor fan with the heat sink is one single unit. Do not try to remove the fan separately.
CAUTION: Do not touch the fan blades when you are removing the processor fan and heat sink assembly. This could damage the fan.
CAUTION: Despite having a plastic shield, the heat sink fan assembly may be very hot during normal operation. Be sure that it has had sufficient
time to cool before you touch it.
1
processor fan and heat sink assembly
NOTE: The processor fan and heat sink assembly in your computer may not look exactly like the one shown in the illustration above.
