Dell Inspiron 5675 Operation and maintenance manual

Inspiron Gaming Desktop
Setup and Specications
Computer Model: Inspiron 5675
Regulatory Model: D27M
Regulatory Type: D27M001

Notes, cautions, and warnings
NOTE: A NOTE indicates important information that helps you make
better use of your product.
CAUTION: A CAUTION indicates either potential damage to hardware or
loss of data and tells you how to avoid the problem.
WARNING: A WARNING indicates a potential for property damage,
personal injury, or death.
Copyright ©2017 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other
trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be
trademarks of their respective owners.
2017 - 05
Rev. A00

Contents
Set up your computer.................................................... 4
Views.............................................................................9
Front......................................................................................................... 9
Back......................................................................................................... 11
Back panel............................................................................................... 12
Specications...............................................................15
Dimensions and weight............................................................................ 15
System information..................................................................................15
Memory................................................................................................... 16
Ports and connectors...............................................................................16
Media-card reader....................................................................................17
Communications...................................................................................... 17
Audio........................................................................................................17
Storage.................................................................................................... 18
Power Ratings..........................................................................................18
Video....................................................................................................... 19
Computer environment........................................................................... 20
Dell Light Bar Controller............................................... 21
Getting help and contacting Dell.................................. 22
Self-help resources..................................................................................22
Contacting Dell........................................................................................22
3

Set up your computer
1 Connect the keyboard and mouse
2 Connect the network cable — optional.
4

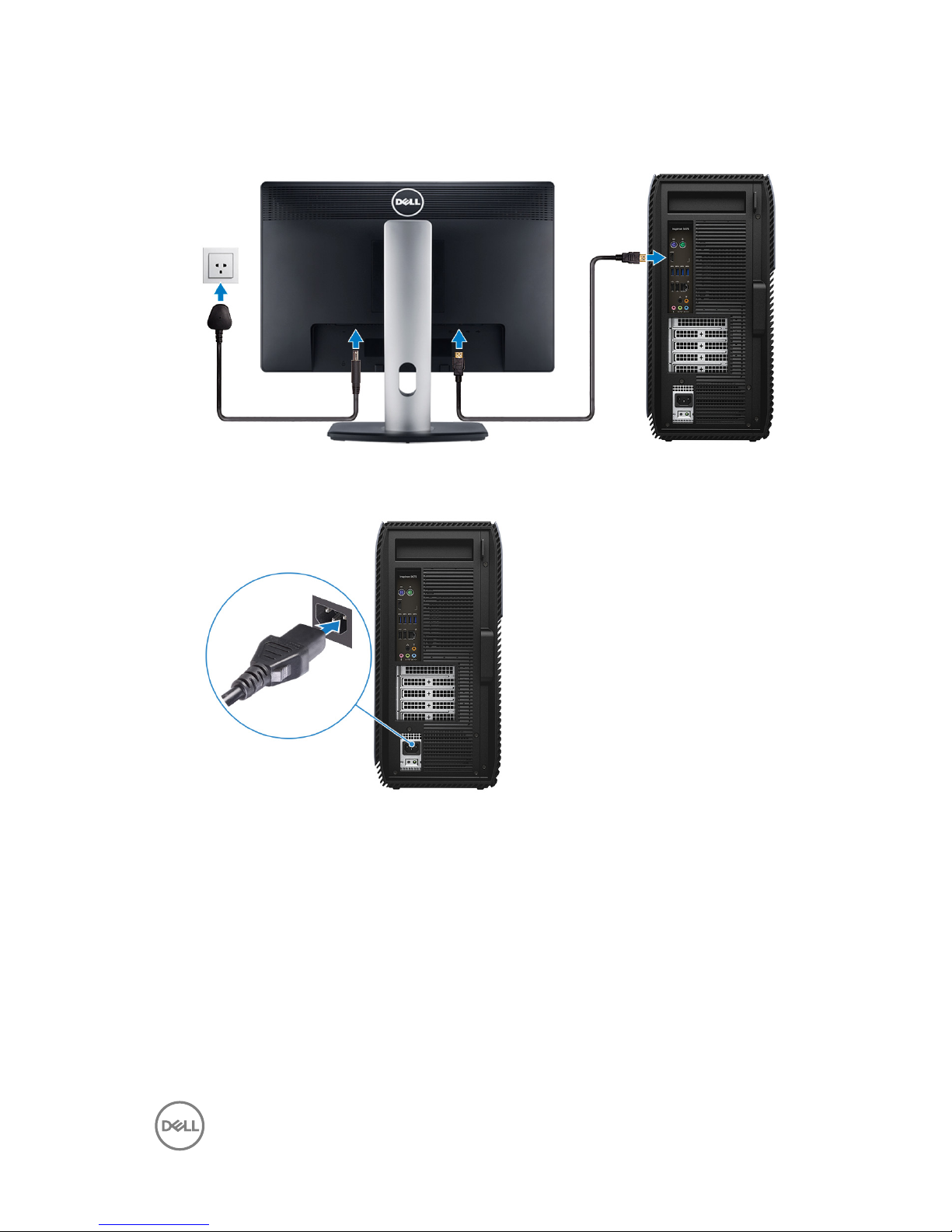

3 Connect the display.
4 Connect the power cable.
5

5 Press the power button.
6

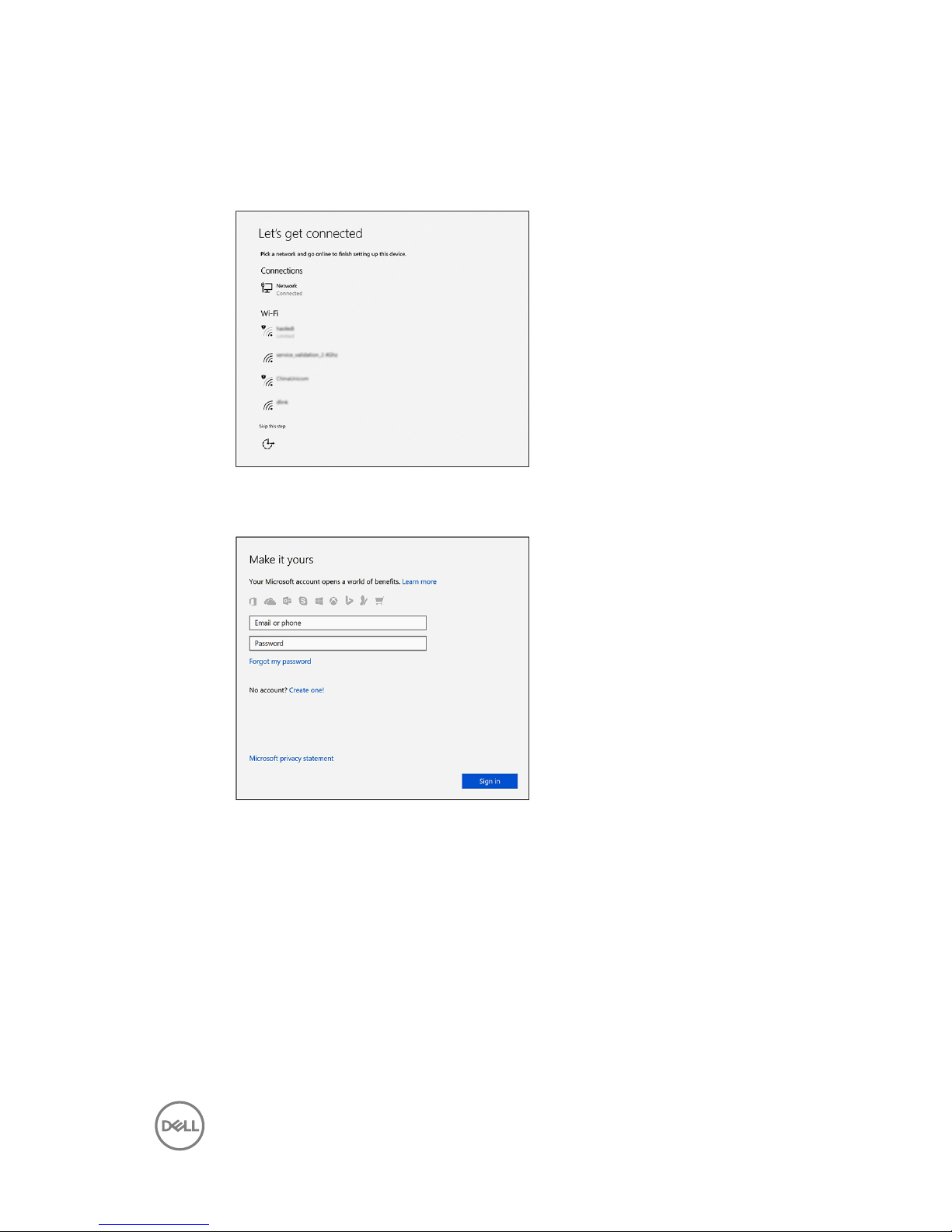

6 Finish operating system setup.
For Windows:
a) Connect to a network.
b) Sign-in to your Microsoft account or create a new account.
For Ubuntu:
Follow the instructions on the screen to nish setup.
7

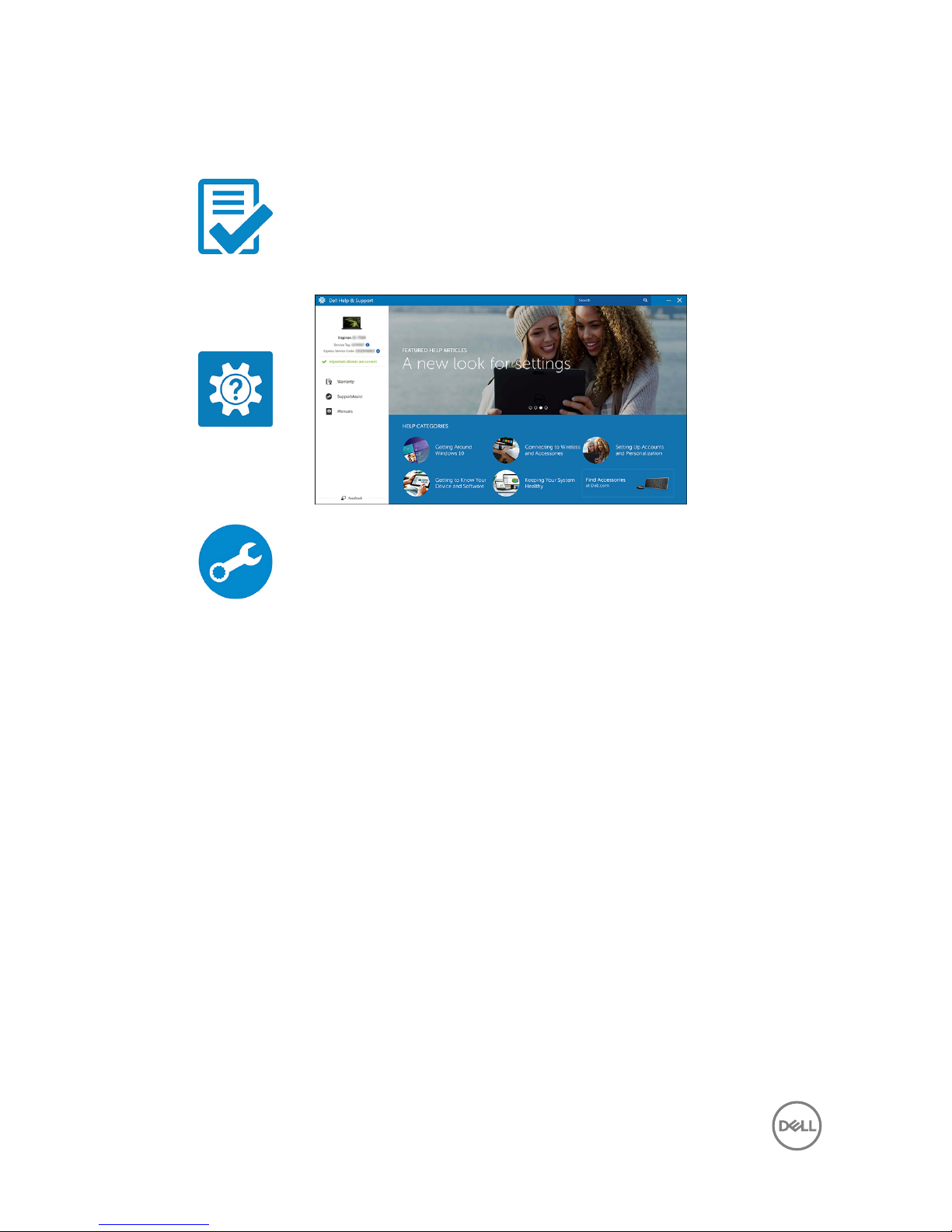

7 Locate Dell apps in Windows.
Table 1. Locate Dell apps
Register your computer
Dell Help & Support
SupportAssist—Check and update your computer
8

Views
Front
1Slim optical drive
Reads from and writes to CDs, DVDs, and Blu ray discs.
2Optical-drive bay
Provides access to a second optical drive (sold separately).
9

3USB 3.1 Generation 1 (Type-C) port (only with computers shipped with AMD
Ryzen 3/Ryzen 5/Ryzen 7 processors)
Connect peripherals such as external storage devices, printers, and external
displays. Provides data transfer speeds up to 5 Gbps.
4Headset port
Connect a headphone or a headset (headphone and microphone combo).
5USB 3.1 Generation 1 port
Connect peripherals such as storage devices and printers. Provides data transfer
speeds up to 5 Gbps.
6USB 2.0 ports (2)
Connect peripherals such as storage devices and printers. Provides data transfer
speeds up to 480 Mbps.
7Media-card reader
Reads from and writes to media cards.
8USB 3.0 port with PowerShare
Connect peripherals such as storage devices and printers.
Provides data transfer speeds up to 5 Gbps. PowerShare enables you to charge
your USB devices even when your computer is turned o.
NOTE: If your computer is turned o or in hibernate state, you must
connect the power adapter to charge your devices using the
PowerShare port. You must enable this feature in the BIOS setup
program.
NOTE: Certain USB devices may not charge when the computer is
turned o or in sleep state. In such cases, turn on the computer to
charge the device.
9Optical-drive eject buttons (2)
Press to open or close the optical drive tray.
10 Power button
Press to turn on the computer if it is turned o, in sleep state, or in hibernate
state.
Press to put the computer in sleep state if it is turned on.
Press and hold to force shut-down the computer.
10

NOTE: You can customize the power-button behavior in Power
Options. For more information, see Me and My Dell at www.dell.com/
support/manuals.

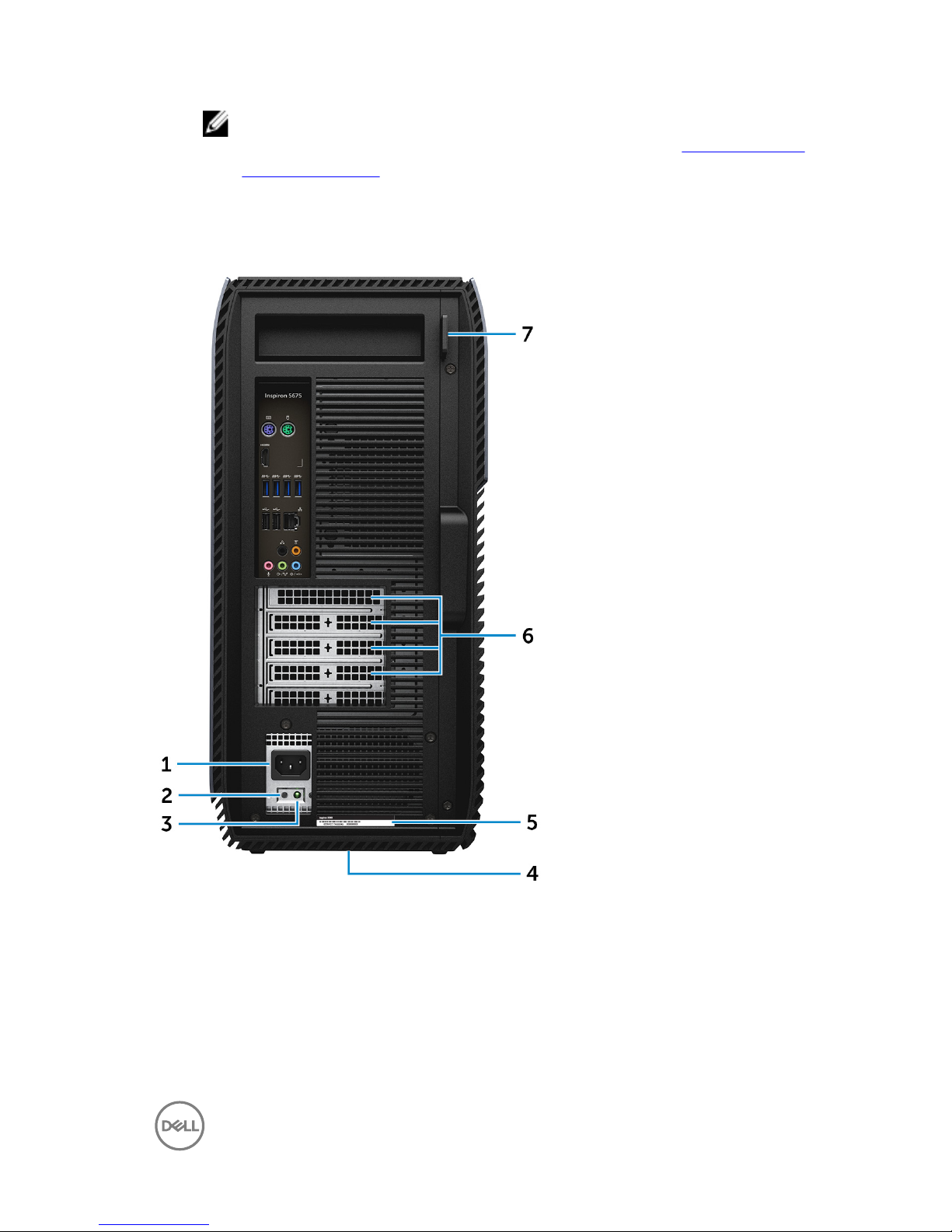

Back
1Power port
Connect a power cable to provide power to your computer.
2Power-supply diagnostics button
Press to check the power‑supply state.
3Power-supply diagnostics light
Indicates the power-supply state.
11

4Regulatory label
Contains regulatory information of your computer.
5Service Tag label
The Service Tag is a unique alphanumeric identier that enables Dell service
technicians to identify the hardware components in your computer and access
warranty information.
6PCI-Express slots (4)
Connect a PCI-Express card such as graphics, audio, or network card to
enhance the capabilities of your computer.
7Padlock rings
Attach a standard padlock to prevent unauthorized access to the interior of your
computer.
Back panel
1PS/2 port (mouse)
12

Connect a PS/2 mouse.
2PS/2 port (keyboard)
Connect a PS/2 keyboard.
3HDMI port (only with computers shipped with AMD Quad-Core APU
processors)
Connect a TV or another HDMI-in enabled device. Provides video and audio
output.
4USB 3.1 Generation 1 port (2)
Connect peripherals such as storage devices and printers. Provides data transfer
speeds up to 5 Gbps.
5USB 2.0 ports (2)
Connect peripherals such as storage devices and printers. Provides data transfer
speeds up to 480 Mbps.
6Rear L/R surround port
Connect audio-output devices such as speakers and ampliers. In a 5.1 speaker
channel setup, connect the rear-left and rear-right speakers.
7Microphone port
Connect an external microphone to provide sound input.
8Line-out/Front L/R surround port
Connect audio-output devices such as speakers and ampliers. If you have a
surround-sound speaker system, connect the front-left and front-right speakers
to this port.
9Line-in/Side L/R surround port
Connect recording or playback devices such as a microphone and CD player. If
you have a surround-sound speaker system, connect the side-left and side-right
speakers to this port.
10 Center/subwoofer LFE surround port
Connect the subwoofer.
11 Network port
Connect an Ethernet (RJ45) cable from a router or a broadband modem for
network or internet access.
12 USB 3.1 Generation 1 port (2) (only with computers shipped with AMD
Ryzen 3/Ryzen 5/Ryzen 7 processors)
13

Connect peripherals such as storage devices and printers. Provides data transfer
speeds up to 5 Gbps.
14

Specications
Dimensions and weight
Table 2. Dimensions and weight
Height 458.86 mm (18.07 in)
Width 216 mm (8.5 in)
Depth 437.53 mm (17.23 in)
Weight (maximum) 13.742 kg (30.27 lb)
NOTE: The weight of your computer
varies depending on the
conguration ordered and the
manufacturing variability.
System information
Table 3. System information
Computer model Inspiron 5675
Processor • AMD Ryzen 7 1700X
• AMD Ryzen 5 1600X
• AMD Ryzen 5 1400
• AMD Ryzen 3
• 7th Generation AMD A10-9700 Quad-
Core APU with Radeon R7 graphics
• 7th Generation AMD A12-9800 Quad-
Core APU with Radeon R7 Graphics
System chipset AMD Promontory X370
15

Memory
Table 4. Memory
Slots Two UDIMM slots
Type DDR4
Speed 2400 MHz (65W)
Congurations supported 4GB, 8GB, 16GB, 24GB, and 32GB
Ports and connectors
Table 5. Ports and connectors
External
Network One RJ45 port
USB • One USB 3.0 port with PowerShare
• One USB 3.1 Generation 1 (Type-C)
port (only with computers shipped
with AMD Ryzen 3/Ryzen 5/Ryzen 7
processors)
• Two USB 3.1 Generation 1 ports (only
with computers shipped with AMD
Ryzen 3/Ryzen 5/Ryzen 7
processors)
• Three USB 3.1 Generation 1 ports
• Four USB 2.0 ports
Audio/Video • One HDMI port (only with computers
shipped with AMD Quad-Core APU
processors)
• One microphone port
• One rear L/R surround port
• One line-out/Front L/R surround
port
• One line-in/Side L/R surround port
16

External
• One Center/Subwoofer LFE
surround port
Media-card reader
Table 6. Media-card reader
Type One 3-in-1 slot
Cards supported • SD card
• SD High Capacity (SDHC) card
• SD Extended Capacity (SDXC) card
Communications
Table 7. Communications
Ethernet 10/100/1000 Mbps Ethernet controller
integrated on system board
Wireless • M.2 802.11a/b/g/n
• Bluetooth 4.2
Audio
Table 8. Audio
Controller Realtek ALC3861
Type Integrated 7.1 channel Intel High
Denition Audio
17

Storage
Table 9. Storage
AMD Quad-Core APU
processor
AMD Ryzen 3/Ryzen 5/
Ryzen 7 processor
Interface SATA 6 Gbps • SATA 6 Gbps
• PCIe/NVMe
Solid-state drive One M.2 drive (SATA) • One M.2 drive (SATA)
• One M.2 drive (PCIe/
NVMe)
Hard drive • One 2.5-inch hard drive
• Two 3.5-inch hard drive
Optical drive • One 9.5 mm slim optical drive
• One optical drive (sold separately)
Capacity
Hard drive Up to 2 TB
SSD Up to 256 GB
Power Ratings
Table 10. Power ratings
Type • 300 W
• 460 W
• 850 W (only with computers shipped
with AMD Ryzen 3/Ryzen 5/Ryzen 7
processors)
Input Voltage 100 VAC to 240 VAC
Input frequency 50 Hz to 60 Hz
18

Input current 4.5 A/8.0 A/9.0 A/10.0A
Temperature range
Operating 5°C to 50°C (41°F to 122°F)
Storage -40°C to 70°C (-40°F to 158°F)
Video
Table 11. Video
Integrated Discrete
Controller AMD 3rd Generation
(UMA) (only with
computers shipped with
AMD Quad-Core APU
processors)
• AMD RX 560
• AMD RX 570
• AMD RX 580
• NV GTX 1060
• One PCI-Express X16,
single-width/double-
width, full length
(maximum 10.5 inches)
• Two PCI-Express X16,
single-width/double-
width, full length
(maximum 10.5 inches)
(only with computers
shipped with AMD
Ryzen 3/Ryzen 5/
Ryzen 7 processors)
NOTE: The graphics
conguration of
your desktop varies
depending on the
graphics card
conguration
ordered.
Memory Shared system memory • 2 GB GDDR5
• 4 GB GDDR5
• 6 GB GDDR5
• 8 GB GDDR5
19

Computer environment
Airborne contaminant level: G1 as dened by ISA-S71.04-1985
Table 12. Computer environment
Operating Storage
Temperature range 0°C to 35°C (32°F to
95°F)
-40°C to 65°C (-40°F to
149°F)
Relative humidity
(maximum)
10% to 90% (non-
condensing)
0% to 95% (non-
condensing)
Vibration (maximum)*0.66 GRMS 1.30 GRMS
Shock (maximum) 110 G†160 G‡
Altitude (maximum) –15.2 m to 3048 m (–50 ft
to 10,000 ft)
–15.2 m to 10,668 m (–50
ft to 35,000 ft)
* Measured using a random vibration spectrum that simulates user environment.
† Measured using a 2 ms half-sine pulse when the hard drive is in use.
‡ Measured using a 2 ms half-sine pulse when the hard-drive head is in parked position.
