Dear Sir/Madam
We thank you for purchasing this Pinguino
appliance and congratulate you on your wise
choice.
Please make the time and effort to read this
manual carefully.
Becoming familiar with the Pinguino is an
essential step if you are to benefit fully from its
exceptional qualities, during both installation
and actual use.
We hope that the Pinguino will become a
welcomefriendthissummer,asourceofcomfort
and refreshment.
Best wishes
De Longhi S.p.A.

19
GENERAL DESCRIPTION
The PAC 30 ELECTRONIC is an extremely versatile air-conditioner, performing its air cooling function
through either water condensation or air condensation.
The user can choose between the two functions:
1) WATER FUNCTION - For economical, highly efficient and rapid air cooling. This function is
recommended when the appliance is first switched on and the environment is particularly hot.
2) AIRFUNCTION - Forlessintensecooling.Amoreconvenientfunction(noneedtofillwatercontainer).
The versatility of this appliance is demonstrated by its ability to switch automatically to air function
whenever the water container is empty.
The PAC 30 ELECTRONIC can also be used as a heater during the winter months.
The PAC 30 ELECTRONIC sets the temperature automatically.
TECHNICAL DATA Tab.1
IDEAL OPERATING CONDITIONS
(AIR-CONDITIONING FUNCTION) Tab.2
ROOM TEMPERATURE 21 ÷32°C
FREQUENCY see rating label
POWER SUPPLY VOLTAGE see rating label
ROOM HUMIDITY FACTOR BELOW 80%
WATER FUNCTION - AIR FUNCTION
Power supply voltage (V) see rating label
Frequency (Hz) "
* Cooling capacity (Frig/h, W, Btu/h) "
Cooling capacity (Frig/h, W, Btu/h) "
Electric power consumption (A) "
Max.power consumption (air-condit.mode) (W) "
Max.power consumption (heating mode) (W) "
Air flow capacity (m3/h) 360
Timer 24 h
Dimensions: width (mm) 560
height 725
depth 365
Net weight (kg) 44
Technical data subject to change without prior notice
* According to standard ASHRAE 128P
NB. When indoor temperature exceeds 32°C, the appliance should be operated with water.

20
DESCRIPTION OF MAIN FEATURES
Tab.3
Air outlet grid
Control panel
Programmer (timer)
Water container
Castors
Castor stops
Water collecting tray
Water container compartment
door
Air filter
Air intake grid
Warranty envelope
Exhaust hose compartment
Power cable compartment
Handle
Water collecting tray
drainage tube

21

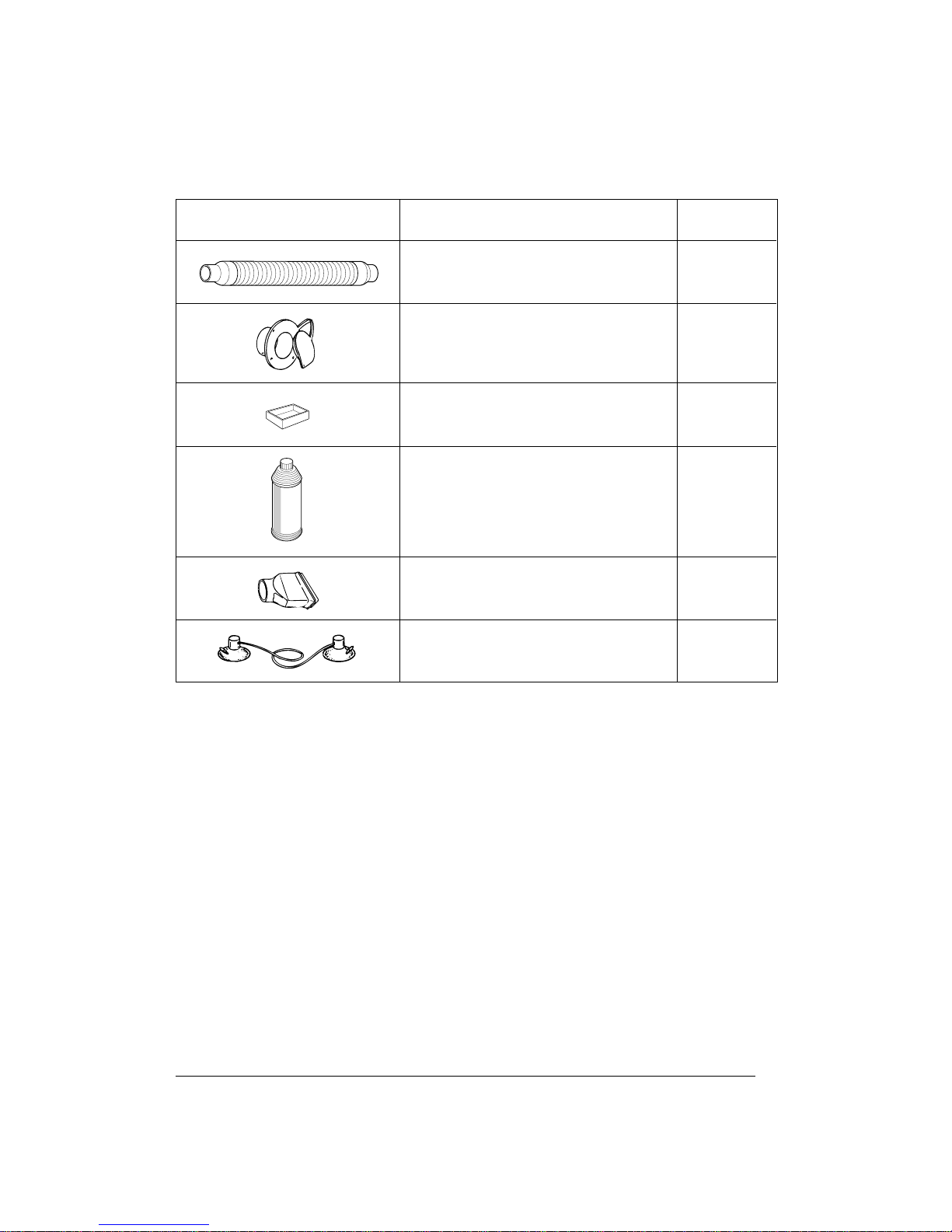

DESCRIPTION OF ACCESSORIES Tab.4
PARTS
SUPPLIED
DESCRIPTION
Exhaust hose
Stopper + flange
Castor stop
De-scaling fluid
Window nozzle
Suction cup set
1
1
2
1
1
1
ACCESSORY CHECK
Check that all parts listed in Table 4 are included.

22
Ø 98 mm (3" 3/4)
INSTALLATION FOR AIR-CONDITIONING FUNCTION
Our air-conditioner is portable and versatile: it
canbeusedasapermanentinstallationorwise
easily moved from one room to another.
The appliance must be fitted at least 30 cm.
from the surrounding walls.
When installed permanently, all air discharged from the rear hose is extracted from the room in which the
PAC 30 ELECTRONIC is installed.
Checkthattheroom(particularlyifitissmall)isnot“air-tight”;adropinpressurecouldcauseamalfunction
andtherebyactivatethesafetyswitch.Airenteringtheroomthroughdoorandwindowcracksisnormally
sufficient. If necessary, leave a door slightly ajar (a gap of approx.1 cm. is adequate).
The unit can also be used as a “temporary”
installation for use in any room with a window or
french window; this “temporary” installation can
beused atanytime untilitis ready forpermanent
instalment.
N.B.: In either case, check that the unit is resting
onat“perfectlylevel” surface.Ifnecessary,use
the 2 castor stops for the front castors.
A1
in a window pane A2 through the wooden base-section of a glass door A3 in the wall

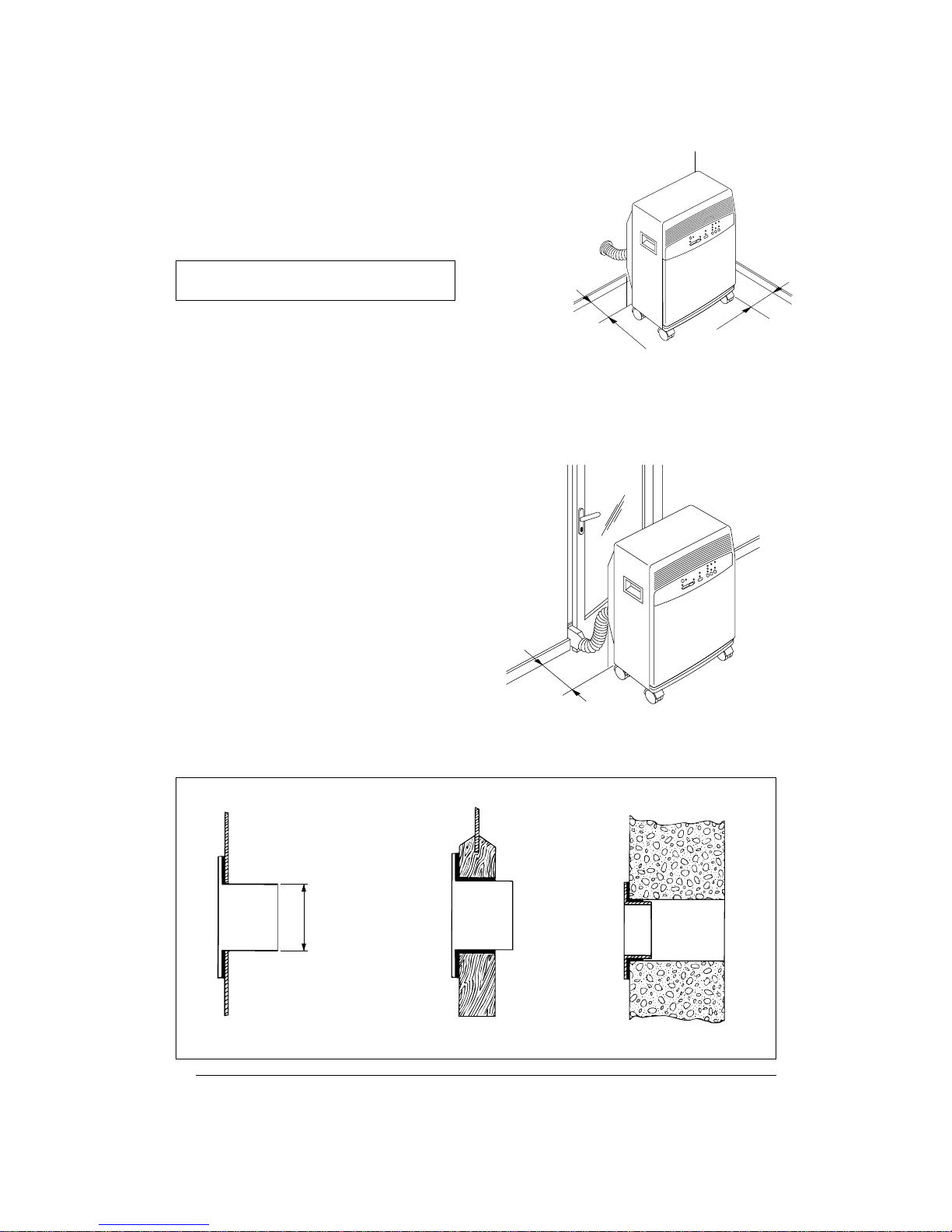

Permanent installation
Theoutletholesmustbeconnectedtotheoutsideofthebuildingandcannotbemadeinanywallorpanel.
30 cm
30 cm
30 cm

23
Height of outlet:
within the range indicated by the dotted line in the figure below.
When the unit is not in use, the outlet hole should be sealed with the stopper supplied.
Temporary installation: The outlet holes can be connected in a number of ways:
In any event, for maximum cooling efficiency the window should be closed as much as possible.
It is advisable :
—to keep the outlet free of any obstruction;
—to lower the blind partly, without obstructing the outlet, thereby reducing exposure to direct sunlight
and indoor/outdoor air exchange.
INSTALLATION FOR HEATING FUNCTION
Theunitissimplyplacedin the room to be heated; there is no need for the discharge hose to be installed.
ELECTRICAL CONNECTIONS
—The mains supply, suitable for domestic electrical appliances, must correspond to the power
requirements of the air conditioner (see rating label).
— Check that the power supply voltage correspond to the voltage shown in the rating label.
—Check that the mains socket is correctly earthed.
N.B.: In the event that the plug supplied with the air-conditioner and complying with European regulations (EEC 7, VII) is not suitable
for your wall socket, make sure that it is replaced with a plug with a capacity of at least 10 A - 250 V (IMQ) that is also suitably earthed.
Remove the power cable from the storage compartment at the back of the unit and plug it into the socket.
THIS APPLIANCE IS MANUFACTURED TO COMPLY WITH THE RADIO INTERFERENCE REQUIRE-
MENTS PROVIDED BY DIRECTIVE EN 55014 EEC.
fixed
hook
min.
cm 30 max.
cm 120

24
PREPARING THE UNIT FOR USE
1) For permanentinstallation,placetheappliancenearthewallorwindowoutlet.Makesureitisstanding
on a level surface and fit the special shock absorbers/castor stops underneath the castors.
2) Theexhaust hosecanbe compressedorextended between500mm. and1400mm., butisbest used
at minimum length. Never stretch the hose.
HOW TO PREPARE WATER CONTAINER
Use only clean, salt-free tap water. The water is essential for the air cooling operation and is discharged
in the form of steam through the exhaust outlet. A container full of water lasts for a period that depends
on a number of conditions such as temperature, humidity, insulation, exposure of the room, number of
people present, etc. On average it will last approximately 7 to 10 hours.
Whenthe container is empty,theapplianceautomaticallychangesfunction from water to air.At the same
time, the quantity of air discharged from the rear hose will increase.

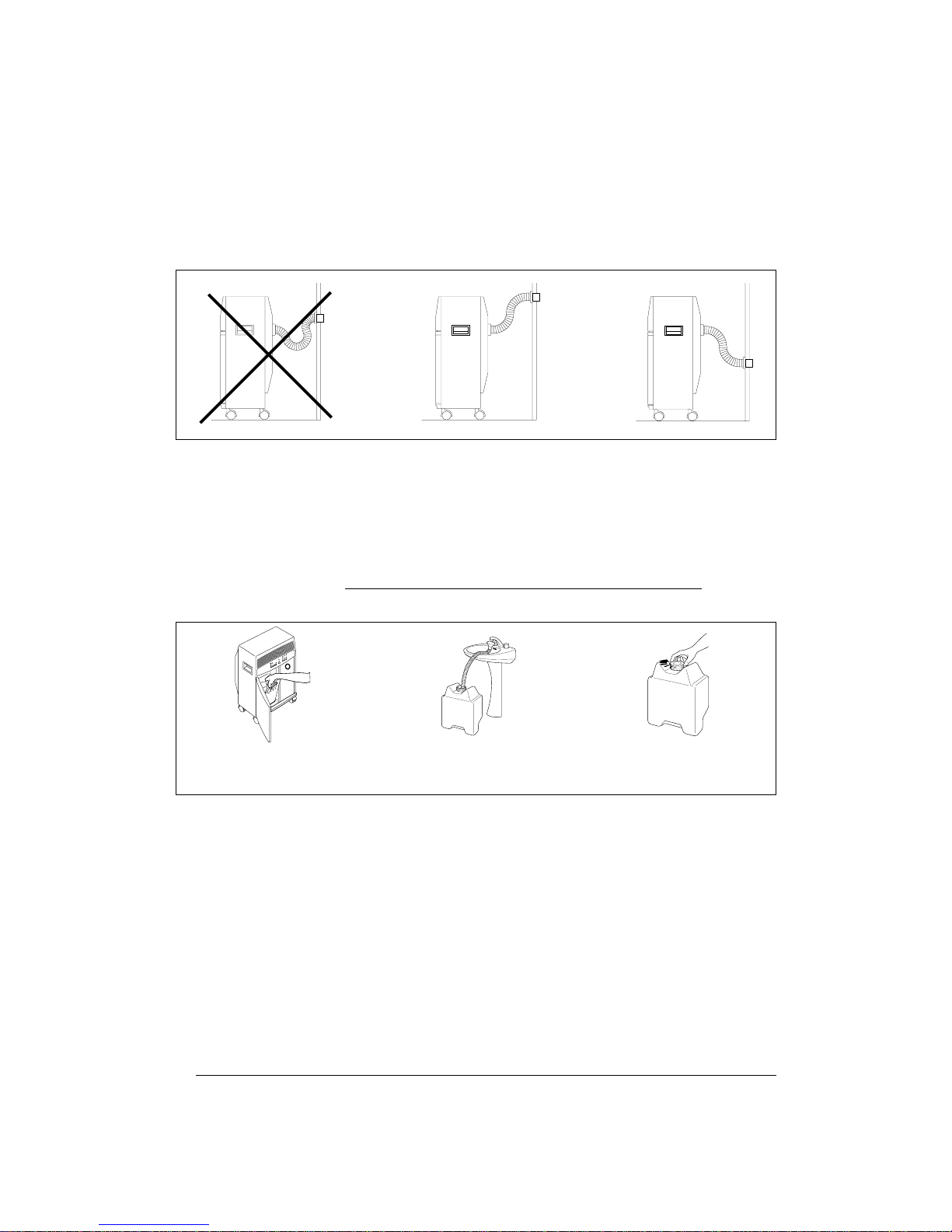

Open the water container compartment
door, tip the container forwards and lift
up to remove.
Afterfilling,replacetheextendabletube,
screw the cap on tightly and return the
container to its place, making sure the
word FRONT is facing out.
Remove the cap, pull out the extendable
tube and fill the container, standing it on
the floor.
During “water condensation” cooling function and in particularly quiet surroundings (eg. bedroom), a
slight gurgling noise may be heard. This may be regarded as perfectly normal.
Warning: Do not use water containing salt, eg. seawater or water treated using softening systems that
utilize kitchen salt.

25
AIR COOLING FUNCTION
If the air cooling function of PAC 30 ELECTRONIC is chosen, it is sufficient not to fill the water container.
FINAL CHECK
In order to obtain maximum performance from your air-conditioner, make sure that:
—doorsandwindowsintheroomtobeair-conditionedareclosed(withthesoleexceptionofthepartially
opened window necessary for “temporary” installation)
—the room is well shaded from direct sunlight
by drawing curtains and/or partially lowering
blinds or shutters, to avoid excessive energy
consumption
—the intake and outlet vents are free of any
obstruction at all times
—there are no sources of heat in the room.
THE AIR-CONDITIONER IS NOW READY FOR USE, so let’s now take a look at the controls.
Close the windows
Draw the curtains
Close the doors
Lower the blinds
Do not cover

26
CONTROL PANEL
NB. Fortechnical reasons, the temperatureis not expressedin degrees butby a lineincreasing in thickness.
We therefore recommend that when starting up the appliance, the thermostat be turned to maximum
(thick green line = maximum cold, thick pink line = maximum hot). When the desired temperature has
been reached, move the cursor slowly away from the maximum cold or maximum hot position until the
applianceisswitchedoffbyoperationofthethermostat.Inthiswaytheappliancehasbeenprogrammed
with the exact temperature degree required, which is then maintained automatically by the thermostat.
This appliance is fitted with a safety device that blocks its operation if at least 3 minutes have not
elapsed from when it was last switched off.
SETTING THE TIMER
The programmer/timer, like all clocks, must be set to the
exact time. If for example it is 4.00 pm. (16.00), turn the
dialina clockwise direction (followingthe direction of the
arrow) until the number 16 is lined up with the triangular
pointer (the arrows indicates 4:00 P.M. approximately ).
N.B.: Never turn the dial in an anti-clockwise direction!
Thetimerisineffect,anelectricclockandworksonlyifthe
plug is connected to the power supply. Whenever the
plug is disconnected or there is a power failure, the
programmerstops (the clock is then“slow”) and must be
re-set.
The Pinguino can be used for either AIR-COOLING or
HEATING.
The unit can be used in either programmed or non-
programmed mode.
PROGRAMMED MODE
1) Select the desired function as shown in the chart
overleaf.
2) Press the TIMER key, the “TIMER ON” signal light will
come ON.
3) Makesurethatthetimerindicatesthecorrecttime(see
instructions on setting).
4) Settheoperatingtimes by pushing out the notches on
the dial corresponding to the period required (each
notch represents 15 mins.)
The unit will now switch on and off each day at the
selected times.
N.B.:Tooverridetheprogrammedoperatingtimes,simply
press the ON/OFF key (the timer signal lamp ON will go
out)
NON-PROGRAMMED MODE
1) Press the TIMER ON key again, the TIMER ON signal lamp
will go out).
2) Select the desired function as shown in the chart on pg. 27.
21
20
19
16
21
20
19
16
Funzionamento
Operating time
THERMOSTAT
TIMER ON MEMO CONTROL
Timer Air-cooling
signal lamp
Heating signal
lamp Thermostat
cursor
ON/OFF Timer key ON timer signal lamp
Automatic
position key
Button ON/OFF
Plot lamp mains (continuous light)
or malfunction (flashing light)
Signal lamp indicating 3 min.wait (flashing)
or air-cooling (on continuously)
Heating key
Temperature OK signal lamp
Automatic heating signal lamp
Air-cooling key
Max. speed warning light
Min.speedwarninglight
Economic heating signal lamp
Max. heat warning light
Automatic air-cooling signal lamp

27
HOW TO START UP THE CONDITIONER
(see control panel on the opposite page)
▼▼
▼
▼
▼▼
▼
▼
▼
▼▼
▼
▼
▼
The appliance comes on
If not, refer to pg. 30
To switch off the appliance,
press the Power push-button.
Plug the appliance into the mains.
The signal lamp will come on .
▼
Press the key for the function required:
AIR-COOL. KEY =Air-conditioning
HEAT. KEY = Heating
AUTO. KEY =Automatic climatization
(air-conditioning or heating)
AIR-CONDITIONING HEATING AUTOMATIC
The Min. speed warning
light comes on. The Econ signal lamp
comeson(economic elec-
tric heating 1300W)
The appliance automati-
callyselectsheating(when
it is too cold), air-condi-
tioning (when it is too hot)
or remains switched off
Move the cursor to maxi-
mumhotposition.Theheat-
ing signal lamp comes on.
(Whentheroomtempeture
has reached the desired
level,movetheslidingther-
mostatcontrolgraduallyto
the min. position: the unit
switches off and the heat-
ing signal lamp start to
flash).
Pressthe“Air-conditioning”
key again to increase fan
speed. The Max. speed
warning light comes on.
Press the “Heating” key
againtoobtainMax.power.
TheMax.heatwarninglight
comes on.
Oneofthesignallampswill
comeon,dependingonthe
function selected by the
microcomputer.
Selecteitherthe“Programmed”or“Non-programmed”mode
(see pg. 26)
Press the ON/OFF key.
The function signal lamps flash and the signal lamp goes
out.
Move the cursor to maxi-
mumcoldposition.Theair-
coolingsignallampcomes
on. (When the room
tempeturehasreachedthe
desiredlevel,movetheslid-
ing thermostat control
gradually to the min. posi-
tion: the unit switches off
and the conditioning sig-
nal lamp start to flash).
