DeLonghi pacn120hp User manual

19
ENGLISH
Warnings
•This appliance is designed for home air conditioning and must not be used for other purposes.
•It is dangerous to modify or alter the characteristics of the appliance in any way.
•The appliance must be installed in conformity with legislation in force in the country concer-
ned.
•If the appliance requires repair, contact a Service Centre authorised by the manufacturer only.
Repairs carried out by unauthorised personnel may be dangerous.
•This air conditioning unit must be used by adults only. Never allow children to play with the
appliance.
•The appliance must be connected to an efficient earth system. Have your electrical circuit
checked by a qualified electrician.
•The appliance must not be used by young children or unfit persons without adequate super-
vision.
•If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
•Do not use extension cables.
•Before cleaning or maintenance operations, always unplug the appliance from the mains
socket.
•Do not move the appliance by pulling the power cable.
•Do not install the appliance in rooms containing gas, oil or sulphur. Do not install near sources
of heat.
•Do not rest heavy or hot objects on top of the appliance.
•Clean the dust filter at least once a week.
•Avoid using heating appliances near the air conditioning unit.
•Always transport the appliance upright or resting on one side, with short movements only. Befo-
re moving the appliance, empty the condensate pan in the indoor unit and the base of the
outdoor unit.
After moving the appliance, wait at least 1 hour before starting it.
•The materials used for packaging can be recycled. You are therefore recommended to dispo-
se of them in special differentiated waste collection containers.
•The refrigerant gas R410A conforms to EC regulations on the environment.
Avoid perforating the refrigerant circuit of the appliance. At the end of its working life, consi-
gn the appliance to a special collection centre.
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTI-
VE 2002/96/EC.
At the end of its working life, the product must not be disposed of as urban waste.
It must be taken to a special local authority differentiated waste collection centre or to a dealer providing
this service.
Disposing of a household appliance separately avoids possible negative consequences for the envi-
ronment and health deriving from inappropriate disposal and enables the constituent materials to be
recovered to obtain significant savings in energy and resources.As a reminder of the need to dispo-
se of household appliances separately, the product is marked with a crossed-out wheeled dustbin.

20
During the summer, you feel comfortable at a temperature of between 24 and 27°C with a
relative humidity of about 50%.
An air conditioning unit removes excess moisture and heat from the room where it is located.
Compared with installed models, portable air conditioning units have the advantage that they
can be moved from one room to another in the home or be transported from one building to
another.
Hot air from the room is passed through a coil cooled by refrigerant gas. Excess heat and moistu-
re are removed before the air is re-emitted into the room.
In packaged models, a small part of this air is used to cool the refrigerant gas and then, when hot
and damp, is discharged outside.
In split models, the circuit is cooled using air from the outside.
All air conditioners can also be used in fan-only mode.
DESCRIPTION OF THE APPLIANCE
1 Indoor unit
2 Indoor unit handle
3 Cold air outlet grille
4 Operating status indicator LED
5 Filter
6 Air intake grille
7 Power cable
8 Button for emptying the pan
9 Connection sheath
10 Castor wheels
11 Outdoor unit
12 Outdoor unit handles
13 Air outlet grille
14 Red light (Heating/dehumidifying function)
15 Yellow light (fan function)
16 Green light (air-conditioning/dehumidifying function)
17 Manual operation button
18 Remote control receiver
19 Condensate drenage connection
20 Suckers
21 Castor locks
22 Protection cover
23 Wall fixing brackets
24 Supplementary extension for quick-fit couplings
What is the Pinguino ?

ENGLISH
21
Preparing for use
NOTE: The appliance must be positioned at
least 20/30cm from any walls.
POSITIONING THE INDOOR UNIT
Install the appliance inside the room being air-
conditioned. In general, near a window or
door. In any case, near a perimeter wall. The
indoor unit must be positioned on an even sur-
face, where possible on a table, or other piece
of furniture (see Figures 1 and 2). There must
be no obstructions to the air intake (rear grilles
)and outlet (top outlet grille ) on the
indoor unit.
3
6
POSITIONING THE CONNECTION SHEATH
The sheath connecting the outdoor and
indoor units can be passed through the gap in a
window or door left ajar; use the suckers to
prevent them from opening further. In addition
to the methods described above, the sheath
connecting the external and internal units can
also pass through a hole with a diameter of
about 9 cm in an external wall.
The internal unit can be mounted permanently
using the bracket accessory (see mounting
instructions provided with the bracket kit).
23
20
9
fig. 1
fig. 2
Before passing the sheath through the hole
in the wall, you should protect the ends of
the quick-fit coupling using the caps provi-
ded or with paper tape.
The external unit can also be mounted perma-
nently by purchasing the wall bracket kit from a
De'Longhi service centre or dealer.
DISCONNECTING THE TWO UNITS
To disconnect the internal and external units,
proceed as follows:
1) Undo the two screws on the cover protec-
ting the external unit couplings. (Fig. 3)
2) Remove the protection from the electrical
connections on the external unit by
undoing the screw. (Fig. 4)
This should always be done with the
appliance unplugged from the mains.
3) Disconnect the condensate coupling by
pushing on the sleeve Aand pulling the
tube out. (Fig. 5)
A
1
2
fig. 5
fig. 3
fig. 4

4) Undo the right hand screw on the cable
clip. (Fig. 6)
5) Disconnect the electrical connector by
pushing the tabs B, then pulling out the
connector (fig. 7)
6) Remove the safety plug (fig. 8).
7) Open the locking lever on the quick-fit
coupling. To facilitate closing, use the
extension , fitting it onto the lever and
turning until fully open (see figure 9).
24
8) Disconnect the male and female cou-
plings by pushing the sleeve backwards
and pulling (Fig. 10).
To avoid damage to the couplings, before
passing the sheath through the hole in the
wall, you should protect the ends of the
quick-fit coupling using the caps provided or
with paper tape (Fig. 11).
22
Make sure the connecting sheath is free of
kinks.
Important
Always disconnect or connect the quick-fit
couplings in the open air or adequately ven-
tilated rooms.
Preparing for use
fig. 8
fig. 6
1
B
2
fig. 7
fig. 9
1
2
fig. 10
fig. 11

23
ENGLISH
Always lock the 2 outer wheels using the
castor locks supplied.
The manufacturer is not liable for any dama-
ge to people or things caused by the positio-
ning of the unit in a manner not compliant
with the basic standards of safety.
Preparing for use
HOW TO CONNECT THE SHEATH
To connect the sheath, follow the above pro-
cedure in reverse. When connecting the
water drain hose, make sure it is pushed in as
far as it will go.
POSITIONING THE OUTDOOR UNIT
The outdoor unit can be placed on a terrace
or balcony (Fig. 12).
The outdoor unit can also be installed on a
window sill, if this faces onto a balcony (Fig.
13)
fig. 12
fig. 13
fig. 14
The outdoor unit may be installed above or at
the same level as the indoor unit, provided
that the difference in level is not greater than
1.5m. The air intake and outlet of the outdoor
unit must be kept clear of obstacles. Leave at
least 6cm between the wall and the rear of
the appliance.
The condensate forming during operation in
air-conditioning mode (in summer) is almost
totally eliminated via evaporation from the
outdoor unit.
In particular cases, if there is excessive humi-
dity, the condensate is drained through a
hole in the base.
To drain the water that forms, use the con-
densate drain connector supplied, which
must be fitted on the base of the outdoor unit
(see Figure 14). This can then be connected
to a rubber hose
Note: If appropriate, the external unit can be
protected with the protective cover fixing
it with the screw provided. The outdoor unit
should be protected from the sun, rain, snow
and drips from the roof.
22
19

24
BUTTONS AND INDICATORS ON THE INDOOR UNIT
MANUAL
OPERATION
BUTTON
RED
LIGHT
SIGNAL RECEIVER
OF THE REMOTE CONTROL
INDICATOR LIGHTS
These turn on according to the function selected or indicate any operating anomalies.
ANOMALY RED LIGHT YELLOW LIGHT GREEN LIGHT
ALARM flashing flashing flashing
FUNCTION RED LIGHT YELLOW LIGHT GREEN LIGHT
OFF ---
AIR-CONDITIONING --on
DEHUMIDIFYING on -on
FAN -on -
see “troubleshooting” on page 32
MANUAL OPERATION
This operating mode is to be used only when the remote control is inoperative (broken, lost, flat
batteries).
Press the manual operation button until selecting the desired function (air-conditioning, dehumi-
difying, fan, heating, smart, off).
Refer to the indicator lights and the table above to identify the mode selected.
For each mode selected, the appliance will automatically choose the optimum values for maxi-
mum comfort.
This appliance is fitted with a safety system that prevents the compressor from starting until at least
3 minutes have elapsed since it last went off.
Buttons and indicators on the indoor unit
GREEN
LIGHT
YELLOW
LIGHT
HEATING on --
PUMP BUTTON

ENGLISH
25
The remote control
THE REMOTE CONTROL
Inserting the batteries
•Remove the protective cover (see figure).
•Insert two new batteries (not rechargea-
ble) making sure the (+) and (-) are in the
correct positions.
•Replace the cover.
NB: Alkaline batteries should be used (LR03).
When replacing or disposing of the remote
control, the batteries must be removed and
disposed of according to the legislation in
force, being harmful to the environment.
Warning:
Do not mix old and new batteries. Do not mix
alkaline, standard (carbon-zinc) or rechar-
geable (nickel-cadmium) batteries.
Do not dispose of batteries in fire. batteries
may explode or leak.
If the remote control is not be used for a cer-
tain length of time, remove the batteries.
CORRECT USE
•Aim the remote control at the signal recei-
ver on the air-conditioner.
•Maximum distance: around 7 metres
(without obstacles between the remote
control and the receiver).
•The remote control should be handled
with extreme care and respect: without
dropping it, without exposing it to direct
sunlight or near sources of heat.
1
2

26
Description of the remote control
THE REMOTE CONTROL
A
E D C
B
B
I
H
G
F
SWING FAN

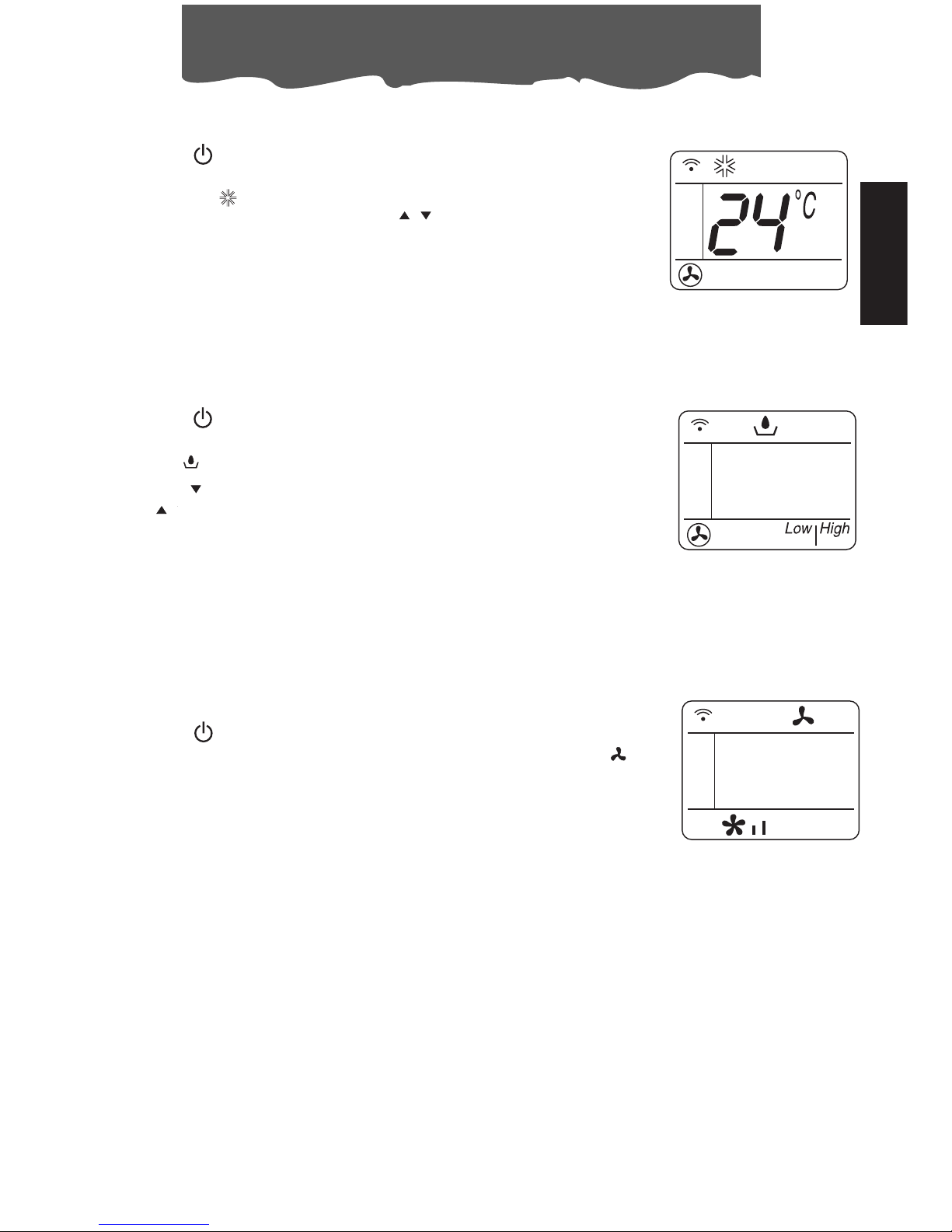

THE DISPLAY
Signal transmission
Air-conditioning indicator
Dehumidifying indicator
Fan indicator
Heating indicator
SUPER indicator
SMART indicator
SLEEP indicator
Automatic fan speed
High fan speed
Medium fan speed
Low fan speed
Used to set the temperature in SMART
mode or the level of dehumidification.
Low
High
Low
High
Low
High
Low
High
Low
High
Low
High
A. MODE button
Selects the operating mode (air conditio-
ning, dehumidifying, fan and heating).
B. Buttons for SETTING THE ROOM TEMPERATU-
RE
Set room temperature or program the
timer.
C. FAN button
Sets fan speed to automatic, high,
medium or low in sequence.
D. SWING button (not enabled on this model)
E. TIMER button
Sets or cancels the timer.
F. SLEEP button ( )
Sets or cancels the automatic SLEEP func-
tion.
G. SMART button ( )
When this button is pressed, the appliance
automatically establishes the most suita-
ble operating mode for maximum
comfort.
H. SUPER button ( )
Starts or stops rapid cooling (in the rapid
cooling mode, the fan operates at high
speed with the temperature automatical-
ly set to 18°C).
I. STAND-BY button
Press this button to turn the appliance on
and off. NB: the settings are displayed
even when the air conditioner is off.
Low
High
Low
High
Low
High

27
ENGLISH
Functions
AIR-CONDITIONING MODE
•Press the button to turn the appliance on.
•Press the MODE button a number of times until the air-conditio-
ning symbol appears on the display.
•Now set the temperature using the buttons.
•To select fan speed, press the FAN button repeatedly until the
required fan speed is selected (automatic, high, medium, low).
NB: in air-conditioning mode, the appliance automatically removes
excess moisture from the atmosphere.
DEHUMIDIFYING MODE
•Activate this function when humidity is high.
•Press the button to turn the appliance on.
•Press the MODE button a number of times until the dehumidifying
symbol appears on the display.
•Press the button to increase the level of dehumidification and
the button to reduce it.
•In dehumidifying mode, fan speed is selected by the appliance
automatically.
FAN MODE
On not particularly hot days, the fan function alone may be ade-
quate.
•Press the button.
•Press the MODE button a number of times until the fan symbol
appears on the display.
•Once fan mode has been selected, press the FAN button until
the required speed is reached (low, medium, high).

28
Functions
HEATING MODE
•Press the button to turn the appliance on.
•Press the MODE button a number of times until the heating sym-
bol appears on the display.
•Now set the temperature using the buttons.
•To select fan speed, press the FAN button repeatedly until the
required fan speed is selected (automatic, high, medium, low).
SMART MODE
In SMART mode, the air-conditioning unit decides the best way to
operate to guarantee maximum comfort.
•Press the button to turn the appliance on.
•Press the SMART button. The appliance functions automatically
and the symbol appears on the display.
NB: in SMART mode, the temperature is controlled automatically.
However, if the required temperature has not yet been reached, it
can be reduced or increased by a maximum of 2°C by pressing the
buttons.
The appliance automatically establishes the operating mode (air-
conditioning, fan, heating) and the optimum fan speed.
As SMART is an automatic mode, SLEEP and internal fan speed can-
not be selected even if they appear on the remote control display.
AUTOMATIC SLEEP MODE
The automatic SLEEP mode is ideal for the night-time as it enables
operation of the air-conditioning unit in any of the modes (air-con-
ditioning, dehumidifying, heating) to be gradually reduced until it
shuts down completely (after eight hours).
To select SLEEP mode, proceed as follows:
•Press the button to turn the appliance on.
•Press the MODE button a number of times until the symbol of the
function required appears on the display.
•Then select the required temperature by pressing the but-
tons.
•Now press the SLEEP button to set the night function. The sym-
bol is displayed. Press the SLEEP button again to go back to the
previous mode. In this mode, the fan operates at low speed.
The SLEEP function maintains the room temperature at the optimum level, avoiding
excessive increases or drops in the temperature, with silent operation.
The flow of air decreases, while the room temperature is varied gradually accor-
ding to the comfort requirements: increases of 1°C after 60 minutes and 2°C after 2
hours (it switches off altogether after eight hours).

29
Functions
SUPER MODE
SUPER mode is used to turn rapid cooling on or off. The fan is set to
high speed and the temperature is automatically set to 18°C.
To select SUPER mode, proceed as follows:
•Press the button to turn the appliance on.
•Press the SUPER button to set the mode. The symbol is
displayed.
•To go back to the previous mode, press the SUPER button
again.
PROGRAMMING THE TIMER
The timer can be used to delay appliance start up or shut down.
This avoids wasting electricity by optimising operating periods.
Programming shut-down
•With the air-conditioning unit on, press the TIMER button. The time
is displayed and the “h” symbol flashes. Set the time when you
want the appliance to go off using the buttons (from 30
minutes to 24 hours).
•Press the TIMER button again to confirm the selection. A count-
down of the time left is displayed.
•At the end of the set time the appliance switches off automati-
cally. During the first ten hours, you can select half hour intervals.
For times greater than ten hours, one hour intervals can be selec-
ted.
•To cancel the set time, press the TIMER button again. You will
hear a beep.
Programming start-up
•With the air-conditioning unit off, press the TIMER button. The time
is displayed and the “h” symbol flashes. Set the time when you
want the appliance to come on using the buttons (from 30
minutes to 24 hours).
During the first ten hours, you can select half hour intervals. For
times greater than ten hours, one hour intervals can be selected.
•Press the TIMER button again to confirm the selection.
•At the end of the set time the appliance switches on automati-
cally.
•To cancel the set time, press the TIMER button again. You will
hear a beep.
ENGLISH

30
Tips
ELECTRICAL CONNECTIONS
Before plugging the appliance into the mains
socket, check that:
•the mains power supply corresponds to
the value indicated on the rating plate on
the rear of the appliance;
•the mains socket and electrical circuit are
adequate for the load;
•the mains socket matches the plug. If this is
not the case, have the plug replaced;
•the mains socket is adequately earthed.
Failure to follow these important safety
instructions absolves the manufacturer of
all liability.

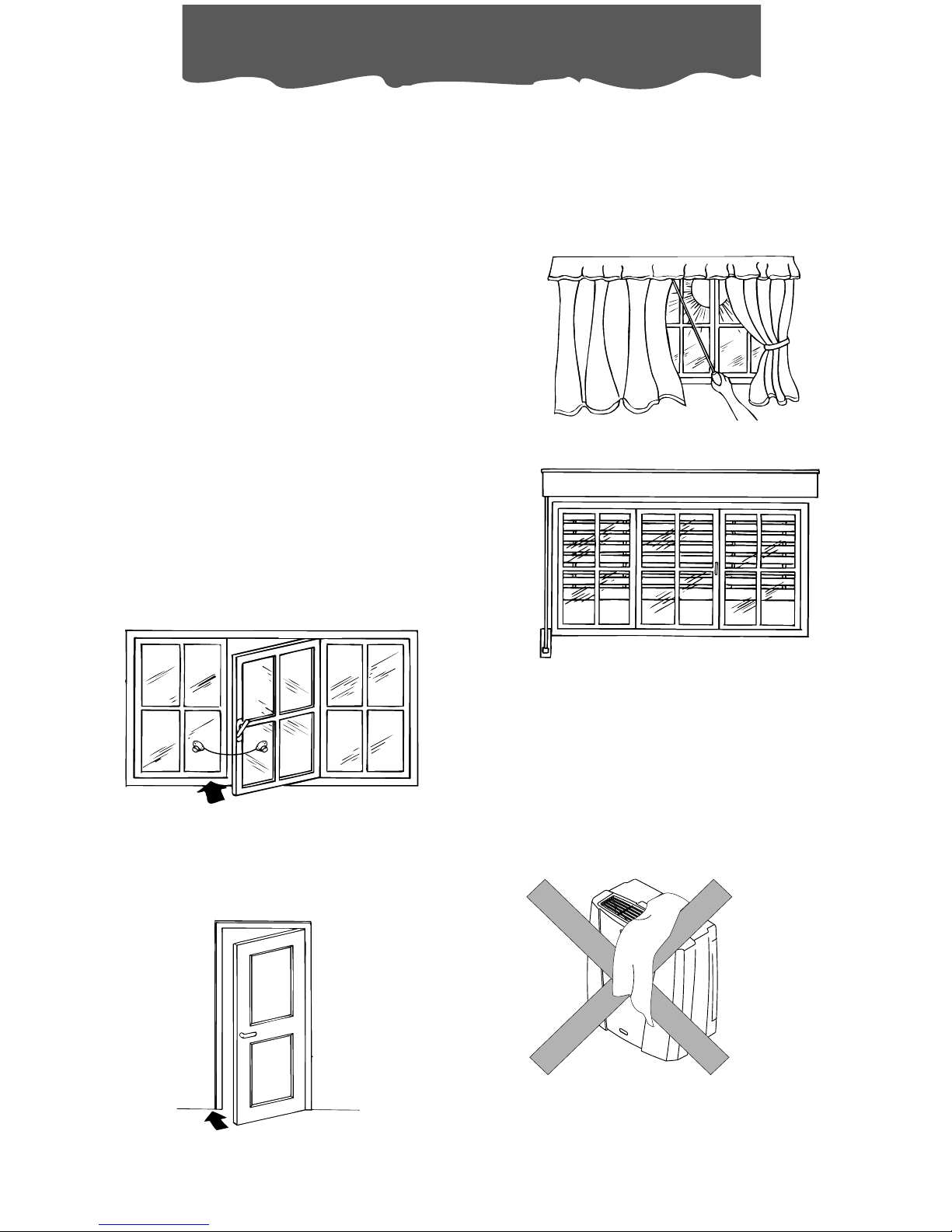

ONE LAST LOOK AT THE ROOM
To get the best from your air conditioning unit,
follow these recommendations:
•close the windows and doors in the room to
be air conditioned. The only exception is in
the case of installation through a window,
when the latter must remain ajar.
•Protect the room from direct exposure to
the sun by partially closing curtains and/or
blinds;
•Never rest objects of any kind on the air
conditioning unit;
•Never obstruct the air intake or outlet;
•Make sure there are no sources of heat in
the room.
IN THIS WAY, YOUR AIR-CONDITIONER IS READY
FOR OPERATION.
Close the curtains
Lower the blinds
Close the windows
Close the doors
do not cover

31
ENGLISH
Before cleaning or maintenance, turn the
appliance off by pressing the “ ” button on
the remote control and always unplug the
appliance from the mains socket.
CLEANING
You should clean the appliance with a slightly
damp cloth then dry with a dry cloth. For
safety reasons, never wash the air conditio-
ning unit with water.
Precautions
Never use petrol, alcohol or solvents to clean
the appliance. Never spray insecticide liquids
or similar.
CLEANING THE AIR FILTERS
To keep your air conditioning unit working effi-
ciently, you should clean the dust filter every
week
The filters are fitted on the two intake grilles on
the indoor unit. The grilles house the filters.
To clean the filters, remove the dust filters from
the intake grilles (Fig. 15).
START OF SEASON CHECKS
Make sure the power cable and plug are
undamaged and the earth system is efficient.
Follow the installation instructions precisely.
END OF SEASON OPERATIONS
Before moving the appliance, empty the pan
by holding the button on the appliance
until hearing the “gurgling” of the pump. War-
ning: the water is drained outside from under-
neath the external unit.
Clean the dust filters and dry carefully before
putting them back.
Cover the appliance with a plastic bag to stop
it being covered in dust.
8
Cleaning
Use a vacuum cleaner to remove the dust
collected on the dust filter.
If they are very dirty, immerse in warm water
and rinse a number of times.
The water should never be hotter than 40°C.
After washing, leave the filters to dry, then
replace them.
fig. 15

32
Troubleshooting
TROUBLESHOOTING
If something is not working, the problem may at times be simple to resolve.
Carefully check these brief instructions before contact your local Authorised Service Centre.
PROBLEM CAUSE REMEDY
The air-conditioner
doesn’t work
•no electricity
•it is not plugged into the mains
•the timer is set incorrectly
•wait
•plug into the mains
•set the timer correctly
Insufficient coo-
ling/heating
•air filter dirty
•temperature set incorrectly
•the air intake/outlet grilles are blocked
•clean the air filter
•set the temperature correctly
•clean the grilles
•clean the air filter
Particular odour in
the room
•air filter dirty
Water leaks from
the indoor unit of
the air-conditioner
•incorrect installation of the appliance
•pump malfunction
•See page 21 to install the
appliance correctly
•unplug the appliance and
contact the service centre
The remote control
indicator is weak or
inexistent
•flat batteries
•batteries inserted the wrong way round
•change the batteries
•check the polarity of the bat-
teries (+) and (-)
The air conditioning unit does
not operate for about three
minutes after turning it on
•the safety device has tripped •wait for three minutes
The compressor
switches on and off
periodically
•the air-conditioner is working in dehumi-
difying mode
•the antifreeze safety device has tripped
•It is normal for the compressor
to come on and go off inter-
mittently
The three indicator
lights flash
•operating anomaly • unplug the appliance, wait a
few minutes and then turn the
appliance on again. If the pro-
blem persists, contact the ser-
vice centre.
SERVICE
If following these checks the malfunction remains, contact your nearest authorised service cen-
tre, specifying the model of the appliance and the type of defect.
Transport, filling, cleaning, recovery and disposal of refrigerant should be performed by a tech-
nical service centre appointed by the manufacturer only.

33
ENGLISH
Warranty/technical specifications
WARRANTY AND TECHNICAL SERVICE
The conditions of the warranty and technical
service are provided on the certificate sup-
plied with your appliance.
LIMIT CONDITIONS IN AIR-CONDITIO-
NING AND DEHUMIDIFYNG
Temperature in the room 21 ÷ 32°C
Outside temperature 21 ÷ 43°C
TECHNICAL SPECIFICATIONS
Power supply voltage see rating plate
Max. absorbed power “
Cooling capacity* “
Heating power** “
Number of fan speeds 3
Max. air flow-rate 250-350 m3/h
Dimensions of indoor unit:
•width 450 mm
•height 475 mm
•depth 255 mm
•weight 10 kg
Dimensions of outdoor unit
•width 660 mm
•height 542 mm
•depth 290 mm
•weight 30 kg
*Standard conditions:
Inside temperature 27°C
47% R.H.
Outside temperature 35°C
40% R.H.
** Standard conditions:
Inside temperature 20°C
Outside temperature 7°C
87% R.H.
R410A is a refrigerant that complies with the EU rules on the environment, therefore it is recom-
mended to not perforate the unit’s refrigerant circuit. At the end of its working life, take the
appliance to a special collection centre.
LIMIT CONDITIONS IN HEATING
Temperature in the room 10 ÷ 25°C
Outside temperature -5 ÷ 20°C
