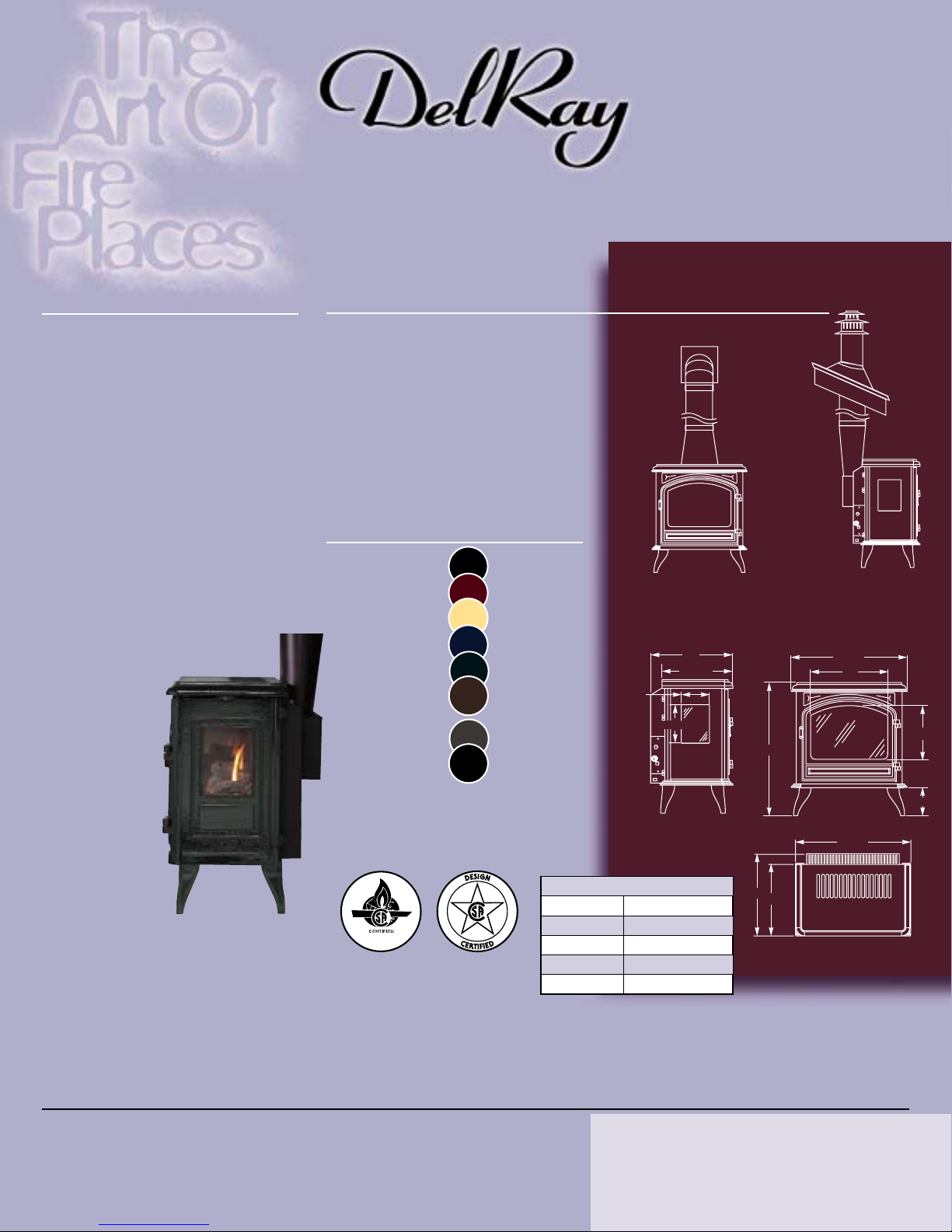

DelRay RIO DX CAST STOVE Owner's manual

QUALITY GAS PRODUCTS
FREESTANDING ST O V E S
RIO CAST STOVE
DX
DX
All specifications, product designs, materials and colours are subject to change without notice. The actual flame pattern and colour may vary slightly
from the illustrations. Diagrams and illustrations not to scale.
Available at:
Consult your distributor for local fireplace code information
Warranty: The manufacturer warrants this fireplace to be free from defects in materials and workmanship at the time of manufacture. There is a limited 10 year warranty on the firebox; 5
year limited warranty on the burner and 1 year limited warranty on the pilot burner assembly and fan motors (if included). The valve carries a limited 1 year warranty unless otherwise
specified in the installation manual. Glass, plated/painted finishes and refractory lining are exempt.
Consult owner’s manual for complete installation instructions and proper clearances
to combustible surfaces prior to installing stove.
241/4
16
29
6
113/8
18
15 1/4
6 1/4
8 3/8
1815 1/4
24 1/4
Check Out These Features:
• 28,000 BTU/H Input on Natural Gas
• 28,000 BTU/H Input on Propane
• Double burner system featuring warm,
dancing flames and glowing embers for
the feel of a relaxing, mature fire
• 6 piece ceramic fibre logset
• Approved as an energy-efficient Vented
Gas Fireplace Heater
• Equipped with Hi/Lo Control to adjust
flame and heat level from 28,000 -
22,000 BTU/H
• Ceramic glass windows on three
sides provide a full view of the
spectacular fire
• Outer door may be left open while the
stove is in operation
• Millivolt
control allows
continuous
operation, even
during a power
failure
• 100% fail-safe
shut-off valve
• Piezo spark
ignition
Design Options:
• Six beautiful
designer finishes
to choose
from: Ceramic
Porcelain Black,
Red, Ivory, Blue,
Green or Brown
• Two attractive
painted finishes
to choose from:
Painted Charcoal
Grey or
Painted Black
• Variable-speed blower kit for increased
heat circulation into the living space
• Wireless remote control (on/off control only)
FREESTANDING ST O V E S
RIO DX CAST STOVE
RIO DX CAST STOVE
Clearance to Combustibles
0"
Back
Control Side
Floor
3 1/2"
24"
Right Side 10 1/2"
Top 42"
Dimensions
Installation Versatility!
The Rio DX Cast Stove uses standard
series direct vent pipe, and must be
connected to one of the following kits:
• Direct vent kit for top vent ‘through-the-
roof’ installations. (FSTK04)
• Direct vent kit for top vent ‘through-the-
wall’ installations. (FSTK05)
• Optional upgrade to a Mobile/
Manufactured Home OEM-approved
version. (on/off control only)
Installation
Options
‘Through-the-wall’ ‘Through-the-roof’
Front viewSide view
Top view
Side view shown with Ceramic
Porcelain Green finish
Part No XB0505
Printed in Canada 04/2003
CHP/MDR
Langley, BC • Ferndale, WA
Phone: [phone] Fax: [phone]
Email: [email protected]
Ceramic Porcelain Black
Ceramic Porcelain Red
Ceramic Porcelain Ivory
Ceramic Porcelain Blue
Ceramic Porcelain Green
Ceramic Porcelain Brown
Painted Charcoal Grey
Painted Black
