Delta Heat DHBQ26G-B Instructions for use

P/N: 18617N (01/14)
Models: DHBQ26G-B
DHBQ32G-B
DHBQ32R/S-B
DHBQ38R/S-B
DELTA HEAT GAS GRILL
INSTALLATION, USE & CARE MANUAL

A special message…
Congratulations on your purchase of Delta Heat gas barbecue grill. Delta Heat
is committed to making outdoor cooking products you’ll be proud to own for years.
This manual gives you easy to follow instructions for installing, operating and
maintaining your Delta Heat grill. We recommend reading this manual carefully
before your first use to ensure safety, proper care and operation.
Thank you and welcome!
Delta Heat
_____________________________________________________________________
FOR YOUR RECORDS
Please record the following information and refer to them when contacting the
company or an authorized service agent. This information is found on the data
nameplate, located on the rear panel of the grill. A second label with model number
and serial number is located under the right side of the control panel.
Model #: ________________________________
Serial #: _________________________________
Date of Purchase: __________________________
Place of Purchase: __________________________
Type of Gas: NG LP

IMPORTANT SAFETY INFORMATION –DELTA HEAT GAS GRILL
WARNING! Read this manual carefully and completely before using your grill to ensure proper
operation, proper installation, proper servicing and to reduce the risk of fire, burn hazard and/ or
other injury.
F O R Y O U R S A F E T Y
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flames.
3. Open lid.
4. If odor continues, keep away from the
appliance and immediately call your gas
supplier or fire department.
A V E R T I S S E M E N T
S’il y a une odeur de gaz:
1. Coupez l’admission de gaz de l’appariel.
2. Éteindre toute flamme nue.
3. Ouvrir le couvercle.
4. Si l’odeur continue, évite l’appareil et
appelle tout de suite votre fournisseur de gaz
ou les pompiers.
F O R Y O U R S A F E T Y
1. Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
2. An LP cylinder not connected for use
shall not be stored in the vicinity of this
or any other appliance.
A V E R T I S S E M E N T
1. Ne pas entreposer ni utiliser de l’essence ni
d’autres vapeurs ou liquides inflammables
dans le voisinage de l’appareil, ni de tout
autre appareil.
2. Une bouteille de propane qui n’est pas
raccordée en vue de son utilisation, ne doit
pas être entreposée dans le voisinage de cet
appareil ou de tout autre appareil.
THIS GRILL IS FOR OUTDOOR USE ONLY:
If stored indoors, detach and leave L.P. cylinder
outdoors.
CE GRIL EST POUR UTILISATION à
L’ExTéRIEUR SEULEMENT:
Si l’appareil est entreposé à l’interieur, enlever
les bouteilles et les laisser à l’extérieur.
B E F O R E L I G H T I N G
1. Read instructions before lighting.
2. Open lid during lighting.
3. If ignition does not occur in 4 seconds,
turn the burner control(s) off, wait 5
minutes, and repeat the lighting
procedure.
A V A N T D ’ A L L U M E R
L ’ A P P A R E I L
1. Lisez les instructions avant d’allumer
l’appareil.
2. Ouvrez le couvercle avant d’allumer l’appareil.
3. Si l’appareil ne s’allume pas en 4 secondes,
fermez le robinet du brûleur, attendez 5
minutes, et procédez de nouveau à l’allumage.

GENERAL SAFETY REQUIREMENTS:
1. The installation of this appliance must conform with local codes or, in the absence of local codes;
either the National Fuel Gas Code, ANZI Z223.1/NFPA 54, or the CAN/CGA-B149.1, Natural
Gas Installation Code or CAN/CGA-B149.2, Propane Installation Code.
2. This outdoor cooking gas appliance is not intended to be installed in or on recreational vehicles
and /or boats.
3. This outdoor cooking gas appliance is intended for use outdoors and shall not be used in a
building, garage or any other enclosed area.
4. Minimum clearance of 12 inches from the back and sides of the grill to adjacent
combustible construction must be maintained. This outdoor cooking gas appliance shall not
be located under overhead-unprotected combustible construction.
5. The utilization of an external electrical source requires that when installed, this outdoor cooking
gas appliance must be electrically grounded in accordance with the local codes or, in the absence
of local codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical
Code, CSA C22.1. Keep any electrical supply cord, or the rotisserie motor cord and the fuel
supply hose away from any heated surfaces.
6. Keep your grill in an area clear and free from combustible materials, gasoline and other
flammable vapors and liquids.
7. DO NOT obstruct the flow of combustion and ventilation air to this appliance. Keep the
ventilation openings of the cylinder enclosure free and clear from debris.
8. Check all gas connections for leaks with soapy water solution and brush. Never use an open
flame. (Reference page 8 for leak test procedure).
9. Check flexible hoses for cuts and wear that may affect the safety before each use.
10. Never use charcoal in the grill.
11. Never use the grill in a windy area.
12. Never use the grill without the drip pan installed and push all the way to the back of the grill.
Without the drip pan, hot grease and debris could leak downward and produce a fire hazard.
13. The pressure regulator and hose assembly supplied with the Delta Heat Gas Grill must be used.
Replacement pressure regulators and hose assemblies must be those specified by Delta Heat.
14. CALIFORNIA PROPOSITION 65-WARNING: The burning of gas cooking fuel generates some
by-products which are on the list of substances known by the State of California to cause cancer
or reproductive harm. California law requires businesses to warn customers of potential exposure
to such substances. To minimize exposure to these substances always operate this unit according
to the use and care manual, ensuring you provide good ventilation when cooking with gas.
In Massachusetts: All gas products must be installed using a “Massachusetts” licensed plumber or
gasfitter. A “T” handle type manual gas valve must be installed in the gas supply line to this
appliance. This applies to permanently installed Natural Gas and propane installations. This does
not apply to propane portable installations using a 20 pound tank.

TABLE OF CONTENTS –DELTA HEAT GAS GRILL
GETTING STARTED…………………………………………………………………… ….. 2
GAS REQUIREMENTS
oGAS SAFETY REQUIREMENT……………………………………………... 4
oLP GAS HOOKUP………….………………………………………………… 5

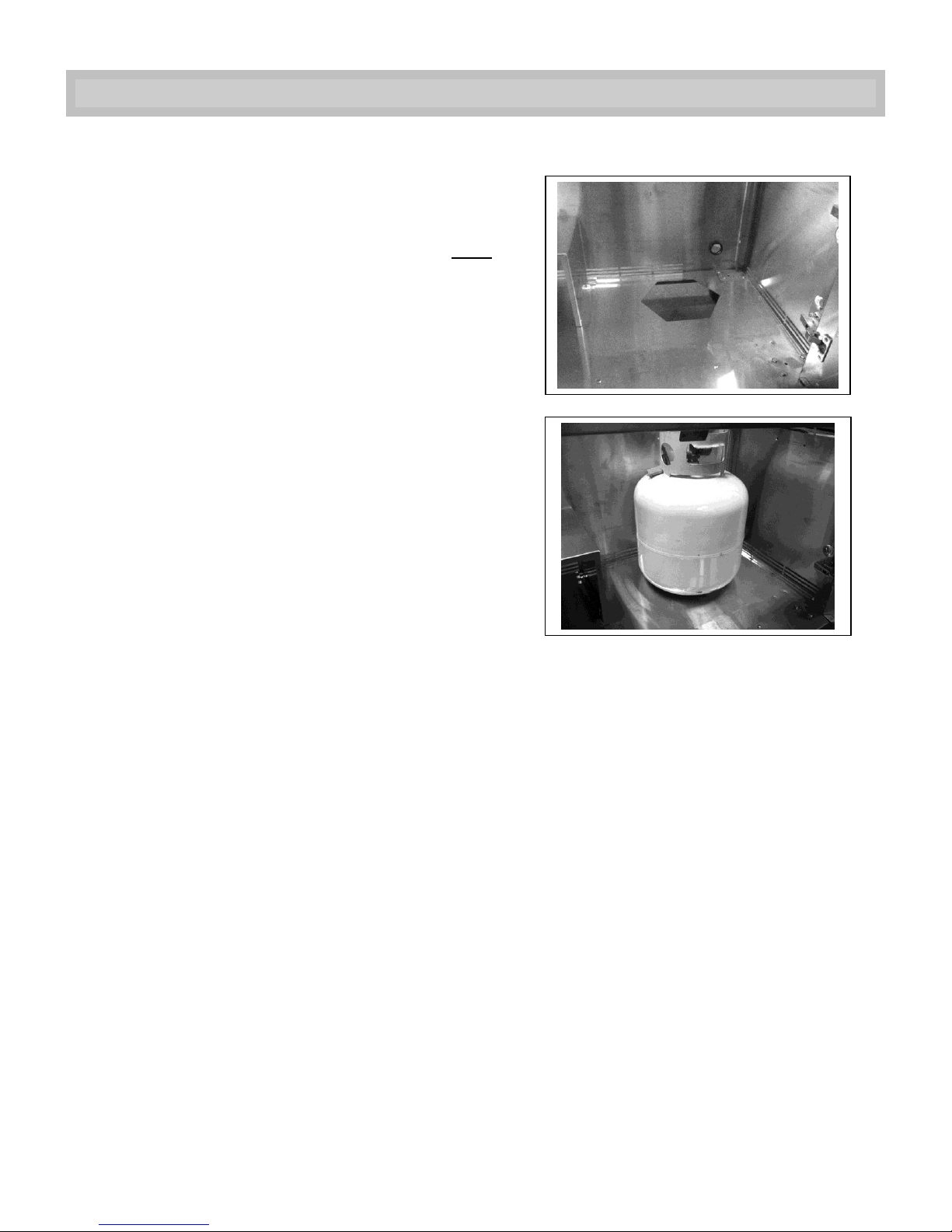

oPORTABLE LP CONNECTION………….………………………………….. 6
oNATURAL GAS INSTALLATION………………………………………….. 7

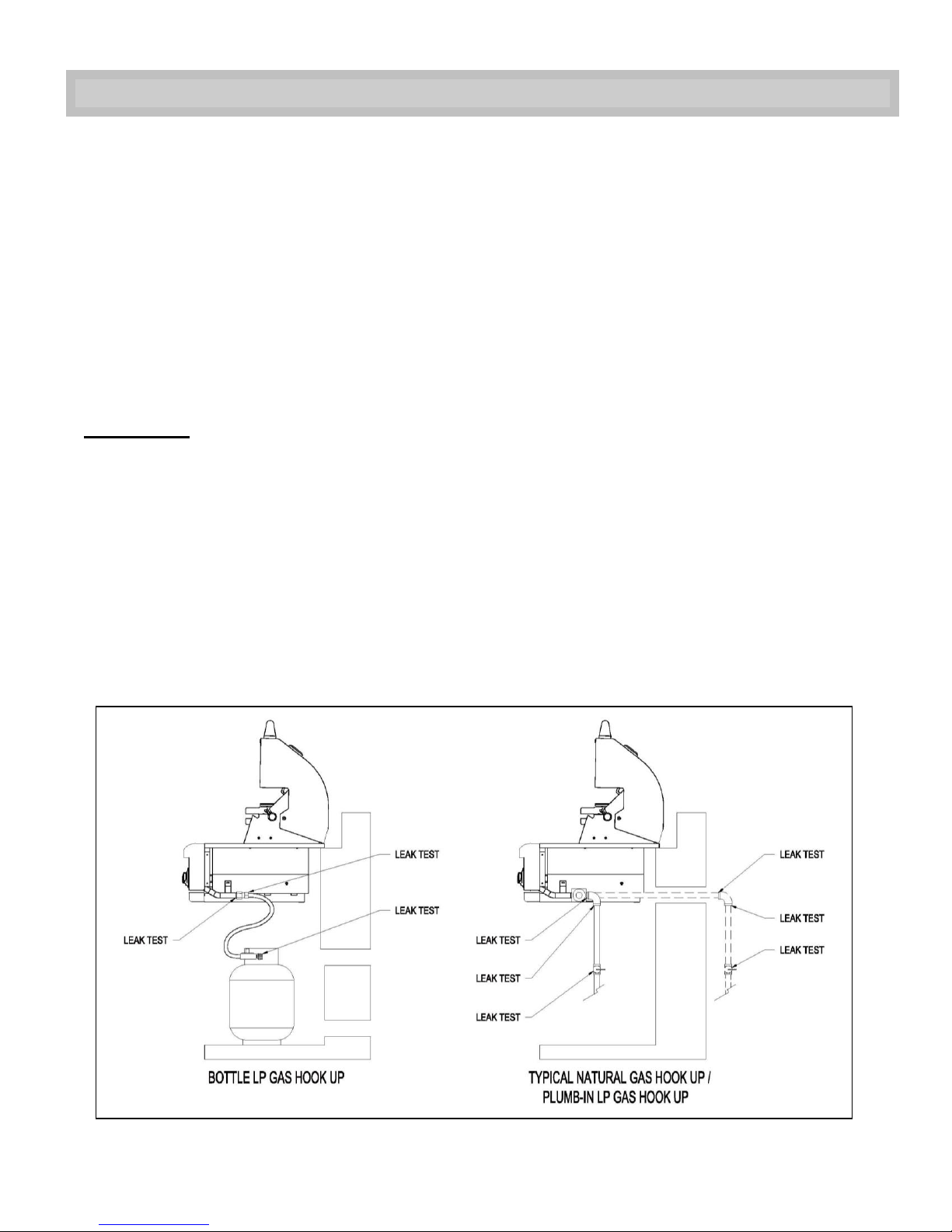

oLEAK TEST…………………………………………………………………… 8

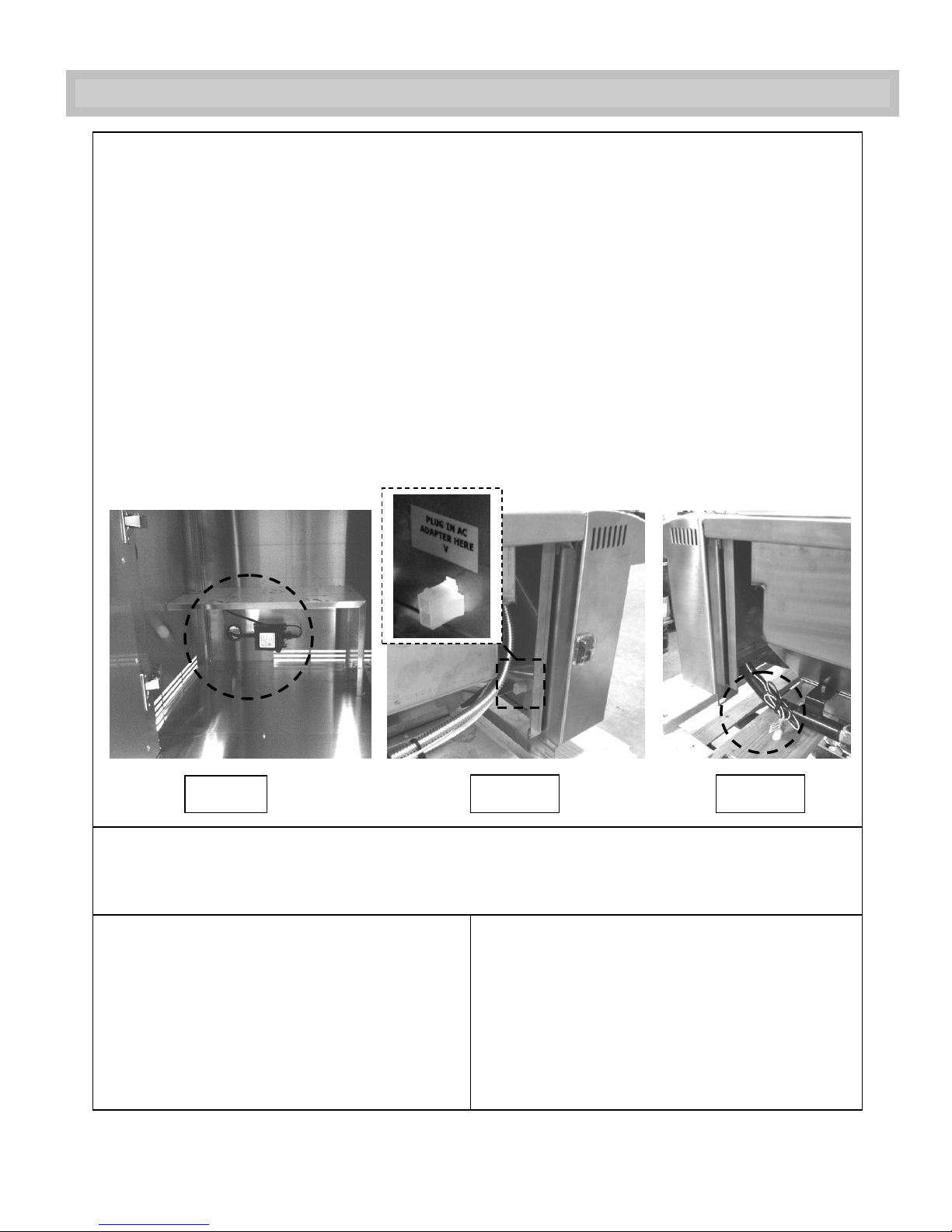

ELECTRICAL REQUIREMENTS …………………………………………………..……… 9
WIRING DIAGRAM…………………………………………………………………..……..… 10
LOCATING THE GRILL
oCLEARANCE TO COMBUSTIBLE CONSTRUCTION……………………... 11
oCLEARANCE TO NONCOMBUSTIBLE CONSTRUCTION……………..… 11
CUTOUT DIMENSIONS
oGRILL………………………………………………………………………….. 12
ASSEMBLY INSTRUCTIONS
oBRIQUETTE TRAY…………………..……………………………………….. 13
oWARMING RACK…………………………………………………………… 13
oROTISSERIE…………………………...……………………………………… 14
oBATTERY LOCATION ………………………………………………………. 14
OPERATING INSTRUCTIONS
oBEFORE LIGHTING THE GRILL…………………………………………… 15
oTO LIGHT THE GRILL BURNER ………………………………………….. 15
oMATCH LIGHTING INSTRUCTIONS ……..……………………………… 16
oUSING THE GRILL …………………………………………………………… 16
oINTERIOR LIGHT OPERATION AND LIGHT BULB REPLACEMENT……. 16
oUSING THE ROTISSERIE BURNER……………..…………………………….. 17
oSEAR ZONE BURNER …………………………....…………………………..… 17
CLEANING AND MAINTENANCE
oSTAINLESS STEEL…………………………………………………………… 18
oCOOKING GRATES ………………………………………………………… 18
oCERAMIC BRIQUETTE TRAY….…………………………….………….… 18
oU-BURNER & SEAR ZONE BURNER……………………………………… 19
oDRIP PAN ………………….………………………………………………… 19
oSPIDER AND INSECT WARNING…………………………………………… 19
TROUBLE SHOOTING GUIDE…………………...………………………………………… 20
REPLACEMENT PARTS
oEXPLODED VIEW………………………………………….…………………. 21
oREPLACEMENT PARTS LIST…………………………..……………….……. 22
oLIMITED PRODUCT WARRANTY………………………………………...…. 24
oWARRANTY REGISTRATION CARD ………………………………………. 25
