Delta Heat DHBQ26G-D Instructions for use

DELTA HEAT GAS GRILL
INSTALLATION, USE, & CARE MANUAL
P/N: 17542A 10/18
MODELS:
DHBQ26G-D
DHBQ32G-D
DHBQ32R/S-D
DHBQ38G-D
DHBQ38R/S-D

A Special Message to our Customers...
Congratulations on your purchase of Delta Heat gas barbecue grill. Delta Heat is
committed to making outdoor cooking products you’ll be proud to own for years.
This manual gives you easy to follow instructions for installing, operating and
maintaining your Delta Heat grill. We recommend reading this manual carefully
before your rst use to ensure safety, proper care and operation.
Thank you and welcome!
Delta Heat
FOR YOUR RECORDS
Please record the following information and refer to them when contacting the company or an
authorized service agent. This information is found on the data nameplate, located on the rear
panel of the grill. A second label with model number and serial number is located under the
right side of the control panel.
MODEL #:
____________________________________________
SERIAL #:
____________________________________________
DATE OF PURCHASE:
____________________________________________
PLACE OF PURCHASE:
____________________________________________
TYPE OF GAS: NG _____ LP _____
To the Installer:
Please read these instructions carefully before installation and give this manual to the owner.
To the Owner:
Keep this manual in a safe place for future reference.

IMPORTANT SAFETY INSTRUCTIONS
WARNING! Read this manual carefully and completely before using your grill to ensure proper op-
eration, proper installation, proper servicing and to reduce the risk of re, burn hazard and/ or other
injury.
AVERTISSEMENT! Lire ce manuel avec soin et en entier avant l’utilisation de votre barbecue an
d’en assurer un fonctionnement, une installation et un entretien adéquats et réduire le risque d’in-
cendie, de brûlures et d’autres blessures.
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open ames.
3. Open lid.
4. If odor continues, keep away from the appli-
ance and immediately call your gas supplier
or re department.
DANGER
S’il y a une odeur de gaz:
1. Coupez l’admission de gaz de l’appariel.
2. Éteindre toute amme nue.
3. Ouvrir le couvercle.
4. Si l’odeur continue, évite l’appareil et appelle
tout de suite votre fournisseur de gaz ou les
pompiers.
WARNING
1. Do not store or use gasoline or other amma-
ble vapors and liquids in the vicinity of this or
any other appliance.
2. An LP cylinder not connected for use shall
not be stored in the vicinity of this or any oth-
er appliance.
AVERTISSEMENT
1. Ne pas entreposer ni utilizer de l’essence
ni d’autres vapuers ou liquids inammables
dans le voisinage de l’appareil, ni de tout
autre appareil.
2. Une bouteille de propane qui n’est pas rac-
cordée en vue de son untilisation, ne doit
pas être entrpossée dans le voisinage de cet
appareil ou de tout autre appareil.
THIS GRILL IS FOR OUTDOOR USE ONLY:
If stored indoors, detach and leave L.P. cylinder
outdoors
CE GRIL EST POUR UTILISATION à L’Ex-
TéRIEUR SEULEMENT:
Si l’appareil est entreposé à l’interieur, enlever
les bouteilles et les laisser à l’extérieur.
BEFORE LIGHTING
1. Read instructions before lighting.
2. Open lid during lighting.
3. If ignition does not occur in 5 seconds, turn
the burner control(s) off, wait 5 minutes, and
repeat the lighting procedure.
AVANT D’ALLUMER L’APPAREIL
1. Lisez les instructions avant d’allumer l’appa-
reil.
2. Ouvrez le couvercle avant d’allumer l’appar-
eil.
3. Si l’appareil ne s’allume pas en 5 secondes,
fermez le robinet du brûleur, attendez 5 min-
utes, et procédez de nouveau à l’allumage.
FOR YOUR SAFETY
Do not store or use gasoline or other ammable
vapors and any liquids in the vicinity of this or
any other appliance.
MESURE DE SECURITE
Ne pas entreposer ni utiliser d’essence ni autres
vapeurs ou liquides ibammables à proximité de
cet appareil ou de tout autre appareil.

GENERAL SAFETY REQUIREMENTS
• The installation of this appliance must conform with local codes or, in the absence of local codes, either the
National Fuel Gas Code, ANSI Z223.1/NFPA 54, Natural Gas and Propane Installation Code, CSA B149.1 or
Propane Storage and Handling Code, B149.2
• The utilization of an external electrical source requires that when installed, this outdoor cooking gas appliance
must be electrically grounded in accordance with the local codes or, in the absence of local codes, with the
National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1. Keep any electrical
supply cord and the fuel supply hose away from any heated surfaces.
• This outdoor cooking gas appliance shall be used only outdoors and shall not be used in a building, garage or
any other enclosed area.
• This outdoor cooking gas appliance is not intended to be installed in or on recreational vehicles and /or boats.
• Minimum clearance of 12 inches from the back and sides of the grill to adjacent combustible construc-
tion must be maintained. For adjacent combustible construction extending above the counter-top sur-
face, the minimum clearance from sides and back of the grill is 18 inches. This outdoor cooking gas
appliance shall not be located under overhead-unprotected combustible constructions.
• Keep your grill in an area clear and free from combustible materials, gasoline and other ammable vapors and
liquids.
• DO NOT obstruct the ow of combustion and ventilation air to this appliance. Keep the ventilation openings of
the cylinder enclosure free and clear from debris.
• Check exible hoses for cuts and wear that may affect the safety before each use.
• Check all gas connections for leaks with soapy water solution and brush. Never use an open ame. (Refer-
ence page 7 for leak test procedure).
• Always use caution when operating the grill in a windy area (For reference, see Page 19 – Windy Condition)
• Never use the grill without the drip pan installed and push all the way to the back of the grill. Without the drip
pan, hot grease and debris could leak downward and produce a re hazard.
• The pressure regulator and hose assembly supplied with the Delta Heat Gas Grill must be used. Replacement
pressure regulators and hose assemblies must be those specied by DELTA HEAT.
In Massachusetts: All gas products must be installed using a “Massachusetts” licensed plumber or
gastter. A “T” handle type manual gas valve must be installed in the gas supply line to this appliance.
This applies to permanently installed natural gas and propane installations. This does not apply to
propane portable installations using a 20 pound tank.
WARNING: CALIFORNIA PROPOSITION 65
This product can expose you to chemicals including carbon monoxide which is known to the State
of California to cause cancer and reproductive harm. To minimize exposure to the by-products of the
burning fuel or from combustion, always operate this unit according to the use and care manual and
provide good ventilation. California law requires businesses to warn customers of potential exposure
to such substances. For more information go to www.P65Warnings.ca.gov.
AVERTISSEMENT: PROPOSITION 65 DE L’ETAT DE LA CALIFORNIE
Cet appareil peut vous exposer aux produits chimiques et au gaz monoxyde de carbonne reconnue
dans l’Etat de la Californie pour causer le cancer et des problemes de fertilite. Pour minimiser l’expo-
sition de ces-sous produits combustibles ou de la combustion, utiliser toujours cet appareil en con-
formitee au manuel d’utilisation et d’entretien en s’assurant egalement d’une bonne ventilation. La loi
de la Californie exige aux fabricants d’informer leurs clients aux risques d’exposition potentielle a de
telles substances. Pour plus d’information, visiter le site www.P65Warnings.ca.gov

TABLE OF CONTENTS
GETTING STARTED 1-2
GAS SAFETY REQUIREMENTS 3
LP GAS HOOK-UP 4
PORTABLE LP CONNECTION 5
NATURAL GAS INSTALLATION 6
LEAK TEST 7
ELECTRICAL REQUIREMENT 8
WIRING DIAGRAM 9
BURNER FLAME / AIR SHUTTER ADJUSTMENT 10
LOCATING THE GRILL 11

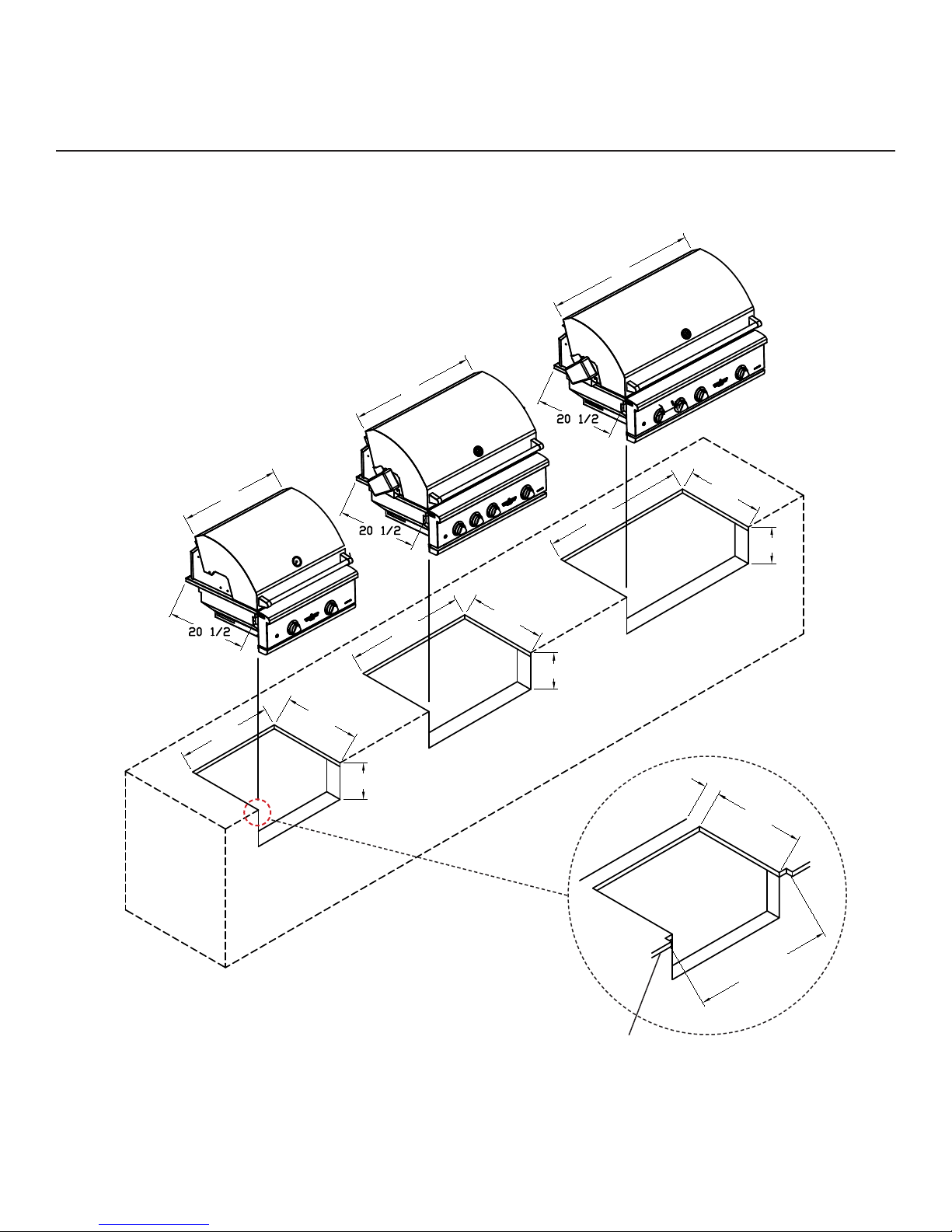

GRILL CUT-OUT DIMENSIONS 12
INSULATION JACKET 13
ASSEMBLY INSTRUCTIONS 14-15
OPERATING INSTRUCTIONS 16-18
WINDY CONDITIONS 19
CLEANING & MAINTENANCE 20-22
TROUBLE SHOOTING GUIDE 23
EXPLODED VIEW 24
REPLACEMENT PARTS LIST 25-27
WARRANTY 28
HOW TO OBTAIN SERVICE 29

Twin Eagles Service [phone] | 1
GETTING STARTED
1. Remove all packaging materials, labels and protective plastic lm. DO NOT LEAVE UNIT UN-
DER THE SUN WITH PROTECTIVE PLASTIC FILM ON FOR A LONG PERIOD OF TIME AS
IT WILL BECOME DIFFICULT TO REMOVE THE FILM.
2. Check to ensure that all grill accessories listed below are included.
GRILL ACCESSORIES DHBQ26G-D DHBQ32/38G-D DHBQ32/38R/S-D
GRATE, STAINLESS STEEL 2 3 3
BRIQUETTE TRAY ASSEMBLY
(STANDARD GRILL) 2 2 3 / 2
ROTISSERIE MOTOR WITH BRACKET (S/S) 1
REGULATOR, NG (NG GRILLS ONLY) 1 1 1
REGULATOR, LP (LP GRILLS ONLY) (1) (1) (1)
WARMING RACK, (S/S) 1 1 1
SPIT ROD, (S/S) 1
MEAT HOLDER FORKS (PAIR) (S/S) 1
3. Assemble parts as per assembly instructions on page 14-15
4. Fill out the Warranty Registration Card and mail it to the indicated address.

2 | www.deltaheat.com
5. Get familiar with the knobs and burners identication below:
GETTING STARTED - CONT.
DHBQ26G-D DHBQ32G-D
DHBQ32R/S-D DHBQ38R/S-D
DHBQ38G-D
GRILL BURNER
SEAR ZONE (OPT)
GRILL
BURNER
GRILL BURNER
SEAR ZONE (OPT)
GRILL
BURNER
GRILL BURNER /
SEAR ZONE
GRILL
BURNER
ROTISSERIE GRILL BURNER /
SEAR ZONE
GRILL
BURNER
ROTISSERIE
Grill U-Burner (Standard)
Located underneath the
briquette trays
Sear Zone Burner (Standard on
RS Models and Optional on R &
G Models)
Typically located on the left side.
Infrared Rotisserie Burner
(32R/S & 38R/S Models only)
Located on the rear panel
above the grates.

Delta Heat Service [phone] | 3
GAS SAFETY REQUIREMENTS
Each appliance is set and tested at the factory for the type of gas supply to be used. Identify
the type of gas, either Natural Gas or LP gas and make sure that the marking on the data plate (rating
plate) matches the gas being supplied to the grill. The data plate is located on the rear panel of the
grill. A second label with model number and serial number is located under the right side of the con-
trol panel.
All gas connections should be made by a qualied technician and in accordance with local
codes and ordinances. The installation must conform with local codes or, in the absence of local
codes, with either the National Fuel Gas Code, ANSI Z223.1/NFPA 54, Natural Gas and Propane
Installation Code, CSA B149.1 or Propane Storage and Handling Code, B149.2.
WARNING:
CHECK TO ENSURE THAT THE GAS SUPPLY HOSE DOES NOT COME IN CONTACT WITH ANY
HOT SURFACE OF THE GRILL.
NEVER CONNECT THE GRILL TO AN UNREGULATED GAS SUPPLY.
L.P. GAS (LIQUIFIED PETROLEUM /PROPANE)
If your grill is factory built for L.P., the regulator supplied is set for 11 in wc (2.74 kPa) and is for
use with L.P. gas only. The factory-supplied regulator and hose must be used with a 20 lb. L.P. cylin-
der.
L.P. GAS SAFETY REQUIREMENT
The LP-gas supply cylinder must be constructed and marked in accordance with the Speci-
cations for LP-gas Cylinders of the U.S. Department of Transportation (D.O.T.) or the National Stan-
dards of Canada CAN/CSA-B339, Cylinders, Spheres and Tubes for the Transportation of Dangerous
Goods, and Commission, as applicable; and
1. Provided with a listed overlling prevention device.
2. Provided with a cylinder connection device compatible with the connection for outdoor cooking
appliances.
It must be provided with a shut-off valve terminating in gas tank valve outlet. It must include a
collar to protect the cylinder valve. The cylinder supply system must be arranged for vapor withdraw-
al.
Do not operate the gas grill indoors or in any enclosed area. If the gas grill is not in use, the
gas must be turned off at the supply cylinder. If the grill is to be stored indoors, disconnect the gas
supply cylinder and leave the cylinder outdoors.

4 | www.deltaheat.com
LP GAS HOOK-UP
Install the factory-supplied hose and regulator assembly as shown. Connect the 3/8” are end
of the hose to the grill coupling using a ¾” open wrench. Do not apply pipe sealant to the 3/8” are
connection. Connect the regulator to the LP cylinder hand tighten it, do not use a wrench. Check for
leaks using soapy water solution. (Reference page 8 for leak test procedure).
Note: An enclosure for LP gas cylinder must be vented on the level of the cylinder valve and at oor
level. The effectiveness of the opening(s) for purposes of ventilation shall be determined with the LP
gas supply cylinder in place. This shall be accomplished by one of the following:
a. One side of the enclosure shall be fully open; or
b. For an enclosure having four sides, a top and a bottom:
1. At least two ventilation openings at cylinder valve level shall be provided in the sidewall,
equally sized, spaced at 180 degrees (3.14 rad), and unobstructed. Each opening shall have
a total free area of not less than 1/2 square inch per pound (7.1 cm2/kg) of stored fuel capac-
ity and not less than a total free area of 10 square inches (64.5 cm2).
2. Ventilation opening(s) shall be provided at oor level and shall have a total free area of not
less than ½” square inch per pound (7.1 cm2/kg) of stored fuel capacity and not less than a
total free area of 10 square inches (64.5 cm2). If ventilation openings at oor level are in a
sidewall, there shall be at least two openings. The bottom of the openings shall be at oor
level and the upper edge no more than 5 inches (127 mm) above the oor. The openings
shall be equally sized, spaced at 180 degrees (3.14 rad) and unobstructed.
INSTALLER SUPPLIED
REGULATOR SET AT 10” WC (LP)
(MUST BE PURCHASED FROM
DELTA HEAT)
TYPICAL BOTTOM
GAS CONNECTION
INSTALLER SUPPLIED GAS
SHUTOFF VALVE (MUST BE
EASILY ACCESSIBLE)
CUSTOMER SUPPLIED
20 lb (5 GALLON) LP CYLINDER
DO NOT PLACE MORE THAN
ONE CYLINDER IN THE EN-
CLOSURE AT ANY TIME
VENTS REQUIRED ON
ENCLOSURES FOR LP
CYLINDERS (SEE NOTES)
BRASS COUPLING
1/2 NPT X 1/2 FLARE
FACTORY SUPPLIED
HI-PRESSURE LP
HOSE ASSEMBLY
FACTORY SUPPLIED
LP REGULATOR
TYPE 1

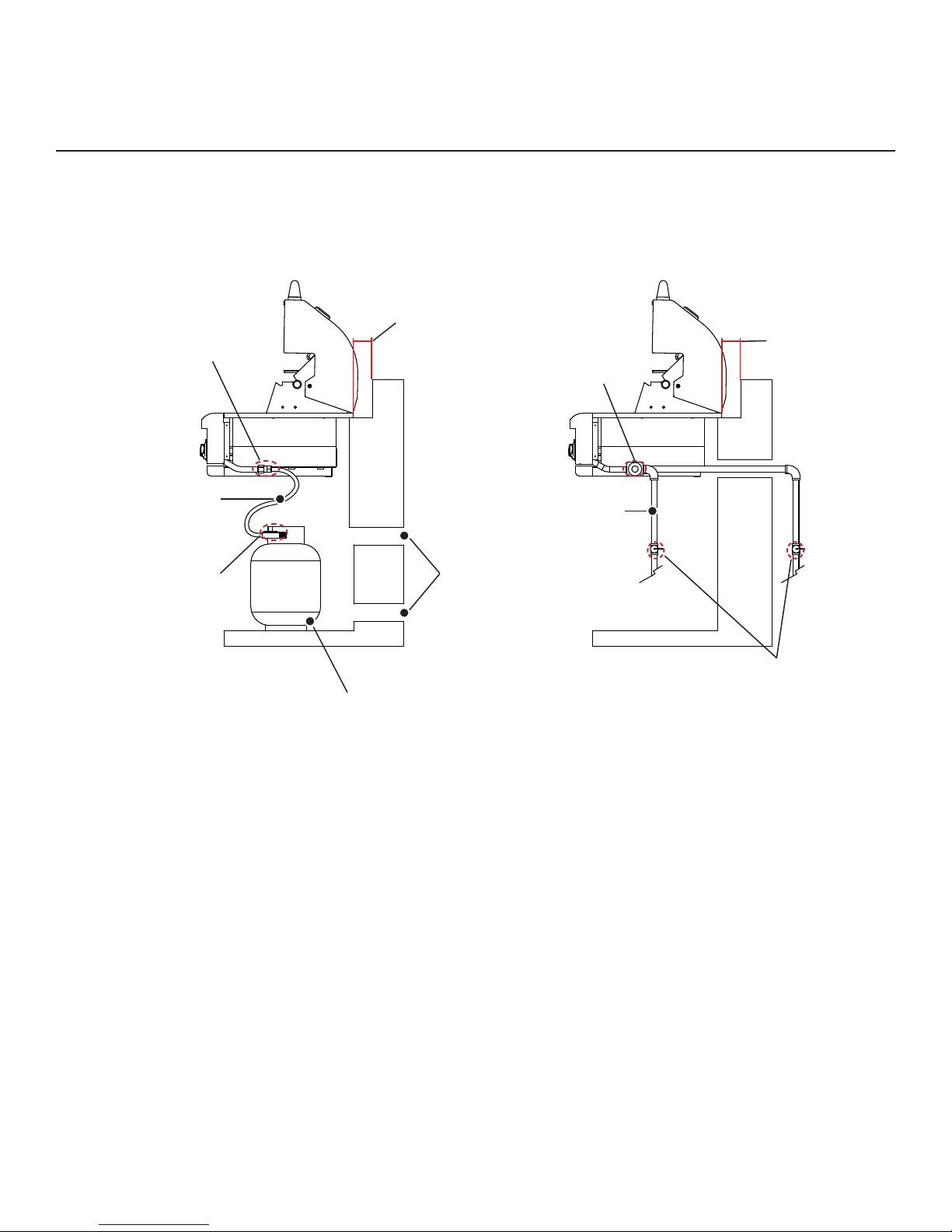

TYPICAL BOTTLE LP GAS
HOOK-UP
TYPICAL PLUMB-IN GAS
HOOK-UP
3” MIN CLEARANCE
TO ALLOW HOOD
TO FULLY OPEN
3” MIN CLEARANCE
TO ALLOW HOOD
TO FULLY OPEN

Delta Heat Service [phone] | 5
PORTABLE LP CONNECTION
NOTE: USE ONLY A 20-LBS. (5-GALLON CAPACITY)
GAS CYLINDER.
WARNING: DO NOT PLACE MORE THAN ONE CYL-
INDER IN THE BASE CABINET ENCLOSURE AT ANY
TIME.
WARNING: DO NOT USE A DENTED OR RUSTED LP
CYLINDER.
NEVER USE A CYLINDER WITH A DAMAGED VALVE.
ALWAYS CHECK FOR LEAKS AFTER CHANGING THE
LP CYLINDER. (Page 7)
THE LP PRESSURE REGULATOR AND HOSE SUP-
PLIED WITH THIS UNIT MUST BE USED WITHOUT
ALTERATION.
ALWAYS USE THE TANK SECURING DEVICE SUP-
PLIED WITH GRILL BASE.

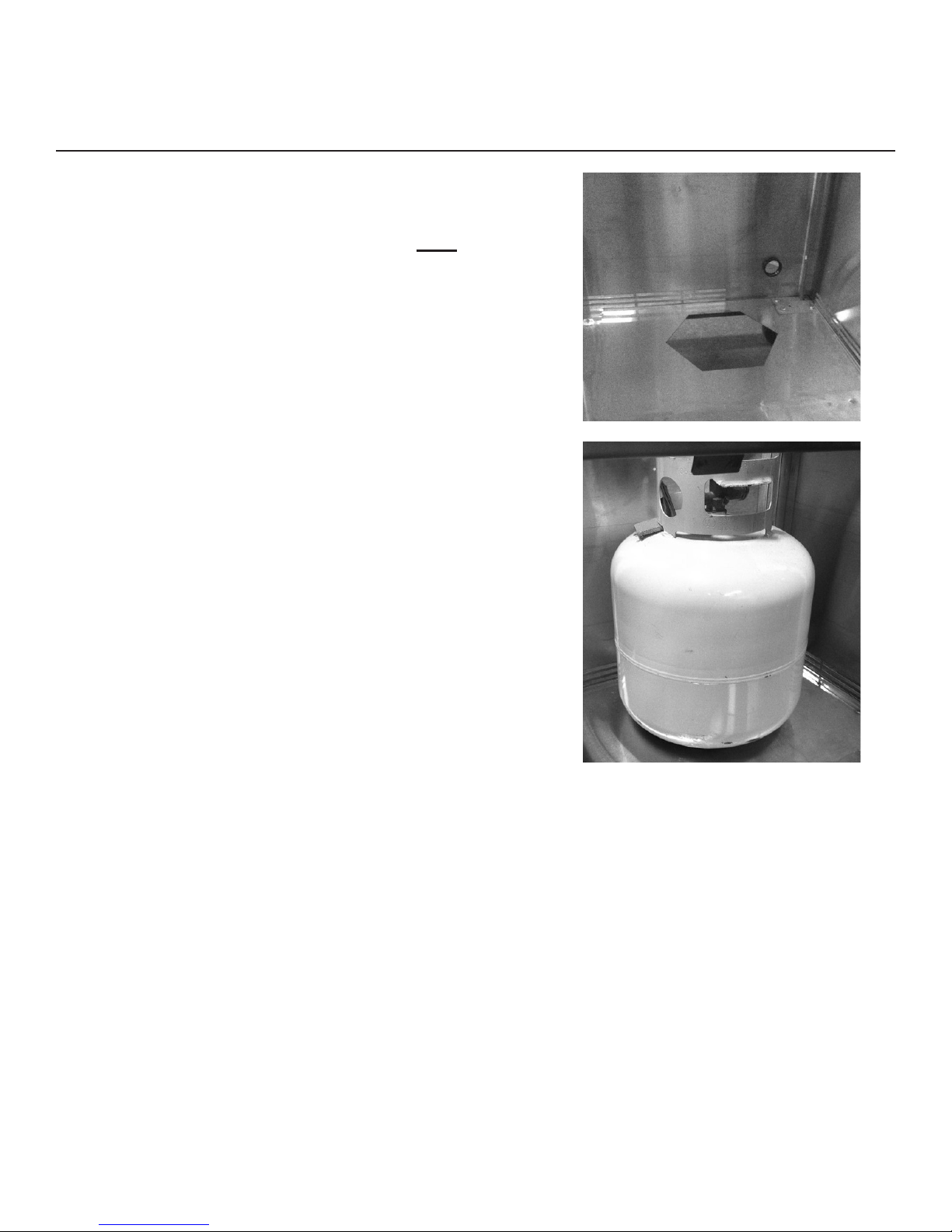

1. To install the gas cylinder, place the cylinder onto the provided cutout.
2. Check to ensure that the tank’s gas valve on top of the cylinder is closed.
3. Connect the LP regulator (included) to the cylinder and hand-tighten only. Open the tank valve
and make sure all connections are leak tight using a soapy water solution and a brush. (Refer-
ence page 7 for leak test procedure).
WARNING
DO NOT STORE SPARE LP GAS CYLINDER UNDER OR NEAR THIS APPLIANCE.
NEVER FILL THE CYLINDER BEYOND 80 PERCENT FULL.
FAILURE TO DO SO, A FIRE CAUSING DEATH OR SERIOUS INJURY MAY OCCUR

6 | www.deltaheat.com
NATURAL GAS INSTALLATION
The installation must conform with local codes or, in the absence of local codes, with either the
National Fuel Gas Code, ANSI Z223.1/NFPA 54, Natural Gas and Propane Installation Code, CSA
B149.1 or Propane Storage and Handling Code, B149.2.
1. This gas appliance and its individual shutoff valve must be disconnected from the gas supply
piping system during any pressure testing of that system at the test pressures in excess of 1/2
psi (3.5 kPa).
2. This appliance must be isolated from the gas supply piping system by closing its individual
manual shutoff valve during any pressure testing of the gas supply piping system at test pres-
sures equal to or less than 1/2 psi (3.5 kPa).
If the gas grill is factory built for Natural Gas, the regulator supplied is set for 4” water column.
The regulator is convertible to 10 in wc (2.49 kPa) for plumb-in system LP application. Do not use with
a 20-lb LP cylinder. Make sure that the regulator is set for the correct gas type. To check, remove the
brass hex cap. You will nd the conversion plastic pin attached to the cap to the underside of the cap.
If the disc (1/2 in. diameter) of the pin is close to the cap, then the regulator is set for Natural Gas. If
the disc is at the tip of the pin, away from the brass cap, the regulator is set for system LP application.
To convert to Natural Gas, remove the plastic conversion pin and invert and replace it back in a man-
ner such that the disc is close to the brass cap. For both Natural and LP, the maximum inlet pressure
is 14 in wc (3.5 kPa).
A typical Natural Gas installation is shown below. Make sure that the factory-supplied regulator
is used and installed with the arrow mark on the regulator pointing towards the gas grill. Do not use
any replacement regulator other than that specied by DELTA HEAT. Use only pipe sealants that are
approved for use with Natural and LP gases. An installer-supplied gas shutoff valve must be installed
in an accessible location.
INSTALLER SUPPLIED
GAS SHUTOFF VALVE
(MUST BE EASILY
ACCESSIBLE)
TYPICAL BOTTOM
GAS CONNECTION
INSTALLER
SUPPLIED GAS
SHUTOFF VALVE
(MUST BE EASILY
ACCESSIBLE)
REGULATOR SET
AT 4” WC
(NATURAL GAS)
TYPICAL NATURAL GAS HOOK UP
CAUTION: PROVIDE ADEQUATE VENTILATION HOLES IN THE ENCLOSURE
FOR SAFETY PURPOSES IN THE EVENT OF GAS LEAK.
3” MINIMUM CLEARANCE
TO ALLOW HOOD TO
FULLY OPEN
SET TO NG
SET TO LP

Delta Heat Service [phone] | 7
LEAK TEST
CAUTION BEFORE TESTING
• Finding and/or xing a gas leak is NOT a “DO-IT-YOURSELF” procedure.
• NEVER USE THE GRILL WITHOUT FIRST LEAK TESTING THE GAS CONNECTIONS.
• WARNING: DO NOT USE OPEN FLAME TO CHECK FOR LEAKS. USE OF AN OPEN FLAME
COULD RESULT IN A FIRE, EXPLOSION, BODILY HARM OR DEATH.
• DO NOT SMOKE WHILE PERFORMING THE LEAK TEST!
• To prevent re or explosion hazard, DO NOT use or permit sources of ignition in the area while
performing a leak test. Perform leak test outdoors only.
• Check to ensure that exible hoses do not have any cuts and wear that may affect the safety
before each use. Only the factory supplied hose and regulator must be used. Use only replace-
ment regulator and hose assemblies specied by DELTA HEAT.
LEAK TEST
1. Prepare a leak testing solution of sudsy water by mixing in a spray bottle with half liquid soap
and half water.
2. Conrm that all control knobs are in the OFF position.
3. Turn the main gas valve supply ON.
4. Apply leak testing solution by spraying on the pipe joints, ttings, and hose.
5. A gas leak is detected if;
f. there is a faint gas smell and/or…
g. growing bubbles appear on any of the connection points and/or hose, DO NOT attempt to
ignite the grill and IMMEDIATELY turn off the gas supply valve.
6. When there is a gas leak, call a qualied service technician. DO NOT use the grill until the
leak is corrected.
LEAK TEST LEAK TEST
TYPICAL BOTTLE LP GAS
HOOK-UP
TYPICAL NATURAL GAS
HOOK-UP

8 | www.deltaheat.com
ELECTRICAL REQUIREMENT
TO INSTALL AND SECURE POWER TRANSFORMER
Grill models with interior lights have a power transformer with an attached power supply cord.
This transformer must be secured in a dry location and away from the grill rebox and excessive heat
area.

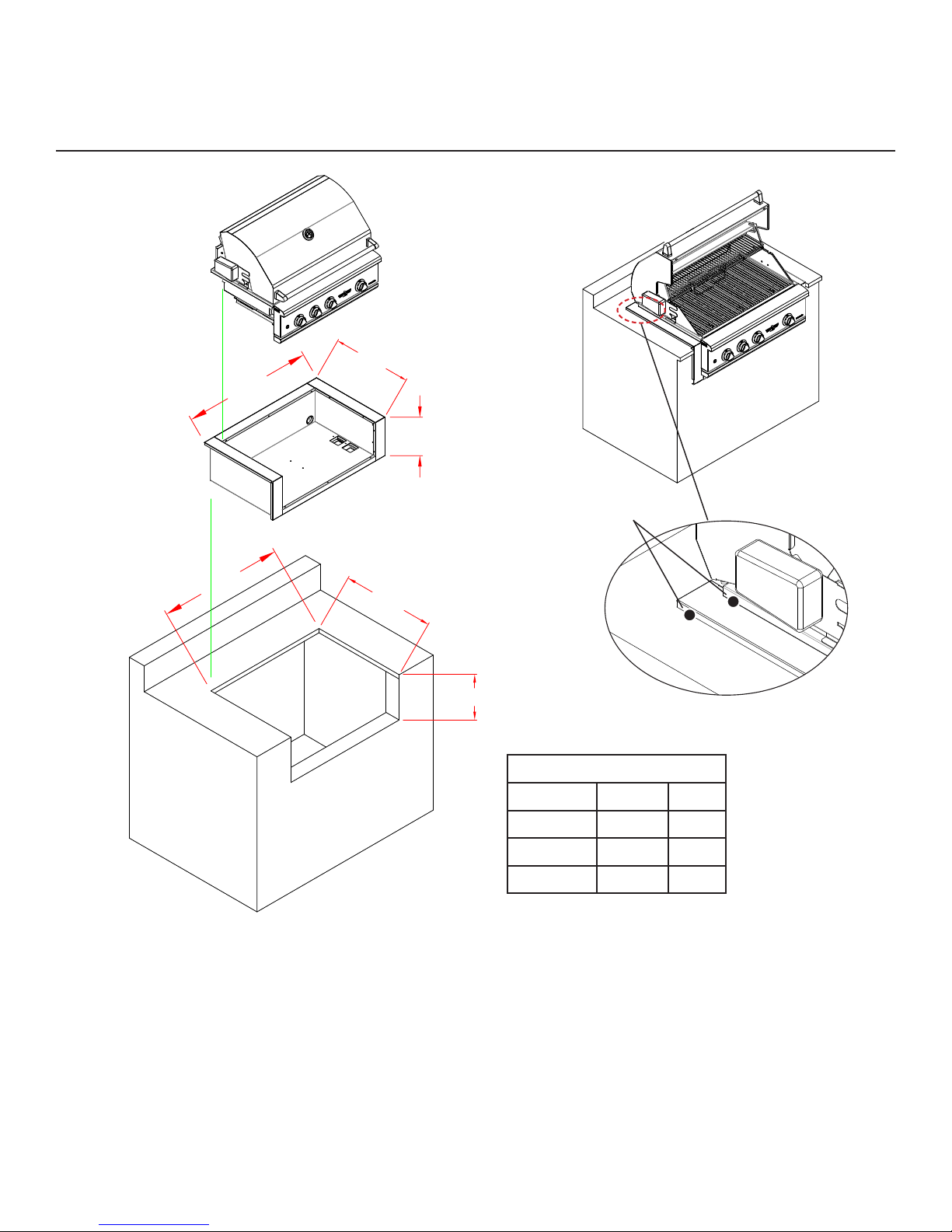

a. In a base cart application, four mounting screws with nuts are provided at the bottom left rear
corner of the cart. If not provided, drill four holes using the transformer box as a template.
Secure the transformer box as shown. (Fig. 1)
b. In a built-in application secure the transformer box near the GFCI 120V outlet in a dry loca-
tion and away from the grill rebox and excessive heat area.
c. Make the transformer connections to the wire harness plug, located at the left rear of the
front panel, to the harness of the transformer box. (Fig. 2)
d. Plug-in the transformer’s power cord to the properly grounded GFCI 120V outlet.
e. A side burner plug to provide electrical power for side burner is located at the right rear of the
front panel. (Fig. 3)
ROTISSERIE MOTOR: (Motor Specication: 40 lbs. / in; 0.5A; 15W; 60 Hz.)
The rotisserie motor requires 120 volt supply. Simply plug the motor into a properly grounded GFCI
120 volt outlet at either side of the grill.
WARNING
Electrical Grounding Instructions:
This outdoor gas cooking appliance is equipped
with a three prong (grounding) plug for your
protection against shock hazard and should be
plugged directly into a properly grounded three
prong outlet. Do not cut or remove the third
prong from this plug.
AVERTISSEMENT
Instruction pour la mise à la terre electrique:
Cet appareil est muni d’une che à trois broches
(mise à la terre) an de vous protéger des chocs
et doit être branché directement dans une prise
de courant à trois broches adéquatement mise
à la terre. Il ne faut pas couper ou enlever la
broche de mise à la terre de cette che.
Fig. 1 Fig. 2 Fig. 3

Delta Heat Service [phone] | 9
WIRING DIAGRAM
DHBQ26G-D
DHBQ32G-D
DHBQ38G-D
DHBQ32R/S-D
DHBQ38R/S-D
12v
HALOGEN
LAMP
SPARK
MODULE 9V
MICRO
SWITCH
MICRO
SWITCH
SPARK
IGNITER
TRANSFORMER
2 PIN
PANEL
PLUG
LED LIGHT
2 PIN
PLUG
FOR SIDE
BURNER
120 VOLTS12 VOLTS
BATTERY
PACK
ILLUMINATION
SWITCH
NC
NO
C
+
-
NO
+
-
C
NC
NO
C
+
-
LED LIGHT
NC
NO
C
+
-
NO
+
-
C
NC
NO
C
+
-
ILLUMINATION
SWITCH
2 PIN
PANEL
PLUG
12 VOLTS
TRANSFORMER
120 VOLTS
LED LIGHT LED LIGHT LED LIGHT
12v
HALOGEN
LAMP
12v
HALOGEN
LAMP
2 PIN
PLUG
FOR SIDE
BURNER
MICRO
SWITCH
MICRO
SWITCH
MICRO
SWITCH
SPARK
MODULE 9V
SPARK
IGNITER
SPARK
IGNITER
NC
NO
C
+
-
NO
+
-
C
NC
NO
C
+
-
ILLUMINATION
SWITCH
2 PIN
PANEL
PLUG
12 VOLTS
TRANSFORMER
120 VOLTS
12v
HALOGEN
LAMP
12v
HALOGEN
LAMP
LED LIGHT LED LIGHT LED LIGHT LED LIGHT
2 PIN
PLUG
FOR SIDE
BURNER MICRO
SWITCH
MICRO
SWITCH
MICRO
SWITCH
MICRO
SWITCH
SPARK
MODULE 9V
SPARK
IGNITER
SPARK
IGNITER
SPARK
IGNITER

10 | www.deltaheat.com
BURNER FLAME / AIR SHUTTER ADJUSTMENT
Each grill burner is tested and adjusted at the
factory prior to shipment; however, variations in the local
gas supply may make it necessary to adjust the burners.
The ames of the U-burners should be visually
checked. Flames should be blue and stable with little
to no yellow tips, no excessive noise or lifting. If any of
these conditions exist, remove the burner and check to
see if the air shutter or burner ports are blocked by dirt,
debris, spider webs, etc. If it is clear, the air shutter may
need to be adjusted.
Before adjusting the air shutter, verify that the correct orice size for the gas type was in-
stalled.
ADJUSTING THE GRILL BURNER FLAME
The amount of air is controlled by a sheet metal cup at the inlet of the burner called an air shut-
ter. It is locked in place by a set screw which must be loosened prior to lighting the burner for adjust-
ment. The air shutter adjustment screws are accessible with a phillips screwdriver. Loosen the lock
screw of the air shutter. Adjust according to the following directions. Be careful as the burner and
other grill parts may be very hot!
• If the ame is yellow, indicating insufcient air, turn the air shutter counter-clockwise to allow
more air to the burner.
• If the ame is noisy and tends to lift away from the burner, indicating too much air, turn the air
shutter clockwise.
Remember to tighten the set screw prior to re-installing the burner.
ENSURE THAT THE BURNERS ARE SITTING PROPERLY ON THE ORIFICES BEFORE LIGHT-
ING THE BURNERS.

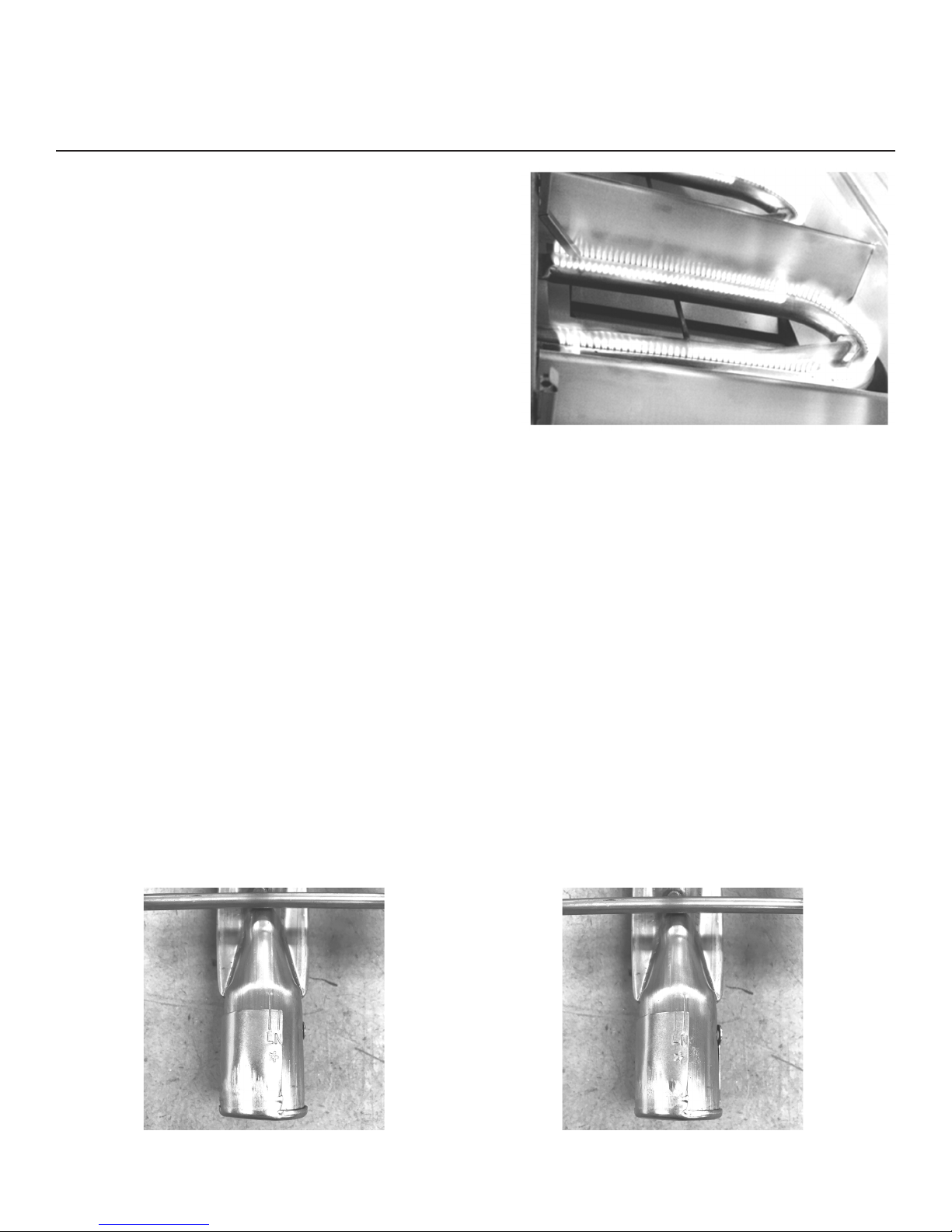

Burner set to LP Burner set to NG

Delta Heat Service [phone] | 11
LOCATING THE GRILL
This gas appliance is designed and certied for outdoor use only. Do not locate this grill under
unprotected overhead combustible surfaces. When installed under overhead combustible surfaces,
a certied ventilating hood wider than the appliance shall be installed with a minimum distance of 36
inches above the cooking surface.
NOTE: Caution should be taken when grills are used near glass, vinyl siding or other tempera-
ture sensitive construction materials. In some cases it may be necessary to increase the clearance
around the grill to avoid damage to vinyl siding. Check with the manufacturer of the siding material for
details.
Do not operate the grill inside a building, garage, recreation vehicle or any enclosed area. When
choosing an area, consider exposure to wind, proximity to trafc paths and length of gas supply line.
Keep gas supply lines as short as possible to reduce pressure drop. Keep the grill away from windy
area but keep the grill in a well-ventilated area. Do not obstruct the ow of combustion and ventila-
tion air around the grill. The supporting edges of the grill must be located level and at. The counter
should also be leveled.
CLEARANCE TO COMBUSTIBLE CONSTRUCTION
A minimum clearance of 12” from the sides and 12” from the back of the grill to adjacent verti-
cal combustible construction must be maintained.
DÉGAGEMENT DE TOUTE CONSTRUCTION COMBUSTIBLE
Il faut maintenir une distance minimum de 12 po (30.48 cm) sur les côtés et de 12 po (30.48 cm) sur
l’arrière du gril par rapport aux constructions combustibles verticales adjacentes.
CLEARANCE TO NONCOMBUSTIBLE CONSTRUCTION
A minimum clearance of 3” from the back of the grill above cooking surface to non-combustible
construction is required to allow the grill hood to open completely.
A minimum of 6” clearance to the sides of the grill above cooking surface to non-combustible
construction is recommended to provide space for the rotisserie motor and the spit rod. The grill can
be installed directly next to non-combustible construction below the cooking surface.
DÉGAGEMENT DE TOUTE CONSTRUCTION INCOMBUSTIBLE
Une distance minimum de 3 po (7.62 cm) de l’arrière du gril au-dessus de toute surface de cuisson
à la construction incombustible est prescrite pour permettre à la hotte d’ouvrir complètement. Une
distance minimum de 6 po (15.24 cm) des côtés du gril au-dessus de la surface de cuisson à la con-
struction incombustible est recommandée pour prévoir de l’espace pour le moteur de la rôtissoire et
la poignée des broches de cuisson. Le gril peut être installé directement à proximité d’une construc-
tion incombustible en-dessous de la surface de cuisson.

12 | www.deltaheat.com
GRILL CUT-OUT DIMENSIONS
24 1/2
19 3/4
30 1/2
19 3/4
9 1/2
36 1/2
19 3/4
9 1/2
26
32
38
9 1/2
*
WIDTH OF
UNIT
19 3/4
COUNTERTOP
OVERHANG
DETAIL
DHBQ26G-D
DHBQ32G-D
(SHOWN) DHBQ32R/S-D
(SHOWN) DHBQ38R/S-D
DHBQ38G-D
NOTE: DETAIL IS TYPICAL
TO ALL DHBQ CUT-OUTS.
THESE DIMENSIONS ARE FOR NON-COMBUSTIBLE CONSTRUCTION
ONLY. FOR COMBUSTIBLE CONSTRUCTION SEE NEXT PAGE.

Delta Heat Service [phone] | 13
INSULATION JACKET
WARNING
Do not build the grill under overhead combustible construction. If the grill is to be placed into com-
bustible enclosure, an approved insulating jacket is necessary to prevent re, property damage and
bodily injury. Use only Delta Heat (DHIJ26, 32, 38) insulating jacket.
IMPORTANT
If using LP gas cylinder and insulation jacket (DHIJ), use stainless exible hose to connect LP gas
cylinder to grill regulator.
10.50
"B"
21.50
"A"
22.50
11
INSULATING JACKETS
MODEL “A” “B”
DHIJ26 30.875 29
DHIJ32 36.875 35
DHIJ38 42.875 41
APPLY WEATHER
PROOF SEALANT
DHBQ32R/S-D
DHIJ32

14 | www.deltaheat.com
ASSEMBLY INSTRUCTIONS
The DELTA HEAT Grill is produced fully assembled and tested in the factory and requires no
major assembly in the eld. For the purpose of safe shipping and transit, some parts such as the
briquette trays and rotisserie components are wrapped inside the grill and require minor assembly.
Check to ensure that all packaging material have been removed prior to grill operation.
TO INSTALL BRIQUETTES TRAYS
1. Put briquette trays into the grill above the burner as shown by lining up the tab with the chan-
nel of the briquette tray.
2. Then put the stainless steel grates over the briquette trays.
WARMING RACK LEVEL POSITIONS:
The warming rack may be used to keep food warm and avoid overcooking the food. To install the
warming rack, use the hook to latch on at the rear hood panel as shown below (Fig. 3)
When the warming rack is not in use, it should be stowed away somewhere safe.
TAB CHANNEL
FIG. 3
