Delta-Opti DH-SD59430U-HNI User manual

User Manual
Code: DH-SD59430U-HNI
IP SPEED DOME CAMERA OUTDOOR DH-SD59430U-HNI - 4.0 Mpx, 4.5 ... 135 mm DAHUA
DELTA-OPTI Monika Matysiak; https://www.delta.poznan.pl
POL; 60-713 Poznań; Graniczna 10
e-mail: [email protected]; tel: +(48) 61 864 69 60
2022-03-11 DH-SD59430U-HNI 1/7
Warning!
Please read the user manual included in this work as it contains important information related with safety of installation and use of
the device.
Only persons who read the user manual may use the device.
The user manual must be kept because it may be required in the future. The device is to be used exclusively for purposes specified
in this user manual.
The device must be unpacked prior to starting-up. After removing the packaging make sure the device is in working order.
If the product has defects, it should not be used until it is repaired.
The product is intended for use at home and commercial use and may not be used for other than intended use.
The manufacturer is not liable for damages resulting from not adhering to the rules contained in the user manual, therefore, we
recommend to follow the aforementioned safety rules for operation and maintenance of the device. In this way you will ensure
yourself safety and avoid causing damage to the device.
The manufacturer and the supplier are not liable for losses or damages arising out of the product, including financial or intangible
losses, loss of profits, income, data, pleasure from use of the product or other products related with it - indirect, incidental or
consequential loss or damage. The above provisions apply whether the loss or damage concerns:
1. Deterioration of quality or the lack of operation of the products or products related with it due to damage as well as the lack of
access to the product when it is undergoing repair, which results in stoppage the loss of user's time or a break in business activity;
2. Improper results of operation of the product or products related with it;
3. It applies to losses and damages according to any legal category, including negligence and other losses, termination of a
contract, expressed or implied guarantee and strict liability (even if the manufacturer or the supplier was notified about the
possibility of occurrence of such damages).
Safety measures:
Particular attention at designing was directed to quality standards of the device where ensuring safety of operation is the most
important factor.
The device must be secured against contact with caustic, staining and viscous fluids.
The device was designed in such a way that it restarts operation when power supply is restored after a break.
Attention! We recommend using protections to further protect the device from possible overvoltages in installations.
Surge protectors are effective protection against accidental pass to the device voltages higher than the rated. Damages
caused by pass the voltages higher than specified in manual, are not under warranty.
Turn off the device before transporting it.
Prior to connecting the device to a power source check whether the supplied voltage is consistent with rated voltage specified in
the user manual.
Proper product disposal:
A marking of a crossed out waste bin indicates that the product may not be disposed together with other household waste in the
entire EU. To avoid possible damage to the natural environment of health due to uncontrolled waste disposal, therefore, it should be
handed over for recycling, propagating in this way sustainable use of natural resources.
To return a worn-out product, use a collection and disposal system of this type of equipment or contact a seller from whom it was
purchased. He will then be recycled in an environmentally-friendly way.

User Manual
Code: DH-SD59430U-HNI
IP SPEED DOME CAMERA OUTDOOR DH-SD59430U-HNI - 4.0 Mpx, 4.5 ... 135 mm DAHUA
DELTA-OPTI Monika Matysiak; https://www.delta.poznan.pl
POL; 60-713 Poznań; Graniczna 10
e-mail: [email protected]; tel: +(48) 61 864 69 60
2022-03-11 DH-SD59430U-HNI 2/7
IP camera equipped with very good high resolution sensor. Due to above it is perfect
solution for surveillance systems requiring persons or vehicles recognition.
Built-in IR illuminator allows to operate at night conditions, and vari-focal lens with wide
range of view angle adjustment enables optimal set the view field of camera to all
conditions. The range of IR illumination according to the manufacturer data, depends on
outer conditions (visibility - air transparency, environment, wall colors ie. scene
reflectance).
PoE powering possibility, compatible with the 802.3at standard makes the device more
universal and easier to install.
For a few models of IP cameras working at ≥ 1920 x 1080 resolution we recommend to use
of network with 1Gb/s bandwidth.
Standard: TCP/IP
Sensor: 1/3 " Progressive Scan CMOS
Matrix size: 4.0 Mpx
Resolution:
2592 x 1520 - 4.0 Mpx ,
2304 x 1296 - 3.0 Mpx ,
1920 x 1080 - 1080p
1280 x 1024 - 1.4 Mpx
1280 x 960 - 1.3 Mpx
1280 x 720 - 720p
704 x 576 - D1
Scanning system: Progressive
Lens: 4.5 ... 135 mm
View angle: • 60 ° ... 2.2 ° (manufacturer data)
• 58 ° ... 2.7 ° (our tests result)
Optical zoom: x 30
Digital zoom: x 16
Range of IR illumination: 100 m
S/N ratio: > 55 dB (AGC off)
Video output: 1 Vpp / 75 Ω

User Manual
Code: DH-SD59430U-HNI
IP SPEED DOME CAMERA OUTDOOR DH-SD59430U-HNI - 4.0 Mpx, 4.5 ... 135 mm DAHUA
DELTA-OPTI Monika Matysiak; https://www.delta.poznan.pl
POL; 60-713 Poznań; Graniczna 10
e-mail: [email protected]; tel: +(48) 61 864 69 60
2022-03-11 DH-SD59430U-HNI 3/7
Preset rotation speed: max. 400 °/s horizontal
max. 300 °/s vertical
Rotation speed (manual control): 0.1 °/s ... 300 °/s (horizontal)
0.1 °/s ... 200 °/s (vertical)
Horizontal rotation range: 360 ° continuous
Vertical rotation range: -15 ° ... 90 °
RS-485 interface:
Number of presets: 300
Horizontal scan:
Route settings: 8
Image compression method: H.265 / H.264 / MJPEG
Bitrate: 448 ... 8192 kbps - H.264 / H.265
5120 ... 10240 kbps - MJPEG
Alarm inputs / outputs: 2 / 1
Audio:
• External microphone input
• Audio output
• Audio detection
Main stream frame rate: 1 ... 25 fps @ 4.0 Mpx
1 ... 50 fps @ 1080p
Network interface: 10/100 Base-T (RJ-45)
Network protocols: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP,
SMTP, NTP, DHCP, DNS, PPPoE, DDNS, FTP, IP Filter, QoS, Bonjour, IEEE 802.1x
WEB Server: Built-in, NVR compliance
Max. number of on-line users: 20
ONVIF: 2.42
Memory card slot: Micro SD memory cards up to 128GB support (possible local recording)
Mobile phones support:
Port 37777
• Android: Free application DMSS
• iOS (iPhone): Free application DMSS
Default IP address: 192.168.1.108
Default admin user / password: admin / admin
Web browser access ports: 80, 37777
PC client access ports: 37777
Mobile client access ports: 37777
Port ONVIF: 80
RTSP URL:
rtsp://admin:hasł[email protected]:554/cam/realmonitor?channel=1&subtype=0 -
Main stream
rtsp://admin:hasł[email protected]:554/cam/realmonitor?channel=1&subtype=1 - Sub
stream

User Manual
Code: DH-SD59430U-HNI
IP SPEED DOME CAMERA OUTDOOR DH-SD59430U-HNI - 4.0 Mpx, 4.5 ... 135 mm DAHUA
DELTA-OPTI Monika Matysiak; https://www.delta.poznan.pl
POL; 60-713 Poznań; Graniczna 10
e-mail: [email protected]; tel: +(48) 61 864 69 60
2022-03-11 DH-SD59430U-HNI 4/7
Main features:
• IVS analysis : crossing the line (tripwire), intrusion, abandoned/missing object, face
detection
• Intelligent Object Tracking
• WDR - 120 dB - Wide Dynamic Range
• 3D-DNR / 2D-DNR - Digital Noise Reduction
• ICR - Movable InfraRed filter
• Configurable Privacy Zones - 24
• BLC/HLC - Back Light / High Light Compensation
• Audio detection
• Sharpness - sharper image outlines
• Mirror - Mirror image
• Day/Night mode (color/b&w/auto)
Power supply: • PoE (802.3at),
• 24 V AC / 3 A (power adapter included)
Power consumption: ≤ 23 W
Housing: Speed Dome Metal
Color: White
Operation temp: -40 °C ... 70 °C
"Index of Protection": IP66
Weight: 4.47 kg (with bracket)
Dimensions: 305 x 450 x 186 mm (with bracket)
Supported languages: English, Polish
Manufacturer / Brand: DAHUA
Guarantee: 3 years

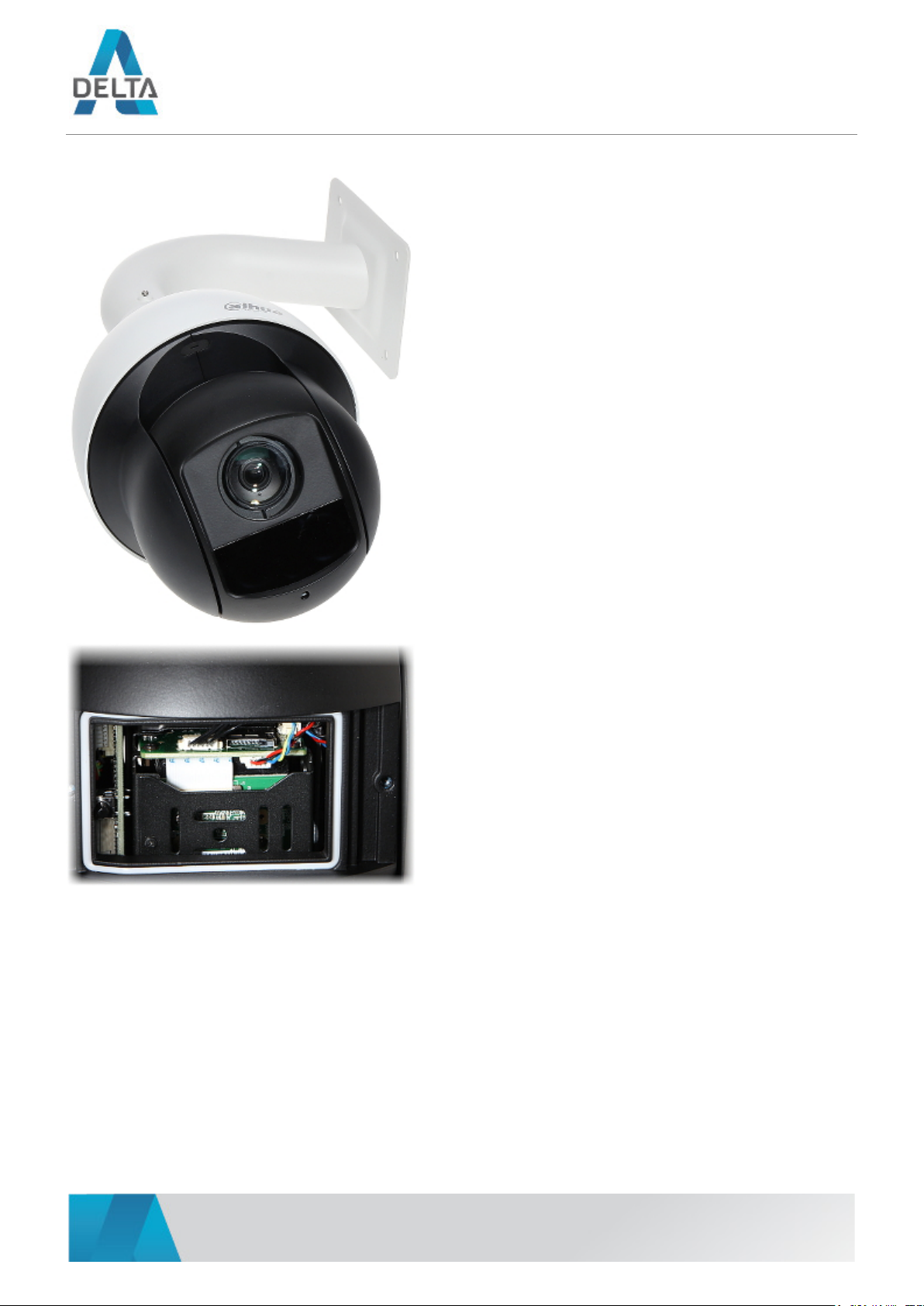

Bottom view:

User Manual
Code: DH-SD59430U-HNI
IP SPEED DOME CAMERA OUTDOOR DH-SD59430U-HNI - 4.0 Mpx, 4.5 ... 135 mm DAHUA
DELTA-OPTI Monika Matysiak; https://www.delta.poznan.pl
POL; 60-713 Poznań; Graniczna 10
e-mail: [email protected]; tel: +(48) 61 864 69 60
2022-03-11 DH-SD59430U-HNI 5/7
Micro SD card slot is located inside the camera:
Bracket dimensions:

User Manual
Code: DH-SD59430U-HNI
IP SPEED DOME CAMERA OUTDOOR DH-SD59430U-HNI - 4.0 Mpx, 4.5 ... 135 mm DAHUA
DELTA-OPTI Monika Matysiak; https://www.delta.poznan.pl
POL; 60-713 Poznań; Graniczna 10
e-mail: [email protected]; tel: +(48) 61 864 69 60
2022-03-11 DH-SD59430U-HNI 6/7
Connectors:
Connectors description:

User Manual
Code: DH-SD59430U-HNI
IP SPEED DOME CAMERA OUTDOOR DH-SD59430U-HNI - 4.0 Mpx, 4.5 ... 135 mm DAHUA
DELTA-OPTI Monika Matysiak; https://www.delta.poznan.pl
POL; 60-713 Poznań; Graniczna 10
e-mail: [email protected]; tel: +(48) 61 864 69 60
2022-03-11 DH-SD59430U-HNI 7/7
In the kit:
