IP camera equipped with very good high resolution sensor. Due to above it is perfect
solution for surveillance systems requiring persons or vehicles recognition.
Built-in IR illuminator allows to operate at night conditions, and vari-focal lens with
wide range of view angle adjustment enables optimal set the view field of camera to
all conditions. The range of IR illumination according to the manufacturer data,
depends on outer conditions (visibility - air transparency, environment, wall colors ie.
scene reflectance).
PoE powering possibility, compatible with the 802.3at standard makes the device
more universal and easier to install.
For a few models of IP cameras working at ≥ 1920 x 1080 resolution we recommend
to use of network with 1Gb/s bandwidth.
Standard: TCP/IP
Sensor: 1/2.8 " Progressive Scan CMOS
Matrix size: 2.1 Mpx
Resolution:
1920 x 1080 - 1080p
1280 x 960 - 1.3 Mpx
1280 x 720 - 720p
Scanning system: Progressive
Lens: 5 ... 75 mm
View angle: • 54 ° ... 4 ° (manufacturer data)
• 53 ° ... 4.6 ° (our tests result)
Optical zoom: x 15
Digital zoom: x 16
Range of IR illumination: 100 m
Video output:
Preset rotation speed: 80 °/s
Rotation speed (manual control): 0.1 °/s ... 80 °/s (horizontal)
0.1 °/s ... 80 °/s (vertical)
Horizontal rotation range: 360 ° - continuous

User Manual
Code: DS-2DE4215IW-DE(E)
IP SPEED DOME CAMERA OUTDOOR DS-2DE4215IW-DE(E) - 1080p 5 ... 75 mm Hikvision
DELTA-OPTI Monika Matysiak; https://www.delta.poznan.pl
POL; 60-713 Poznań; Graniczna 10
e-mail: [email protected]; tel: +(48) 61 864 69 60
2021-06-21 DS-2DE4215IW-DE(E) 3/8
Vertical rotation range: -15 ° ... 90 °
RS-485 interface:
Number of presets: 300
Horizontal scan:
Route settings: 8
Image compression method: H.265+ / H.265 / H.264+ / H.264 / MJPEG
Alarm inputs / outputs:
Audio:
Main stream frame rate: 1 ... 25 fps @ 1080p
1 ... 50 fps @ 1.3 Mpx
Network interface: 10/100 Base-TX (RJ-45)
Network protocols: IPv4/IPv6, HTTP, HTTPS, IEEE 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS,
NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
WEB Server: Built-in, NVR compliance
Max. number of on-line users: 20
ONVIF: 16.12
Memory card slot: Micro SD memory cards up to 256GB support (possible local recording)
Mobile phones support:
Port no.: 8000 or access by a cloud (P2P)
• Android: Free application iVMS-4500 or Hik-Connect
• iOS (iPhone): Free application iVMS-4500 or Hik-Connect
Default admin user / password: admin / -
The administrator password should be set at the first start
Default IP address: 192.168.1.64
Web browser access ports: 80
PC client access ports: Port no.: 8000 or access by a cloud (P2P) - iVMS-4200 application
Mobile client access ports: 8000
Port ONVIF: 80
RTSP URL:
• Main stream
rtsp://user:[email protected]:554/Streaming/Channels/101/ - with
authorization
• Sub stream
rtsp://user:[email protected]:554/Streaming/Channels/102/

User Manual
Code: DS-2DE4215IW-DE(E)
IP SPEED DOME CAMERA OUTDOOR DS-2DE4215IW-DE(E) - 1080p 5 ... 75 mm Hikvision
DELTA-OPTI Monika Matysiak; https://www.delta.poznan.pl
POL; 60-713 Poznań; Graniczna 10
e-mail: [email protected]; tel: +(48) 61 864 69 60
2021-06-21 DS-2DE4215IW-DE(E) 4/8
Main features:
• WDR - 120 dB - Wide Dynamic Range
• 3D-DNR - Digital Noise Reduction
• EIS - Electronic Image Stabilization
• ROI - improve the quality of selected parts of image
• F-DNR (Defog) - Reduction of image noise caused by precipitation
• BLC/HLC - Back Light / High Light Compensation
• Intelligent 3D Positioning System
• ICR - Movable InfraRed filter
• Configurable Privacy Zones - 24
• Motion Detection
• Sharpness - sharper image outlines
• Mirror - Mirror image
• Day/Night mode (color/b&w/auto)
• The function of setting the exposure for a given area
• The function of setting the focus for a given area
• ANR - Automatic Network Replenishment allows to save image to the card when the
network connection with DVR is break (network failure) and next synchronize its
• Parking action - this function enables to locate the camera to specific position
automatically if operator doesn't operate the controller for some time
• Intelligent Image Analysis : crossing the line (tripwire), intrusion,
abandoned/missing object, detection of entry into the area / exit from the area
Power supply: • PoE (802.3at),
• 12 V DC / 2 A (power adapter included)
Power consumption: ≤ 18 W
Housing: Speed Dome, Metal + Plastic
Color: White
Operation temp: -30 °C ... 65 °C
"Index of Protection": IP66
Weight: 2.3 kg
Dimensions: Ø 165 x 290 mm (without bracket)
Supported languages:
Polish, English, Bulgarian, Croatian, Czech, Danish, Estonian, Finnish, French, Greek,
Spanish, Dutch, German, Norwegian, Portuguese, Russian, Romanian, Serbian,
Slovak, Slovenian, Swedish, Turkish, Hungarian, Vietnamese, Italian
Manufacturer / Brand: Hikvision
SAP Code: 301315541
Guarantee: 3 years

User Manual
Code: DS-2DE4215IW-DE(E)
IP SPEED DOME CAMERA OUTDOOR DS-2DE4215IW-DE(E) - 1080p 5 ... 75 mm Hikvision
DELTA-OPTI Monika Matysiak; https://www.delta.poznan.pl
POL; 60-713 Poznań; Graniczna 10
e-mail: [email protected]; tel: +(48) 61 864 69 60
2021-06-21 DS-2DE4215IW-DE(E) 5/8

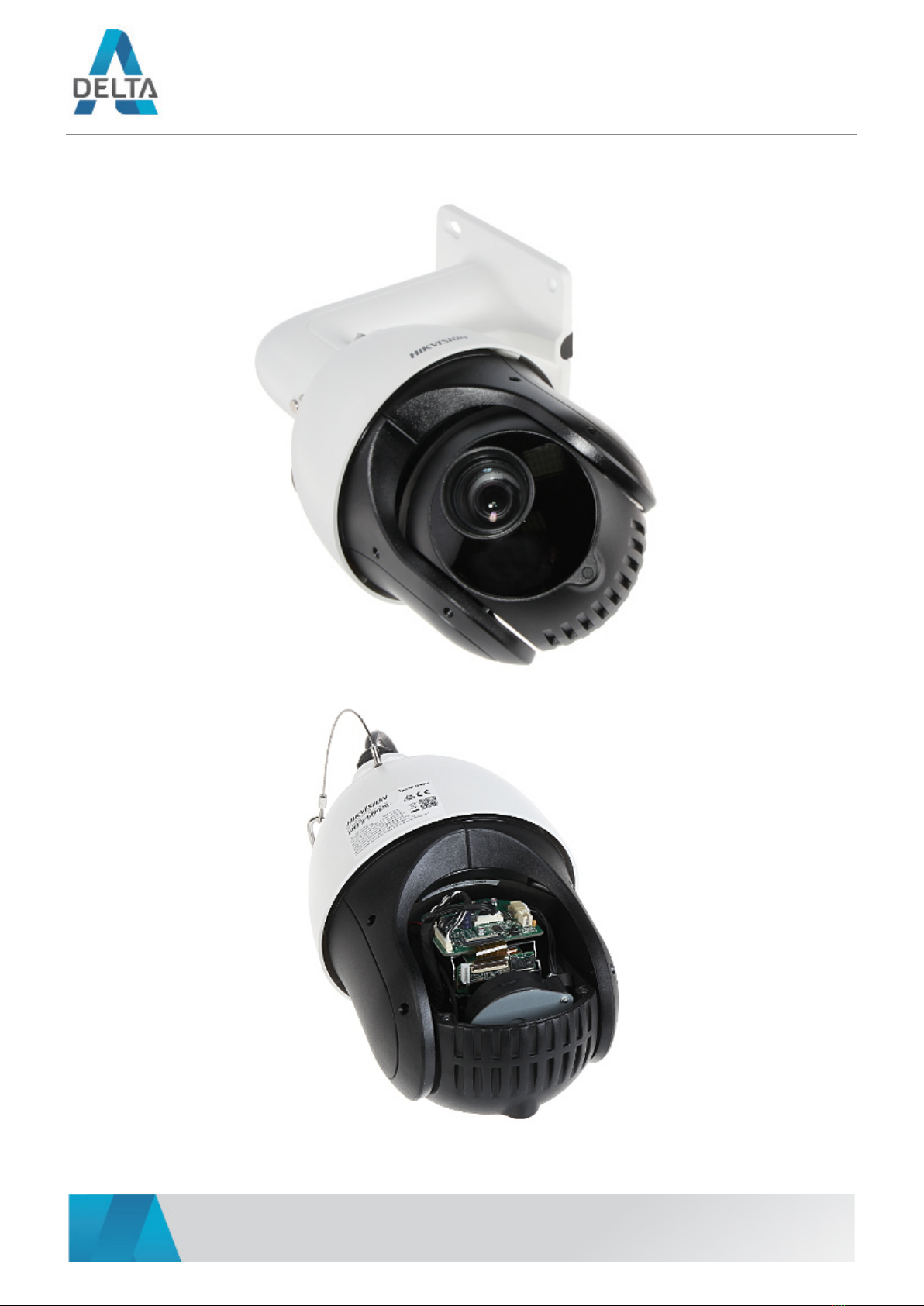

Bottom view:
