DeltaLab DGFX1 User manual

Multi-Effects
Pedal
User’s Manual

FCC statement
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
•Keep away from children. In households with small children, an adult should provide
supervision until the child is capable of following all the rules essential for safe
operation of the unit. All cords and cables should be placed so they are out of
reach of children.
•Do not use this product near water, such as in or near a bathtub, sink, wet basement,
swimming pool, or in the rain. Never handle the AC adaptor with wet hands.
•Do not use this product in areas subject to temperature extremes, such as in direct
sunlight in an enclosed space, near a heat source, or on heat-generating equipment.
•This product and any AC adaptor should be located so that they do not interfere with
proper ventilation.
•Connect this product only to a power supply described in the operating instructions or
as marked on the unit. When using batteries, carefully follow the installation instructions
and make sure you observe the proper polarity. If used improperly, batteries may explode
or leak, causing damage or injury. Check to make sure that the AC receptacle holds the
power cord plug securely. If the power cord plug is loose or damaged, contact your elec-
trician to replace the defective and unsafe power cord.
•Place the power cord so that it is not likely to be walked on or pinched by having objects
placed on it. Prevent cords and cables from becoming entangled. Do not use the power
supply cord in an outlet with an unreasonable number of other devices. Excessive loads
can cause the insulation on the cord to heat up and eventually melt.
•Do not defeat the grounding or polarization feature of the AC power cord. If your AC
receptacle will not accept the power cord plug, contact your electrician to install a proper
AC receptacle.
•When left unused for an extended period of time, unplug the power cord from the outlet
and remove the batteries. To disconnect the power cord, pull it out by grasping the plug.
Never pull the plug out by the cord.
•Be careful that foreign objects and liquids do not enter the enclosure.
•Unplug the unit before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth
for cleaning and allow the unit to dry before plugging it in.
•Before using this unit in a foreign country, consult with your retailer or the manufacturer.
•Do not open or modify the unit or the AC adaptor. Unplug the unit and consult qualified
service personnel when:
•the power cord or the plug has been damaged
•an object or liquid has fallen into the unit
•the unit has been exposed to moisture
•the unit does not appear to be operating normally or exhibits a change in performance
•the unit has been dropped or damaged
• Do not attempt to repair or service the product beyond what is described in the operating
instructions. For all other servicing, refer to qualified service personnel.
Important Safeguards
This symbol is intended to alert the user to
the presence of non-insulated “dangerous
voltage” within the products enclosure.
This symbol is intended to alert the user to
the presence of important operating and
maintenance (servicing) instructions in
the literature accompanying the unit.
To prevent fire or hazard, do not
expose the unit to rain or moisture.
WARNING
For your protection, please read these safety
Instructions completely before operating the
appliance, and keep this manual for future
reference Carefully observe all warnings,
precautions and instructions on the appliance
and described in the operating instructions
supplied with the appliance.

Introduction3
MainFeatures3
ImportantSafetyNotes3–4
GeneralGuide 5-6
FrontPanel 5
RearPanel/Connections6
PowerSupply7
Patches7–9
HowtoSelectaPatch7–8
PatchFunction8–9
FactoryReset 9
Tuner/EffectsBypass10
Drum 11
Tap12
MasterVolume 13
ExpressionPedal13
ExpressionPedalFunctions 14
StoringPrograms15
SelectingEffects 16–17
Parameters 17-23
AdjustingParameters17
NoiseGate18
Compressor18
Wah 19
Stomp 19–20
AmpSim 20
EQ 21
Speaker21
Modulation22
Delay23
Reverb23
IndividualEffectBypass24
Specications25
Warranty 26
Table of Contents

User’s Manual
Guitar Multi-Effects Pedal
Congratulations on your purchase of the DGFX1 Guitar
Multi-Effects Processor, an advanced multi-effects pedal
with built-in drum machine.
To get the most out of your new pedal, we recommend you read
this manual carefully and keep it for future reference.
Introduction
3
Important Safety Notes
PowerSupply
To avoid damage, please make sure that all power devices
(such as amplifiers) are turned off before connecting the DGFX1.
If an AC adapter is used, it should be unplugged from the
AC outlet if the instrument will not be used for an extended
period of time.
Avoid using this unit on the same electrical circuit with other
appliances that may generate line noises.
• 54 built-in effects
• Simultaneous use of up to 11 effects
• 48 user patches, 48 factory settings
• Expression pedal controls volume, wah and 8
other parameters.
• Built-in drum machine
• User-friendly interface with simple parameter adjustments
Main Features

Guitar Multi-Effects Pedal
www.deltalabeffects.com 4
HandlingandTransportation
Grab the unit firmly while plugging in or unplugging cables.
Physical shocks caused by dropping, bumping, or placing
heavy objects on top of DGFX1 can result in scratches or
more severe damage.
Never apply excessive force to controls, connectors, or other parts.
Strong vibrations and shocks will damage the DGFX1.
Location
To minimize interference, do not place this unit close to heat
sources such as radiators and amplifiers.
Do not expose the DGFX1 to excessive sunlight or moisture.
Cleaning
Clean the DGFX1 with a soft, dry cloth. To remove more stub-
born dirt, use a slightly dampened cloth with mild detergent.
Never attempt to clean the DGFX1 with thinners or alcohol.

User’s Manual
Guitar Multi-Effects Pedal
5
General Guide
FrontPanel
EFFECTSELECTIONKnob
Selects the effect and various
parameters.
STOREButton
Saves your settings.
/Button
Controls rhythm playback.
TAPButton
Adjusts rhythm tempo.
BANK+/–Buttons
Selects bank number and
enters patch function.
1
2
3
4
5
6
7
8
9
TYPE/PARAM/VOLKnob
Adjusts effect type, parameters,
and volume.
PATCH+/–FootSwitches
Selects patches, switches ef-
fect modules on and off, controls
tuner and other functions.
LCDDisplay
Displays current information and
bank number.
ExpressionPedal
Adjusts the volume and various
parameters in real-time.
1234
5
6
7
8
9

Guitar Multi-Effects Pedal
www.deltalabeffects.com 6
NOTES:
• Before connecting to the AC IN jacks, fasten the cord of the AC adapter around the hook
as shown in the diagram. This will prevent the plug from being disconnected if the cord is
accidentally pulled.
• To prevent malfunction and/or damage to speakers or other devices, always turn down the
volume of the DGFX1 and turn all devices off before connecting cables.
•If you turn on the DGFX1 while the amplifier is already powered up, damage to the speaker
may result. Always turn amplifiers off before connecting cables.
RearPanel/Connections
INPUTJack
Connect your guitar to this jack.
OUTPUTJack1
Connect your guitar amplifier
to this jack.
OUTPUTJack2
Connect a second guitar
amplifier to this jack for
stereo effects.
1
2
3
HEADPHONEJack
DCINJack
Connect the AC adapter
(9V, 300mA) to this jack.
CORDHook
Hook the AC adapter cord
here to prevent the adapter
from disconnecting.
POWERSwitch
Turns power on and off.
4
5
6
7

User’s Manual
Guitar Multi-Effects Pedal
7
Power Supply
Patches
SettoPLAY
HowtoSelectaPatch
Set the EFFECT SELECTION
knob button to PLAY.
Use BANK– or BANK+ button
to select a bank number. The
LCD displays the current bank
number (0–7 and A–H) with
the relevant tone name and
effect chain.
Connect all cables.
Switch on the DGFX1.
After the power is on,
the LCD displays “DGFX1”
followed by any previously
saved patch and effects chain.
1
2
3
NOTE: The unit has up to 96 patches:
48 default settings (0–1 and 7–6), and
48 user patches (A–1 and H–6).
1
2
NOTE: The PLAY mode will be automatically selected after you turn the unit on, even if
the knob has been set to a position other than PLAY.

Guitar Multi-Effects Pedal
www.deltalabeffects.com 8
Press
simultaneously
Press
simultaneously
Flashing
Press the PATCH +/- to
select the PATCH. Press
and hold PATCH +/- again
to change patches.
The screen displays the
current patch number (1–6)
with the relevant tone name
and effect chain.
PatchFunction
Press the BANK– and BANK+
buttons simultaneously to activate
the patch function.
At the same time, the indicator
‘P.FU’ will be displayed.
Press PATCH+/- or BANK+/- to change
the patch display. The patch number
flashes until you press the PATCH+
and PATCH- switches simultaneously
to select the patch.
3
1
2

User’s Manual
Guitar Multi-Effects Pedal
9
Factory Reset
Press
simultaneously
Then press BANK– and BANK+
simultaneously to disable the
patch function. The ‘P.FU’
symbol will disappear.
3
1
2
Turn off the power.
Hold down STORE and /
Buttons simultaneously,
then turn on the power.
The screen displays ‘RESET’
until the reset process is
finished. When finished, the
display window will show
‘01’ tone, its name, and
the effects chain.
WARNING: Using the
factory reset function will
wipe out all user data!
NOTE: The 48 user patches start as
duplicates of the 48 default patches.

Guitar Multi-Effects Pedal
www.deltalabeffects.com 10
Tuner / Effects Bypass
1
2
3
Set the effect selection knob to ‘PLAY’.
Press PATCH+ and PATCH- switches simultaneously to enter
tuner mode. The LCD will display ‘TUNER’.
This also bypasses all effects.
NOTE: You can tune your bass strings without
the DBFX1 producing any sounds. Hold the
two switches longer to enter the MUTE tuning
mode. The LCD will display ‘MUTE’.
The LCD will display the notes:
A, B, C, D, E, F, G and . Symbols
“>” or “<” show the degree of
flatness or sharpness. When the
display shows >|<, the string
is a correctly tuned.
The tuner function will activate
in bypass or mute status. Press
PATCH+ or PATCH- to exit the
tuner mode.
Dial the knob to change pitch.
The default reference pitch is
set to 440 Hz. (This is usually the
“A” string on your bass.)
4
5

User’s Manual
Guitar Multi-Effects Pedal
11
NOTE: The DGFX1 has a built-in rhythm
function that plays realistic drum sounds.
Dial the TYPE/PARAM/VOL
knob to PLAY, press the /
button, and the PLAY indicator
will light up.
Press the TYPE/PARAM/VOL
dial to adjust these parameters:
rhythm pattern, tempo, and
rhythm volume.
NOTE: If no action is taken within
8 seconds, the LCD will redisplay
the patch name.
Dial the TYPE/PARAM/VOL
knob to set the value of
the parameter.
Press the / again to
return to the previous status.
1
2
3
3
3
4
4
Drum

Guitar Multi-Effects Pedal
www.deltalabeffects.com 12
NOTE: The rhythm tempo can be adjusted
from 40 to 250 BPM (beats per minute).
To change the rhythm tempo,
turn the EFFECT SELECTION
knob to PLAY. Then, continuously
press the TYPE/PARAM/VOL
knob until you reach the TEMPO
parameter. Dial the knob to set
the tempo.
To manually adjust the tempo,
hit the TAP button at least
twice to set the tempo.
Ta p
1
2
NOTE: The first tap of the TAP button will
show the current tempo value on the LCD.
The DGFX1 will then automatically detect
the interval of the second and subsequent
key-presses, setting the tempo accordingly.

User’s Manual
Guitar Multi-Effects Pedal
13

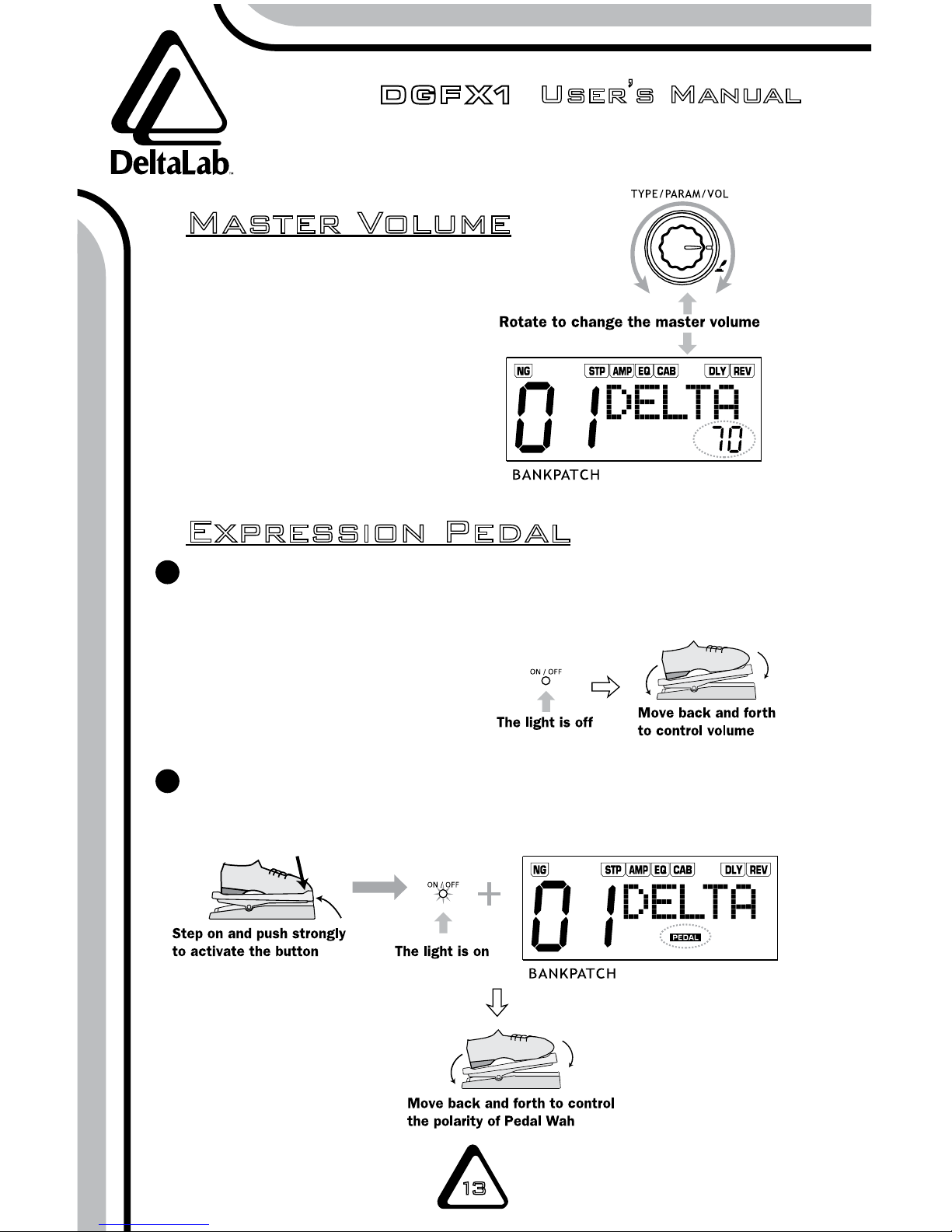

Master Volume
While in PLAY mode, rotate
the TYPE/PARAM/VOL knob
to adjust the master volume.
The range is from 0 to 100.
The default level is 70.
Expression Pedal
The pedal controls volume
when the light is off. When
the light is on, you can use
the pedal to control the wah
effect as a default or one
of 7 other parameters as
assigned by the user.
1
2To activate the expression function, press down on the front of
the pedal until it activates the switch underneath it.

Guitar Multi-Effects Pedal
www.deltalabeffects.com
The expression pedal controls various parameters in real-time.
To select which parameters it controls, make sure the EFFECT
SELECT knob is at PLAY mode. Press the TYPE/PARAM/VOL
knob, until “EXP” is displayed. To select the parameter, rotate
the TYPE/PARAM/VOL knob:
DISPLAY FUNCTION NOTE
UAH Pedal wah
S.dr Stomp drive Except for acoustic
A.g. Amp gain
Eq.n EQ mid-frequency
PIH Modulation pitch
d.Fb Delay feedback
d.L Delay level
r.L. Reverb level
Press the TYPE/PARAM/VOL knob until “POLAR” is displayed.
Rotate the TYPE/PARAM/VOL knob to choose whether the
pedal’s polarity is normal or reverse.
To switch back to normal operation, firmly press the pedal’s
toe until it activates the pedal switch. This will put you back to
pedal volume.
14
Expression Pedal Functions

User’s Manual
Guitar Multi-Effects Pedal
15
Storing Programs
After editing any of the effect
programs, press the STORE
button to save your custom
program. The tone number
and the patch name will flash
on the display.
You can select the tone that
you want to store by press-
ing BANK+/- or PATCH +/-.
You can save user patches in
banks A1–H6. To change the patch name, press the
TYPE/PARAM/VOL dial to select the letter to be changed.
Choose the new letter by dialing the knob.
1
2
3Press the STORE button again
to confirm.
At any time, you can cancel the
edits to the patch and return to
the original parameters by dialing
the EFFECT SELECTION knob back
to PLAY and selecting a new
patch number.
4
4

Guitar Multi-Effects Pedal
www.deltalabeffects.com 16
DGFX1 patches are made up of 11 linked effect modules as
shown in the illustration below. You can use all effect modules
together or individually.
Selecting Effects
Dial the EFFECT SELECTION knob
to choose the desired effect to be
adjusted. It will be displayed on
the LCD screen.
11 effects can be used simultaneously.
The effect symbols across the top of the
LCD screen indicate the status of each
effect in the chain.
Symbol displayed = Effect is on.
Symbol is off = Effect is bypassed.
Symbol flashing = Effect is being edited.
•PLAY(youcanchange
patchandsettherhythm)
•NOISEGATE
•COMPRESSOR
•WAH
•DISTORTION
•AMPSIMULATION
•EQ
•SPEAKER
SIMULATOR
•MODULATION
•DELAY
•REVERB
EQ SPEAKER
1x10

1x12a

1x12b

2x12a

2x12b

4x12a

4x12b

4x12c
EffectModule
NOISE
GATE
on/off
COMP.
on/off
WAH
Auto
Touch
Wah
Auto
Sweep
Wah
DeltaLab
Pedal
Wah
DISTORTION
DeltaLab
Preamp
DeltaLab
TubeDriver
USOverdrive
Classic
Distortion
DeltaLab
Rock
Distortion
ClassicFuzz

FatDistortion

HiGain
Distortion
DeltaLab
Metal
Distortion
AMP
Jazz
Clean

Tweed
Combo

Modern
Blues

British
Tube
Combo

USTube
Combo

60sBritish
TubeHead

80sBritish
TubeHead

ModernUS
TubeHead
MODULATION
Classic

Chorus

StereoChorus

Flanger

StepFlanger

Phaser

RandomPhaser

Tremolo/Pan

PitchShifter

Vibrato

ClopSlice

Octave

AutoRiff

AutoRing

SlowAttack
DELAY
DigitalDelay

PingPong
Delay

Multi-Head
Delay

Reversed
Delay
REVERB
Spring

Room

Hall

Plate
VOLUME
1
2

User’s Manual
Guitar Multi-Effects Pedal
17
You can dial the TYPE/PARAM/VOL
knob to adjust the desired effect.
If the EFFECT SELECT knob is
not set to PLAY, the unit is in
edit status. The EDIT symbol
will be displayed.
3
4
Parameters
All parameter adjustments are
performed by dialing the TYPE/
PARAM/VOL knob.
Press the TYPE/PARAM/VOL
knob to select the parameter
you want to adjust. Each time the
knob is pressed it will display a
different parameter.
Dial the TYPE/PARAM/VOL knob
to choose the parameter value.
1
2
3
AdjustingParameters

Guitar Multi-Effects Pedal
www.deltalabeffects.com 18
NOISE GATE eliminates noise below a certain threshold.
It is most useful when not playing, completely eliminating
noise, hum, and crackles. It does not affect the overall color
of the tone.
Parameter 1 sets the signal strength (threshold) required to
enable or disable the noise gate range from 0 (opens easily)
to 100 (opens with a stronger input signal).
NoiseGate
1
2
Type
Name
Noise
Gate
LCD
Display
NG
Description
ReduceNoise
PARAM1
Threshold
PARAM2
ReleaseTime
PARAM3
AttackTime
COMPRESSOR produces sustain or simple “smoothing” by com-
pressing the signal so that the high levels are suppressed while
raising low level signals.
The use of compression can enhance tone and articulation.
Parameter 1 is used to set the compressor threshold level. When
the input signal exceeds this level, compression will be applied.
Parameter 2 determines the volume level.
Compressor
1
2
2
Type
Name
Compression
LCD
Display
COMP
Description
Balancesthehighandlow
volumelevelsoftheinput
PARAM1
Threshold
PARAM2
VolumeLevel
3
4

User’s Manual
Guitar Multi-Effects Pedal
19
The wah effect creates a unique tone by filtering frequencies via
the expression pedal.
Range: 0–100 (except for polarity, which will be displayed as Up
or Down).
Wah
1
2
Type
Name
AutoWah
SweepWah
PedalWah
LCD
Display
T.Wah
S.Wah
P.Wah
Description
AutoWah
SweepWah
PedalWah
PARA1
Sensitivity
Speed
Polarity
PARA2
Q
Q
/
PARA3
Grade
/
/
This unit contains models of 11 popular distortion stompboxes,
each of which can be tweaked just like the original model.
The distortion modules offer up to four parameters.
DRIVE controls the distortion level. LEVEL controls volume.
TONE determines the brightness of the tone.
Drive parameters can be adjusted from 1 thru 100.
Tone parameters can be adjusted from –50 thru +50.
Volume parameters can be adjusted from 1 thru 100.
Stomp
1
2
3
4
5
6
