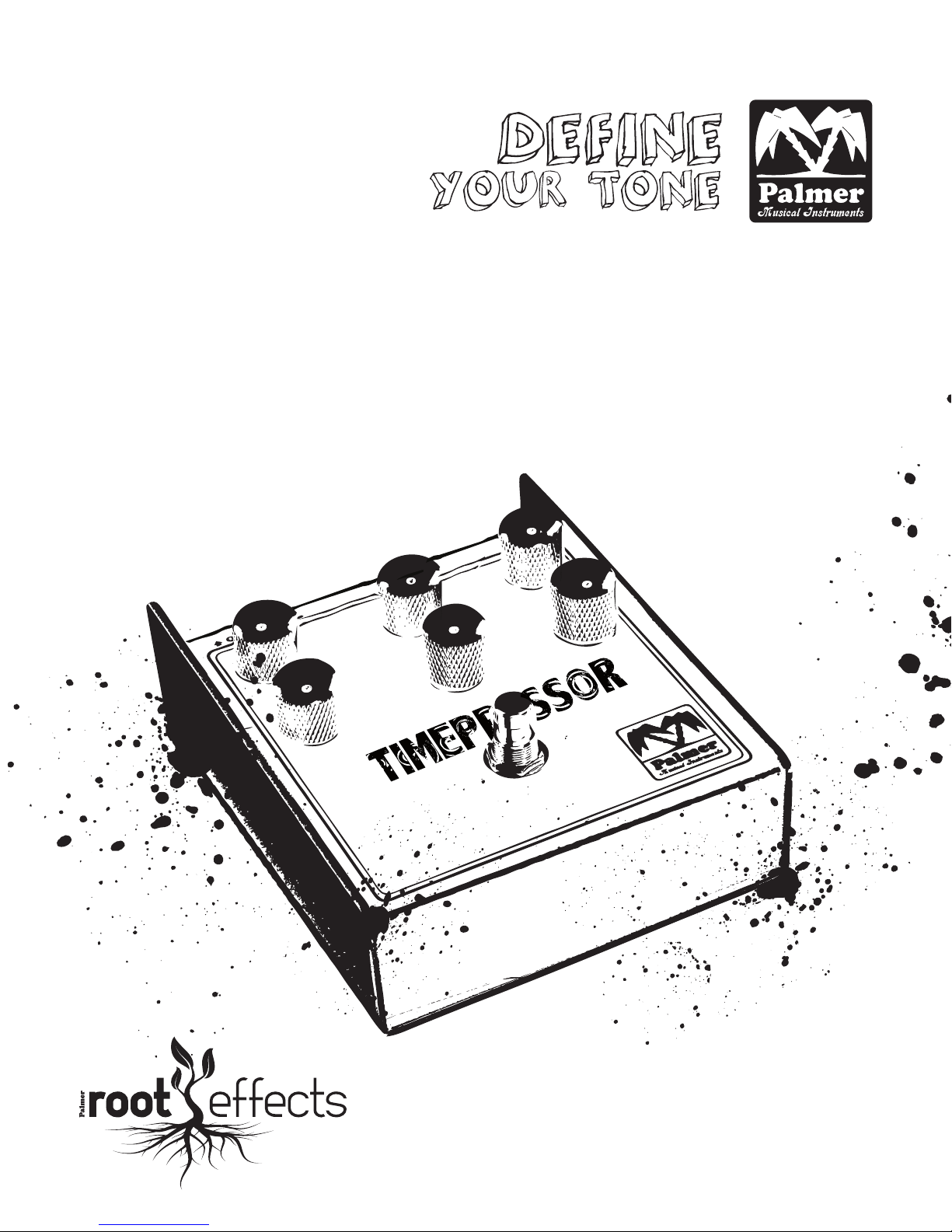

Root Effects - tIMEPRESSOR

DEFINE
YOUR
TONE

INTRODUCTION
Congratulations on your purchase of the PALMER TIMEPRESSOR pedal.
This unique delay plus compressor combo provides an astonishing
range of echo sounds from classic doubling and slapback to a whole
new universe of unusual sonic spaces.
Utilizing old-school bucket brigade technology the analog delay sec-
tion is capable of perfectly recreating the natural warmth and lo-fi
vibe of vintage tape echoes with a maximum delay time of 700ms.
The compressor is switchable pre or post delay. This exclusive fea-
ture permits custom tweaking of the original and delayed signals for
startling new soundscapes. With its amazing possibilities and rich
tone the TIMEPRESSOR is for the adventurous and retro-minded alike.
PLEASE NOTE: Maxing out the delay time and repeat settings will re-
sult in signal degradation and noise. This is by no means a defect
and inherent in the pedal design which is all-analog using a bucket
brigade delay line. The benefits of this old-school technology are
the smooth coloration and increasingly diffuse decay of real-world
echo or a vintage tape unit. For pristine, high-fidelity repeats
use a digital delay.
3
EN FRDE ES
DEFINE
YOUR
TONE

4
EN FRDE ES
IMPORTANT SAFETY INFORMATION
1) Read these instructions before using this device.
2) Please comply with all safety warnings and keep these instruc-
tions in a safe place for future reference.
3) Follow all instructions.
4) Never operate the device near water or in a damp environment.
5) Use a dry cloth for cleaning.
6) Do not position the device near sources of heat such as fan
heaters, heat accumulators, ovens or other devices that generate
heat.
7) Use only the extensions/accessory parts recommended by the manu-
facturer.
8) If this device requires servicing, it should be serviced only
by qualified expert personnel. Service is required if the device
was damaged in any way, if fluids or objects have gotten inside the
housing, if the device was exposed to rain or moisture or if it
does not function normally or has fallen down.
DO NOT ATTEMPT TO REPAIR THIS DEVICE YOURSELF. ALWAYS HAVE REPAIRS
CARRIED OUT ONLY BY QUALIFIED SERVICE PERSONNEL. DO NOT MAKE ANY
INTERNAL MODIFICATIONS OR CHANGES TO THIS DEVICE AND NEVER REPLACE
THE INTERNAL ELECTRICAL COMPONENTS. FAILURE TO COMPLY WITH THESE
WARNINGS WILL EXPOSE YOU AND OTHERS TO THE RISK OF ELECTRICAL SHOCK
AND VOID THE WARRANTY FOR THIS DEVICE.
Because PALMER is constantly improving its products, the techni-
cal specifications and design are subject to change without notice.
Existing products may be changed from time to time without prior
announcement.

PANEL DESCRIPTION
FRONT
1RATE
This controls the delay time up to a maximum of 700ms when fully
clockwise.
2REPEAT
This controls the number of delay repeats from a single slapback to
infinite oscillation when fully clockwise.
3TONE
This controls the tone of the delayed signal. Clockwise rotation
adds brightness, counterclockwise rotation increases treble roll-
off adding natural warmth. In center position the delayed signal
remains unaffected.
4MIX
This controls the wet/dry ratio of the original and delayed signals
from delay only (fully counterclockwise) to original signal only
(fully clockwise). In center position equal amounts of the original
and delayed signals are fed to the output.
5THRESHOLD
This controls the amount of compression from zero (fully counter-
clockwise) to maximum (fully clockwise).
6LEVEL
This controls the output level of the pedal from zero (fully coun-
terclockwise) to unity (center position) to a massive boost (fully
clockwise).
5
EN FRDE ES

7FOOTSWITCH
This toggles the pedal on/off. When off the pedal’s circuitry is
completely removed from the signal path (true bypass).
8LED
When lit the pedal is on. This also serves as a battery level indi-
cator.
REAR
9IN
Using a quality instrument cable with 1/4” plugs connect your gui-
tar to this jack.
10 9V DC INPUT
Connect an optional 9V DC power supply to this socket. For details
please refer to “POWER REQUIREMENTS”.
11 PRE/POST PUSHBUTTON
This switches the compressor before (pre) or after (post) the delay
providing unique control of the delay trail level and decay.
12 OUT
Using a quality instrument cable with 1/4” plugs connect this jack
to the input of your guitar amplifier or the next stompbox in your
signal chain.
6
EN FRDE ES

FRONT AND REAR PANEL
7
EN FRDE ES
3
6
1
54
2
12
10
8
7
9 11

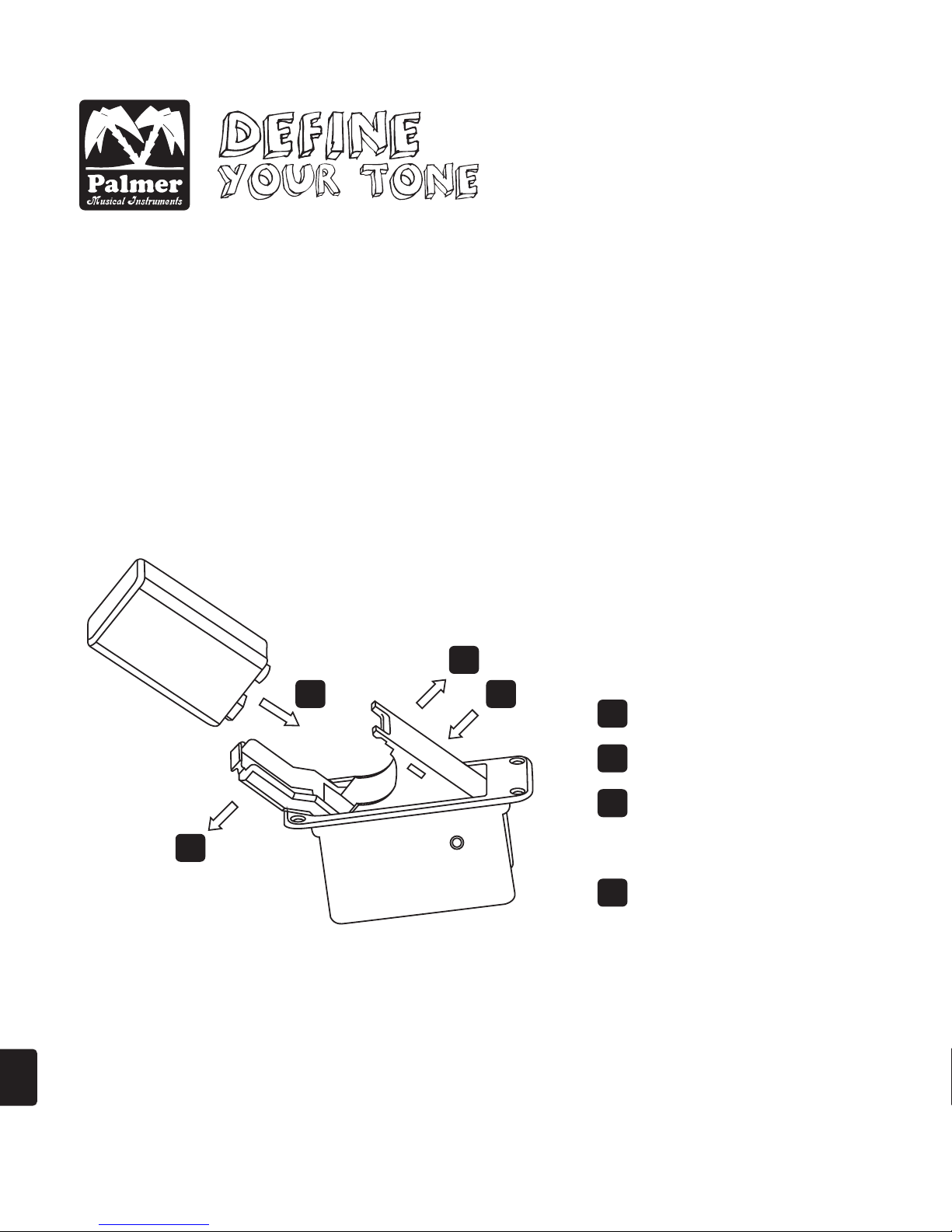

INSERTING/REPLACING A BATTERY
The Battery is of the 6LF22 blocktype (9Volts). A quick access com-
parement for easy battery replacement is located at the bottom of
the unit. Always remember to unplug your guitar cord from the Input
of the pedal to prolog battery life. Some battery drain may occur
when the unit is plugged in, even if it is bypassed.
+
-
1
2
3 4 1Pull the holder
2Open the cover
3Insert the battery
(observe correct
polarity)
4Close the holder
8
EN FRDE ES

POWER REQUIREMENTS
● Battery: Standard 9V battery
● Power consumption: 20 mA
● External power supply:
9V DC (regulated), 50 mA minimum
5.0 x 2.1 mm barrel style connector, center negative
SPECIFICATIONS
Product type: effect
Type: delay + compressor pedal for
guitar
Inputs: 1
Input Connectors: 6.3 mm (1/4") jack
Input Impedance: 1M ohms
Outputs: 1
Output Connectors: 6.3 mm (1/4") Jack
Output Impedance: 100k ohms
Residual Noise: - 85 dB
Controls: rate, repeat, tone, mix, thresh-
old, level, pre/post, footswitch
Indicator: power/battery status low (LED)
Power Supply: 9 V block, external power supply
Power Consumption: 20mA
Cabinet: sheet steel, powder coated
Dimensions (W x H x D): 120 x 60 x 140 mm
Weight: 0.95 kg 9
EN FRDE ES

10
