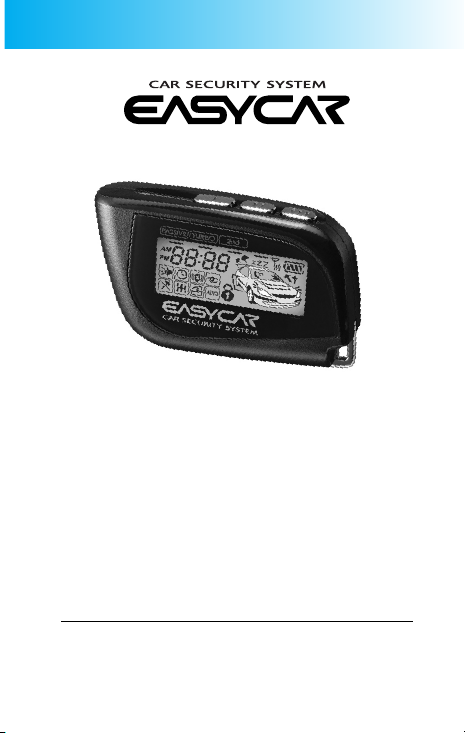

Delton Easycar User manual

Please read this manual carefully prior to using your new
system. Please keep this manual accessible for future use.
High Quality
Starter and Alarm Systems
We sincerely appreciate you purchasing our vehicle
starter and alarm systems. Our starter and alarm systems
are produced with strict quality control and international
standards, and includes a series of test including; e treme
temperature, shocks, vibration and dropping. As a result,
we are certain that you will be completely satisfied with
our products.
E4-수출 사용설명서내지1 2012.7.2 9:24 AM 페이지1

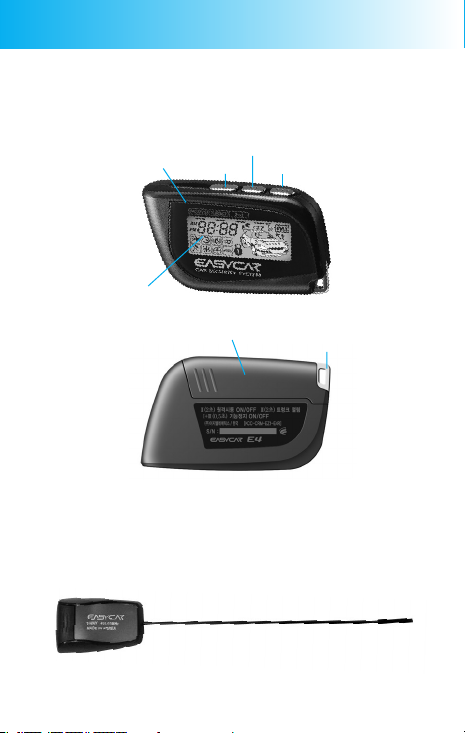

[Remote Outside Name]
Window ButtonⅠ
Button II
LED
Keyring
1. V Battery (AAA)
Button III
▶Antenna Module
E4-수출 사용설명서내지1 2012.7.2 9:24 AM 페이지2

※※Please take these safety precautions.
1. Please read our Limited Warranty and
Disclaimer information located at the back of this
manual prior to using.
2. It is not recommended installing this systen into a
convertible vehicle with a manual transmission.
3. We are not responsible for any injury or other liability
resulting from the wrongful use of this system
4. When using remote start, place the gear in the Parked
or Neutral position, and set the Emergency brake or
Foot brake
. In manual transmission vehicles; Do Not remote start in
any position other than Neutral. We are not responsible
for any damages or consequence resulting from this.
6. The transmitting (TX) and receiving (RX) varies
depends on the radio signal environment. Range and
response time will vary.
7. In the unlikely event of a defective product, do not
open, repair or modify the system. Ask the seller for
repair or replacement.
8. We shall not be responsible for any theft or damage to
your vehicle, since this is a subsidiary and convenient
system only.
9. Please note that some functions described in this
manual are optional functions and may not be available
on this model.
Safety Information
E4-수출 사용설명서내지1 2012.7.2 9:24 AM 페이지3

CONTENTS
Greeting
Remote Outside Name
Safety Information
[Color LCD displays]
[Remote Button Functions]
[Function]
1. Lock/Unlock
1-1 Door Lock(Arm)
1-2 Door Unlock (Disarm)
2. Auxiliary Output (Optional Installation)
2-1 Aux1
2-2 Aux2
3. Query Function
4. Valet
5. Vibration (On/Off)
6. Panic Mode
7. Remote Start (On/Off)
7-1 Emergency Brake(Option setting)
7-2 Preventing Remote Start for your safety
7-3 Diagnose problems with auto start
8. Trunk Open
8-1 Trunk Open
8-2 Trunk sensing (option setting)
[Function setup]
1. Passive
1-1 Auto Arming
1-2 Manual Arming
2. Driving Door Lock (Ignition Lock)
6
8
9
9
9
9
10
10
10
11
12
12
12
13
13
14
14
14
15
15
15
16
16
16
16
E4-수출 사용설명서내지1 2012.7.2 9:24 AM 페이지4

3. Second Car
4. Mute (On/Off)
5. Turbo (On/Off)
6. Current Time Change
7. Reserved Time Change
8. Reserved Time Start (On/Off)
9. Shock sensor (On/Off)
[Option Setting-Customer]
[Others]
1. Real Time Remote Paging Functions
1-1 Owner Call Mode
1-2 Shock sensing Report Mode
1-3 Theft Report Mode
2. Adjusting the sensitivity of shock sensor
3. Reservation mode
3-1 What is ‘Reservation mode’?
3-2 Automatic Reservation Mode (Default Setting)
3-3 Manual Reservation Mode (Optional setting)
4. Easy Door Lock (option)
4-2 How to input the 4 digit password
4-3 Door Lock / Unlock
4-4 LED Display
5. Start Button
5-1 Ignition ON
5-2 Ignition OFF
5-3 OFF ⇨ ACC ⇨ ON ⇨ OFF
17
17
18
19
20
20
21
22
23
23
23
24
24
24
25
25
26
26
27
27
28
28
29
29
30
30
E4-수출 사용설명서내지1 2012.7.2 9:24 AM 페이지5

6
/ USER’S GUIDE E4
[Color LCD displays]
LCD
Use of this system is for car start and alarm purpose only.
Since this system is a precise instrument that is fragile and susceptible
to damage from external shock, do not drop the unit, and keep it away
from children. Do not keep the remote near excessive humidity or
water, as it is not water proof.
CAUTION
LCD
Transmitted
Transmitting
Reservation mode (Manual transmission only)
Door Lock (Arm)
Door Unlock (Disarm)
Panic Mode
Trunk open
E4-수출 사용설명서내지1 2012.7.2 9:24 AM 페이지6

USER’S GUIDE E4 /
7

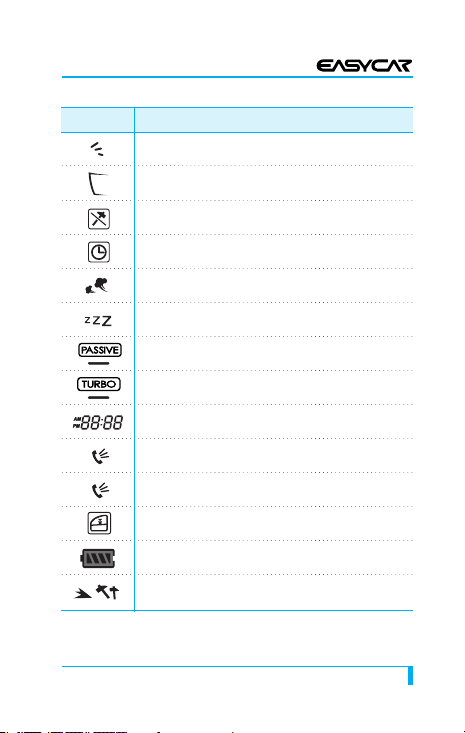

LCD
LCD
Parking Light
Door open
Shock OFF
Timer
Engine is on
Valet
Passive
Turbo
Clock
Owner call mode is set
Someone calling car owner
Driving door lock(Ignition Lock)
Battery Meter
Shock
E4-수출 사용설명서내지1 2012.7.2 9:24 AM 페이지7

8
/ USER’S GUIDE E4
[Remote Button Functions]
I
II
III
I+II
I + III
II+III
I-
Ⅱ-
Ⅲ-
(II + III)- → I
(II + III)- → I-
(II + III)- → II
(II + III)- → II-
(II + III)- → III
(II + III)- → III-
(II + III)- → (I + II)-
(II + III)- → (I + III)-
(II + III)- → (I + III)
(I + III)-
(I+II)-
Button
FunctionFunction setup
Option
setting
Press
(sec)
0.5
0.5
0.5
0.5
0.5
0.5
0.5
2
2
2
0.5
2
0.5
2
0.5
2
2
2
0.5
2
2
Function
Door Lock(Arm)
Door Unlock(Disarm)
AUX1
AUX2
Query
Valet ON/OFF
Vibration ON/OFF
Panic Mode
Remote Start ON/OFF
Trunk Open
Passive ON/OFF
Driving Door Lock
Mute ON/OFF
Reservation Start ON/OFF
Turbo ON/OFF
Shock Sensor ON/OFF
Current Time Change
Reserve time Change
Second car
Option Mode 2 (Consumer)
Option Mode 1 (Installer)
E4-수출 사용설명서내지1 2012.7.2 9:24 AM 페이지8

USER’S GUIDE E4 /
9
* 0.5 sec. : Press the button for 0.5 second.
* 2 seconds(-) : Press the button for 2 seconds till it operates at
your vehicle
* + : Press 2 buttons simultaneously.
[Function]
1. Lock/Unlock (Arm/Disarm)
1-1 Door Lock(Arm)

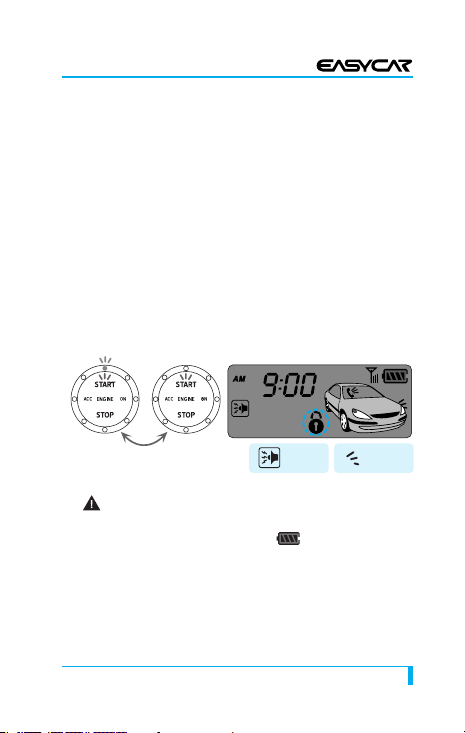

You can lock and arm your vehicle by pressing button I for
0.5 second. The siren chirps and the parking lights flash once
each, Also, the sidemirror is being folded.(Start button
model only)
Note
The remote chirps 7 times, and blinks icon on the remote to
warn that the battery of your vehicle discharges, if you lock the
doors while the tail lights are turned on during arming(Start button
model only).

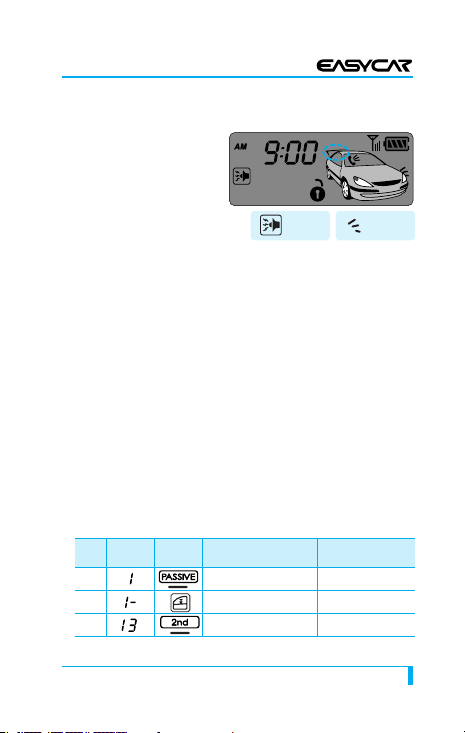

1-2 Door Unlock (Disarm)
: Once : Once
< LED During Armed stage >
(Start button model Only)
E4-수출 사용설명서내지1 2012.7.2 9:24 AM 페이지9

10
/ USER’S GUIDE E4

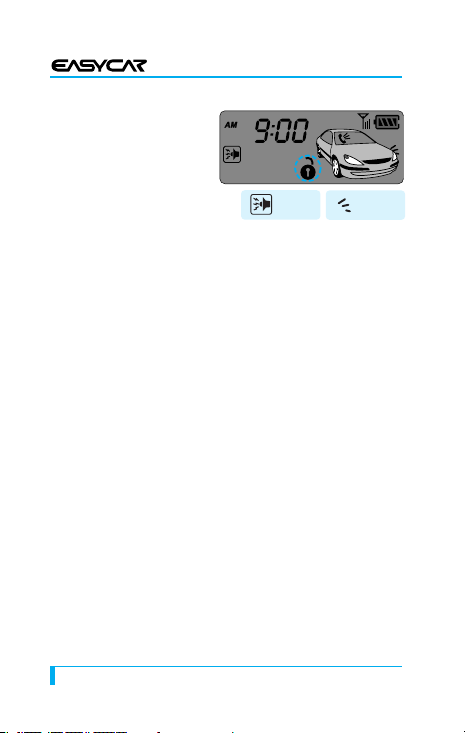

You can open and
disarm your vehicle by
pressing button I for 0.5
second.
The siren chirps and the
parking light flash twice
each.
Also, the sidemirror is being unfolded (Optional
installation).
The numbers of remote chirps and parking light flashes
indicate the status of your vehicle while parking (Start button
only).
- Two chirps and two parking light flashes indicates there
were no problems while parking.
- Four chirps and four parking light flashes on the remote
indicates there has been an alarm during the arming stage.
2. Auxiliary Output (Optional Installation)
This mode is used to control (on/off) one of the various
functions on your vehicle (such as convertible, sunroof, car
audio, window and etc.)
2-1 Aux1
It operates by pressing II for 0.5 second and then do it again
within 3 seconds to open sunroof etc. To close, please do the
same process once again.
2-2 Aux2
: Twice : Twice
E4-수출 사용설명서내지1 2012.7.2 9:24 AM 페이지10

USER’S GUIDE E4 /
11
It operates by pressing III for 0.5 second and then do it again
within 3 seconds to open sunroof etc. To close, please do the
same process once again.
3. Query Function
Query function allows you to check the statues of your
vehicle including car battery voltage(Start button only), car
temperature, parking timer(Start button only) (it indicates
how many minutes and hours have passed after the system is
armed). By pressing button IV for 0.5 second, it shows the
parking timer and then either car temperature or car battery
voltage (the other one appears as the same button job is
repeated).
The icon and chirping sounds indicates the statues. If you are
within transmitting distance to receive the signal for shock,
theft and easy call function, you will receive the response
shown on the table.
Status
Engine Running, Armed
Enging is Not Running, Armed
Enging is running, Disarmed
Engine is not running, Disarmed
Siren from the vehicle
Chirp 3
Chirp
Chirp 4
Chirp 2
Response
Remote
Be, bip
Be 4
Bip
Be 4
Be, bip 2
Be 4
Bip 2
Be 4
E4-수출 사용설명서내지1 2012.7.2 9:24 AM 페이지11

12
/ USER’S GUIDE E4
4. Valet
Press button (I+III)
simultaneously for 0.5
second to enter this
mode.
The 2 features operating
in valet mode are Door lock / unlock by pressing button I
and Query function by pressing button IV. (All the other
functions do not operate temporarily.)
Valet mode is useful when loaning your vehicle or having it
serviced (e ample, car wash, parking lot and auto repair shop).
Press button (I+III) simultaneously for 0.5 second again to e it.
Note
If you want to use this mode manually, insert the key into the
ignition and rotate it(press the start button in E7II-B model) 4 times
between ON & OFF for 4 times within 10 seconds.
. Vibration (On/Off)
Press button IV for 2
secounds(Vibration
on), and press button
IV for 2 seconds again
to turn it off.
E4-수출 사용설명서내지1 2012.7.2 9:24 AM 페이지12

USER’S GUIDE E4 /
13
Press and hold button I
for 2 seconds to
activate this mode.
Your vehicle will lock
the doors if unlocked,
the siren will activate,
and the parking lights
will flash for 90 seconds. This function is used for warning
under emergency situations, when you feel you are in
danger.
Press and hold button I for 2 seconds to deactivate.

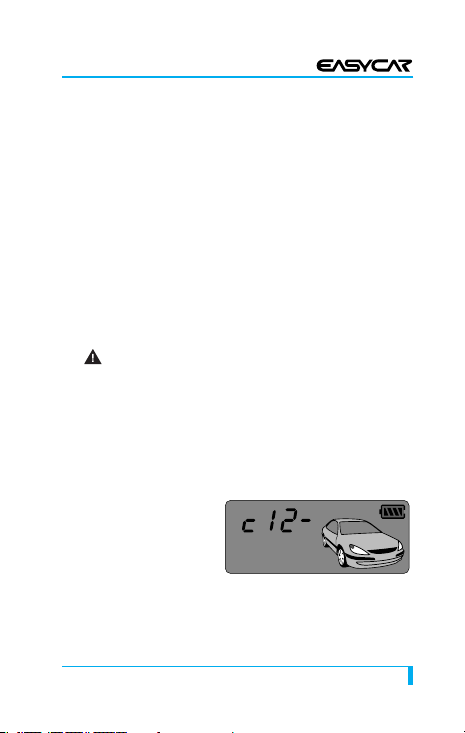

7. Remote Start
Press and hold button II, for 2 seconds, the remote chirps and
the parking lights flash once each.
If it fails, the system automatically repeats remote start a
ma imum of 3 times.
When the vehicle starts, appears on the transmitter and
the remaining engine running time is displayed on the
remote.
The default setting of the engine running time is 15 minutes.
You can change it to 25 minutes by using optional settings.
Open the door, insert the key, and turn it to ON position after
remote start, If you want to stop the auto starting, press the
foot brake.
7-1 Emergency Brake(Option setting)
Manual transmission vehicles need Reservation mode to
remote start, in this case, the emergency brake must be ON.
: Once : Once
E4-수출 사용설명서내지1 2012.7.2 9:24 AM 페이지13
6. Panic Mode

14
/ USER’S GUIDE E4
7-2 Preventing Remote Start for your safety
The following cases prevent your vehicle from auto starting
for your safety.
ⓐIf trunk is open
ⓑIf hood is open (E ept for Start button only)
ⓒIf emergency brake is off (for manual transmission
vehicles only)
ⓓIf panic mode is activated
ⓔIf valet mode is activated (Refer to ‘Valet’)

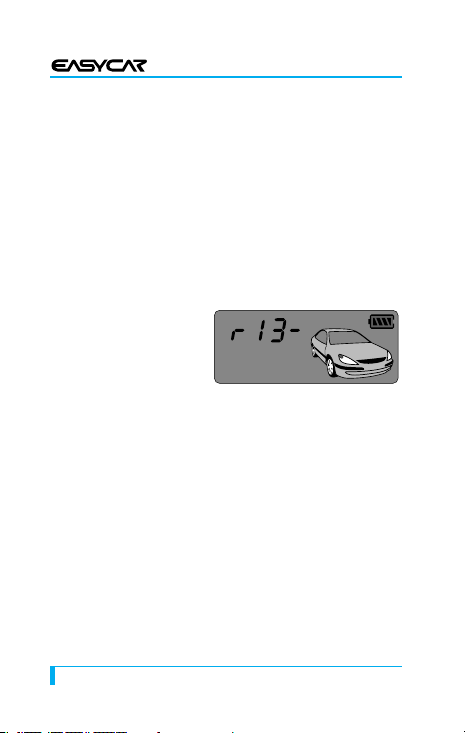

7-3 Diagnose problems with auto start
If there is a problem in auto start, you will hear 3 chirps and
the cause for the error will be indicated by the number of
chirps and the parking lights flash within 3 seconds, when
you try the remote start (Refer to the table).
8. Trunk Open
Cause of error
Engine on
Key On
Door open
Trunk open
Foot brake on
Hood open (Start button model)
Reservation Off (Manual transmission)
Emergency brake off
(Manual transmission)
Reason
of fail
Start
Start
Door
Trunk
Foot brake
Hood
Reservation
Brake
Vehicle Remote
Number of
chirps or Park
light Flash
1
2
3
4
6
7
8
E4-수출 사용설명서내지1 2012.7.2 9:24 AM 페이지14

USER’S GUIDE E4 /
15
8-1 Trunk Open
Press and hold button
III for 2 seconds to
open the trunk. Parking
lights will flash twice
and the siren will chirp
twice.
8-2 Trunk sensing
While your trunk is open, you cannot lock the doors (or arm
the vehicle.
[Function setup]

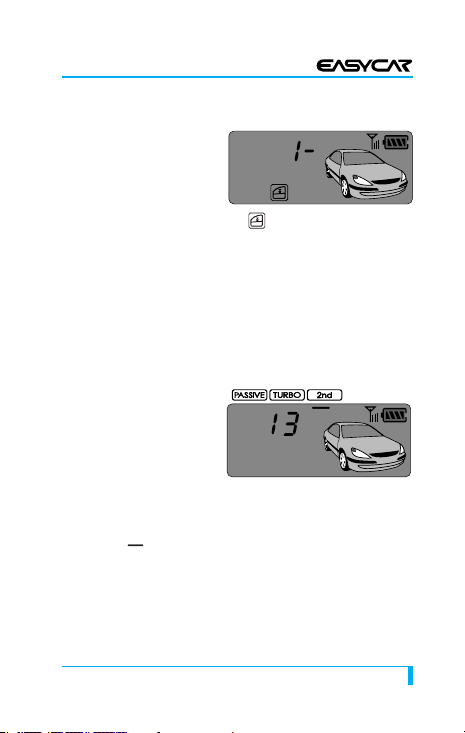

Each function appears one by one so that people can choose the
function they want.
When you press the button (II+III) for 2 seconds, each of the
following icons appears one by one. When the icon of function
you want appears, press the button as the Arabic number
indicates.
This mode takes two turns and during this mode, you can
choose the button as the Arabic number indicates at any time.
: Twice : Twice
Arabic
Number Icon Function
Passive
Driving Door Lock
Second Car
Press(sec)
Press I for 0.5 sec
Press I for 2 sec
Press (I+III) for 0.5 sec
Order
①
②
③
E4-수출 사용설명서내지1 2012.7.2 9:24 AM 페이지15

16
/ USER’S GUIDE E4
1. Passive
1-1 Auto Arming
You can activate this
function by pressing
button II+III for 2
seconds and release,
then press button I for
0.5 second. After
icon appears, the passive become active.
1-2 Manual Arming
If you repeat 1-1 once again, the icon disappears. From
then on, arming is active only by the remote.
Arabic
Number Icon Press(sec)
Press II for 0.5 sec
Press III for 0.5 sec
Press (I+II) for 2 sec
Press (I+III) for 2 sec
Press II for 2 sec
Press III for 2 sec
Function
Mute
Turbo
Current Time change
Reserve Time change
Reservation Start
Shock Senser On/Off
Order
④
⑤
⑥
⑦
⑧
⑨
E4-수출 사용설명서내지1 2012.7.2 9:24 AM 페이지16

USER’S GUIDE E4 /
17
Press button (II+III) for
2 seconds and release,
then press I for 2
seconds.
Then, this mode
operates with display of Icon on LCD.
This programmable option enables your vehicle to
automatically lock the doors in 30 seconds after the vehicle
has been started with a key while all the doors are closed.
On the contrary, the vehicle will automatically unlock the
doors upon pulling the key out from the ignition.
To e it, follow the same procedure above again.
3. Second Car
It's the function to use
two vehicles (Easycar
alarm system must be
installed in each
vehicle) with one
remote.
First, please register the remote in one vehicle.
And then on other vehicle, press II+III for 2 seconds and
release, and then press I+III for 0.5 second.
After icon appears, please register the remote on the
other vehicle & use it
E4-수출 사용설명서내지1 2012.7.2 9:24 AM 페이지17
2. Driving Door Lock (Ignition Lock)

18
/ USER’S GUIDE E4
Press the button (II+III)
for 2 seconds and
release. then press the
button II for 0.5 seconds
and release. And then all
the Icons displayed on LCD disappear and the siren does not
operate.
In this mode, Siren does not operate during arming and
disarming only.
To e it, follow the same procedure above again.
. Turbo
-1
Press (II+III) for 2
seconds and release,
then press the button III
for 0.5 second and
release. In this mode,
engine continues to run
for a selected time of 30 seconds or 2 minutes (you can
change the setting in Option menu). This is very useful for
turbo charged vehicles to cool down the mechanical
components after driving.
To e it, follow the same procedure above again.
-2 Start button model
In the mode, engine continues to run for a selected time of 30
seconds or 2 minutes (you can change the setting in
Option menu).
E4-수출 사용설명서내지1 2012.7.2 9:24 AM 페이지18
4. Mute

USER’S GUIDE E4 /
19
ⓐPlease follow the step on the remote as above.
ⓑWhile the engine is running, activate the parking brake
(auto transmission) or the emergency brake (manual
transmission)
ⓒWhile pressing the foot brake on, press start button for 1
secound and then release. The remote chirps and the
parking lights flash once each(for from the key bo ).
ⓓThe engine keeps running and the start button’s LED
rotates diagonally.
ⓔOpen the door and close
ⓕThe engine additionally runs for 30 seconds (or 2
minutes, changed in option)
Note
If you want immediate stop afer drive such as in gas station,
please press the food brake on and press start button for 4
seconds. The engine will stop immediatley.
6. Current Time Change
1) When you press the
button (II+III) for 2
seconds and release and
then continuously press
the button (I+II) for 2
seconds and release, the current time flashes and ready to
change.
2) If you press I for 0.5 second, the hour changes
E4-수출 사용설명서내지1 2012.7.2 9:24 AM 페이지19

20
/ USER’S GUIDE E4
3) If you press II for 0.5 second, the minute changes
4) After you adjust the current time, please press the button III
for 0.5secound and release (or press (I+II) for 2 seconds and
release), with the melody from the remote, the setup is
completed.
* If you want to get out of setup mode, stay for 7 seconds while
the current time blinks.
7. Reserved Time Change
1) When you press the
button (II+III) for 2
seconds and release and
then continuously press
the button (I+III) for 2
seconds and release, the current time flashes and ready to
change.
2) If you press I for 0.5 second, the hour changes
3) If you press II for 0.5 second, the minute changes
4) After you adjust the current time, please press the button III
for 0.5secound and release (or press (I+II) for 2 seconds and
release), with the melody from the remote, the setup is
completed.
* If you want to get out of setup mode, stay for 7 seconds while
the current time blinks.
8. Reserved Time Start (On/Off)
E4-수출 사용설명서내지1 2012.7.2 9:24 AM 페이지20
