DeLUX MSF User manual

Operaon Manual
2016 MODELS:
MSF-DP-DPSL-DPXSL-DPX4T-DPX8T-DPX12T-DPX16GT
Grain Dryer

TABLEOFCONTENTS
1
01/01/2016

TABLEOFCONTENTS

General3
Introduction3
UseofManual3
SafetyCode3
DryerLabels4
SerialTag6
ServiceInformation6
WarrantyProcedures7
WarrantyStatement9
StartupProcedure13
Stay‐KleenOperation&Maintenance13
Fresh‐AirIntakes13
MainPower14
SafetyCircuit14
StartingWetFill14
StartingFans14
StartingBurners15
StartingUnload15
EZ‐ZoneAutomaticTemperatureController17
EZ‐ZoneAutomaticMoistureController26
GrainDryerPerformanceChart29
GrainShrinkageTable30
DryerOperationLog31
Special‐SunflowerDrying48
SequenceAnalysis50
ShutdownProcedure74
StandardShutdown68
EmergencyShutdown68
GeneralMaintenance75
ComponentSpecifications/Charts78
ComponentLiterature 122


1

2

GENERAL
1
01/01/2016
GeneralInstructions
Introduction

DeluxManufacturingCompanyofKearney,Nebraskahasmanyyearsofexperiencein
producingenergysaving,highcapacitycontinuousflowgraindryersforbothfarmand
commercialapplications.

Deluxgraindryersaredesignedandmanufacturedtoproducequalitygrainataprofit.An
idealbalanceofholdingcapacity,airflow,heatandexposuretimeareprovided.Alldryers
aredesignedforcontinuousflowoperation.Grainenterstheroofsectionofthedryerwhere
itispreheatedasitflowsdownintothecolumnswherethedryingprocessisstarted.Twelve
(12)inchgraincolumnsoneachsideofthedryerprovideformaximumfuelefficiencyand
minimumgrainmoisturedifferentialacrossthecolumns.Asthegrainentersthecooling
chamber,outsideambientairisdrawnthroughthewarmgrainreducingthedryerfuel
consumptionovercompetitiveconventionaldryers,thuscompletingthedryingprocessand
conditioningthegrainforalongsafestoragelife.

UseofManual

Thismanualprovidesoperationandservicerecommendationsalongwitha
replacementpartslistforyourDeluxgraindryer.Itishighlyrecommended
thatthismanualbereadthoroughlybythosewhoareresponsibleforthe
operationandmaintenanceofthismachine.Refertothetableof
contentsforthelocationofspecificinformation.


SafetyCode

Thedesignandmanufactureofthisdryerisdirectedtowardoperator
safety.Useextremecautioninworkingaroundhighspeedfans,gasfired
burners,dischargeaugersandconveyors,andauxiliaryaugersand
conveyors,whichmaystartwithoutwarningwhenthedryerisoperating
onautomaticcontrols.

Continuedsafe,dependableoperationofautomaticequipmentdependstoagreatdegree
upontheowner/operator.Forasafedependabledryingsystem,followthe
recommendationswithinthemanualandmakeitapracticetoregularlyinspectthe
operationoftheunitforanydevelopingproblemsorunsafeconditions.Keepacleangrain
dryer.Donotallowfinematerialtoaccumulateontheplenumorcoolingfloororatrash
firecanresult.Checkingthedryeratleastevery24hoursandcleaningwillhelpprevent
problems.Thedryershouldnotbeleftunattendedforextendedperiodsoftime!

Theoperatorshouldbeawareofallcaution,warning&startuplabelslocatedonthegrain
dryer.Makesurealllabelsarereadableandnotobscured.Replacethelabelsasnecessary.
Thelocationofeachlabelislistedinthebelow.
3

GENERAL
2
01/01/2016

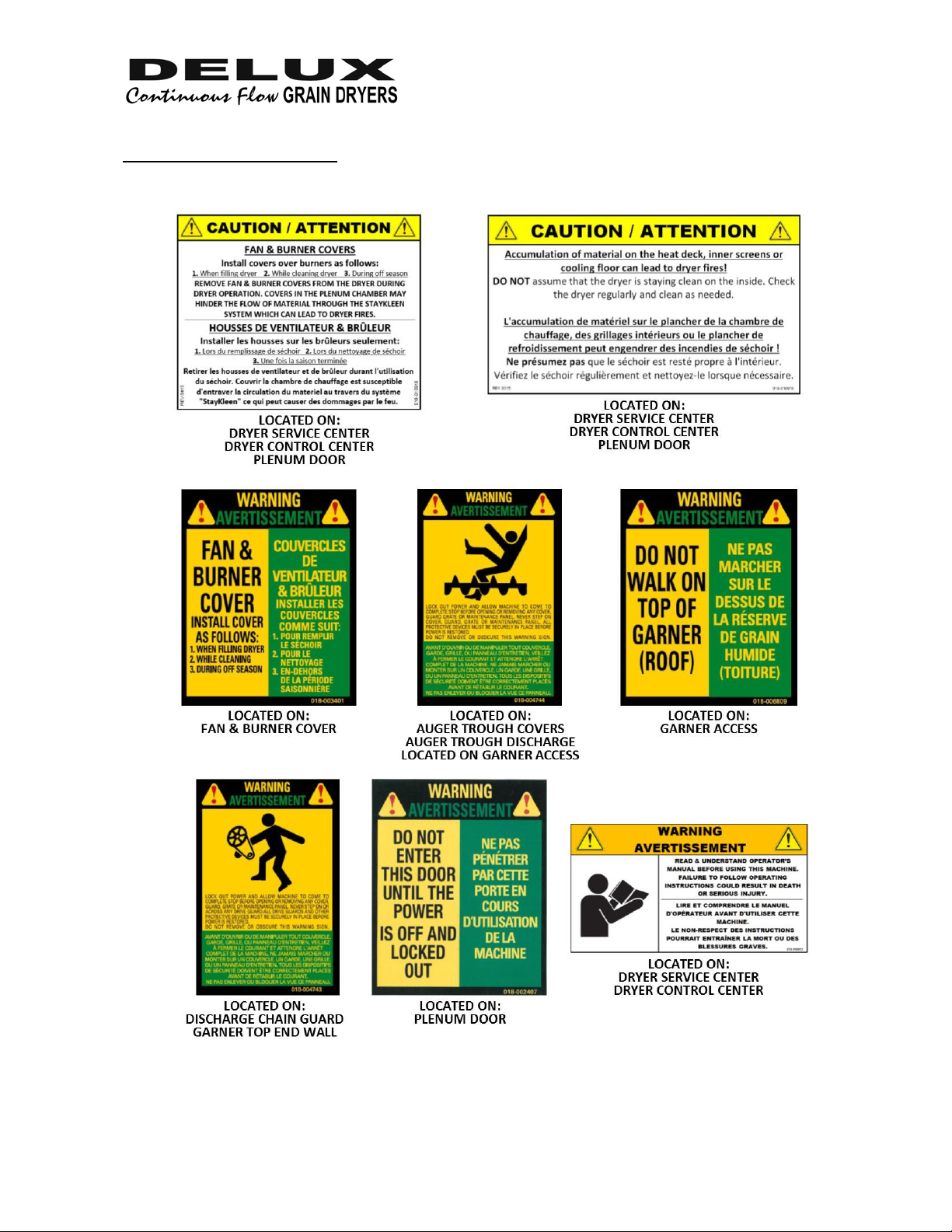

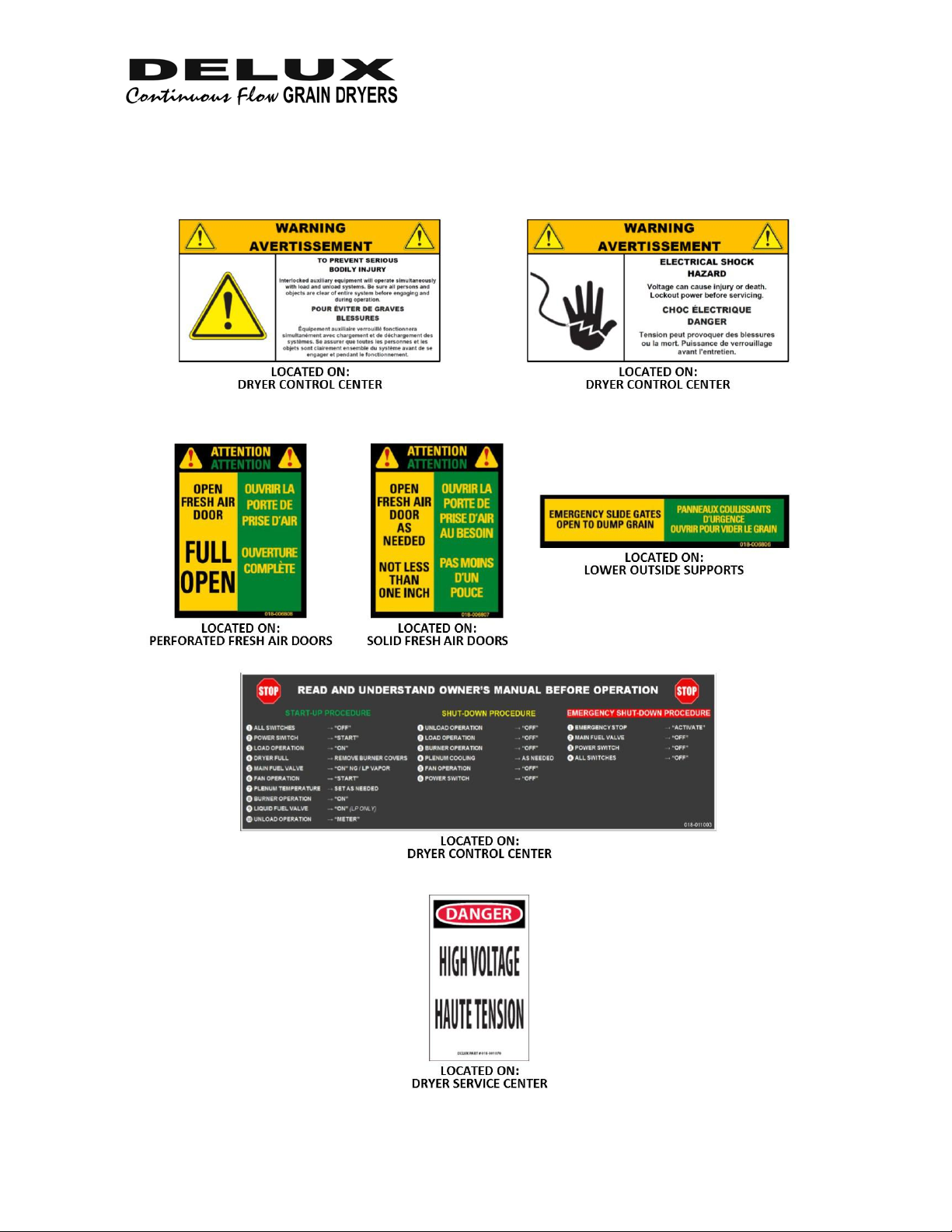

DryerLabels&Location


4

GENERAL
3
01/01/2016





5

GENERAL
4
01/01/2016


SerialTag

Themodelandserialnumberofyourgraindryerisstampedonanaluminumserialplate
locatedintheDryerControlCenter.Pleasehavethisinformationreadywhencallingthe
factoryforserviceand/ororderingreplacementparts.




ControlPanelIDTag

TheControlPanelIDTagcontainsimportantinformationregardingtheelectricalandfuel
specificationsofthegraindryer.Italsoincludestheschematicnumberthatthedryeris
wiredto.Thisinformationishelpfulwhendeterminingpowerandfuelrequirementsfrom
yourlocalutilitysupplier.


ServiceInformation

Ourservicedepartmentwillprovideconsultationontheinstallation,operation,and
maintenancetoyou.Also,informationfromyouregardingencounteredoperationorservice
problemsthatarenotcoveredinthismanualwillbegreatlyappreciated.
6

GENERAL
5
01/01/2016

DeluxManufacturingCompanyhastrainedservicetechniciansavailabletoassistyouinthe
eventyouoryourdealercannotcorrectaproblem.AphonecalltoDeluxManufacturing
Companywillprovideananswertoyourserviceproblems.

DeluxManufacturingCompanykeepsacompleterecordofeachcustomerorder.However,
valuabletimecanbesavediftheinformationbelowisprovidedwithyourinquiry.Itis
suggestedthatyouobtainthemodelnumberandserialnumberlocatedintheelectrical
controlboxenclosureandkeepitlocatedforlaterreference.

WarrantyProcedures

Allwarrantyissues,partsandservicerequestsshouldbehandledthroughyourlocaldealer.
Inthecasenodealerorrepresentativeexistsinyourarea,oraconflictofinterestexistswith
yourdealerand/orrepresentative,pleasecontactthedepartmentofengineeringand
serviceatDeluxManufacturingCompanyforprocedurestofollow.

WarrantyonalldefectivepartsmanufacturedbyDeluxManufacturingCompanywillbe
limitedtothespecificationssetforthbytheinformationprovidedbyDeluxManufacturing
Companyinitsstandardlimitedwarrantypolicy.Warrantyonalldefectivepartsnot
manufacturedbyDeluxManufacturingCompanyislimitedtothewarrantiesprovidedby
thatpart’smanufacturer.Thisincludes,butisnotlimitedto,electricmotors,gearheads,
valves,regulatorsandotherparts.DeluxManufacturingCompanyisnotresponsiblefor
defectivepartsnotofitsmanufacture.

Authorizationforcreditorreplacementunderwarrantyfordefectivepartsormaterial
manufacturedbyDeluxManufacturingCompanywillnotbeissuedunlessstrictcompliance
isgiventothewarrantypartsreturnprocedureslistedbelow.WhencontactingDelux
ManufacturingCompanyinregardtothepoliciesandproceduressetforthinthismanual,
directallcorrespondenceandcallstothedepartmentofengineeringandserviceatDelux
ManufacturingCompany.

Exceptasspecifiedpreviously,referallwarrantyclaimstoyourdealer.

Warrantypartsreturnandcreditprocedure:

1) DeluxManufacturingCompanymustbenotifiedbywritingorphonewithinfifteen
(15)daysafteranallegedfailureofapartmanufacturedbyDeluxManufacturing
Companyisdiscovered.Failuretogivesuchnoticewithinthetimespecifiedshallbe
deemedanadmissionbythepurchaserthattheproductisasrepresentedand
warrantedbyDeluxManufacturingCompanyandfreefromalldefectsandDelux
ManufacturingCompanyshallbereleasedfromanyandallclaimsarisingoutoforin
connectionwiththesaleofthepartorproduct.

2) UponnotificationfrompurchaserthatapartmanufacturedbyDeluxManufacturing
Companyhasallegedlyfailed,thefailureiscoveredbythestandardlimitedwarranty
andtheoriginalwarrantyregistrationcardisonfilewithDeluxManufacturing
CompanyatitsKearney,Nebraskaheadquarters,arrangementswillbemadeby
7

GENERAL
6
01/01/2016
DeluxManufacturingCompanytoshipthereplacementparttopurchaserwith
freightchargedatthestandardgroundshippingrate.

3) Oncethereplacementparthasbeenshipped,purchaserwillreceiveaninvoicefor
thevalueoftheequipmentshippedplustheshippingcharges.Purchasermustthen
fullycompleteareturnpartstagidentifyingtheallegedpartfailureandreturnsaid
tagalongwiththeallegedlyfailedparttoDeluxManufacturingCompanywithfreight
prepaidbypurchaser.Nowarrantycreditshallbegiventopurchaseronallegedly
failedpartsthatarenotreturnedtoDeluxManufacturingCompanywithinthirty(30)
daysfromdateofthediscoveryoftheallegedfailureorwithinfifteen(15)daysfrom
theshippingdateindicatedupontheinvoicesentwiththereplacementpart,
whicheverdateislater.Purchasermustuseproperpackingmaterialtoensure
againstdamageduringshipping.Anyshippingdamagecausedbyimproperpackingis
notcoveredunderthestandardlimitedwarranty.

4) Theinvoiceforthereplacementpartplusthefreightchargeremainspayableby
purchaseruntilsuchtimeastheallegedlyfailedparthasbeenreturnedwitha
completedreturnpartstagattachedandtheparthasbeeninspectedbyDelux
ManufacturingCompanytodetermineifthewarrantyclaimisvalid.Purchaserwill
thenreceivenotificationfromDeluxManufacturingCompanyastothereceiptofthe
defectivepartandDeluxManufacturingCompany’sfindingsonthewarrantyclaim
withinareasonabletimethereafter.

5) IfthepartisfoundtobedefectivebyDeluxManufacturingCompany,Delux
ManufacturingCompanyshallcredittheamountowedundertheinvoicesentwith
thereplacementpartexceptforthefreightincurredinshippingthereplacementpart
topurchaser.

6) IfthepartreturnedbypurchaserisfoundbyDeluxManufacturingCompanytobe
functionalandoperationalandincompliancewiththemanufacturedspecifications,it
willbereturneduponrequesttopurchaseratpurchaser’scost.Ifnorequestis
receivedbypurchaser,thepartshallbedestroyedafteraperiodoften(10)days.
DeluxManufacturingCompany’schargesforinspectionofanon‐defectiveDelux
ManufacturingCopartwillbesubjecttothestandardhourlyrateandzonecharges.

7) Nonon‐DeluxManufacturingCompanylaborornon‐DeluxManufacturingCompany
replacementpartwillbeauthorizedwithoutfirstanestimateofthecostofpartand
laborprovidedtoDeluxManufacturingCompany.Deviationsfromthisestimatewill
besolelyatthepurchaserordealer’scost.
8

GENERAL
7
01/01/2016
DELUXMANUFACTURINGCOMPANYSTANDARDLIMITEDWARRANTY
DELUXMANUFACTURINGCOMPANY’SWARRANTYOBLIGATIONSARELIMITEDTOTHETERMSSETFORTH
BELOW:

DELUXMANUFACTURINGCOMPANYWARRANTSTOTHEORIGINALPURCHASERTHATIFANYPARTMANUFACTURED
BYDELUXMANUFACTURINGCOMPANYISPROVENTOBEDEFECTIVEINMATERIALORWORKMANSHIPWITHINONE
(1)YEARFROMDATEOFORIGINALINVOICEFROMDELUXMANUFACTURINGCOMPANYANDPURCHASERFOLLOWS
THEABOVEWARRANTYPARTSANDCREDITPROCEDURE,DELUXMANUFACTURINGCOMPANYWILL,ATITSOPTION,
EITHERREPLACEORREPAIRSAIDPARTATITSCOST.THISSTANDARDLIMITEDWARRANTYDOESNOTAPPLYTOANY
DAMAGERESULTINGFROMNEGLIGENTUSE,MISUSE,ACCIDENTALDAMAGE,ABNORMALORUNUSUALLYHEAVY
USE,NORMALWEARANDTEAR,NEGLECT,ABUSE,ALTERATION,IMPROPERINSTALLATION,UNAUTHORIZEDREPAIR
ORMODIFICATION,POORORIMPROPERMAINTENANCEORUSEBEYONDRATEDCAPACITY.

THISWARRANTYANDTHEREMEDYSETFORTHABOVEAREEXCLUSIVEANDINLIEUOFALLOTHERS,WHETHERORAL
ORWRITTEN,EXPRESSED,IMPLIEDORSTATUTORY.DELUXMANUFACTURINGCOMPANYSPECIFICALLYDISCLAIMSTO
THEMAXIMUMEXTENTPERMITTEDBYLAWANYANDALLIMPLIEDWARRANTIESORCONDITIONSASTOTHE
PRODUCTSORANYOTHERMATTERWHATSOEVER.INPARTICULAR,BUTWITHOUTLIMITATION,DELUX
MANUFACTURINGCOMPANYSPECIFICALLYDISCLAIMSANYANDALLIMPLIEDWARRANTIESORCONDITIONSOF
SATISFACTORYQUALITY,MERCHANTABILITY,FITNESSFORAPARTICULARPURPOSE,DESCRIPTION,NON‐
INFRINGEMENTOFTHIRDPARTYRIGHTS,ANYADVICE,INSTRUCTION,RECOMMENDATIONORSUGGESTION
PROVIDEDBYANAGENT,REPRESENTATIVEOREMPLOYEEOFDELUXMANUFACTURINGCOMPANYREGARDINGOR
RELATEDTOTHECONFIGURATION,INSTALLATION,LAYOUT,SUITABILITYFORAPARTICULARPURPOSE,ORDESIGN
OFSUCHPRODUCTORPRODUCTS,ORANYOTHERWARRANTYARISINGFROMACOURSEOFDEALINGORUSAGEOF
TRADE.DELUXMANUFACTURINGCOMPANYRESERVESTHERIGHTTOMAKEDESIGNORSPECIFICATIONCHANGESAT
ANYTIME.
THISSTANDARDLIMITEDWARRANTYDOESNOTAPPLYTO,ANDDELUXMANUFACTURINGCOMPANYMAKESNO
WARRANTYTOTHEPURCHASERWITHREGARDTO,PARTSANDPRODUCTSNOTMANUFACTUREDBYDELUX
MANUFACTURINGCOMPANY.INTHEEVENTANDTOTHEEXTENTTHATAPPLICABLELAWDOESNOTALLOWTHE
EXCLUSIONOFIMPLIEDWARRANTIES,THEABOVEEXCLUSIONWITHREGARDTOIMPLIEDWARRANTIESMAYNOT
APPLY.

DELUXMANUFACTURINGCOMPANYSHALLNOTBERESPONSIBLEORLIABLEFORANYLOSTPROFITS,DIRECT,
INDIRECT,UNFORESEEABLE,SPECIAL,INCIDENTALORCONSEQUENTIALDAMAGESHOWEVERCAUSEDAND
WHETHERORNOTDELUXMANUFACTURINGCOMPANYWASADVISEDOFTHEPOSSIBILITYOFSUCHDAMAGES,
WHETHERBASEDONCONTRACT,INTORTORANYOTHERLEGALTHEORY.THEREMEDYSTATEDHEREINSHALLBE
THESOLEANDEXCLUSIVEREMEDYAVAILABLEUNDERTHISWARRANTY.

DELUXMANUFACTURINGCOMPANYASSUMESNORESPONSIBILITYFORFIELDMODIFICATIONSORERECTION
DEFECTSWHICHCREATESTRUCTURALORSTORAGEQUALITYPROBLEMS,MODIFICATIONSTOTHEPRODUCTNOT
SPECIFICALLYCOVEREDBYTHECONTENTSOFTHEDELUXMANUFACTURINGCOMPANYSERVICEMANUALWILL
NULLIFYANYPRODUCTWARRANTYTHATMIGHTHAVEBEENAVAILABLEOTHERWISE.

NODELUXMANUFACTURINGCOMPANYDISTRIBUTOR,RESELLER,DEALER,AGENTOREMPLOYEEISAUTHORIZEDTO
MAKEANYMODIFICATIONS,EXTENSIONORADDITIONTOTHISWARRANTY.DELUXMANUFACTURINGCOMPANY
SHALLNOTBERESPONSIBLEFORANYCHARGESINCURREDINTHEREPAIRINGORSERVICINGOFANYDELUX
MANUFACTURINGCOMPANYPRODUCTORPARTEXCEPTASSUCHREPAIRSAREMADEBYAUTHORIZEDDELUX
MANUFACTURINGCOMPANYFIELDSERVICEPERSONNELORASAPPROVEDINWRITINGFROMDELUX
MANUFACTURINGCOMPANY.

PRIORTOINSTALLATION,PURCHASERISRESPONSIBLEFORRESEARCHINGANDCOMPLYINGWITHALLFEDERAL,
STATEANDLOCALSTATUTES,REGULATIONSAND/ORCODESWHICHMIGHTAPPLYTOTHELOCATIONAND
INSTALLATIONOFTHEDELUXMANUFACTURINGCOMPANYPRODUCT.

9

GENERAL
8
01/01/2016
Additionaldisclaimerofwarranty:

AllmanufacturerlabelproductsnotmanufacturedbyDeluxManufacturingCompanyare
excludedfromcoverageundertheDeluxManufacturingCompanystandardlimited
warranty.

Noelectricmotorwarranty:

DeluxManufacturingCompany’sstandardlimitedwarrantydoesnotcoveranyandall
electricmotorsusedbyDeluxManufacturingCompanyinitsproducts.Purchaser’ssoleclaim
forwarrantyontheseelectricmotorslieswiththemotor’smanufactures.Insuchevent,
purchaser’sdryerservicemanualcontainsalistofthemotormanufacture’sservicecenters
whereallfurtherinquiriesregardingthemotoranditswarrantyshouldbeplaced.Underno
circumstanceswhatsoeverwillDeluxManufacturingCompanybeliableforanunauthorized
electricmotorrepairbyalocalmotorshoporelectrician.

Returnmerchandiseprocedures:

1.CONTACT:  DELUXMANUFACTURINGCOMPANY
   4650AIRPORTROAD
   P.O.BOX1027
   KEARNEY,NE68848‐1027

   PHONE:308‐237‐2274TOLLFREE:800‐658‐3240
   FAX:308‐234‐3765WEB:http://www.deluxmfg.com

AskforanRMA#.Inthatrequest,identifythemerchandiseyouwishtoreturn,its
conditionandtheinvoiceonwhichitwasoriginallybilled.

2.Afterreceiptofthereturnpartstag,shiptheitem(s)withprepaidfreightalongwith
thereturnpartstagtoDeluxManufacturingCompany.A15%restockingfeewillbe
chargedonallmerchandisereturnedthirty(30)daysaftertheoriginaldateof
purchase.

3.OncethemerchandisehasbeenreceivedandinspectedbyDeluxManufacturing
Company,ifappropriateacreditwillbeissuedtoyouraccount.

4.Anymerchandisereturnedthathasbeenusedorabusedwillnotreceiveacreditto
youraccount.Shipmentsofincorrectmerchandiseduetomiss‐orderingbythe
purchaserarealsosubjecttoa15%restockingfee.

Outofwarrantyservice:

DryersrequiringDeluxManufacturingCompanyrepairworkwillberepairedatthestandard
servicecharges(hourlylaborcharge,tripcharge(includescostoflodging,meals,and
mileagecosts),plusparts).Therepairedpartswillcarryathirty(30)daylimitedwarranty.
ThesameexclusionsandlimitationsoftheDeluxManufacturingCompanystandardlimited
warrantypolicyreferencedabovealsoapplytothisthirty(30)daylimitedwarranty.




10

GENERAL
9
01/01/2016
Terms:

Deluxdryersrequiringserviceforcustomerswhohaveanestablishedlineofcreditwillbe
invoicedforservicesrendered.Customersnothavinganestablishedlineofcreditwillbeon
cashinadvanceorcashoncompletionofservicebasis.Allserviceorrepairworkrendered
byauthorizedDeluxservicepersonnelmustbeinvoicedthroughanexistingauthorized
DeluxManufacturingCompanydealer.
11

12

STARTUP
1
01/01/2016
StartupProcedure


SafetyConsiderations

Acleandryerisanefficientdryer.Thoroughinspectionoftheplenumheat
chamberandvacuumcoolingchamberandcleaningifnecessaryis
recommendedatleastevery24hoursofoperation.Installburnercovers
providedwithdryerbeforecleaningtoreduceamountofdustandforeign
materialfallingintofanhubsandburners.Cleanscreensoninsideofplenum
heatchamber,thenremovedustandforeignmaterialfromplenumfloor.
Inspectcoolingchamberandcleanifnecessary.Checktheoutsidescreensandcleanif
necessary.Theareaarounddryershouldalsobekeptclean.Accumulationofmaterialonthe
heatdeck,innerscreensorcoolingfloorcanleadtodryerfires!Donotassumethatthedryer
isstayingcleanontheinside.Checkthedryerregularlyandcleanasneeded.

Donotleavetheburnercoversintheplenumwhiledrying.Theycaninterferewiththeflow
ofairandforeignmaterialthroughtheStay‐Kleensystem(seebelow).

Stay‐KleenOperation&Maintenance

TheStay‐Kleendesignprovidesapathforthefines,dustandforeignmaterialthatentersinto
theheatandcoolchambersofthedryertoescapebackintothegrainflowanddischarge.
CertaindryingconditionsandpoorgrainqualitywillaffecttheefficiencyoftheStay‐Kleen
system.

Thereareadjustablefillerplatesaddedtoeachsideofthecoolingfloorcover.Theseallowyou
tonarrowthegapbetweenthecenterwalkplateandthescreentokeeplarger,lighterweight
foreignmaterialfrombeingdrawnbackupintothecoolingsection.Thedefaultsettingfor
theseplatesis¼”gap.Differentgrainconditionsmayinfluencetheneedtoadjustthisgap.
Deluxdoesnotrecommendmorethana¼”gap.

TheStay‐Kleensystemoperatesbestwiththefreshairintakesopenasfaraspossible(Seeitem
2below).Ifitisnecessarytoclosetheintakessometobettercoolthegrain,beextraattentive
tothecleanlinessoftheinnerchambers.

1. Checkdryerthoroughlybeforestarting

1.1. Checkandcleanscreensandplenumandcoolingchambers
1.2. Checkmeteringsystemforforeignmaterialandclean.
1.3. Checkaugersandauxiliaryequipmentforcorrectrotation.

2. Fresh‐airintakeports

13

STARTUP
2
01/01/2016
2.1. Fresh‐airintakeportsareprovidedtoallowfreshairtoflowdirectlytothefan(s).The
fan(s)cannotreceiveenoughairdirectlythroughthegrainbeingcooledsofresh‐air
intakeportsareprovided.Theseportsallowtheoperatortohavemorecontrolover
theoutgoingtemperatureoftheproductbeingdried.
2.2. Settings:Openthedoorsthatarelabeled‘FullOpen’,locateddirectlyonthefan(s),full
open.Openotherdoorslabeled‘AsNeeded’asfaraspossiblewhilestillcoolingthe
grainasneeded.Whenthegrainisnotcoolenoughclosethedoorsdownthatarenot
locateddirectlyonthefan(s)‐whengrainistoocoolopenthesedoors.Keepalldoors
thatarebeingadjustedthesameaseachother.Whendryinglowmoistureproducts,it
maybenecessarytoadjusttheplenumtemperaturedowntogettheproductascoolas
desired.
2.3. CAUTION:Havingthefreshairintakedoorsclosedtoofarcandecreasecapacityand
causeexcessiveheatwhichcouldresultinunevenmoisturecontentofdischarge
grainandinextremeconditions,firesontheheatdeckorcoolingfloor.

3. Allswitchesin“OFF”position

4. Turnonmainpower

4.1. Mainpowerlightwillcome“ON”.

5. Turnonpanelpowerandprovesafetycircuit

5.1. Movepowerswitchto“RUN”position.After10seconds,moveandholdswitchto
“START”position.Thiswillenergizepanelpowerrelayandprovide120VACtocontrol
system.Safetycircuitmonitorlightswillcomeonandsafetycircuitlightwillcomeon.
Releaseswitchbackto“RUN”.

6. Tofillwithwetgrain

6.1. Moveloadoperationswitchto"ON"position.Loadingsystemwillbeactivatedandwill
filldryer.Whendryerisfullofgrain,highgrainshutdownwillshutoffallloading
equipmentautomatically.(Leaveloadswitchin"ON"position.)Grainloadinglightwill
comeonduringfilling‐lowgrainlightwillcomeonuntildryerisfullofgrainthengo
out.

7. Tostartfan(s)

7.1. Moveandholdfanswitchto"START"positionuntilallfan(s)start,thenreleaseto
“RUN”position.Fanprovenlight(s)willcomeonasfan(s)prove.Purginglightwillcome
onafterfan(s)prove.
7.2. Dryerswithtwo(2)ormorefansareequippedwithdelaytimers,whichallowonlyone
(1)fantostartatatime.

14

STARTUP
3
01/01/2016
8. Tostartburner(s)

8.1. Turnonfuelsupplytodryer.
8.1.1. NaturalGas‐Openmanualvalve.
8.1.2. LPGas‐Openatsupplytank.Openquickactingvalveandballvalveondryer.
8.1.3. LPGASNOTE:Dryermustbestartedonvaporuntilinternalvaporizeriswarm,
thenswitchedtoliquid.Tankmusthavebothvaporandliquiddrawavailableto
dryer.
8.2. Whenburnerreadylightcomeson,a30secondpurgecyclehasbeencompleted.
8.3. Moveburnerswitchto"ON"position.
8.4. Afterashortdelay,theignitionfiringlight(s)willcomeonandthegassafetyvalvesare
energized.(IfequippedwithamanualMaxonvalve,thehandleshouldalwaysbeback
towardsthedryertostart.Whenenergized,pullthehandleforwarduntil‘Open’is
indicated.)
8.5. Withinafewsecondstheburnerprovenlight(s)willcomeonshowingburner(s)have
provenflame.Asburnerprovenlight(s)comeontheignitionfiringlight(s)willgooff.
8.6. Adjustfuelpressure
8.6.1. NaturalGas‐8to12psiNormal‐Donotexceed20psi.
8.6.2. LPGas ‐10to12psiNormal‐Donotexceed20psi.
8.7. Adjustplenumsetpointfordesiredoperatingtemperature.(Seetable5.1forplenum
temperaturesforvariouscrops.)
8.7.1. Toincreaseheat,usethe“up”arrowkeyofthetemperaturecontrollerto
increasethesetpointtothedesiredoperatingtemperature.
8.7.2. Todecreaseheat,usethe“down”arrowkeyofthetemperaturecontrollerto
decreasethesetpointtothedesiredoperatingtemperature.(LPGas)‐When
temperaturehasreacheddesiredsetpointorcannolongerrisewithonlyvapor
supply,openliquidvalveandshutoffvaporsupply.

SUGGESTEDPLENUMTEMPERATURES

BARLEY120‐140°F
CORN 190‐210°F
FLAX  120‐130°F
MILO  160‐180°F
MUSTARDSEED 110‐130°F
OATS 120‐140°F
RICE  115‐125°F
RYE  120‐140°F
SOYBEANS 140‐160°F
SUNFLOWER 120‐130°F
WHEAT 160‐180°F
TABLE5.1
Note:Recommendedplenumhighlimitsetting:30Fto50Faboveplenumtemperature.Maximumsetting
allowed:260F
9. ToStartUnload
15

STARTUP
4
01/01/2016
9.1. Turndischargeoperationswitchto“ON”tostartthedischargeaugerandother
auxiliaryhandlingequipment.Turntheswitchto“METER”toactivetheDCmetering
rollsystem.TheWatlowMoistureControlbecomesthesourceofmeteringthegrain
fromthedryerineitherautomaticormanualmode.(SEEBELOW)



































16

STARTUP
5
01/01/2016
WatlowEZ‐ZONEAutomaticTemperatureController
WithHoneywellModulatingMotorandMaxonButterflyValve

Introduction
YourDeluxgraindryerisequippedwithanautomatictemperaturecontrolsystemthatissimple
andtakesthehassleoutofcontinuallywatchingthedryerfortemperaturefluctuations.Simply
setyourtargetplenumtemperatureandthecontrollerwillmaintainthattemperature.To
betterunderstandthecontrollerandhowtouseit,pleasespendalittletimetofamiliarize
yourselfwithcommonkeysandthedisplay.












A) UpperDisplay(ProcessValue)–Inthehomepagethisisthecurrentplenum
temperature.Otherwiseitistheupperdisplayparameterinothermenus.
B) LowerDisplay(SetPoint)–Inthehomepagethisistheuser‐definedvaluethatsetsthe
desiredoperatingtemperature(plemumtemperature).Usethe“UP”&“DOWN”
buttons(I&J)toincreaseordecreasethesetpoint.Otherwiseitisthelowerdisplay
parameterinothermenus.
C) ResetKey–Thiskeyisessentiallya“BACKSPACE”keytoanyoftheprogramming
menus.PressandholdfortwosecondstoreturntotheHomePage.FromtheHome
Pageitcanclearalarmsanderrorsifclearable.
D) EZKey–Thiskeycanbeprogrammedtodoavarietyoffunctions.Shippedfromfactory
(DELUX)thiskeyhasnoprogrammedfunctions.
E) AdvanceKey–Thiskeyadvancesthroughparameterprompts.
F) TemperatureUnits–IndicateswhetherthetemperatureisdisplayedinFahrenheitor
Celsius.
G) OutputActivity–NumberedLEDsindicateactivityofoutputs.Aflashinglightindicates
outputactivityandsystemsarenormal.
H) PercentUnits–Lightswhenthecontrollerisdisplayingvaluesasapercentageorwhen
theopen‐loopsetpointisdisplayed(manualmode).
I,J)Up&DownKey–IntheHomePage,adjuststhesetpointinthelowerdisplay(B).In
othermenus,changestheupperdisplay(A)toahigherorlowervalue,orchangesa
parameterselection.
*Note:ZONE1doesnotrefertoanythingrelevanttodryeroperation.

17

STARTUP
6
01/01/2016


LinkageConnection

***Themotorispresetto90°rotation.DONOTADJUST.Ifsomethinghashappenedthathas
changedthissetting,callDeluxMfg.Co.forinstructions.***

Toconnectthemodulatingmotorandbutterflyvalveconnectinglinkage,followthesteps
belowclosely:Errorsinthelinkagesetupwillcausetemperaturestabilityproblems.

1) Thedryershouldnotberunningduringthisprocedure,butmainpanelpowermustbe
presentandPanelPowerSwitchto‘ON’(center)position.Thissendspowertothe
motor.
2) Themotorshouldnowbeinitsfurthestcounter‐clockwiseposition(closed).Themotor
crankshouldbeat45°upperright(1:30).
3) Holdthebutterflycranktothecounterclockwise(closed)position.(Thecranksshouldbe
parallelwitheachother.)Attachtheconnectinglinkageintothetoggleclampsoneach
crankasindicatedintheillustration.



18
