DeLuxe Stitcher M30 Series User manual

Before using this Stitcher, all operators must study this manual and follow the safety
warnings and instructions. Keep these instructions with the M30 Stitcher for future
reference. If you have any questions, contact your local DeLuxe StitcherGraphicArts
Representative or Distributor.

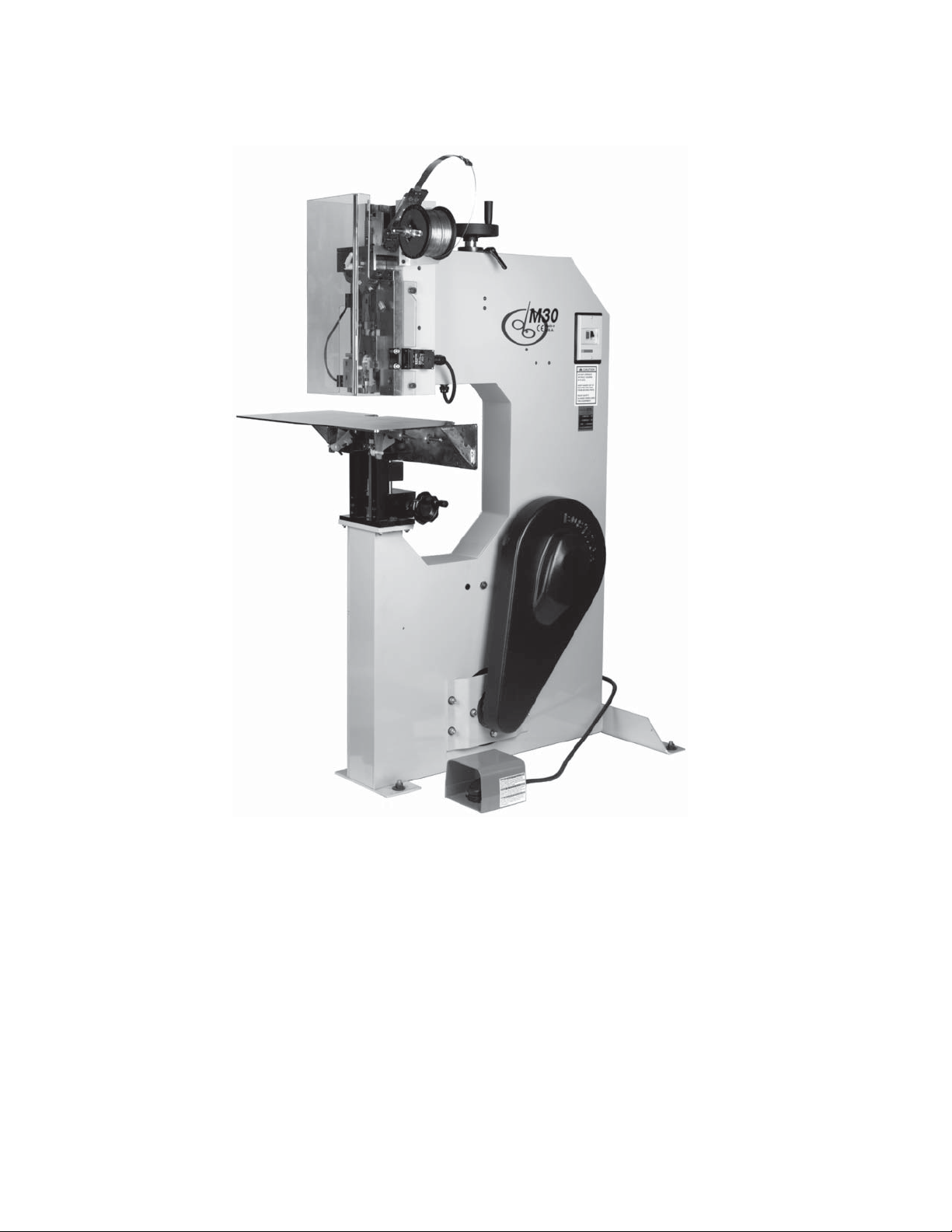

Model M30 Stitchers
OPERATION AND MAINTENANCE MANUAL
M30-AST Stitcher...............115V and 60HZ
M30-BST Stitcher...............230V and 50HZ
Machine Serial Number :
Head Serial Number :
Date Purchased :
DELUXE STITCHER
COMPANY INC.

THANK YOU FOR CHOOSING THE
MODEL M30
FOR YOUR BINDING NEEDS.

WARNING!
Model M30 Stitchers
Operators and others in the work area should always wear
safety glasses to prevent serious eye injury from
fasteners and flying debris when loading, operating,
or unloading this machine.
Do not operate this stitcher without all guards in place.
The stitcher will not operate without the front guard
closed properly. Do not modify the guards in any way.
Always disconnect the power supply before removing
any guards for servicing.
Never operate the machine with wire feeding through
the head unless there is stock above the clinchers,
otherwise serious damage may result.
Always turn power off when making adjustments. Always
disconnect the power supply before any disassembly work.
2

Specifications .......................................................................................................4
Recommended Wire Sizes ....................................................................................6
Introduction .......................................................................................................7
Installation .......................................................................................................8
Assembly ......................................................................................9
Operating Adjustments
Wire Threading.............................................................................13
Wire Straightening .......................................................................14
Adjusting the Machine for Thickness of Work .............................15
Adjustments and Settings
Adjusting the Left Leg ..................................................................15
Adjusting the Clincher Points ......................................................16
Adjusting the Machine for Stab Stitching ....................................18
Maintenance
Lubrication....................................................................................19
Troubleshooting............................................................................20
Cycling Machine Manually............................................................21
Adjusting the V-Belt......................................................................22
Cleaning........................................................................................23
Disassembling the Head ..............................................................23
Ordering & Replacing Spare Parts ..............................................25
Clutch-Brake Maintenance ..........................................................33
Assembly Drawings ..............................................................................................38
Part Number / Description Cross-Reference .......................................................58
Registration Card ..................................................................................................65
Wear/Replacement Parts.....................................................................................66
Warranty ......................................................................................................67
Declaration of Conformity......................................................................................68
Table of Contents
3
Always disconnect the power supply before
making any adjustments or servicing the stitcher.
UWARNING
!
