Thank you for purchasing this Denon product. To ensure proper operation, please read this owner’s manual carefully before using the product.
After reading this manual, be sure to keep it for future reference.
Accessories

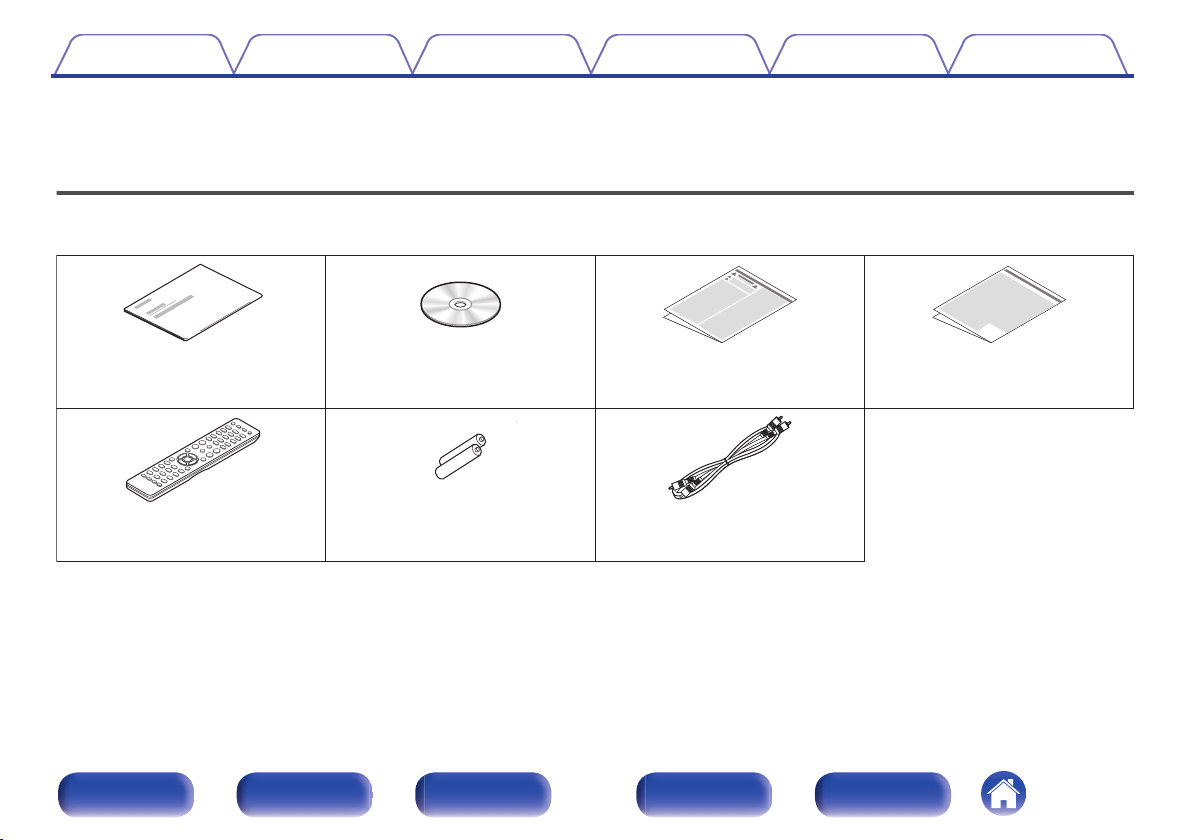

Check that the following parts are supplied with the product.
.
Audio cable
Quick Start Guide CD-ROM
(Owner’s Manual)
Safety Instructions
R03/AAA batteries
Remote control unit
(RC-1223)
Cautions on Using Batteries
Contents Connections Playback Settings Tips Appendix
4
Front panel Display Rear panel Remote Index

Inserting the batteries
1Remove the rear lid in the direction of the arrow and
remove it.
.
2Insert two batteries correctly into the battery
compartment as indicated.
.
Batteries
3Put the rear cover back on.
NOTE
0To prevent damage or leakage of battery fluid:
0Do not use a new battery together with an old one.
0Do not use two different types of batteries.
0Remove the batteries from the remote control unit if it will not be in use for long
periods.
0If the battery fluid should leak, carefully wipe the fluid off the inside of the battery
compartment and insert new batteries.
Operating range of the remote control
unit
Point the remote control unit at the remote sensor when operating it.
.
Approx. 7 m
30°30°
Contents Connections Playback Settings Tips Appendix
5
Front panel Display Rear panel Remote Index

Features
High quality sound
0High Bitrate and High Sampling with Advanced AL32 Processing
Plus
A high bitrate and high sampling has been achieved with Denon’s
unique data interpolation algorithm. 16 bit audio signals are converted
to a high bitrate of 32 bit and 44.1 kHz sampling signals are up-sampled
by 16x to achieve smoother recreation of sound waves. Data
interpolation is also used, predicting interpolation points from a large
number of surrounding points to provide audio as close as possible to
the original sound. This elaborate restoration of data lost during digital
recording achieves fine, distortion-free rendering, accurate sound
localizing, rich bass and recreation that is faithful to the original sound.
0DAC Master Clock Design for the Ideal Clock
To make full use of the properties of this unit’s semiconductor, it was
important to use a highly accurate clock signal for the semiconductor’s
operations. This model contains 2 oscillators, one for each frequency.
These oscillators are developed to dramatically decrease phase noise
caused by frequency displacement, achieving a more stable and more
accurate clock than ever before. The master clock is near the D/A
converter, reducing jittering to achieve faithful playback.
High performance
0Supports MP3 and WMA file playback (v p. 30)
MP3 and WMA files that have been recorded onto CD-R or CD-RW
discs can be played back on this CD player.
0Plays USB memory devices (MP3/WMA/AAC/WAV/FLAC/Apple
Lossless/AIFF/DSD).
You can play back audio files stored on a USB memory device by
connecting the USB memory device to the USB port.
0Reduced power consumption during standby
The power consumption in standby mode has been reduced to below
0.2 W in consideration of the environment.
Contents Connections Playback Settings Tips Appendix
6
Front panel Display Rear panel Remote Index

Part names and functions
Front panel
.
r t y uwq e
Q
0
Q
1
Q
2
oi
APower operation button (X)
This turns the power on/off. (v p. 24)
BPower indicator
This is lit as follows according to the power status:
0Power on : Green
0Standby : Off
0Power off : Off
Contents Connections Playback Settings Tips Appendix
7
Front panel Display Rear panel Remote Index

.
r t y ue
Q
0
Q
1
Q
2
oi
CDisc tray
Used to insert a disc.
DPlay/pause button (1/3)
Plays the track/Pauses the track.
EStop button (2)
Stops playback.
FReverse-skip button (8)
Returns to the start of the currently playing track.
GForward-skip button (9)
Plays the next track.
HUSB port (T)
This is used to connect USB storages (such as USB memory devices).
(v p. 20)
IRemote control sensor
This receives signals from the remote control unit. (v p. 5)
JDisplay
Various information is displayed here. (v p. 9)
KDisc tray open/close button (5)
Used to open/close the disc tray.
LSOURCE button
Select the media to play back. (v p. 25)
Contents Connections Playback Settings Tips Appendix
8
Front panel Display Rear panel Remote Index

Display
.

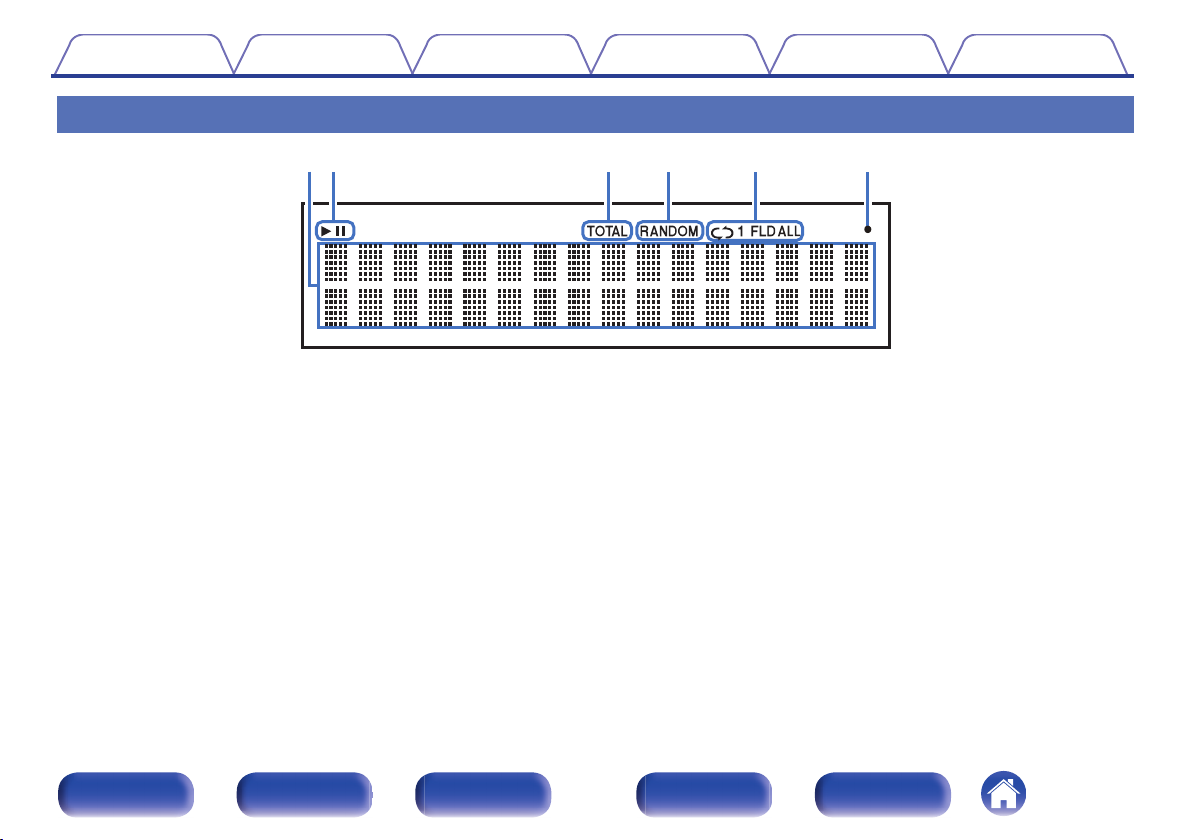

wq ty
er
AInformation display
Displays various information or playback elapsed time and so on of the
disc.
BPlayback mode indicators
1 : Lights up during playback.
3 : Lights up during pause.
CTOTAL indicator
Lights when the total number of tracks and total time of the CD are
displayed.
DRANDOM indicator
Lights during random playback.
ERepeat mode indicators
Lights to match the repeat mode settings.
FRemote control signal reception indicator
Lights when a signal is received from the remote control.
Contents Connections Playback Settings Tips Appendix
9
Front panel Display Rear panel Remote Index

Rear panel
.

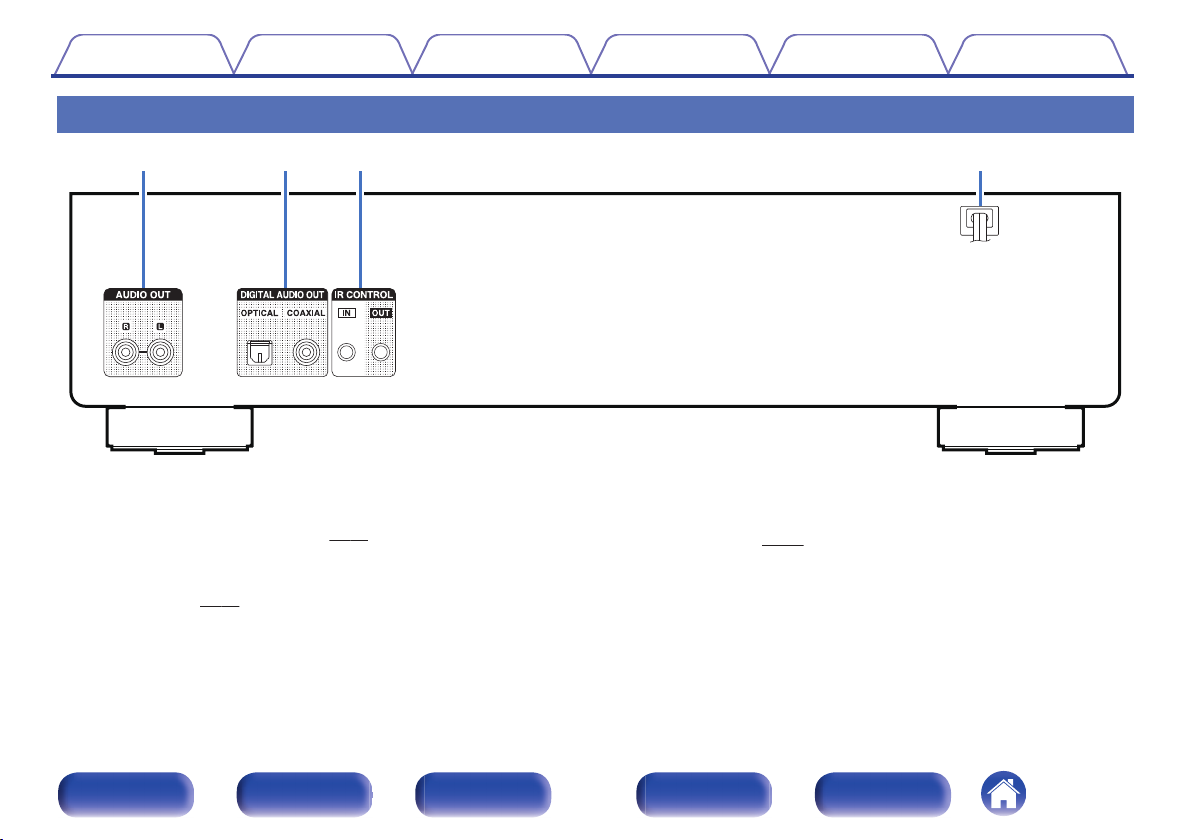

rq w e
AAUDIO OUT connectors
Used to connect devices equipped with analog audio inputs connectors
or an external power amplifier. (v p. 18)
BDIGITAL AUDIO OUT connectors
Used to connect an AV receiver or D/A converter that has a digital input
connectors. (v p. 19)
CIR CONTROL connectors
Used to connect Denon network audio players with an IR controller.
DPower cord (v p. 22)
Contents Connections Playback Settings Tips Appendix
10
Front panel Display Rear panel Remote Index

Remote control unit
e
r
w
q
t
y

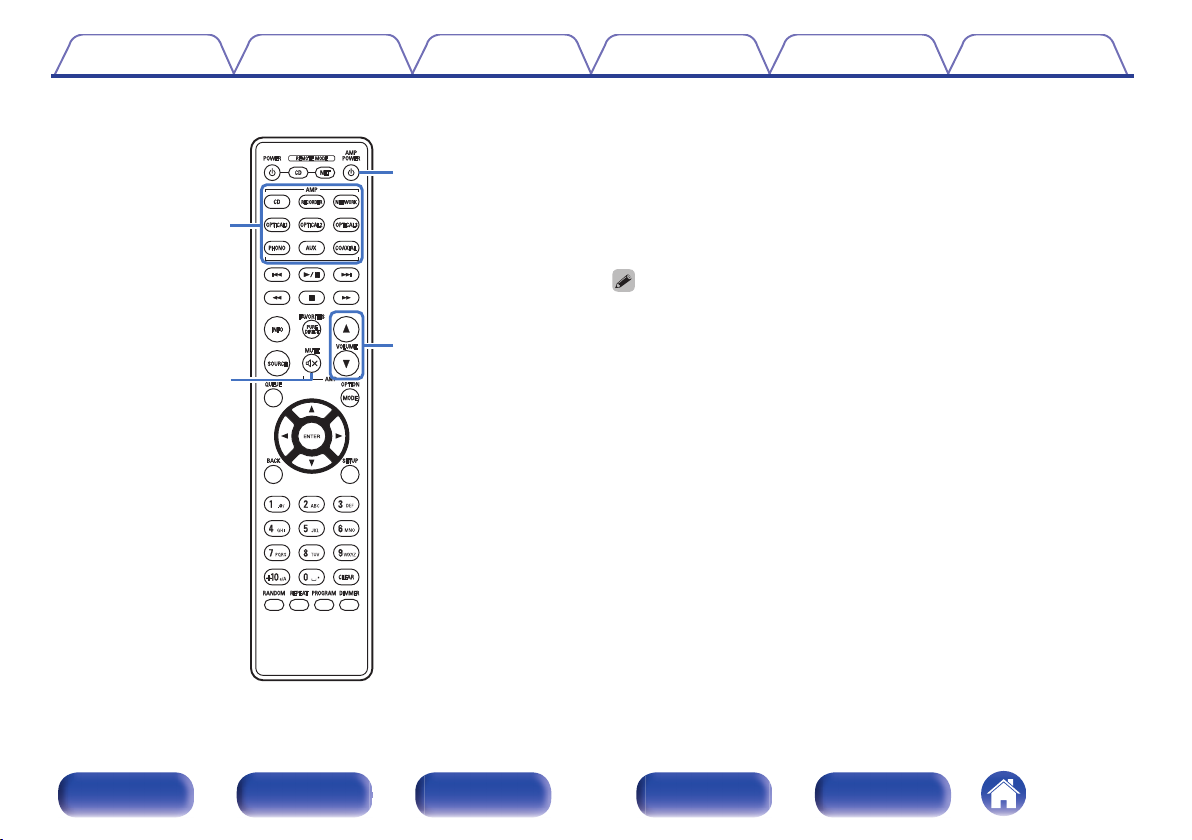

The included remote control can be used to operate not only this unit but
other Denon amplifiers and network audio players too.
0“Amplifier operations” (v p. 14)
0“Network audio player operations” (v p. 15)
oOperating this unit
To operate CD player, press REMOTE MODE CD button to switch the
remote control to the CD player operation mode.

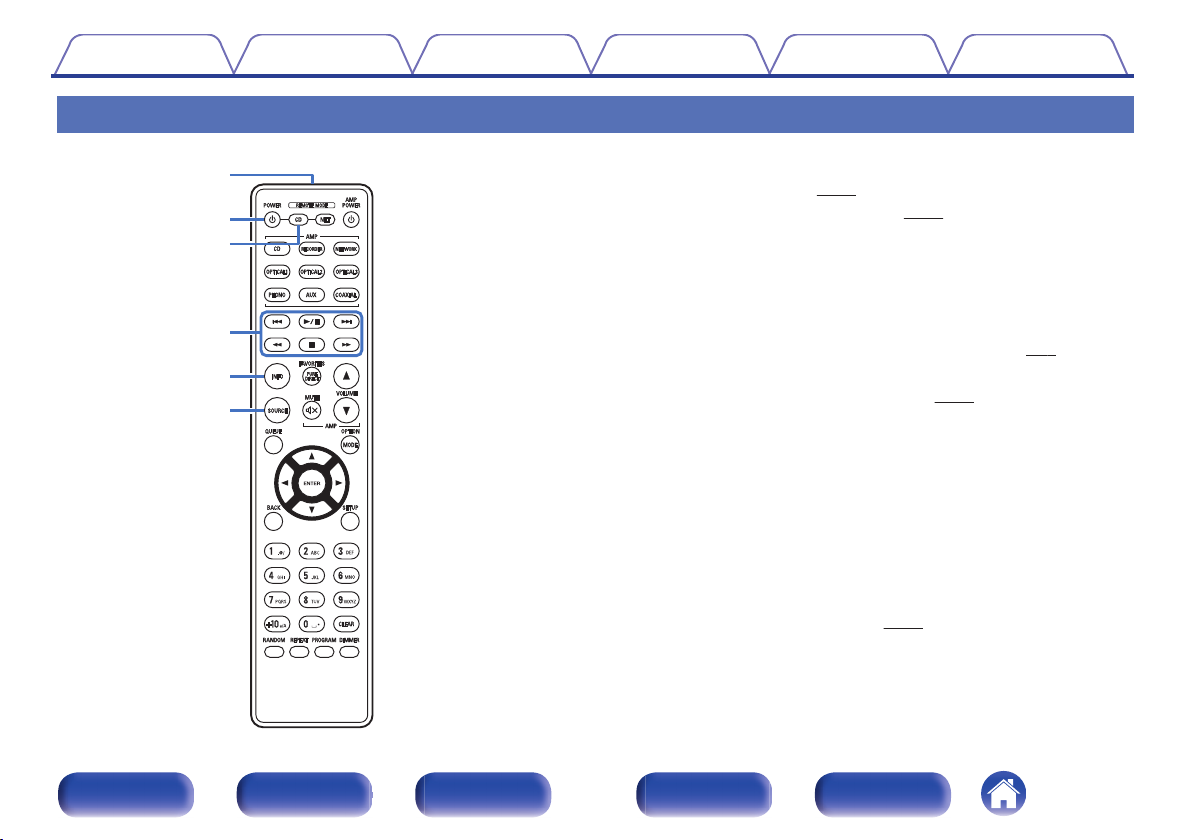

ARemote control signal transmitter
This transmits signals from the remote control unit. (v p. 5)
BPower operation button (POWER X)
This turns the power on/off (standby). (v p. 24)
CRemote mode select button
(REMOTE MODE CD)
This switches the remote control to the CD player operation mode.
DSystem buttons
These perform playback related operations.
EInformation button (INFO)
This switches the track information shown in the display during
playback.
FSOURCE button
Select the media to play back. (v p. 25)
Contents Connections Playback Settings Tips Appendix
11
Front panel Display Rear panel Remote Index

Q0
Q1
Q2
i
u
o

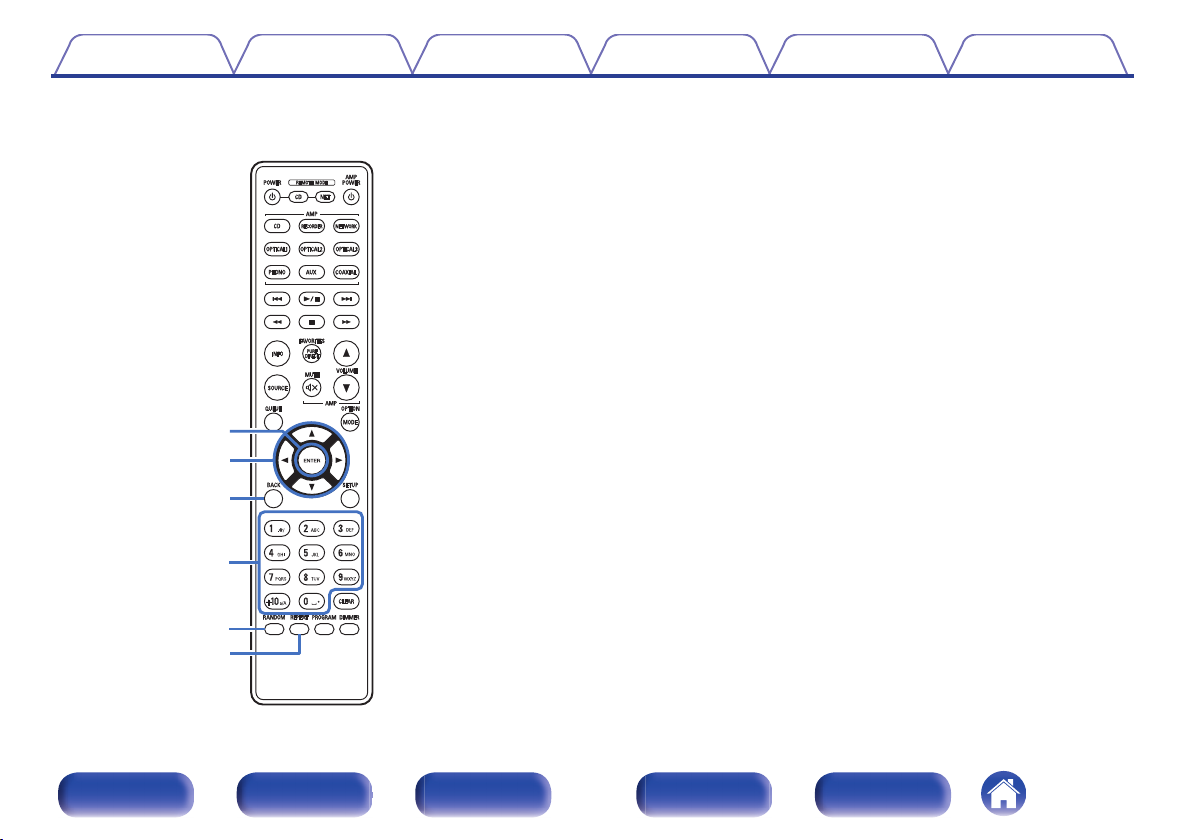

GENTER button
This determines the selection.
HCursor buttons (uio p)
These select items.
IBACK button
Returns to the previous item.
JNumber/letter buttons (0 – 9, +10)
These enter letters or numbers into the unit.
KRANDOM button
Switches the random playback.
LREPEAT button
Switches to the repeat playback.
Contents Connections Playback Settings Tips Appendix
12
Front panel Display Rear panel Remote Index

Q4
Q6
Q7
Q3
Q5
MPURE DIRECT button
Switches the Pure Direct mode. (v p. 26)
NMODE button
0Selects the playback range of the data CD. (v p. 32)
0Selects the playback range of the USB memory. (v p. 35)
OCLEAR button
This clears the program registration. (v p. 29)
PDIMMER button
This switches the brightness of the display. (v p. 25)
QPROGRAM button
This sets program playback. (v p. 29)
Contents Connections Playback Settings Tips Appendix
13
Front panel Display Rear panel Remote Index

q
w
e
r
oAmplifier operations
A Denon amplifier can be operated.
AInput source select buttons
BMUTE button (:)
CPower operation button (AMP POWER X)
DVOLUME buttons (df)
0The remote control may not operate some products.
Contents Connections Playback Settings Tips Appendix
14
Front panel Display Rear panel Remote Index

o
Q0
w
e
q
t
y
r
u
i

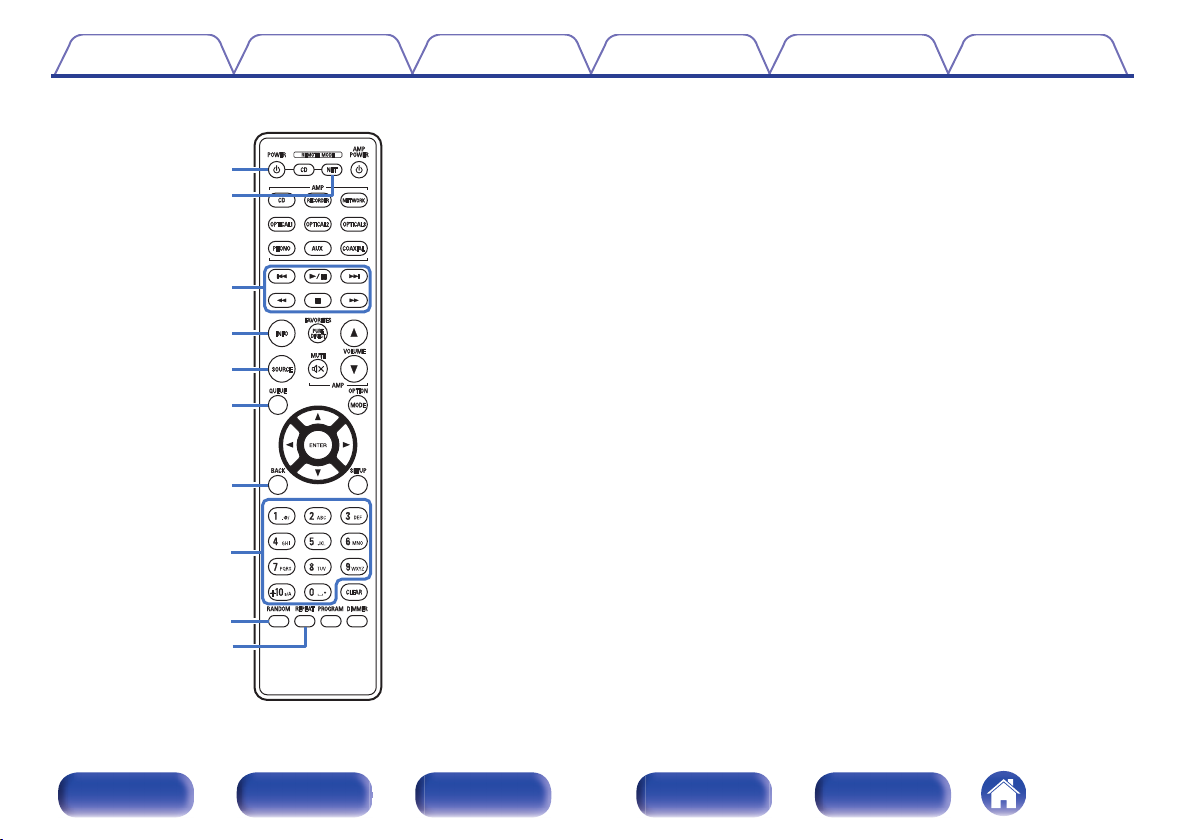

oNetwork audio player operations
You can operate a Denon network audio player.
To operate a Denon network audio player, press the REMOTE MODE
NET button to switch the remote control to the network audio player
operation mode.
APower operation button (POWER X)
BRemote mode select button
(REMOTE MODE NET)
CSystem buttons
DInformation button (INFO)
ESOURCE button
FQUEUE button
GBACK button
HNumber/letter buttons (0 – 9, +10)
IRANDOM button
JREPEAT button
Contents Connections Playback Settings Tips Appendix
15
Front panel Display Rear panel Remote Index

Q2
Q1
Q3
Q4
Q5
Q6
Q7
KFAVORITES button
LOPTION button
MENTER button
NCursor buttons (uio p)
OSETUP button
PCLEAR button
QDIMMER button
0The remote control may not operate some products.
Contents Connections Playback Settings Tips Appendix
16
Front panel Display Rear panel Remote Index

oContents
Connecting an amplifier 18
Connecting to a device with digital audio input connectors 19
Connecting a USB memory device to the USB port 20
Connecting the timer device 21
Connecting the power cord 22
NOTE
0Do not plug in the power cord until all connections have been completed.
0Do not bundle power cords together with connection cables. Doing so can result in
humming or noise.
oCables used for connections

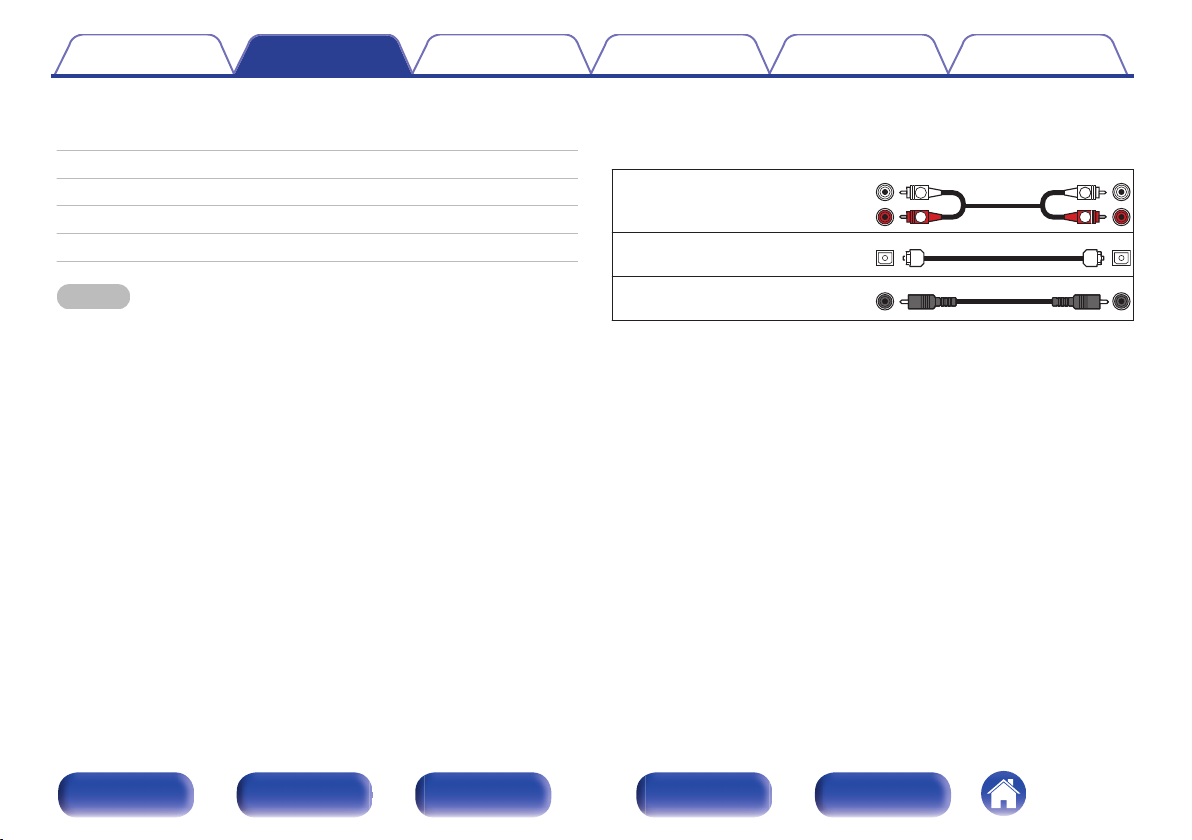

Provide necessary cables according to the devices you want to
connect.
Audio cable
(supplied)
.
R
L
R
L
Optical cable
(Sold separately) .
Coaxial digital cable
(Sold separately) .
Contents Connections Playback Settings Tips Appendix
17
Front panel Display Rear panel Remote Index

Connecting an amplifier
.
RL
RL
AUDIO
RL
IN
Amplifier
Contents Connections Playback Settings Tips Appendix
18
Front panel Display Rear panel Remote Index

Connecting to a device with digital audio input connectors

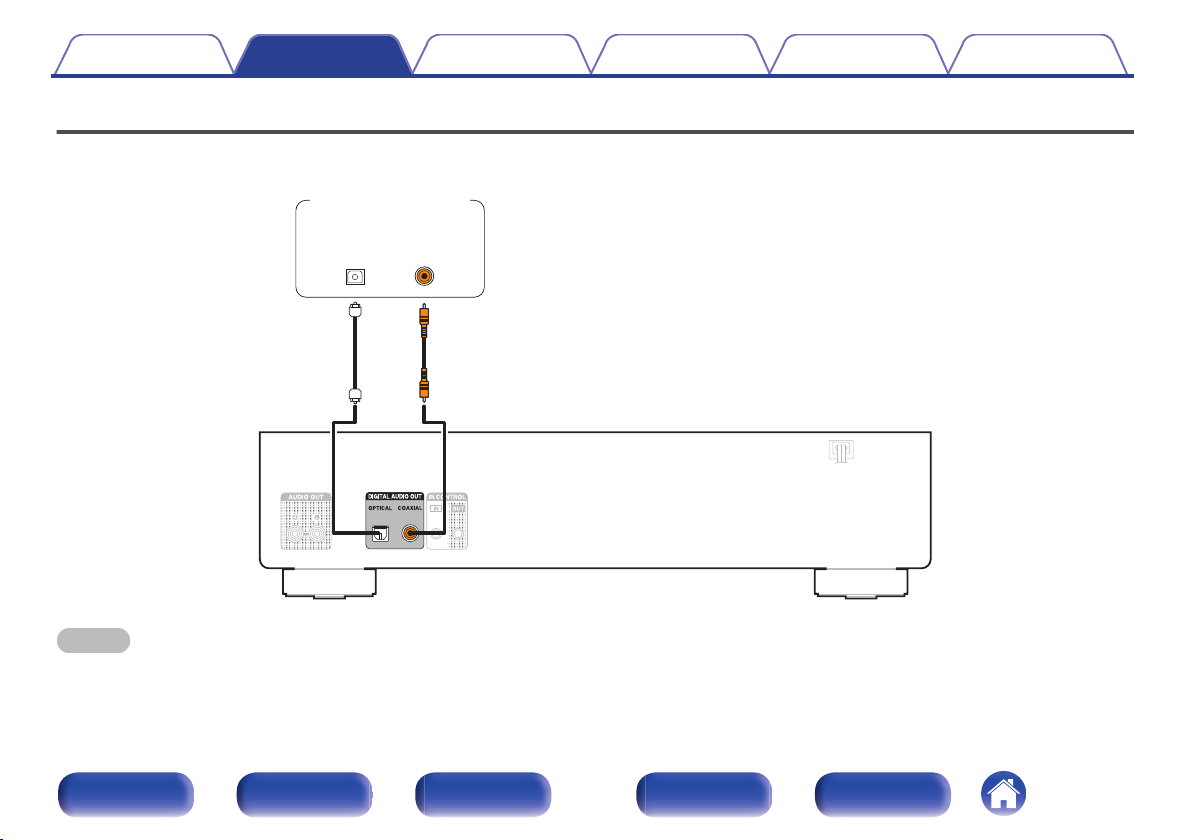

You can enjoy digital audio playback by connecting an AV receiver or D/A converter that has a digital audio terminal to this unit.
.
COAXIAL
IN
OPTICAL
IN
AV receiver /
D/A converter
NOTE
0Digital audio output stops during playback of the DSD files.
Contents Connections Playback Settings Tips Appendix
19
Front panel Display Rear panel Remote Index

Connecting a USB memory device to the USB port
For operating instructions see “Playing a USB memory device”. (v p. 33)
.
USB memory
device
0Denon does not guarantee that all USB memory devices will operate or receive power. When using a portable USB hard disk drive (HDD) which came with an AC adapter,
use that device’s supplied AC adapter.
NOTE
0USB memory devices will not work via a USB hub.
0It is not possible to use this unit by connecting the unit’s USB port to a PC via a USB cable.
0Do not use an extension cable when connecting a USB memory device. This may cause radio interference with other devices.
Contents Connections Playback Settings Tips Appendix
20
Front panel Display Rear panel Remote Index
