Denon DN-508MX User manual

User Guide English ( 3 – 16 )
Guía del usuario Español ( 17 – 30 )
Guide d’utilisation Français ( 31 – 44 )
Guida per l’uso Italiano ( 45 – 58 )
Benutzerhandbuch Deutsch ( 59 – 71 )
A
ppendix English ( 72 – 75 )

3
User Guide (English)
Introduction
DN-508MX is a professional 8-zone mixer and with remote controllability via RS-232C, RS-
422, and IP. It has professional-grade audio circuitry, mic/line pad functions, full BTL (bridge-
tied load) balanced outputs, 3-band input equalization, 5-band output equalization, priority,
delay, dynamics, and an automatic power-saving function. When connected to a network or
router, you can use a web-based interface to control the system, as well.
Please see this guide’s Setup chapter to learn how to integrate DN-508MX with your audio
system, and then refer to the Operation chapter to start using DN-508MX.
Box Contents
DN-508MX
Euroblock Connectors
(4) 5-Pin (for the Line Outputs 1–8)
(2) 4-Pin (for Mic/Line Inputs 1 & 2)
(4) 3-Pin (for Mic/Line Inputs 3–6)
(1) 2-Pin (for the Mute connector)
Power Cable
User Guide
Safety & Warranty Manual
Support
For the latest information about this product (system requirements, compatibility information,
etc.) and product registration, visit denonpro.com.

4
Features
Front Panel
1. Power Button: Press this button to power DN-508MX on or off.
2. Display: This screen indicates the current settings, status, etc.
3. Volume/Sel: Turn the knob to navigate or scroll through the options shown in the display,
and then press the knob to select one.
4. Menu: Press this button to switch between the Menu and the settings of the current zone
in the display. In the Menu, turn the Volume/Sel knob to navigate or scroll through the
available options, and then press the knob to select it.
5. Mute/Back: When viewing the settings of the current zone, press this button to select the
Mute setting. To mute or unmute the zone, turn the Volume/Sel knob to select Mute or
Unmute, and then press it to confirm your choice.
When in the Menu, press this button to return to the previous screen.
6. Aux In (1/8” /3.5 mm):Use a standard stereo 1/8” (3.5 mm) cable to connect an optional
audio source to this stereo input. When a cable is connected to this input, the Aux In RCA
inputs on the rear panel will be disabled.
7. Mic/Line Indicators: These lights will illuminate different colors to show the signal status
of each mic/line input:
•Off: The input is receiving no signal or a very low-level signal.
•Green: The input is receiving a signal at an optimal level.
•Amber: The input’s signal is very high.
•Red: The input’s signal is “peaking” (higher than 0 dB). Decrease its Gain knob on
the rear panel or decrease the volume of the source to prevent “clipping” (distortion).
8. Source Indicators: These lights will illuminate different colors to show the signal status of
the aux in and ST inputs:
•Off: The input is receiving no signal or a very low-level signal.
•Green: The input is receiving a signal at an optimal level.
•Amber: The input’s signal is very high.
•Red: The input’s signal is “peaking” (higher than 0 dB). Decrease the volume of the
source to prevent “clipping” (distortion).
9. Source Selectors: Press one of these buttons to assign or unassign that source to the
currently selected zone. When a source is assigned to the zone, its button will be lit amber.
To select a zone, press one of the output selectors.
10. Output Indicators: These lights will illuminate different colors to show the signal status of
the line outputs (zone outputs):
•Off: The output is sending no signal or a very low-level signal.
•Green: The output is sending a signal at an optimal level.
•Amber: The output’s signal is very high.
•Red: The output’s signal is “peaking” (higher than 0 dB). Decrease the volume of the
zone to prevent “clipping” (distortion).
11. Output Selectors: Press one of these buttons to select that zone. The button for the
currently selected zone will be lit amber.
123
4
5
6
78
9
10
11
DVD
CD
Dining
Room L
Dance
Hall L
Kitchen
Dance
Hall R
Dining
Room R
Phone

5

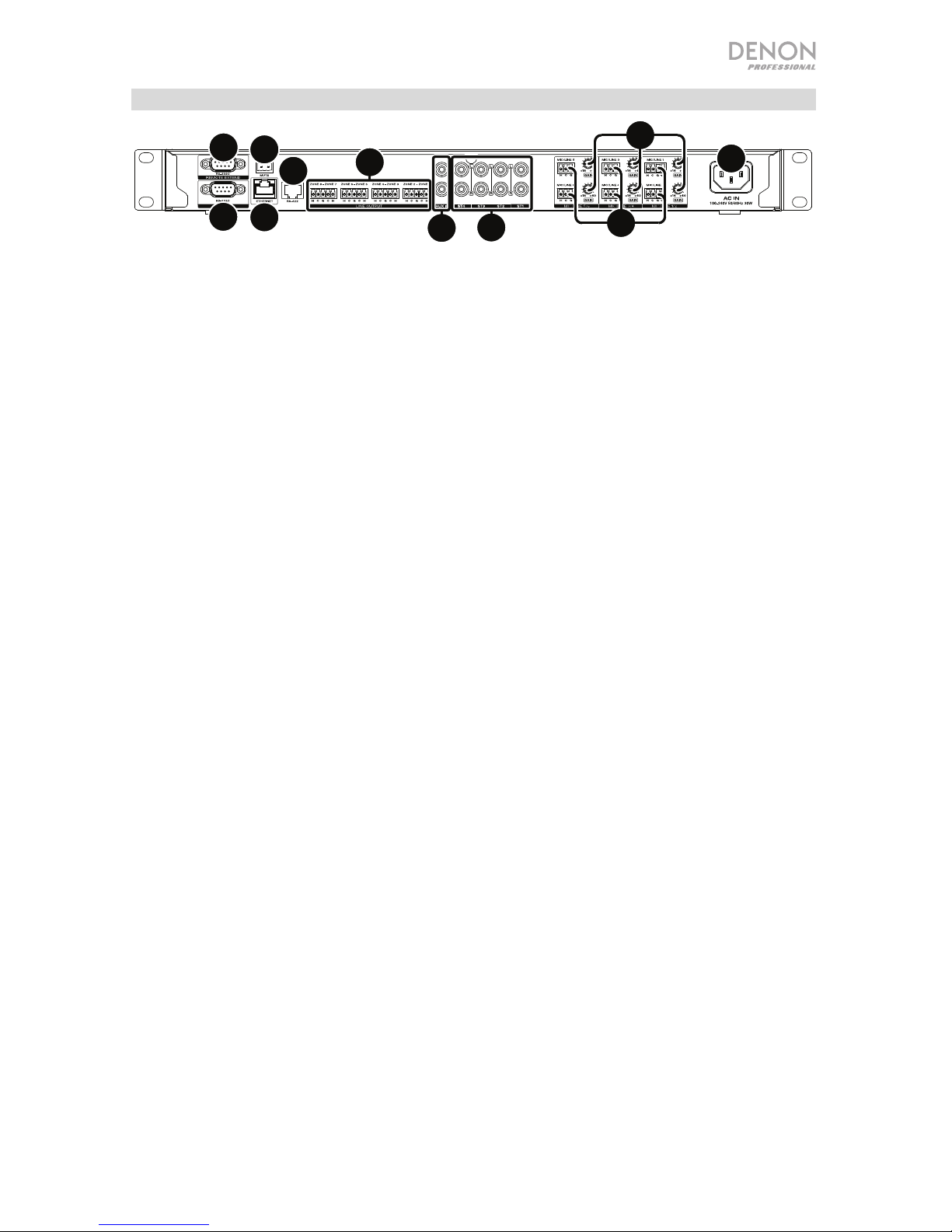

Rear Panel
1
2
3
4
56
7
8
9
10
11
1. Power Input: Use the included power cable to connect this input to a power outlet.
2. Line Outputs: Use Euroblock connectors to connect your loudspeakers to these outputs.
Each group of 5 connections corresponds to 2 zones. Each zone has a hot (H) and cold (C)
connector, and each pair of zones shares the ground (G) connector. Make sure each
loudspeaker is connected to the desired zone.
3. Mic/Line Inputs: Use Euroblock connectors to connect your mic-level or line-level audio
sources to these inputs. Each input has a hot (H), cold (C), and ground (G) connector.
Inputs 1 and 2 have an additional connector for Page Switch. Remember to adjust the
Gain knob to set the input volume level.
4. Mic/Line Gain: Turn these knobs to set the input gain for each mic/line input.
5. Aux In (RCA):Use a standard stereo RCA cable to connect an optional audio source to
this stereo input. When a cable is connected to the Aux In on the front panel, these inputs
will be disabled.
6. ST Inputs: Use standard stereo RCA cables to connect line-level audio sources to these
inputs.
7. Mute Connector: Use a 2-pin Euroblock connector to attach a switch to this connector.
The switch can then mute or unmute the incoming signal from all audio sources.
8. Remote Port: This port lets you connect a computer to DN-508MX. Use a 9-pin D-Sub
cable to make this connection. You can use the computer with a third-party utility to
manage DN-508MX via serial communication.
9. Remote Extend Port: This port lets you connect another DN-508MX to the host device.
Use a 9-pin D-Sub cable to make this connection. You can use a computer with a third-
party utility to control all connected DN-508MX units via serial communication.
10. RS-422 Port: This port lets you connect a host device to DN-508MX. You can then use a
third-party utility to control DN-508MX via serial communication. Use a standard analog
telephone cable with RJ45 connectors to make this connection.
11. Ethernet Port: This port lets you connect DN-508MX to a network. Connect this port to a
computer via a network switch or router. Alternatively, connect it directly to a computer
using an Ethernet crossover cable. This connection lets you control DN-508MX though the
web interface.

6
Setup
Items not listed under Introduction > Box Contents are sold separately.
To set up DN-508MX with your sound system:
1. If you are using any audio source with RCA outputs (Blu-ray®players, stereos, etc.), use
standard RCA cables to connect them to the ST inputs on the rear panel. Your audio sources
must be line-level (no phono-level turntables).
2. If you are using an amplifier or other audio source with outputs that can be wired into standard
Euroblock connectors, connect them to the mic/line inputs on the rear panel.
3. Use standard Euroblock connectors to connect the loudspeakers of your different zones to the
line outputs on the rear panel. Each group of 5 connections corresponds to 2 zones. Each zone
has a hot (H) and cold (C) connector, and each pair of zones shares the ground (G) connector.
4. To manage DN-508MX using its web interface, connect the Ethernet port and your computer
to a network switch or router using standard Ethernet cables. If your computer is wirelessly
connected to your router, connect just DN-508MX to that router. Alternatively, connect DN-
508MX’s Ethernet port directly to a computer using an Ethernet crossover cable.
5. To manage DN-508MX using serial communication, connect the remote port to your
computer using a 9-pin D-Sub cable. Use a third-party utility to manage DN-508MX.
Alternatively, connect the RS-422 port to a third-party utility using a standard analog telephone
cable with RJ45 connectors.
Tip: We recommend using the web interface to control DN-508MX rather than serial
communication. It is much easier to use the web interface via IP communication than a third-
party utility via RS-232C or RS-422 serial communication.
6. Use the included power cable to connect DN-508MX to a power outlet.
7. Power on all of your audio sources (Blu-Ray®players, stereos, microphones, amplifiers, etc.).
8. Power on DN-508MX.
Example:
Zone 1 Zone 2 Zone 3 Zone 4 Zone 5 Zone 6 Zone 7 Zone 8
Computer
To Zone
Speakers
Blu-ray Player
Amplifier
Router Microphones Power

7
Operation
After setting up and powering on DN-508MX and your connected devices, you can start using DN-
508MX.
Important: The default administrator password is adminpwd. There is no default operator password.
Using the LCD Interface
Navigating the Display and Menus
To switch between the Menu and the settings of the current zone, press Menu.
To move through the options in the display, turn the Volume/Sel knob.
To select an option in the display, press the Volume/Sel knob.
To return to the previous screen, press Mute/Back.
Managing Zones
To select a zone, press the desired output selector. The currently selected one will be lit amber.
The source selectors of any audio sources that are assigned to that zone will light up amber, as
well.
To assign or unassign an audio source to a zone, press the desired output selector, and then
press the desired source selector. The source selector for the currently assigned audio source will
be lit amber. Only one source can be assigned to a zone at a time.
To set the volume level of a zone, press the desired output selector, and then turn the
Volume/Sel knob.
To mute a zone, press the desired output selector, and then press the Mute/Back button. Turn the
Volume/Sel knob to select whether to Mute or Unmute the channel, and then press the knob to
select it.
Menu
Click the Menu button and select Preset, System, or Information to view the corresponding
settings page.
1. Preset
Mic/Line: Select this to edit Mic/Line Source 1–6. Once selected, you can set the frequency (Freq),
Gain, or bandwidth (Q) of the 3 available equalizations: a low-shelving filter (SHL), a high-shelving
filter (SHH), and a parametric equalizer (PEQ). Only the parametric equalizer has a bandwidth
control. You can also set the Input Volume that each Mic/Line Input sends to each Zone.
Source: Select this to edit Source 1–4 or Aux. Once selected, you can set the frequency (Freq),
Gain, or bandwidth (Q) of the 3 available equalizations: a low-shelving filter (SHL), a high-shelving
filter (SHH), and a parametric equalizer (PEQ). Only the parametric equalizer has a bandwidth
control.
Output: Select this to edit Zone 1–8.
•Source Select: Select this to choose Source 1–4 or Aux. You can use the Volume/Sel knob to
select a source, or press the source selectors.
•Source Level: Select this to set the input level of the selected source.
•Source Mute: Select this to turn source mute on or off.
•Mic Level: Select this to set the output level of the microphone.
•PEQ: Set the frequency (Freq), Gain, or bandwidth (Q) of the 5 frequency ranges: Low, Mid-
Low, Mid, Mid-High, and High.
•Master Level: Select this to set the zone’s overall output level.
Note: If a zone is stereo, it will actually use 2 zones (e.g. Zone 1-2, 3-4) that share the same
output settings. The second zone of a stereo pair (e.g. Zone 2 or 4) will show as unavailable for
editing. You can edit the first zone, or change the Zone’s settings in the Output menu.

8
2. System
Schedule: Select a Schedule 1–30 to edit. To edit a Schedule, you may have to enter the
administrator password.
•On/Off: Select this to enable or disable the schedule. You can use multiple schedules
simultaneously.
•Date: Select this to set a specific date on which to apply the schedule (instead of regular days
of the week). Click each menu to select the Month, Day, and Year. You can also set the
schedule to repeat every month, day, and/or year.
•Day of Week: Select this option to apply the schedule regularly to certain days of the week
(instead of a specific date). Select each day to turn it on or off.
•Time: Select this option to set the Hour and Minute when the schedule will be applied. You
can also set the schedule to repeat every hour.
•Command: This field will show any serial commands assigned to the Schedule. Serial
commands can be added or changed using Web Remote.
Mic/Line: Select a Mic/Line 1–6 to edit.
•Name: Select this to edit the display name of the Mic/Line channel, up to 32 characters.
•Mic/Line: Select this to set the input level for a microphone (Mic) or a line-level device (Line).
•Hi pass filter: Select this to turn the high-pass filter on or off.
•Phantom: Select this to turn phantom power on or off. Please note that most dynamic
microphones do not require phantom power, while most condenser microphones do. Consult
your microphone’s documentation to find out whether it needs phantom power.
Source: Select a Source 1–4, Aux, or Aux AGC to edit.
•Name: Select this to edit the display name of the Source up to 32 characters.
•Gain: Select this to set the gain trim level of each audio source.
•Aux AGC: These settings control the automatic gain control (AGC), which adjusts the gain level
to help reduce noise in the signal.
oCompensation Level: Select this to set how much gain is applied after the signal is
compressed by the AGC.
oResponse Time: Select this to set how quickly the AGC reacts to audio signal.
oNoise Gate: Select this to enable (On) or disable (Off) the noise gate. When on, the audio
signal will be automatically muted if it is below a certain volume level. This eliminates
moments during which the source is not producing any sound but there is still detectable
noise in the audio signal.
Output: Select a Zone 1–8 to edit.
•Name: Select this to edit the display name of the Zone Output up to 32 characters.
•Mono/Stereo: Select this to set whether the audio signal the zone plays is monaural (Mono) or
binaural (Stereo). When set to Stereo it will actually use 2 zones (e.g., Zones 1–2, Zones 3–4),
which will share the same output settings.
Note: When using a Stereo output, editing the first zone will apply changes to both zones. The
second zone will show as unavailable for editing.
•Priority Settings: Each zone has settings for 1st priority and 2nd priority. When the mic/line
input (set in the Source menu) detects an incoming audio signal, any other signal sent to that
zone will be attenuated (“ducked”) so the incoming signal can be heard. The 1st-priority source
will attenuate the 2nd-priority source.
oVolume: Select this to set the volume level of the incoming audio signal.
oSource: Select this to set the source for the priority: Mic/Line 1–6or no source (None).
Setting both priorities to the same mic/line input will result in greater-than-normal
attenuation.
oThreshold: Select this to set the threshold. The incoming audio signal must be louder than
this threshold to attenuate the current signal. A lower threshold produces more attenuation.

9
oAttack Time: Select this to set how long it takes for the current signal to be fully attenuated.
oHold Time: Select this to set how long the current signal remains fully attenuated after the
incoming audio falls below the threshold.
oRelease: Select this to set how long it takes from the fully attenuated signal to return to its
previous level after the incoming audio signal falls below the threshold.
oAttenuation Level: Select this to set how much the current signal’s volume is attenuated
(“ducked”).
•Delay: Select this to set how long it takes for the zone to play any incoming audio signal after it
receives it. This is useful when multiple zones are playing the same audio signal—listeners in
certain areas may hear that same signal multiple times because the sound from each zone
reaches them at different times rather than all at once. Delaying the zone’s audio output can
help prevent this effect.
•Dynamics: These settings determine the dynamic control (via compression) of the zone’s
output signal.
oOn/Off: Select this to enable (On) or disable (Off) the zone’s dynamic control.
oThreshold: Select this to set the threshold. The incoming audio signal must be louder than
this threshold to trigger the dynamic control.
oRatio: Select this to set the ratio of the dynamic control—how much the signal is attenuated
relative to its original level.
oAttack Time: Select this to set how long it takes for the dynamic control to compress the
signal.
oRelease: Select this to set how long it takes from the compressed signal to return to its
original level after the incoming audio signal falls below the threshold.
oGain: Select this to set how much gain is applied after the signal is compressed.
oKnee: Select this to set the knee of the dynamic control. This determines how sharp or
smooth the “curve” is when compression is applied at the threshold. A “hard” knee
produces very dramatic compression, while a “soft” knee produces a more natural-sounding
compression.
Mute: Select this to mute either the music only (Music) or all audio signals (All).
Ethernet: Select this to configure your Ethernet settings. Select IP Address, Subnet Mask, Gateway, or
IP Control Port to configure DN-508MX to detect network settings automatically (Auto On/Off), or enter
settings manually using the Volume/Sel knob.
Baudrate: Select this to set the baud rate of each port. RS232C is for the remote port. RS422 is for
the RS-422 port. Each rate is shown bits per second (BPS).
Time: Select this to edit the System Time and set the current month, day, year, hour, minute, and
second. DN-508MX will display this at the top of the web interface and will use it for scheduling.
You can also set DN-508MX to enable (On) or disable (Off) daylight saving time. When on, select
each menu below it to set the month, day, and hour that daylight saving will start and end. Choose
Offset to select how much the time will be shifted.
Passwords: Use these fields to set a new password for the administrator (Admin), which can control
all DN-508MX functions, or the operator (Operator), which can control only certain functions.
3. Information
Firmware Version: This field shows the current firmware version installed in DN-508MX.
Important: Visit denonpro.com to download the latest firmware for DN-508MX.
Network Information: Select this to view the current settings for IP Address, Mac Address,
Gateway, and DNS.

10
Using the Web Interface
Important: To use the web interface, both DN-508MX and your computer must be connected
to the same network. We recommend connecting the Ethernet port and your computer to a
network switch or router using standard Ethernet cables. If your computer is wirelessly
connected to your router, connect just DN-508MX to that router. Alternatively, connect DN-
508MX’s Ethernet port directly to a computer using an Ethernet crossover cable.
To open the DN-508MX web interface, on your computer, open a web browser.
•If DN-508MX is connected directly to a computer, go to http://192.168.0.1 in your web
browser. You may have to enter the operator password. There is no default password,
but if you have already set one, you will have to enter it here.
•If DN-508MX is connected to a network switch or router (wirelessly or wired), use the
Menu button and the Volume/Sel knob to do the following:
i. Press Menu to enter the Menu.
ii. Select and enter 2. System, then Ethernet, then IP Address, and then the Auto
setting (you may have to enter the administrator password).
iii. Set Auto to On, and select Yes when asked if you want to apply the change.
iv. Press the Mute/Back button to return to the previous page, and then select IP
Address again. The display will now show a 12-digit IP address. Enter this address
into your web browser as http://###.###.###.###. You may have to enter the
administrator password. The default administrator password is adminpwd.
To use the controls shown in the web interface:
•Pages: Click the Output, Input, or Settings button at the top of the window to view each
page in the web interface below.
•Faders: Click and drag a fader to set its level. Alternatively, click the dB field below it,
enter a value with your computer keyboard, and then click elsewhere in the page.
•Menus: Click a menu, and then click an option to select it.
•Buttons: Click a button to select it.
•Checkbox: Click a checkbox to select or deselect it.
•Text Field: Click a text field, enter a name with your computer keyboard, and then click
elsewhere on the page.
Important: In order to make changes in the web interface, first click the lock icon at the top of
the page. You will need to enter the Administrative password to unlock the page to make
changes. The default Admin password is adminpwd. Once you have finished editing, you can
lock the page again to prevent further changes.

11
Output
Click the Output button at the top to view
the Output page where you can set the
levels, equalization, inputs, and mute status
of each zone.
If a zone is stereo, it will actually use 2
zones (e.g., Zones 1–2, Zones 3–4), which
will share the same output settings. If a
zone is mono, it will use one zone only.
Input Menu: Click this menu to select
which source is sent to the zone.
Signal: This light indicates that the zone is
sending out an audio signal.
Peak: This light indicates that the zone is
sending out an audio signal that is
“peaking” (exceeding 0 dB). If this
happens, lower the level of the Source or
Mic/Line fader.
Mute: Click this button to mute or unmute the source. The button will be highlighted when
muted.
Input: Click this button to open the Zone Input window. In this window, click and drag each
fader to set the audio signal level that each mic/line input sends specifically to that zone.
(This does not affect the levels that those inputs send to other zones.)
EQ: Click this button to open the Zone EQ window. In this window, click each menu to set the
frequency (Freq), Gain, or bandwidth (Q) of the 5 frequency ranges: Low, Mid-Low, Mid, Mid-
High, and High.
Source: Click and drag this fader to set the input level of the source you selected in the Input
Menu (described above).
Mic/Line: Click and drag this fader to set the overall level of the mic/line inputs. This setting
is applied in addition to the settings in the Zone Input window (described above).
Master: Click and drag this fader to set the zone’s overall output level.
To Zone 5-8 / To Zone1-4: Click either of these buttons to jump to the lower or upper half of
the page, respectively.

12
Input
Click the Input button at the top to view the Input page where you can set the equalization or output
level of each input (the mic/line inputs, ST inputs, or Aux In).
Signal: This light indicates that the input is receiving an audio signal.
Peak: This light indicates that the input is receiving an audio signal that is “peaking” (exceeding 0
dB). If this happens, reduce the setting of the Mic/Line Gain knob on the rear panel (for Mic 1–6) or
on the audio source itself (for Source 1–4and Aux).
EQ: Click this button to open the Input EQ window. In this window, click each menu to set the
frequency (Freq), Gain, or bandwidth (Q) of the 3 available equalizations: a low-shelving filter (SHL),
a high-shelving filter (SHH), and a parametric equalizer (PEQ). Only the parametric equalizer has a
bandwidth control.
Output: Click this button to open the Mic Output window. In this window, click and drag each fader
to set the audio signal level that each mic/line channel sends specifically to each zone.
Settings
Click the Settings button at the top and select Schedule, I/OName, or System to view the
corresponding settings page.
Important: Click the lock icon at the top of the page to lock or unlock the settings. When locked, you
cannot edit any of the settings. This is helpful to prevent any accidental changes to the overall operation.
Schedule
Schedule: Click this menu to select a schedule to
view.
•On/Off: Click one of these buttons to enable or
disable the schedule. You can use multiple
schedules simultaneously.
•Date: Click this menu to set a specific date on
which to apply the schedule (instead of regular
days of the week). Click each menu to select the
Month, Day, and Year. The ** option sets the
schedule to repeat every month, day, or year.
•Day of Week: Click this menu to apply the
schedule regularly to certain days of the week
(instead of a specific date). Click each checkbox
to select or deselect the day.
•Time: Click each menu (Hour and Minute) to set
when the schedule will be applied. The ** option
sets the schedule to repeat every hour.
•Restore: Click this menu to reset all changes
you have made to the current schedule.
•Save: Click this menu to save the currently shown schedule.

13
I/O Name
This window shows the names of all of your
inputs (mic/line inputs, ST inputs, and Aux
In) and zone (line outputs). Click each field
and enter a name using your computer
keyboard. Click Save to save the names.
System
•Setting File: This field shows the currently loaded
setting file, if any. To download the current setting
file (if any) to your computer, click Download. To
upload a setting file from your computer to DN-
508MX, click Browse, find and select the file, and
then click Upload.
•Mic/Line: For each mic/line input, select whether
the input is a microphone (Mic) or a line-level
device (Line), whether the high-pass filter should
be enabled (On) or disabled (Off), and whether
the microphone should receive phantom power
(On) or not (Off). Please note that most dynamic
microphones do not require phantom power,
while most condenser microphones do. Consult
your microphone’s documentation to find out
whether it needs phantom power.
•Source: Click each Gain menu to set the gain
trim level of each audio source. All sources have
an editable automatic gain control (AGC), which
adjusts the gain level to help reduce noise in the
signal:
oCompensation Level: Click this menu to set
how much gain is applied after the signal is
compressed by the AGC.
oResponse Time: Click this menu to
set how quickly the AGC reacts to
audio signal.
oNoise Gate: Click one of the buttons
to enable (On) or disable (Off) the
noise gate. When on, the audio signal
will be automatically muted if it is
below a certain volume level. This
eliminates moments during which the
source is not producing any sound
but there is still detectable noise in
the audio signal.

14
•Output: Use these settings to determine how
each zone manages its audio output.
oZone Mono/Stereo: Click this menu to set
whether the audio signal the zone plays is
monaural (Mono) or binaural (Stereo). When
set to Stereo it will actually use 2 zones (e.g.,
Zones 1–2, Zones 3–4), which will share the
same output settings.
oPriority Settings: Each zone has settings for
1st priority and 2nd priority. When the mic/line
input (set in the Source menu) detects an
incoming audio signal, any other signal sent to
that zone will be attenuated (“ducked”) so the
incoming signal can be heard. The 1st-priority
source will attenuate the 2nd-priority source.
Volume: Click this menu to set the volume
level of the incoming audio signal.
Source: Click this menu to set the source
for the priority: Mic/Line 1–6or no source
(None). Setting both priorities to the same
mic/line input will result in greater-than-
normal attenuation.
Threshold: Click this menu to set the
threshold. The incoming audio signal must
be louder than this threshold to attenuate
the current signal. A lower threshold
produces more attenuation.
Attack Time: Click this menu to set how long it takes for the current signal to be fully
attenuated.
Hold Time: Click this menu to set how long the current signal remains fully attenuated
after the incoming audio falls below the threshold.
Release: Click this menu to set how long it takes from the fully attenuated signal to return
to its previous level after the incoming audio signal falls below the threshold.
Attenuation Level: Click this menu to set how much the current signal’s volume is
attenuated (“ducked”).
oDelay: Click this menu to set how long it takes for the zone to play any incoming audio
signal after it receives it. This is useful when multiple zones are playing the same audio
signal—listeners in certain areas may hear that same signal multiple times because the
sound from each zone reaches them at different times rather than all at once. Delaying the
zone’s audio output can help prevent this effect.
oDynamics: These settings determine the dynamic control (via compression) of the zone’s
output signal.
On/Off: Click this menu to enable (On) or disable (Off) the zone’s dynamic control.
Threshold: Click this menu to set the threshold. The incoming audio signal must be
louder than this threshold to trigger the dynamic control.
Ratio: Click this menu to set the ratio of the dynamic control—how much the signal is
attenuated relative to its original level.
Attack Time: Click this menu to set how long it takes for the dynamic control to
compress the signal.
Release: Click this menu to set how long it takes from the compressed signal to return to
its original level after the incoming audio signal falls below the threshold.
Gain: Click this menu to set how much gain is applied after the signal is compressed.
Knee: Click this menu to set the knee of the dynamic control. This determines how sharp
or smooth the “curve” is when compression is applied at the threshold. A “hard” knee
produces very dramatic compression, while a “soft” knee produces a more natural-
sounding compression.

15
•Mute: Click one of these buttons to
mute either the music only (Music) or all
audio signals (All).
•Ethernet: Use these controls to configure
your Ethernet settings. Click one of the
Mode buttons to set them to detect the
network settings automatically (Auto) or
to use the settings you enter yourself
(Manual). Click the IP Address, Subnet
Mask, Gateway, or IP Control Port fields
and enter the numbers for each using
your computer keyboard.
•Baudrate: Click one of the buttons for
each port to set the baud rate of each
one. RS232C is for the remote port.
RS422 is for the RS-422 port. Each rate
is shown bits per second (BPS).
•Time: Click each menu next to System
Time to set the current month, day, year,
hour, minute, and second. DN-508MX
will display this at the top of the web
interface and will use it for scheduling.
Click one of the Enable buttons to enable (On) or disable (Off) daylight saving time. When on,
click each menu below it to set the month, day, and hour that daylight saving will start and end.
Click the Offset menu to select how much the time will be shifted.
•Password: Use these fields to set a new
password for the administrator (Admin),
which can control all DN-508MX
functions, or the operator (Operator),
which can control only certain functions.
Click each field and enter the characters
for your current password (Old
Password) and the new password twice
(New Password and Confirm
Password). Click Save to save the new
password.
Important: The default administrator
password is adminpwd. There is no
default operator password.
•Firmware: This field shows the DN-
508MX firmware file to upload, if any. To
upload a firmware file from your
computer to DN-508MX, click Browse,
and then find and select the file. After
that, click Verify to confirm the file is
valid. If it is valid, then click Execute to
update the firmware.
Important: Visit denonpro.com to
download the latest firmware for DN-
508MX.
•Information: This section shows the current network addresses (as set in the Ethernet section)
and firmware version (as set in the Firmware section).

16
Troubleshooting
If you encounter a problem, do the following:
•Make sure all cables, devices, and/or media are properly and securely connected.
•Make sure you are using the unit as described in this User Guide.
•Make sure your other devices or media are working properly.
•If you believe the unit is not working properly, check the following table for your problem
and solution.
Problem Solution
Power does not turn on. Make sure the unit is properly connected to
a power outlet.
The unit does not produce any sound, or the
sound is distorted.
Make sure all cable, device, or media
connections are secure and correct.
Make sure none of the cables are
damaged.
Make sure the settings on your amplifier,
mixer, etc. are correct.
Make sure you have correctly set the
source and output settings.
Make sure the selected zones are not
muted.
The unit produces sound that is distorted. Make sure all cable, device, or media
connections are secure and correct.
Make sure none of the cables are
damaged.
Make sure the settings on your amplifier,
mixer, etc. are correct.
The source sound is too low, or the sound has
noise.
Make sure the gain is properly set.
Make sure the channel is set to receive the
proper Line-level or Mic-level signal.
The microphone does not produce any sound. Make sure the connections are secure and
correct.
Check with the microphone manufacturer
to see if the microphone needs phantom
power or not.
For stereo sound, the positions of the
instruments are inverted left/right.
Make sure the connections of the speakers
and inputs are wired correctly.

17
Guía del usuario (Español)
Introducción
El DN-508MX es un mezclador profesional de 8 zonas controlable remotamente a través de
RS-232C e IP. Cuenta con circuitos de audio de grado profesional, funciones de pad de
micrófono/línea, salidas balanceadas de BTL (carga puenteada) completas, ecualización de
entrada de 3 bandas, ecualización de salida de 5 bandas, prioridad, retraso (delay), dinámica y
una función de ahorro de energía automática. Una vez conectado a una red o enrutador, usted
también puede utilizar una interfaz basada en la web para controlar el sistema.
Consulte el capítulo Instalación para información acerca de cómo integrar el DN-508MX con
su sistema de audio y luego consulte el capítulo Funcionamiento para comenzar a utilizar el
DN-508MX.
Contenido de la caja
DN-508MX
Conectores Euroblock
(4) 5 patillas (para las salidas de línea 1–8)
(2) 4 patillas (para las entradas de micrófono/línea 1 y 2)
(4) 3 patillas (para las entradas de micrófono/línea 3–6)
(1) 2 patillas (para el conector de silenciamiento)
Cable de corriente
Guía de inicio rápido
Manual sobre la seguridad y garantía
Soporte
Para obtener la información más reciente acerca de este producto (requisitos de sistema,
información de compatibilidad, etc.) y registrarlo, visite denonpro.com.

18
Características
Panel frontal
1. Botón de encendido: Pulse este botón para encender o apagar el DN-508MX.
2. Pantalla: Esta pantalla indica los ajustes, el estado, etc. actuales.
3. Volumen/Selección: Gire la perilla para navegar o desplazarse por las opciones que se
muestran en la pantalla y luego pulse la perilla para seleccionar una de ellas.
4. Menú: Pulse este botón para alternar entre el menú y los ajustes de la zona actual en la pantalla.
En el menú, gire la perilla Volume/Sel para navegar o desplazarse a través de las opciones
disponibles y luego pulse la perilla para seleccionar una de ellas.
5. Silenciar/Atrás: Al visualizar los ajustes de la zona actual, pulse este botón para seleccionar los
ajustes del silenciamiento. Para silenciar o anular el silenciamiento de la zona, gire la perilla
Volume/Sel para seleccionar “Mute” (silenciar) o “Unmute” (anular el silenciamiento) y luego
pulse la para confirmar su selección.
Desde el menú, pulse este botón para volver a la pantalla anterior.
6. Entrada auxiliar (1/8 pulg. /3,5 mm):Utilice un cable estéreo estándar de 3,5 mm (1/8 pulg.)
para conectar una fuente de audio opcional a esta entrada estéreo. Cuando se conecta un cable
a esta entrada, las entradas auxiliares RCA del panel trasero quedarán desactivadas.
7. Indicadores de micrófono/línea Estas luces se encenderán con diferentes colores para mostrar
el estado de la señal de cada entrada de micrófono/línea:
•Apagadas: La entrada no está recibiendo ninguna señal o una señal de muy bajo nivel.
•Verde: La entrada está recibiendo una señal con un nivel óptimo.
•Ámbar: La señal de la entrada es demasiado alta.
•Rojo: La señal de la entrada está llegando a su pico (más de 0 dB). Disminuya la perilla
Gain (ganancia) del panel trasero o disminuya el volumen de la fuente para evitar el
“recorte” (distorsión).
8. Indicadores de fuente: Estas luces se encenderán con diferentes colores para mostrar el
estado de la señal de las entradas auxiliares y ST:
•Apagadas: La entrada no está recibiendo ninguna señal o una señal de muy bajo nivel.
•Verde: La entrada está recibiendo una señal con un nivel óptimo.
•Ámbar: La señal de la entrada es demasiado alta.
•Rojo: La señal de la entrada está llegando a su pico (más de 0 dB). Disminuya el volumen
de la fuente para evitar el “recorte” (distorsión).
9. Selectores de fuente: Pulse uno de estos botones para asignar o desasignar esa fuente a la
zona actualmente seleccionada. Cuando una fuente es asignada a la zona, su botón se
encenderá en ámbar. Para seleccionar una zona, pulse uno de los selectores de salida.
10. Indicadores de salida: Estas luces se encenderán con diferentes colores para mostrar el estado
de la señal de las salidas de línea (salidas de zona):
•Apagadas: La entrada no está recibiendo ninguna señal o una señal de muy bajo nivel.
•Verde: La salida está enviando una señal con el nivel óptimo.
•Ámbar: La señal de la salida es demasiado alta.
•Rojo: La señal de la salida está llegando a su pico (más de 0 dB). Disminuya el volumen de
la zona para evitar el “recorte” (distorsión).
11. Selectores de salida: Pulse uno de los botones para seleccionar esa zona. El botón de la zona
actualmente en reproducción se encenderá en ámbar.
123
4
5
6
78
9
10
11
DVD
CD
Dining
Room L
Dance
Hall L
Kitchen
Dance
Hall R
Dining
Room R
Phone

19
Panel trasero
1
2
3
4
56
7
8
9
10
11
1. Entrada de corriente: Utilice el cable de corriente incluido para conectar esta entrada a una
toma de corriente.
2. Salidas de línea: Utilice conectores Euroblock para conectar sus altavoces a estas salidas.
Cada grupo de 5 conexiones corresponde a 2 zonas. Cada zona tiene un conector caliente (H) y
un conector frío (C), y cada par de zonas comparte el conector a tierra (G). Asegúrese de que
cada altavoz esté conectado a la zona deseada.
3. Entradas de micrófono/línea: Utilice conectores Euroblock para conectar sus fuentes de audio
de nivel de micrófono o de nivel de línea a estas entradas. Cada entrada tiene un conector
caliente (H), un conector frío (C), y un conector a tierra (G). Las entradas 1 y 2 tienen un conector
adicional para el interruptor de página. Recuerde ajustar la perilla Gain para definir el nivel del
volumen de entrada.
4. Ganancia de micrófono/línea: Gire esta perilla para ajustar la ganancia de entrada para cada
entrada de micrófono/línea.
5. Entrada auxiliar (RCA):Utilice un cable RCA estéreo estándar para conectar una fuente de
sonido a esta entrada. Cuando se conecta un cable a la entrada auxiliar del panel frontal, estas
entradas quedarán desactivadas.
6. Entradas ST: Utilice cables RCA estéreo estándar para conectar fuentes de audio de nivel de
línea a estas entradas.
7. Conector de silenciamiento: Utilice un conector Euroblock de 2 patillas para conectar un
interruptor a este conector. El interruptor entonces podrá silenciar o anular el silenciamiento de
la señal entrante desde todas las fuentes de audio.
8. Puerto remoto: Este puerto le permite conectar un ordenador al DN-508MX. Utilice un cable D-
Sub de 9 patillas para realizar esta conexión. Podrá entonces utilizar el ordenador con un programa
de terceros para manejar el DN-508MX a través de comunicación en serie.
9. Puerto de extensión remota: Este puerto le permite conectar otro DN-508MX al dispositivo
anfitrión. Utilice un cable D-Sub de 9 patillas para realizar esta conexión. Podrá entonces utilizar
un ordenador con un programa de terceros para controlar todos los DN-508MX conectados a
través de comunicación en serie.
10. Puerto RS-422: Este puerto le permite conectar un dispositivo anfitrión al DN-508MX. Podrá
entonces utilizar un programa de terceros para controlar el DN-508MX a través de comunicación
en serie. Utilice un cable analógico de teléfono estándar con conectores RJ45 para realizar esta
conexión.
11. Puerto Ethernet: Este puerto le permite conectar el DN-508MX a una red. Conecte este puerto
a un ordenador a través de un conmutador o enrutador de redes. Como alternativa, conéctelo
directamente a un ordenador mediante un cable Ethernet cruzado. Esta conexión le permite
controlar el DN-508MX a través de la interfaz web.

20
Instalación
Los elementos que no se enumeran en Introducción > Contenido de la caja se venden por separado.
Cómo instalar DN-508MX con su sistema de sonido:
1. Si está utilizando una fuente de audio con salidas RCA (reproductores de Blu-ray®, estéreos,
etc.), utilice cables RCA estándar para conectarlos a las entradas ST del panel trasero. Sus
fuentes de audio deben ser de nivel de línea (no giradiscos de nivel fonográfico).
2. Si está utilizando un amplificador u otra fuente de audio con salidas que pueden cablearse a los
conectores Euroblock estándar, conéctelas a las entradas de micrófono/línea del panel trasero.
3. Utilice conectores Euroblock estándar para conectar los altavoces de sus diferentes zonas a las
salidas de línea del panel trasero. Cada grupo de 5 conexiones corresponde a 2 zonas. Cada
zona tiene un conector caliente (H) y un conector frío (C), y cada par de zonas comparte el
conector a tierra (G).
4. Para administrar el DN-508MX a través de su interfaz web, conecte el puerto Ethernet y su
ordenador a un conmutador o enrutador de red utilizando cables Ethernet estándar. Si su
ordenador se conecta a su enrutador de forma inalámbrica, conecte solamente el DN-508MX a
ese enrutador. Como alternativa, conecte el puerto Ethernet del DN-508MX directamente a un
ordenador mediante un cable Ethernet cruzado.
5. Para administrar el DN-508MX a través de la comunicación en serie, conecte el puerto
remoto a su ordenador utilizando un cable D-Sub de 9 patillas. Utilice una utilidad de terceros
para administrar el DN-508MX. Como alternativa, conecte el puerto RS-422 a una utilidad de
terceros utilizando un cable de teléfono analógico estándar con conectores RJ45
Consejo: Recomendamos utilizar la interfaz web para controlar el DN-508MX en lugar de la
comunicación en serie. Es mucho más fácil utilizar la interfaz web a través de la comunicación IP
que una herramienta de terceros a través de la comunicación RS-232C en serie.
6. Utilice el cable de corriente incluido para conectar el NDN-508M a una toma de corriente.
7. Encienda todas sus fuentes de audio (reproductores de Blu-ray®, estéreos, micrófonos,
amplificadores, etc.).
8. Encienda el DN-508MX.
Ejemplo:
Zona 1 Zona 2 Zona 3 Zona 4 Zona 5 Zona 6 Zona 7 Zona 8
Ordenador
A las
amplificadore
s de zona
Reproductor Blu-ray®
Amplificador
Enrutador Micrófonos Suministro eléctrico
