Denon DN-X300 User manual

SERVICE MANUAL
DJ MIXER
MODEL DN-X300
For U.S.A., Canada, Europe, U.K.,
Asia, China, Taiwan R.O.C., Korea
& Japan model
TOKYO, JAPAN
X0212V.01 DE/CDM 0408
Some illustrations using in this service manual are
slightly different from the actual set.
●
Please use this service manual with referring to the
operating instructions without fail.
●
For purposes of improvement, specifications and
design are subject to change without notice.
●
●
本文中に使用しているイラストは、説明の都合上現物
と多少異なる場合があります。
●
修理の際は、必ず取扱説明書を参照の上、作業を行っ
てください。
サービスをおこなう前に、このサービスマニュアルを
必ずお読みください。本機は、火災、感電、けがなど
に対する安全性を確保するために、さまざまな配慮を
おこなっており、また法的には「電気用品安全法」に
もとづき、所定の許可を得て製造されております。
従ってサービスをおこなう際は、これらの安全性が維
持されるよう、このサービスマニュアルに記載されて
いる注意事項を必ずお守りください。
●
本機の仕様は性能改良のため、予告なく変更すること
があります。
●
補修用性能部品の保有期間は、製造打切後8年です。

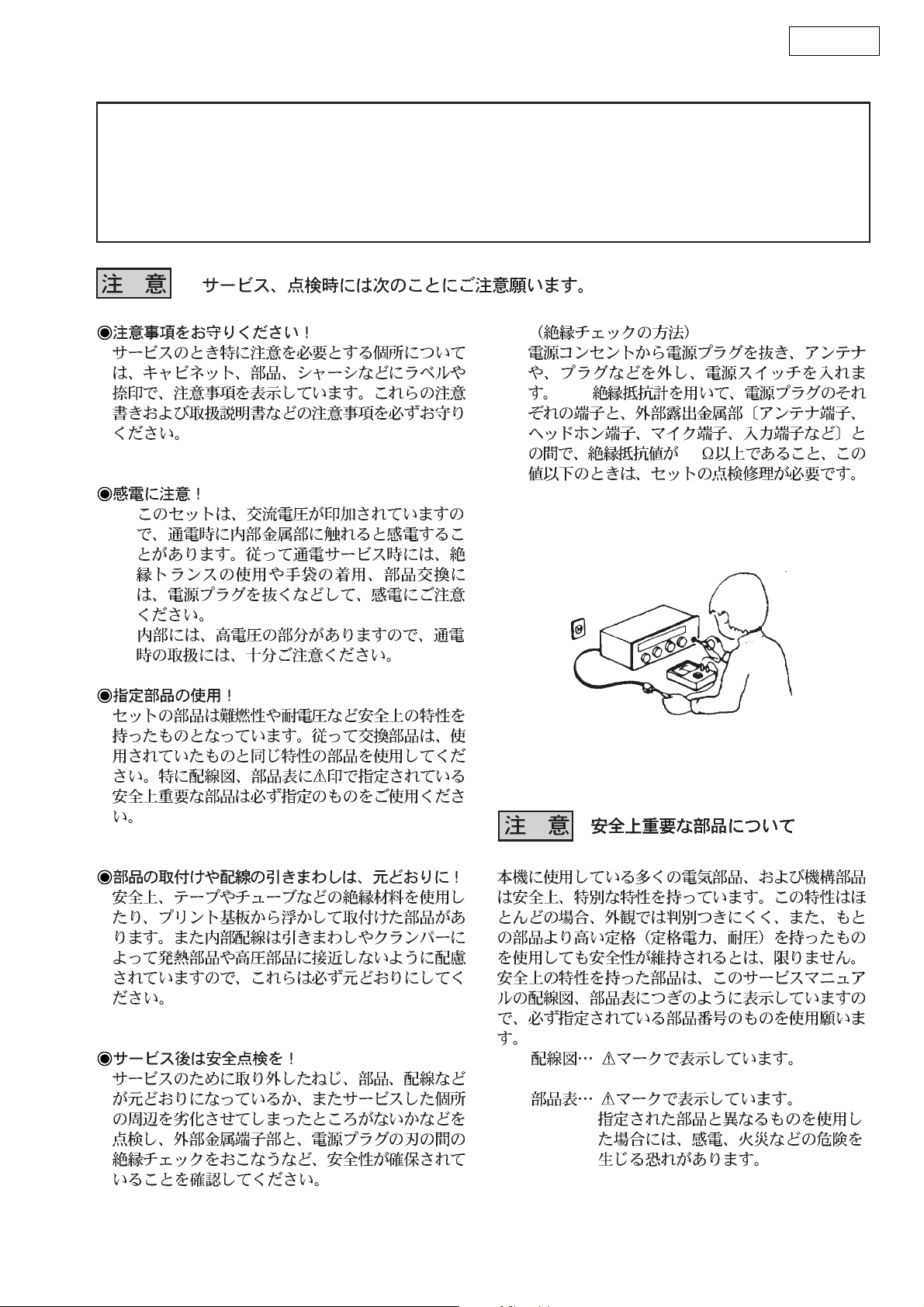

注 意
Ver. 1

2
DN-X300
SAFETY PRECAUTIONS
The following check should be performed for the continued protection of the customer and service technician.
LEAKAGE CURRENT CHECK
Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis
resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the
power cord is less than 460 kohms, the unit is defective.
(1)
(2)
500V
1M
(1)
(2)

3
DN-X300
DISASSEMBLY
(Follow the procedure below in reverse order when reassembling.)

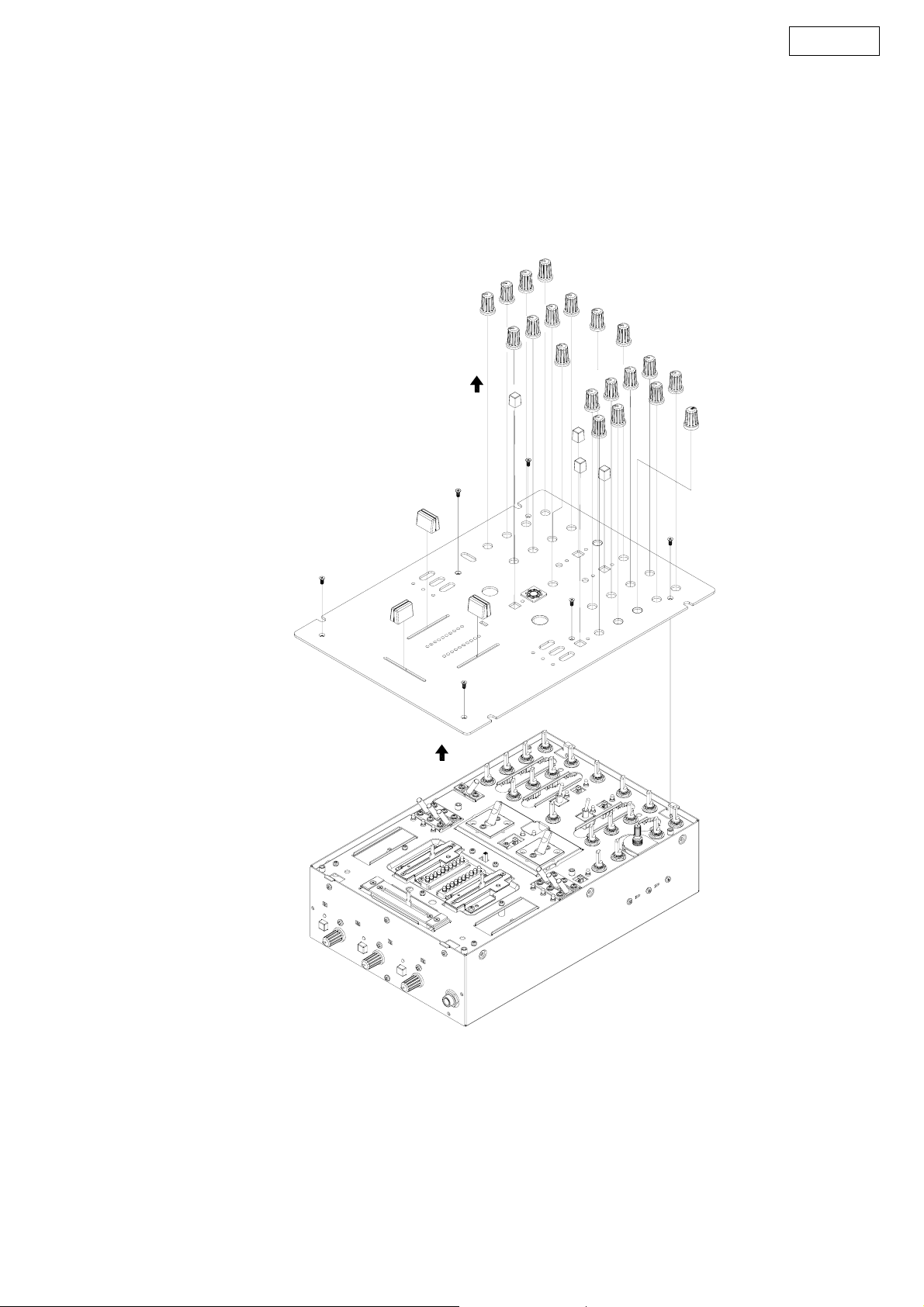

1. Top Panel
(1) Pull out the Knobs from the Top Panel.
(2) Remove the 6 screws attaching the Top Panel.
(3) Pull up the Front Panel.
Note:
zBe careful in the attachment direction.

4
DN-X300
2. Crossfader Unit
(1) Remove the 2 screws attaching the Crossfader Unit.
(2) Pull up the Crossfader Unit and disconnect the connector.
Note:
zBe careful in the attachment direction.
3. Channel Fader Unit
(1) Remove the 3 screws attaching the Channel Fader Unit.
(2) Pull up the Channel Fader Unit and disconnect the connector.

5
DN-X300

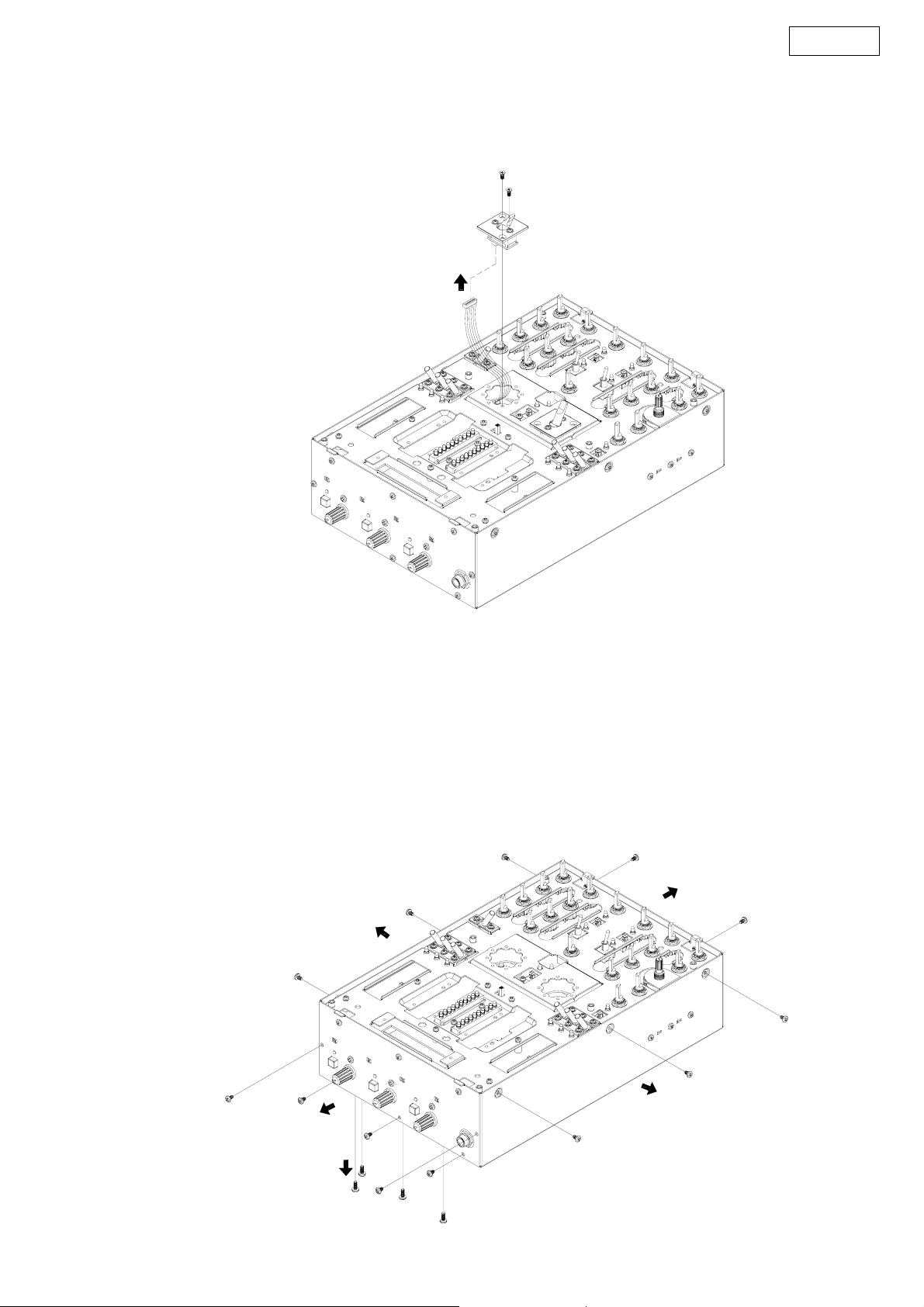

4. Input Selector Unit
(1) Remove the 2 screws attaching the Input Selector Unit.
(2) Pull up the Input Selector Unit and disconnect the connector.
Note:
zBe careful in the attachment direction.
5. Top Panel Unit
(1) Remove the 6 screws from the both-sides side.
(2) Remove the 2 screws from the rear side.
(3) Remove the 5 screws from the front side.
(4) Remove the 4 screws from the bottom side.
(5) Pull up the front side of the Top Unit.
(6) Disconnect the connectors.

6
DN-X300
BLOCK DIAGRAM

7
DN-X300
SEMICONDUCTORS ／半導体一覧表
Only major semiconductors are shown, general semiconductors etc. are omitted to list.
主な半導体を記載しています。汎用の半導体は記載を省略しています。

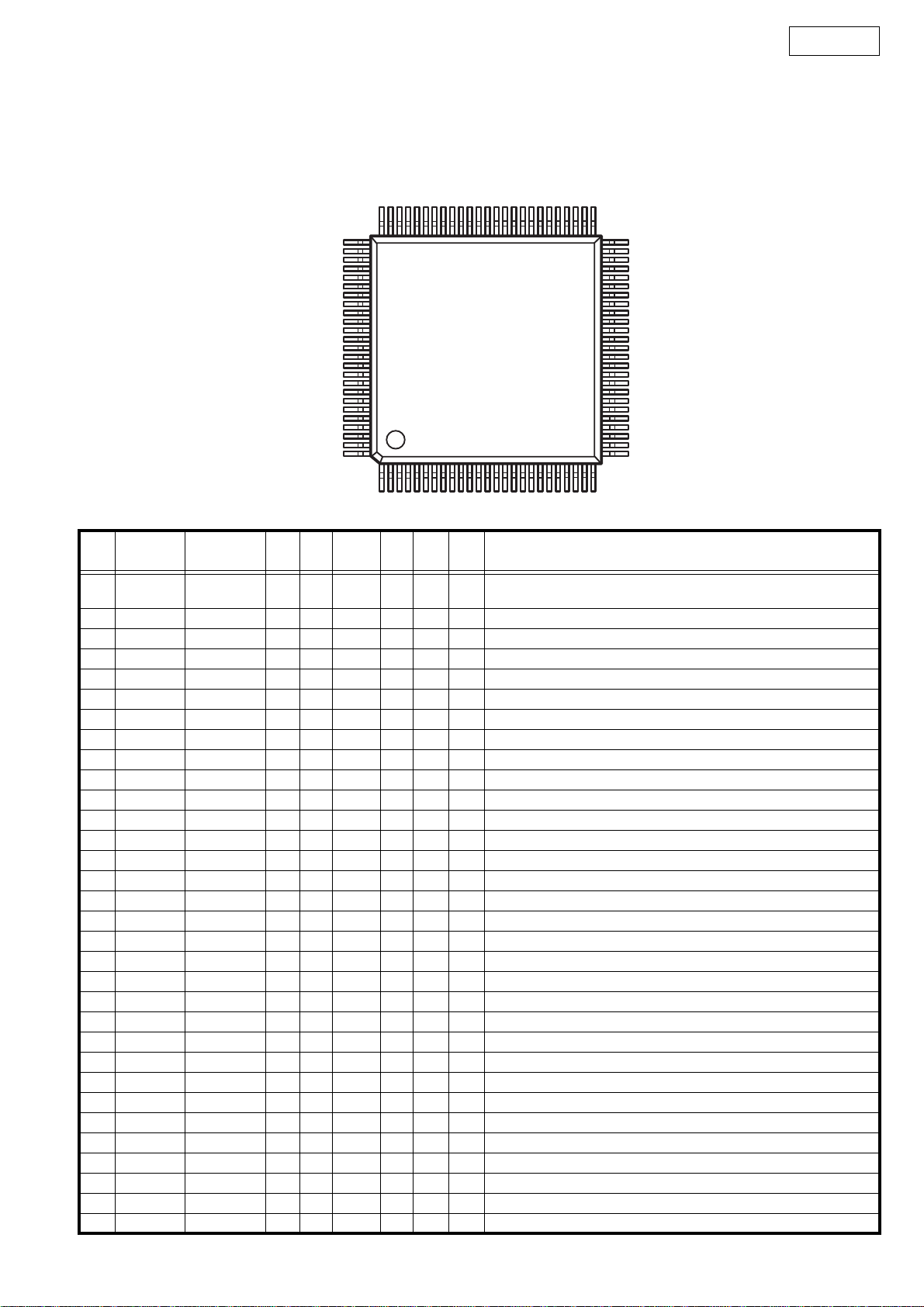

1. IC’s
MAX003 (IC801)
MAX003 Terminal Function
Pin
No. Pin Name Symbol I/O Det Int Pu Ext Res Ini Function
1VCL VCL - - - - - -VCL(capacitor between this pin and GND)in 5V operation models,and
as Vcc in 3V operation models.
2 PB0 CH1FS I - - Pu L H CH1 FADER START SW 'L' : ON
3 PB1 PB1 O - - Pu L L Not used
4 PB2 PB2 O - - Pu L L Not used
5 PB3 PB3 O - - Pu L L Not used
6 PB4 PB4 O - - Pu L L Not used
7 PB5 PB5 O - - Pu L H Not used
8 PB6 FX2SW I - - Pu L H PGM2 EFFECT LOOP ON/OFF SW 'L' : ON (DN-X300 only)
9 PB7 CHREV I - - Pu L H CH REVERSE SW 'L' : ON
10 _RESO _RESO O - - - - - Not used
11 Vss Vss - - - - - - GND(0V)
12 P90 P90 O - - - L L Not used
13 P91 P91 O - - - L L Not used
14 P92 P92 O - - - L L Not used
15 P93 P93 O - - - L L Not used
16 P94 P94 O - - - L L Not used
17 P95 P95 O - - - L L Not used
18 P40 P40 O - ON - L L Not used
19 P41 P41 O - ON - L L Not used
20 P42 P42 O - ON - L L Not used
21 P43 PC1A I/O - ON - L H PGM1 Fader PLAY output 30msec 'L' pulse
22 Vss Vss - - - - - - GND(0V)
23 P44 PC1B I/O - ON - L H PGM1 Fader CUE output 30msec 'L' pulse
24 P45 PC2A I/O - ON - L H PGM2 Fader PLAY output 30msec 'L' pulse
25 P46 PC2B I/O - ON - L H PGM2 Fader CUE output 30msec 'L' pulse
26 P47 P47 O - ON - L L Not used
27 D8 D0 D/I - - - - - Data bus
28 D9 D1 D/I - - - - - Data bus
29 D10 D2 D/I - - - - - Data bus
30 D11 D3 D/I - - - - - Data bus
31 D12 D4 D/I - - - - - Data bus
32 D13 D5 D/I - - - - - Data bus
75
76
100
125 26
50
51

8
DN-X300
33 D14 D6 D/I - - - - - Data bus
34 D15 D7 D/I - - - - - Data bus
35 Vcc Vcc - - - - - - Power supply(+5V)
36 A0 A0 A/O - - - - - Address bus
37 A1 A1 A/O - - - - - Address bus
38 A2 A2 A/O - - - - - Address bus
39 A3 A3 A/O - - - - - Address bus
40 A4 A4 A/O - - - - - Address bus
41 A5 A5 A/O - - - - - Address bus
42 A6 A6 A/O - - - - - Address bus
43 A7 A7 A/O - - - - - Address bus
44 Vss Vss - - - - - - GND(0V)
45 A8 A8 A/O - - - - - Address bus
46 A9 A9 A/O - - - - - Address bus
47 A10 A10 A/O - - - - - Address bus
48 A11 A11 A/O - - - - - Address bus
49 A12 A12 A/O - - - - - Address bus
50 A13 A13 A/O - - - - - Address bus
51 A14 A14 A/O - - - - - Address bus
52 A15 A15 A/O - - - - - Address bus
53 A16 A16 A/O - - - - - Address bus
54 A17 A17 A/O - - - - - Address bus
55 P52 _FX1ON O - ON - L H PGM1 EFFECT LOOP enabler 'L' : enabler (DN-X300 only)
56 P53 _FX2ON O - ON - L H PGM2 EFFECT LOOP enabler 'L' : enabler (DN-X300 only)
57 Vss Vss - - - - - - GND(0V)
58 P60 LEDFX1 O - - Pu L H PGM1 EFFECT LOOP LED control. (DN-X300 only)
59 P61 LEDFX2 O - - Pu L H PGM2 EFFECT LOOP LED control. (DN-X300 only)
60 P62 FX1SW I - - - L H PGM1 EFFECT LOOP ON/OFF SW 'L' : ON (DN-X300 only)
61 P67 P67 I - - - H H DN-X100/300 program selected Pin 'L' : DN-X300
62 _STBY _STBY - - - - - H When driven low,this pin forces a transition to hardware standby mode.
63 _RES _RES - - - - - - Reset signal 'L' : Reset
64 NMI NMI I - - Pu - H Not used
65 Vss Vss - - - - - - GND(0V)
66 EXTAL EXTAL - - - - - - OSC 16MHz
67 XTAL XTAL - - - - - - OSC 16MHz
68 Vcc Vcc - - - - - - Power supply(+5V)
69 _AS _AS - - - - - - Not used
70 _RD _RD O - - - - - Goes low to indicate reading from the external address space
71 _HWR _HWR - - - - - - Not used
72 P66 JDET I - - - L H Check Send Return jack inserted
73 MD0 MD0 I - - - - - IC Operating mode control
74 MD1 MD1 I - - - - - IC Operating mode control
75 MD2 MD2 I - - - - - IC Operating mode control
76 Avcc Avcc - - - - - - Power supply pin for the A/D converters(+5V).
77 Vref Vref - - - - - - Reference voltage input pin for the A/D converters(+5V).
78 P70,AN0 CH1FADER I - - - - Hi-z CH1 FADER VR A/D converter
79 P71,AN1 CFFADER I - - - - Hi-z CROSS FADER VR A/D converter
80 P72,AN2 CH2FADER I - - - - Hi-z CH2 FADER VR A/D converter
81 P73,AN3 CH1CUREV I - - - - Hi-z CH1 FADER CONTOUR VR A/D converter
82 P74,AN4 CFCUREV I - - - - Hi-z CROSS FADER CONTOUR VR A/D converter
83 P75,AN5 CH2CUREV I - - - - Hi-z CH2 FADER CONTOUR VR A/D converter
84 P76,AN6 AN6 I - - - - Hi-z Not used
85 P77,AN7 AN7 I - - - - Hi-z Not used
86 Avss Avss - - - - - - Ground pin for A/D converters(0V).
87 P80 P80 O - - Pu L L Not used
Pin
No. Pin Name Symbol I/O Det Int Pu Ext Res Ini Function

9
DN-X300
88 P81 P81 O - - Pu L L Not used
89 P82 P82 O - - Pu L L Not used
90 P83 CH1REV O - - Pu L H CH1 FADER REVERSE SW 'L' : ON
91 P84,_CS _CE O - - - L L Chip select signal.
92 Vss Vss - - - - - - GND(0V)
93 PA0 CFREV I - - Pu L H CROSSFADER REVERSE SW 'L' : ON
94 PA1 CH2REV I - - Pu L H CH2 FADER REVERSE SW 'L' : ON
95 PA2 CH2FS I - - Pu L H CH2 FADER START SW 'L' : ON
96 PA3 2CFS I - - Pu L H CROSSFADER START B SW 'L' : ON
97 PA4 C1 O - - - L H PWM output control PGM1 volume
98 PA5 1CFS I - - Pu L H CROSSFADER START A SW 'L' : ON
99 PA6 C2 O - - - L H PWM output control PGM2 volume
100 PA7 PA7 O - - Pu L L Not used
Pin
No. Pin Name Symbol I/O Det Int Pu Ext Res Ini Function

10
DN-X300
LB1482M (IC701)
TC4053BF (IC507) NJM2060 (IC105, 106, 205, 206, 952)
LB1482M
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
21
20
19
18
17
16
27
26
25
30
29
28
24
23
22
PH
D1
CH2 IN
OSC
NC
Vcc1
Vcc2
MUTE
CH1 IN
CR1
8P/5P
AC/DC
A GND
DC IN
CR2
O9
O10
O11
O12
D2
NC
O3
O4
O5
GND
O1
O2
O6
O7
O8
AC IN (1)
AC IN (2)
DC IN
Inside
reference
voltage
OSC
LOGIC
CONTROL
PEAK HOLD
LOGIC
CONTROL
SWITCHER
O1
D1
Vcc2
(Power system)
8P/5PAC
DC
P/HMUTE
OSC
GND
Vcc1
A GND
CH1 IN
CH2 IN
DC IN
CR1
CR2
(Signal system)
O2
D2
O3
O4
O5
O6
O7
O8
O9
O10
O11
O12
19
27 28 29 30
17
16
14
2
3
4
5
6
7
8
9
10
11
12
13
1
24
18
23
22
21
25
26
IY
OY
IZ
Z-COM
OZ
INH
VEE
Vss
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
VDD
Y-COM
X-COM
IX
OX
A
B
C
1
A OUTPUT
B
OUTPUT
V+
A
+INPUT
B
+INPUT
A
-
INPUT
B
-
INPUT
D
OUTPUT
C
OUTPUT
V
-
D +INPUT
C
+INPUT
D
-
INPUT
C
-
INPUT
AD
BC
2
3
4
5
6
7
14
13
12
11
10
9
8

11
DN-X300

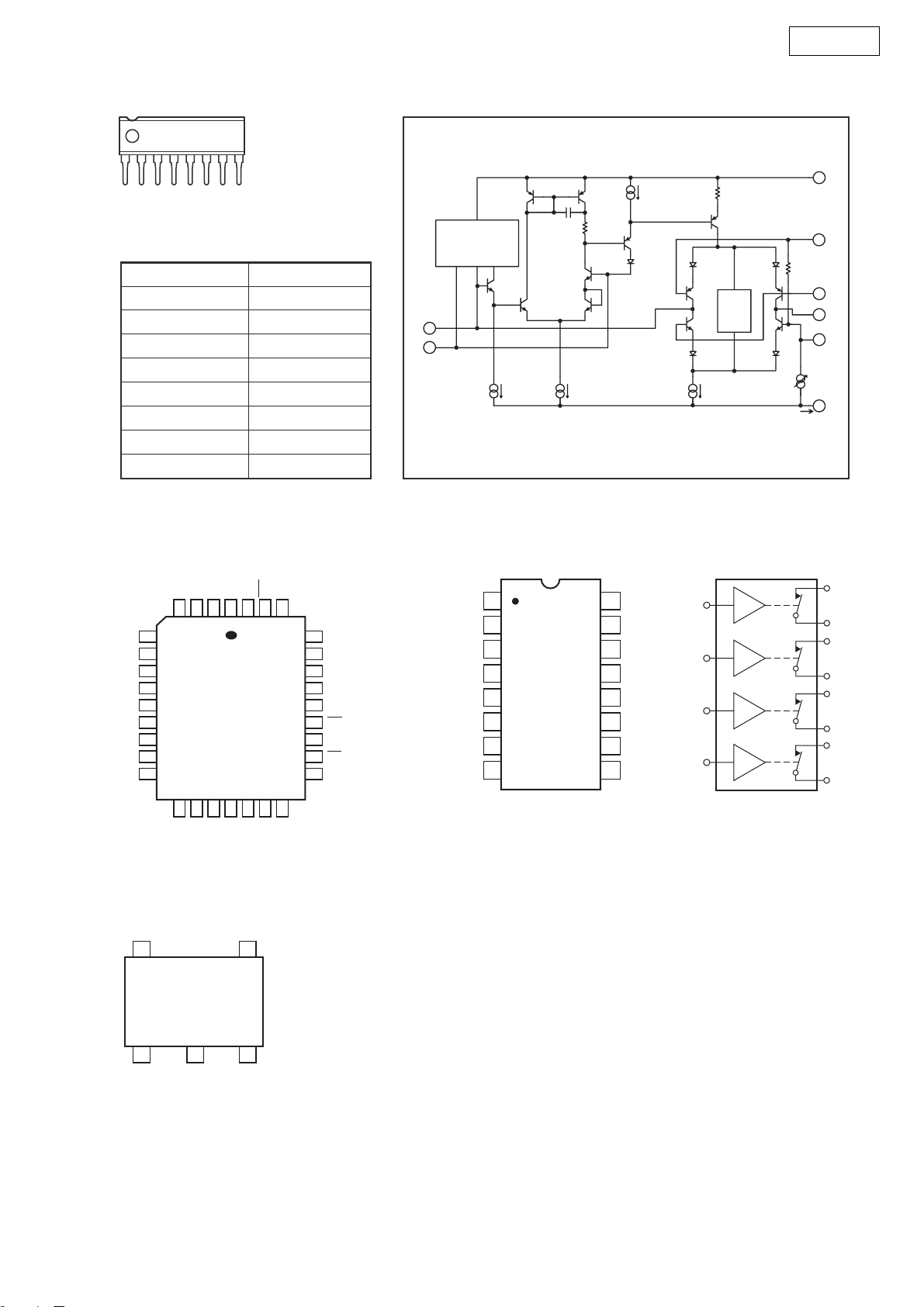

THAT2180 (IC111, 112, 211, 212)
1M FLASH MEMORY (IC802) ADG212A (IC113, 213)
BD4745G (IC803)
BIAS CURRENT
COMPENSATION
Vbe
MULTI-
PLIER Output
Sym
Iset
V-
Vcc
Ec+
Ec-
Iadj
Input
Gnd
7
2
3
8
4
5
1
6
2k
25
Pin Name SIP Pin
Input 1
Ec+ 2
Ec– 3
Sym 4
V– 5
Gnd 6
V+ 7
Output 8
1
4321323130
IO IO
GND
IO IO IO IO
13
12
11
10
9
8
7
6
5
IO
A0
A1
A2
A3
A4
A5
A6
A7
21
22
23
24
25
26
27
28
29
14 15 16 17 18 19 20
IO
CE
A10
OE
A11
A9
A8
A13
A14
A12 A15 A16 NC VCC WE NC
IN1
S1
D1
S2
D2
S3
D3
S4
D4
IN2
IN3
IN4
1
2
3
4
5
6
7
8
IN1
D1
S1
V
SS
GND
S4
D4
IN4
IN2
D2
S2
V
DD
V
L
S3
D3
IN3
16
15
14
13
12
11
10
9
123
54
NC SUB GND
Vcc Vout

12
DN-X300
PRINTED WIRING BOARDS

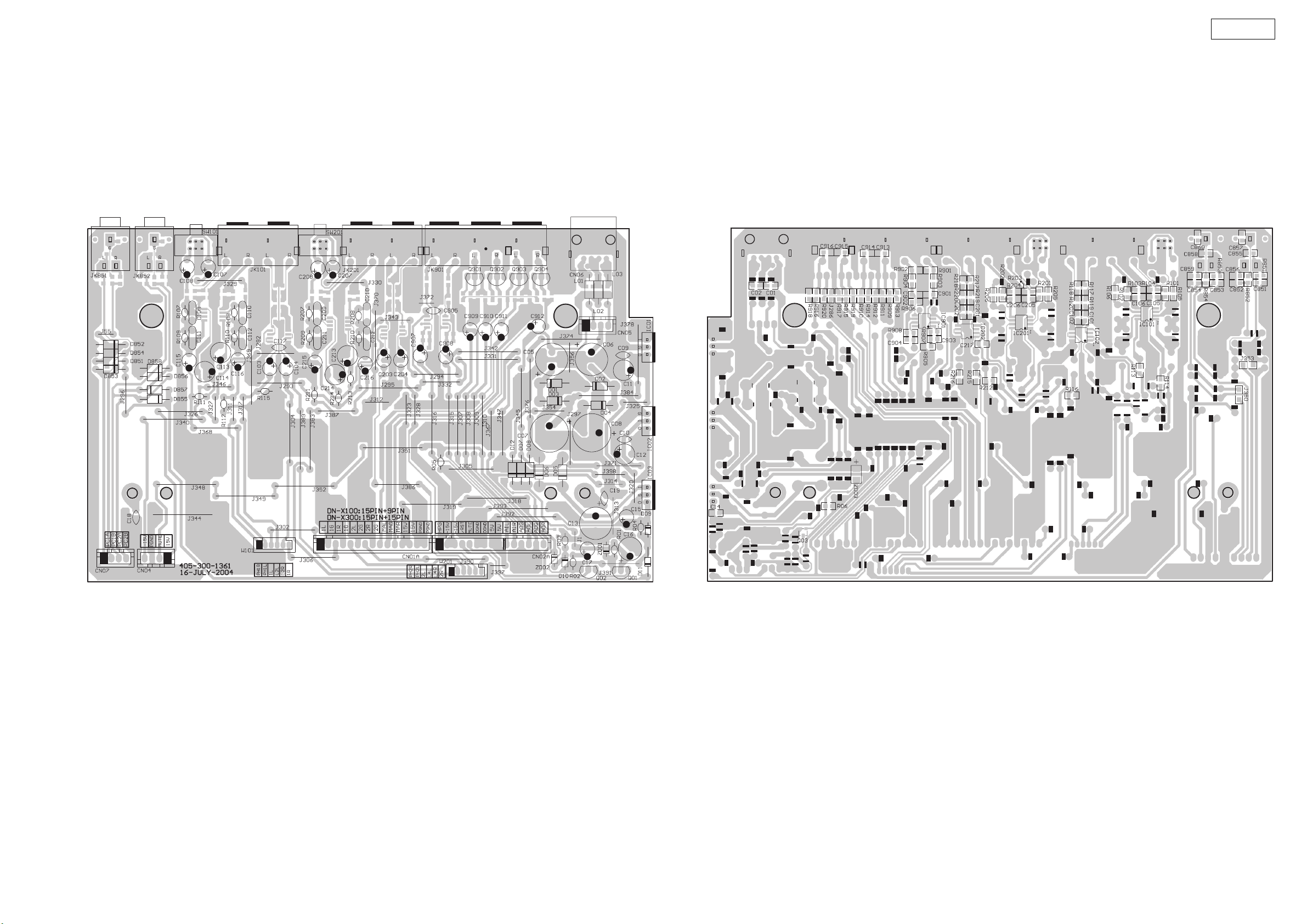

MIXER P.W.B. UNIT
COMPONENT SIDE

13
DN-X300
FOIL SIDE

14
DN-X300

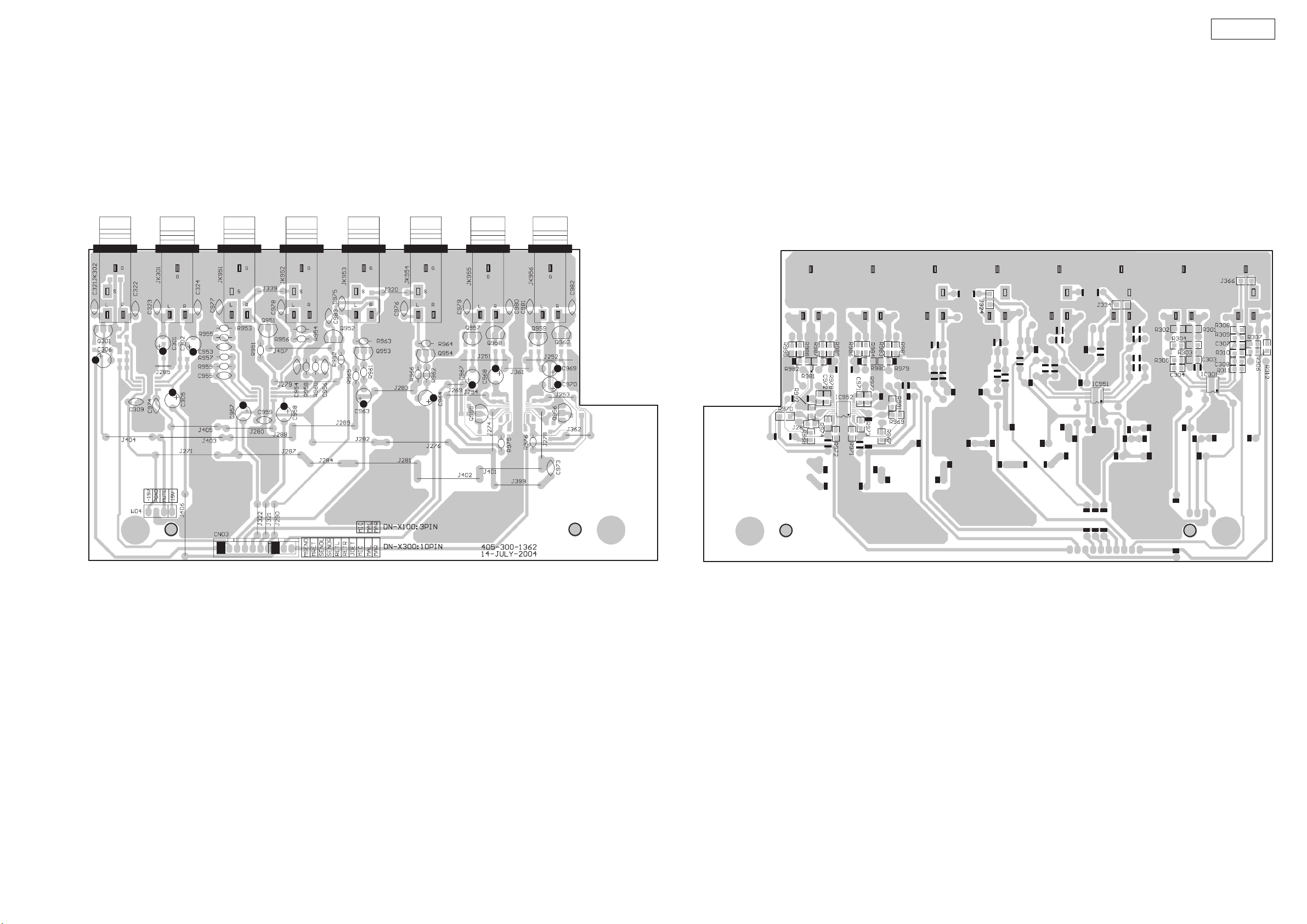

OUTPUT P.W.B. UNIT
COMPONENT SIDE FOIL SIDE

15
DN-X300
JACK P.W.B. UNIT
FOIL SIDECOMPONENT SIDE

16
DN-X300
CPU P.W.B. UNIT
COMPONENT SIDE FOIL SIDE

17
DN-X300
REVERSE P.W.B. UNIT PHONE P.W.B. UNIT
FOIL SIDE
FADER START P.W.B. UNIT
COMPONENT SIDE
COMPONENT SIDE
CH VR P.W.B. UNIT TRANS P.W.B. UNIT
COMPONENT SIDE
COMPONENT SIDE
COMPONENT SIDE
FOIL SIDE

18
DN-X300
NOTE FOR PARTS LIST
5% 1/4W
1/16W
s
s
s
s
ss
ss
s
s
s
s
RD : 2B : 1/8 W F : ±1% P :
RC : 2E : 1/4 W G : ±2% NL :
RS : 2H : 1/2 W J : ±5% NB :
RW : 3A : 1 W K : ±10% FR :
RN : 3D : 2 W M : ±20% F :
RK : 3F : 3 W
3H : 5 W
RN 14K 2E 182 G FR
∗18 2 Ö1800 =1.8k
0
2
1R 2 Ö1.2
1
2 R
CE 04W 1H 2R2 M BP
CE : 0J : 6.3 V F : ±1% HS :
CA : 1A : 10 V G : ±2% BP :
CS : 1C : 16 V J : ±5% HR :
CQ : 1E : 25 V K : ±10% DL :
CK : 1V : 35 V M : ±20% HF :
CC : 1H : 50 V Z : +80% U : UL
CP : 2A : 100 V −20% C : CSA
CM : 2B : 125 V P : +100% W : UL-CSA
CF : 2C : 160 V −0% F :
CH : 2D : 200 V C : ±0.25pF
2E : 250 V D : ±0.5pF
2H : 500 V = :
2J : 630 V
∗
22 2 Ö2200µF
0
2
µF
22 2 Ö2200pF=0.0022µF
0
2
pFpF
22 1 Ö220pF
2
(0 2 )
0
(0 0 1 )
2R 2 Ö2.2µF
1
2 R
µF
AC
RD : Carbon 2B : 1/8W F : ±1% P : Pulse-resistant type
RC : Composition 2E : 1/4W G : ±2% NL : Low noise type
RS : Metal oxide film 2H : 1/2W J : ±5% NB : Non-burning type
RW : Winding 3A : 1W K : ±10% FR : Fuse-resistor
RN : Metal film 3D : 2W M : ±20% F : Lead wire forming
RK : Metal mixture 3F : 3W
3H : 5W
CE : Aluminum foil 0J : 6.3V F : ±1% HS : High stability type
electrolytic
CA : Aluminum solid 1A : 10V G : ±2% BP : Non-polar type
electrolytic
CS : Tantalum electrolytic 1C : 16V J : ±5% HR : Ripple-resistant type
CQ : Film 1E : 25V K : ±10% DL : For change and discharge
CK : Ceramic 1V : 35V M : ±20% HF : For assuring high
requency
CC : Ceramic 1H : 50V Z : +80% U : UL part
CP : Oil 2A : 100V –20% C : CSA part
CM : Mica 2B : 125V P : +100% W : UL-CSA type
CF : Metallized 2C : 160V –0% F : Lead wire forming
CH : Metallized 2D : 200V C : ±0.25pF
2E : 250V D : ±0.5pF
2H : 500V = : Others
2J : 630V
lPart indicated with the mark "" are not always in stock and possibly to
take a long period of time for supplying, or in some case supplying of
part may be refused.
lWhen ordering of part, clearly indicate "1" and "I" (i) to avoid mis-
supplying.
lOrdering part without stating its part number can not be supplied.
lPart indicated with the mark " " is not illustrated in the exploded view.
lNot including Carbon Film Resister ±5%, 1/4W Type in the P.W.Board
parts list. (Refer to the Schematic Diagram for those parts.)
lNot including Carbon Chip Resister 1/16W Type in the P.W.Board parts
list. (Refer to the Schematic Diagram for those parts.)
WARNING:
Parts marked with this symbol have critical characteristics.
Use ONLY replacement parts recommended by the manufacturer.
ll
ll
lResistors
Ex.:RN 14K 2E 182 GFR
Type Shape Power Resist- Allowable Others
and per- ance error
formance
]Resistance
1 8 2⇒1800 ohm = 1.8 kohm
Indicates number of zeros after effective number.
2-digit effective number.
•Units: ohm
1 R 2⇒1.2 ohm
1-digit effective number.
2-digit effective number, decimal point indicated by R.
•Units: ohm
ll
ll
lCapacitors
Ex.:CE 04W 1H 2R2 M BP
Type Shape Dielectric Capacity Allowable Others
and per- strength error
formance
]Capacity (electrolyte only)
2 2 2⇒2200µF
Indicates number of zeros after effective number.
2-digit effective number.
•Units: µF.
2 R 2⇒2.2µF
1-digit effective number.
2-digit effective number, decimal point indicated by R.
•Units: µF.
]Capacity (except electrolyte)
2 2 2⇒2200pF=0.0022µF
(More than 2) Indicates number of zeros after effective number.
2-digit effective number.
•Units: pF.
2 2 1⇒220pF
(0 or 1) Indicates number of zeros after effective number.
2-digit effective number.
•Units: pF.
•When the dielectric strength is indicated in AC, "AC" is included after the dieelectric
strength value.

19
DN-X300
PARTS LIST OF P.W.B. UNIT
＊本表に記載されている部品は、補修用部品のため製品に使用している部品とは一部、形状、寸法などが異なる場合があります
Note: The symbols in the column "Remarks" indicate the following destinations.
E3: U.S.A. & Canada model E2: Europe model EK: U.K. model E2A: Asia model
E1C: China model EUT: Taiwan R.O.C. model E1K: Korea model JP: Japan model
MIXER P.W.B. UNIT ASS'Y
Ref. No. Part No. Part Name Remarks Q'ty New
SEMICONDUCTORS GROUP
IC105,106 00D 958 7035 900 IC(NJM-2060V) *
IC107-109 00D 958 7036 006 IC(BA15218F) *
IC205,206 00D 958 7035 900 IC(NJM-2060V) *
IC207-209 00D 958 7036 006 IC(BA15218F) *
IC302 00D 958 7036 006 IC(BA15218F) *
IC402-407 00D 958 7036 006 IC(BA15218F) *
IC505 00D 958 7036 006 IC(BA15218F) *
IC506 00D 958 7035 104 IC(NJM-4556AD) *
IC507 00D 958 7034 804 IC(TC4053BFN) *
IC701 00D 958 7035 201 IC(LB1482M) *
Q103,104 00D 958 7034 707 TRANSISTOR(2SC2878-B) *
Q105 00D 958 0040 507 TRANSISTOR(2SC1740R)
Q203,204 00D 958 7034 707 TRANSISTOR(2SC2878-B) *
Q205 00D 958 0040 507 TRANSISTOR(2SC1740R)
Q303 00D 958 0040 701 TRANSISTOR(DTA124ES) *
Q401,402 00D 958 7034 707 TRANSISTOR(2SC2878-B) *
Q501-504 00D 958 7034 707 TRANSISTOR(2SC2878-B) *
D101-104 00D 958 0041 700 LED ( RED )
D201-204 00D 958 0041 700 LED ( RED )
D501 00D 958 0041 700 LED ( RED )
D701 00D 958 7019 308 LED (BLUE)
D705-716 00D 958 0041 807 LED ( GREEN )
D717-722 00D 958 0045 104 LED ( YELLOW )
D723,724 00D 958 0041 700 LED ( RED )
D804-806 00D 958 0041 700 LED ( RED )
ZD501,502 00D 958 0049 003 ZENER DIODE(MTZJ8.2-B)
RESISTORS GROUP
VR101 00D 958 7036 307 ROTARY VR(20KMN,RD09L124A01B) *
VR102 00D 958 7036 404 ROTARY VR(20KA*2,RD09L12D001D) *
VR103-105 00D 958 7036 307 ROTARY VR(20KB*2,RD09L124A01A) *
VR201 00D 958 7036 307 ROTARY VR(20KMN,RD09L124A01B) *
VR202 00D 958 7036 404 ROTARY VR(20KA*2,RD09L12D001D) *
VR203-205 00D 958 7036 307 ROTARY VR(20KB*2,RD09L124A01A) *
VR301 00D 958 7036 608 ROTARY VR(20KA,RD09L114003D) *
VR302,303 00D 958 7036 501 ROTARY VR(50KB,RD09L114A01B) *
VR401 00D 958 7036 705 ROTARY VR(50KB*2,RD09L12D001E) *
VR402-404 00D 958 7036 404 ROTARY VR(20KA*2,RD09L12D001D) *
VR501 00D 958 7036 802 ROTARY VR(20KB*2,RD09L12DA00A) *
VR502 00D 958 7036 404 ROTARY VR(20KA*2,RD09L12D001D) *
VR701,702 00D 958 7019 502 SEMI FIXED RESISTOR(3.3K OHM) *

20
DN-X300
CAPACITORS GROUP
C118 00D 958 7030 905 CHIP CAPACITOR(0.1uF/ 50V,Z) *
C119,120 00D 958 7033 902 ELEC. CAPACITOR(1uF/50V,M) *
C121,122 00D 958 7030 808 CHIP CAPACITOR(100pF/50V,J) *
C125,126 00D 958 7032 204 POLYESTER CAPACITOR(0.0082uF/50V,J) *
C127,128 00D 958 7030 905 CHIP CAPACITOR(0.1uF/ 50V,Z) *
C129-132 00D 958 7032 000 POLYESTER CAPACITOR(0.0018uF/50V,J) *
C135,136 00D 958 7033 407 POLYESTER CAPACITOR(0.1uF/100V,J) *
C139,140 00D 958 7032 505 POLYESTER ACPACITOR(0.056uF/50V,J) *
C141,142 00D 958 7029 806 POLYESTER CAPACITOR(0.01uF/50V,J) *
C147,148 00D 958 7032 204 POLYESTER CAPACITOR(0.0082uF/50V,J) *
C151,152 00D 958 0021 209 POLYESTER CAPACITOR(0.0047uF/100V,J)
C153,154 00D 958 7031 700 POLYESTER CAPACITOR(820pF/50V,J) *
C159,160 00D 958 7033 407 POLYESTER CAPACITOR(0.1uF/100V,J) *
C161-164 00D 958 7033 106 POLYESTER CAPACITOR(0.022uF/50V,J) *
C165-168 00D 958 7032 602 ELEC. CAPACITOR(4.7uF/50V,M) *
C169,170 00D 958 7034 008 ELEC. CAPACITOR(10uF/25V,M) *
C171,172 00D 958 7030 206 CHIP CAPACITOR(33pF/50V,J) *
C173,174 00D 958 7029 107 CERAMIC CAPACITOR(0.1uF/50V,Z) *
C175,176 00D 958 7030 002 CHIP CAPACITOR(47pF/50V,J) *
C177-180 00D 958 7034 008 ELEC. CAPACITOR(10uF/25V,M) *
C189-192 00D 958 7034 008 ELEC. CAPACITOR(10uF/25V,M) *
C218 00D 958 7030 905 CHIP CAPACITOR(0.1uF/ 50V,Z) *
C219,220 00D 958 7033 902 ELEC. CAPACITOR(1uF/50V,M) *
C221,222 00D 958 7030 808 CHIP CAPACITOR(100pF/50V,J) *
C225,226 00D 958 7032 204 POLYESTER CAPACITOR(0.0082uF/50V,J) *
C227,228 00D 958 7030 905 CHIP CAPACITOR(0.1uF/ 50V,Z) *
C229-232 00D 958 7032 000 POLYESTER CAPACITOR(0.0018uF/50V,J) *
C235,236 00D 958 7033 407 POLYESTER CAPACITOR(0.1uF/100V,J) *
C239,240 00D 958 7032 505 POLYESTER ACPACITOR(0.056uF/50V,J) *
C241,242 00D 958 7029 806 POLYESTER CAPACITOR(0.01uF/50V,J) *
C247,248 00D 958 7032 204 POLYESTER CAPACITOR(0.0082uF/50V,J) *
C251,252 00D 958 0021 209 POLYESTER CAPACITOR(0.0047uF/100V,J)
C253,254 00D 958 7031 700 POLYESTER CAPACITOR(820pF/50V,J) *
C259,260 00D 958 7033 407 POLYESTER CAPACITOR(0.1uF/100V,J) *
C261-264 00D 958 7033 106 POLYESTER CAPACITOR(0.022uF/50V,J) *
C265-268 00D 958 7032 602 ELEC. CAPACITOR(4.7uF/50V,M) *
C269,270 00D 958 7034 008 ELEC. CAPACITOR(10uF/25V,M) *
C271,272 00D 958 7030 206 CHIP CAPACITOR(33pF/50V,J) *
C273,274 00D 958 7030 905 CHIP CAPACITOR(0.1uF/ 50V,Z) *
C275,276 00D 958 7030 002 CHIP CAPACITOR(47pF/50V,J) *
C277-280 00D 958 7034 008 ELEC. CAPACITOR(10uF/25V,M) *
C310 00D 958 7033 708 CHIP CAPACITOR(68pF/50V,J) *
C311 00D 958 7034 008 ELEC. CAPACITOR(10uF/25V,M) *
C312 00D 958 7032 301 POLYESTER CAPACITOR(0.027uF/50V,J) *
C313 00D 958 7033 106 POLYESTER CAPACITOR(0.022uF/50V,J) *
C314 00D 958 7033 203 POLYESTER CAPACITOR(0.0033uF/100V,J) *
C315 00D 958 7031 506 CHIP CAPACITOR(270pF/50V,J) *
C316 00D 958 7030 303 CHIP CAPACITOR(22pF/50V,J) *
C317 00D 958 7030 905 CHIP CAPACITOR(0.1uF/ 50V,Z) *
C318 00D 958 7034 008 ELEC. CAPACITOR(10uF/25V,M) *
C319 00D 958 7030 507 ELEC. CAPACITOR(10uF/50V,M) *
C402 00D 958 7029 107 CERAMIC CAPACITOR(0.1uF/50V,Z) *
C405,406 00D 958 7030 206 CHIP CAPACITOR(33pF/50V,J) *
C407,408 00D 958 7034 309 CHIP CAPACITOR(82pF/50V) *
C409,410 00D 958 7030 002 CHIP CAPACITOR(47pF/50V,J) *
Ref. No. Part No. Part Name Remarks Q'ty New
