Denon AVR-X540BT User manual

.
AVR-X540BT
AV SURROUND RECEIVER
Owner’s Manual
Contents Connections Playback Settings Tips Appendix
1
Front panel Display Rear panel Remote Index

Accessories 5
Inserting the batteries 6
Operating range of the remote control unit 6
Features 7
High quality sound 7
High performance 7
Easy operation 9
Part names and functions 10
Front panel 10
Display 13
Rear panel 14
Remote control unit 16
Connections
Connecting speakers 20
Speaker installation 20
Speaker connection 22
Standard speaker configuration and connection 24
Connecting a TV 25
Connection 1 : TV equipped with an HDMI connector and
compatible with the ARC (Audio Return Channel) 26
Connection 2 : TV equipped with an HDMI connector and
incompatible with the ARC (Audio Return Channel) 27
Connection 3 : TV equipped without an HDMI connector 28
Connecting a playback device 29
Connecting a set-top box (Satellite tuner/cable TV) 30
Connecting a DVD player or Blu-ray Disc player 31
Connecting a video camcorder or game console 32
Connecting a USB memory device to the USB port 33
Connecting an FM/AM antenna 34
Connecting the power cord 36
Playback
Basic operation 38
Turning the power on 38
Selecting the input source 38
Adjusting the volume 39
Turning off the sound temporarily (Muting) 39
Playback a DVD player/Blu-ray Disc player 39
Playing a USB memory device 40
Playing files stored on USB memory devices 41
Listening to music on a Bluetooth device 42
Playing music from Bluetooth device 43
Pairing with other Bluetooth devices 45
Reconnecting to this unit from a Bluetooth device 46
Contents Connections Playback Settings Tips Appendix
Contents
2
Front panel Display Rear panel Remote Index

Listening to FM/AM broadcasts 47
Listening to FM/AM broadcasts 48
RDS search 49
PTY search 50
TP search 51
Radio Text 51
Tuning in to stations and presetting them automatically (Auto
Preset) 52
Presetting the current broadcast station (Preset Memory) 53
Listening to preset stations 53
Skipping preset broadcast stations (Preset Skip) 54
Cancelling Preset Skip 54
Convenience functions 55
Performing repeat playback (Repeat) 56
Performing random playback (Random) 56
Adjusting the tone (Tone) 57
Optimizing the night time listening volume (Night Mode) 58
Displaying your desired video during audio playback (Video
Select) 59
Selecting a sound mode 60
Selecting a sound mode 60
HDMI control function 64
Setting procedure 64
Adjusting the volume of each channel to match the input
source (Ch Level Adjust) 65
Sleep timer function 66
Using the sleep timer 67
Quick select plus function 68
Calling up the settings 69
Changing the settings 69
Settings
Menu map 70
Menu operations 73
Audio 74
Surr.Parameter 74
Restorer 77
Audio Delay 78
Volume 78
Room EQ 79
Video 80
HDMI Audio Out 80
HDMI PassThrough 80
Pass Source 81
HDMI Control 81
ARC 82
TV Audio Switching 82
Pow.Off Control 83
Contents Connections Playback Settings Tips Appendix
3
Front panel Display Rear panel Remote Index

Inputs 84
Input Assign 84
Source Level 84
Input Select 85
Speakers 86
Auto Setup 86
Procedure for speaker settings (Auto Setup) 88
Error messages 90
Manual Setup 91
Speaker Config. 91
Distances 92
Levels 93
Crossovers 93
Bass 94
General 95
Language 95
ECO 95
Bluetooth 97
Front Display 98
Firmware 98
Setup Lock 99
Checking the information 100
Tips
Tips 102
Troubleshooting 103
Resetting factory settings 115
Appendix
About HDMI 116
Playing back a USB memory devices 119
Playing back a Bluetooth device 120
Personal memory plus function 121
Last function memory 121
Sound modes and channel output 122
Sound modes and surround parameters 123
Types of input signals, and corresponding sound modes 124
Explanation of terms 125
Trademark information 130
Specifications 132
Index 136
Contents Connections Playback Settings Tips Appendix
4
Front panel Display Rear panel Remote Index

Thank you for purchasing this Denon product.
To ensure proper operation, please read this owner’s manual carefully before using the product.
After reading this manual, be sure to keep it for future reference.
Accessories
Check that the following parts are supplied with the product.
.
Quick Start Guide Safety Instructions Notes on radio Power cord
R03/AAA batteriesRemote control unit
(RC-1216)
Sound calibration
microphone
AM loop antenna
FM indoor antenna
Cautions on Using Batteries
Contents Connections Playback Settings Tips Appendix
5
Front panel Display Rear panel Remote Index

Inserting the batteries
1Remove the rear lid in the direction of the arrow and
remove it.
.
2Insert two batteries correctly into the battery
compartment as indicated.
.
Batteries
3Put the rear cover back on.
NOTE
0To prevent damage or leakage of battery fluid:
0Do not use a new battery together with an old one.
0Do not use two different types of batteries.
0Remove the batteries from the remote control unit if it will not be in use for long
periods.
0If the battery fluid should leak, carefully wipe the fluid off the inside of the battery
compartment and insert new batteries.
Operating range of the remote control
unit
Point the remote control unit at the remote sensor when operating it.
.
30° 30°
Approx. 7 m
Contents Connections Playback Settings Tips Appendix
6
Front panel Display Rear panel Remote Index

Features
High quality sound
0With discrete circuit technology, the power amplifier provides
identical quality for all 5-channels (90 Watts x 5-channels)
For optimum realism and stunning dynamic range, the power amplifier
section features discrete power devices (not integrated circuitry).
By using high current, high power discrete power devices, the amplifier
is able to easily drive high quality speakers.
High performance
04K 60Hz input/output supported
.
When 4K Ultra HD (High Definition) is used, an input/output speed of 60
frames per second (60p) is achieved for video signals. When connected
to 4K Ultra HD and 60p video signal input compatible TV, you can enjoy
the sense of realism only available from high-definition images, even
when viewing fast-moving video.
This unit also supports image processing for 4K 60p, 4:4:4 and 24-bit
videos. By processing the video at the original resolution, this unit lets
you enjoy flawless, high-definition picture quality.
This unit also supports HDR (High Dynamic Range) and BT.2020 wide
color gamut.
0HDCP 2.2
This unit is compatible with HDCP 2.2 copyright protection standard.
Contents Connections Playback Settings Tips Appendix
7
Front panel Display Rear panel Remote Index

0HDMI connections enable connection to various digital AV
devices (5 inputs, 1 output)
.
51
Out
In
This unit is equipped with 5 HDMI inputs and 1 HDMI output enabling
connection to various HDMI compatible devices such as Blu-ray Disc
players, game consoles and HD video camcorders.
0Wireless connection with Bluetooth devices can be carried out
easily (v p. 42)
.
You can enjoy music simply by connecting wirelessly with your
smartphone, tablet, PC, etc.
0Energy-saving design
This unit is equipped with an ECO Mode function that allows you to
enjoy music and movies while reducing the power consumption during
use, and also an auto-standby function that automatically turns off the
power supply when the unit is not in use. This helps reduce
unnecessary power use.
Contents Connections Playback Settings Tips Appendix
8
Front panel Display Rear panel Remote Index

Easy operation
0“Setup Assistant” provides easy-to-follow setup instructions
First select the language when prompted. Then simply follow the
instructions displayed on the TV screen to set up the speakers etc.
0Easy to use Graphical User Interface
This unit is equipped with a Graphical User Interface for improved
operability.
0Compatible with the “Denon 500 Series Remote” app performing
basic operations of the unit with an iPad, iPhone or Android™
devices (Google, Amazon Kindle Fire)
The “Denon 500 Series Remote”z application allows you to wireless
control this unit from an iPhone, iPad, Android smartphone or tablet
when paired and connected via Bluetooth. Basic functions include:
Power ON/OFF, volume, mute, and source selection.
zDownload the appropriate “Denon 500 Series Remote” for your iOS or Android
devices. In order to use “Denon 500 Series Remote”, your iOS or Android device
needs to be paired with this unit in advance.
Contents Connections Playback Settings Tips Appendix
9
Front panel Display Rear panel Remote Index

Part names and functions
Front panel
.
MASTER VOLUME
PHONES SETUP MIC
TUNER
PRESET CH TUNE DIMMER STATUS
QUICK SELECT
BluetoothGAMECBL/SAT 3214
DVD/Blu-ray
SOURCE SELECT
re
Q1uoQ0i
tqw y
Q
4
Q
3
Q
2
For details, see the next page.
Contents Connections Playback Settings Tips Appendix
10
Front panel Display Rear panel Remote Index

.
MASTER VOLUME
PHONES SETUP MIC
TUNER
PRESET CH TUNE DIMMER STATUS
QUICK SELECT
BluetoothGAMECBL/SAT 3214
DVD/Blu-ray
SOURCE SELECT
trqw e y
uioQ0
APower operation button (X)
Used to turn the power on/off (standby). (v p. 38)
BPower indicator
This is lit as follows according to the power status:
0Green: Power on
0Off: Normal standby
0Red:
0When “HDMI PassThrough” is set to “On” (v p. 80)
0When “HDMI Control” is set to “On” (v p. 81)
0When “BluetoothStandby” is set to “On” (v p. 97)
CSOURCE SELECT knob
This selects the input source. (v p. 38)
DRemote control sensor
This receives signals from the remote control unit. (v p. 6)
EDisplay
This displays various pieces of information. (v p. 13)
FMASTER VOLUME knob
This adjusts the volume level. (v p. 39)
GTuner preset channel buttons
(TUNER PRESET CH +, –)
These select preset broadcast stations. (v p. 53)
HTuning buttons (TUNE +, –)
Select either FM broadcast or AM broadcast. (v p. 48)
IDIMMER button
Each press of this switches the brightness of the display. (v p. 98)
JSTATUS button
Each press of this switches the status information that is shown on the
display.
Contents Connections Playback Settings Tips Appendix
11
Front panel Display Rear panel Remote Index

.
MASTER VOLUME
PHONES SETUP MIC
TUNER
PRESET CH TUNE DIMMER STATUS
QUICK SELECT
BluetoothGAMECBL/SAT 3214
DVD/Blu-ray
SOURCE SELECT
Q
4
Q
3
Q
2
Q1
KQUICK SELECT buttons
With a single press of any of these buttons, you can call up various
settings you’ve registered to each button such as the input source,
volume level and sound mode settings. (v p. 68)
LHeadphones jack (PHONES)
This is used to connect headphones.
When the headphones are plugged into this jack, audio will no longer
be output from the connected speakers or from the SUBWOOFER
connectors.
NOTE
0To prevent hearing loss, do not raise the volume level excessively when using
headphones.
MUSB port (T)
This is used to connect USB storages (such as USB memory devices)
and the USB cable supplied. (v p. 33)
NSETUP MIC jack
This is used to connect the supplied Sound calibration microphone.
(v p. 89)
Contents Connections Playback Settings Tips Appendix
12
Front panel Display Rear panel Remote Index

Display
.
yutreqw
io
AInput mode indicators
These light according to the audio input mode settings of each input
source. (v p. 85)
BDecoder indicators
These light when Dolby or DTS signals are input or when the Dolby or
DTS decoder is running.
CTuner reception mode indicators
These light up according to the reception conditions when the input
source is set to “Tuner”.
TUNED: Lights up when the broadcast is properly tuned in.
STEREO: Lights up when receiving FM stereo broadcasts.
RDS : Lights up when receiving RDS broadcasts.
DSleep timer indicator
This lights when the sleep mode is selected. (v p. 66)
ECircle indicator
This is displayed when the input source is “USB” when you are playing
back music.
FVolume indicator
GMUTE indicator
This blinks while the sound is muted. (v p. 39)
HInformation display
The input source name, sound mode, setting values and other
information are displayed here.
IInput signal indicators
The respective indicator will light corresponding to the input signal.
(v p. 85)
Contents Connections Playback Settings Tips Appendix
13
Front panel Display Rear panel Remote Index

Rear panel
.
r
ewq
iyt u
For details, see the next page.
Contents Connections Playback Settings Tips Appendix
14
Front panel Display Rear panel Remote Index

.
rewq
i
yt u
AVideo connectors (VIDEO)
Used to connect devices equipped with video connectors.
0“Connection 3 : TV equipped without an HDMI
connector” (v p. 28)
0“Connecting a set-top box (Satellite tuner/cable TV)” (v p. 30)
BDigital audio connectors (DIGITAL AUDIO)
Used to connect devices equipped with digital audio connectors.
0“Connection 2 : TV equipped with an HDMI connector and
incompatible with the ARC (Audio Return Channel)” (v p. 27)
0“Connection 3 : TV equipped without an HDMI
connector” (v p. 28)
0“Connecting a set-top box (Satellite tuner/cable TV)” (v p. 30)
CHDMI connectors
Used to connect devices equipped with HDMI connectors.
0“Connection 1 : TV equipped with an HDMI connector and
compatible with the ARC (Audio Return Channel)” (v p. 26)
0“Connection 2 : TV equipped with an HDMI connector and
incompatible with the ARC (Audio Return Channel)” (v p. 27)
0“Connecting a set-top box (Satellite tuner/cable TV)” (v p. 30)
0“Connecting a DVD player or Blu-ray Disc player” (v p. 31)
0“Connecting a video camcorder or game console” (v p. 32)
DAC inlet (AC IN)
Used to connect the power cord. (v p. 36)
EAnalog audio connectors (AUDIO)
Used to connect devices equipped with analog audio connectors.
(v p. 30)
FFM/AM antenna terminals (ANTENNA)
Used to connect FM antennas and AM loop antennas. (v p. 34)
GPRE OUT connectors
Used to connect a subwoofer with a built-in amplifier. (v p. 23)
HSpeaker terminals (SPEAKERS)
Used to connect speakers. (v p. 22)
Contents Connections Playback Settings Tips Appendix
15
Front panel Display Rear panel Remote Index

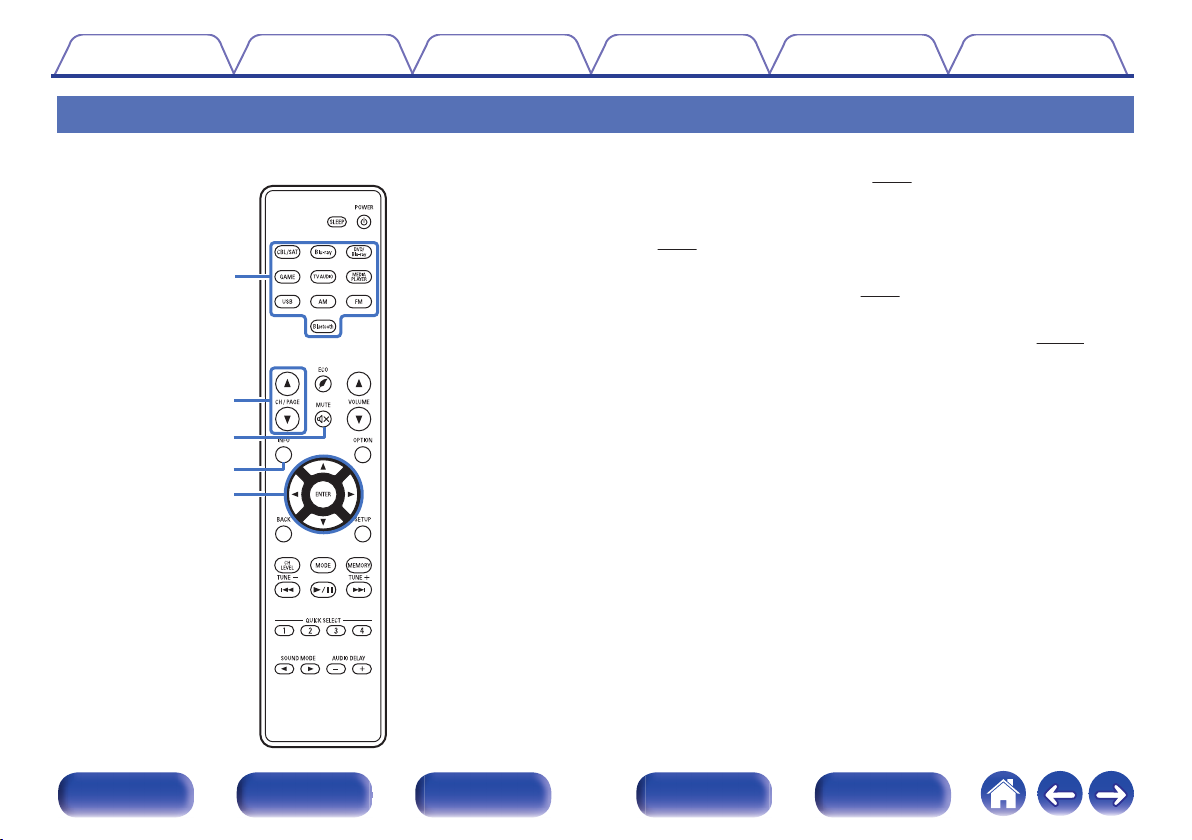

Remote control unit
AInput source select buttons
These select the input source. (v p. 38)
BChannel/page search buttons (CH/PAGE df)
These select radio stations registered to presets or switch pages.
(v p. 53)
CMUTE button (:)
This mutes the output audio. (v p. 39)
DInformation button (INFO)
This displays the status information on the TV screen. (v p. 100)
ECursor buttons (uio p)
These select items.
w
r
e
t
q
Contents Connections Playback Settings Tips Appendix
16
Front panel Display Rear panel Remote Index

FBACK button
This returns to the previous screen.
GChannel level button (CH LEVEL)
Adjusting the volume of the speakers. (v p. 65)
HSystem buttons
These perform playback related operations.
Tuning up / Tuning down buttons (TUNE +, –)
These select either FM broadcast or AM broadcast. (v p. 48)
IQUICK SELECT buttons (1 – 4)
These call up settings registered to each button, such as input source,
volume level and sound mode settings. (v p. 68)
JSOUND MODE buttons (0 1)
These select the sound mode. (v p. 60)
KRemote control signal transmitter
This transmits signals from the remote control unit. (v p. 6)
LSLEEP button
This sets the sleep timer. (v p. 66)
Q2
Q1
Q0
o
i
u
y
Contents Connections Playback Settings Tips Appendix
17
Front panel Display Rear panel Remote Index

MPOWER button (X)
This turns the power on/off. (v p. 38)
NECO Mode button (G)
This switches to ECO Mode. (v p. 95)
OVOLUME buttons (df)
These adjust the volume level. (v p. 39)
POPTION button
This displays the option menu on the TV screen.
QENTER button
This determines the selection.
RSETUP button
This displays the menu on the TV screen. (v p. 73)
SPreset memory button (MEMORY)
The current broadcast station that is preset. (v p. 53)
TTuning mode select button (MODE)
This switches the tune mode. (v p. 48)
UAUDIO DELAY buttons (+, –)
Compensates for incorrect timing between video and audio.
(v p. 78)
Q3
Q5
Q4
Q8
Q9
W0
Q6
Q7
W1
Contents Connections Playback Settings Tips Appendix
18
Front panel Display Rear panel Remote Index

oContents
Connecting speakers 20
Connecting a TV 25
Connecting a playback device 29
Connecting a USB memory device to the USB port 33
Connecting an FM/AM antenna 34
Connecting the power cord 36
NOTE
0Do not plug in the power cord until all connections have been completed.
However, when the “Setup Assistant”is running, follow the instructions in the
“Setup Assistant” (page 7 in the separate “Quick Start Guide”) screen for making
connections. (During “Setup Assistant” operation, the input/output connectors do
not conduct current.)
0Do not bundle power cords together with connection cables. Doing so can result in
noise.
oCables used for connections
Provide necessary cables according to the devices you want to
connect.
Speaker cable
.
Subwoofer cable
.
HDMI cable
.
Video cable
.
Optical cable
.
Audio cable
.
R
L
R
L
Contents Connections Playback Settings Tips Appendix
Connections
19
Front panel Display Rear panel Remote Index

Connecting speakers
Install speakers and connect them to this unit. (“Speaker installation” (v p. 20), “Speaker connection” (v p. 22))
Speaker installation
Determine the speaker system depending on the number of speakers you
are using and install each speaker and subwoofer in the room.
Speaker installation is explained using this example of a typical
installation.
.
FL
SW1 C
SL
FR
SR
SW2
FL/FR
(Front speaker left/
right):
Place the FRONT left and right speakers an
equal distance from the main listening position.
The distance between each speaker and your TV
should also be the same.
C
(Center speaker):
Place the CENTER speaker in between the front
speakers and above or below your TV.
SL/SR
(Surround speaker left/
right):
Place the SURROUND left and right speakers an
equal distance to the left and right sides of the
main listening position.
SW 1/2
(Subwoofer) :
Place the SUBWOOFER at a convenient location
near the front speakers. If you have two
subwoofers, place them asymmetrically across
the front of your room.
Contents Connections Playback Settings Tips Appendix
20
Front panel Display Rear panel Remote Index
