Denon AVR-S670H User manual

AVR-S670H
INTEGRATED NETWORK AV RECEIVER
Owner’s Manual
Contents Connections Playback Settings Tips Appendix
1
Front panel Display Rear panel Remote Index

Accessories 8
Inserting the batteries 9
Operating range of the remote control unit 9
Features 10
High quality sound 10
High performance 10
Easy operation 14
Part names and functions 15
Front panel 15
Display 18
Rear panel 20
Remote control unit 23
Connections
Speaker installation 27
Connecting speakers 29
Before connecting speakers 29
Connecting speakers to the speaker terminals 32
Connecting 5.1-channel speakers 33
Connecting a TV 34
Connection 1 : TV equipped with an HDMI connector and
compatible with the ARC / eARC 35
Connection 2 : TV equipped with an HDMI connector and
incompatible with the ARC / eARC 36
Connecting a playback device 37
Connecting a set-top box (Satellite tuner/cable TV) 38
Connecting a media player 39
Connecting a Blu-ray Disc player or DVD player 40
Connecting a game console or player device compatible with 8K 41
Connecting a turntable 42
Connecting a USB memory device to the USB port 43
Connecting FM/AM antennas 44
Connecting to a home network (LAN) 46
Wired LAN 46
Wireless LAN 47
Connecting the power cord 48
Contents Connections Playback Settings Tips Appendix
2
Front panel Display Rear panel Remote Index

Playback
Basic operation 50
Turning the power on 50
Selecting the input source 50
Adjusting the volume 51
Turning off the sound temporarily (Muting) 51
Playback a Blu-ray Disc player/DVD player 51
Playing a USB memory device 52
Playing files stored on USB memory devices 53
Listening to music on a Bluetooth device 56
Playing music from Bluetooth device 57
Pairing with other Bluetooth devices 58
Reconnecting to this unit from a Bluetooth device 59

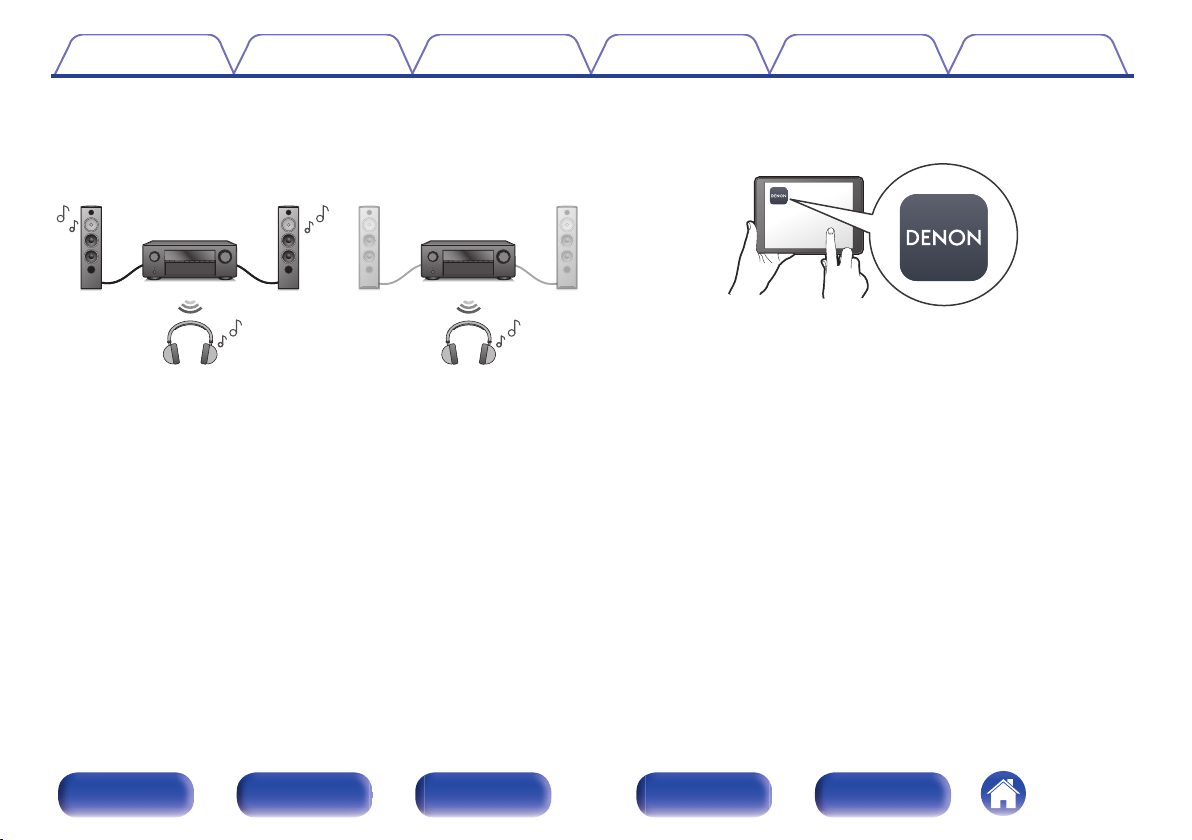

Listening to audio on Bluetooth headphones 60
Listening to audio on Bluetooth headphones 61
Adjusting the volume of Bluetooth headphones 62
Reconnecting to a Bluetooth headphones 62
Disconnecting Bluetooth headphones 63
Listening to FM/AM broadcasts 64
Listening to FM/AM broadcasts 65
Tuning in by entering the frequency (Direct Tune) 66
Changing the tune mode (Tune Mode) 67
Tuning in to stations and presetting them automatically (Auto
Preset Memory) 67
Presetting the current broadcast station (Preset Memory) 68
Listening to preset stations 68
Specify a name for the preset broadcast station (Preset Name) 69
Skipping preset broadcast stations (Preset Skip) 70
Cancelling Preset Skip 71
Listening to Internet Radio 72
Listening to Internet Radio 73
Playing back files stored on a PC or NAS 74
Playing back files stored on a PC or NAS 75
Getting the HEOS App 78
HEOS Account 79
Playing from streaming music services 80
Listening to the same music in multiple rooms 83
Contents Connections Playback Settings Tips Appendix
3
Front panel Display Rear panel Remote Index

AirPlay function 87
Playing songs from your iPhone, iPod touch or iPad 88
Playing iTunes music with this unit 88
Play a song from your iPhone, iPod touch or iPad on multiple
synced devices (AirPlay 2) 89
Spotify Connect function 90
Playing Spotify music with this unit 90
Convenience functions 91
Playing back HEOS Favorites 92
Adding to HEOS Favorites 93
Deleting a HEOS Favorites 93
Adjusting the audibility of dialog and vocals (Dialog Enhancer) 93
Adjusting the volume of each channel to match the input source
(Channel Level Adjust) 94
Adjusting the tone (Tone) 95
Adjusting audio delay (Audio Delay) 96
Displaying your desired video during audio playback (Video
Select) 97
Selecting a sound mode 98
Selecting a sound mode 99
Direct playback 100
Pure Direct playback 101
Auto surround playback 101
Description of sound mode types 102
Sound mode that can be selected for each input signal 105
HDMI Control function 108
Setting procedure 108
Sleep timer function 109
Using the sleep timer 110
Quick select plus function 111
Calling up the settings 112
Changing the settings 113
Panel lock function 114
Disabling all key button operations 114
Disabling all button operations except VOLUME 114
Canceling the Panel lock function 115
Contents Connections Playback Settings Tips Appendix
4
Front panel Display Rear panel Remote Index

Remote lock function 116
Disabling the sensor function of the remote control unit 116
Enabling the remote sensor function 116
Web control function 117
Controlling the unit from a web control 117
Settings
Menu map 119
Menu operations 124
Audio 125
Subwoofer Level Adjust 125
Surround Parameter 125
Restorer 131
Volume 132
Audyssey®133
Graphic EQ 135
Video 137
HDMI Setup 137
HDMI Upscaler 141
On-Screen Display 142
Screensaver 143
4K/8K Signal Format 143
HDCP Setup 145
Inputs 146
Input Assign 146
Source Rename 149
Hide Sources 149
Source Level 149
Speakers 150
Audyssey® Setup 150
Procedure for speaker settings (Audyssey® Setup) 152
Error messages 157
Retrieving Audyssey® Setup settings 158
Contents Connections Playback Settings Tips Appendix
5
Front panel Display Rear panel Remote Index

Manual Setup 159
Speaker Layout 159
Front/Center/Surround 159
Subwoofer 160
View Terminal Config. 160
Distances 160
Levels 161
Crossovers 162
Advanced 162
Subwoofer Output 163
Low Pass Filter 164
Network 165
Information 165
Connection 165
Wi-Fi Setup 166
Settings 168
Network Control 169
Friendly Name 170
Diagnostics 170
AirPlay 171
Spotify Connect 172
Wi-Fi and Bluetooth 172
HEOS 173
You have not signed in 173
You have already signed in 173
General 174
Language 174
Owner's Manual 174
ECO 174
Bluetooth Transmitter 178
Quick Select 179
Front Display 179
Firmware 180
Information 182
Usage Data 184
Save & Load 184
Setup Lock 185
Reset 185
Contents Connections Playback Settings Tips Appendix
6
Front panel Display Rear panel Remote Index

Tips
Tips 187
Troubleshooting 189
Power does not turn on / Power is turned off 190
Operations cannot be performed through the remote control unit 191
Display on this unit shows nothing 191
No sound comes out 192
Desired sound does not come out 193
Sound is interrupted or noise occurs 196
No video is shown on the TV 197
The menu screen is not displayed on the TV 198
The color of the menu screen and operations content displayed
on the television is different from normal 198
AirPlay cannot be played back 199
USB memory devices cannot be played back 200
Bluetooth cannot be played back 201
The Internet radio cannot be played back 203
Music files on PC or NAS cannot be played back 204
Various online services cannot be played 205
The HDMI Control function does not work 205
Cannot connect to a wireless LAN network 206
Update error messages 207
Resetting factory settings 208
Resetting network settings 209
Factory Restore 210
Appendix
About HDMI 211
Relationship between video signals and TV output 215
Playing back a USB memory devices 217
Playing back a Bluetooth device 218
Playing back a file saved on a PC or NAS 219
Playing back Internet Radio 220
Personal memory plus function 220
Last function memory 220
Sound modes and channel output 221
Sound modes and surround parameters 222
Types of input signals, and corresponding sound modes 225
Explanation of terms 226
Trademark information 234
Specifications 236
Audio section 236
Tuner section 238
Wireless LAN section 238
Bluetooth section 239
General 240
Index 242
Contents Connections Playback Settings Tips Appendix
7
Front panel Display Rear panel Remote Index

Thank you for purchasing this Denon product.
To ensure proper operation, please read this owner’s manual carefully before using the product.
After reading this manual, be sure to keep it for future reference.

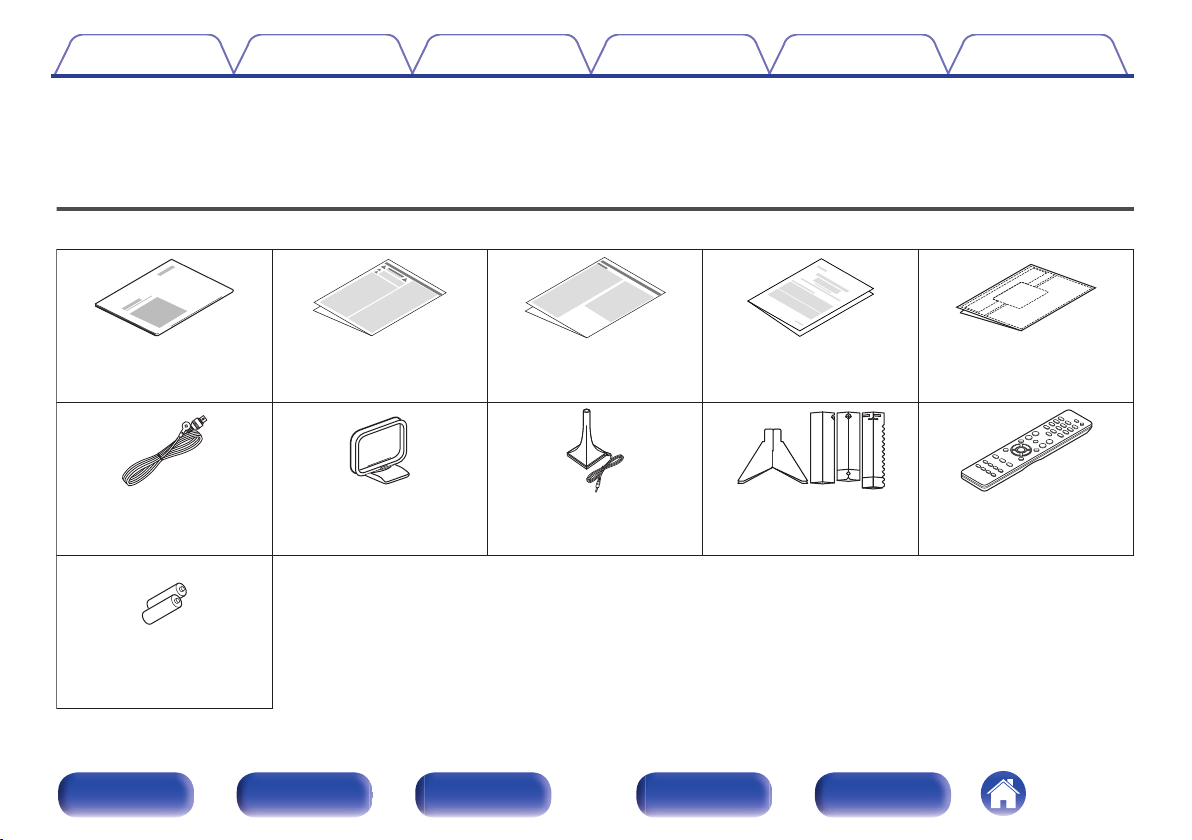

Accessories
Check that the following parts are supplied with the product.
Cable labelsNotes on radioSafety InstructionsQuick Start Guide
Sound calibration
microphone stand
Sound calibration
microphone
AM loop antennaFM indoor antenna Remote control unit
(RC-1258)
Warranty
(for North America
model only)
2× R03/AAA batteries
Contents Connections Playback Settings Tips Appendix
8
Front panel Display Rear panel Remote Index

Inserting the batteries
1Remove the rear lid in the direction of the arrow and
remove it.
2Insert two batteries correctly into the battery
compartment as indicated.
Batteries
3Put the rear cover back on.
NOTE
0To prevent damage or leakage of battery fluid:
0Do not use a new battery together with an old one.
0Do not use two different types of batteries.
0Remove the batteries from the remote control unit if it will not be in use for long
periods.
0If the battery fluid should leak, carefully wipe the fluid off the inside of the battery
compartment and insert new batteries.
Operating range of the remote control
unit
Point the remote control unit at the remote sensor when operating it.
30° 30°
Approx. 23 ft/7 m
Contents Connections Playback Settings Tips Appendix
9
Front panel Display Rear panel Remote Index

Features
High quality sound
0Powerful 5-channel Amplifier with the Latest Home Cinema Specs
Featuring discrete high-current amplifiers on all channels, this unit
delivers high-power performance of 75 watts per channel (8 Ω/ohms, 20
Hz - 20 kHz, T.H.D.: 0.08 %, 2ch. driven). Low impedance drivers
provide operational stability for a wide range of speakers and create a
balanced, tonal sound.
Upgrade your expectations in home theater entertainment.
High performance
08K 60Hz input/output supported
8K,
4K 120Hz
8K,
4K 120Hz
When 8K Ultra HD (High Definition) is used, an input/output speed of 60
frames per second (60p) is achieved for video signals. When connected
to 8K Ultra HD and 60p video signal input compatible TV, you can enjoy
the sense of realism only available from high-definition images, even
when viewing fast-moving video.
This unit supports a wide range of HDR content, delivering even higher
definition video.
0HDCP 2.3
This unit is compatible with HDCP 2.3 copyright protection standard.
Contents Connections Playback Settings Tips Appendix
10
Front panel Display Rear panel Remote Index

0Digital video processor upscales 1080p / 4K to 8K
8K Ultra HD
8K 8K
1080p/4K 60Hz
8K
up scaling
This unit is equipped with a 8K video upscaling function that allows
1080p/4K video to be output via HDMI at 8K (7680 × 4320 pixels)
resolution. This function enables the device to be connected to a TV
using a single HDMI cable, and produces high definition images for any
video source.
0eARC (Enhanced Audio Return Channel) function compatibility
The eARC function is compatible with conventional ARC function-
compatible audio formats in addition to multichannel linear PCM, Dolby
TrueHD, DTS-HD and other audio formats a conventional ARC function
cannot transmit.
Additionally, connecting to an eARC function-compatible television
enables enjoyment of higher-quality surround playback of the audio
content played from your television.
0HDMI connections enable connection to various digital AV
devices (6 inputs, 1 output)
61
OutIn
This unit is equipped with 6 HDMI inputs and 1 HDMI output enabling
connection to various HDMI compatible devices such as Blu-ray Disc
players, game consoles and HD video camcorders.
Contents Connections Playback Settings Tips Appendix
11
Front panel Display Rear panel Remote Index

0The device is equipped with a AirPlay® function in addition to
network functions such as Internet radio etc. (v p. 87)
You can enjoy a wide variety of content, including listening to Internet
Radio, playing audio files stored on your PC.
This unit also supports Apple AirPlay which lets you stream your music
library from an iPhone®, iPad®, iPod touch® or iTunes®.
0Supports AirPlay 2® wireless audio
Sync multiple AirPlay 2 compatible devices/speakers for simultaneous
playback.
This unit supports AirPlay 2 and requires iOS 11.4 or later.
0Playback of DSD and FLAC files via USB and networks
This unit supports the playback of high resolution audio formats such as
DSD (5.6 MHz) and FLAC 192 kHz files. It provides high quality
playback of high resolution files.
0Wireless connection with Bluetooth devices can be carried out
easily (v p. 56)
You can enjoy music simply by connecting wirelessly with your
smartphone, tablet, PC, etc.
Contents Connections Playback Settings Tips Appendix
12
Front panel Display Rear panel Remote Index

0Connect Bluetooth headphones
This unit can transmit Bluetooth so you can enjoy audio wirelessly
through your Bluetooth headphones.
Playback can be performed using connected speakers and Bluetooth
headphones simultaneously, or only using Bluetooth headphones.
0Energy-saving design
This unit is equipped with an ECO Mode function that allows you to
enjoy music and movies while reducing the power consumption during
use, and also an auto-standby function that automatically turns off the
power supply when the unit is not in use. This helps reduce
unnecessary power use.
0Compatible with the “Denon AVR Remote” Appz for performing
basic operations of the unit with an iPad, iPhone or Android™
devices (Google, Amazon Kindle Fire)
The Denon AVR Remote app gives you full control of this unit as well as
access to its setup menu for detailed adjustments from your phones or
tablets. “Denon AVR Remote” App also gives you quick access to the
receiver's status display, option menus, Denon Blu-ray Disc player
control, and online owner's manual for your convenience.
zDownload the appropriate “Denon AVR Remote” App for your iOS or Android
devices. This unit needs to be connected to the same LAN or Wi-Fi (wireless
LAN) network that the iPad, iPhone or Android™ is connected to.
Contents Connections Playback Settings Tips Appendix
13
Front panel Display Rear panel Remote Index

0HEOS provides streaming music from your favorite online music
sources
HEOS wireless multi-room sound system that enables you to enjoy your
favorite music anywhere and everywhere around your home. By utilizing
your existing home network and the HEOS App (available for iOS,
Android and Amazon devices), you can explore, browse, and play
music from your own music library or from many online streaming music
services.
When multiple products with HEOS Built-in are connected to the same
network, they can be grouped to play the same music on all products
simultaneously, or different music can be played on each one.
Easy operation
0“Setup Assistant” provides easy-to-follow setup instructions
First select the language when prompted. Then simply follow the
instructions displayed on the TV screen to set up the speakers, network,
etc.
0Easy to use Graphical User Interface
This unit is equipped with a Graphical User Interface for improved
operability.
Contents Connections Playback Settings Tips Appendix
14
Front panel Display Rear panel Remote Index

Part names and functions
Front panel
Q11 Q2 Q3 Q4iuQ0o
Q9Q5 Q6 Q7 Q8
er t yqw
For details, see the next page.
Contents Connections Playback Settings Tips Appendix
15
Front panel Display Rear panel Remote Index

iuQ0o
er t yqw
APower operation button (X)
Used to turn the power on/off (standby). (v p. 50)
BPower indicator
This is lit as follows according to the power status:
0Green: Power on
0Off: Normal standby
0Red:
0When “HDMI Pass Through” is set to “On” (v p. 137)
0When “HDMI Control” is set to “On” (v p. 139)
0When “Network Control” is set to “Always On” (v p. 169)
CSOURCE SELECT knob
This selects the input source. (v p. 50)
DRemote control sensor
This receives signals from the remote control unit. (v p. 9)
EDisplay
This displays various pieces of information. (v p. 18)
FMASTER VOLUME knob
This adjusts the volume level. (v p. 51)
GTuner preset channel buttons
(TUNER PRESET CH +, –)
These select preset broadcast stations. (v p. 68)
HTuning up / Tuning down buttons (TUNE +, –)
Select either FM broadcast or AM broadcast. (v p. 65)
IReception band select button (BAND)
This switches the reception band. (v p. 65)
JTune mode select button (MODE)
This switches the tuning mode. (v p. 67)
Contents Connections Playback Settings Tips Appendix
16
Front panel Display Rear panel Remote Index

Q11 Q2 Q3 Q4
Q
9
Q
5
Q
6
Q
7
Q
8
KInformation button (INFO)
This displays the status information on the TV screen. (v p. 183)
LSLEEP button
This sets the sleep timer. (v p. 109)
MDIMMER button
Each press of this switches the brightness of the display. (v p. 179)
NSTATUS button
Each press of this switches the status information that is shown on the
display.
OHeadphones jack (PHONES)
This is used to connect headphones.
When the headphones are plugged into this jack, audio will no longer
be output from the connected speakers or from the SUBWOOFER
connectors.
NOTE
0To prevent hearing loss, do not raise the volume level excessively when using
headphones.
PSETUP MIC jack
This is used to connect the supplied Sound calibration microphone.
(v p. 153)
QQUICK SELECT buttons
With a single press of any of these buttons, you can call up various
settings you’ve registered to each button such as the input source,
volume level and sound mode settings. (v p. 111)
RSOUND MODE buttons
These select the sound mode. (v p. 98)
SUSB port (T)
This is used to connect USB storages (such as USB memory devices).
(v p. 43)
Contents Connections Playback Settings Tips Appendix
17
Front panel Display Rear panel Remote Index

Display
yutrewq
io
AInput mode indicators
These light according to the audio input mode settings of each input
source. (v p. 148)
BDecoder indicators
These light when Dolby or DTS signals are input or when the Dolby or
DTS decoder is running.
CAudyssey® indicator
This lights when “MultEQ®”, “Dynamic EQ” or “Dynamic Volume” has
been set up. (v p. 133)
DTuner reception mode indicators
These light up according to the reception conditions when the input
source is set to “Tuner”.
TUNED: Lights up when the broadcast is properly tuned in.
STEREO: Lights up when receiving FM stereo broadcasts.
ESleep timer indicator
This lights when the sleep mode is selected. (v p. 109)
Contents Connections Playback Settings Tips Appendix
18
Front panel Display Rear panel Remote Index

yu
oi
FVolume indicator
GMUTE indicator
This blinks while the sound is muted. (v p. 51)
HInformation display
The input source name, sound mode, setting values and other
information are displayed here.
IInput signal indicators
The respective indicator will light corresponding to the input signal.
(v p. 148)
Contents Connections Playback Settings Tips Appendix
19
Front panel Display Rear panel Remote Index

Rear panel
q qwe r ty u i
oQ1Q0
For details, see the next page.
Contents Connections Playback Settings Tips Appendix
20
Front panel Display Rear panel Remote Index
