Dent Fix Equipment STATIC ZAP DF-EZAP Maintenance and service guide

Original Instructions INST6500BAT – 9/10
Installation / Maintenance
Battery Replacement and Disposal
Part# DF-EZAP
•
When the battery no longer holds a charge it is time to replace it.
•
Refer to Dent Fix’s website, www.dentfix.com, to place your order for a
new battery and obtain directions on how to return the old battery.
NOTE: The battery must be returned to
Dent Fix Equipment for proper
disposal, batteries cannot go in the garbage.
Battery Removal
Model 6500
Remove the battery as follows:
1.
Turn off the compressed air.
2.
CAUTION: To avoid electrical shock hazard insert the safety key into the
battery jack and attach the trigger lockout clip behind the trigger.
3.
Carefully squeeze tabs together and slide air nozzle off of the StaticZAP
Anti-Static Device.
4.
Using a pair of tweezers or pliers remove emitter pin from the pin holder,
then through the outlet hole of the ionizer. Dispose of the emitter pin.
CAUTION: do not bend the pin holder.
1611 W. 135
th St / Gardena, CA 90249-2505
PHONE
310 349 1940 / EMAIL [email protected] / WEB www.dentfix.com
Tab
Safety key
Tab
Air nozzle
!
Trigger
Lockout clip
Pin
holder
Emitter
pin
Pull pin
down

Original Instructions INST6500BAT – 9/10
Installation / Maintenance
Battery Replacement and Disposal
Part# DF-EZAP
•When the battery no longer holds a charge it is time to replace it.
•Refer to Dent Fix’s website, www.dentfix.com, to place your order for a
new battery and obtain directions on how to return the old battery.
NOTE: The battery must be returned to Dent Fix Equipment for proper
disposal, batteries cannot go in the garbage.
Battery Removal
Model 6500
Remove the battery as follows:
1. Turn off the compressed air.
2. CAUTION: To avoid electrical shock hazard insert the safety key into the
battery jack and attach the trigger lockout clip behind the trigger.
3. Carefully squeeze tabs together and slide air nozzle off of the StaticZAP
Anti-Static Device.
4. Using a pair of tweezers or pliers remove emitter pin from the pin holder,
then through the outlet hole of the ionizer. Dispose of the emitter pin.
CAUTION: do not bend the pin holder.
1611 W. 135th St / Gardena, CA 90249-2505
PHONE [phone] / EMAIL [email protected] / WEB www.dentfix.com
Tab
Safety key
Tab
Air nozzle
!
Trigger
Lockout clip
Pin
holder
Emitter
pin
Pull pin
down
Original Instructions INST6500BAT – 9/10
Installation / Maintenance
Battery Removal
Part # DF-EZAP
Remove the battery as follows: (cont’d)

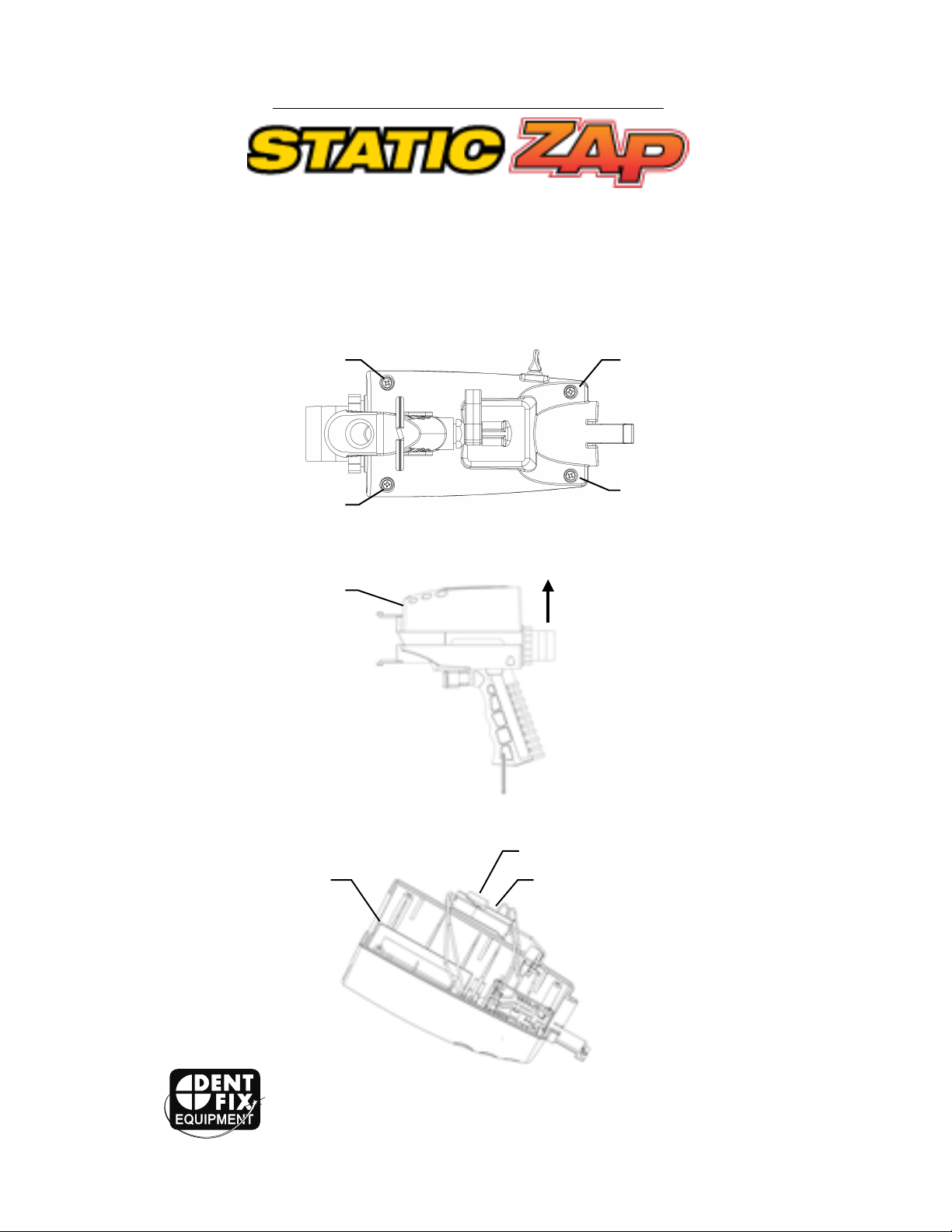

5.
Remove the four (4) phillips head screws.
6.
Lift the housing top up off of the air gun.
Caution: do not over-stretch wires when opening the housing.
7.
Squeeze latch on the wire connector and pull the connector apart to discon-
nect and remove the battery.
1611 W. 135
th St / Gardena, CA 90249-2505
PHONE
310 349 1940 / EMAIL [email protected] / WEB www.dentfix.com
Emitter pin
Pin holder
Pull pin
down
Wire connector
Housing top
Battery
Remove screw
Remove screw
Remove screw
Remove screw
Latch
