Sumake ST-6652DA User manual

SUMAKE PNEUMATIC TOOLS
Air Punch & Flange
ST-6652DA
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
Specification:
Capacity
1.2 mm
Punch Hole
Dia. 8 mm
Punch Stroke
4mm
Overall Length
10” (250 mm)
Air Inlet (PT)
1/4” (6.35 mm)
Air Hose (I.D.)
3/8” (10 mm)
Air Pressure
90 psi (6.3 bar)
Net Weight
2.53 lbs (1.15 kg)
Noise and Vibration:
Vibration
EN ISO 20643
Noise
EN ISO 15744
Remark
No Load:
3.97 m/s²
Sound Pressure Level
load: 70.6 dB(A)
Please always
wear ear
protector at
environment
noise level >
80 dB(A) due
to risk of
impaired
hearing!
Sound power level
load: 81.6 dB(A)
Uncertainty
K= 1.5 m/s²
Uncertainty
K= 3dB
ST-6652DA-S-2010C-D5F

EC DECLARATION OF CONFORMITY
We: SUMAKE INDUSTRIAL CO., LTD.
4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan
declare in sole responsibility that the equipment
Equipment：AIR PUNCH & FLANGE
Model/ Serial No.：ST-6652DA
to which this declaration applies, complies with these normative documents:
Machinery Directive: 2006/42/EC
and conforms to the following EN standard,
EN ISO 12100: 2010
EN ISO 11148-10:2011
Name and Signature/Position Date and Place
2022/12/1
Mike Su –Managing Director Taipei, Taiwan
ST-6652DA-D-2303C-D5F

Foreword
Sumake is a manufacturer and exporter of air tools
since established. We have devote all our efforts in
improving quality and tools’ life. As well as the
noise and vibration of tools. Bring all of you
working efficiences, profits, and enjoy using the tool
is our principle.
Features
This tool is designed to meet an extremely wide
range of metal board to be connected with each other
by first press the rim of each other and punching
holes, then connect these two board by ways of
inserting screw and bolt into the holes.
Operator‘s instruction
1. Main Applications
This tool is perfect for compression and/or punching
die of iron, steel, cast iron, aluminum, nonferrous
metal made thin board.
2. Cautions for Use
2-1 Airpressure
Maximum performance is displayed at the proper
sanding speed, obtainable at a gauge pressure of 6.2
bar. Range-wise, this is an air pressure from 5 to 7
bar (70 to 100 psi)
57

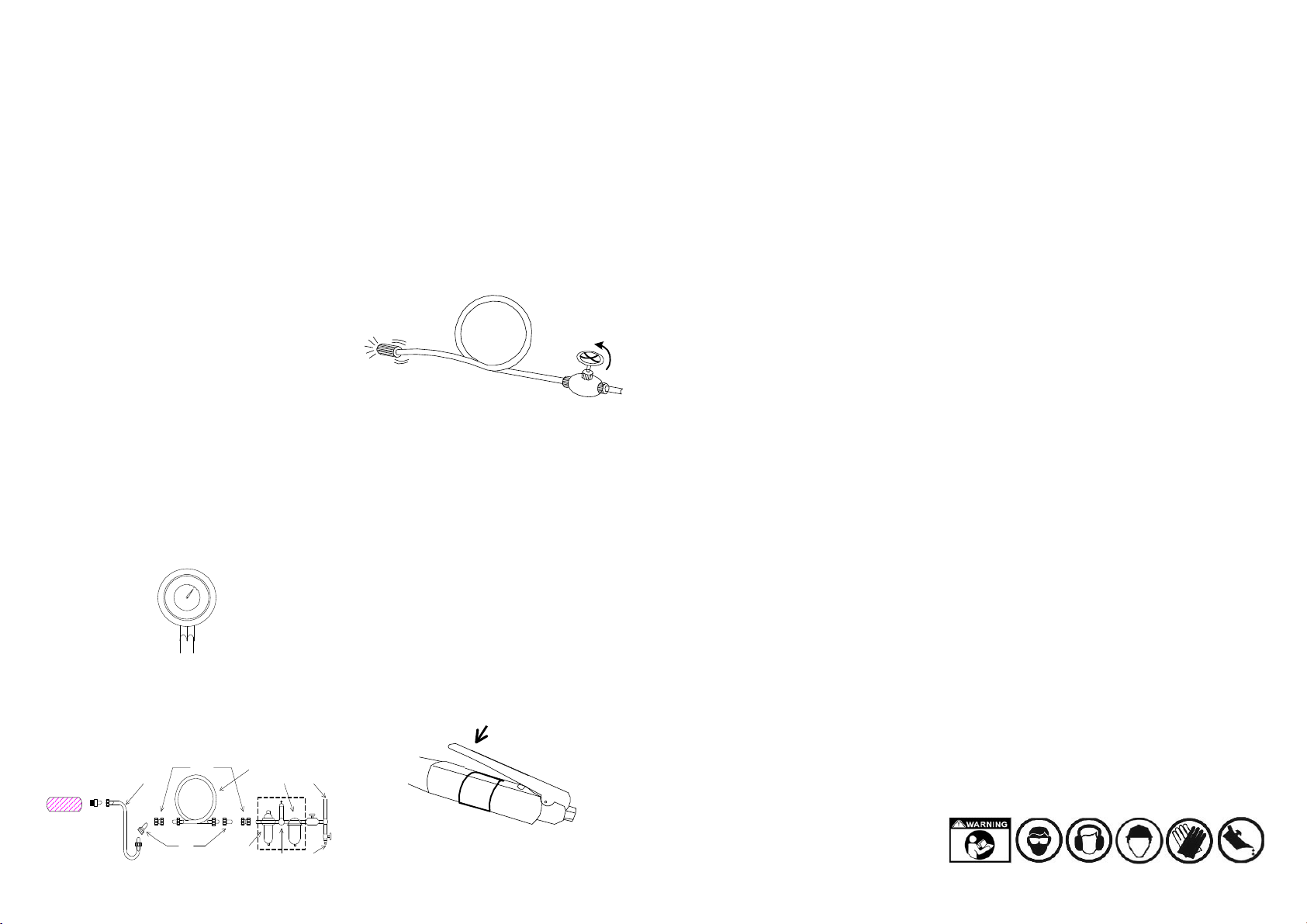

2-2 Air line
Use a 3/8“ air hose between the compressor and the
tool . Compressed air is cooled and its water content
separated, as soon as the air leaves the compressor.
Tool
Nipple
Coupler Recoil
hose
Leader
hose
Oiler Regulator
Water
separation Air supply
Drain
daily
A portion of the water content, however, is
condensed in the piping, and can enter the tool
mechanism, and may cause trouble. So, install an air
filter and on oiler between the compressor and the
tool. Use a 3 HP or larger compressor for eac
h
sander.
2-3 Airhose
Clean the hose with a blast of compressed air before
connecting the hose to air tool. This will prevent
both moisture and dust within the hose from entering
the tool and causing possible rust or malfunction. To
compensate for unusually long hose (over 25 ft), the
line pressure should be increased accordingly.
Drainage
2-4 Regular checks for cracks and fissures in the
Anvil, Clamb, Punch and Punching Die.
2-5 The approved eye protector, ear-muff, mouth-
muffle, and gloves should be worn when operate this
tool.
2-6 The working place shall be ventilative.
2-7 Release the on-off device in the case of energy
supply failure.
2-8 Keep hands away from the compressio
n
mechanism and it is better hold this tool by bot
h
hands.
3. Operation, Adjusting And Replacing
Method
3.1 On-offdevice
To operate this tool, just push the lever toward the
tool itself. The Clamb move to the Anvil while push
the lever and move in the opposite direction while
release the lever. This tool operates once for one
single push-release cycle.
For the sake of safety, put it on hanger or on a soft
flat pad when not in use.
3.2 Replace and adjusting
There is no user serviceable part inside this tool.
Please send the tool to a qualified personnel or our
service section to repaire or/and replace worn parts.
4. Maintenance
4-1 Lubrication
Before connecting the hose , apply 4 or 5 drops of
#60 spindle oil at the air inlet. Apply Use of a thicker
oil can lead to reduced performance or malfunction.
If a thicker oil is used by accident, wipe it away
immediately. Also, every 3 or 4 hours of operation,
oiling is necessary. When necessary, the tool has to
be refilled with high quality hydraulic oil, like Shell
Teilus Oil C-10.
4-2 Storage
Avoid storing the tool in a location subject to high
humidity. If the tool is left as it is used , the residual
moisture inside the tool can cause rust. Before storing
and after operation, oil the tool at the air inlet with
spindle oil and run it for a short time.
4-3 Disposal
If the tool is too seriously damaged to be used
anymore, drop it in a resource recycling can. Never
drop it into fire.
4-4 Ordering service Parts
For further operational and handling information or
for replacement of parts and components, contact the
sale agent from whom you purchased the tool or the
service division of our company.
*In ordering parts and components, give each part
number, name and quantity.
Warning
1. This tool is not insulted for coming into contact
with electric power source.
2. It is forbidden to use this tool in explosive
atmospheres and do not put any combustible material
near the workpiece since it emit sparks when grind
with metal material.
3. Prevent long hair or loose clothing from drawing
inwhile operate this tool.
4. Never carry the tool by hose and beware of a
whipping compressed air hose.
ST-6652D(DA)(DS)-I-1707B-D5

AIR PUNCH & FLANGE
PARTS LIST
No. Parts No. Description Q'ty No. Parts No. Description Q'ty
1 6652D-01 Set Screw (M6x6) 1 17 6652D-17 O-Ring 1
6652D-03 Clamp [ST-6652D, ST-6652DS] 1 18 6652D-18 Support Ring 1
6652DA-03 Clamp [ST-6652DA] 1 19 6652D-19 Piston 1
6652D-04 Punch Die [ST-6652D] 1 20 6652D-20 O-Ring (ID7.8x1.9) 2
6652DA-04 Punch Die [ST-6652DA] 1 21 6652D-21 Support Ring 2
6652DS-04 Punch Die [ST-6652DS] 1 22 6652D-22 Spring 1
6652D-05 Guide Bushing [ST-6652D, ST-6652DS] 1 23 6652D-23 O-Ring 1
6652DA-05 Guide Bushing [ST-6652DA] 1 24 6652D-24 High Press Piston 1
6652D-06 Cup Spring [ST-6652D, ST-6652DS] 13 25 6652D-25 Air Cylinder 1
6652DA-06 Cup Spring [ST-6652DA] 13 26 6652D-26 Rubber Grip 1
6652D-07 Punch [ST-6652D, ST-6652DS] 1 27 6652D-27 O-Ring (ID47.35x1.78) 1
6652DA-07 Punch [ST-6652DA] 1 28 6652D-28 Lever 1
6652D-08 Anvil [ST-6652D, ST-6652DS] 1 29 6652D-29 Spring Pin (Φ3x23) 1
6652DA-08 Anvil [ST-6652DA] 1 6652D-30A Air Inlet (PT19) 1
9 6652D-09 Screw (M4x6) 2 6652D-30B Air Inlet (NPT18) 1
6652D-10 Cover Plate [ST-6652D, ST-6652DS] 1 31 6652D-31 Valve Body 1
6652DA-10 Cover Plate [ST-6652DA] 1 32 6652D-32 O-Ring (ID3.8x1.9) 1
11 6652D-11 Oil Seal 1 33 6652D-33 Push Rod 1
12 6652D-12 Hydr Cylinder 1 34 6652D-34 Spring 1
13 6652D-13 O-Ring (ID5.8x1.9) 1 35 6652D-35 Valve 1
14 6652D-14 Pan Head Screw (M6x10) 1 36 6652D-36 Spring 1
15 6652D-15 Support Ring 1 37 6652D-37 Screw 1
16 6652D-16 O-Ring (ID11.89x2.4) 2 38 6652D-38 Rubber Band 1
ST-6652D(DA)(DS)-P-1707B-D5
ST-6652D, ST-6652DA, ST-6652DS
8
10
30
3
4
5
6
7
