VACUUM TANK INSTALLATION MANUAL
866-DTE-INFO
dentalez.com
PN: 7717-006A
NOTES:

1
TANKS
SECTION I - SPECIFICATIONS
15-GALLON TANK 30-GALLON TANK
Typical No. of Treatment Rooms† 1-6 7-12
Nominal Width (in) 29" 29"
Nominal Depth (in) 19" 19"
Nominal Height (in) 24" 36"
Floor to Drain Centerline (in) 8" 8"
†This assumes one chair per person. For bays, let“Rooms”equal chairs.
3
2
1
30-GALLON TANK
4
15-GALLON TANK
1
5-GALLON TANK
3
2
1
4
Connects to waste piping (see SECTION IV - PLUMBING - DRAIN AND WASTE DETAILS)
Connects to operatories (see SECTION IV - PLUMBING - FACILITY VACUUM LINE FROM OPERATORIES)
Connects to vacuum unit (see SECTION IV - PLUMBING - TANK TO VACUUM POWER UNIT LINE)
Connects to Aeras control TANK FLOAT (opt.) connector (see SECTION III - AERAS CONTROL - CONNECTIONS)
1
2
3
4

2
VACUUM TANK INSTALLATION MANUAL
866-DTE-INFO
dentalez.com
PN: 7717-006A
TANKS (CONTINUED)
SECTION I - SPECIFICATIONS
3
1
4
3
1
2
INFINITANK 50-GALLON CYLINDRICAL TANK
2
5
Connects to waste piping (see SECTION IV - PLUMBING - DRAIN AND WASTE DETAILS)
Connects to operatories* (see SECTION IV - PLUMBING - FACILITY VACUUM LINE FROM OPERATORIES)
Connects to vacuum unit** (see SECTION IV - PLUMBING - TANK TO VACUUM POWER UNIT LINE)
Connects to Aeras control INFINITANK SOLENOID (opt.) connector (see SECTION III - AERAS CONTROL - CONNECTIONS)
Connects to Aeras control TANK FLOAT (opt.) connector (see SECTION III - AERAS CONTROL - CONNECTIONS)
*Tank inlet for 50-gallon tank is 3".
**Tank outlet for 50-gallon tank is 3".
1
2
3
4
5
INFINITANK 50-GALLON CYLINDRICAL TANK
Typical No. of Treatment Rooms† 1-20 13-20
Nominal Width (in) 29" 26"
Nominal Depth (in) 21" 26"
Nominal Height (in) 38" 62"
Floor to Drain Centerline (in) 8" 5"
†This assumes one chair per person. For bays, let "Rooms" equal chairs.

3
Connects to waste piping (see SECTION IV - PLUMBING - DRAIN AND WASTE DETAILS)
Connects to operatories (see SECTION IV - PLUMBING - FACILITY VACUUM LINE FROM OPERATORIES)
Connects to vacuum unit (see SECTION IV - PLUMBING - TANK TO VACUUM POWER UNIT LINE)
Platform (optional)
Connects to Aeras control TANK FLOAT (opt.) connector (see SECTION III - AERAS CONTROL - CONNECTIONS)
1
2
3
4
3
3
15-GALLON TANK
WITH RV4-12
15-GALLON TANK
WITH RV5-2, RV7-2 OR RV10-2
Typical No. of Treatment Rooms† 1-6 1-6
Nominal Width (in) 29" 33"
Nominal Depth (in) 19" 21"/22" (RV10-2)
Nominal Height (in) 48" 59"
Floor to Drain Centerline (in) 8" 8"
†This assumes one chair per person. For bays, let "Rooms" equal chairs.

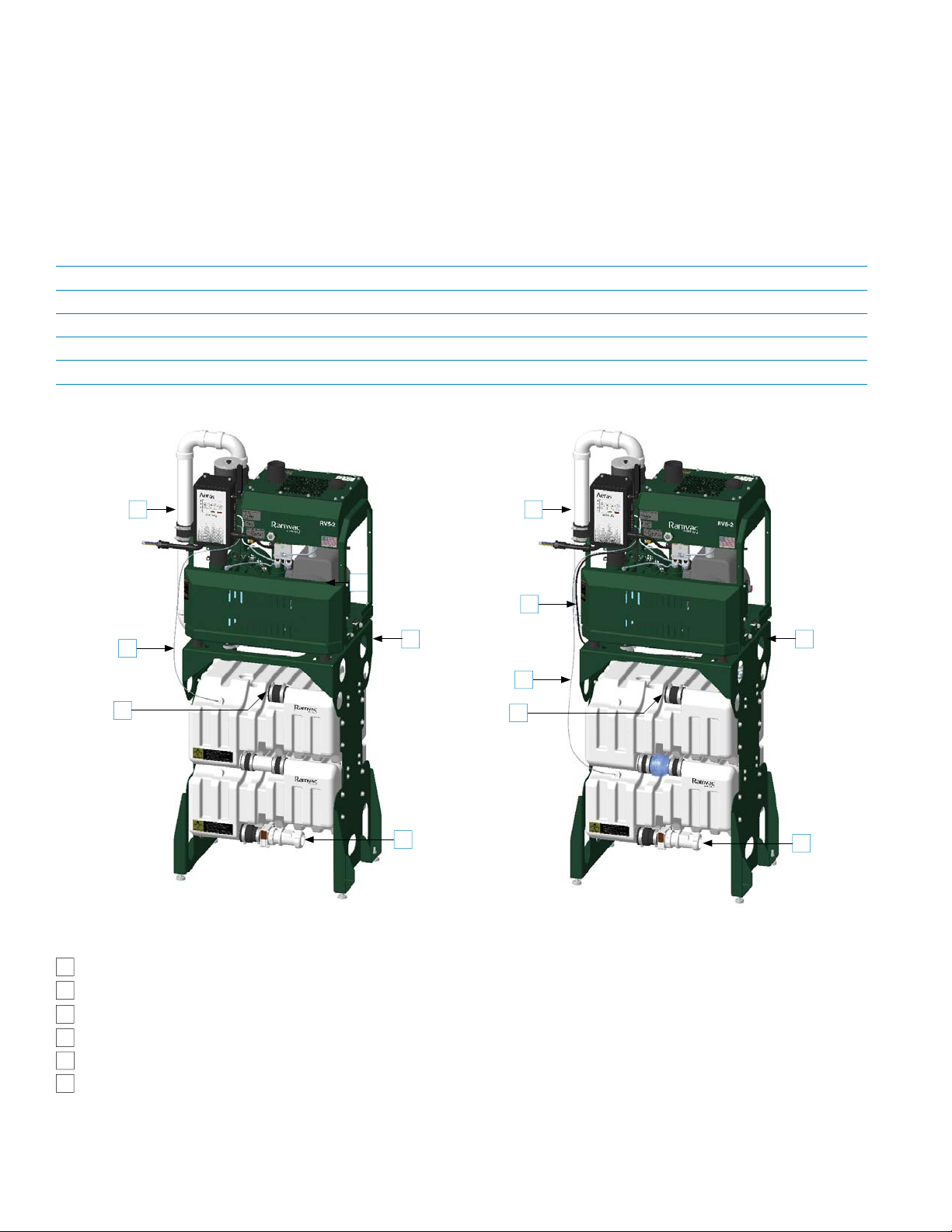

TANKS/VACUUMS STACKED
15-GALLON TANK WITH RV4-12 15-GALLON TANK WITH RV5-2, RV7-2 OR RV10-2
1
1
2
2
4
SECTION I - SPECIFICATIONS
5
5
5

4
VACUUM TANK INSTALLATION MANUAL
866-DTE-INFO
dentalez.com
PN: 7717-006A
4
3
1
TANKS/VACUUMS STACKED (CONTINUED)
30-GALLON TANK
WITH RV5-2, RV7-2, OR RV10-2
INFINITANK
WITH RV5-2, RV7-2, OR RV10-2
Typical No. of Treatment Rooms† 7-12 1-20
Nominal Width (in) 33" 33"
Nominal Depth (in) 21"/ 22" (RV10-2) 21"/22" (RV10-2)
Nominal Height (in) 71" 71"
Floor to Drain Centerline (in) 8" 8"
†This assumes one chair per person. For bays, let "Rooms" equal chairs.
30-GALLON TANK WITH RV5-2, RV7-2 OR RV10-2
2
INFINITANK WITH RV5-2, RV7-2 OR RV10-2
1
3
2
44
SECTION I - SPECIFICATIONS
6
5
5
Connects to waste piping (see SECTION IV - PLUMBING - DRAIN AND WASTE DETAILS)
Connects to operatories (see SECTION IV - PLUMBING - FACILITY VACUUM LINE FROM OPERATORIES)
Connects to vacuum unit (see SECTION IV - PLUMBING - TANK TO VACUUM POWER UNIT LINE)
Platform (optional)
Connects to Aeras control TANK FLOAT (opt.) connector (see SECTION III - AERAS CONTROL - CONNECTIONS)
Connects to Aeras control INFINITANK SOLENOID (opt.) connector (see SECTION III - AERAS CONTROL - CONNECTIONS)
1
2
3
4
5
6

5
DUAL TANK
MULTIPLE TANK MULTIPLE VACUUM

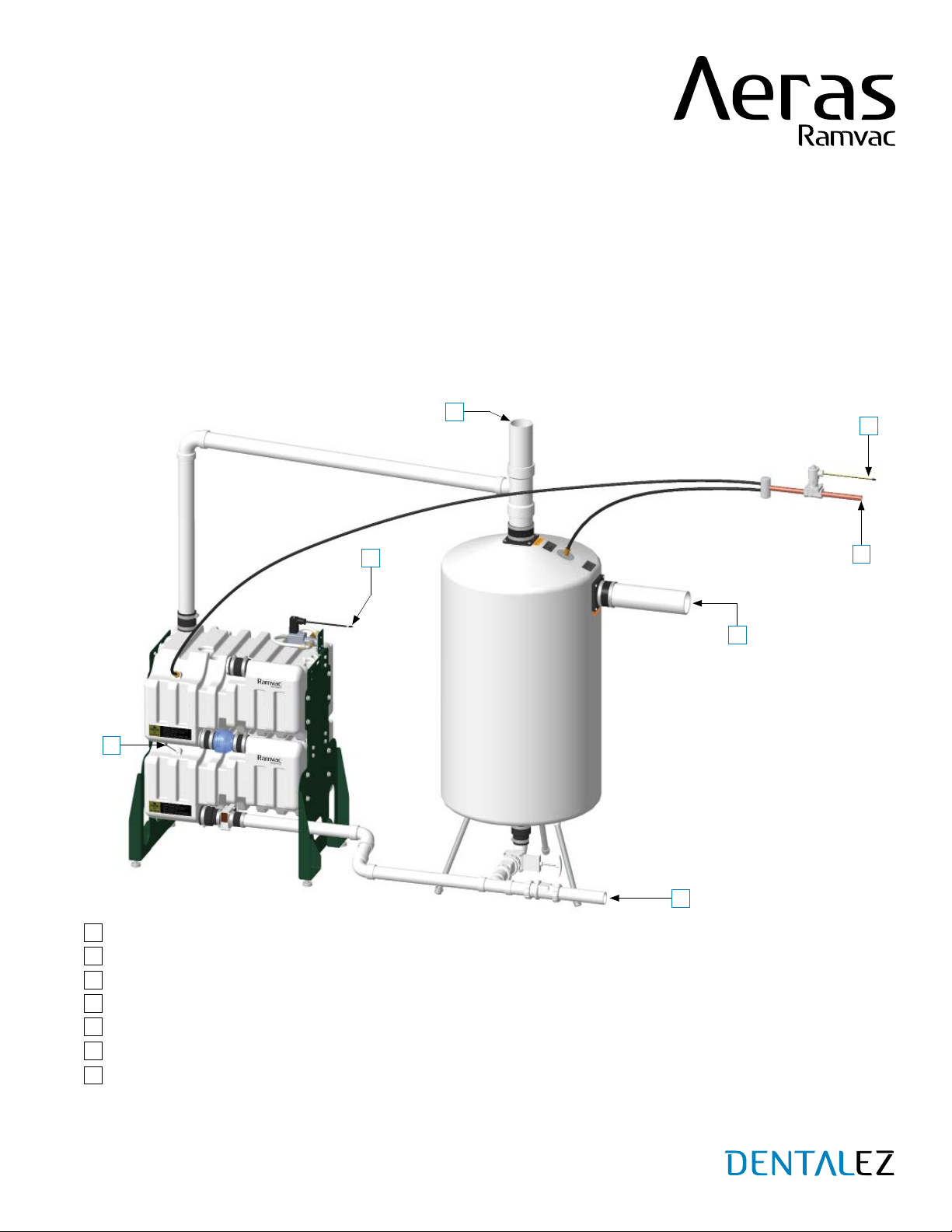

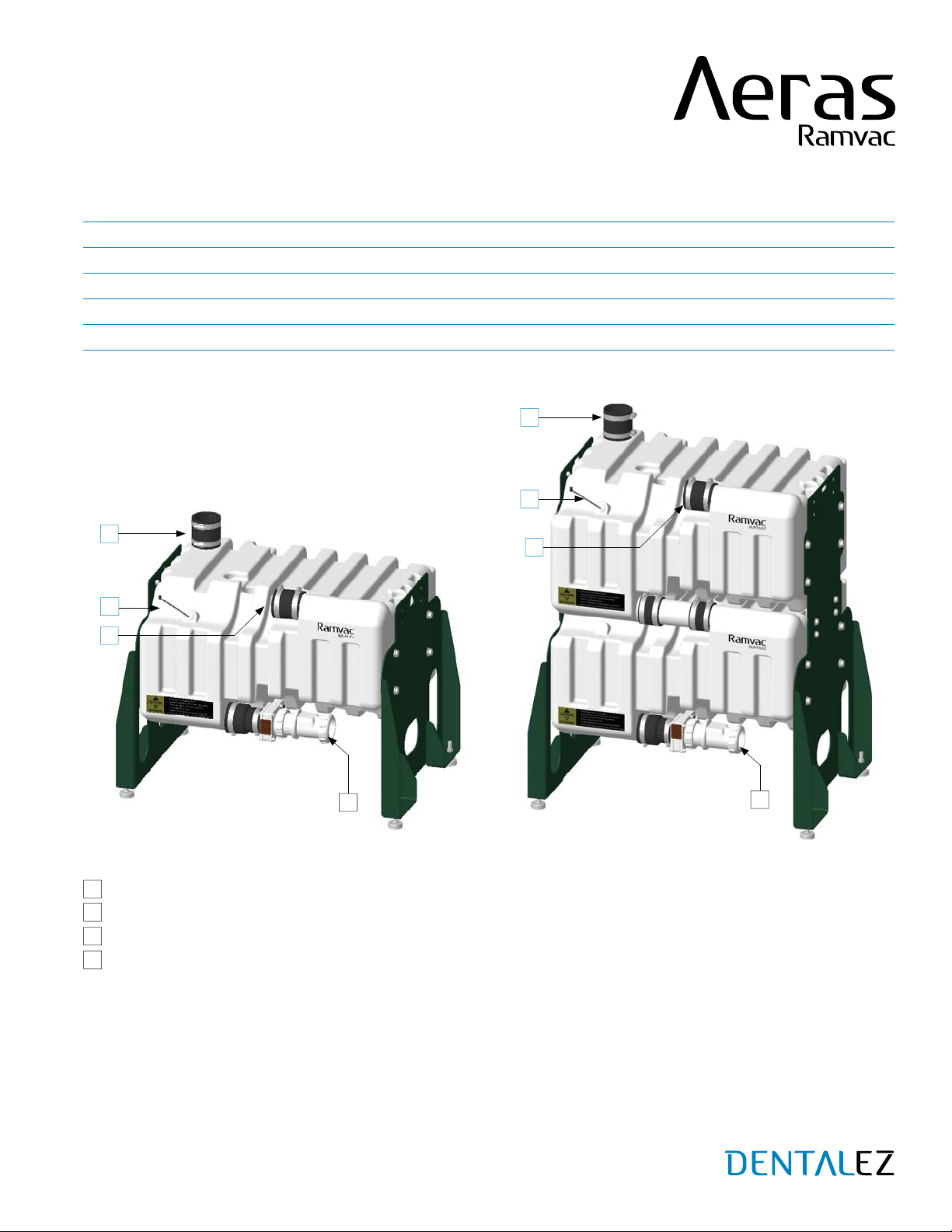

AERAS 15-GALLON/30-GALLON TANK SETUP
1
3b
3a
2
4
3a
3b
1
42
2
1
4
3b
Connects to waste piping (see SECTION IV - PLUMBING - DRAIN AND WASTE DETAILS)
Connects to operatories (see SECTION IV - PLUMBING - FACILITY VACUUM LINE FROM OPERATORIES)
Connects to vacuum unit mounted tank (see SECTION IV - PLUMBING - TANK TO VACUUM POWER UNIT LINE)
Connects to vacuum unit located remotely (see SECTION IV - PLUMBING - TANK TO VACUUM POWER UNIT LINE)
Vacuum check valve (see SECTION IV - PLUMBING - VACUUM CHECK VALVE INSTALLATION)
Suspension Hooks - Remove tank legs. Use leg bolts to attach and suspend tank from ceiling with chain or cable (customer
supplied).
Connects to Aeras control TANK FLOAT (opt.) connector (see SECTION III - AERAS CONTROL - CONNECTIONS)
1
2
3a
3b
4
5
SECTION II - INSTALLATION
SUSPENDED TANK
25
1
3b
6
6
6
6
6

6
VACUUM TANK INSTALLATION MANUAL
866-DTE-INFO
dentalez.com
PN: 7717-006A

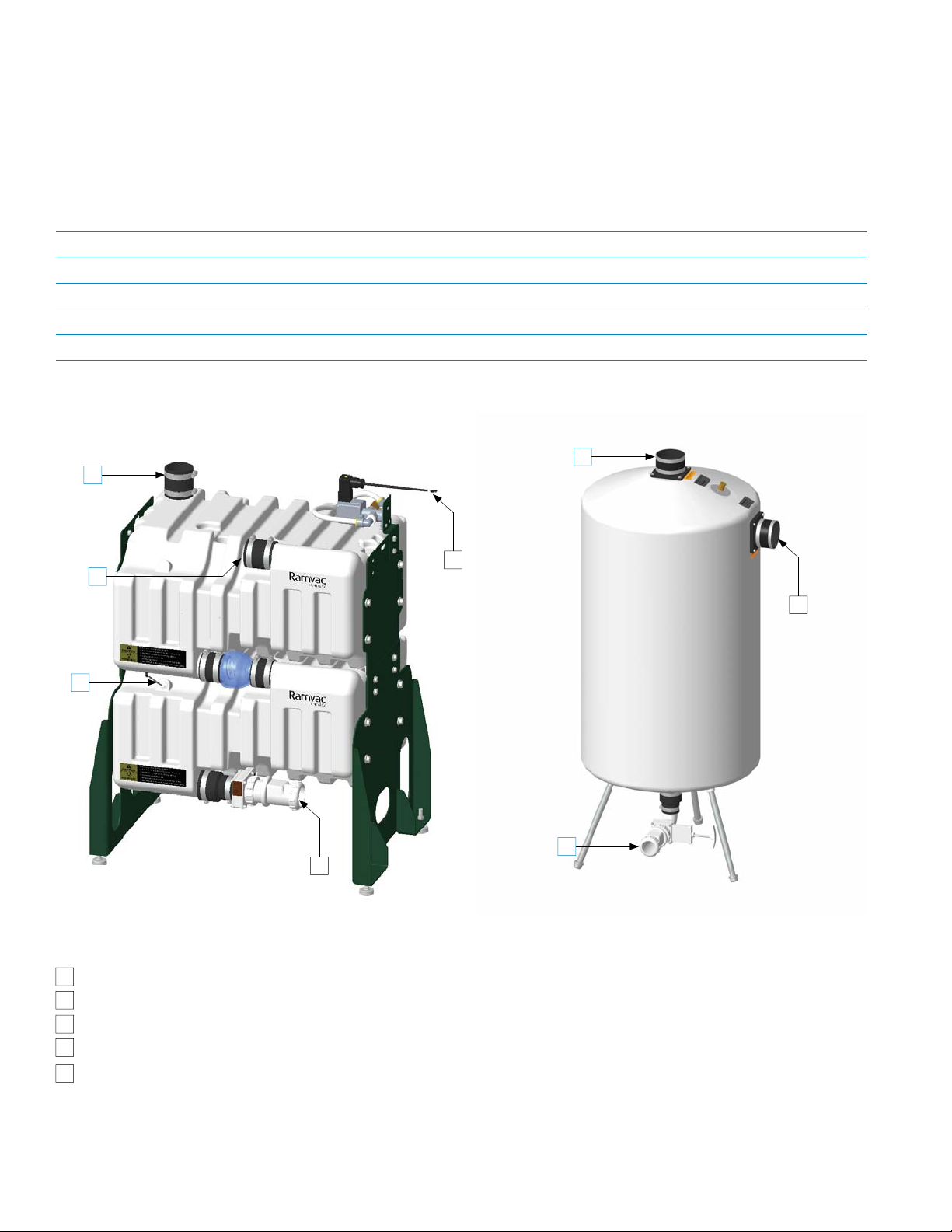

AERAS INFINITANK SETUP
SECTION II - INSTALLATION
3
2
4
5
AERAS INFINITANK
1
Connects to waste piping (see SECTION IV - PLUMBING - DRAIN AND WASTE DETAILS)
Connects to operatories (see SECTION IV - PLUMBING - FACILITY VACUUM LINE FROM OPERATORIES)
Connects to vacuum unit (see SECTION IV - PLUMBING - TANK TO VACUUM POWER UNIT LINE)
Connects to Aeras control TANK FLOAT (opt.) connector (see SECTION III - AERAS CONTROL - CONNECTIONS)
Connects to Aeras control INFINITANK SOLENOID (opt.) connector (see SECTION III - AERAS CONTROL - CONNECTIONS)
1
2
3
4
5

7

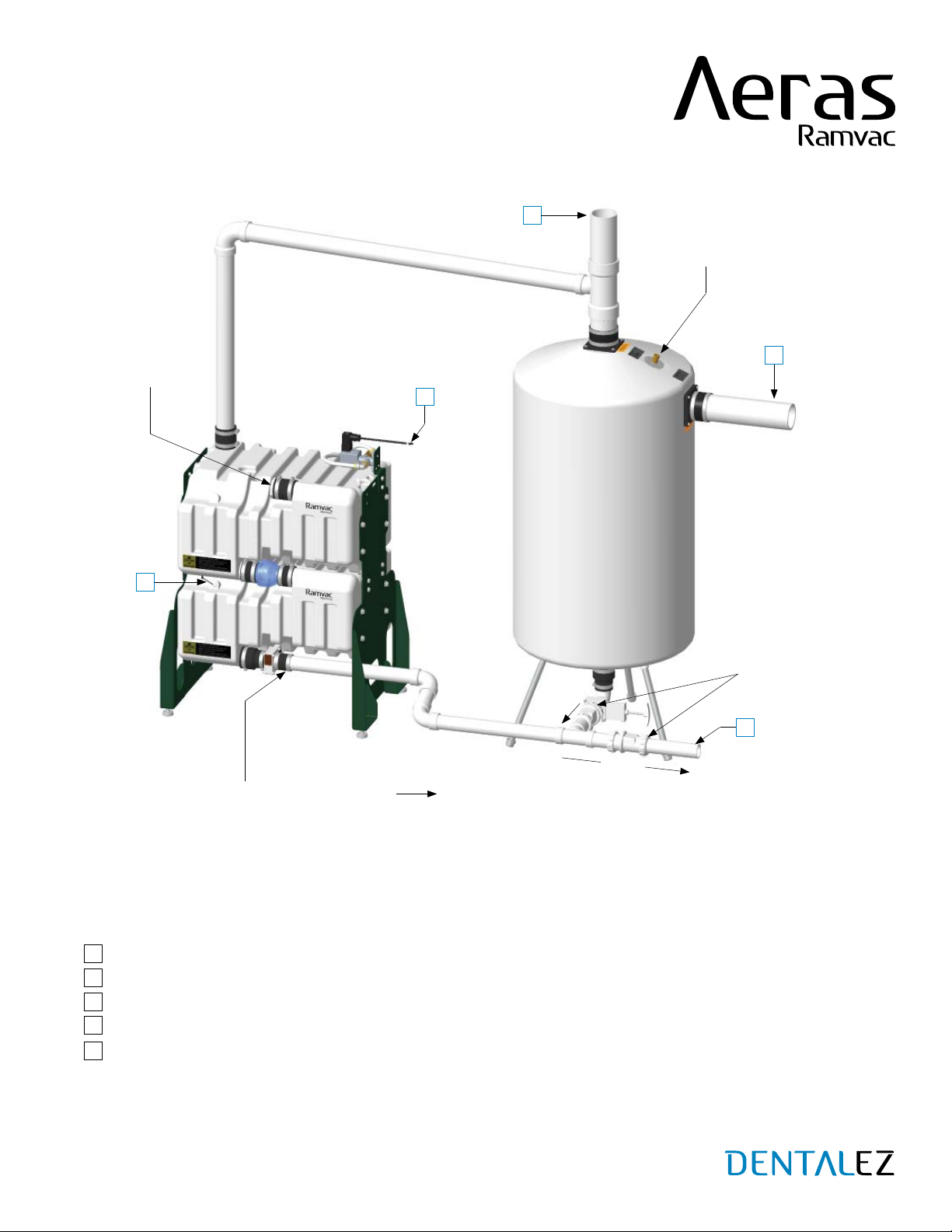

AERAS INFINITANK HIGH-FLOW SETUP
AUTOWASH NOZZLE
(ONLY USED WITH
OPTIONAL AUTOWASH
FEATURE)
3
2
REMOVE INFINITANK DRAIN CHECK VALVE
AND INSTALL PROVIDED COUPLER TO
CONNECT DRAIN PLUMBING
(LEAVE SERVICE SLIDE VALVE IN PLACE)
INSTALL INFINITANK DRAIN CHECK VALVE DOWNSTREAM
FROM 50-GALLON TANK DRAIN CHECK VALVE
FLOW
FLOW
TWO CHECK
VALVES INSTALLED
SECTION II - INSTALLATION
1
5
NOTE: Shipped with a parts bag labeled“Parts for Optional High-flow InfiniTank”containing a coupler and a plug.
See below for proper assembly.
Connects to waste piping (see SECTION IV - PLUMBING - DRAIN AND WASTE DETAILS)
Connects to operatories* (see SECTION IV - PLUMBING - FACILITY VACUUM LINE FROM OPERATORIES)
Connects to vacuum unit** (see SECTION IV - PLUMBING - TANK TO VACUUM POWER UNIT LINE)
Connects to Aeras control INFINITANK SOLENOID (opt.) connector (see SECTION III - AERAS CONTROL - CONNECTIONS)
Connects to Aeras control TANK FLOAT (opt.) connector (see SECTION III - AERAS CONTROL - CONNECTIONS)
*Tank inlet for 50-gallon tank is 3".
**Tank outlet for 50-gallon tank is 3". Tank outlet for InfiniTank is 2".
a. Connect the two tank outlets together as shown.
b. See SECTION II - INSTALLATION - CYLINDRICAL TANK SETUP - MULTIPLE VACUUM for connection.
1
2
3
4
5
4
INFINITANK INLET:
INSTALL PROVIDED
PVC PLUG

8
VACUUM TANK INSTALLATION MANUAL
866-DTE-INFO
dentalez.com
PN: 7717-006A
50-GALLON TANK

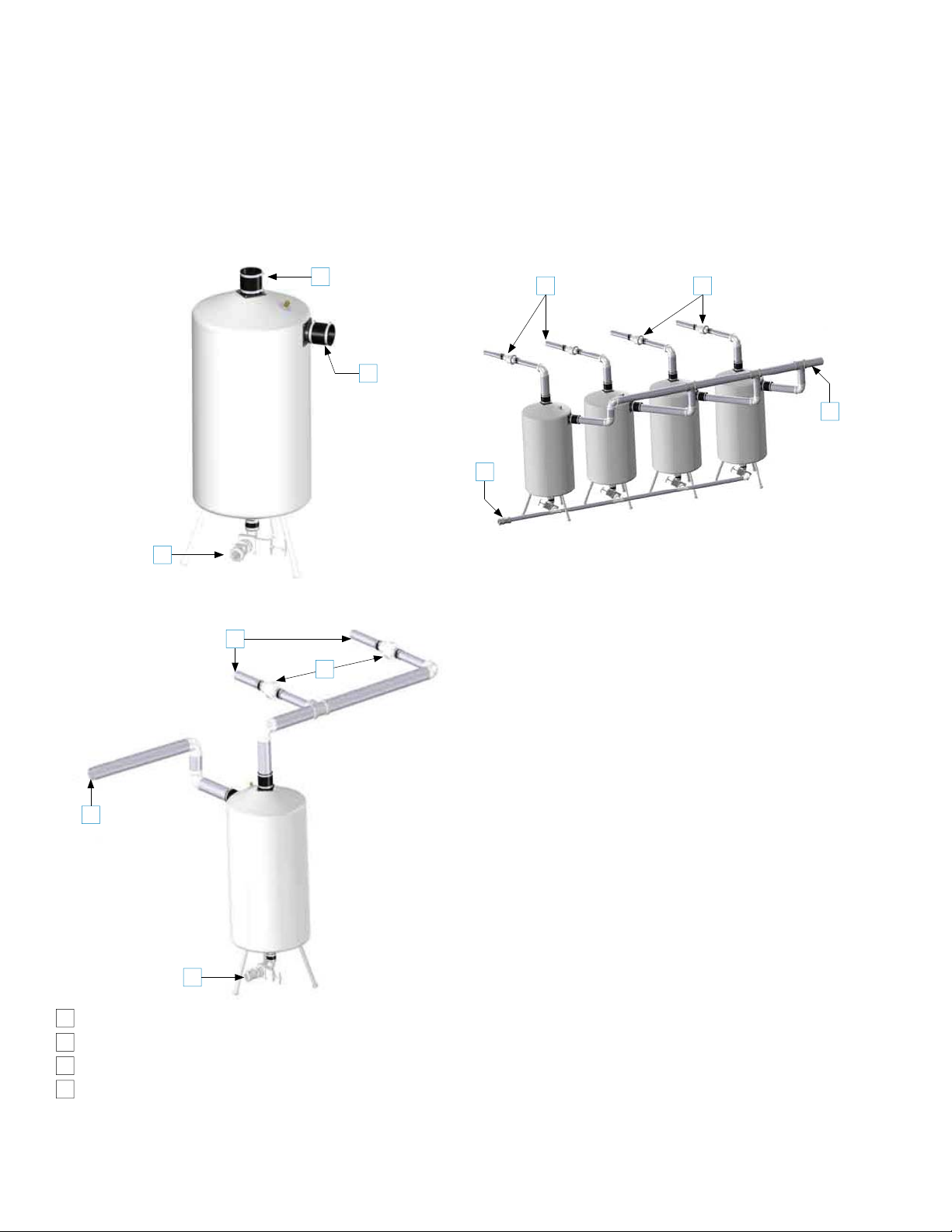

CYLINDRICAL TANK SETUP
MULTIPLE TANK
MULTIPLE VACUUM
Connects to waste piping (see SECTION IV - PLUMBING - DRAIN AND WASTE DETAILS)
Connects to operatories* (see SECTION IV - PLUMBING - FACILITY VACUUM LINE FROM OPERATORIES)
Connects to vacuum unit** (see SECTION IV - PLUMBING - TANK TO VACUUM POWER UNIT LINE)
Vacuum check valve (see SECTION IV - PLUMBING - VACUUM CHECK VALVE INSTALLATION)
*Tank inlet for 50-gallon tank is 3".
**Tank outlet for 50-gallon tank is 3".
1
2
3
4
3
1
3
2
4
2
1
SECTION II - INSTALLATION
1
2
43

9

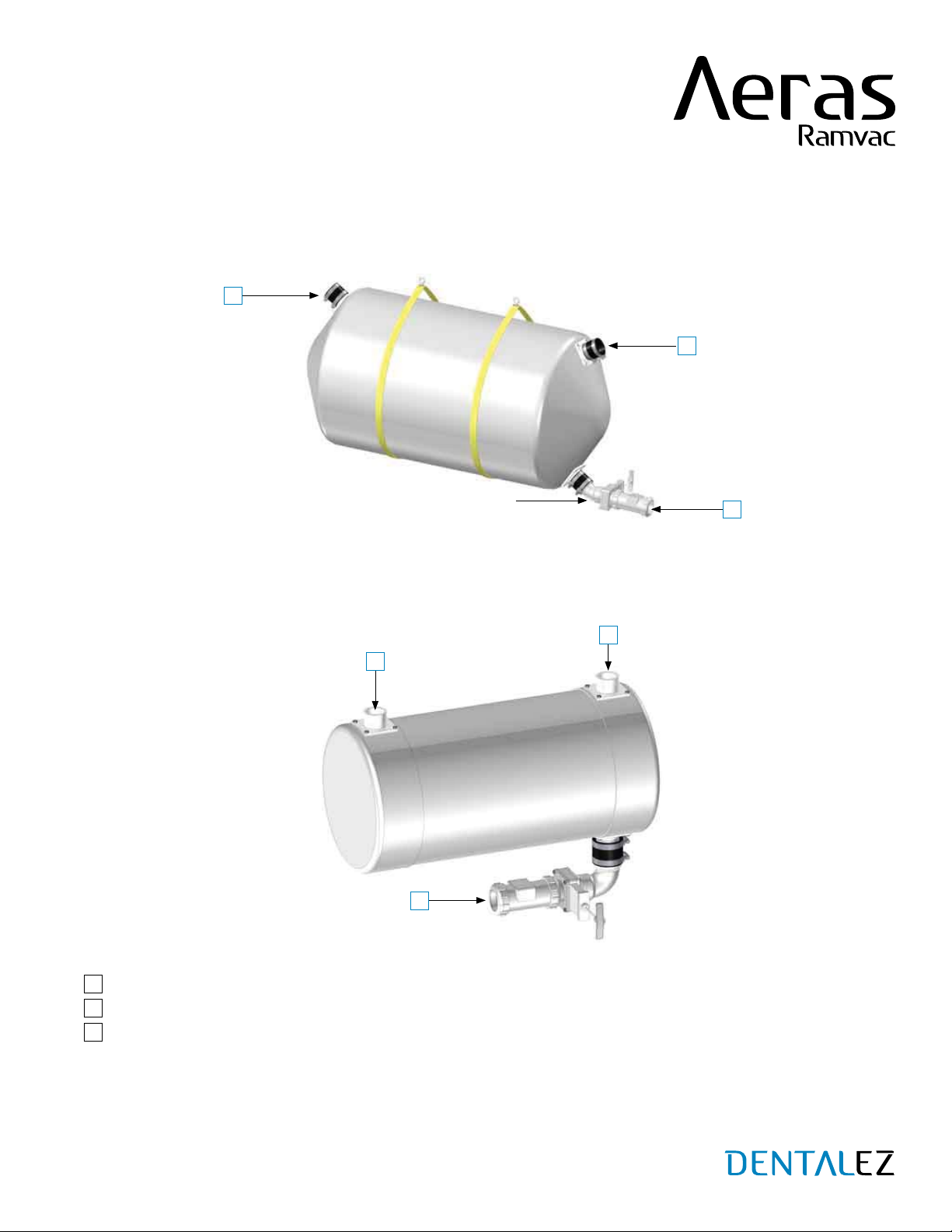

HORIZONTAL TANK
SECTION II - INSTALLATION
CUSTOM HORIZONTAL TANK
CYLINDRICAL TANK SETUP (CONTINUED)
Connects to waste piping (see SECTION IV - PLUMBING - DRAIN AND WASTE DETAILS)
Connects to operatories* (see SECTION IV - PLUMBING - FACILITY VACUUM LINE FROM OPERATORIES)
Connects to vacuum unit** (see SECTION IV - PLUMBING - TANK TO VACUUM POWER UNIT LINE)
Tank locations (2 and 3) are reversible.
Sling kit for horizontal 50-gallon tank is Ramvac supplied.
Mounting hardware for custom tank is customer supplied.Tank support requirements: 1 gallon of liquid = 8.33 lbs.
(e.g. 50-gallon tank × 8.33 lbs. = 416.5 lbs.)
1
2
3
ROTATE THE ELBOW AND PIPE
ASSEMBLY TO CREATE THE DESIRED
VALVE ANGLE
3
1
2
3
2
1

10
VACUUM TANK INSTALLATION MANUAL
866-DTE-INFO
dentalez.com
PN: 7717-006A

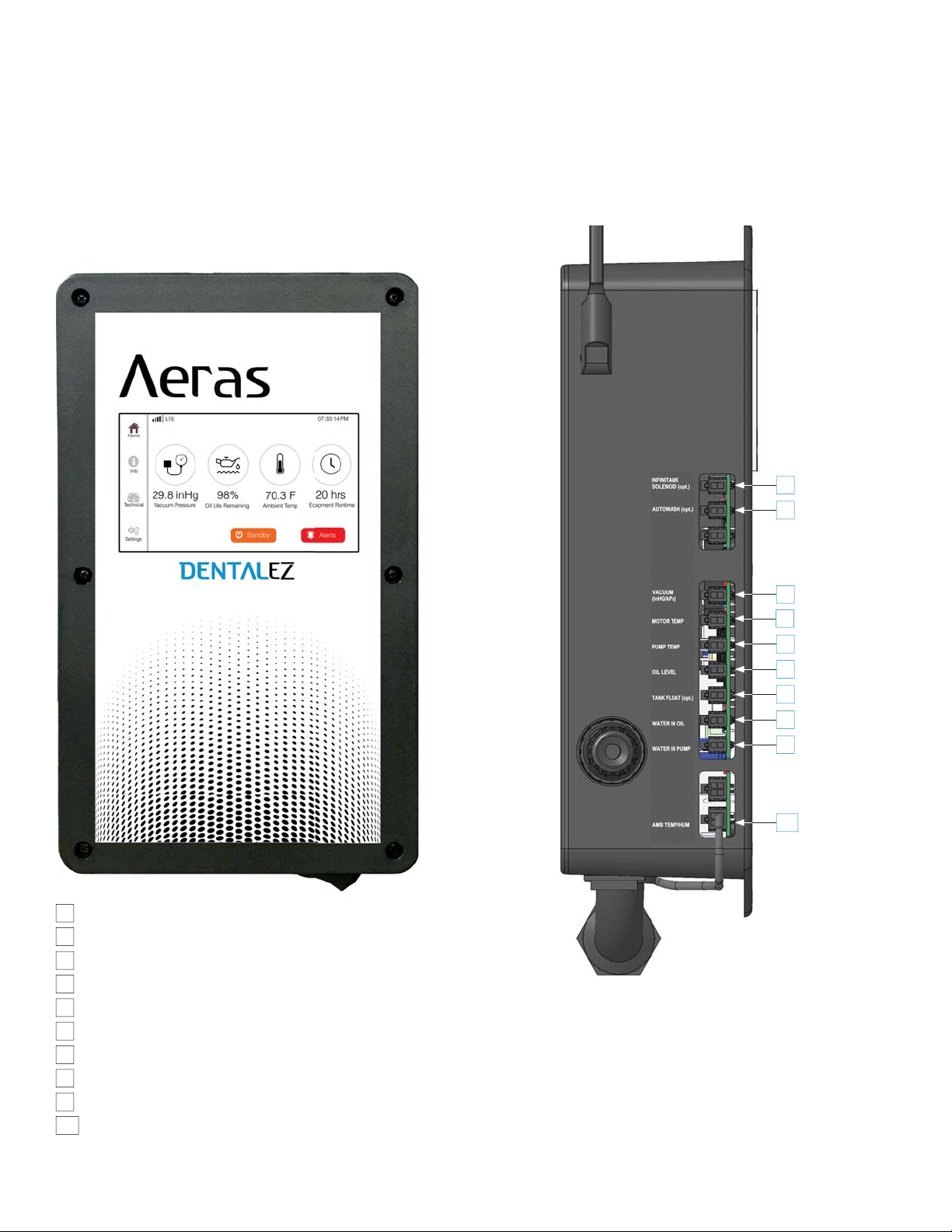

SECTION III - AERAS CONTROL
CONNECTIONS
InfiniTankTM solenoid (optional)
Autowash (optional)
Vacuum (inHG/kPa)
Motor temperature
Pump temperature
Oil level
Tank float (optional)
Water in oil
Water in pump
Ambient temperature/humidity
1
2
3
4
5
6
7
8
9
10
AERAS CONTROL BOX (SIDE VIEW)AERAS CONTROL BOX (FRONT VIEW)
1
2
3
4
5
6
7
8
9
10

11
SECTION III - AERAS CONTROL
INFINITANK SWITCH
The INFINITANK switch should only be turned ON when using an InfiniTank system. For all other vacuum tanks, the
INFINITANK switch should be turned OFF.
To access the INFINITANK switch, on the Technical screen, press ADVANCED >. This will open a new screen showing
the INFINITANK switch.
To enable the InfiniTank option, press the gray INFINITANK switch. The switch will turn green, indicating that the
InfiniTank option is now ON. Pressing the green switch will turn the InfiniTank option OFF.
Press <TECHNICAL to return to the previous screen.
Technical Advanced
Infinitank Power Up Override
Runtimes
Sensors
Motors
Alerts
Maintenance Mode
07:33:14 PM
LTE
Settings
Technical
Info
Home
Tandem
Network
Advanced
ADVANCED
SCREEN
LINK
PRESS
< TECHNICAL
TO
RETURN TO
PREVIOUS
SCREEN
Technical Advanced
Power Up Override
Infinitank
INFINITANK
SWITCH
(OFF)
INFINITANK
SWITCH
(ON)

12
VACUUM TANK INSTALLATION MANUAL
866-DTE-INFO
dentalez.com
PN: 7717-006A

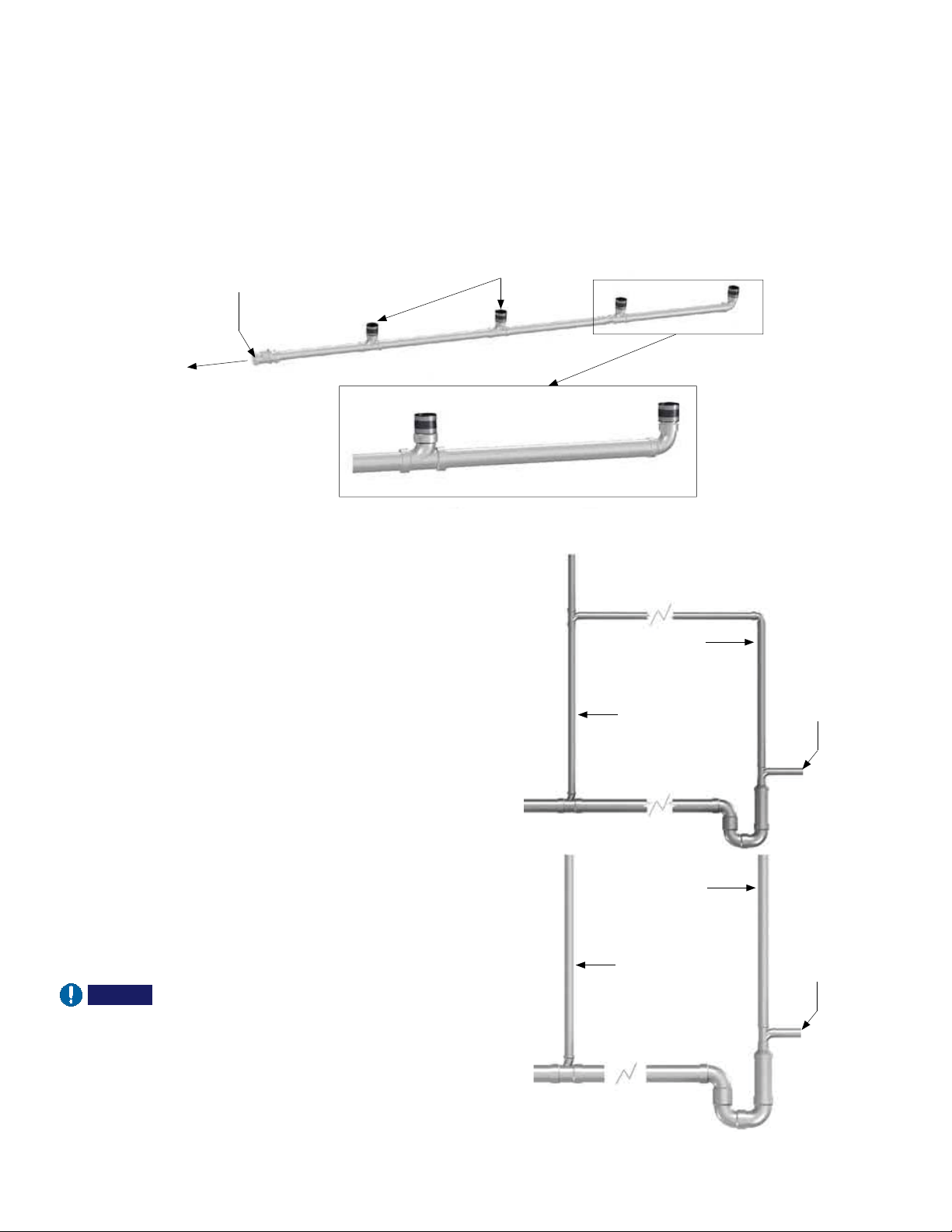

DRAIN AND WASTE DETAILS
SECTION IV - PLUMBING
TANK DRAIN LINE
Waste pipe, slide valve and drain check valve:
1½" schedule 40 PVC with DWV fittings.
Slope: Minimum 1/4" per 10 feet.
Use only Ramvac supplied 1½" drain check valve.
Drain into building sewer system.
Trap and drain branch:
Trap and drain branch line two sizes larger than
waste pipe.
Trap seal minimum 4" deep.
Vents:
Trap vent size no less than half the trap and drain
branch size.
Vents no smaller than drain check valve.
Vents must extend a minimum of 6" above tank top
before turning horizontally.
NOTICE
Follow current NFPA 99c Edition, Ramvac instructions,
and all local codes.
TRAP VENT
WASTE PIPE
FROM
VACUUM TANK
DRAIN
TO
SEWER
TO
SEWER
MULTIPLE TANK SETUP
DRAIN
BRANCH
DRAIN
BRANCH
WASTE PIPE
FROM
VACUUM TANK
DRAIN
DRAIN CHECK VALVE
(SEE DRAIN CHECK VALVE
INSTALLATION)
FROM VACUUM
TANKS
CONNECTS TO
WASTE PIPING
VENT
VENT
TRAP VENT

13

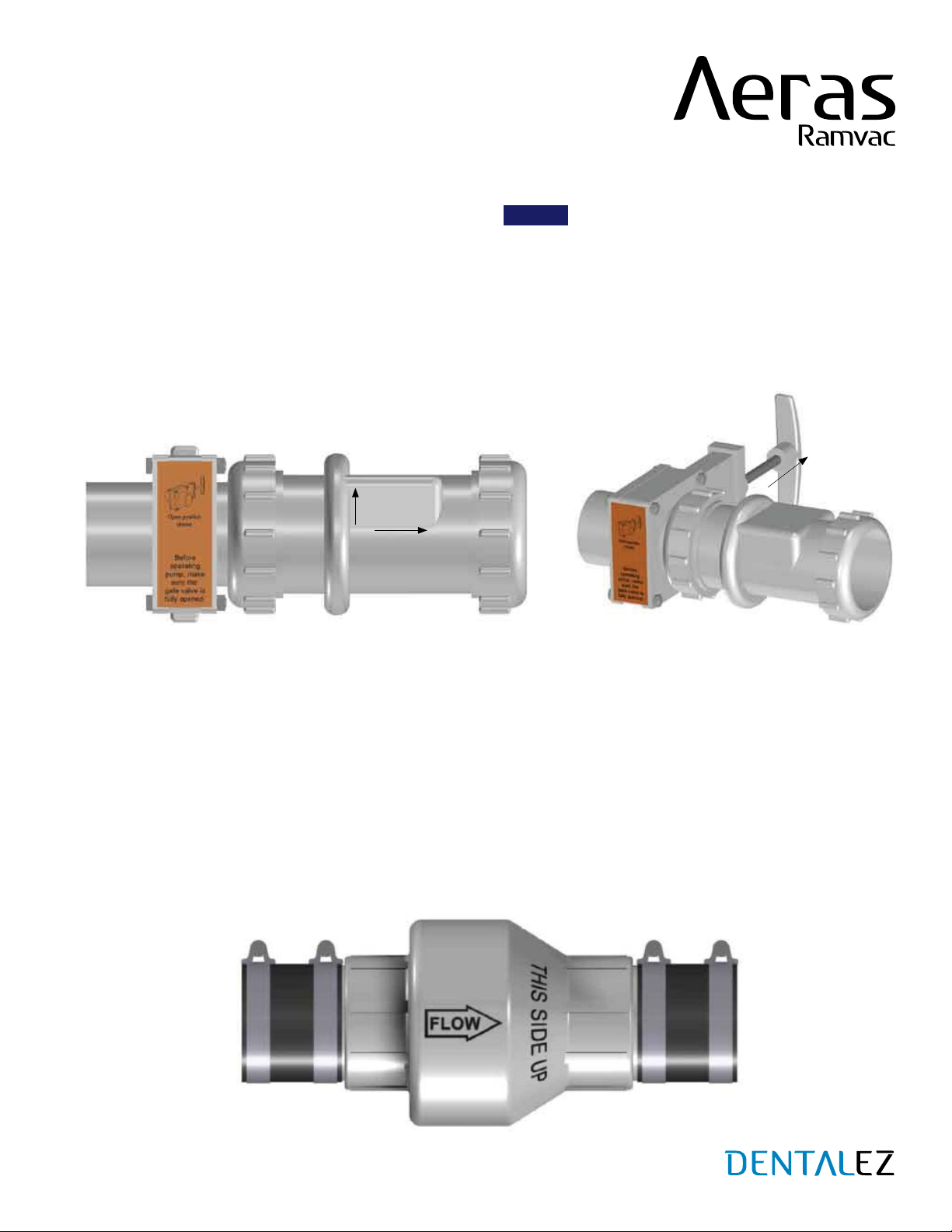

DRAIN CHECK VALVE INSTALLATION
SECTION IV - PLUMBING
VACUUM CHECK VALVE INSTALLATION
Install drain check valve assembly with:
“HORIZONTAL USE UP” facing UP
Pipes butted inside connecting couplers (no gaps)
Flow toward sewer
Fits 1½" schedule 40 PVC
Slide valve open
FLOW
HORIZONTAL
USE UP
NOTICE
Slide valve is for service use only. Leave in the open
position.
OPEN
Install vacuum check valve assembly with:
“THIS SIDE UP” facing up
Pipes butted inside connecting couplers (no gaps)
Flow toward vacuum unit
Fits 2" schedule 40 PVC
Isolates non-operating vacuum units

14
VACUUM TANK INSTALLATION MANUAL
866-DTE-INFO
dentalez.com
PN: 7717-006A
CONNECTS TO
OPERATORIES
SECTION IV - PLUMBING

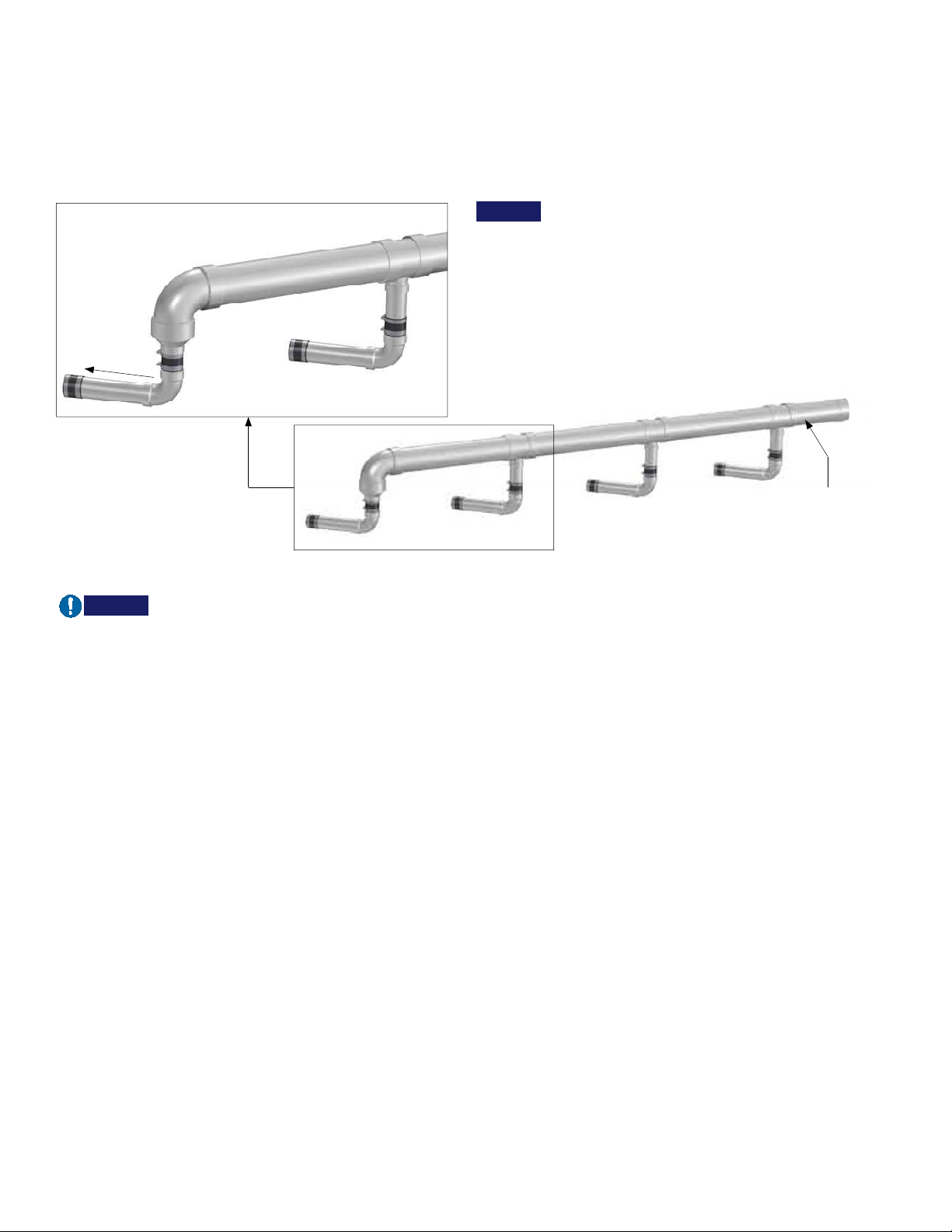

TANK INLET MANIFOLD FOR MULTIPLE TANKS
NOTICE
If reducing main trunk diameter, DO NOT create a low
spot.
TO
VACUUM
TANKS
FACILITY VACUUM LINE FROM OPERATORIES
NOTICE
Follow current NFPA 99c Edition, Ramvac instructions, and all local codes.
Vacuum Model RV4-12:
Up to 5 rooms: 1½" (or larger) schedule 40 PVC with DMW fittings or equivalent.
5 to 15 rooms: 2" (or larger) schedule 40 PVC with DMW fittings or equivalent.
Vacuum Models RV5-2, RV7-2 and RV10-2:
2" (or larger) schedule 40 PVC with DMW fittings or equivalent.
All Vacuum Models:
Slope: Minimum 1/4" per 10 feet.
If an in-line low spot is unavoidable, place it in a known location and incorporate a clean-out.
For overhead plumbing, contact Ramvac.
For nitrous oxide scavenging, contact Ramvac.
TANK TO VACUUM POWER UNIT LINE
Vacuum Model RV4-12:
1½" (or larger) schedule 40 PVC with DMW fittings or equivalent.
Vacuum Models RV5-2, RV7-2 and RV10-2:
2" (or larger) schedule 40 PVC with DMW fittings or equivalent.
All Vacuum Models:
Use new, clean pipe to connect tank to power unit; do not use old or existing pipe.

15
SECTION V - AUTOWASH
HOW THE SYSTEM WORKS
The autowash is an automatic device that controls washdown of the vacuum tank. The system is built to connect to an
electrically operated water valve connected to the facility water source. The outlet of the water valve is connected to a
spray nozzle mounted in the Ramvac vacuum tank.
When the vacuum pumps are turned off, a “delay” timer is started and begins to count down. The “delay” timer is set for
2 hours and when the timer reaches zero, power is applied to the autowash solenoid for 2 minutes to supply water to
the spray nozzle. If the vacuum system is turned on during that period, the autowash process will immediately cease.
SYSTEM SCHEMATIC
1
3
2
4
5
6
Connects to waste piping (see SECTION IV - PLUMBING - DRAIN AND WASTE DETAILS)
Connects to operatories* (see SECTION IV - PLUMBING - FACILITY VACUUM LINE FROM OPERATORIES)
Connects to vacuum unit** (see SECTION IV - PLUMBING - TANK TO VACUUM POWER UNIT LINE)
Facility water supply piping
Connects to Aeras control INFINITANK (opt.) connector (see SECTION III - AERAS CONTROL - CONNECTIONS)
Connects to Aeras control TANK FLOAT (opt.) connector (see SECTION III - AERAS CONTROL - CONNECTIONS)
Connects to Aeras control AUTOWASH (opt.) connector (see SECTION III - AERAS CONTROL - CONNECTIONS)
*Tank inlet for 50-gallon tank is 3".
**Tank outlet for 50-gallon tank is 3". Tank outlet for InfiniTank is 2".
1
2
3
4
5
6
7
7

16
VACUUM TANK INSTALLATION MANUAL
866-DTE-INFO
dentalez.com
PN: 7717-006A
SECTION VI - ACCESSORIES
TANK VACUUM PLATFORM
30-GALLON
TANK WITH
PLATFORM
AND RV5-2,
RV7-2 OR
RV10-2
VACUUM UNIT
VACUUM
UNIT
PLATFORM
15-GALLON
TANK WITH 12"
EXTENDER
STAND BRACE
STAND
EXTENSIONS
TANK 12" HEIGHT EXTENDER

17
TANK SUSPENSION HOOKS
SECTION VI - ACCESSORIES
SUSPENSION
HOOKS (4)
CHAIN OR CABLE
(CUSTOMER
SUPPLIED)
