Denver LED-2463DVBTS User manual

Instruction Manual
24”LED TV
Model NO.: LED-2463DVBTS

Contents
Contents
Safety Information
OSD Menu
1. Picture menu
2. Sound menu
3. Channel menu
4. Feature menu
1-3
4
11-19
11
12
13-16
17-18
19
Product Introduction
5
Connections
Remote Control
Basic Operation
6-7
10
Multimedia Operation 20-22
EPG menu 23
5. Setup menu
8-9
AUTO INSTALLATION

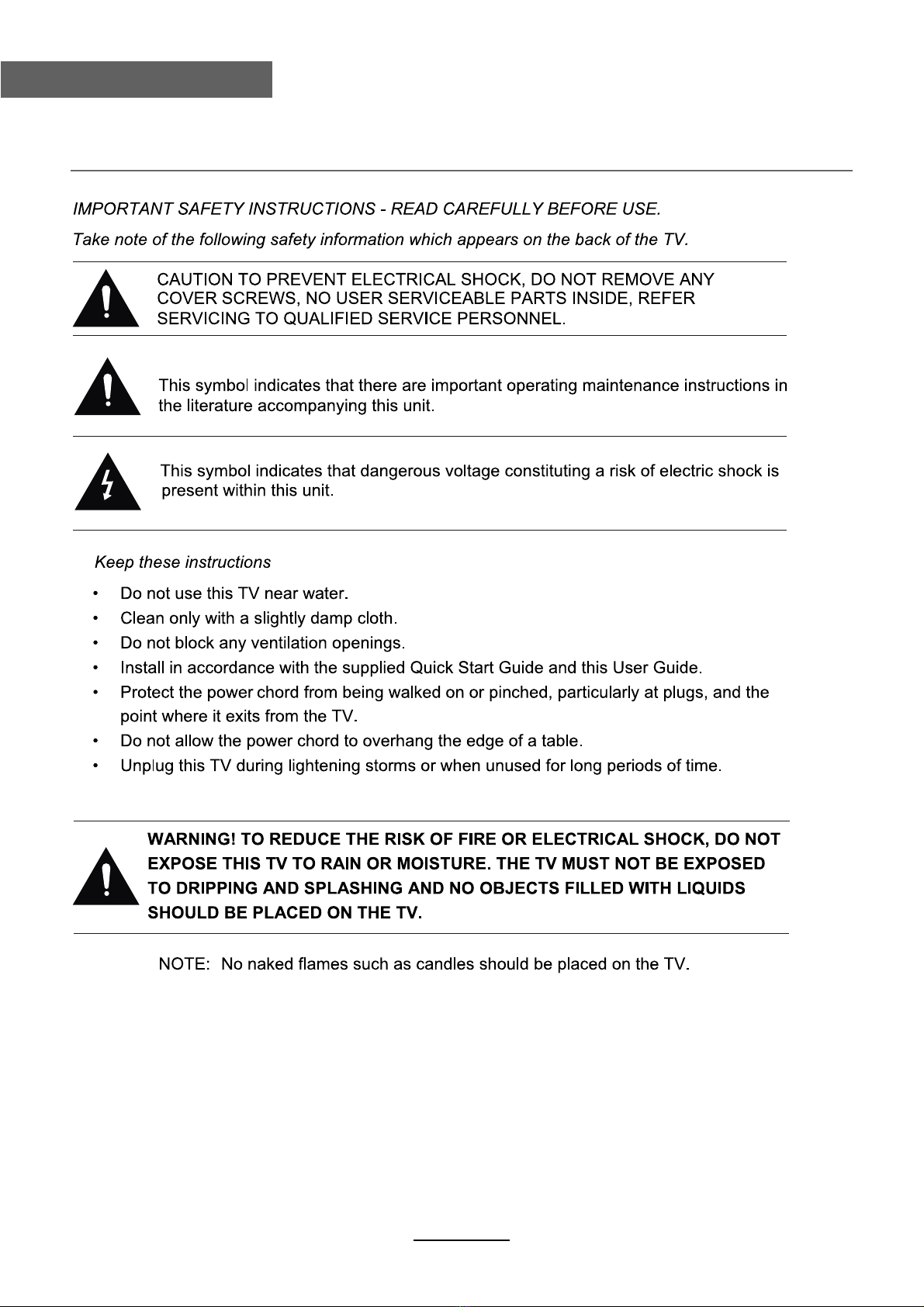

Safety Information
1
Safty Information

2
Safety Information
IMPORTANT SAFETY INFORMATION (Continued)
This unit has been produced according to all current safety regulations. The following safety
tips should safeguard users against careless use and the dangers connected with such use.
Although this appliance has been carefully manufactured and rigorously checked
prior leaving the factory, as with all electrical appliances it is possible for problems to
develop. If you notice smoke, an excessive build up of heat or any other unexpected
phenomena, you should disconnect the plug from the mains power socket
immediately.
Ensure that the unit is sufficiently ventilated! Never place next to or underneath
curtains!
The mains plug or appliance coupler is used as the disconnect device, the disconnect
device shall remain readily operarble.
This set should only be connected to a mains power supply which matches that
stated on the label on the rear of the TV – do not attempt to connect it to any other
type of supply.
The socket – outlet must be installed near the equipment and easily accessible.
To prevent overload, don’t share the same mains supply socket with too many other
items of equipment.
Apparatus with Class 1 construction shall be connected to a mains socket outlet with
a protective earthing connection.
Keep away from rodents. Rodents enjoy biting into electric flexes.
Always hold the plug when pulling out the plug from the mains supply socket. Do not
pull on the flex, the flex can become overloaded and cause a short circuit.
Set up the unit so that no one is able to trip over the flex.
Do not place heavy items on the flex, which may damage it.
Take note that the flex cannot be reached and pulled by young children, avoiding
injury.
Do not set up the unit near to heat sources. The casing and the flex could be
damaged by the impact of heat.
The screen is made of plastic and can break if damage is done to it. Be careful when
collecting sharp edged plastic splinters to avoid injury.
Avoid placing the unit on any surfaces that may be subject to vibrations or shocks.
To protect the unit during a thunderstorm unplug the AC power cable and disconnect
the aerial. Caution: Do not touch the aerial (RF) connector.
When you leave your home for long periods of time, unplug the AC power cable for
safety reasons.
The unit becomes warm when in operation. Do not place any covers or blankets on
the unit in order to prevent overheating. The ventilation holes are not to be blocked.
Do not set up near radiators. Do not place in direct sunshine. When placing on a
shelf leave 5 cm (2”) free space around the whole unit.
Do not allow water or moisture to enter the TV. Do NOT use in wet or moist areas
such as Bathrooms, steamy kitchens or near swimming pools.
Do not use this unit when moisture condensation may occur
Any repairs must be carried out by qualified personnel only.
Do not open this unit. A non – expert attempting to repair the unit could be dangerous
and potentially cause a fire hazard.
Safety Information

Safety Information
Safety Information
3
IMPORTANT SAFETY INFORMATION (continued)
Liquids spilt into the unit can cause serious damage. Switch the set OFF and
disconnect the mains power supply, then consult a qualified service person before
attempting to use the unit again.
Do NOT remove the safety covers. There are no useable or serviceable parts inside.
You may invalidate the warranty. Qualified personnel must only service this
apperatus.
Do NOT tap or shake the screen, you may damage the internal circuits. Take good
care of the remote control, do not drop.
Never place hot objects or open flame sources on or close to the TV.
High temperatures can melt plastic and lead to fires.
Where to install
Locate the television away from direct sunlight and strong lights, soft indirect lighting is
recommended for comfortable viewing. Use curtains or blinds to prevent direct sunlight
falling on the screen. Place the TV on a sturdy platform of which the surface should be flat
and steady. This will prevent it from falling over.
Make sure the television is located in a position where it cannot be pushed or hit by objects,
as pressure will break or damage the screen, and so that small objects cannot be inserted
into the ventilation slots or openings in the cabinet.
Headphone Warning
Loud music can damage your hearing irreversibly, therefore do not set the volume to a high
level when listening through headphones, particularly for lengthy listening periods.
To clean the TV use a soft dry cloth. Do NOT use solvents or petrol based fluids. For
stubborn stains, you may use a damp cloth with dilute detergent.

Product Introduction
Product Introduction
4
Front View
The functions of the TV buttons are described below.
MENU: Press to display the OSD menu, Press again to exit the menu.
CH+/CH-: Press to scan through channels.
They are also can be used to move down/up in the OSD menu screen.
VOL+/VOL-: Press to adjust the volume.
They are also can be used to move left/right in the OSD menu screen.
VOL+ button can be used to skip forward to next menu.
INPUT: Press to select the source.
POWER: Turn on/off the TV set.
LED indicator Remote Control window(keep clear)

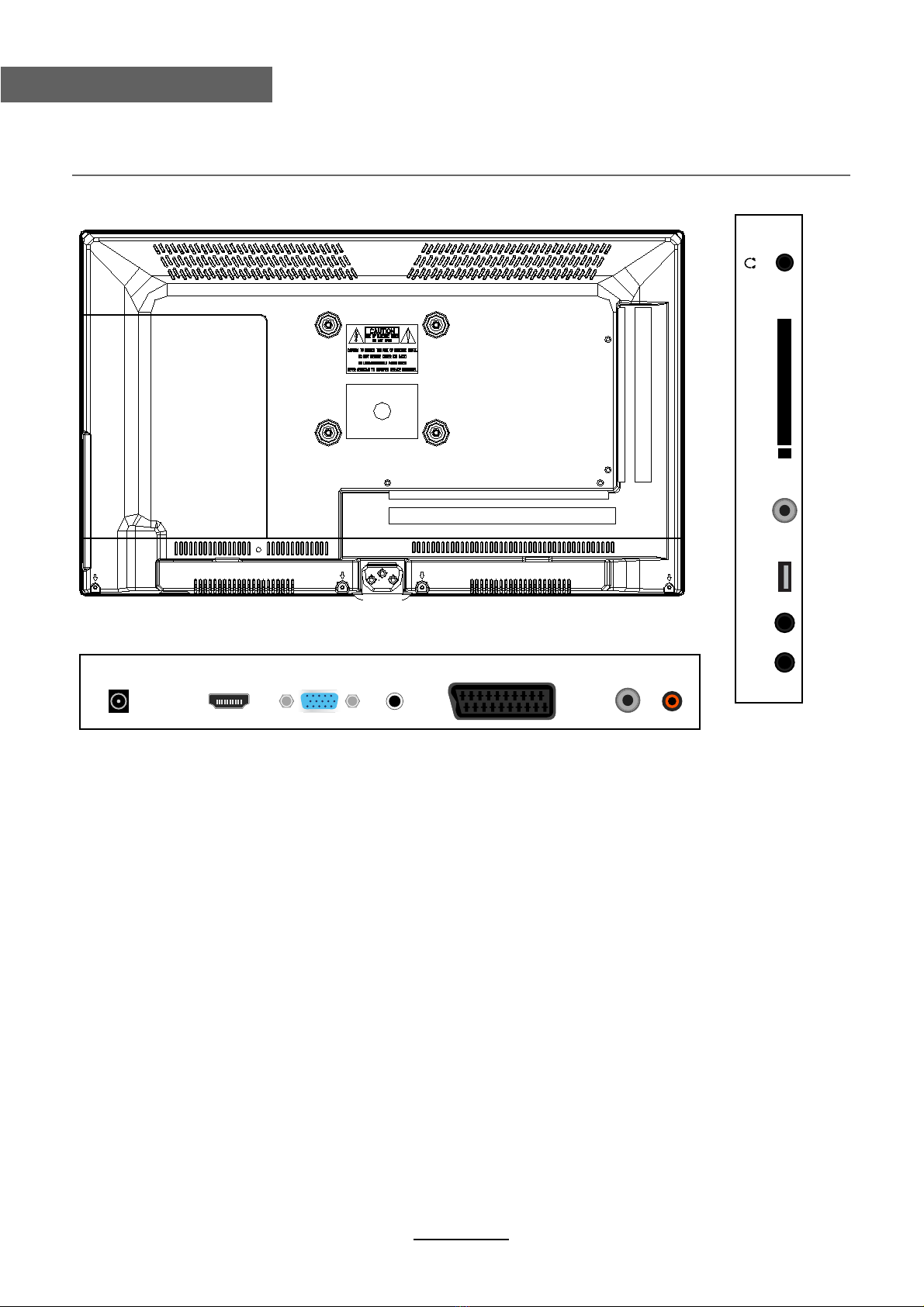

Connections
Connections
5
RF: Connect antenna or cable 75 Ohm coaxial to receive TV signal.
POWER: Connect to the mains adaptor.
HDMI: Connect it to the HDMI of DVD or other equipment.
VGA: For PC display.Connect it to the D-Sub 15 pins analog output connector of the PC.
PC-IN: Connect it to the audio output terminal of PC.
SCART: Connect them to the SCART video output terminal of DVD.
Coax: Digital output to AV receiver.
MINI AV: Connect it to the audio & video output terminal of DVD with the Converter cable.
(Audio terminals are shared with YPbPr)
MINI YPbPr: Connect it to the YPbPr video output terminal of DVD with the Converter cable.
USB: Connect to USB device for multimedia
DVB-S2: Connect a Satellite signal.
Common Interface: CI slot.
Common Interface HeadphoneDVB-S2USB
YPbPr
MINI
AV
MINI
POWER HDMI VGA PC-IN SCART RF COAX
Headphone: Connect it to your headphone or other audio equipment.

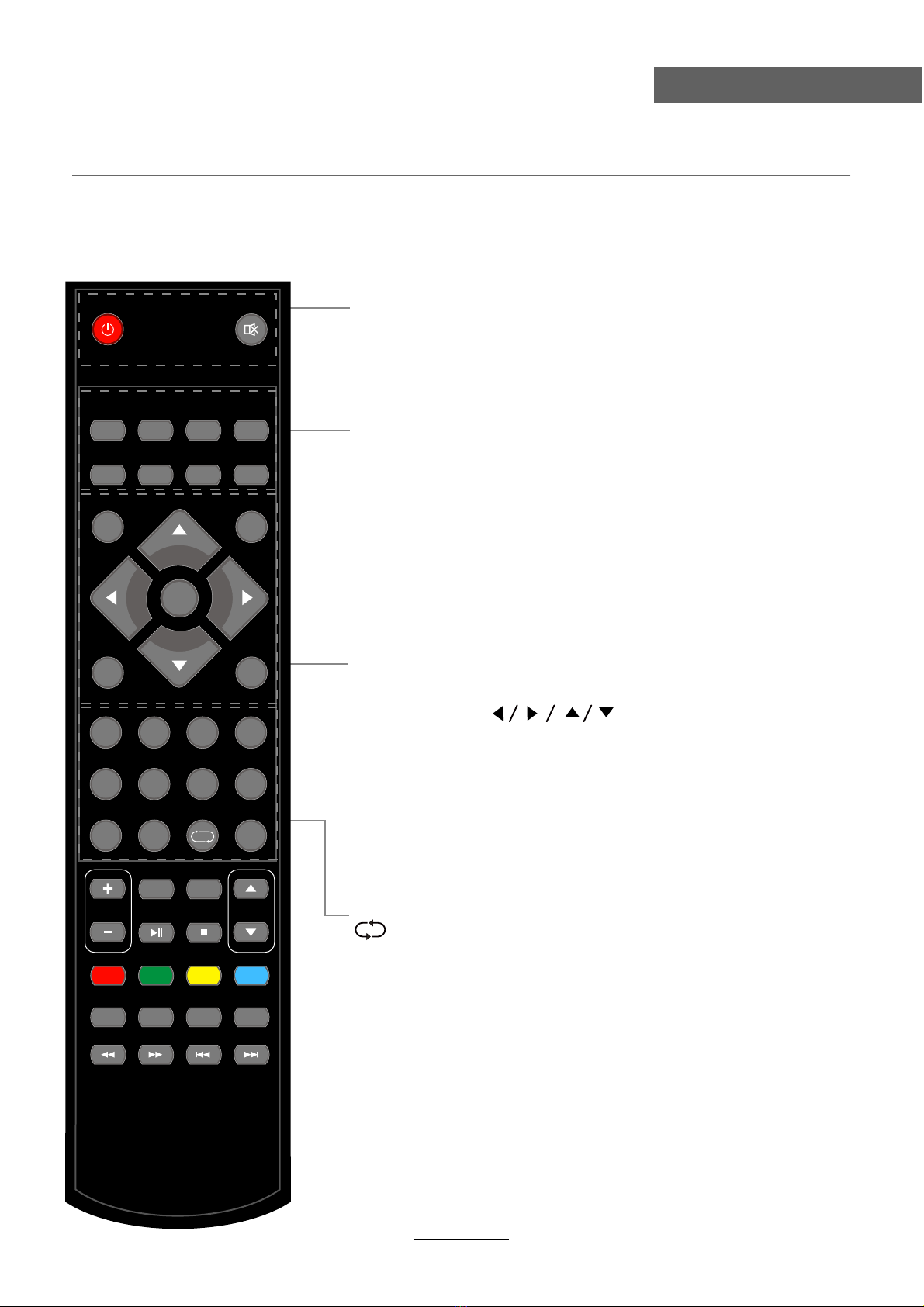

Remote Control
Remote Control
6
The remote control is using Infra-Red(IR). Point it towards the front of the TV. The remote
control may not work correctly if it is operated out of range or out of angle.
CH.LIST: Display the programs list.
EPG: To show the Electronic Program Guide during no-
menu state only in DTV mode.
FAV: Display the favorite program list.
SLEEP: StandbyTimer
PICTURE: Select the picture mode.
SOUND: Select the sound mode.
POWER(red button): Turn the TV on/standby.
MUTE: Press to mute the sound, press again or press
VOL+ to unmute.
Buttons for Basic operating
MENU: Press to display the OSD menu.
INPUT : Display the input source menu.
EXIT: Press to exit the OSD menu.
THUMBSTICK( OK): Allows you to navigate
the on-screen menus and adjust the system settings to your
preference.
NUMBER BUTTONS: Choose channel directly. Press
number buttons and press OK button to play the channel.
: Return to the previous channel viewed.
ASPECT: Adjust picture size
SUBTITLE: Turn on/off the subtitle display in DTV mode
TV/RADIO: Switch to TV/RADIO.
DISPLAY: Press to display the current mode’s information.
POWER MUTE
DISPLAY
MENU
TV/TXT CANCEL REVEAL NICAM/A2
INDEX HOLD SIZE SUBPAGE
EXIT
VOL CH
1234
5678
90
INPUTTV/RADIO
PICTURE SOUND ASPECT SLEEP
SUBTITLE CH.LIST EPG FAV
OK

Remote Control
7
Remote Control
POWER MUTE
DISPLAY
MENU
TV/TXT CANCEL REVEAL NICAM/A2
INDEX HOLD SIZE SUBPAGE
EXIT
VOL CH
1234
5678
90
INPUTTV/RADIO
PICTURE SOUND ASPECT SLEEP
SUBTITLE CH.LIST EPG FAV
OK

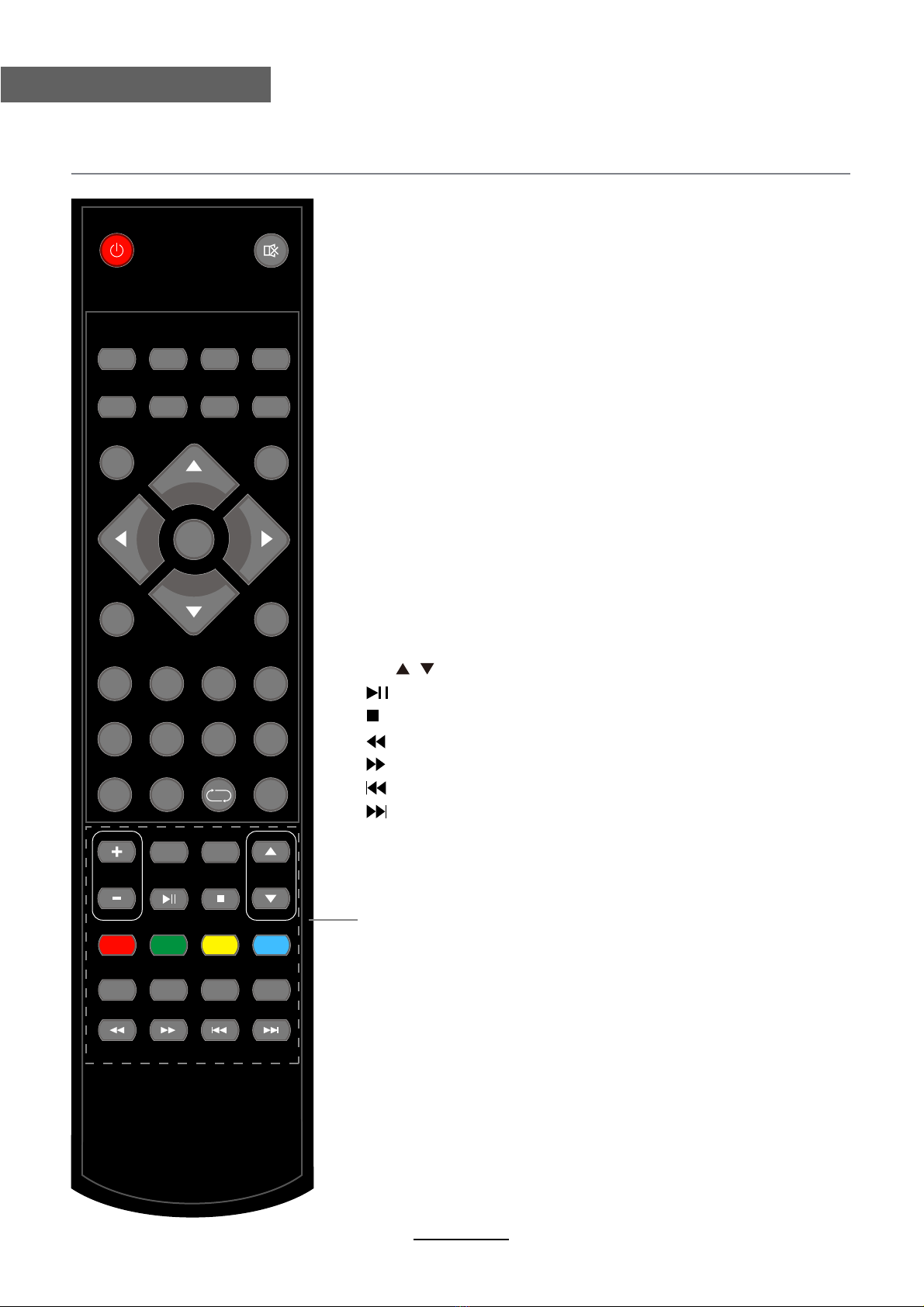

Buttons for TELETEXT operating
You could use the buttons only in TELETEXT .
TV/TXT: Turn off/on the Teletext display.
REVEAL: Reveal any hidden text.
HOLD: Hold or carry on the current subpage.
Colour buttons : Short cuts-follow the coloured links in the text.
INDEX: Go to index.
CH / : Channel/Program +/-.
VOL +/- : Volume +/-.
: Fast forward.
: Fast reverse.
: Previous chapter.
: Next chapter.
: Stop program.
: Play/pause program.
SIZE: Press to see top half of page double size. Press again to
see the bottom half of page double size. Press again for
normal size.
CANCEL: Cancel the Teletext display.
NICAM/A2: TV Nicam/A2 select.
SUBPAGE: Press to enter subpages, pressagain to cancel.

AUTO INSTALLATION
8

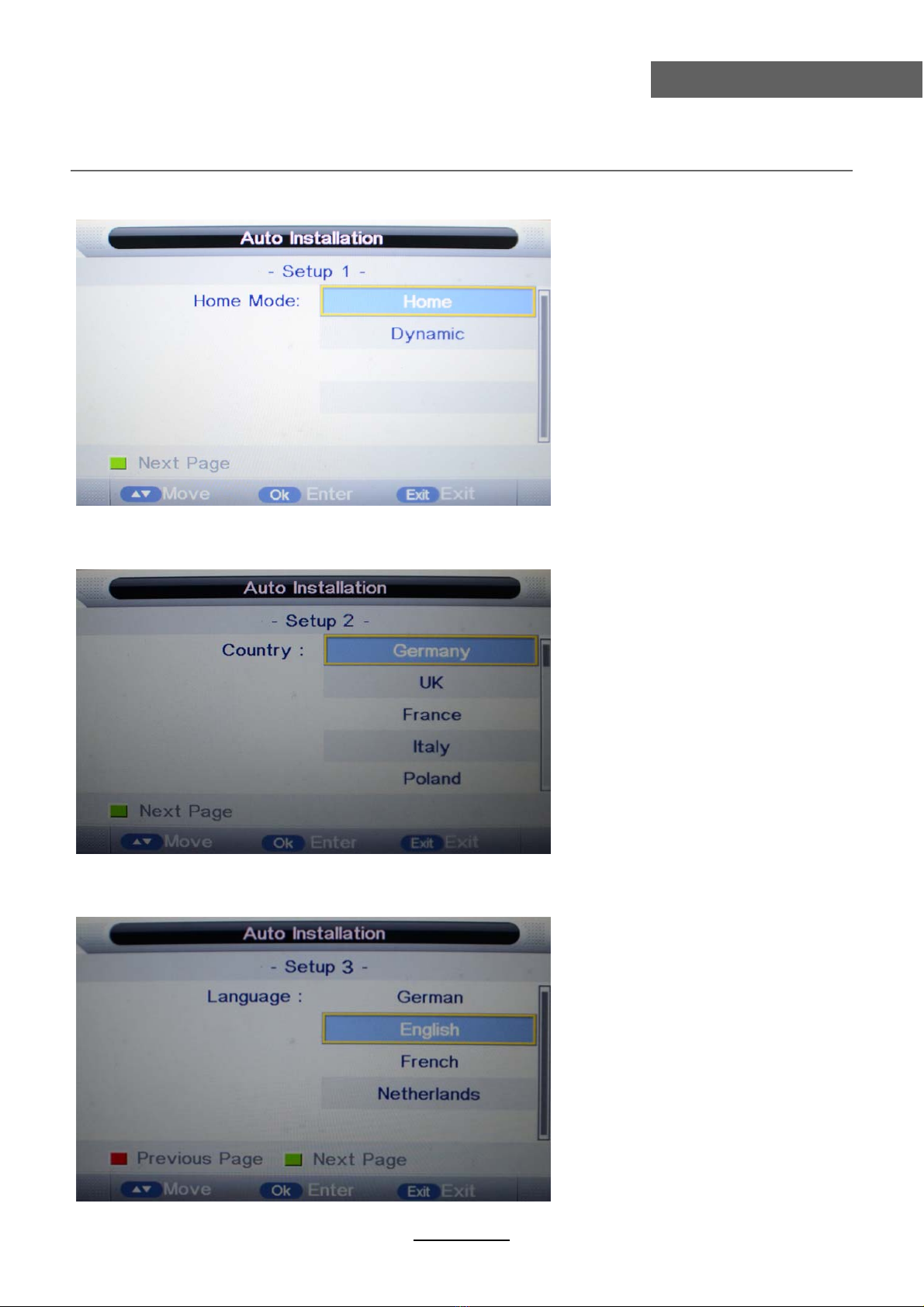

AUTO INSTALLATION
Setup 1:Set up the Home Mode
Setup 2:Set up the Country
Setup 3:Set up the Language

AUTO INSTALLATION
9
AUTO INSTALLATION
Setup 5:Set up the TV Connection
Setup 6: Set up the Auto Search Setup 6: Set up the Satellite setup
If select “Air” or “Cable”, it will show “Auto Search” in Setup 6
If select “Satellite”, it will show “Satellite setup” in Setup 6
Setup 4:Set up the Auto Power Off
66

button to select the function item, press / OK button to enter
Basic Operation
10
Basic Operation
Power on/off
1. Connect to the power supply with the adaptor.
2. -To turn on the TV
Press POWER button on the TV or remote control.
-To turn off the TV
Press POWER button on the TV or remote control.
Input Source select
Press INPUT button on the TV set or remote control to display the
input source menu, and use CH+/- button on the TV set or Ĥ0ĥ!button
on remote control to select the input source, press OK button on the
remote control to enter.
Note: Before you select the input source, make sure the
connections are prepared.
Basic OSD Menu operation
Main menu: Picture Sound Channel Feature Setup
Submenu
(Picture menu
for example)
Hint---you should operate
Press MENU button to display the OSD menu as below:
Use /
ĥ
button to select the main menu, and press / OK button to enter the submenu.
In the submenu, use
the setup menu, then press / button to adjust, or press / to select and press OK /
/ button to confirm.
Ĥ
/
ĥ
Ĥĥ
Ĥĥ
* (Press MENU / button to return to the upper menu.)
* (Press EXIT button to exit the menu display.)
Note1: Only when you input the suitable signal, the relevant items can be activated
Note2: Please operating the OSD menu according to hint on the bottom of the banner.
the OSD menu according
to the hint.

OSD Menu
11
OSD Menu
1. Picture menu
Description
Picture Mode: Select your desired picture mode from Dynamic, Standard, Mild and User.
Brightness: Adjust image black level.
Contrast: Adjust image contrast.
Sharpness: Adjust the sharpness(Gray and invalid in VGA/PC mode).
Colour: Adjust image colour from black and white.
Colour Temp.: Select an optimum color temperature mode to suit your eyes for viewing from
Warm, Cool, Standard.
Noise Reduction: If the broadcast signal received is weak, you can select the Noise Reduction
option to reduce the video noise level between Off, Low, Middle and High.
Tint: Control the tint ( NTSC mode only).
Aspect Ratio: Change the aspect for the screen from 4:3,16:9,Zoom1,Zoom2 or Panorama etc....

OSD Menu
12
OSD Menu
2. Sound menu
Description
Sound Mode: Select your desired sound mode from Standard, Movie, Music, Speech and User.
Bass: Adjust the level of the lower-pitched sounds.
Treble: Adjust the level of the higherpitched sounds.
Balance: Adjust the audio output between left and right speakers.
Auto Volume Level (AVL): The volumes of all sources will be maintained when the function’s on.
SPDIF: Select the spdif mode for the TV from off, PCM and Auto.
Surround: Turn on/off the surround sound function.

Press GREEN button to sign(lock) or cancel(unlock) the channel. And you have to enter the
password to view the program.
User must set the “Lock enable”(Feature-Lock- Lock enable) at ON to active this function.
PressDelete:
Lock:
RED button to sign the channels you want to delete, it will hint you when you exit.
PressSkip: YELLOW button to skip the channel or cancel the setting, and the program will not be
programed by CH+/- button.
Press
Swap: BLUE button to sign the channel, press / button to move, and press OK button to
swap the position.
OSD Menu
13
OSD Menu
3. Channel menu(In ATV/DTV mode)
Channel Management: Enter the Channel management menu to edit the channels.
Favorite Management: Add or remove
favourite channels by the colour buttons.
Up to 4 favourite lists are available,
RED-Fav1, GREEN-Fav2, YELLOW-Fav3,
BLUE-Fav4.
OK

OSD Menu
14
OSD Menu

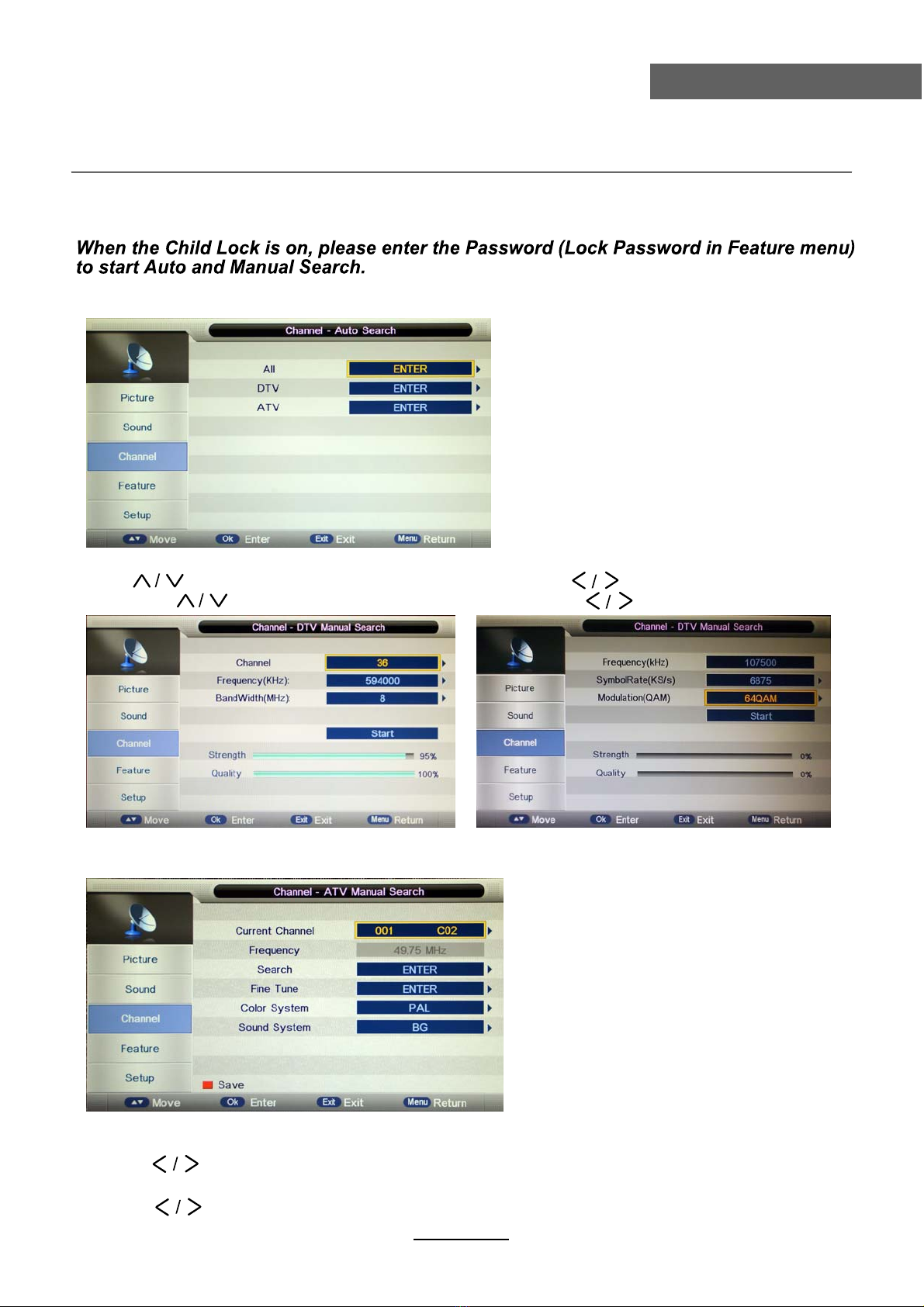

Country: Select the country.
TV Connection: Select DTV type, you can choose Air(DVB-T), Cable(DVB-C), Satellite(DVB-S2),
Auto Search: Press OK button to enter the Auto Search menu, select search mode, and press
DTV Manual Search : Enter the DTV Manual Search menu.
Press button to select the “Channel” item, and press button to select the channel,
then press button to select the “Start” item, and press button to manual search.
OK button to start auto search.
ATV Manual Search : Enter the ATV Manual Search menu.
Fine Tune: Press OK button to enter the Fine tune menu, and fine tune the frequency
Current Channel: Select the current channel for manual searching.
Search: Press OK button to enter the search menu, and manual search the frequency
Color/Sound System: Select the Color/Sound system for the program.
by button.
by button.
Note:
1. ALL: Auto search channels for DTV, ATV and
Radio.
DTV: Auto search channels for DTV and radio.
ATV: Auto search channels for ATV.
2. When the TV is auto tunning, you could
press MENU button to stop auto tunning and
return to preview menu.
DVB-T DVB-C
as you like.

OSD Menu
15
OSD Menu

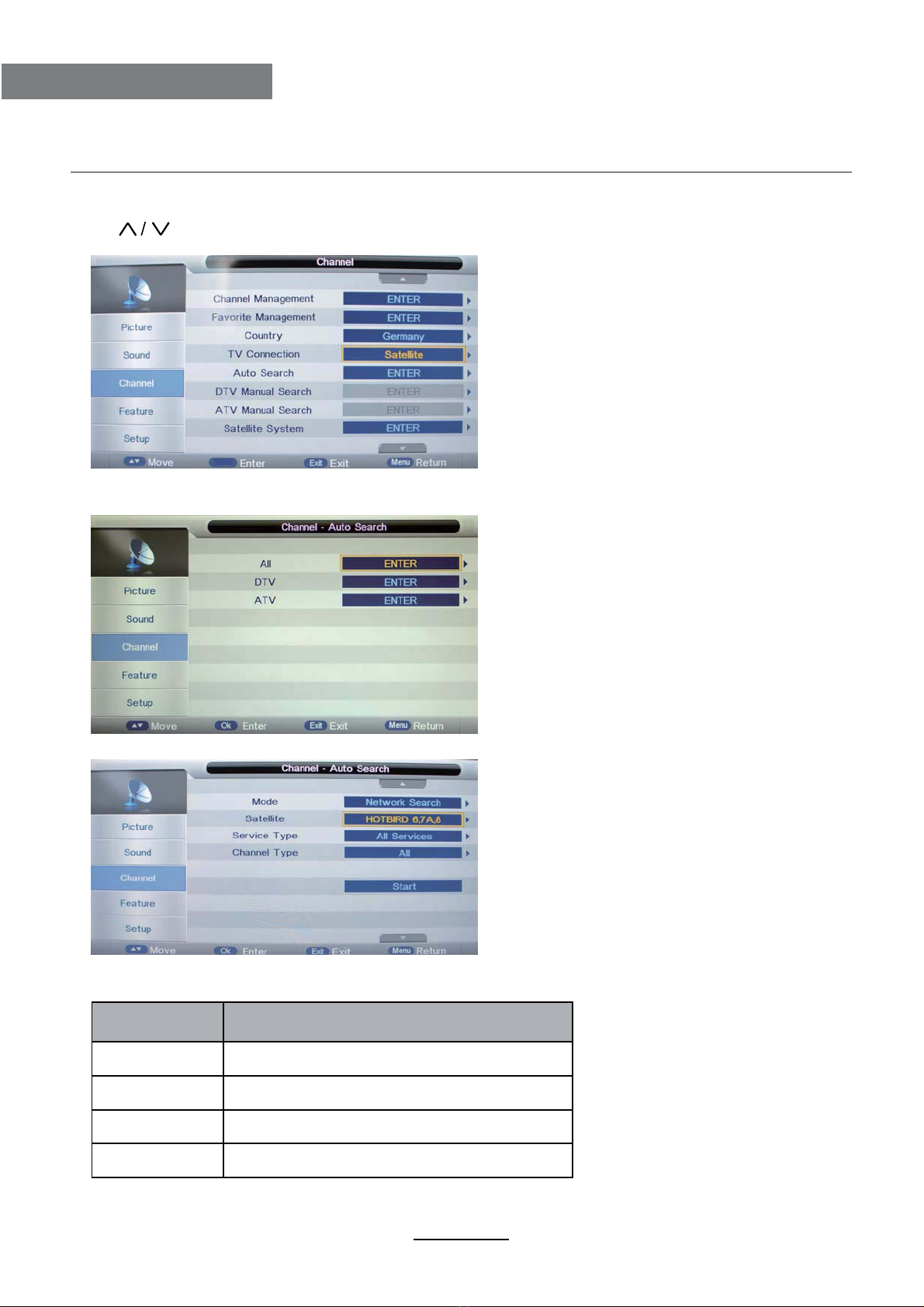

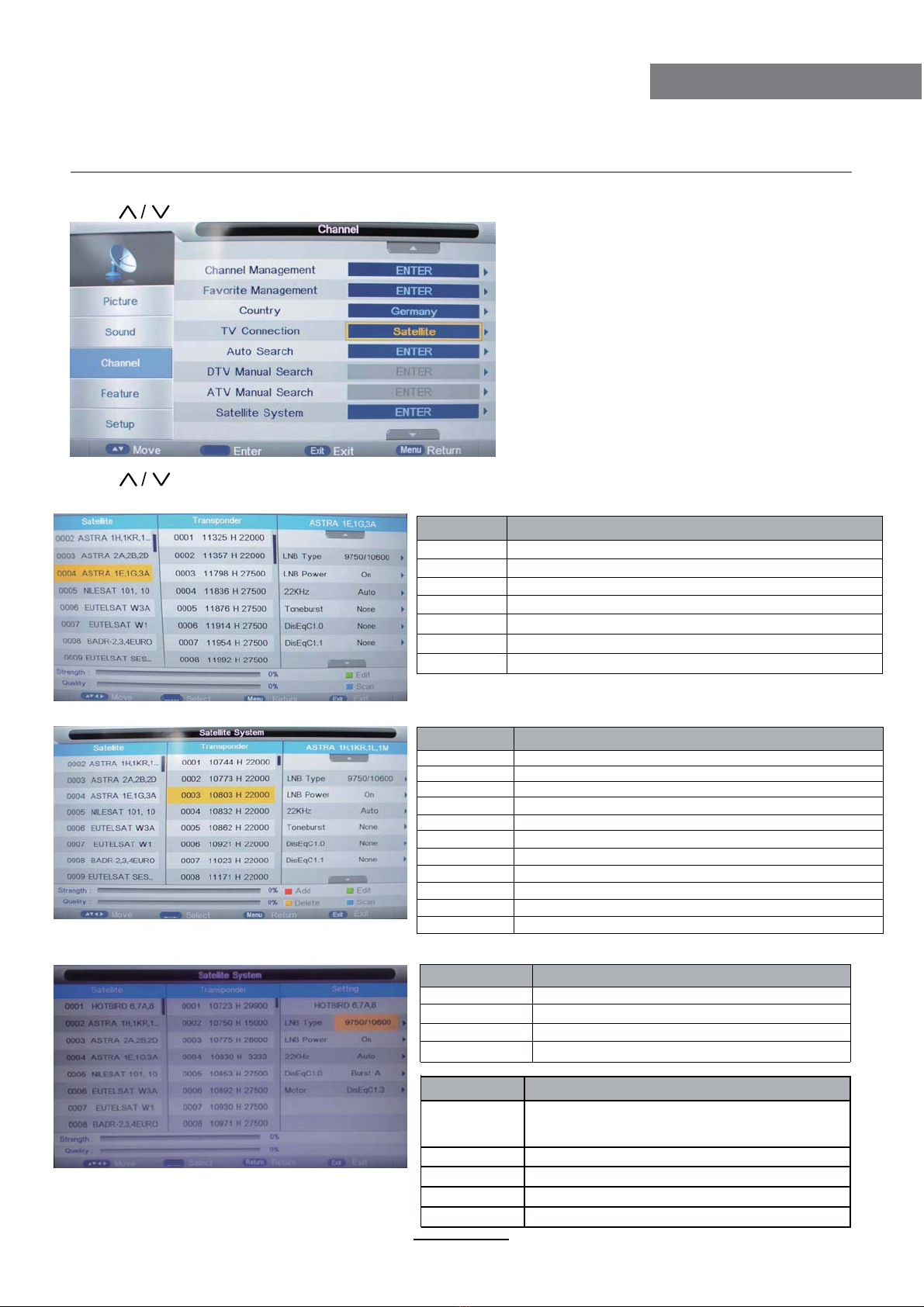

Satellite System
Press button to select the “TV Conection” , and set it on “Satellite”.
Select “Auto Search” as follow:
Operations in satellite Auto Search menu are shown in the following table
Option Value
Mode Default,Network Search,Full Search
Satellite 65 satellite for searching(3 user edit satellite)
Service Type All Services,Free Service
Channel Type All, TV Only
OK

OSD Menu
16
OSD Menu
Satellite System
Press button to select the “TV Conection” , and set it on “Satellite”.
Press button to select the “Satellite System” , show as follow:
Operations in Satellite List Menu are shown in the following table:
Operations in Transponder List Menu are shown in the following table:
Operations in Setting Menu are shown in the following table:
noitcAekortSyeK
KEY_UP use cursor to up
KEY_DOWN use cursor to down
KEY_LEFT switch operation to satellite system parameters setting list
KEY_RIGHT switch operation to Transponder list
KEY_MENU Back to Main Menu.
KEY_EXIT Exit Main Menu.
KEY_GREEN Enter satellite edit menu
noitcAekortSyeK
KEY_UP use cursor to up
KEY_DOWN use cursor to down
KEY_LEFT switch operation to Satellite list
KEY_RIGHT switch operation to satellite system parameters setting list
KEY_ENTER Select/unselect cursor item Transponder.
KEY_MENU Back to Satellite list.
KEY_EXIT Exit Main Menu.
KEY_RED Enter Transponder Add menu
KEY_GREEN Enter Transponder Edit menu
KEY_YELLOW Enter Transponder Delete confirm menu
KEY_BLUE Enter Transponder scan menu
noitcAekortSyeK
KEY_UP use cursor to up
KEY_DOWN use cursor to down
KEY_MENU Back to Transponder liat.
KEY_EXIT Exit Main Menu.
Option Value
LNB Type
9750/10600,9750/10750,05150,05750,09750,
10600,10750,11300,11475,User Single,User
Dual
LNB Power On,Off
22KHz Auto,off,on
DisEqC Mode Off,LNB1,LNB2,LNB3,LNB4,Burst A,Burst B
Motor None,DisEqC1.2,DisEqC1.3
OK
OK
OK
OK

OSD Menu
17
OSD Menu
4. Feature menu
Lock: This menu allows you to lock certain features of the television so that they can not be used
or viewed. For example if you don’t want certain channels viewed by children or if the television
is to be used in a hotel and you want certain channels be locked.
When you enter the system lock menu you will be asked for a password. As default it is 0000.
Lock Enable - Turn on/off the Lock functions.
Parental Guidance - Select the Parental Guidance mode, or turn off the function.
Note: When it is be turned on, the functions of Parental Guidance and Change Pin code
below will be locked, and the functions Lock(in Channel Management), Auto Search, DTV
Manual Search, ATV manual Search in Channel menu will also be locked.
Change Pin Code – Press OK button to enter, first enter the current code, then enter your
new code and confirm your new code.
