Logik L19LDIB11 User manual

19” HD Ready Digital LED TV
Instruction Manual
L19LDIB11
L19LDIB11_IB_final111031_Zell.indd 1 31/10/2011 10:19 AM

L19LDIB11_IB_final111031_Zell.indd 2 31/10/2011 10:19 AM

Contents
Preparation.........................................................................................................................................................................................5
Unpacking the TV ...............................................................................................................................................................................................................5
Installing / Removing the Base Stand .........................................................................................................................................................................6
Front View and Controls...................................................................................................................................................................................................7
Rear View and Sockets......................................................................................................................................................................................................8
Installing Batteries in the Remote Control ................................................................................................................................................................9
Remote Control Operation Range................................................................................................................................................................................9

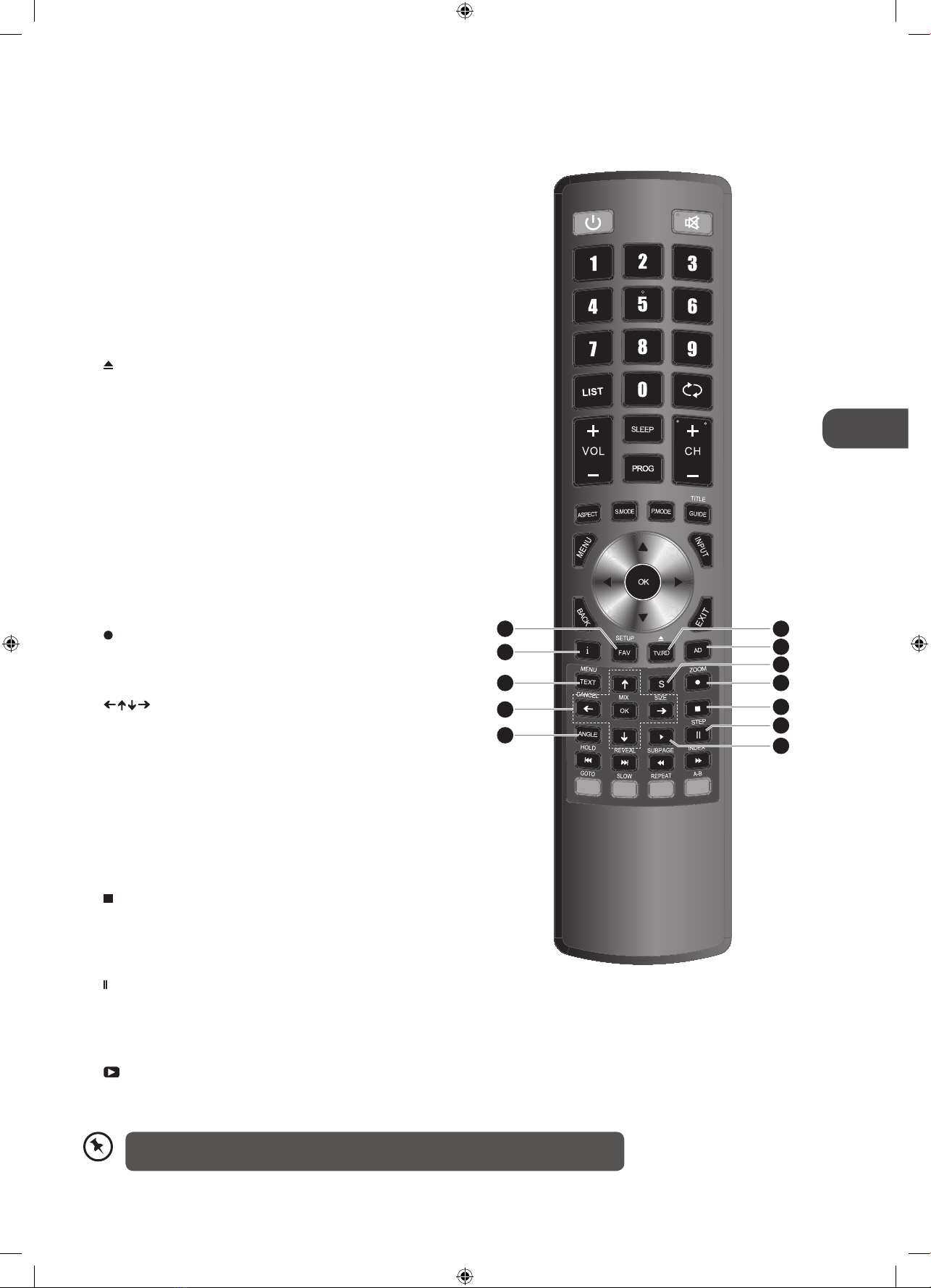

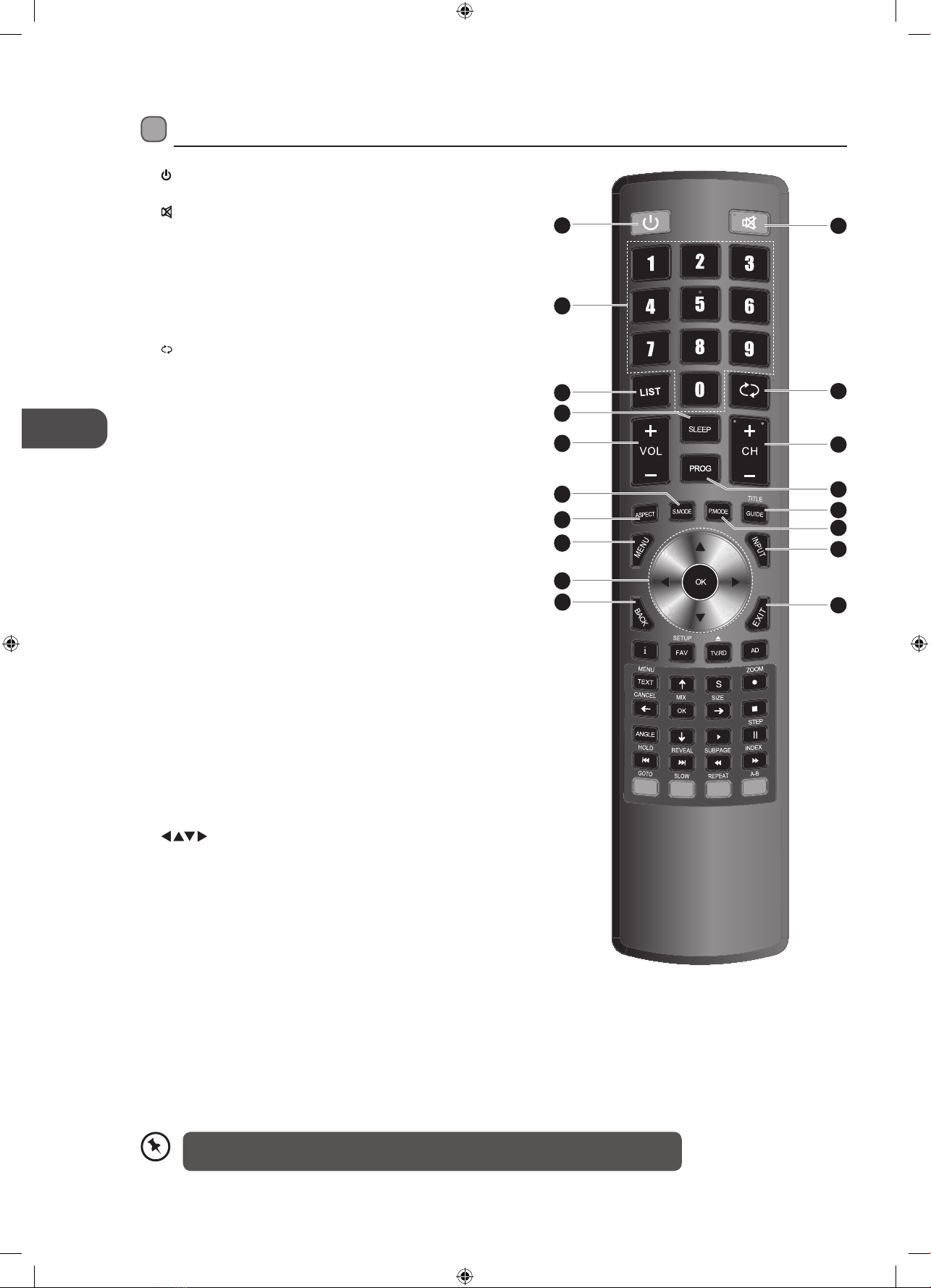

Remote Control .................................................................................................................................................................................................................10
Connections......................................................................................................................................................................................13
Making Video and Audio Connections.....................................................................................................................................................................13

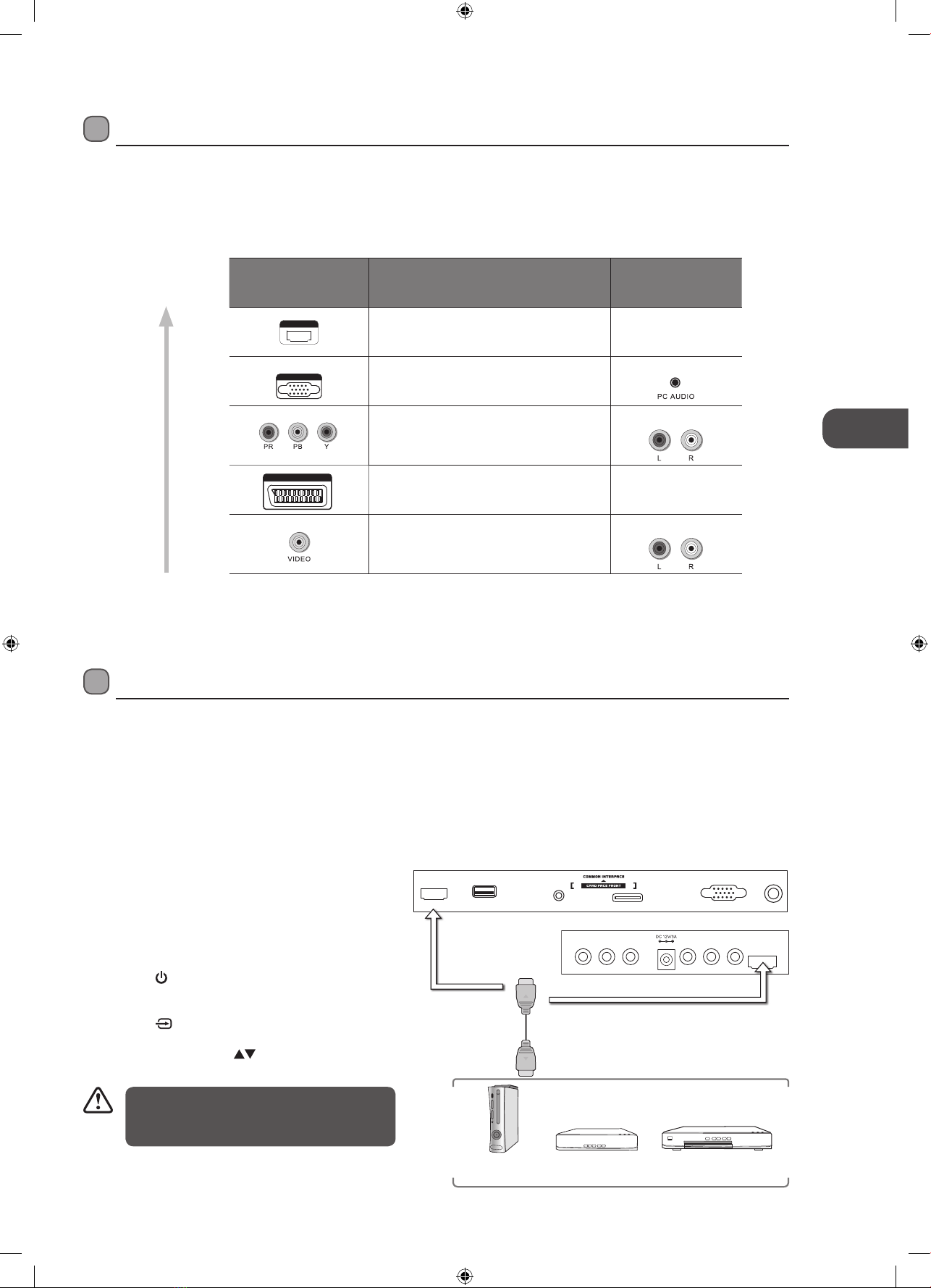

Connecting an AV Device with an HDMI Cable.....................................................................................................................................................13

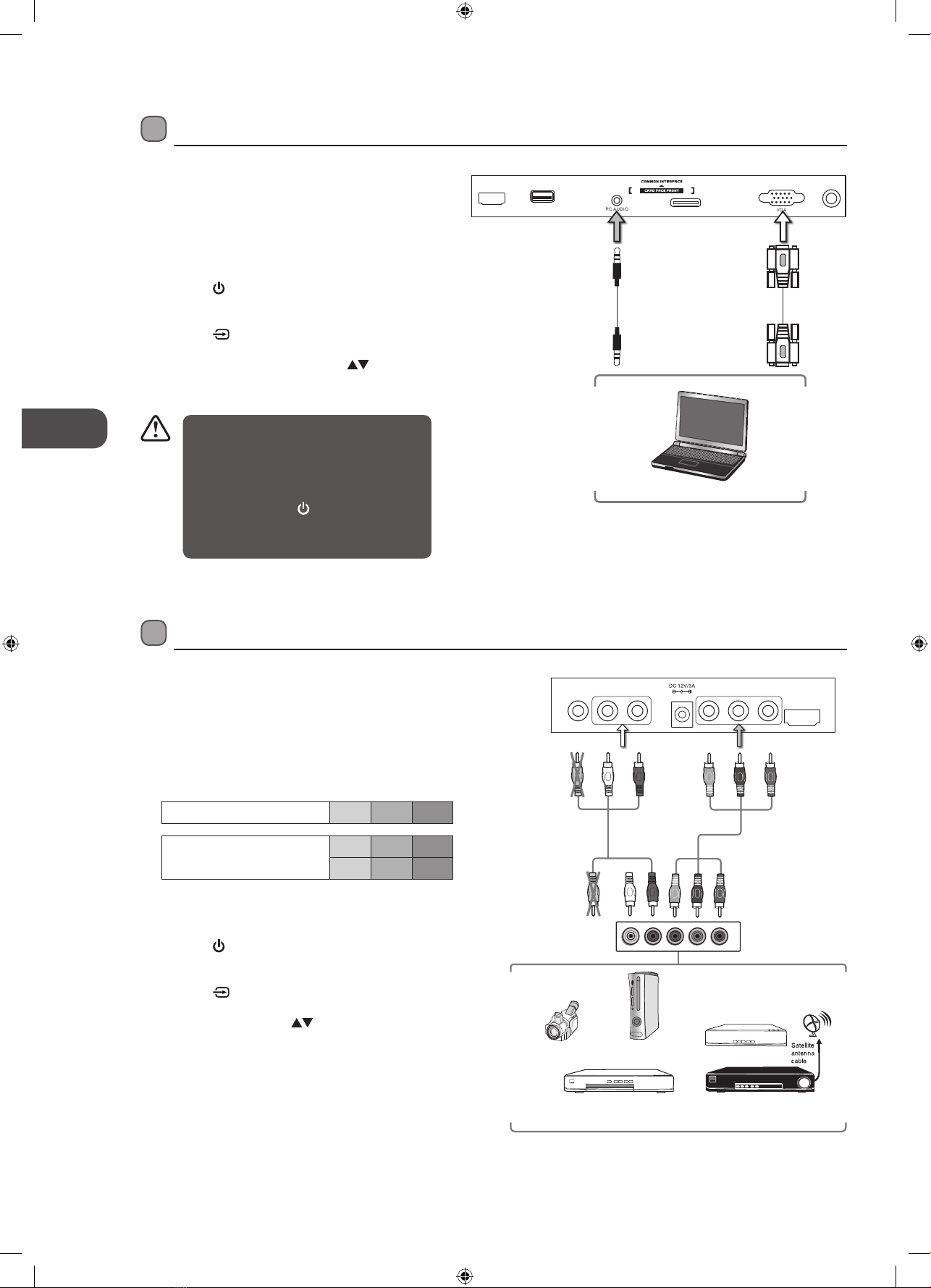

Connecting a Computer with a VGA Cable.............................................................................................................................................................14
Connecting an AV Device with a Component (YPbPr) Cable...........................................................................................................................14
Connecting an AV Device with a SCART Cable......................................................................................................................................................15
Connecting an AV Device with Composite Cable.................................................................................................................................................15
Connecting a USB Storage Device..............................................................................................................................................................................16
Connecting the Aerial .....................................................................................................................................................................................................16
Initial Setup ......................................................................................................................................................................................17
Turning the TV On for the First Time .........................................................................................................................................................................17
− Selecting the Input Source................................................................................................................................................................................18
− Channel Selection ...............................................................................................................................................................................................18
− Display Channel Information ...........................................................................................................................................................................18
− Volume Adjustment.............................................................................................................................................................................................18
Using the Features ...........................................................................................................................................................................19
Customising the Channel Setting (TV, DTV or Radio Mode).............................................................................................................................19
− Auto Tuning ............................................................................................................................................................................................................19
− DTV Manual Tuning............................................................................................................................................................................................. 20
− ATV Manual Tuning............................................................................................................................................................................................. 20
− Channel Edit (ATV / DTV Mode).......................................................................................................................................................................21
− Signal Information (DTV Mode)...................................................................................................................................................................... 22
− CI (Common Interface) (DTV Mode).............................................................................................................................................................. 23
− Software Update (Over Air Download)........................................................................................................................................................ 24
− Software Update (USB)...................................................................................................................................................................................... 24
Customising the Picture Setting ................................................................................................................................................................................ 25
Customising the Sound Setting ................................................................................................................................................................................. 27
Customising the Time Settings................................................................................................................................................................................... 28
− Stereo / Dual Sound Reception (ATV Mode).............................................................................................................................................. 28
Customising the Option Setting ................................................................................................................................................................................ 29
− OSD Language...................................................................................................................................................................................................... 29
− Audio Language (DTV Mode).......................................................................................................................................................................... 30
− Subtitle Language (DTV Mode).......................................................................................................................................................................31
− Hearing Impaired..................................................................................................................................................................................................31
− Country.....................................................................................................................................................................................................................31
− PVR File System (DTV Mode)............................................................................................................................................................................ 32
− CEC (Consumer Electronics Control) ............................................................................................................................................................ 33
− Restore Factory Default..................................................................................................................................................................................... 33
Customising the LOCK Setting.................................................................................................................................................................................... 34
− Lock System ........................................................................................................................................................................................................... 34
− Set Password ......................................................................................................................................................................................................... 35
− Block Channel ....................................................................................................................................................................................................... 36
− Parental Guidance............................................................................................................................................................................................... 37
Teletext (ATV Mode)........................................................................................................................................................................................................ 38
− To Turn on Teletext Function........................................................................................................................................................................... 38
L19LDIB11_IB_final111031_Zell.indd 3 31/10/2011 10:19 AM

Digital Teletext (DTV Mode)......................................................................................................................................................................................... 39
− Teletext within Digital Service........................................................................................................................................................................ 39
EPG (Electronic Programme Guide) (DTV Mode) ................................................................................................................................................. 39
− Switch On / O EPG............................................................................................................................................................................................. 39
− Select a Programme ........................................................................................................................................................................................... 40
Using the Features via USB Port .....................................................................................................................................................41
My Photo..............................................................................................................................................................................................................................41
My Music ..............................................................................................................................................................................................................................41
My Movie............................................................................................................................................................................................................................. 42
My Text................................................................................................................................................................................................................................. 43
PVR (Personal Video Recorder).......................................................................................................................................................44
Time Shift Function.........................................................................................................................................................................................................44
Recording DTV Programme onto a USB Storage Device .................................................................................................................................. 45
Timer Programming ....................................................................................................................................................................................................... 46
Play Recorded Programme .......................................................................................................................................................................................... 47
Maintenance.....................................................................................................................................................................................48
Display Modes ..................................................................................................................................................................................50
YPbPr Mode ....................................................................................................................................................................................................................... 50
PC Mode.............................................................................................................................................................................................................................. 50
HDMI Mode ....................................................................................................................................................................................................................... 50
Specifications ...................................................................................................................................................................................51
Safety Warnings ...............................................................................................................................................................................53
L19LDIB11_IB_final111031_Zell.indd 4 31/10/2011 10:19 AM

GB
5
Preparation
Unpacking the TV
Remove all packaging from the TV. Retain the packaging. If you dispose of it please do so according to local regulations.
The following items are included:
Remote Control / AAA Batteries x 2
(P.N.: 504C1913112 & 32200007158)
Thank you for purchasing your new Logik 19” HD Ready Digital LED TV.
Your new TV has many features and incorporates the latest technology to enhance your viewing
experience. We recommend that you spend some time reading this instruction manual in order that you
fully understand these features. You will also find some hints and tips to help you resolve any issues.
Read all the safety instructions carefully before use and keep this instruction manual for future reference.
If items are missing, or damaged please contact Partmaster (UK only). Tel: [phone] for assistance.
Preparation
TV
TV Base
(P.N.: 102C2242111)
Mains Adapter
(P.N.: 514C2413123)
SCART Adapter Cable
(P.N.: 30430110019)
Screw A
(P.N.: 20912223101)
Instruction Manual
(P.N.: 4031C193609)
Quick Start Guide
(P.N.: 4033C193615)
Digital TV Switchcover Addendum
(P.N.: 4031C241307)
L19LDIB11_IB_final111031_Zell.indd 5 31/10/2011 10:20 AM

GB
6
Preparation
5. Mounting on the wall. This TV is designed to be wall-
mounted with a standard 100 mm x 100 mm mounting
kit designed for flat-panel TVs (sold separately).
Mount this TV according to the instructions included
in the mounting kit. Due to space restrictions, we
recommend that you make all connections (refer to
page 13-16 for details) before mounting on to the wall.
4. To remove the base stand, untighten the 3 screws that
holds the base stand to the rear of the TV. Slide the
base stand out.
1. Disconnect all cables connected to the TV.
2. Lay the TV down on a flat surface with the back side
facing up. Please make sure to place a soft cushioned
material (such as a pillow or thick piece of foam)
beneath the screen.
3. To install the base stand, align
the screw hole and then secure
the base stand by hand or
using a screw driver with the
provided 1 screw.
or
screw
screw
unscrew

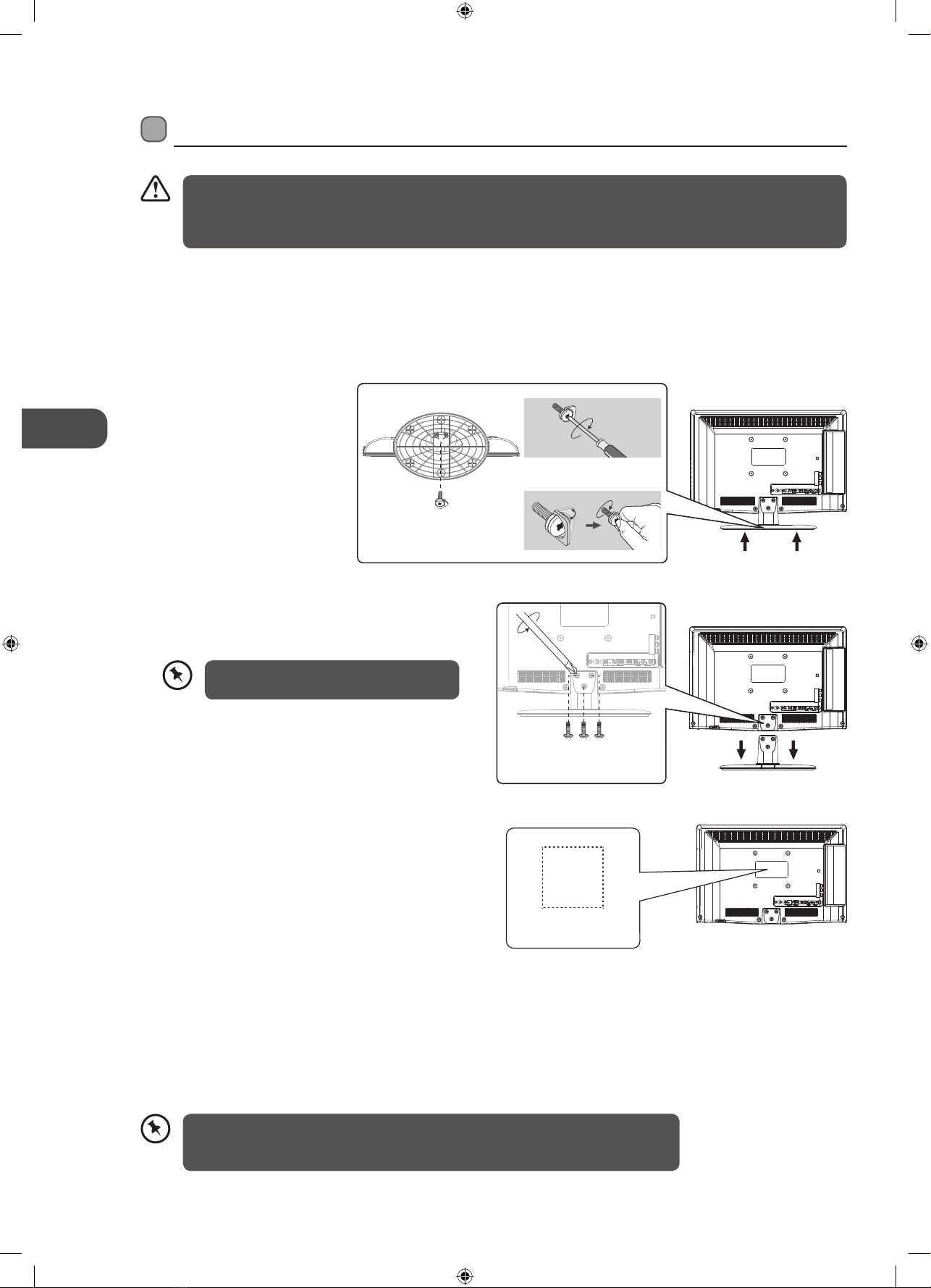

Installing / Removing the Base Stand
Screws x 3
(P.N.: xxxxxxxxxxx)
100 mm
100 mm
Four mounting holes
(size M4x12 screw)
• Please read this instruction manual carefully while setting up your TV.
• If you require additional assistance please call our Customer Technical Services Centre.
Tel: [phone] (UK only)
Keep all the spare screws should you want
to use the base stand option.
• Remove the base stand before mounting the TV onto the wall.
• The LCD display is very fragile, and must be protected at all times when installing and removing the base stand. Be
sure that no hard or sharp object, or anything that could scratch or damage the LCD display, comes into contact with
it. DO NOT exert pressure on the front of the TV at any time because the screen could crack.
Screw A x 1
(P.N.: 20912223101)
Screw B x 3
(P.N.: 209020412B1)
L19LDIB11_IB_final111031_Zell.indd 6 31/10/2011 10:20 AM

GB
7
Preparation
Front View and Controls
Item Description
1POWER LED
Illuminates blue when the TV is turned on. Illuminates red when the TV is in standby
mode. The LED will flash blue and red when the timer programming has started in the
standby mode.
2IR (Infrared Receiver) Receives IR signals from the remote control.
Do not put anything near the sensor, as its function may be affected.
3 INPUT
Press to select among different input signal sources:
DTV / ATV / SCART / YPbPr / PC / HDMI1 / HDMI2 / AV / DMP.
Confirmed the selection on OSD menu.
4MENU Displays the OSD (on screen display) menu.
5 CH + / – Press to select a channel or select a sub-menu from the OSD menu.
6 VOL + / – Adjusts the volume.
Press to select and adjust a setting in the OSD menu.
7Switches the TV on from standby mode.
Switches the TV back to standby mode.
3
4
6
7
5
1 2
L19LDIB11_IB_final111031_Zell.indd 7 31/10/2011 10:20 AM

GB
8
Preparation
Rear View and Sockets
HDMI1 USB PC AUDIO VGA RF
SCART
Socket Description
1 RF Aerial To connect to the aerial socket on the wall with the RF coaxial cable.
2 VGA / PC AUDIO To connect to a computer or other devices with a VGA interface.
3 SCART To connect to a VCR, DVD Player, or other AV device with a SCART output socket by using
the SCART adapter cable provided.
4 COMMON INTERFACE Allows the insertion of a Common Access Module. (Refer to page 23 for details)
5 USB Allows the insertion of a USB storage device to play video, audio, photo and text files
(DMP mode) and record DTV programmes on to a USB storage device.
6 HDMI1 / HDMI2 To connect to a High-Definition (HD) signal output device, such as a set-top box, blu-ray
disc player or AV receiver.
7 VIDEO / AUDIO (L/R) To connect to the Composite VIDEO and AUDIO (L/R) output sockets on external video
devices.
8 Y, PB, PR / AUDIO (L/R) To connect to a DVD player, Digital Set-Top-Box, or other AV devices with component
(YPbPr) video and audio output sockets.
9 Mains Adapter Connects the mains adapter to the mains socket.
1
2
3
5
6
4
69
87
VIDEO L R Y Pb P r
HDMI2
L19LDIB11_IB_final111031_Zell.indd 8 31/10/2011 10:20 AM

GB
9
Preparation
Remote Control Operation Range
Point the remote control at the TV no more than 5 metres from the
remote control sensor on the TV and within 60° in front of the TV.
The operating distance may vary depending on the brightness of the
room.
Installing Batteries in the Remote Control
1. Press and lift the back cover to open the battery compartment of the
remote control.
2. Insert two AAA size batteries. Make sure to match the (+) and ( - ) ends
of the batteries with the (+) and ( - ) ends indicated in the battery
compartment.
3. Close the battery compartment cover.
30° 30°
5M
Handling the Batteries
• Improper or incorrect use of batteries may cause
corrosion or battery leakage, which could cause
fire, personal injury or damage to property.
• Only use the battery type indicated in this
manual.
• When the batteries are exhausted, the remote will
not function. Replace both batteries at the same
time with new ones.
• Do not install new batteries with used ones and
do not mix different types of batteries.
• Do not dispose of used batteries as domestic
waste. Dispose of them in accordance with local
regulations.
Handling the Remote Control
• Take care of your fingernails when you press and
hold the battery release tab.
• Do not drop or cause impact to the remote
control.
• Do not spill water or any liquid on the remote
control.
• Do not place the remote control on a wet object.
• Do not place the remote control under direct
sunlight or near sources of excessive heat.
• Remove the battery from the remote control
when not in use for a long period of time, as it
could cause corrosion or battery leakage and may
result in physical injury and/or property damage
including fire
L19LDIB11_IB_final111031_Zell.indd 9 31/10/2011 10:20 AM

GB
10
Preparation
1.
Switches the TV between on and standby mode.
2. MUTE
Mutes and restores your TV sound.
3. 0-9 Number Button
• Press to select a programme.
• Select numbered items in a menu. (DVD mode)
4. LIST
• Display the channel list. (ATV / DTV mode)
• Display the text page on the teletext screen. (ATV mode)
5. RECALL
• Return to the previous viewing channel. (ATV / DTV mode)
• Return to menu (DVD mode)
6. SLEEP
Sets the TV sleep timer: OFF / 10 / 20 / … / 180 / 240 min.
7. VOL + / –
Adjusts the volume.
8. CH + / –
Select a channel.
9. PROG
• Display the channel edit menu. (ATV / DTV mode)
• Programme the DVD. (DVD mode)
10. S.MODE
Select sound mode: Standard / Music / Movie / Sports / User.
11. ASPECT
Allows you to watch the screens in various formats: Auto / 4:3 /
16:9 / Zoom / Subtitle / Smart Zoom.
12. GUIDE
Displays the EPG electronic Programme guide. (DTV mode)
TITLE
Displays the DVD title content. (DVD mode)
13. P.MODE
Select picture mode: Standard / Mild / User / Dynamic.
14. MENU
Display the OSD (On Screen Display) menu.
15. INPUT
Select among the dierent input signal sources:
DTV / ATV / SCART / YPbPr / PC / HDMI1 / HDMI2 / AV / DMP
16.
Allows you to navigate the OSD menus and adjust the system
settings to your preference.
OK
Conrm the selection in the OSD menus.
17. BACK
Return to the previous menu in the OSD menus.
18. Exit
Exit the OSD menu.
Remote Control
12
5
8
12
15
18
9
13
3
4
7
11
14
16
17
6
10
Please note that there are DVD mode functions on the remote control only operate on
TV models with a built-in DVD player.
L19LDIB11_IB_final111031_Zell.indd 10 31/10/2011 10:20 AM
