Destination audio Irrm User manual

The IRRM is a mini infrared receiver with status and activity LED

indicators and connects to the IRB1 infrared connecting block.

Features:

• Status indicator has a green LED for system on/off indication.

• Activity indicator has a blue LED indicates IR signal activity in a

completed circuit with an emitter.

• Requires power supply, connecting block and emitters for proper IR

repeater operation.

• Attachestoanyatsurfaceusingtheincludeddouble-sidedtape.

Thetapemaybeappliedtothebottomatsurfaceof

the IRRM to accommodate the installation.

• Power (12V DC @ 6 mA) supplied from connecting block.

• IR lens rejects visible light interference.

• Crosshatch shield (internal) inhibits EMI/ESI interference.

• Carrier frequency acceptance range is 28 to 90 kHz.

• Control range is up to 25 feet, depending on remote strength and

ambientnoiseconditions.Controlangle±30˚offaxis.

Specications:

• Use4-conductor(minimum)24gaugeunshieldedsolidorstrandedcopper

wire up to 1200 feet (Cat5E), 22 gauge up to 2000 feet, 20 gauge up to

3000feetand18gaugeupto5300feetforroom-to-roomwiring.

• 5300feetwith18gaugemaximumrecommendedcablelength.

• Dimensions:2-9⁄16”(65mm)Lx1/2”(13mm)Wx1⁄2”(13mm)D.

System Connection (Typical)

1. Mount the IRRM in a recessed cabinet area or under a shelf, using the

two-sidedadhesivetapesupplied.

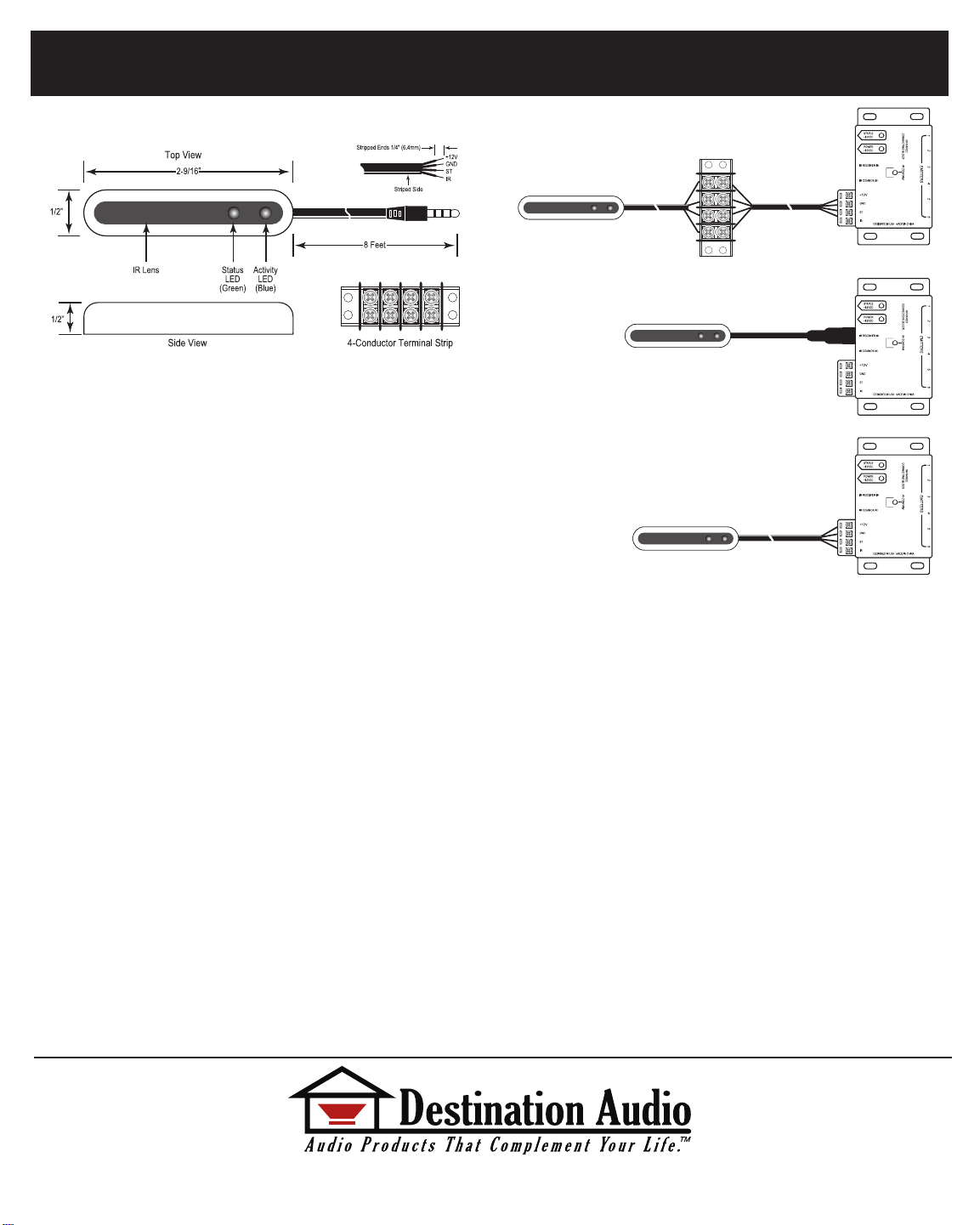

2. Plug the IR Receiver and Emitters into the

IRB1 infrared connecting

block using one of the three options shown in Figure 2.

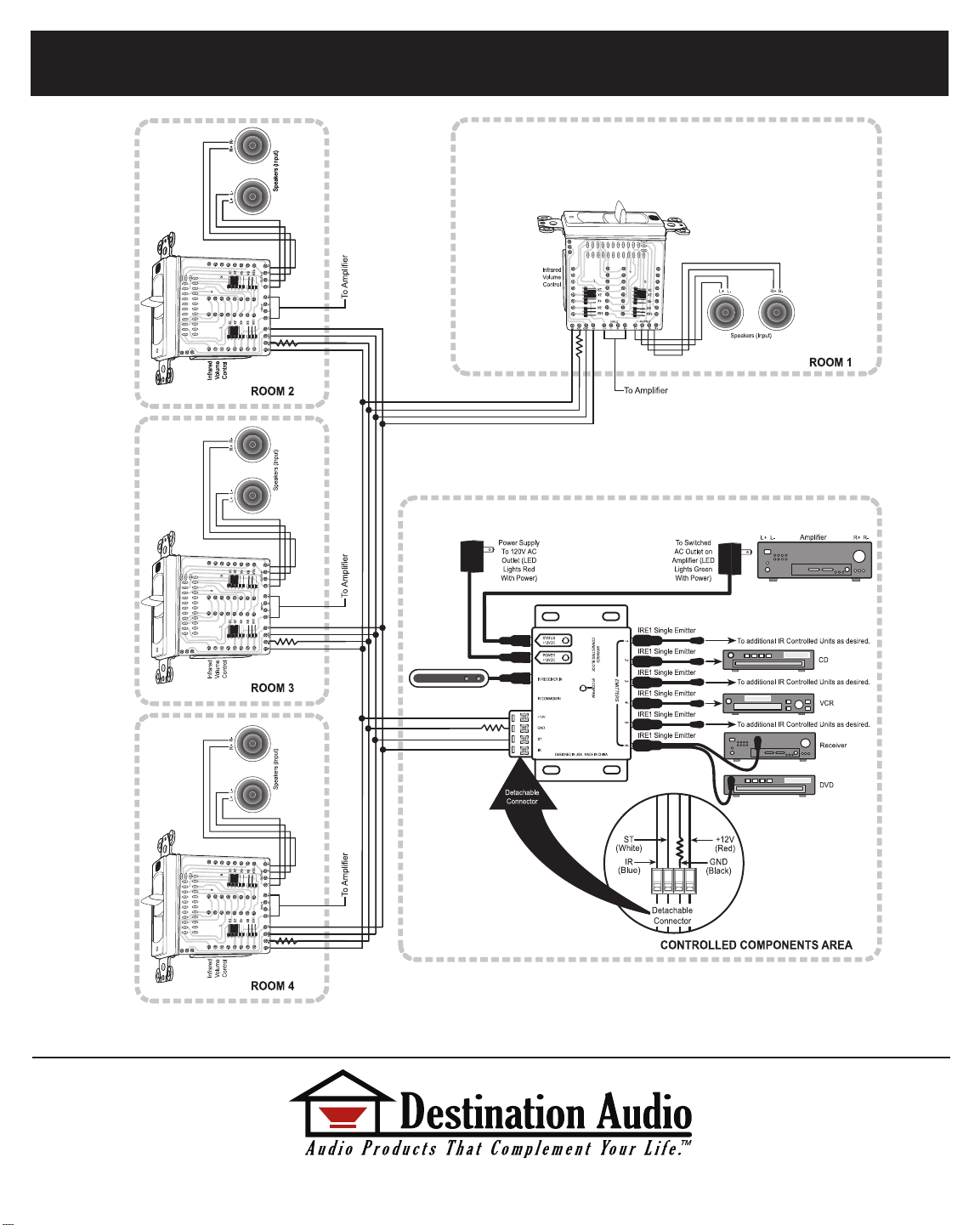

3. Pluginthepowersupplyandrefertothemulti-roomconnectionshownonthe

reverse side for other connections.

Other Destination Audio IR Products:

• (IRK1) IR Kit

• (IRB1) IR (1 Zone) Connecting Block

• (IRE1) IR Emitter (Single)

• (IRRP) IR Plasma Receiver

• (IRRW)IRWallMountReceiver

• (IRPS1) Power Supply 12V DC, 200mA

Other Destination Audio IR Products: (Continued)

• (IRRS) Flush Mount Receiver

• (VC100RI)IRImpedanceMatchingRotary-typeVolumeControl

• (VC100SI)IRImpedanceMatchingSlider-typeVolumeControl

Limited Warranty:

Your Destination Audio IRRM Infrared Mini Receiver and other IR prod-

ucts are covered by a limited warranty against defects in materials and

workmanship for a period of 1 year from the original date of purchase. This

warranty is provided by the authorized Destination Audio dealer where the

productwaspurchased.Warrantyrepairwillbeperformedonlywhenyour

purchase receipt is presented as proof of ownership and date of purchase.

Defective parts will be repaired or replaced without charge by your dealer’s

store or the location designated by your dealer authorized to service Desti-

nation Audio products. Charges for unauthorized service and transportation

cost are not reimbursable under this warranty. This warranty becomes void

if the product has been damaged by alteration, misuse or neglect. Destina-

tion Audio assumes no liability for property damage or any other incidental

or consequential damage whatsoever which may result from the failure of

thisproduct.Anyandallwarrantiesofmerchantabilityandtnessimplied

bylawarelimitedtothedurationofthisexpresswarranty.Somestatesdo

not allow limitations on how long an implied warranty lasts, so the above

limitationsmaynotapplytoyou.Somestatesdonotallowtheexclusionor

limitation of incidental or consequential damages, so the above limitation or

exclusionmaynotapplytoyou.

IRRM–Infrared Mini Receiver Instruction Manual
