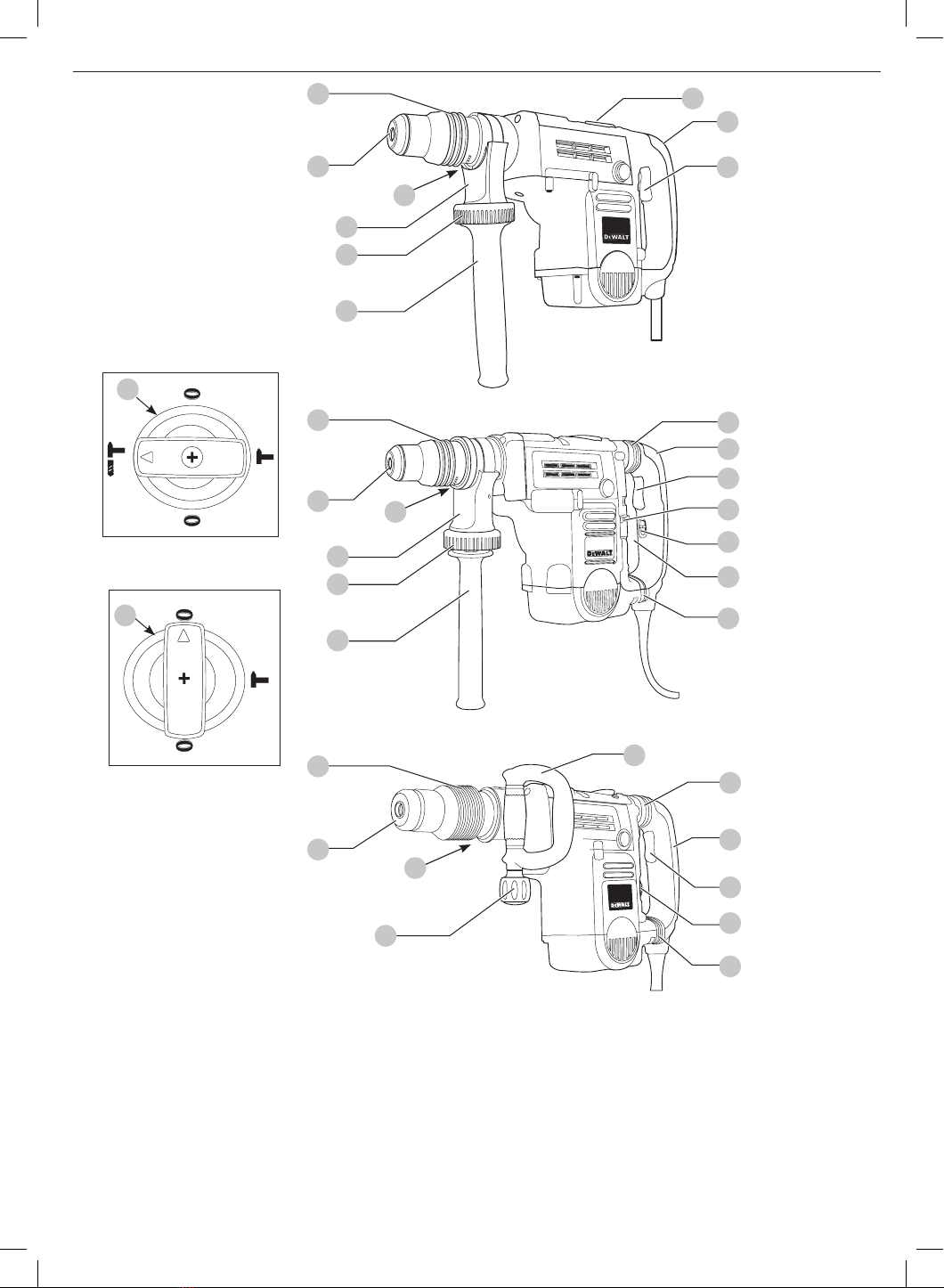

Fig. A
D25501, D25820
D25501
D25820, D25831
6
6
D25602, D25603
D25831
12
12
12
13
13
13
23
23
23
3
8
9
3
8
9
1
4
6
3
5
5
4
4
1
1
7
7
5
5
16
20
2

2
Fig. C
Fig. B 12
10
11 14
13 15
8
9
3
26
3
10
16
Service
Lock-On
Brush Service
DEWALT, D-65510
IDSTEIN, GERMANY
www.2helpU.com
www.DEWALT.eu
D25602
D25831
D25603
D25601
7
19
20
21
7
7
7
19
20
21
17
18
17
18
17
18
17
18
D25501, D25601, D25602,
D25603, D25820
D25831

3
ENGLISH
English (original instructions)
SDS MAX® COMBINATION & CHIPPING HAMMERS
D25501, D25601, D25602, D25603, D25820, D25831
Congratulations!
You have chosen a
DeWALT
tool. Years of experience, thorough product development and innovation make
DeWALT
one of the most reliable partners for
professional power toolusers.
Technical Data
D25501 D25601 D25602 D25603 D25820 D25831
Voltage VAC 230 230 230 230 230 230
UK & Ireland VAC 230/115 230/115 230/115 230/115 230/115 230/115
Type 111111
Power input W1100 1250 1250 1250 1150 1250
Frequency Hz 50 50 50 50 50 50
Single impact energy (EPTA 05/2009) J 888888
No load speed min-1 210-415 210-415 210-415 210-415 – –
No load beats per-minute bpm 3300 1430-2840 1430-2840 1430-2840 2750 1430-2840
Total drilling range in concrete:
solid bits mm 12–40 12–45 12–45 12–45 – –
core bits mm 40–90 40–100 40–100 40–100 – –
Optimum drilling range in concrete:
solid bits mm 18–26 25–35 25–35 25–35 – –
Chisel positions 18 18 18 18 18 18
Tool holder SDS Max® SDS Max® SDS Max® SDS Max® SDS Max® SDS Max®
Weight kg 6.15 6.8 6.9 6.95 5.8 6.1
Noise values and vibration values (triax vector sum) according to EN60745-2-6:
LPA (emission sound pressure level) dB(A) 94 94 93 93 94 95
LWA (sound power level) dB(A) 105 105 104 104 105 106
K (uncertainty for the given sound level) dB(A) 333333
Drilling into concrete
Vibration emission value a
h, HD
= m/s218.3 8.8 8.7 8.7 – –
Uncertainty K = m/s21.8 1.5 1.5 1.5 – –
Chiselling
Vibration emission value a
h,Cheq
= m/s213.2 7.2 6.8 6.8 13.2 8.3
Uncertainty K = m/s21.6 1.5 1.5 1.5 1.6 1.5
The vibration emission level given in this information sheet has been
measured in accordance with a standardised test given in EN60745 and
may be used to compare one tool withanother. It may be used for a
preliminary assessment ofexposure.
WARNING: The declared vibration emission level represents the
main applications of thetool. However if the tool is used for different
applications, with different accessories or poorly maintained, the
vibration emission maydiffer. This may significantly increase the
exposure level over the total workingperiod.
An estimation of the level of exposure to vibration should also take
into account the times when the tool is switched off or when it is
running but not actually doing thejob. This may significantly reduce
the exposure level over the total workingperiod.
Identify additional safety measures to protect the operator from the
effects of vibration such as: maintain the tool and the accessories, keep
the hands warm, organisation of workpatterns.
Fuses:
Europe 230V tools 10 Amperes. mains
U.K. & Ireland 230V tools 13 Amperes. in plugs
EC-Declaration of Conformity
Machinery Directive
SDS Max® Combination & Chipping Hammers
D25501, D25601, D25602, D25603
DeWALT
declares that these products described under Technical Data are
in compliance with:
2006/42/EC, EN60745-1:2009+A11:2010, EN60745-2-6:2010.
D25820, D25831
2000/14/EC Electrical concrete breaker (hand held) m </= 15kg, Annex
VIII; TÜV Rheinland Product Safety GmbH (0197), D-51105 Köln, Germany,
Notified Body IDNo.: 0197
Level of sound power according to 2000/14/EC (Article 12, Annex III, No. 10;
m </= 15 kg)
LWA (measured sound power level) dB 102
LWA (guaranteed sound power level) dB 105

4
ENGLISH
These products also comply with Directive 2014/30/EU and 2011/65/EU. For
more information, please contact
DeWALT
at the following address or refer
to the back of themanual.
The undersigned is responsible for compilation of the technical file and
makes this declaration on behalf of
DeWALT
.
Markus Rompel
Director Engineering
DeWALT
, Richard-Klinger-Straße 11,
D-65510, Idstein, Germany
22.06.2016
WARNING: To reduce the risk of injury, read the instructionmanual.
Definitions: Safety Guidelines
The definitions below describe the level of severity for each signalword.
Please read the manual and pay attention to thesesymbols.
DANGER: Indicates an imminently hazardous situation which, if not
avoided, will result in death or seriousinjury.
WARNING: Indicates a potentially hazardous situation which, if not
avoided, could result in death or seriousinjury.
CAUTION: Indicates a potentially hazardous situation which, if not
avoided, may result in minor or moderateinjury.
NOTICE: Indicates a practice not related to personal injury which,
if not avoided, may result in propertydamage.
Denotes risk of electricshock.
Denotes risk offire.
General Power Tool Safety Warnings
WARNING: Read all safety warnings and allinstructions. Failure
to follow the warnings and instructions may result in electric shock,
fire and/or seriousinjury.
SAVE ALL WARNINGS AND INSTRUCTIONS
FOR FUTURE REFERENCE
The term “power tool” in the warnings refers to your mains-operated (corded)
power tool or battery-operated (cordless) powertool.
1) Work area safety
a ) Keep work area clean and welllit. Cluttered or dark areas
inviteaccidents.
b ) Do not operate power tools in explosive atmospheres, such as
in the presence of flammable liquids, gases ordust. Power tools
create sparks which may ignite the dust orfumes.
c ) Keep children and bystanders away while operating a
powertool. Distractions can cause you to losecontrol.
2) Electrical safety
a ) Power tool plugs must match theoutlet. Never modify the
plug in anyway. Do not use any adapter plugs with earthed
(grounded) powertools. Unmodified plugs and matching outlets
will reduce risk of electricshock.
b ) Avoid body contact with earthed or grounded surfaces such as
pipes, radiators, ranges andrefrigerators. There is an increased
risk of electric shock if your body is earthed orgrounded.
c ) Do not expose power tools to rain or wetconditions. Water
entering a power tool will increase the risk of electricshock.
d ) Do not abuse thecord. Never use the cord for carrying, pulling
or unplugging the powertool. Keep cord away from heat,
oil, sharp edges or movingparts. Damaged or entangled cords
increase the risk of electricshock.
e ) When operating a power tool outdoors, use an extension cord
suitable for outdooruse. Use of a cord suitable for outdoor use
reduces the risk of electricshock.
f ) If operating a power tool in a damp location is unavoidable,
use a residual current device (RCD) protectedsupply. Use of an
RCD reduces the risk of electricshock.
3) Personal safety
a ) Stay alert, watch what you are doing and use common
sense when operating a powertool. Do not use a power tool
while you are tired or under the influence of drugs, alcohol
ormedication. A moment of inattention while operating power tools
may result in serious personalinjury.
b ) Use personal protectiveequipment. Always wear
eyeprotection. Protective equipment such as dust mask, non-skid
safety shoes, hard hat, or hearing protection used for appropriate
conditions will reduce personalinjuries.
c ) Prevent unintentionalstarting. Ensure the switch is in the off
position before connecting to power source and/or battery
pack, picking up or carrying thetool. Carrying power tools with
your finger on the switch or energising power tools that have the
switch on invitesaccidents.
d ) Remove any adjusting key or wrench before turning the power
toolon. A wrench or a key left attached to a rotating part of the
power tool may result in personalinjury.
e ) Do notoverreach. Keep proper footing and balance at alltimes.
This enables better control of the power tool in unexpectedsituations.
f ) Dressproperly. Do not wear loose clothing orjewellery. Keep
your hair, clothing and gloves away from movingparts. Loose
clothes, jewellery or long hair can be caught in movingparts.
g ) If devices are provided for the connection of dust extraction
and collection facilities, ensure these are connected
and properlyused. Use of dust collection can reduce dust-
relatedhazards.
4) Power tool use and care
a ) Do not force the powertool. Use the correct power tool for
yourapplication. The correct power tool will do the job better and
safer at the rate for which it wasdesigned.
b ) Do not use the power tool if the switch does not turn it on
andoff. Any power tool that cannot be controlled with the switch is
dangerous and must berepaired.
c ) Disconnect the plug from the power source and/or the battery
pack from the power tool before making any adjustments,
changing accessories, or storing powertools. Such preventive
safety measures reduce the risk of starting the power toolaccidentally.
d ) Store idle power tools out of the reach of children and do
not allow persons unfamiliar with the power tool or these
instructions to operate the powertool. Power tools are dangerous
in the hands of untrainedusers.
e ) Maintain powertools. Check for misalignment or binding of
moving parts, breakage of parts and any other condition that
may affect the power tool’soperation. If damaged, have the
power tool repaired beforeuse. Many accidents are caused by
poorly maintained powertools.
f ) Keep cutting tools sharp andclean. Properly maintained cutting
tools with sharp cutting edges are less likely to bind and are easier
tocontrol.
g ) Use the power tool, accessories and tool bitsetc., in accordance
with these instructions taking into account the working
conditions and the work to beperformed. Use of the power
tool for operations different from those intended could result in a
hazardoussituation.

5
ENGLISH
5) Service
a ) Have your power tool serviced by a qualified repair person
using only identical replacementparts. This will ensure that the
safety of the power tool ismaintained.
Additional Safety Instructions for Rotary Hammers
• Wear earprotectors. Exposure to noise can cause hearingloss.
• Use auxiliary handle3, if supplied with thetool. Loss of control can
cause personalinjury.
• Hold power tool by insulated gripping surfaces, when performing
an operation where the cutting accessory may contact hidden
wiring or its owncord. Cutting accessory contacting a “live” wire
may make exposed metal parts of the power tool “live” and could
give the operator an electricshock.
WARNING: We recommend the use of a residual current device with a
residual current rating of 30mA orless.
Residual Risks
In spite of the application of the relevant safety regulations and the
implementation of safety devices, certain residual risks cannot beavoided.
These are:
• Impairment ofhearing.
• Risk of personal injury due to flyingparticles.
• Risk of burns due to accessories becoming hot duringoperation.
• Risk of personal injury due to prolongeduse.
Electrical Safety
The electric motor has been designed for one voltageonly. Always check
that the power supply corresponds to the voltage on the ratingplate.
Your
DeWALT
tool is double insulated in accordance with
EN60745; therefore no earth wire isrequired.
WARNING: 115 V units have to be operated via a fail-safe isolating
transformer with an earth screen between the primary and
secondarywinding.
If the supply cord is damaged, it must be replaced by a specially prepared
cord available through the
DeWALT
serviceorganisation.
Mains Plug Replacement
(U.K. & Ireland Only)
If a new mains plug needs to be fitted:
• Safely dispose of the oldplug.
• Connect the brown lead to the live terminal in theplug.
• Connect the blue lead to the neutralterminal.
WARNING: No connection is to be made to the earthterminal.
Follow the fitting instructions supplied with good qualityplugs.
Recommended fuse: 13A.
Using an Extension Cable
An extension cord should not be used unless absolutelynecessary. Use an
approved extension cable suitable for the power input of your charger (see
Technical Data). The minimum conductor size is1.5 mm2; the maximum
length is30m.
When using a cable reel, always unwind the cablecompletely.
Package Contents
The package contains:
1 Rotary hammer (D25501, D25601, D25602, D25603)
or
1 Chipping hammer (D25820, D25831)
1 Side handle
1 Kitbox (K-models only)
1 Instruction manual
• Check for damage to the tool, parts or accessories which may have
occurred duringtransport.
• Take the time to thoroughly read and understand this manual prior
tooperation.
Markings on Tool
The following pictograms are shown on the tool:
Read instruction manual beforeuse.
Wear earprotection.
Wear eyeprotection.
Clutch Setting 40Nm is designed for most drillingapplications.
Clutch Setting 80Nm is designed for higher
torqueapplications.
Red service indicatorLED. For detailed description see under
Service Indicator LED's.
Yellow service indicatorLED. For detailed description see under
Service Indicator LED's.
Visibleradiation. Do not stare intolight.
Date Code Position (Fig. A)
The date code23, which also includes the year of manufacture, is printed
into thehousing.
Example:
2016 XX XX
Year of Manufacture
Description (Fig. A, B)
WARNING: Never modify the power tool or any part ofit. Damage or
personal injury couldresult.
1 Trigger switch (D25501, D25601, D25602, D25603)
On/off rocker switch (D25820, D25831)
2 Lock-on slider (D25601, D25602, D25603)
3 Side handle
4 Main handle
5 Active vibration control (D25601, D25602, D25603, D25831)
6 Mode selector switch
7 Electronic speed and impact control dial (D25601, D25602, D25603,
D25831)
8 Clamp wheel
9 Side handle clamp
10 Steel ring
11 Bush
12 Tool holder
13 Locking sleeve
14 Pin
15 Collar
16 Side handle knob
Intended Use
The D25501, D25601, D25602, D25603 rotary hammers have been designed
for professional rotary drilling and chippingapplications.

6
ENGLISH
The D25820, D25831 chipping hammers have been designed for
professional chipping, chiselling and demolitionapplications.
DO NOT use under wet conditions or in the presence of flammable liquids
orgases.
These hammers are professional powertools.
DO NOT let children come into contact with thetool. Supervision is
required when inexperienced operators use thistool.
• Young children and theinfirm. This appliance is not intended for use
by young children or infirm persons withoutsupervision.
• This product is not intended for use by persons (including children)
suffering from diminished physical, sensory or mental abilities; lack of
experience, knowledge or skills unless they are supervised by a person
responsible for theirsafety. Children should never be left alone with
thisproduct.
Soft Start Feature
D25601, D25602, D25603, D25831
The soft start feature allows the tool to accelerate slowly, thus preventing
the drill bit from walking off the intended hole position whenstarting.
The soft start feature also reduces the immediate torque reaction
transmitted to the gearing and the operator if the hammer is started with
the drill bit in an existinghole.
Electronic Speed and Impact Control (Fig. A, C)
D25601, D25602, D25603, D25831
The electronic speed and impact control7 offers the following advantages:
-use of smaller accessories without risk of breakage;
-minimised break-out when chiselling or drilling in soft or brittle
materials;
-optimal tool control for precisechiselling.
Torque Limiting Clutch
WARNING: The user must always maintain a firm grip on the tool
when inoperation.
The torque limiting clutch reduces the maximum torque reaction
transmitted to the operator in case of jamming of a drillbit. This feature also
prevents the gearing and electric motor fromstalling.
NOTICE: Always turn the tool off before changing torque control
settings or damage to tool mayresult.
Complete Torque Control (CTC) (Fig.C) D25602
Complete Torque Control (CTC) offers the user a two-stage mechanical
clutch with adjustable torqueoptions. Adjusting the torque provides
increased control for variousapplications.
The low setting (40Nm) allows the tool to operate at a reduced torque
level increasing control for many solid drillingapplications. The high setting
(80Nm) is available for more demanding applications such as core drilling
and the use of large diameter solidbits.
Refer to Setting the Two Stage Mechanical Clutch for moreinformation.
Ultimate Torque Control (UTC) (Fig.C) D25603
In addition to the two-stage mechanical clutch, Ultimate Torque Control
(UTC) offers increased user comfort and safety through an on-board,
anti-rotation technology capable of detecting if the user loses control
of thehammer. When a jam is detected, the torque and speed are
reducedinstantly. This feature prevents self rotation of the tool reducing the
occurrence of wristinjuries.
Service Indicator LEDs (Fig. A, C)
D25601, D25602, D25603, D25831
The yellow brushwear indicator LED17 lights up when the carbon brushes
are nearly worn out to indicate that the tool needs servicing within the next
8 hours ofuse.
D25601, D25602, D25603
The red service indicator LED18 lights up if the lock-on button2 is
used in any mode except the chippingmode. On models fitted with
Ultimate Torque Control (UTC), the red LED indicator18 lights up if the
anti-rotational device isactivated. The red indicator starts to flash if there
is a fault with the tool or the brushes have completely worn out (refer to
Brushes under Maintenance).
D25831
The red service indicator LED18 lights up if there is a fault with the
tool or the brushes have completely worn out (refer to Brushes under
Maintenance).
Fully Vibration-Dampened Main Handle (Fig. A)
D25601, D25602, D25603, D25831
The dampers in the main handle4 absorb the vibrations transmitted to
theuser. This improves user comfort during theoperation.
ASSEMBLY AND ADJUSTMENTS
WARNING: To reduce the risk of serious personal injury,
turn tool off and disconnect tool from power source before
making any adjustments or removing/installing attachments
oraccessories. Be sure the trigger switch is in the OFFposition. An
accidental start-up can causeinjury.
Assembling and Fitting the Side Handle
(Fig. B)
The side handle3 can be mounted on either side of the machine to suit
both right- and left-handedusers.
WARNING: Always operate the tool with the side handle
properlyassembled.
D25501, D25601, D25602, D25820, D25603
1. Snap the steel ring10 over the collar15 behind the tool holder12.
Squeeze both ends together, mount the bush11 and insert the
pin14.
2. Place the side handle clamp9 and screw on the clamp wheel8. Do
nottighten.
WARNING: Once assembled, the side handle clamp should never
beremoved.
3. Screw the side handle3 into the bush11 and then into clampwheel.
Tightensecurely.
4. Rotate the side handle mounting assembly to the desiredposition. For
drilling horizontally with a heavy drill bit, we recommend to place the
side handle at an angle of approximately 20° for optimumcontrol.
5. Lock the side handle mounting assembly in place by tightening the
clamp wheel8.
D25831
1. Unscrew the side handle knob16.
2. Slide the side handle assembly onto the machine locating the steel
ring10 in the mounting area26. The correct position of the side
handle is between head and middle of thetube.
3. Adjust the side handle3 to the desiredangle.
4. Slide and rotate the side handle to the desiredposition.
5. Lock the side handle in place by tightening the knob16.
Inserting and Removing SDS Max® Accessories
(Fig. A, D)
This machine uses SDS Max®bits and chisels (refer to the inset in figureDB
for a cross-section of an SDS Max®bit shank).
1. Clean the bitshank.
2. Pull back the locking sleeve13 and insert the bitshank.
3. Turn the bit slightly until the sleeve snaps intoposition.
4. Pull on the bit, to check if it is properlylocked. The hammering function
requires the bit to be able to move axially several centimetres when
locked in the toolholder.

7
ENGLISH
5. To remove a bit pull back the tool holder locking sleeve/collar13 and
pull the bit out of the tool holder12.
Selecting the Operating Mode (Fig. A)
Hammerdrilling:
D25501, D25601, D25602, D25603
for concrete, brick, stone and masonry drillingoperations.
Hammering only:
D25501, D25601, D25602, D25603, D25820, D25831
for chiselling and demolitionapplications. In this mode the tool
can also be used as a lever to free a jammed drillbit.
1. To select the operating mode, rotate the mode selector switch6 until
it points to the symbol of the requiredmode.
It may be neccessary to twist the tool holder12 slightly to allow the
mode selector switch6 to pass the position.
2. Check that the mode selector switch6 is locked inplace.
Indexing the Chisel Position (Fig. E)
D25501, D25601, D25602, D25603, D25820,
D25831
The chisel can be indexed and locked into 18 differentpositions.
1. Rotate the mode selector switch6 until it points towards the
position.
2. Rotate the chisel in the desiredposition.
3. Set the mode selector switch6 to the “hammering only”position.
4. Twist the chisel until it locks inposition.
Setting the Electronic Speed and Impact Control Dial
(Fig. A, C)
D25601, D25602, D25603, D25831
Turn the dial7 to the desiredlevel. Turn the dial upwards for higher
speed and downwards for lowerspeed. The required setting is a matter of
experience, e.g.
• when chiselling or drilling in soft, brittle materials or when minimum
break-out is required, set the dial to a low setting;
• when breaking or drilling in harder materials, set the dial to a
highsetting.
Setting the Two Stage Mechanical Clutch (Fig. C)
D25602, D25603
NOTICE: Always turn the tool off before changing torque control
settings or damage to the tool mayresult.
Move the torque control lever21 to setting 40Nm or 80Nm as needed
forapplication.
• Clutch Setting 40Nm19 is designed for most drilling applications and
is designed to easily clutch out when the drill bit encounters re-bar or
other foreignsubstances.
• Clutch Setting 80Nm20 is designed for higher torque applications
such as core-bits and deep hole drilling and is designed to clutch out at
a higher torquethreshold.
NOTE: If it is not possible to select position 80Nm, run the unit under load
and tryagain.
Each time the tool is plugged in, it will automatically default to clutch
setting 1 into clutch setting 40Nm19, the most sensitivesetting.
Depth Rod
(Additional Accessory)
1. Push in and hold the depth rod release button on the sidehandle.
2. Move the depth rod so the distance between the end of the rod and
the end of the bit equals the desired drillingdepth.
3. Release the button to lock rod intoposition. When drilling with the
depth rod, stop when end of rod reaches surface ofmaterial.
OPERATION
Instructions for Use
WARNING: Always observe the safety instructions and
applicableregulations.
WARNING: To reduce the risk of serious personal injury,
turn tool off and disconnect tool from power source before
making any adjustments or removing/installing attachments
oraccessories. Be sure the trigger switch is in the OFFposition. An
accidental start-up can causeinjury.
WARNING: Tool bits may be hot and gloves should be worn when
changing or removing them to avoid personalinjury.
WARNING:
• Be aware of the location of pipework andwiring.
• Apply only a gentle pressure to the tool (approximately 20 kg).
Excessive force does not speed up drilling but decreases tool
performance and may shorten toollife.
• Always hold the tool firmly with both hands and ensure a
securestance. Always operate the tool with the side handle
properlyassembled.
NOTE: Operating temperature is -7˚ to +40˚C (19˚ to 104˚ F). Using the
tool outside of this temperature range will decrease the life of thetool.
Proper Hand Position (Fig. F)
WARNING: To reduce the risk of serious personal injury, ALWAYS use
proper hand position asshown.
WARNING: To reduce the risk of serious personal injury, ALWAYS hold
securely in anticipation of a suddenreaction.
Proper hand position requires one hand on the side handle3, with the
other hand on the main handle4.
Switching On and Off (Fig. A)
D25501, D25601, D25602, D25603
To turn the tool on, depress the trigger switch1.
To stop the tool, release the triggerswitch.
D25601, D25602, D25603
The lock-on slider2 allows the trigger switch1 to be locked on in
chiselling modeonly. If the lock-on button is activated in drilling mode, as a
feature the tool will switch offautomatically.
To turn the tool on, press the trigger switch1.
To stop the tool, release theswitch.
For continuous operation, press and hold down the switch1, slide the
lock-on button2 upwards and release theswitch.
To stop the tool in continuous operation, press the switch briefly
and releaseit. Always switch off the tool when work is finished and
beforeunplugging.
D25820, D25831
To turn the tool on, press the on/off rocker switch1 at the lower part of
thetrigger.
To stop the tool, press the on/off rocker switch at the upper part of
thetrigger.
Hammerdrilling
To turn the tool on, press the on/off switch1.
To stop the tool, release theswitch.
Drilling with a Solid Bit (Fig. A)
D25501, D25601, D25602, D25603
1. Insert the appropriate drillbit.
2. Set the mode selector switch6 to the hammerdrillingposition.

8
ENGLISH
3. D25601, D25602, D25603 only: Set the electronic speed and impact
control dial7.
4. Fit and adjust the side handle3.
5. Mark the spot where the hole is to bedrilled.
6. Place the drill bit on the spot and switch on thetool.
7. Always switch off the tool when work is finished and
beforeunplugging.
Drilling with a Core Bit (Fig. A)
1. Insert the appropriate corebit.
2. Assemble the centerdrill into the corebit.
3. Set the mode selector switch6 to the hammerdrillingposition.
4. D25601, D25602, D25603 only: Turn the electronic speed and impact
control dial7 to a medium or high speedsetting.
5. Fit and adjust the side handle3.
6. Place the centerdrill on the spot and switch on thetool. Drill until the
core penetrates into the concrete approximately 1cm.
7. Stop the tool and remove thecenterdrill. Place the core bit back into the
hole and continuedrilling.
8. When drilling through a structure thicker than the depth of the core
bit, break away the round cylinder of concrete or core inside the bit at
regularintervals.
To avoid unwanted breaking away of concrete around the hole, first drill
a hole the diameter of the centerdrill completely through thestructure.
Then drill the cored hole halfway from eachside.
9. Always turn the tool off when work is finished and beforeunplugging.
Chipping and Chiselling (Fig. A)
D25501, D25601, D25602, D25603, D25820,
D25831
1. Insert the appropriate chisel and rotate it by hand to lock it into one of
18positions.
2. Set the mode selector switch6 to the hammering onlyposition.
3. D25601, D25602, D25603, D25831 only: Set the electronic speed and
impact control dial7.
4. Fit and adjust the side handle3.
5. Turn the tool on and startworking.
6. Always turn the tool off when work is finished and beforeunplugging.
MAINTENANCE
Your
DeWALT
power tool has been designed to operate over a long period
of time with a minimum ofmaintenance. Continuous satisfactory operation
depends upon proper tool care and regularcleaning.
WARNING: To reduce the risk of serious personal injury,
turn tool off and disconnect tool from power source before
making any adjustments or removing/installing attachments
oraccessories. Be sure the trigger switch is in the OFFposition. An
accidental start-up can causeinjury.
Brushes (Fig. C)
The carbon brushes are not user-serviceable. Take the tool to an authorized
D
e
WALT repairagent.
The yellow brushwear indicator LED17 lights up when the carbon brushes
are nearly wornout. After a further 8 hours of use or after the brushes have
completely worn out, the motor will automatically be shutoff.
Tool maintenance needs to be carried out as soon as the service
indicator18 lightsup.
Lubrication
Your power tool requires no additionallubrication.
Cleaning
WARNING: Blow dirt and dust out of the main housing with dry air
as often as dirt is seen collecting in and around the airvents. Wear
approved eye protection and approved dust mask when performing
thisprocedure.
WARNING: Never use solvents or other harsh chemicals for cleaning
the non-metallic parts of thetool. These chemicals may weaken the
materials used in theseparts. Use a cloth dampened only with water
and mildsoap. Never let any liquid get inside the tool; never immerse
any part of the tool into aliquid.
Optional Accessories
WARNING: Since accessories, other than those offered by
DeWALT
,
have not been tested with this product, use of such accessories with
this tool could behazardous. To reduce the risk of injury, only
DeWALT
recommended accessories should be used with thisproduct.
Consult your dealer for further information on the appropriateaccessories.
Protecting the Environment
Separatecollection. Products and batteries marked with this
symbol must not be disposed of with normal householdwaste.
Products and batteries contain materials that can be recovered or
recycled reducing the demand for rawmaterials. Please recycle
electrical products and batteries according to localprovisions. Further
information is available atwww.2helpU.com.

N473223 07/16
Belgique et
Luxembourg België
en Luxemburg
DeWALT
- Belgium BVBA
Egide Walschaertsstraat 16
2800 Mechelen
Tel: NL 32 15 47 37 63
Tel: FR 32 15 47 37 64
Fax: [phone]
www.dewalt.be
[email protected]
Danmark
DeWALT
Roskildevej 22
2620 Albertslund
Tel: [phone]
Fax: [phone]
www.dewalt.dk
[email protected]
Deutschland
DeWALT
Richard Klinger Str. 11
65510 Idstein
Tel: [phone]
Fax: [phone]
www.dewalt.de
[email protected]
Ελλά
DeWALT
(Ελλάς) Α.Ε.
EΔΡΑ-ΓΡΑΦΕΙΑ : Στράβωνος 7
& Λ. Βουλιαγμένης, Γλυφάδα 166 74, Αθήνα
SERVICE : Ημερος Τόπος 2 (Χάνι Αδάμ) – 193 00 Ασπρόπυργος
Τηλ: 00302108981616
Φαξ: 00302108983570
www.dewalt.gr
[email protected]
España
DeWALT
Ibérica, S.C.A.
Parc de Negocios “Mas Blau”
Edificio Muntadas, c/Bergadá, 1, Of. A6
08820 El Prat de Llobregat (Barcelona)
Tel: [phone]
Fax: [phone]
www.dewalt.es
[email protected]
France
DeWALT
5, allée des Hêtres
BP 30084, 69579 Limonest Cedex
Tel: [phone]
Fax: [phone]
www.dewalt.fr
[email protected]
Schweiz
Suisse
Svizzera
DeWALT
In der Luberzen 42
8902 Urdorf
Tel: 044 - 755 60 70
Fax: 044 - 730 70 67
www.dewalt.ch
[email protected]
Ireland
DeWALT
Calpe House Rock Hill
Black Rock, Co. Dublin
Tel: [phone]
Fax: [phone]
www.dewalt.ie
Italia DeWALT
via Energypark
20871 Vimercate (MB), IT
Tel: [phone]
39 039 9590200
Fax: [phone]
www.dewalt.it
Nederlands DeWALT Netherlands BV
Holtum Noordweg 35
6121 RE BORN, Postbus 83, 6120 AB BORN
Tel: [phone]
Fax: [phone]
www.dewalt.nl
Norge DeWALT
Postboks 4613, Nydalen
0405 Oslo
Tel: [phone]
Fax: [phone]
www.dewalt.no
[email protected]
Österreich DeWALT
Werkzeug Vertriebsges m.b.H
Oberlaaerstrasse 248, A-1230 Wien
Tel: 01 - 66116 - 0
Fax: 01 - 66116 - 614
www.dewalt.at
[email protected]
Portugal DeWALT Limited, SARL
Centro de Escritórios de Sintra Avenida
Almirante Gago Coutinho, 132/134, Edifício 14
2710-418 Sintra
Tel: [phone]
Fax: [phone]
www.dewalt.pt
[email protected]
Suomi DeWALT
PL 47
00521 Helsinki
Puh: 010 400 4333
Faksi: 0800 411 340
www.dewalt.fi
[email protected]
Sverige DeWALT
Box 94
431 22 Mölndal
Tel: [phone]
Fax: [phone]
www.dewalt.se
[email protected]
Türkiye KALE Hırdavat ve Makina A.Ş.
Defterdar Mah. Savaklar Cad. No:15
Edirnekapı / Eyüp / İSTANBUL 34050 TÜRKİYE
Tel: [phone]
Faks: 0212 533 10 05
www.dewalt.com.tr
United
Kingdom
DeWALT, 210 Bath Road;
Slough, Berks SL1 3YD
Tel: [phone]
Fax: [phone]
www.dewalt.co.uk
[email protected]
Australia DeWALT
82 Taryn Drive, Epping
VIC 3076 Australia
Tel: Aust 1800 338 002
Tel: NZ 0800 339 258
www.dewalt.com.au
www.dewalt.co.nz
Middle East Africa
DeWALT
P.O. Box - 17164,
Jebel Ali Free Zone (South), Dubai, UAE
Tel: [phone]
Fax: [phone]
www.dewalt.ae
[email protected]
