Dialog UM-DA7202 User manual

User manual
UM-DA7202 evaluation board
DA7202 10 W mono class D amplifier for 2S
systems
Abstract
This user manual enables you to use the UM-DA7202 class D speaker driver evaluation board, 189-
01-A EVB, to carry out performance measurements and functional checks on the DA7202 class D
speaker driver.

DA7202 10 W mono class D amplifier for 2S systems
UM-DA7202 evaluation board
Contents
Abstract ................................................................................................................................................ 1
Contents............................................................................................................................................... 2
Figures.................................................................................................................................................. 2
Tables ................................................................................................................................................... 2
1Terms and definitions................................................................................................................... 3
2References ..................................................................................................................................... 3
3Introduction.................................................................................................................................... 4
4DA7202 EVB hardware description ............................................................................................. 5
4.1 Power supply......................................................................................................................... 7
4.2 Analogue input...................................................................................................................... 7
4.2.1 Lower gain configuration........................................................................................ 7
4.2.2 Single-ended input................................................................................................. 7
4.3 Speaker output...................................................................................................................... 7
4.3.1 Additional filtering .................................................................................................. 7
5Schematic diagram ....................................................................................................................... 8
6Bill of materials.............................................................................................................................. 9
7Revision history .......................................................................................................................... 11
Figures
Figure 1: DA7202 performance EVB..................................................................................................... 4
Figure 2: DA7202 performance EVB external connections................................................................... 5
Figure 3: Schematic diagram................................................................................................................. 8
Tables
Table 1: Connector summary................................................................................................................ 6
Table 2: Order BOM for a single EVB ................................................................................................... 9
Table 3: Build BOM - populated components...................................................................................... 10
Table 4: Document revision history..................................................................................................... 11
User Manual Revision 2.0 28-Mar-16
CFR0012 2 of 12 © 2016 Dialog Semiconductor

DA7202 10 W mono class D amplifier for 2S systems
UM-DA7202 evaluation board
1 Terms and definitions
GND Ground Reference
EVB Evaluation Board
EMI Electromagnetic Interference
PCB Printed Circuit Board
USB Universal Serial Bus
PSRR Power Supply Rejection Ratio
2 References
[1] DA7202, Datasheet, Dialog Semiconductor
User Manual Revision 2.0 28-Mar-16
CFR0012 3 of 12 © 2016 Dialog Semiconductor

DA7202 10 W mono class D amplifier for 2S systems
UM-DA7202 evaluation board
3 Introduction
DA7202 is a powerful, highly efficient, low EMI Class D speaker driver that can drive 10 W into 4 Ω
loads directly from a 2S lithium-ion battery to power a variety of two cell portable applications such as
Ultrabooks™ and tablets.
The DA7202 performance evaluation board (189-01-A) has been produced to allow measurement
and evaluation of the DA7202 device.
The evaluation board (EVB) is supplied with a USB memory stick containing supporting collateral.

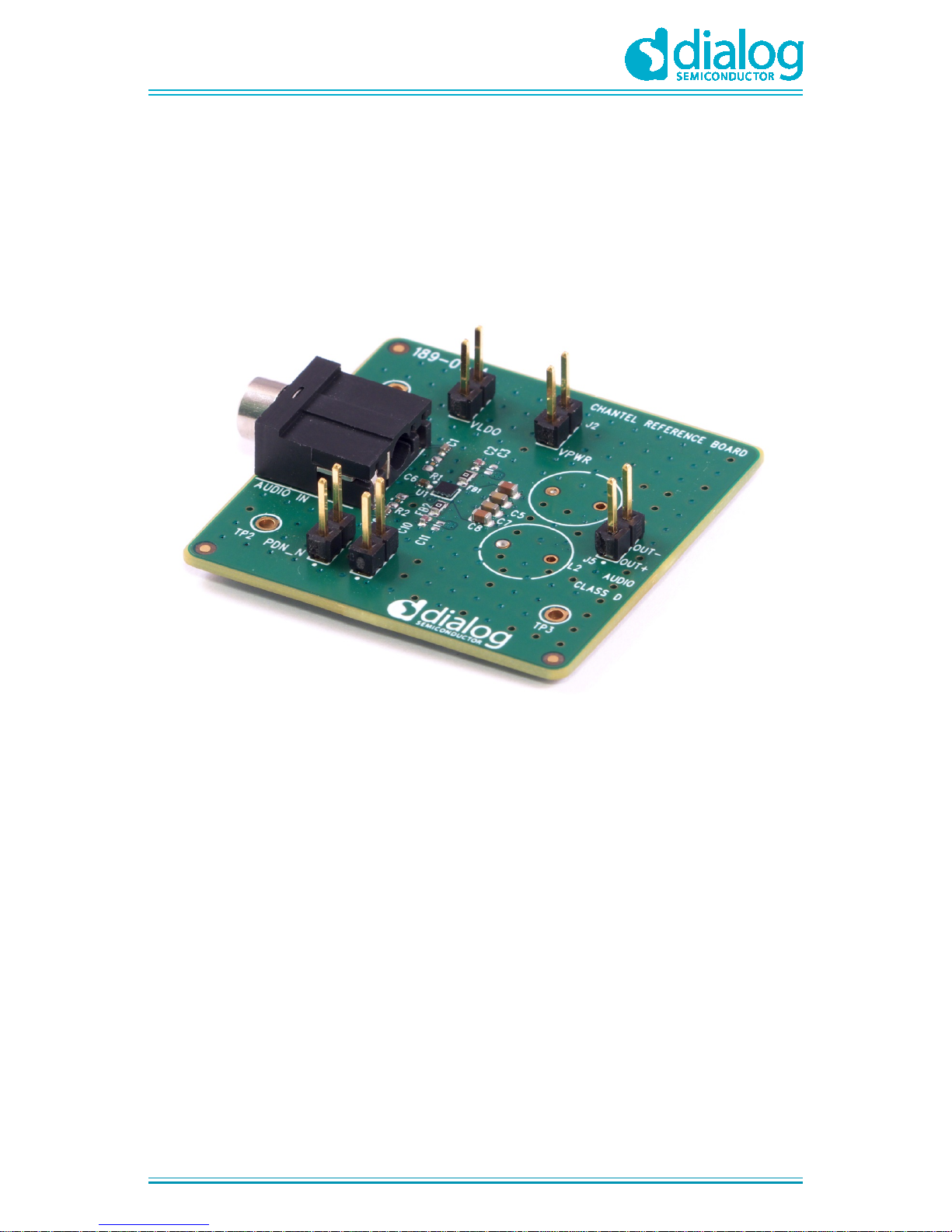

Figure 1: DA7202 performance EVB
User Manual Revision 2.0 28-Mar-16
CFR0012 4 of 12 © 2016 Dialog Semiconductor

DA7202 10 W mono class D amplifier for 2S systems
UM-DA7202 evaluation board
4 DA7202 EVB hardware description
The DA7202 EVB consists of the DA7202 device, the essential external components and connection
points for input / output signals. Typical external connections are shown in Figure 2.
The EVB can be used standalone or as a module for interface to a customer development platform.
Differential Line Input
+
-
VPWR=
4.5V – 10V
1
2
3
+
-
PDN =
1.3V – 5.5V Shorting point J7 to disable device
Figure 2: DA7202 performance EVB external connections
User Manual Revision 2.0 28-Mar-16
CFR0012 5 of 12 © 2016 Dialog Semiconductor

DA7202 10 W mono class D amplifier for 2S systems
UM-DA7202 evaluation board
Table 1: Connector summary
Connector Functionality Description
J1 Internal VLDO monitoring VLDO (No external connection needed)
Pin 1 = GND
Pin 2 = LDO output
J2 VPWR external power
supply connection VPWR
Pin 1 = 0 V/GND
Pin 2 = +4.5 V to +10.0 V
J3 AUDIO IN Differential line input via 3-pole, 3.5 mm jack socket
Ring = IN+
Tip = IN-
Sleeve = GND
J4 AUDIO IN (optional input) Differential line input connection points accessible via the
underside of the board or by removing J3
Pin 1 = 0 V/GND
Pin 2 = IN+
Pin 3 = IN-
J5 AUDIO OUT Class D output
Pin 1 = OUT+
Pin 2 = OUT-
J6 PDN_N external power
supply connection PDN_N
Pin 1 = GND
Pin 2 = +1.3 V to +5.5 V
J7 PDN_N status select Open = DA7202 Power Up (weak pull up to voltage on J6)
(Default)
Short = DA7202 Power Down
TP1 – TP3 Ground reference points Ground
User Manual Revision 2.0 28-Mar-16
CFR0012 6 of 12 © 2016 Dialog Semiconductor

DA7202 10 W mono class D amplifier for 2S systems
UM-DA7202 evaluation board
4.1 Power supply
The DA7202 has high power supply rejection ration (PSRR) and may be run directly from a 2S
lithium-ion battery or, for evaluation purposes, a bench supply.
4.2 Analogue input
The analogue input connection contains DC block capacitors (C1 and C9) which allow an input signal
with any DC level within the recommended operating conditions to be connected.
4.2.1 Lower gain configuration
DA7202 has a fixed +18 dB gain in the signal path. The input signal amplitude can be reduced with
an external resistor creating a divider with the internal device impedance. This can be achieved by
replacing resistor sites R1 and R2 (shorted by default) with resistor values using the following
formula:
Rextk30=R
)
Rk240
20Log(=A
X
X
V
+Ω
Ω
Where:
●30 kΩ = the input impedance for DA7202
●Rext = the resistor value required at both R1 and R2
4.2.2 Single-ended input
In normal operation, the input to the EVB is differential. To use a single-ended input, connect the
input signal to J4 pin 2 and the 0 V/GND to J4 pin 3, see schematic diagram in Figure 3.
J4 can be accessed from the rear of the board. Alternatively, J3 can be removed for top access to J4.
4.3 Speaker output
An inductive 4 Ωor 8 Ω speaker load can be connected directly to J5. The length of the speaker
cable must be kept as short as possible to minimise electromagnetic interference (EMI).
4.3.1 Additional filtering
There is no EMI filtering on the EVB as default. As can be seen from the schematic diagram in Figure
3, provision has been made to allow a filter to be added to sites FB1, FB2, C10, C11, C2 and C3, as
well as L1, L2, C12 and C13. Examples of when the filtering options can be useful are if the speaker
load is non-inductive or if the speaker cable is long.
As default, the shorting points at SP1 and SP2 are short via a solder connection to bypass the filter
but allow the output signal to reach J5.
