Diamond Audio SXP65a User manual

©2012 Diamond Audio Technologies. All rights reserved.
SX FEATURES
SXP FEATURES
ABOUT THE DIAMOND AUDIO EXPERIENCE
Congratulations, you have purchased the nest audio product on the market. At Diamond Audio,
our mobile audio products represent the latest advances in acoustic technology. Diamond Audio
products are designed and engineered using innovative components and materials resulting in
exceptional sound reproduction. Installed properly, Diamond Audio products will provide many
years of the ultimate listening experience.
Please note that prolonged exposure to sound pressure levels in excess of 100dB can cause
permanent hearing loss. Using Diamond Audio products can exceed that level so please exercise
restraint in its operation in order to preserve your ability to enjoy its high delity in the future.
Diamond Audio recommends our products be professionally installed by an authorized Diamond
Audio dealer to achieve the best listening possibilities. This will ensure a proper installation and
extend your one year warranty to two years.
Go ahead, Hear The Music.
• Composite foam core carbon ber cone
• 25mm aluminum dome tweeter with Ferro uid cooling
• Tru-mount convertible composite ABS frame design
• External 18dB/octave SQ matched crossover with rear acoustic ll output
• Hard anodized aluminum alloy cone
• Option of 25mm silk or aluminum dome Ferro uid cooled neodymium tweeters
• External 18dB/octave SQ matched crossover with rear acoustic ll output
PARTS LIST
SX65a/s SXP65a/s
(2) SXP Convertible Speakers
(2) SXP Model Specic Crossovers
(2) Grills w/ Mounting Ring
(2) Mounting Gaskets
(1) Mounting Hardware Kit
SX65v
(2) SX Convertible Speakers
(2) SX Model Specic Crossovers
(2) Grills w/ Mounting Ring
(2) Mounting Gaskets
(1) Mounting Hardware Kit

©2012 Diamond Audio Technologies. All rights reserved.
MID-BASS SPEAKER MOUNTING
TWEETER CONFIGURATION

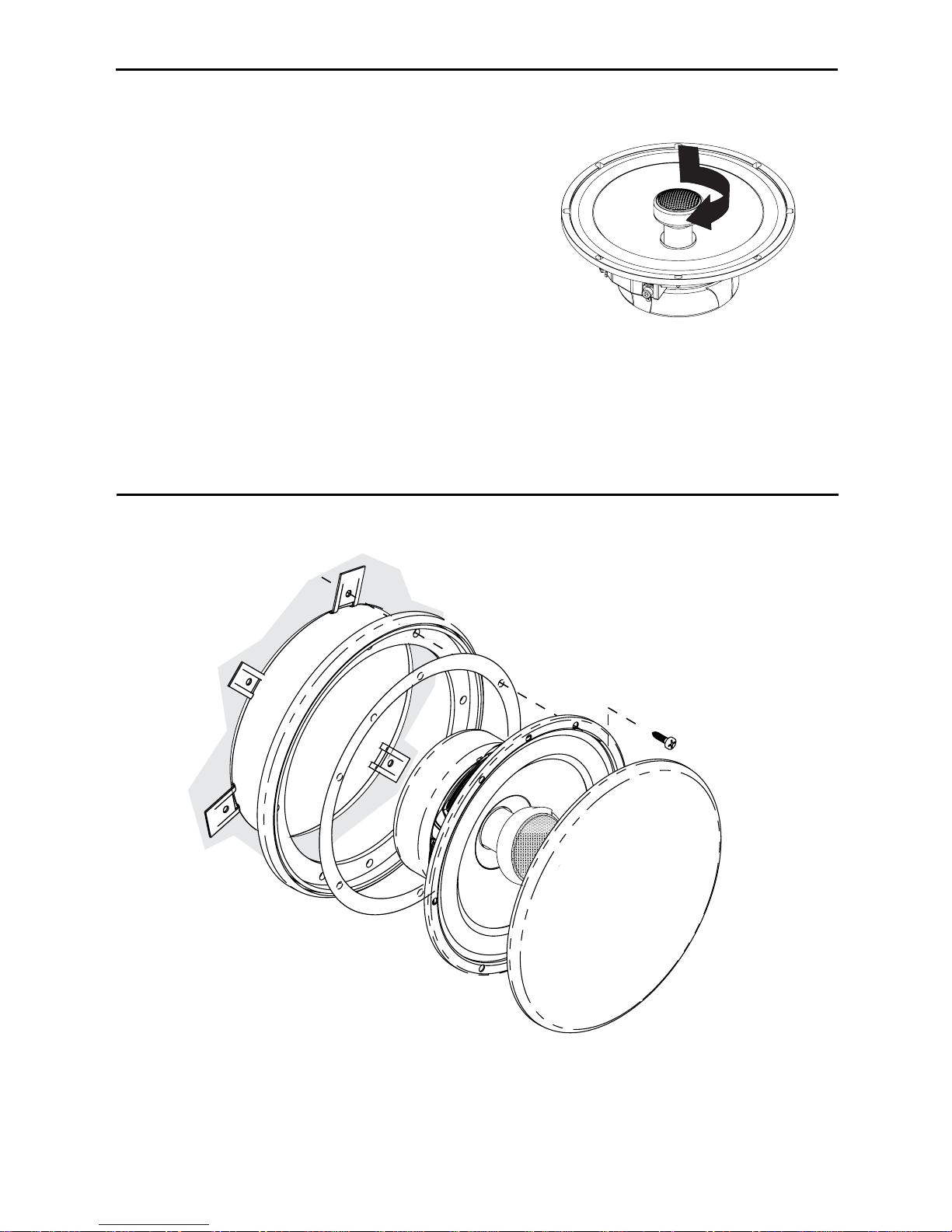

You have the option of conguring your speakers as
a coaxial system(tweeter attached) or a component
system(tweeter separate). If your choice is to use as
a coax then you will need to attach the tweeter to the
midrange. Locate the supplied tweeter post support and
attach the tweeter as shown. Remove the rubber boot
from the midrange, guide the tweeter wires down through
the middle of the midrange. Guide the tweeter wires so
that they lay in the groove of the inside of the rubber boot
as it replaced. Attach wires to the proper terminals.

©2012 Diamond Audio Technologies. All rights reserved.
MIDRANGE MOUNTING
TWEETER MOUNTING

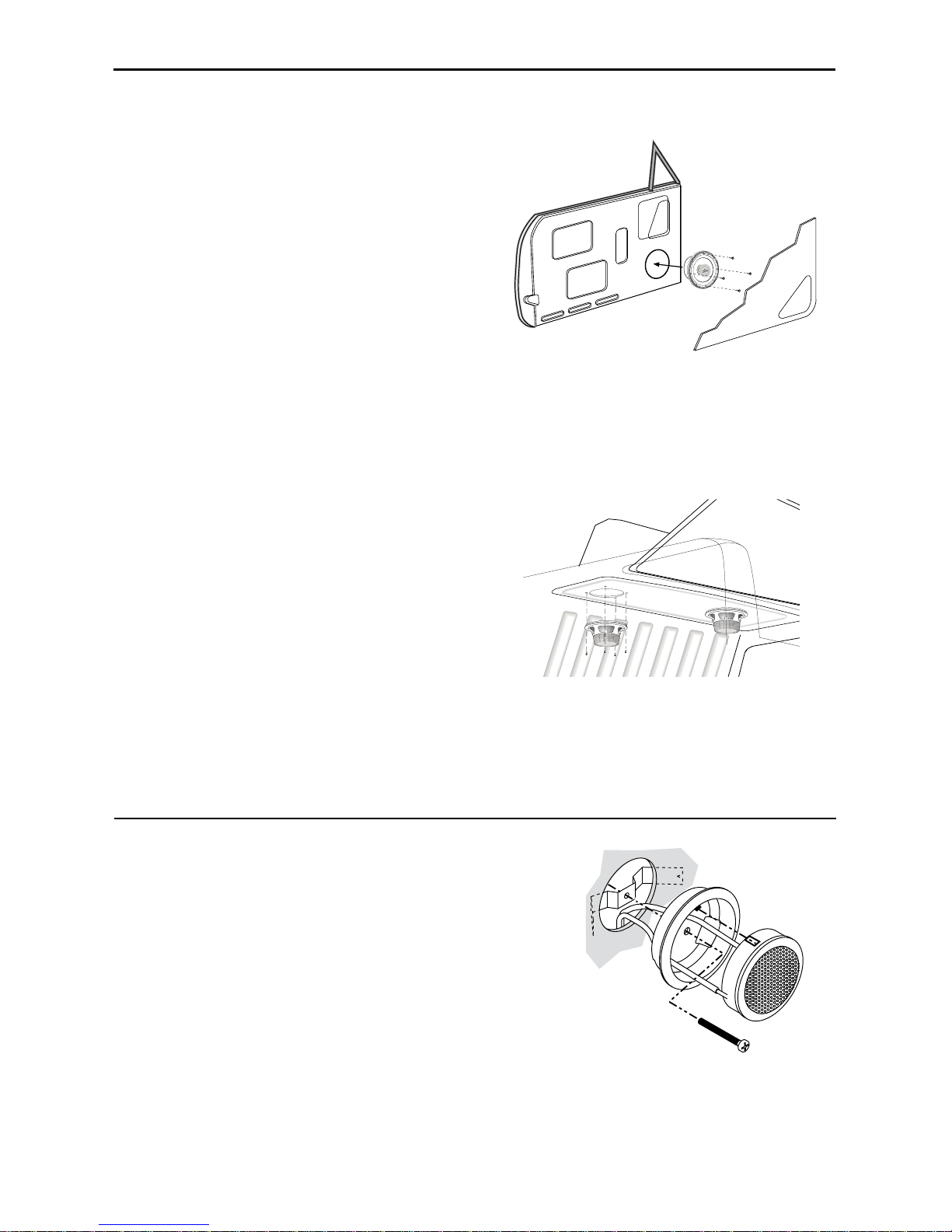

When ush mounting tweeters, make sure the desired
location can accommodate the hole size and depth
required. Mount the cup using provided hardware. Mount
surface cup at desired angle with provided screws in
tweeter mounting kit. Route speaker wires through
tweeter cup, connect tweeter to wires, and snap tweeter
into cup by aligning the notches.
Mounting Hole size: 1.73” (44mm) Dia.
Determine a location in the door that will accept
the size of your new speaker. Remove the door
panel from the door and check for clearance in
the intended speaker location while operating
window all the way up and down. Avoid cutting
any structural metal to mount the speakers or
to accommodate additional depth. If depth or a
at surface mount are an issue, please seek the
skills of a professional installation technician.
If you are mounting the speakers in the rear of the
vehicle, there are often two options for achieving
a good mount. Some speakers mount from the top
side (from the interior) while other applications have
the speakers mounted from the bottom side (from
the trunk). In either case, a at mounting surface and
a good seal are still extremely important.
AUDIO TECHNOLOGIES
AUDIO TECHNOLOGIES
AUDIO TECHNOLOGIES
AUDIO TECHNOLOGIES

©2012 Diamond Audio Technologies. All rights reserved.
INPUT RAFWOOFER TWEETER
INPUT RAFWOOFER TWEETER
INPUT RAFWOOFER TWEETER
INPUT RAFWOOFER TWEETER
SYSTEM CONNECTION
RAF Outputs

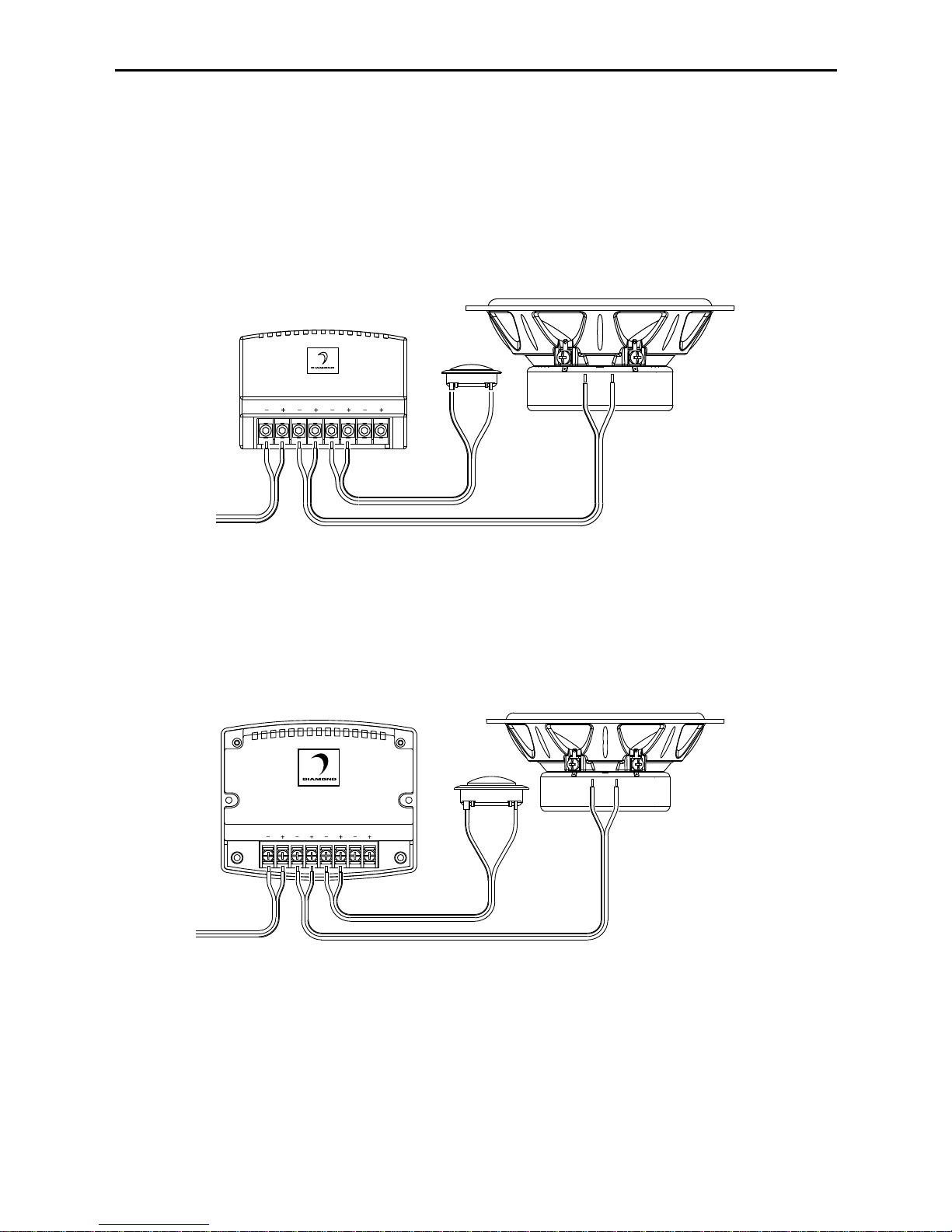

Each SX / SXP component crossover has a third set of outputs marked “RAF”. This stands for Rear
Acoustic Fill. This output can be used to power an additional speaker off the same channel without
affecting the impedance load on the source unit. This output provides 15-20% of the total power to
the extra speaker and is unltered or full range.
SX65v
Each SX crossover has a tweeter attenuation jumper and a phase adjustment located under the
removable cover. Choose “0” or “-2dB”. If the tweeter is signicantly closer to the listener than the
midrange, this adjustment should improve the frequency level balance. Choose “0” or “180” by
aligning the jumpers vertically or horizontally as shown inside the crossover. This adjustment may
improve frequency response depending on the tweeter mounting location relative to the midrange.
SXP65a/s
Each SXP crossover has a tweeter phase switch located under the removable cover. Choose “0”
or “180”. This adjustment may improve frequency response depending on the tweeter mounting
location relative to the midrange.

©2012 Diamond Audio Technologies. All rights reserved.
PHYSICAL DIMENSIONS
Dimension Unit SX65v SXP65a/s
Total Diameter
(A)
in.
mm
6.51
165.5
6.51
165.5
Mounting Diameter
(B)
in.
mm
5.53
140.6
5.53
140.6
Screw Hole Dia.
(C)
in.
mm
6.14
156.0
6.14
156.0
Mounting Depth
(D)
in.
mm
2.32
59.0
2.32
59.0
Magnet Diameter
(E)
in.
mm
3.40
86.4
3.40
86.4
Max Power Watt 120 150
Sensitivity dB 89 91
Freq. Response Hz 55-20k 55-20k
A
D
B
E
C

©2012 Diamond Audio Technologies. All rights reserved.
LIMITED SPEAKER WARRANTY STATEMENT
Diamond Audio Technologies, LLC (DAT) warrants this product to be free from defects in material and workmanship for a
period of one (1) year from the original date of purchase provided it was purchased from an authorized DAT retailer within
the United States. Product warranty period starts at date of purchase or one year past manufacture date whichever is rst.
However, upon purchase, completion of the online registration and installation by an authorized DAT dealer your warranty
period will be extended to two (2) years. This warranty extension offer will only be recognized upon completion of the online
registration of your product within 30 days of the date of purchase.
THIS WARRANTY IS NOT TRANSFERABLE AND APPLIES ONLY TO THE ORIGINAL PURCHASER OF THIS PRODUCT
IN ITS ORIGINAL INSTALLATION. Original purchaser must reside in the United States and be able to provide proof of
purchase and installation with the sales receipt from the authorized DAT retailer that sold and installed the product.
Should a manufacturing defect occur during above said warranty period, DAT will replace or repair the defective product
with a product of the same or equivalent value and performance.
Damage or failure caused by any of the following is not covered under this warranty policy: negligence, improper use,
abuse, product modication, unauthorized repair attempts, accident, acts of God, misrepresentations by DAT retailers, and
improper/inadequate packaging during return shipping.
Warranty is void if serial numbers have been removed, altered or defaced.
HOW TO OBTAIN WARRANTY SERVICE
In the event a DAT product should require service, you should visit the authorized DAT retailer you purchased the product
from and they can expedite your claim. All claims must fall into the guidelines listed above and be accompanied by a copy of
the original sales and installation receipt from that authorized DAT retailer.
Product returned for warranty service must be freight-prepaid, properly packaged and clearly marked with the Return
Authorization (RA) number issued by DAT. Any product returned to DAT that is improperly packaged, does not have a
RA number clearly marked on the package, or never received a RA number may be refused upon delivery. DAT does not
assume responsibility for lost or misdirected product.
Repair or replacement under this warranty is the exclusive remedy of the consumer. DAT shall not be liable for any
incidental or consequential damages for breach of any expressed or implied warranty on this product. Some states do not
allow the exclusion or limitation of incidental or consequential damages, or allow limitations on how long an implied warranty
lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specic legal rights and you may
also have other rights that may vary from state to state.
Customers outside the United States should contact their local sales ofce to obtain information on pricing, exchange unit
availability, instructions, service and warranty/non-warranty replacement or repair.
Diamond Audio Technologies
6915 West Frye Road
Chandler, AZ 85226 USA
Tel: [phone]
Fax: [phone]
Web: diamondaudio.com
Service/Tech Support:
480.820.2075
Tech Support Email
[email protected]

012512
®
