Diamond Audio D35 User manual

DSeries SPEAKER
DSeries SPEAKER
012512
www.DiamondAudio.com
(a division of CV & DA Holdings, Inc.)
®
1225 E. 7th Street
Los Angeles, CA. 90021
Owners Manual
D35/D42/D52/D652/D653/D683/D693
D694/D65V/D69V/D65C/D365C/DTAK
D Speaker Manual 2013.indd Spread 1 of 4 - Pages(8, 1)

LIMITED SPEAKER WARRANTY STATEMENT
Diamond Audio Technologies, (CV & DA HOLDINGS INC.) warrants this product to be free from defects in material and
workmanship for a period of one (1) year from the original date of purchase provided it was purchased from an authorized
DAT retailer within the United States. Product warranty period starts at date of purchase or one year past manufacture date
whichever is first. However, upon purchase, completion of the online registration and installation by an authorized DAT dealer
your warranty period will be extended to two (2) years. This warranty extension offer will only be recognized upon completion
of the online registration of your product within 30 days of the date of purchase.
THIS WARRANTY IS NOT TRANSFERABLE AND APPLIES ONLY TO THE ORIGINAL PURCHASER OF THIS PRODUCT
IN ITS ORIGINAL INSTALLATION. Original purchaser must reside in the United States and be able to provide proof of
purchase and installation with the sales receipt and completion of online regoistration from the authorized DAT retailer that
sold and installed the product.
Should a manufacturing defect occur during above said warranty period, DAT will replace or repair the defective product
with a product of the same or equivalent value and performance.
Damage or failure caused by any of the following is not covered under this warranty policy: negligence, improper use,
abuse, product modification, unauthorized repair attempts, accident, acts of God, misrepresentations by DAT retailers, and
improper/inadequate packaging during return shipping.
Warranty is void if serial numbers have been removed, altered or defaced.
HOW TO OBTAIN WARRANTY SERVICE
In the event a DAT product should require service, you should visit the authorized DAT retailer you purchased the product
from and they can expedite your claim. All claims must fall into the guidelines listed above and be accompanied by a copy of
the original sales and installation receipt from that authorized DAT retailer.
Product returned for warranty service must be freight-prepaid, properly packaged and clearly marked with the Return
Authorization (RA) number issued by DAT. Any product returned to DAT that is improperly packaged, does not have a
RA number clearly marked on the package, or never received a RA number may be refused upon delivery. DAT does not
assume responsibility for lost or misdirected product.
Repair or replacement under this warranty is the exclusive remedy of the consumer. DAT shall not be liable for any
incidental or consequential damages for breach of any expressed or implied warranty on this product. Some states do not
allow the exclusion or limitation of incidental or consequential damages, or allow limitations on how long an implied warranty
lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights and you may
also have other rights that may vary from state to state.
Customers outside the United States should contact their local sales office to obtain information on pricing, exchange unit
availability, instructions, service and warranty/non-warranty replacement or repair.
©2014 Diamond Audio. All rights reserved.
(a division of CV & DA Holdings, lnc.)
©2014 Diamond Audio. All rights reserved.
(a division of CV & DA Holdings, lnc.)
FEATURES
ABOUT THE DIAMOND AUDIO EXPERIENCE
• Unique reinforced polypropylene cone with internal dampening
• 20mm silk dome tweeter with Ferro fluid cooling
• Composite ABS frame design
• External 6dB/octave SQ matched crossover (used on D65C)
PARTS LIST
D42, D52, D652, D653, D683, D693, D694
(2) D Coaxial Speakers
(2) Mounting Gaskets
(1) Mounting Hardware Kit
D65V, D69V
(2) DV Convertible Speakers
(2) DV Model Specific Crossovers
(2) Mounting Gaskets
(1) Mounting Hardware Kit
DTAK, D65C, D365C
(2) D Component Speakers (except DTAK)
(2) D Model Specific Crossovers
(2) Mounting Gaskets
(1) Mounting Hardware Kit
(2) D Component Tweeters
Diamond Audio Technologies
1225 E.7th ST
LOS ANGELES,CA 90021
Tel: [phone]
Fax: [phone]
Web: diamondaudio.com
Service/Tech Support:
213-261-4161
Tech Support Email
[email protected]
Diamond Audio Technologies.
(2) D tweeters
D35
(2) D Component Speakers
(2) Mounting Gaskets
(1) Mounting Hardware Kit
Congratulations, you have just purchased the finest mobile audio products on the market to
date. At Diamond Audio, our products represent the latest advances in acoustic technology in
sound reproduction for your vehicle. Diamond Audio products are designed, developed, and
engineered using the latest innovative materials and components to provide the finest sound
reproduction possible. Every Diamond Audio product has been Klippel verified and tested to
ensure the best sounding and most reliable product on the market, if installed properly,
Diamond Audio products will provide many years of the ultimate listening experience.
Please note that prolonged exposure to sound pressure levels in excess of 100dB can cause
permanent hearing loss. Using Diamond Audio products can exceed that level so please
exercise restraint in its operation in order to preserve your ability to enjoy its high fidelity sound
for many years to come.
Diamond Audio recommends our products be professionally installed by an authorized
Diamond Audio dealer to achieve the best possible system recommendation and installation.
This will ensure a true Diamond Audio listening experience and sound you would expect from
Diamond Audio products. In doing this you will extend your warranty from one year to two
years.
Go ahead, Hear the Music
D Speaker Manual 2013.indd Spread 2 of 4 - Pages(2, 7)

You have the option of configuring your speakers as a
coaxial system (tweeter attached) or a component system
(tweeter separate). If your choice is to use as a coax then
you will need to attach the tweeter to the midrange. Locate
the supplied tweeter post support and attach the tweeter as
show. Remove the rubber boot from the midrange; guide the
tweeter wires down through the middle of the midrange.
Guide the tweeter wires so that they lay in the groove of the
inside of the rubber boot as it replaced. Attach wires to the
proper terminals.
A
D
B
E
C
©2014 Diamond Audio. All rights reserved.
(a division of CV & DA Holdings, lnc.)
©2014 Diamond Audio. All rights reserved.
(a division of CV & DA Holdings, lnc.)
PHYSICAL DIMENSIONS
MID-BASS SPEAKER MOUNTING
TWEETER CONFIGURATION (D65V and D69V Optional)
D Speaker Manual 2013.indd Spread 3 of 4 - Pages(6, 3)
UnitDimension D65V
Total Diameter
(A)
in.
mm
6.51
165.5
Mounting Diameter
(B)
in.
mm
5.53
140.6
Screw Hole Dia.
(C)
in.
mm
6.14
156.0
Mounting Depth
(D)
in.
mm
2.26
57.5
Magnet Diameter
(E)
in.
mm
3.43
87.0
WattMax Power 100
dBSensitivity
87
HzFreq. Response
69-20k
D65C
6.51
165.5
5.53
140.6
6.14
156.0
2.26
57.5
3.43
87.0
100
87
79-20k
D693/D694
D69V
9.20 x 6.40
233.9 x 162.8
8.46 x 5.79
215 x 147.1
6.58 x 4.71
167.2 x 119.7
2.75
70.0
4.19
106.4
140
86
60-20k
D683
8.65 x 5.53
219.8 x 140.6
6.92 x 4.95
176.0 x 125.8
8.03 x 4.98
204.0 x 126.7
2.18
55.6
3.11
79.0
80
86
67-20k
D652
D653
6.51
165.5
5.53
140.6
6.14
156.0
2.26
57.5
3.43
87.0
100
87
69-20k
D52
5.57
142.0
4.62
117.3
5.23
133.0
2.10
53.3
3.11
79.0
80
86
70-20k
D42
4.33
110.0
3.88
98.6
4.63
117.5
1.82
46.2
2.82
71.5
60
84
83-20k
D35
40
84
130-8k
6.5" 3.5"
D365C
120
3.43
87.0
2.81
71.3
3.15
80.0
1.56
39.7
2.58
65.5
3.43
87.0
2.81
71.3
3.15
80.0
1.56
39.7
2.58
65.5
87
6.51
165.5
5.53
140.6
6.14
156.0
2.26
57.5
3.43
87.0
69-20k

©2014 Diamond Audio. All rights reserved.
(a division of CV & DA Holdings, lnc.)
©2014 Diamond Audio. All rights reserved.
(a division of CV & DA Holdings, lnc.)
DAT3X
INPUT WOOFER MID TWEETER

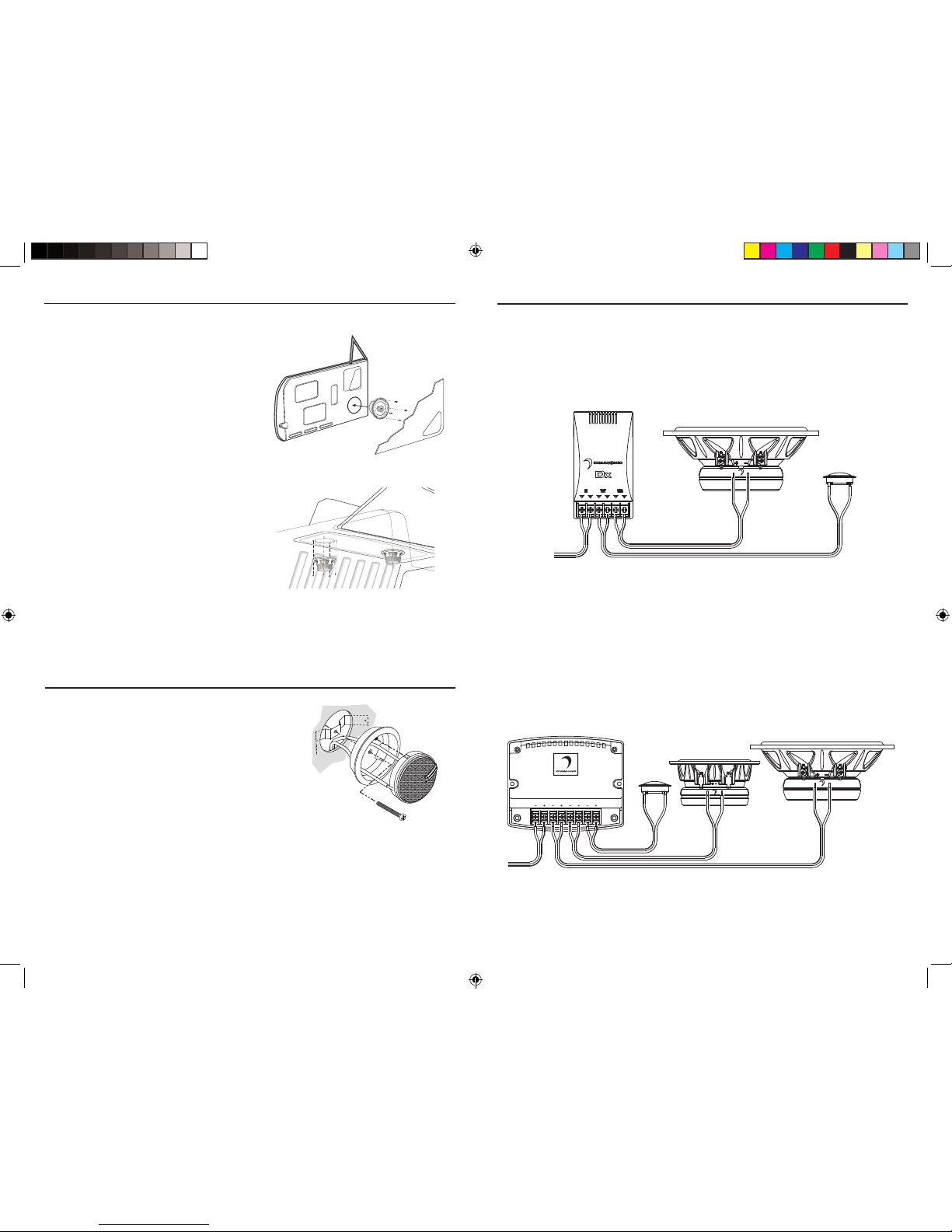

MIDRANGE MOUNTING
TWEETER MOUNTING
When flush mounting tweeters, make sure the desired
location can accommodate the hole size and depth
required. Mount the cup using provided hardware. Mount
surface cup at desired angle with provided screws in
tweeter mounting kit. Route speaker wires through
tweeter cup, connect tweeter to wires, and snap tweeter
into cup by aligning the notches.
Mounting Hole size: 1.36” (34.5mm) Dia.
Determine a location in the door that will accept
the size of your new speaker. Remove the door
panel from the door and check for clearance in
the intended speaker location while operating
window all the way up and down. Avoid cutting
any structural metal to mount the speakers or
to accommodate additional depth. If depth or a
flat surface mount are an issue, please seek the
skills of a professional installation technician.
If you are mounting the speakers in the rear of the
vehicle, there are often two options for achieving
a good mount. Some speakers mount from the top
side (from the interior) while other applications have
the speakers mounted from the bottom side (from
the trunk). In either case, a flat mounting surface and
a good seal are still extremely important.
SYSTEM CONNECTION
D65C
Each D crossover has a tweeter attenuation jumper and a phase adjustment located under the
removable cover. Choose “0” or “-2dB”. If the tweeter is significantly closer to the listener than the
midrange, this adjustment should improve the frequency level balance.
D365C
Each DAT3X crossover has a tweeter phase switch located under the removable cover. Choose “0”
or “180”. This adjustment may improve frequency response depending on the tweeter mounting
location relative to the midrange.
D Speaker Manual 2013.indd Spread 4 of 4 - Pages(4, 5)
