Dietsche BRAVAT F565104C-2-ENG User manual

MODEL: F565104C-2-ENG
Description: 3Pcs Widespread Bath Faucet
1Designed and developed by Bravat/Dietsche Germany4Designed and developed by Bravat/Dietsche Germany 15121302 15121302
PRODUCTS INSTALLATION INSTRUCTIONS
F
MAINTENANCE
G
SPECIAL STATEMENT
CAUTION:Always turn water OFF before removing existing or disassembing the faucet. Open faucet handles to relieve water
pressure and insure that complete water shut-off has been accomplished.
To keep the surface clean and bright, please clean the faucet regularly,please abide by the following
procedures:
1. Use rinsing water and soft cloth, clean bilge and bilge membrane on the surface to the best of the abilities.
2. Cleaned the residua with the following cleansers only.
3. After cleaning, use rinsing water to clean all cleanser immediately and drying with a soft cotton cloth.
4. Carefully dismantle the aerator regularly, rinse under clean running water until any loose debris is cleared to avoid
the influence to water outflow.
Soft liquid cleanser.
Colorless glass cleanser, totally soluble powder cleanser without abrasive capability.(Mixed by instructions.)
No abrasive cleansers waxes.
Never use cleanser, emery cloth or handkerchief which can rub.
Never use cleaners containing abrasive cleansers, ammonia,bleach, acids, waxes, alcohol, solvents or other
products not recommended for chrome.
The products installation instruction is written in accordance with the latest product information, following the sustainable development
strategy of the Company, to improve continually the produce's specification, performance etc.,subject to change without notice. (The
Company reserves the right to interpret)
SPECIFICATION
E
Application:
Operation with unpressurized storage heaters is not possible.
Specifications
If static pressure exceeds 5 bar, a pressure-reducing valve
must be fitted.
Avoid major pressure differences between hot and cold water
supply.
GB This technical product information is exclusively
for the installer or trained specialists.
Please pass these instructions on to the user.
min. 0.5 bar – recommended 1 – 5 bar
rab01.xam:erusserpgnitarepO rab61:erusserptseT
Flow rate at 3 bar flow pressure nim/l5,12.xorppa:htabrof nim/l81.xorppa:rewohsrof C°08.xamerutarepmettelniretawtoH
Recommended (energ C°06:)gnivasy
Installation:
Flush piping system prior and after installation of
fitting thoroughly (Consider EN 806)!
Fitting a temperature limiter is possible
The projection can be increased by 20mm, extension
Function:
Check connections for leaks and check function of
fitting.
Flow is diverted automatically from shower outlet to
bath inlet when the fitting is closed.
Maintenance:
Inspect and clean all components and replace if
necessary.
Shut off water supply for maintenance work.
When installing the cartridge, ensure that the
seals are correctly seated.
Tighten the screws evenly and alternately.

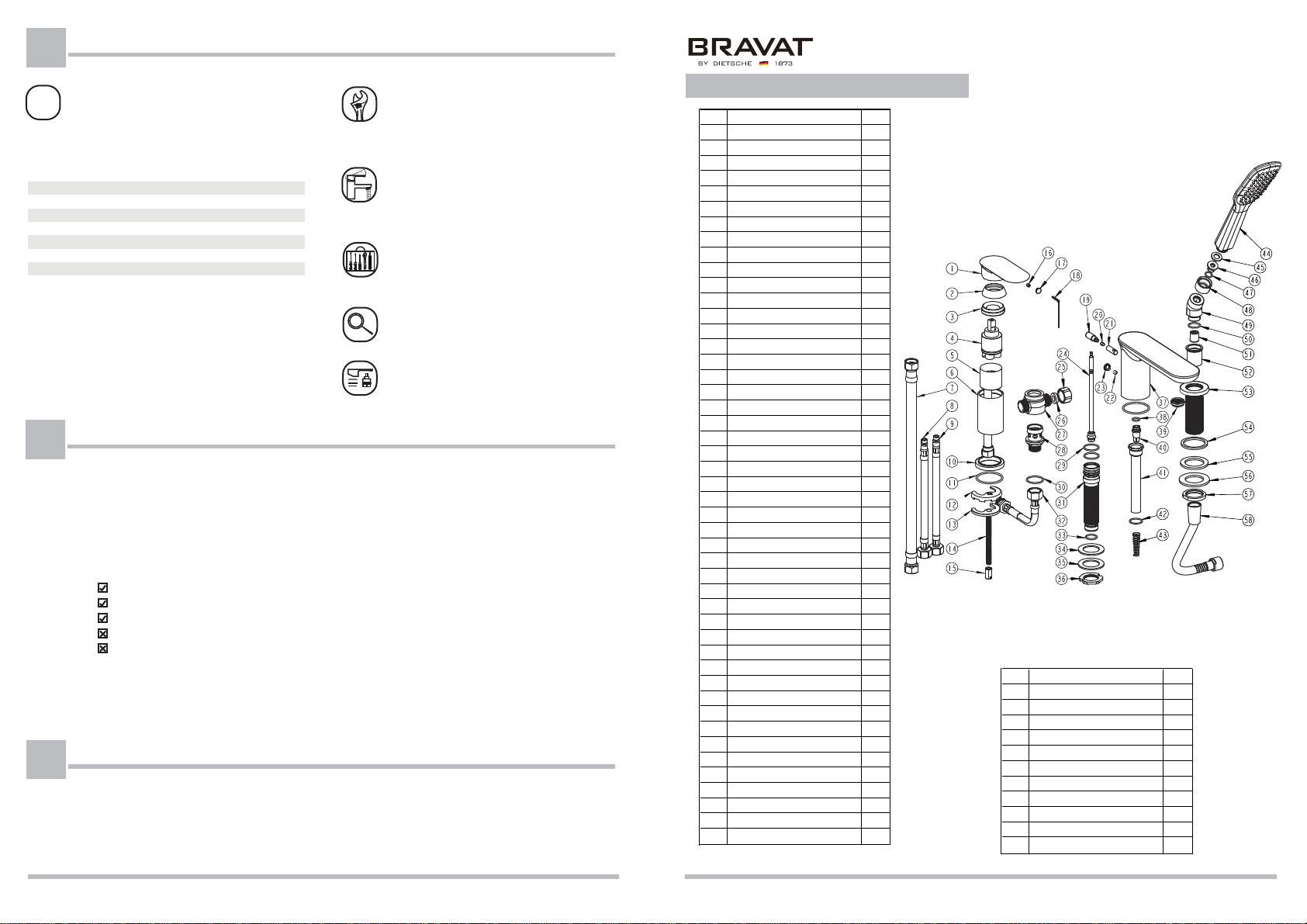

Replacement parts:see exploded drawing
(* = special accessories)
Care: see Care Instructions
Flow pressure:
NO. NAME QTY.
48 Nut 1
49 Shower Connector 1
50 O-Ring D17.8XD2 1
51 Check Valve 1
52 Retainer 1
53 Shower Holder 1
54 Washer D46XD38X3 1
55 Washer D33.5XD48X3 1
56 Washer 1
57 Nut 1
58 Hose 1
NO. NAME QTY.
1 Handle 1
2 Dome 1
3Nut 1
4 Cartridge 1
5 Cartridge Base Assembly 1
6 Cartridge Cover 1
7 Hose(700) 1
8 Braided Hose(Hot) 1
9 Braided Hose(Cold) 1
10 Decorative Cover 1
11 O-Ring D42XD2.5 2
12 Rubber Washer 1
13 Washer 1
14 Shank M8x90 1
15 Nut 1
16 Set Screw 1
17 Plug 1
18 Allen Key 2.5 1
19 Knod 1
20 Set Screw M5X8 1
21 Knod Connector 1
22 Set Screw M6x6 1
23 Button 1
24 Diverter Assembly 1
25 Blockage Cap 1
26 Washer D10xXD18X4 1
27 Connector 1
28 Connector 1
29 O-Ring D23XD2 2
30 O-Ring D26XD2 1
31 Shank 1
32 Hose 1
33 O-Ring D17XD2 1
34 Washer 45X28.5X2 1
35 Washer D45XD29X2 1
36 Lock Nut 1
37 Spout 1
38 O-Ring D10XD2 1
39 Aerator 1
40 Diverter Shank 1
41 Shank 1
42 O-Ring 19.5X1.8 1
43 Spring 1
44 Handle Shower 1
45 Washer D18.5XD10.5X2 1
46 Connector 1
47 O-Ring D9.5XD1.8 1

3Designed and developed by Bravat/Dietsche Germany
2Designed and developed by Bravat/Dietsche Germany 15121302 15121302
A
INSTALLATION DIMENSION
Unit:mm
B
HELPFUL TOOLS
Before installing the new mixer, it is essential that you thoroughly flush through the supply pipes in order to remove any remaining swarf,
solder or other impurities. Failure to carry out this simple procedure could cause problems or damage to the workings of the mixer.
Work water pressure: 0.5-5kgf/cm² (Including cold and hot).
If the pictures and statements in the ‘Installation Specifications’ is unconfirmed with practicality, please take practicality as standard.
！Points for attention before installation
INSTALLATION STEP
C
Spanner Teflo tape
Screwdriver Flashlight
Tape MeasureImpact DrillPencil
2 31
4 65
8
7
Finished
Hot Cold
Mounting Hole
Rotate Diverter
Shower
Spout
Close
Open
Hot Cold
D
FAUCET OPERATION
