DigiSender iMedia Screencast 2.2 DGIMD132 User manual

Models: dgimd132
Miracast Setup
For most Android 4.2 and all Android 4.4 devices
Please read these instructions carefully prior to installation
Important Note: These steps are for devices running stock Android 4.2. The steps for Samsung,
HTC and other device manufacturers Android versions may differ.

TV
HDMI
USB
Power
Power
Adapter
(Recommended)
or
Miracast. Airplay. DLNA.
1Connect the adaptor as outlined in the Quick Setup Guide.
DE: Schließen Sie den Dongle, wie in der Kurzanleitung beschrieben.
FR: Branchez le dongle comme indiqué dans le Guide d’installation rapide.
NL: Sluit de dongle, zoals beschreven in de installatiehandleiding.

Miracast. Airplay. DLNA.

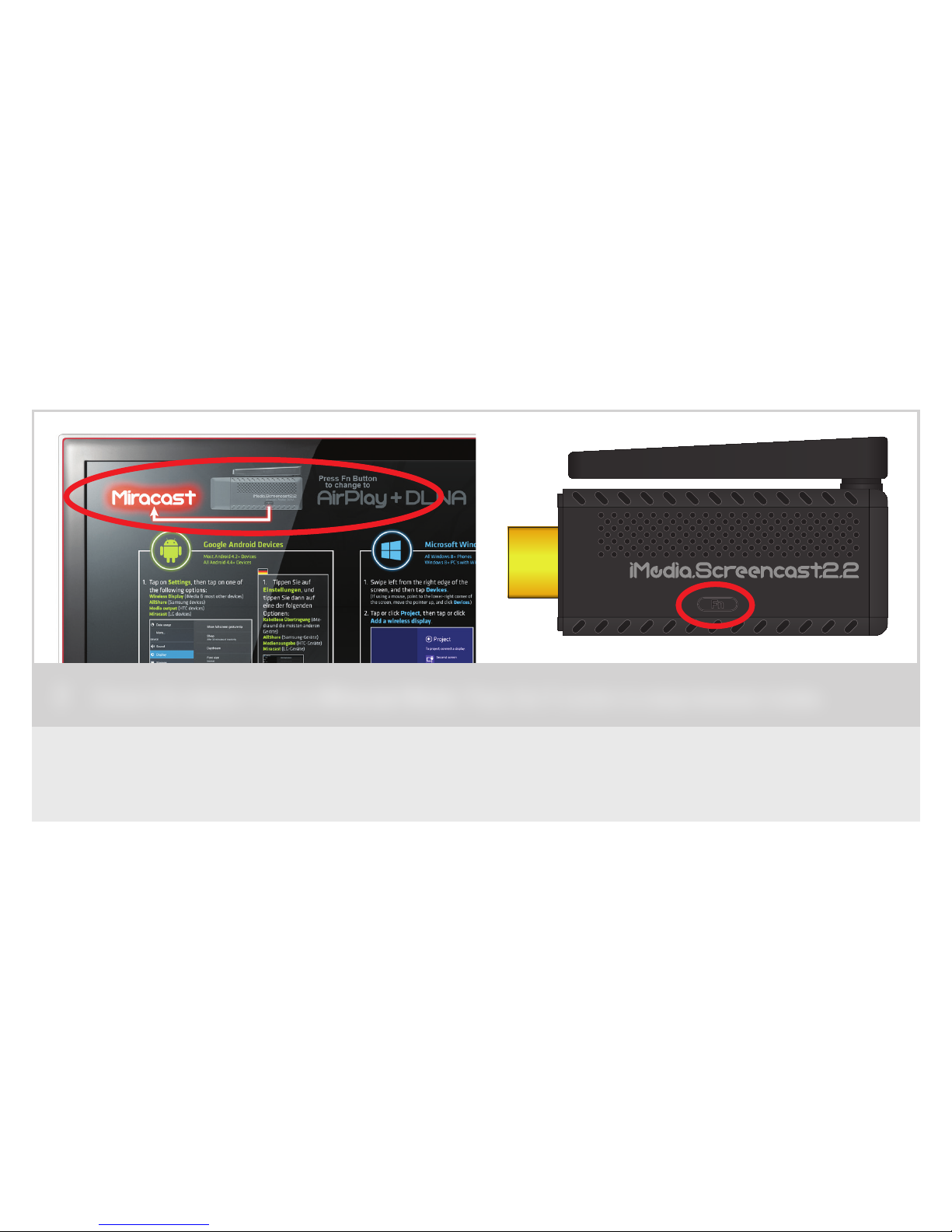

2Ensure the adaptor is set to Miracast Mode. Press the Fn button to swap between modes.
DE: Sicherstellen, dass der Dongle eingestellt auf Modus Miracast. Drücken Sie die Fn-Taste, um zwischen den Modi zu wechseln.
FR: S’assurer que le dongle est réglé sur le mode Miracast. Appuyez sur la touche Fn pour basculer entre les modes.
NL: Zorg ervoor dat de dongle is ingesteld op modus Miracast. Druk op de Fn-knop om te wisselen tussen de modi.

3On your device, go to Settings.
DE: Auf Ihrem Gerät, gehen Sie zu Einstellungen.
FR: Sur votre appareil, allez dans Paramètres.
NL: Op je toestel, ga naar Instellingen.

4Ensure that WiFi (WLAN) is turned ON.
DE: Stellen Sie sicher, dass WLAN eingeschaltet ist.
FR: Assurez-vous que le WiFi (WLAN) est activé.
NL: Ervoor zorgen dat WiFi (WLAN) is ingeschakeld.

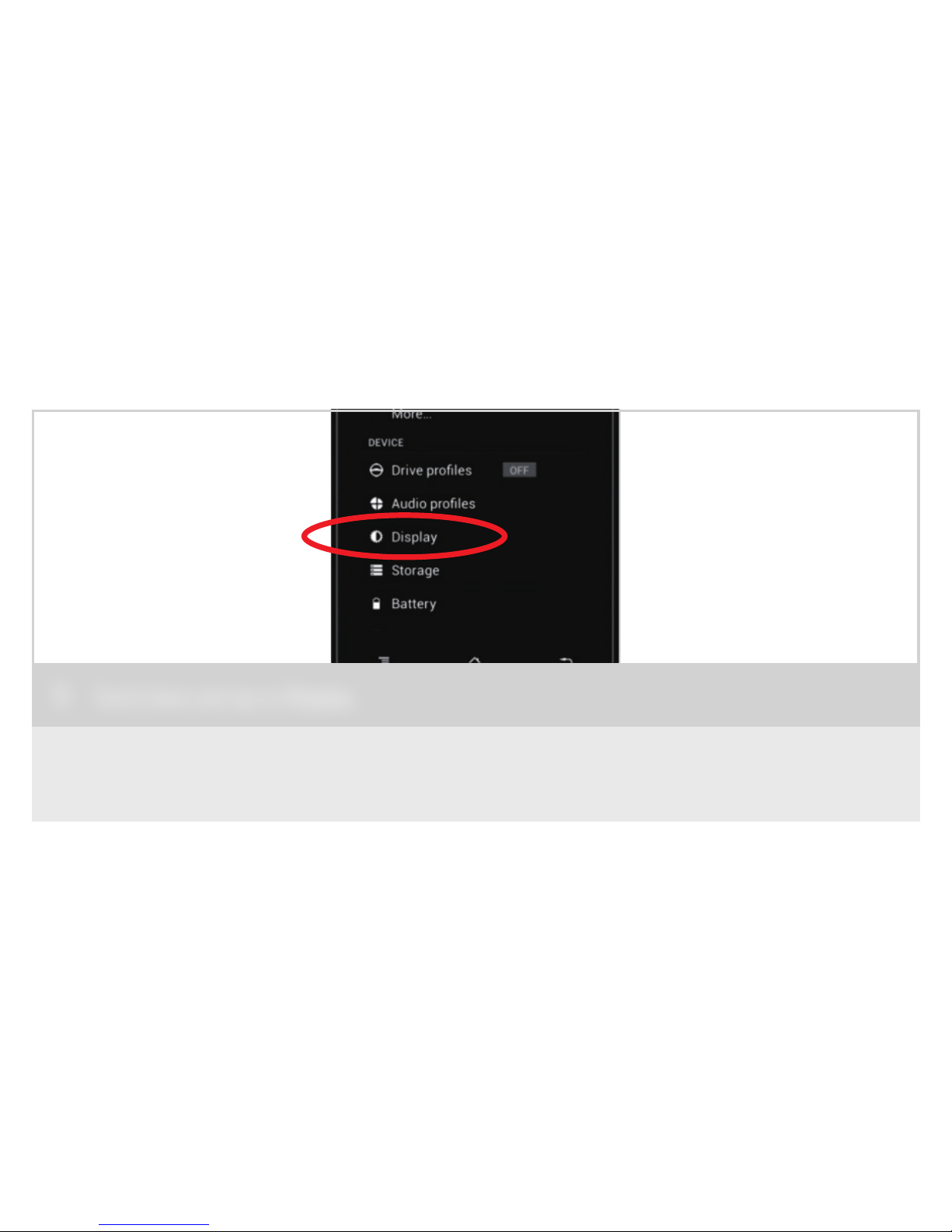

5Scroll down and tap on Display.
DE: Blättern Sie nach unten und tippen Sie auf Anzeigen.
FR: Faites défiler vers le bas et tapez sur l’écran.
NL: Scroll naar beneden en tik op Weergeven.

6Look for an option called Wireless Display and tap on it.
DE: Suchen Sie nach einer Option namens Kabellose Übertragung und tippen Sie darauf.
FR: Recherchez une option appelée Affichage Sans Fil et appuyez dessus.
NL: Kijk voor een optie genaamd Draadloze Display en tik erop.

7In the list of Available Devices, tap on Screencast-XXXXX.
DE: In der Liste der verfügbaren Geräte auf Screencast-XXXXX tippen.
FR: Dans la liste des périphériques disponibles, appuyez sur Screencast-XXXXX.
NL: In de lijst met beschikbare apparaten, tikt u op Screencast-XXXXX.

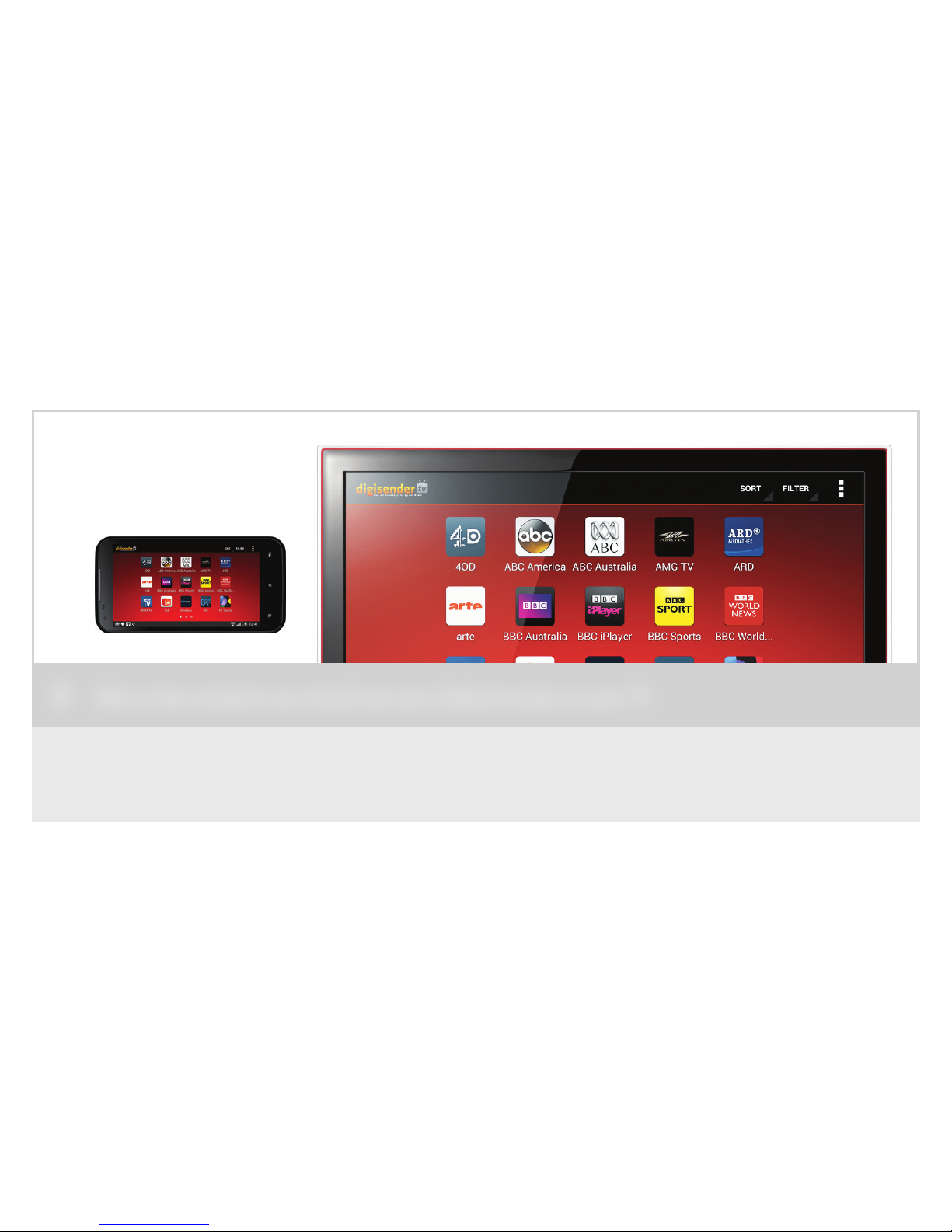

8After a few moments you should see your Android screen on your TV.
DE: Nach ein paar Augenblicken sollten Sie Ihren Android-Bildschirm auf Ihrem TV.
FR: Après quelques instants, vous devriez voir votre écran Android sur votre téléviseur.
NL: Na een paar momenten moet je je Android-scherm op de tv te zien.

9To stop the Miracast, simply turn Wireless Dispay OFF on your Android device.
DE: Um den Miracast zu stoppen, schalten Sie einfach drahtlose Dispay OFF auf Ihrem Android-Gerät.
FR: Pour arrêter la Miracast, il suffit de tourner Dispay sans fil OFF sur votre appareil Android.
NL: Om de Miracast te stoppen, zet u gewoon Wireless Dispay OFF op je Android toestel.

We,
AEI Security & Communications Limited,
declare under our sole responsibility that the products bearing the series code prefixed: DGTVx, DGIMx (x refers to the specific model number) are in conformity with the essential
requirements of Directive 1995/5/EC. These products have been tested against the following standards and specifications:
Low Voltage Directive
BS EN 60950-1:2006+A12:2011 Information technology equipment. Safety . General requirements.
Electromagnetic Compatibility Directive
BS EN 55022:2010+AC:2011 Information technology equipment. Radio disturbance characteristics. Limits and methods of measurement.
BS EN 55024:2010 Information technology equipment. Immunity characteristics. Limits and methods of measurement.
BS EN 61000-3-2:2006+A2:2009 Electromagnetic compatibility (EMC). Limits. Limits for harmonic current emissions (equipment input current ≤16 A per phase).
BS EN 61000-3-3:2008 Electromagnetic compatibility (EMC). Limits. Limitation of voltage changes, voltage fluctuations and flicker in public low-voltage supply
systems, for equipment with rated current ≤16 A per phase and not subject to conditional connection.
Radio Equipment and Telecommunications Terminal Equipment (R&TTE ) Directive
BS EN 62311:2008 Assessment of electronic and electrical equipment related to human exposure restrictions for electromagnetic fields (0 Hz - 300 GHz).
BS EN 60950-1:2006+A12:2011 Information technology equipment. Safety . General requirements.
ETSI EN 301 489-1 v1.9.2 (2011-09) Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and
services; Part 1: Common technical requirements.
ETSI EN 301 489-17 v2.1.1 (2009-05) Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment; Part
17: Specific conditions for Broadband Data Transmission Systems.
ETSI EN 300 328 v1.8.1 (2012-04) Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband transmission systems; Data transmission equipment operating
in the 2,4 GHz ISM band and using wide band modulation techniques; Harmonized EN covering essential requirements under article 3.2 of
the R&TTE Directive.
The product is marked with the CE marking and Notified Body Number according to directive 1999/5/EC. Note: Original Declaration of Conformity has been signed.
DECLARATION OF CONFORMITY
2006201301/DGTV-DGIM

DigiSender, iMedia, Screencast SUPERSMART and their respective logos are trademarks
or registered trademarks of AEI Security & Communications Ltd.
© AEI Security & Communications Ltd. All rights reserved.
SPECIFICATIONS
Model: DGIMD132
CPU: Single-Core ARM Cortex-A9
Architecture: HD Video Decoder (1080p@60fps)
OpenGL ES2.0 & OpenVG 1.1
RAM: 256MB DDR3
WiFi: 802.11 b/g/n
Functions:
Miracast - Android 4.2+, Windows 8+
AirPlay - iOS 7+
DLNA - All compatible devices
I/O: 1x HDMI 1.4
1x Micro USB
Dimensions: 75mm x 33mm x 9.3mm
Kit Contents: 1x Screencast 2.2 Adaptor, 1x Micro USB Cable, 1x USB Splitter Cable,
1x UK/EU Power Supply, 1x Quick Setup Guide
