RapidSignage RS-410 User manual

RapidSignage - Rapid Digital Signage Deployments
www.rapidsignage.com
RS-410 Quick Installation Guide

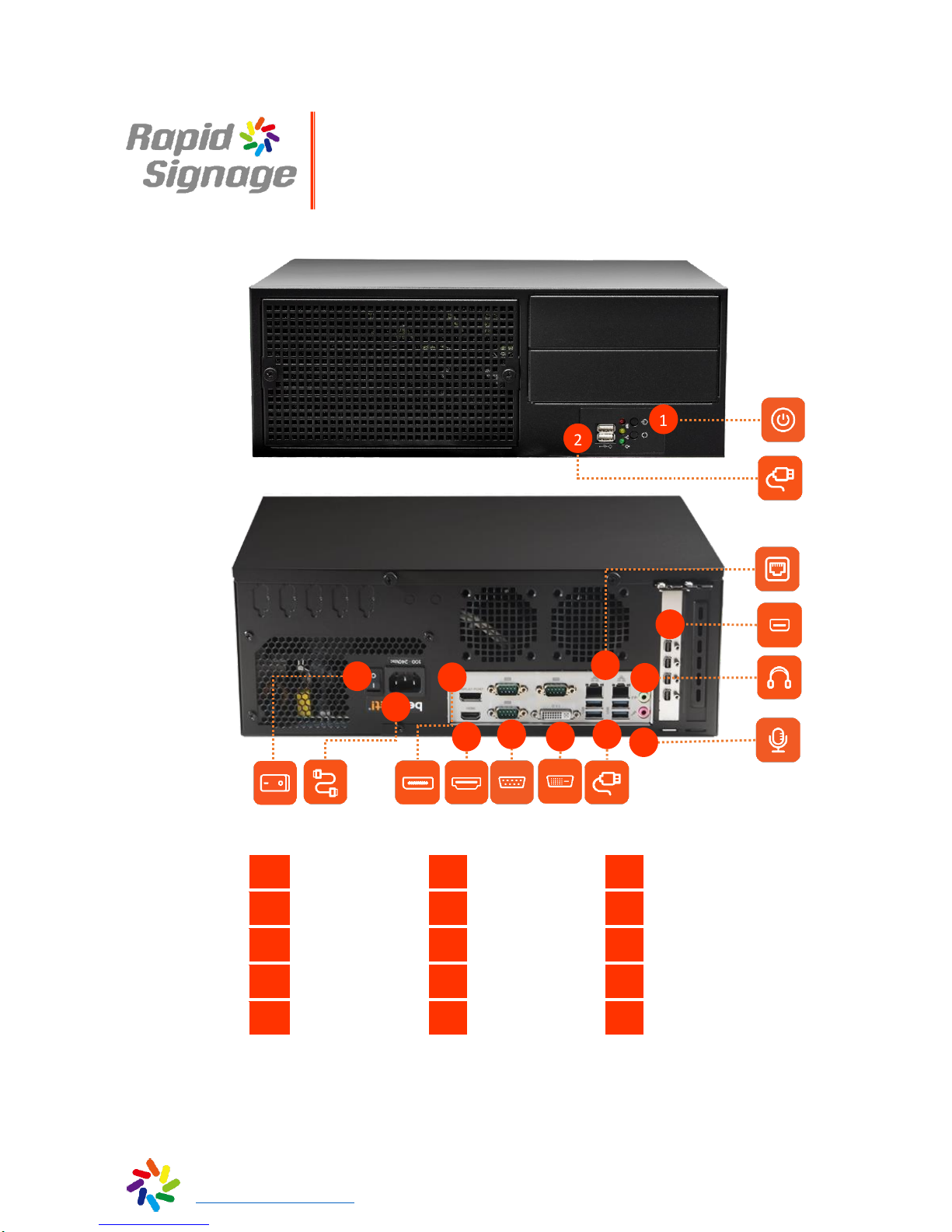

Package content:
- Power Cord
1
Power Button
6
LAN Ports (x2)
11
HDMI Output
2
USB 2.0 (x2)
7
USB 3.0 (x4)
12
Power Switch
3
Mini DP (x4)
8
DVI
13
AC in
4
Audio Out
9
COM Ports
5
Mic in
10
Display Port
1
2
6
3
4
10
13
5
11
7
9
8
12

RapidSignage - Rapid Digital Signage Deployments
www.rapidsignage.com

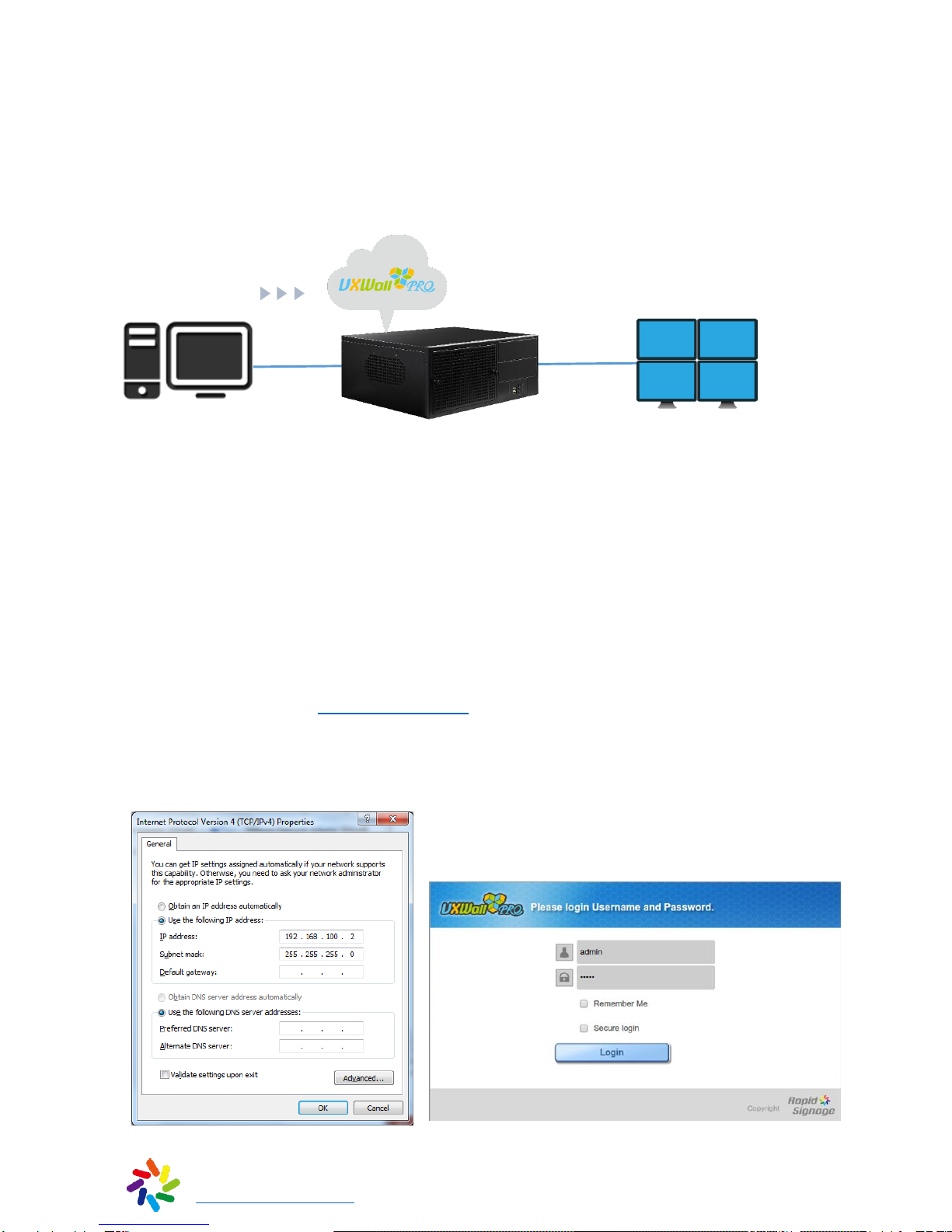

RS-410 Configuration
Direct Connect:
1. Connect the provided power adapter into the AC in (13)
2. Connect Ethernet cable to the computer and to LAN port (6).
3. Connect Mini DP cable to Mini DP port (3) to an Videowall.
4. Configure your computer system’s network settings to:
a. IP address (TCP/IPv4): 192.168.100.2
b. Subnet mask: 255.255.255.0
5. Open your browser (Google Chrome is recommended) and connect to the RS-410:
c. Default URL: http://192.168.100.1
d. Default login: admin
e. Default password: admin

RapidSignage - Rapid Digital Signage Deployments
www.rapidsignage.com
With DHCP networking:
If you want the RS-410 connect to a DHCP network, you need to directly connect with RS-410 first
and change the networking setting of the RS-410:
1. Click SystemConfig on the main page of RS-410, then click Network config Tab.
2. Double-click textbox of DHCP and make sure DHCP is turned on, then Click Apply.
3. Click Power tab, and click Reboot button to reboot the RS-410.
4. After reboot, the RS-410 IP address will be displayed on the boot screen.
Example:

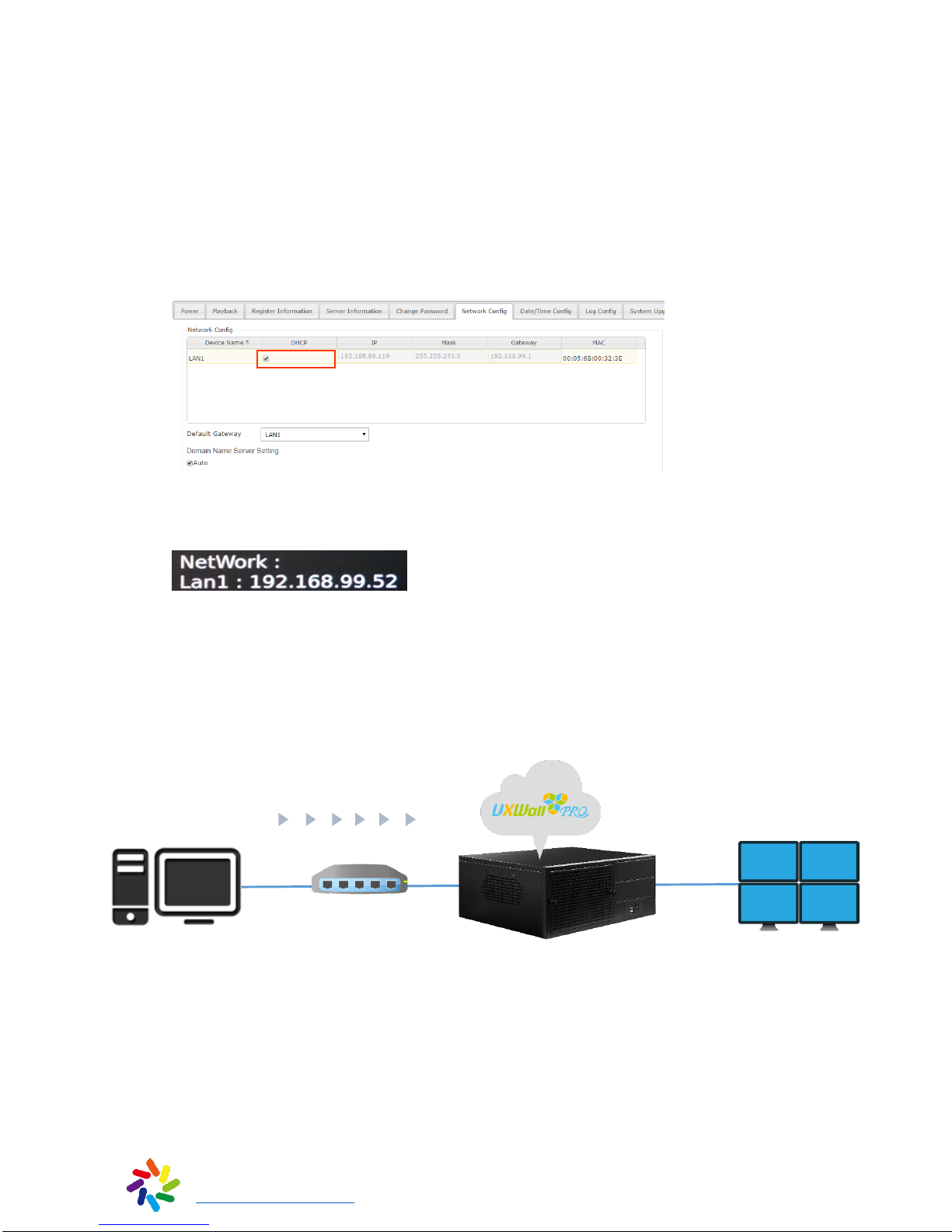

Change the RS-410 into the diagram below:
AP / Router / Switch
