Digital Equipment AlphaPC64 User manual

AlphaPC64Motherboard
User’sManual
Order Number: EC–QLJKB–TE
Revision/Update Information: This document supersedes the
AlphaPC64 Motherboard User’s Manual
(EC–QLJKA–TE).
Digital Equipment Corporation
Maynard, Massachusetts

July 1995
Possession, use, or copying of the software described in this publication is authorized only
pursuant to a valid written license from Digital or an authorized sublicensor.
While Digital believes the information included in this publication is correct as of the date of
publication, it is subject to change without notice.
Digital Equipment Corporation makes no representations that the use of its products in the
manner described in this publication will not infringe on existing or future patent rights, nor do
the descriptions contained in this publication imply the granting of licenses to make, use, or sell
equipment or software in accordance with the description.
© Digital Equipment Corporation 1995.
All rights reserved.
Printed in U.S.A.
AlphaGeneration, DEC, DECchip, DECladebug, Digital, OpenVMS, VAX, VAX DOCUMENT,
VMS, the AlphaGeneration design mark, and the DIGITAL logo are trademarks of Digital
Equipment Corporation.
Digital Semiconductor is a Digital Equipment Corporation business.
Digital UNIX Version 3.2 for Alpha is a UNIX 93 branded product.
Centronics is a trademark of Genicom Corporation.
CompuServe is a registered trademark of CompuServe, Inc.
GRAFOIL is a registered trademark of Union Carbide Corporation.
IEEE is a registered trademark of The Institute of Electrical and Electronics Engineers, Inc.
Intel and UPI are trademarks of Intel Corporation.
MACH is a trademark of Advanced Micro Devices, Inc.
Micron is a registered trademark of Micron Corporation.
Motorola is a registered trademark of Motorola, Inc.
National is a registered trademark of National Semiconductor Corporation.
Microsoft is a registered trademark, NT, and Windows NT are trademarks of Microsoft
Corporation.
OSF and OSF/1 are registered trademarks of Open Software Foundation, Inc.
PHOENIX is a registered trademark of Phoenix Technologies, Ltd.
PS/2 is a registered trademark of International Business Machines Corporation.
SPEC is a trademark of Standard Performance Evaluation Corporation.
TriQuint is a registered trademark of TriQuint Semiconductor, Inc.
UNIX is a registered trademark in the United States and other countries, licensed exclusively
through X/Open Company Ltd.
All other trademarks and registered trademarks are the property of their respective owners.
This document was prepared using VAX DOCUMENT Version 2.1.

Contents
About This Manual........................................... vii
1 AlphaPC64 Introduction
1.1 The AlphaPC64 Motherboard . ........................... 1–1
1.2 System Components and Features........................ 1–1
1.2.1 Memory Subsystem ................................ 1–1
1.2.2 DECchip 21072 Support Chipset . . . ................... 1–4
1.2.3 PAL Control Set ................................... 1–4
1.2.4 Level 2 Cache Subsystem Overview . ................... 1–4
1.2.5 Clock Subsystem Overview .......................... 1–5
1.2.6 PCI Interface Overview . . ........................... 1–5
1.2.7 ISA Interface Overview . . ........................... 1–5
1.2.8 Software Support .................................. 1–6
1.2.9 Component Layout ................................. 1–6
1.2.10 System Summary .................................. 1–6
2 System Jumpers and Connectors
2.1 Configuration Jumpers................................. 2–1
2.1.1 Software Configuration Jumpers . . . ................... 2–1
2.1.2 Hardware Configuration Jumpers . . ................... 2–6
2.2 AlphaPC64 Board Connectors ........................... 2–7
3 Starting and Using the AlphaPC64
3.1 Hardware Requirements ............................... 3–1
3.2 Software Requirements ................................ 3–2
3.3 Hardware Configuration ............................... 3–2
3.4 Software Configuration ................................ 3–9
3.4.1 Starting Windows NT ARC Firmware .................. 3–9
3.4.2 Going to the Debug Monitor from Windows NT ARC
Firmware ........................................ 3–9
iii

3.4.3 Returning to Windows NT ARC Firmware from the Debug
Monitor . ........................................ 3–10
4 Functional Elements
4.1 PCI Interrupts and Arbitration . . ........................ 4–1
4.1.1 System Interrupts . ................................ 4–1
4.1.2 PCI/ISA Arbitration ................................ 4–5
4.2 ISA Devices . ........................................ 4–6
4.3 dc Power Distribution . ................................ 4–7
4.4 Flash ROM (System ROM).............................. 4–9
4.4.1 Special Flash ROM Headers . ........................ 4–9
4.4.2 Flash ROM Structure............................... 4–12
4.4.3 Flash ROM Access . ................................ 4–14
5 Board Requirements and Parameters
5.1 Power Requirements . . ................................ 5–1
5.2 Environmental Characteristics. . . ........................ 5–2
5.3 Physical Board Parameters ............................. 5–2
A Supporting Vendor Products
A.1 Products Included .................................... A–1
A.2 Products Not Included . ................................ A–2
B Technical Support and Ordering Information
B.1 Technical Support .................................... B–1
B.2 Ordering Digital Semiconductor Products . . ................ B–1
B.3 Ordering Associated Literature . . ........................ B–2
B.4 Ordering Third-Party Documentation ..................... B–4
C Warranty Registration Information
iv

Index
Figures
1–1 AlphaPC64 Functional Block Diagram .................. 1–2
1–2 Maximum and Minimum SIMM Bank Layouts . .......... 1–3
1–3 AlphaPC64 Component Layout and Board Dimensions . . . . . 1–7
2–1 AlphaPC64 Board Jumpers .......................... 2–2
2–2 J3 Jumpers/Connectors . . ........................... 2–3
2–3 AlphaPC64 Board Connectors ........................ 2–8
3–1 Fan/Heat Sink Assembly . ........................... 3–4
3–2 AlphaPC64 Power Connectors ........................ 3–7
4–1 Interrupt Control and PCI Arbitration.................. 4–2
4–2 Interrupt and Interrupt Mask Registers ................ 4–5
4–3 ISA Devices . . . ................................... 4–6
4–4 dc Power Distribution . . . ........................... 4–8
4–5 Special Header Content . . ........................... 4–9
5–1 Board Component Layout ........................... 5–3
Tables
1–1 L2 Cache SIMM Sizes . . . ........................... 1–5
1–2 AlphaPC64 Summary............................... 1–8
2–1 Jumper Position Descriptions......................... 2–4
2–2 AlphaPC64 Board Jumpers .......................... 2–6
2–3 Module Connector Descriptions ....................... 2–9
4–1 CPU Interrupt Assignment .......................... 4–3
4–2 Special Header Entry Descriptions . ................... 4–10
4–3 Higher 512KB Flash ROM Image Selection .............. 4–12
5–1 Power Supply dc Current Requirements (275 MHz)........ 5–1
5–2 Board Component Descriptions ....................... 5–4
v

About This Manual
This manual describes Digital’s AlphaPC64 motherboard, a module for
computing systems based on the Alpha 21064A microprocessor and the
DECchip 21072 chipset.
Audience
This guide is intended for users of the AlphaPC64 to assist them in installing
the board and populating it with memory modules and peripheral cards.
ScopeThis guide describes the features, configuration, and installation of the
AlphaPC64. This guide does not include specific bus specifications (for
example, PCI or ISA buses). Additional information is available in the
appropriate vendor and IEEE specifications. See Appendix B for information
about how to obtain additional technical support and how to order additional
documentation.
Content
This guide contains the following chapters and appendixes:
• Chapter 1, AlphaPC64 Introduction, is an overview of the AlphaPC64,
including its components, uses, and features.
• Chapter 2, System Jumpers and Connectors, describes the user
environment configuration; board connectors and functions; jumper
functions; and identifies jumper and connector locations.
• Chapter 3, Starting and Using the AlphaPC64, lists additional hardware
and software requirements, provides information on how to configure the
hardware and software, and describes the board startup procedures.
• Chapter 4, Functional Elements, describes some of the functional elements
of the AlphaPC64, such as, interrupt assignments, flash ROM contents,
and power distribution.
vii

• Chapter 5, Board Requirements and Parameters, describes the AlphaPC64
power and environmental requirements, and identifies major board
components.
• Appendix A, Supporting Vendor Products, lists suggested vendor sources
for supporting components, such as, power supply, SIMMs, enclosure, and
so forth.
• Appendix B, Technical Support and Ordering Information, describes how to
obtain Digital Semiconductor information and technical support, and how
to order Digital Semiconductor products and associated literature.
• Appendix C, Warranty Registration Information, provides information on
how to register your AlphaPC64 motherboard and be notified of changes
and updates.
Document Conventions
This section provides the conventions used in this document.
Caution: Cautions indicate potential damage to equipment or data.
Note: Notes provide additional information.
Numbering: All numbers are decimal or hexadecimal unless otherwise
indicated. In case of ambiguity, a subscript indicates the radix of nondecimal
numbers. For example, 19 is a decimal number, but 1916 and 19A are
hexadecimal numbers.
Extents: Extents are specified by a single number, or a pair of numbers in
angle brackets (< >) separated by a colon (:) and are inclusive. For example,
bits <7:3> specify an extent including bits 7, 6, 5, 4, and 3. Multiple bit fields
are shown as extents.
Register Figures: Register figures have bit and field position numbering
starting at the right (low-order) and increasing to the left (high-order).
Signal Names: Signal names in text are printed in boldface lowercase type.
For example, ‘‘ . . . bits data<127:0> are delivered to the Bcache SIMM
connectors . . . ’’
viii

1
AlphaPC64 Introduction
This chapter provides an overview of the AlphaPC64, its components, features,
and uses.
1.1 The AlphaPC64 Motherboard
The AlphaPC64 Motherboard (AlphaPC64) is a module for computing systems,
based on the Alpha 21064A microprocessor and the DECchip 21072 chipset.
The AlphaPC64 runs the Windows NT operating system. For information
on Digital UNIX or OpenVMS operating system support, contact your local
distributor or your Digital sales representative.
1.2 System Components and Features
The AlphaPC64 is implemented in industry-standard parts and uses a 21064A
microprocessor (CPU) running at 200 MHz to 275 MHz. The functional
components are shown in Figure 1–1 and are introduced in the following
subsections.
1.2.1 Memory Subsystem
The AlphaPC64 memory subsystem supports DRAM memory arrays of 16MB
to 512MB with a 128-bit data bus. The memory is contained in two banks of
four commodity single inline memory modules (SIMMs). Each SIMM is 36 bits
wide, with 32 data bits, 1 parity bit, and 3 unused bits with 70-ns or less

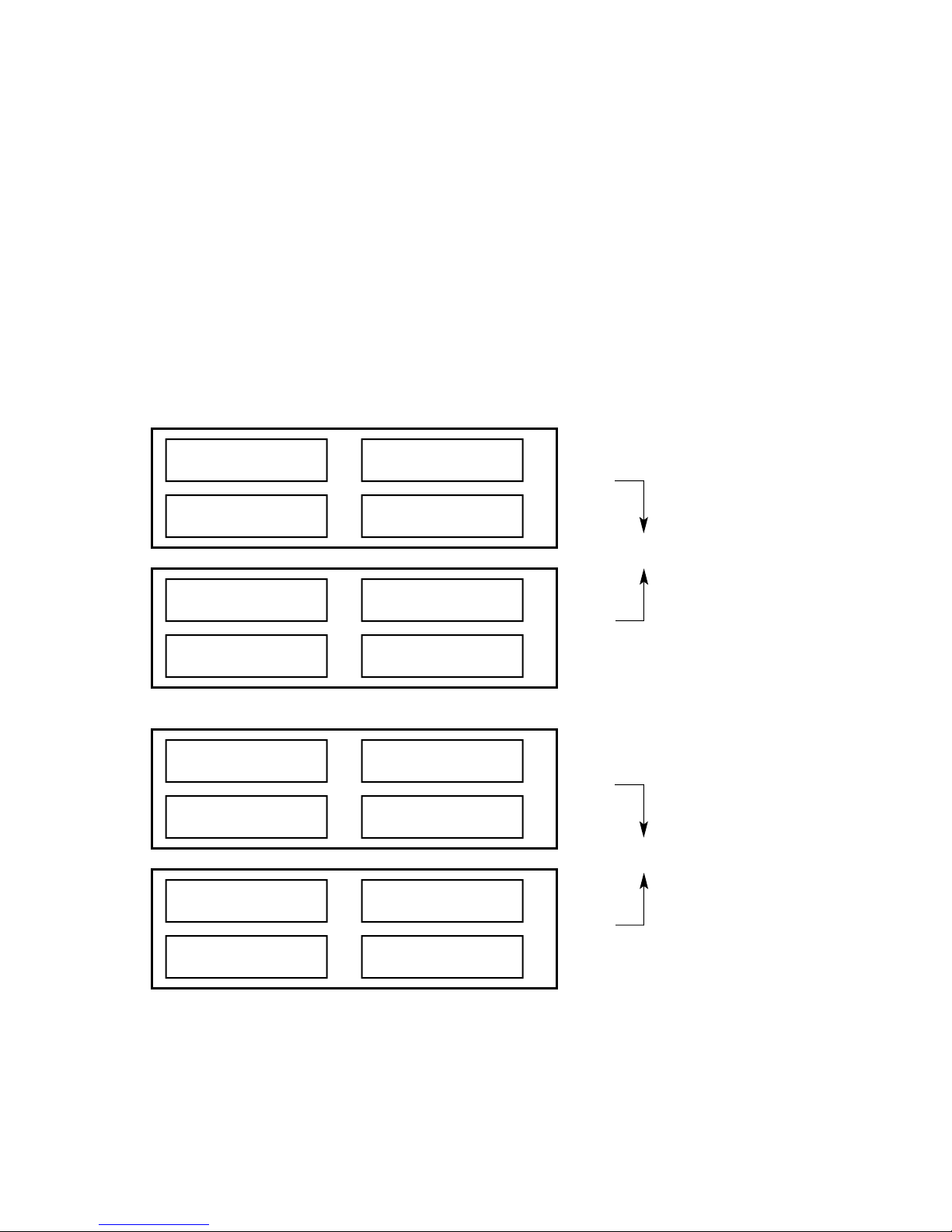

access. Figure 1–2 shows the maximum and minimum SIMM bank layouts.
The following SIMM sizes are supported:
1M x 36 2M x 36 4M x 36 8M x 36 16M x 36
AlphaPC64 Introduction 1–1

1.2 System Components and Features
Figure 1–1 AlphaPC64 Functional Block Diagram
- TriQuint PLL
Clock
- External Clock
Oscillator
- Serial Boot ROM
- Power Supply
- Supervisor
- System Clocking
21064A Support
Alpha 21064A
Microprocessor
Running at
200 MHz to
275 MHz
L2 Cache Interface
- L2 Cache PALs
- Address Buffers L2 Cache SIMMs
- 512KB
- 2MB
- 8MB
- Longword Parity
DECchip 21071-CA
21072 Chipset
- Cache/Memory
Control
- 208-Pin Package
DECchip 21071-BA
- 128-Bit Data Path
- Requires Four
DECchip
21071-BA Chips
PCI Devices *
PCI Arbitration
ISA Interface
DECchip 21071-DA
- PCI Bridge
- 208-Pin Package
- 2 or 3 Expansion
Slots
ISA Expansion Memory Buffering
ABT162244
Buffers
Memory SIMMs
- 128-bit Data Path
- Longword Parity
- 16MB to 512MB
- 2 Banks
- National 87312
- Intel 8242 Mouse
and Keyboard
- System Support
- IDE
LJ04129A.AI5
PCI
Bus
buff_
address
oe weand
L2 Cache
Control
Address
tag_adr
data<15:0>
Address
data<127:0> Check Bits<21, 14, 7, 0>
*Three PCI Expansion Slots with
One Shared Expansion Slot AddressISA Bus Memory
data<127:0>
Memory
Control
b_mctl
b_addr
1–2 AlphaPC64 Introduction

1.2 System Components and Features
Figure 1–2 Maximum and Minimum SIMM Bank Layouts
LJ04134A.AI
DRAM 3
Unpopulated J4 DRAM 1 Unpopulated J6
DRAM 2
Unpopulated J5 DRAM 0 Unpopulated J7
DRAM 3 - 4MB SIMM
memData96 - 127 + Parity J8 DRAM 1 - 4MB SIMM memData32 - 63 + Parity J10
DRAM 2 - 4MB SIMM
memData64 - 95 + Parity J9 DRAM 0 - 4MB SIMM memData0 - 31 + Parity J11
DRAM 3 - 64MB SIMM
memData96 - 127 + Parity J4 DRAM 1 - 64MB SIMM memData32 - 63 + Parity J6
DRAM 2 - 64MB SIMM
memData64 - 95 + Parity J5 DRAM 0 - 64MB SIMM memData0 - 31 + Parity J7
DRAM 3 - 64MB SIMM
memData96 - 127 + Parity J8 DRAM 1 - 64MB SIMM memData32 - 63 + Parity J10
DRAM 2 - 64MB SIMM
memData64 - 95 + Parity J9 DRAM 0 - 64MB SIMM memData0 - 31 + Parity J11
Minimum 16MB DRAM Layout - Populated with 1M x 36 SIMMs
Maximum 512MB DRAM Layout - Populated with 16M x 36 SIMMs
Bank 0
16MB
Bank 1
0MB
16MB
Bank 0
256MB
Bank 1
256MB
512MB
AlphaPC64 Introduction 1–3

1.2 System Components and Features
1.2.2 DECchip 21072 Support Chipset
The 21064A is supported by a DECchip 21072 ASIC chipset (21072), with a
128-bit memory interface. The chipset consists of the following three chips:
• DECchip 21071-CA (21071-CA) provides the interface from the CPU to
cache and main memory, and includes the cache and memory controller.
• DECchip 21071-BA (21071-BA) provides a 32-bit data path from the CPU
to memory and I/O. Four chips provide the 128-bit interface.
• DECchip 21071-DA (21071-DA) provides an interface from the CPU to the
peripheral component interconnect (PCI) bus.
The chipset includes the majority of functions required for a high-performance
PC or workstation, requiring minimum discrete logic on the motherboard. The
chipset provides flexible and generic functions to allow its use in a wide range
of systems.
For more information on the DECchip 21072 chipset, see the DECchip 21071
and DECchip 21072 Core Logic Chipsets Data Sheet.
1.2.3 PAL Control Set
The AlphaPC64 contains a 4-PAL control set and includes the following:
• Two 16V8-5 PALs provide L2 cache output-enable and write-enable
functions.
• One 22V10-25 PAL provides interrupt address decode functions and utility
bus (Ubus) control.
• One MACH210-20 PAL provides the PCI and ISA interrupts.
1.2.4 Level 2 Cache Subsystem Overview
The external level 2 (L2) cache subsystem supports 512KB, 2MB, or 8MB
cache sizes by using a 128-bit data bus. The L2 cache size can be reconfigured
through onboard hardware and software jumpers.
The AlphaPC64 supports the L2 cache SIMM sizes shown in Table 1–1. SIMM
types currently available and supported are 512KB @15 ns and 2MB @12 ns.
Two SIMMs are required per system. See Appendix A for ordering information.
1–4 AlphaPC64 Introduction

1.2 System Components and Features
Table 1–1 L2 Cache SIMM Sizes
L2 Cache Size Static RAM Access Times
512KB 6 ns, 8 ns, 10 ns, 12 ns, 15 ns
2MB 6 ns, 8 ns, 10 ns, 12 ns, 15 ns
8MB 6 ns, 8 ns, 10 ns, 12 ns, 15 ns
1.2.5 Clock Subsystem Overview
The clock subsystem provides clocks to the 21072 chipset and PCI devices. Two
oscillators provide clocks for the ISA and combination chip functions.
1.2.6 PCI Interface Overview
The PCI interface provides a selectable PCI speed between 25 MHz and
33 MHz (based on the 21064A clock divisor). An Intel 82378ZB Saturn IO
(SIO) chip provides a PCI-to-ISA bridge.
The PCI has three dedicated slots and one shared slot with the ISA.
1.2.7 ISA Interface Overview
The ISA provides an expansion bus and the following system support functions:
• Mouse and keyboard controller functions provided through an Intel 8242
chip
• A National 87312 chip used as the combination chip providing a diskette
controller; two universal asynchronous receiver–transmitters (UARTs); an
integrated device electronics (IDE) interface; a bidirectional parallel port;
and an interface to the utility bus (Ubus) for ISA interrupts and jumper
status
• A time-of-year (TOY) function provided by a Dallas Semiconductor DS1287
chip
• A 1MB flash ROM memory using the Intel 28F008SA chip
The ISA has two dedicated expansion slots and one shared expansion slot with
the PCI.
AlphaPC64 Introduction 1–5

1.2 System Components and Features
1.2.8 Software Support
Software support includes an industry-standard, 1MB flash ROM containing
Windows NT ARC firmware and debug monitor code. The debug monitor
allows you to:
• Download files through serial port, I/O diskette, and optional Ethernet
port.
• Load data from the flash ROM through the debug monitor.
• Examine and deposit the AlphaPC64 system register, 21064A internal
processor registers (IPRs), and I/O mapped registers.
• Examine and modify DRAM and I/O mapped memory.
• Disassemble CPU instructions in memory.
• Transfer control to programs in memory.
• Perform native debugging, including breakpoints and single stepping.
• Perform full source-level debugging, using DECladebug running on a host
communicating through an Ethernet connection.
Development code can be generated on a host system and loaded into the
AlphaPC64 through the serial line, optional Ethernet port, diskette, or flash
ROM. Full design database and user documentation are provided.
A serial ROM (SROM) contains the 21064A initialization code. When reset
is deasserted, the contents of the SROM are read into the Icache and are
executed to perform initialization. During initialization, code is loaded from
the flash ROM to memory. Following initialization, control is transferred to the
code in memory.
1.2.9 Component Layout
Figure 1–3 shows the AlphaPC64 board component layout and dimensions.
1.2.10 System Summary
Table 1–2 lists the physical, performance, and operating characteristics of the
AlphaPC64 motherboard.
1–6 AlphaPC64 Introduction

1.2 System Components and Features

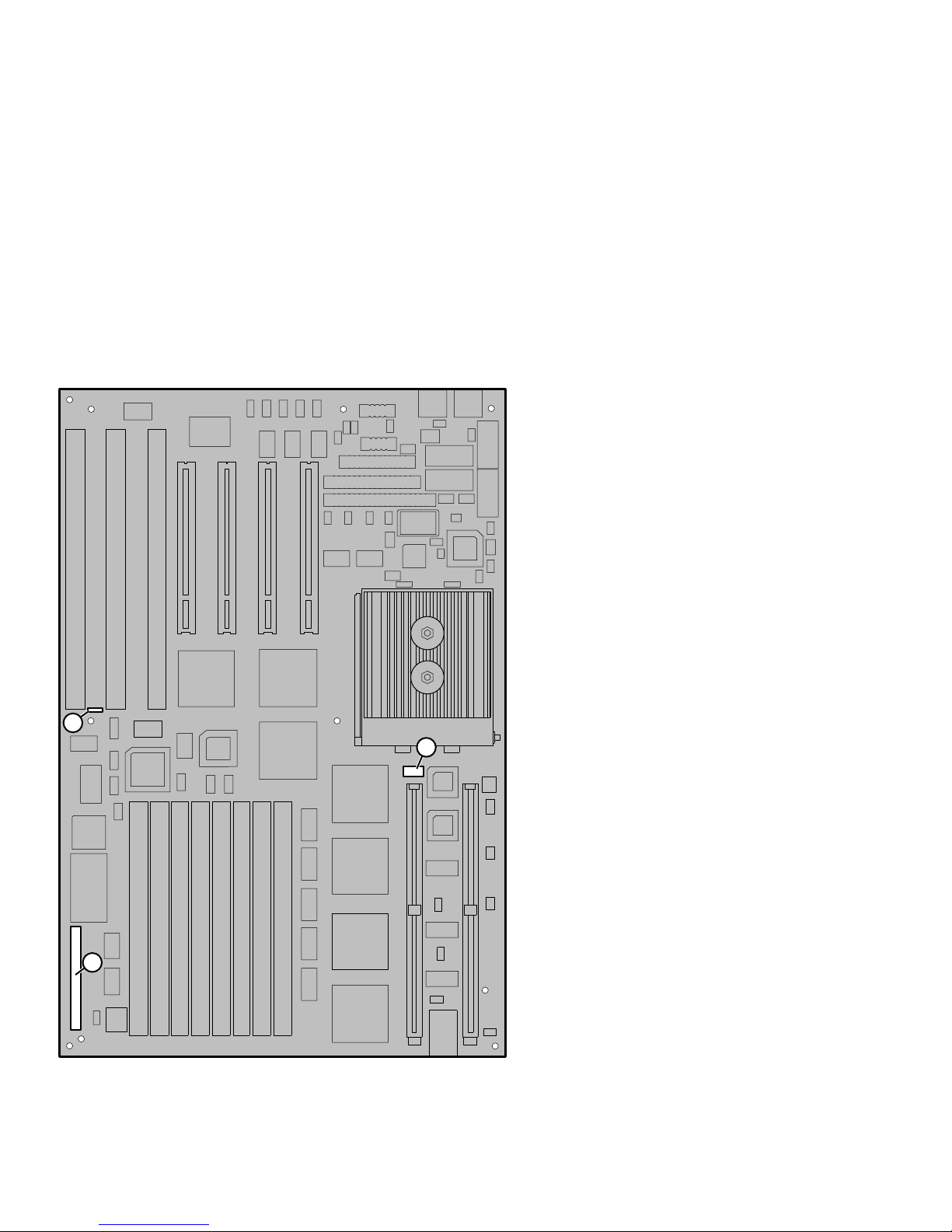

Figure 1–3 AlphaPC64 Component Layout and Board Dimensions
LJ-04458.AI5
22.1 cm (8.7 in ±0.0005 in)
33.0 cm (13.0 in ±0.0005 in)
Scale = 90%
AlphaPC64 Introduction 1–7

1.2 System Components and Features
Table 1–2 AlphaPC64 Summary
Characteristic Description
Operating Systems
Supported operating
systems Microsoft Windows NT. For information on Digital UNIX or OpenVMS operating system support, see your local
distributor or your Digital sales representative.
System Characteristics
CPU and clock speed Alpha 21064A at 200 MHz, 233 MHz, or 275 MHz
CPU upgradable ZIF socket for Alpha 21064A upgrade
Instruction issue Up to 2 instructions issued per clock cycle
Word size 64 bits
Address size 34-bit physical address, 43-bit virtual address
Floating-point format VAX (F and G) and IEEE (S and T) data types
Memory (DRAM)1Minimum DRAM 16MB plus parity
Maximum DRAM 512MB plus parity
Memory (ROM) 1MB flash ROM
External L2 cache Configurable for 512KB, 2MB, 8MB (128-bit data)
Memory bus width 128 bits plus parity
Performance metrics
Alpha 21064A running
at 275 MHz Cache SPECint92 SPECfp92
512KB @15 ns 176 217
2MB @12 ns 193 259
2MB @8 ns 205 272
1Minimum DRAM recommended:
16MB for Windows NT
32MB for Digital UNIX
32MB for OpenVMS
(continued on next page)
1–8 AlphaPC64 Introduction

1.2 System Components and Features
Table 1–2 (Cont.) AlphaPC64 Summary
Characteristic Description
Graphics
Graphics options Refer to the Microsoft Hardware Compatibility List for
Windows NT to determine which graphics cards are
supported. See Section B.4 for information on how to obtain
the listing.
Input/Output
Input device interfaces PS/2 style keyboard and mouse
Serial Two RS423-compatible (9-position) serial communications
ports
Parallel One parallel (Centronics compatible) communications port
Bus options Total of 6 option slots
PCI bus Supports four 5-V/32-bit PCI option slots at 33 MHz
maximum–one long and three short cards
ISA bus Supports three 16-bit ISA option slots
IDE One IDE interface supporting up to 2 drives
Diskette One 82077-compatible diskette controller supporting up to 2
drives with 1.44MB and 2.88MB formats
Physical Characteristics
Form factor Baby-AT-size system board
Width/depth 22.1 cm (8.7 in)
2 33.0 cm (13.0 in)
Weight 840 grams (1.85 lb) with high-profile heat sink
(continued on next page)
AlphaPC64 Introduction 1–9

1.2 System Components and Features
Table 1–2 (Cont.) AlphaPC64 Summary
Characteristic Description
Environmental Characteristics (Operating)
Temperature 10°C to 40°C (50°F to 104°F)
Temperature change
rate (maximum) 20°C/hr (36°F/hr)
Relative humidity
Maximum wet bulb
Minimum dew point
10%–90% noncondensing
32°C (90°F)
2°C (36°F)
EMC compliance Compliance certification is the responsibility of the system
integrator. The AlphaPC64 was tested in industry-
representative enclosures to prove feasibility of emissions
compliance.
Shock and vibration Passing of shock and vibration tests is dependent on the
method used to mount the system board, the design of the
enclosure, and how the enclosure is supported. Testing is
the responsibility of the system integrator.
1–10 AlphaPC64 Introduction

2
System Jumpers and Connectors
The AlphaPC64 uses jumpers to implement variations in clock frequency and
L2 cache size and speed. These jumpers must be configured for the user’s
environment. Onboard connectors are provided for the I/O, memory SIMMs,
serial and parallel peripherals, integrated device electronics (IDE) devices, and
L2 cache SIMMs.
After the module is configured, you can apply power and run the debug
monitor. The debug monitor and its commands are described in the Alpha
Microprocessors Evaluation Board Debug Monitor User’s Guide. Appendix B
provides information about other software design tools.
2.1 Configuration Jumpers
The software and hardware configuration jumpers are identified in Figures 2–1
and 2–2, and are described in Tables 2–1 and 2–2.
2.1.1 Software Configuration Jumpers
The software configuration jumpers are completely programmable. Each
jumper position is described in Table 2–1.
The SROM code defines the software configuration jumpers sp_bit<7:0>,as
shown in Figure 2–2 (see also Chapter 4).
The board ships with the jumpers listed in Tables 2–1 and 2–2 in the default
position.
System Jumpers and Connectors 2–1

2.1 Configuration Jumpers
Figure 2–1 AlphaPC64 Board Jumpers
LJ-04459.AI5
J16
J15
J3
Scale = 90%
2–2 System Jumpers and Connectors
