DIGITAL FORECAST BRIDGE X TS User manual

1
USER MANUAL
BRIDGE X TS
VIDEObit S.A. representa en Argentina a DIGITAL FORECAST

USER MANUAL
2
Summary
Bridge X TS is a device that supports a variety of inputs and outputs. This device can be used in
the installation construction, maintenance service of video or audio signal. You can see the signal
status to the LCD panel. Even if any one of the input signal, the converted signals are all output.
Also this device has the ability to measure the built-in SDI Jitter and Cable length.
Feature
Up/Down/Cross/Scan converter
Multiple standard Video / Audio signal
(CVBS, AES/EBU, SDI, VGA, COMPONENT, Analog audio, HDMI)
Analog audio MUX / DEMUX
User selectable output format
Test Pattern Generator (Stop screen and Moving Box screen)
Menu OSD function
Audio level check (Most 8 channels are monitored)
Touch Screen LCD Built in For Input signal monitoring (5 Inch 800x480)
External Battery (Option)
VIDEObit S.A. representa en Argentina a DIGITAL FORECAST

3
Product Composition(hard case)
1 of hard case
1 of X_TS main body
1 of adaptor
1 of Holder
1 of Battery tap(sony)
1 of VGA to Component jack
1 of analog audio jack
1 of HDMI cable
1 of SDI cable
VIDEObit S.A. representa en Argentina a DIGITAL FORECAST

USER MANUAL
4
Product Composition(hard case)
VIDEObit S.A. representa en Argentina a DIGITAL FORECAST

5
Product Composition(basic)
1 of basic case
1 of X_TS main body
1 of adaptor
1 of VGA to Component jack
1 of analog audio jack
VIDEObit S.A. representa en Argentina a DIGITAL FORECAST

USER MANUAL
6
The name and the function of each product part
5.0”View finder
Touch panel
Source In
Signal converted out
Multi-Controller
FAN
Power On/Off
Switch
Air Vent
Power Jack
Battery tap(Holder) hole x4
Analyzer Out
VIDEObit S.A. representa en Argentina a DIGITAL FORECAST

7
The standard and the performance
Physical
Size (W x H x D)
182.4 x 92.6 x 29 (mm)
weight
530 g
Supply Power
+ 12 VDC
Power Consumption
13 Watts (Maximum: 15Watts)
Operation temperature
0℃~ 70℃
humidity
0% ~ 95% RH, Non-condensing
Digital Video Specs
HDMI v1.3 format Support
Multi-rate SDI format Support
SD format : 525/19.97(NTSC), 625/25(PAL), 480P, 576P
HD format : 720P(24/25/30/50/59.94/60)
1080i(50/59.94/60)
1080p(24/25/30/sf24/50/59.94/60)
LCD Display Specs
Size: 5.0 Inch
Resolution : 800 x 480
Pixel area : 0.135mm(W) x 0.135mm(H)
Display area : 108mm(W) x 64.8(H)
182.4(W) x 92.6(L) x 29(H) mm
29 mm
92.6 mm
182.4 mm
VIDEObit S.A. representa en Argentina a DIGITAL FORECAST

USER MANUAL
8
Application
VIDEObit S.A. representa en Argentina a DIGITAL FORECAST

9
Use method
1. Menu explanation
When a menu button is pressed for more than 2 seconds and a touch screen is pushed, the
menu is indicated
1. IN/OUT : The kind of input signals and the resolution of the output signal and
the pattern can be setup
2. OUT SET : OUT PUT mode setting
3. Measure : It can be indicated to choose YCbCr, RGB waveform and Audio, Vector Scope
4. Config : It can be set as a screen that audio and automation go off, and version
information is indicated
5. Exit : The menu screen is ended
6. FULL/SPLIT : A display mode of a screen (the whole/division) can be chosen
7. STATUS : A state window of the screen upper row is indicated and isn't indicated
8. HDCP : When HDCP is activated at HDMI signal input, it's indicated
VIDEObit S.A. representa en Argentina a DIGITAL FORECAST

USER MANUAL
10
2. The addition menu explanation
2.1 IN/OUT
INPUT : The signal which consists of SDI, HDMI, COMP, VGA, CVBS, Pattern, Audio AUTO,
Audio AES, Audio L/R and inputs can be chosen
AUTO Embed : Video signal is SDI/HDMI to Embedded. COMP/VGA/CVBS to Analog L/R.
OUTPUT : It's possible to setting the output resolution
and the kind of patterns can be chosen
When pressing a SET button after choosing the output format, it's applied
Test pattern
SMPTE Color Bar
SMPTE + Move
Pathological
Pathological + Move
Gray
Gray + Move
Black
Black + Move
VIDEObit S.A. representa en Argentina a DIGITAL FORECAST

11
2.2 OUT SET
Color Mode : It's possible to setting the output color mode.
ARC Mode : Aspect Ratio Converter.
※Notes
This feature is only used when you want to use the VGA output mode
SDI and CVBS, COMPONENT is YUV422 modes are supported, so as to change the
RGB444 output mode normally does not come out.
VIDEObit S.A. representa en Argentina a DIGITAL FORECAST

USER MANUAL
12
2.3 Measure
Waveform : It can be indicated to choose YCbCr or RGB waveform at the bottom left
Measure Window : It can be indicated to choose Audio, Vector scope, Jitter on window in
split mode
VIDEObit S.A. representa en Argentina a DIGITAL FORECAST

13
1) Audio level display
It is indicated to at most 8 channels
Indication by a video input source
It is indicated as the dbFS reference
2) Vector Scope
It is indicated as the vector scope
3) Length (Option)
Indication a input SDI cable length
Indication by Good, Normal, Bad
4) Jitter (Option)
Indication a pseudo eye pattern with jitter
Peak to Peak Jitter :
Simulated Physical Eye jitter
Max 1 UI Check
Indication by Good, Normal, Bad
< Pseudo EyE Picture >
VIDEObit S.A. representa en Argentina a DIGITAL FORECAST

USER MANUAL
14
2.4 Config
LCD Bright : The brightness of the LCD screen can be controlled
LCD Contrast : Contrast of a LCD screen can be controlled
Audio Volume : The volume of sound output by a terminal of earphones
can be controlled
Auto OFF(min) : The timer which to turn off a LCD screen can be setup
Ver : Version information on a system is indicated
2.5 FULL/SPLIT
FULL : A image is indicated on the whole screen
SPLIT : A image is indicated with three division screens, and monitoring information is
shown to the right side
VIDEObit S.A. representa en Argentina a DIGITAL FORECAST

15
2.6 STATUS
1. An audio signal (1 Group 1,2 Channel L/R Signal) is indicated.
2. Audio L/R level bar Display (1 Group L/R Signal).
3. The selected of Input video/audio status.
4. Auto OFF Activating/deactivating Icon.
5. Input resolution indication
6. Direction of conversion indication
7. Resolution of output
8.

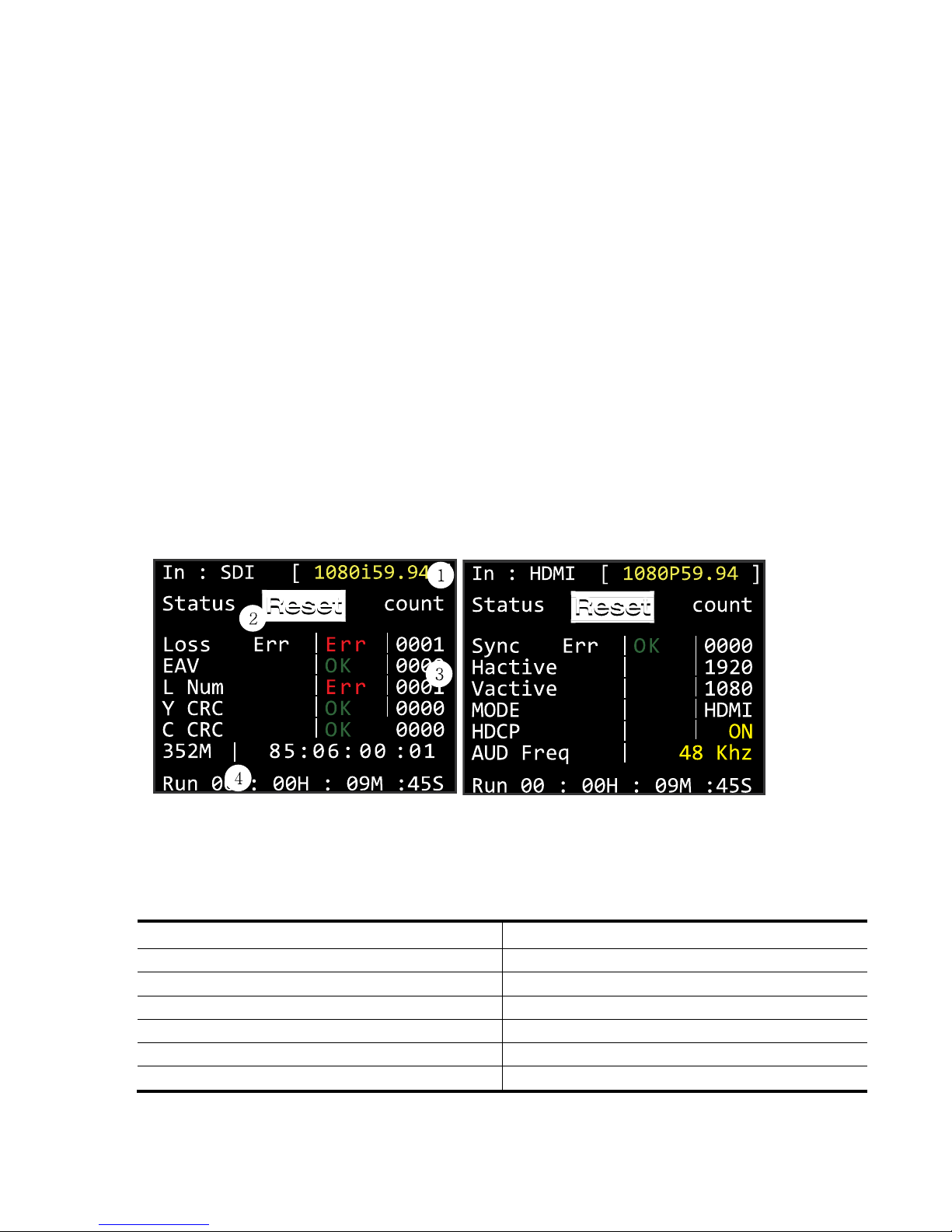

3. Monitoring information display
1. An input source and input format information are indicated
2. When pressing a reset button, an error count and Run time are initialized
3. When an error occurs by item, it is count and displayed
4. Display sequence of an execution time is day, hour, minute, seconds
SDI information display
HDMI information display
- Loss Err : A signal Loss error is displayed
- Sync Err : A Sync error is displayed
- EAV Err : A EAV error of a TRS signal is displayed
- H active : Horizontal resolution is displayed
-L Num Err: Line number marking error is displayed
- V active : Vertical resolution is displayed
- Y CRC Err : A CRC error of Y signal is displayed
- MODE : HDMI and DVI mode are displayed
- C CRC Err:A CRC error of Cb,Cr signal is displayed
- HDCP : A check of HDCP support is displayed
- 352M : SMPTE352M Payload is displayed
- AUD Freq : Audio sampling frequency is displayed
